Product Overview

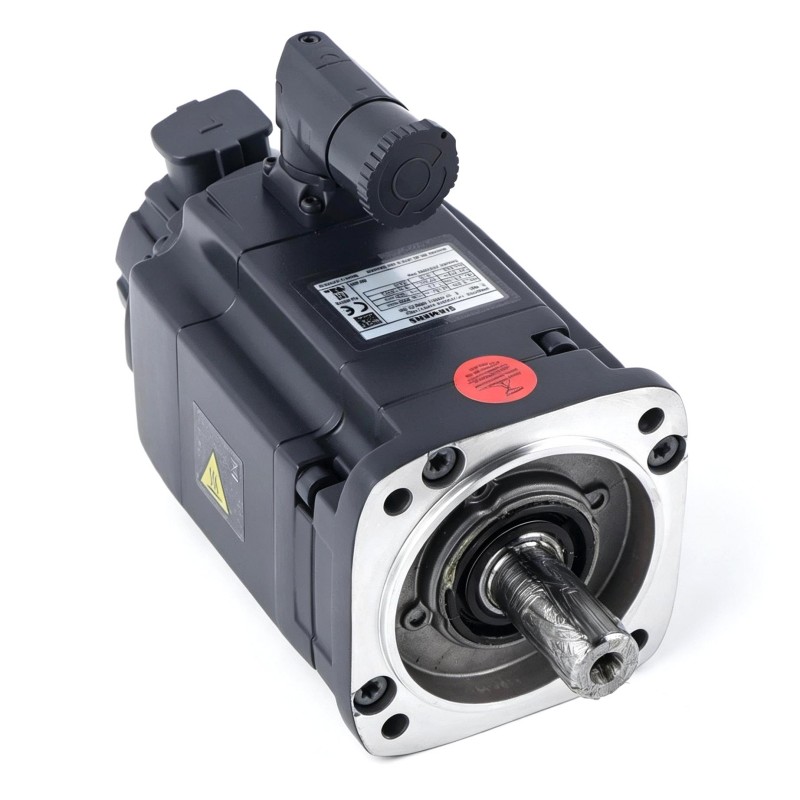

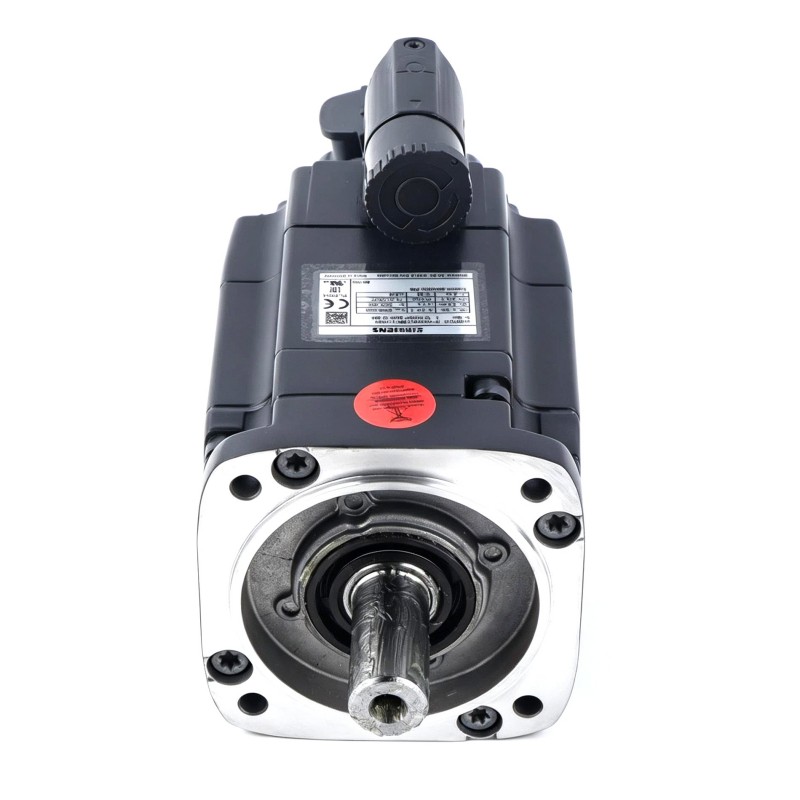

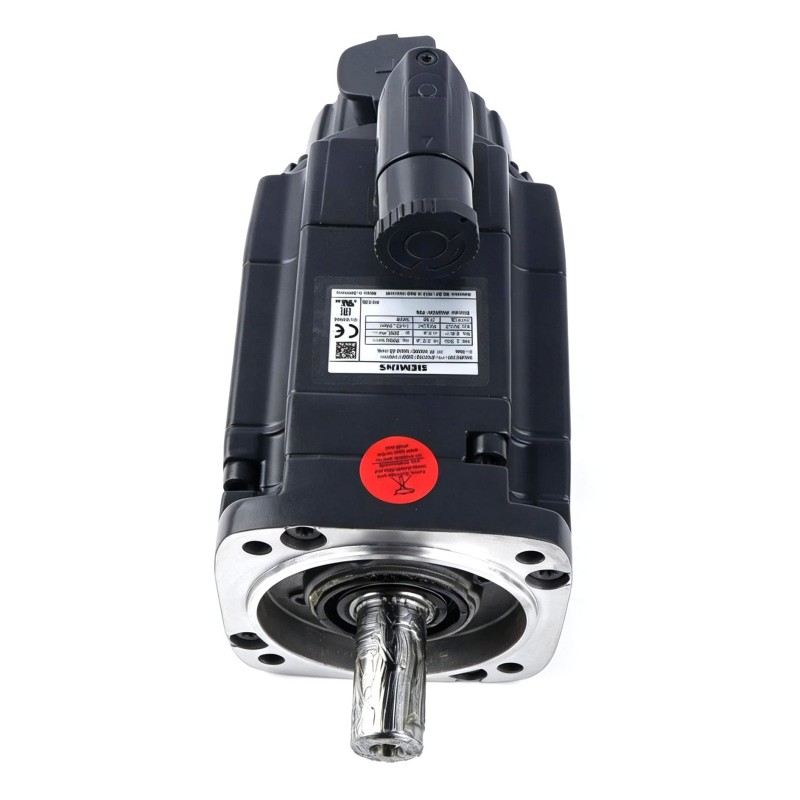

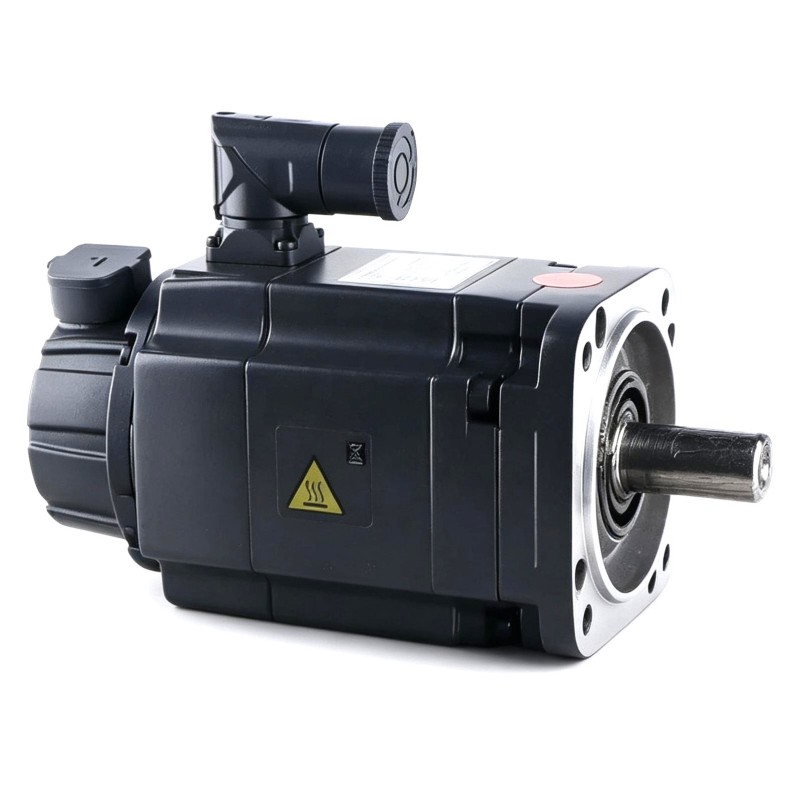

The Siemens 1FK7042-2AF71-1RB1 is a SIMOTICS S synchronous motor from the 1FK7 family, used as the motor element in controlled industrial motion systems. It works with a compatible Siemens servo drive and motion controller to convert regulated electrical power into rotary mechanical movement for an automated machine axis.
This motor type is suited to applications where machine movement needs to follow defined speed, position, or sequencing commands. It can be integrated into packaging equipment, automated assembly systems, material-handling machinery, machine tools, production equipment, and other servo-controlled automation systems.
The motor is normally evaluated as part of the complete motion axis rather than as an independent component. The connected drive, feedback system, mechanical transmission, machine load, and axis configuration all need to be considered during replacement, commissioning, and troubleshooting.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Model | 1FK7042-2AF71-1RB1 |
| Product Type | Synchronous Motor |
| Product Family | SIMOTICS S |
| Series | 1FK7 |
| Motor Technology | Permanent-Magnet Synchronous Motor |
| Motion Type | Servo Motion |
| Control Method | Closed-Loop Motion Control |
| Application | Industrial Machine-Axis Motion |
| System Integration | Siemens Servo Drive and Motion Controller |
| Feedback | Motor Feedback System |
| Mechanical Function | Rotary Machine-Axis Drive |
| Installation | Machine-Mounted |
| Shaft Height | 48 mm |
| Weight | 4.9 kg |
Product Features
- SIMOTICS S synchronous motor for industrial motion-control applications
- Part of the Siemens 1FK7 motor family
- Suitable for controlled rotary movement in automated machinery
- Operates with a compatible Siemens servo drive and motion-control system
- Supports closed-loop machine-axis operation with appropriate feedback
- Suitable for positioning, speed regulation, and coordinated axis movement
- Can be connected to suitable couplings, gear systems, belts, or other mechanical transmissions
- Applicable to individual servo axes and coordinated multi-axis machinery
- Suitable for repetitive production cycles and automated machine sequences
- Useful for maintenance, replacement, and retrofit projects where the complete servo-axis configuration is compatible
Working Principle
The 1FK7042-2AF71-1RB1 operates as the motor stage of a controlled Siemens motion axis. The motion controller establishes the required movement according to the machine program, while the servo drive regulates the electrical power supplied to the motor.
The synchronous motor converts the controlled electrical input into rotary mechanical movement. This rotation is transferred through the connected mechanical transmission to the driven machine mechanism. Depending on the equipment, the mechanical connection may use a direct coupling, gearbox, belt, or another suitable transmission.
Motor feedback supplies actual operating information to the servo control system. The drive uses this information together with the commanded movement to monitor and regulate motor operation. This closed-loop process allows the axis to perform controlled positioning, speed regulation, and coordinated movement.
The primary motion path is:
Motion Controller → Siemens Servo Drive → 1FK7042-2AF71-1RB1 → Mechanical Transmission → Machine Axis
The feedback path returns motor-status information to the drive and control system to support closed-loop operation.
Role in a SIMOTICS S Servo Motion Control Architecture
The 1FK7042-2AF71-1RB1 occupies the motor layer within a Siemens SIMOTICS S servo architecture. It converts regulated electrical power from the drive into mechanical rotation while its feedback system contributes actual motor information to the control loop.
| Control Architecture Layer | Typical Component | Function |
|---|---|---|
| Motion Control | Siemens Motion Controller | Generates and coordinates machine-axis commands |
| Drive Layer | Siemens Servo Drive | Regulates motor power and servo operation |
| Motor Layer | 1FK7042-2AF71-1RB1 | Produces controlled rotary mechanical movement |
| Feedback Layer | Motor Feedback System | Supplies actual motor-status information |
| Mechanical Layer | Coupling / Gear / Belt | Transfers motor rotation to the machine |
| Machine Axis | Automated Mechanism | Performs the required production movement |
| Supervisory Layer | HMI / Engineering System | Supports operation, configuration, and diagnostics |
Industrial Applications
| Application | Typical Use |
|---|---|
| Packaging Machinery | Controlled rotary movement for indexing and production sequences |
| Automated Assembly | Servo-driven movement of assembly mechanisms |
| Material Handling | Positioning and coordinated movement of handling equipment |
| Machine Tools | Controlled rotary motion in automated machine mechanisms |
| Production Machinery | Repeatable movement during manufacturing cycles |
| Robotics and Automation | Rotary servo-axis movement within integrated equipment |
| Printing Equipment | Synchronized movement of production mechanisms |
| Converting Machinery | Controlled movement during material-processing operations |
Installation and Maintenance
- Verify drive compatibility — Confirm that the 1FK7042-2AF71-1RB1 is suitable for the connected Siemens drive and intended servo-axis configuration.
- Check mechanical mounting — Verify that the motor mounting interface and machine structure are appropriate before installation.
- Inspect the motor — Check the housing, shaft, connectors, and accessible surfaces for damage before mounting.
- Verify feedback compatibility — Confirm that the motor feedback arrangement and associated cable are correctly matched to the drive system.
- Inspect power connections — Check the motor power cable, connectors, routing, and insulation condition before energizing the axis.
- Protect feedback wiring — Route feedback wiring appropriately and maintain suitable separation from potential electrical interference sources.
- Check the mechanical load — Verify that the connected mechanism moves correctly and does not impose unexpected resistance on the motor.
- Confirm drive parameters — Check motor identification, feedback settings, direction, scaling, and applicable servo-axis parameters before enabling the system.
- Inspect shaft and coupling alignment — Ensure correct alignment between the motor shaft and mechanical transmission and avoid unnecessary mechanical loading.
- Perform a controlled movement test — Start with a low-risk movement to verify rotation direction, feedback response, and basic servo operation.
- Monitor operating behavior — Watch for abnormal vibration, noise, temperature increase, positioning deviations, or servo alarms during commissioning.
- Document the installation — Record the motor model, drive configuration, feedback arrangement, wiring changes, and commissioning results for future maintenance.
Related Components
| Component | Function |
|---|---|
| Siemens SINAMICS Servo Drive | Regulates electrical power and servo operation |
| Siemens Motion Controller | Generates and coordinates machine-axis movement |
| Motor Power Cable | Provides the motor power connection |
| Motor Feedback Cable | Transfers feedback information between motor and drive |
| Mechanical Coupling | Connects the motor shaft to the driven mechanism |
| Gearbox | Adapts motor rotation to the machine requirements |
| HMI / Engineering System | Supports operator control and drive configuration |
| Industrial Control Network | Connects motion-control and automation equipment |
Recommended Related Models
| Model | Product Type | Series |
|---|---|---|
| Siemens 1FK7022 Series | Synchronous Servo Motor | SIMOTICS S |
| Siemens 1FK7032 Series | Synchronous Servo Motor | SIMOTICS S |
| Siemens 1FK7042-2AF71-1CG0 | Synchronous Motor | SIMOTICS S |
| Siemens 1FK7042-2AF71-1CH1 | Synchronous Motor | SIMOTICS S |
| Siemens 1FK7042-2AF71-1CH2 | Synchronous Motor | SIMOTICS S |
Key Advantages
- SIMOTICS S platform for industrial motion applications
- 1FK7 series synchronous motor architecture
- Suitable for controlled rotary machine-axis movement
- Supports closed-loop servo operation with compatible drive and feedback hardware
- Applicable to positioning, speed regulation, and coordinated motion
- Integrates into Siemens motion-control architectures
- Suitable for automated production and machine-axis maintenance applications
Technical FAQs
What is the Siemens 1FK7042-2AF71-1RB1 used for?
The 1FK7042-2AF71-1RB1 is a SIMOTICS S synchronous motor used as part of a controlled industrial motion axis. It is suitable for machinery requiring regulated rotary movement and coordinated axis operation.
What components are required for operation with this motor?
The motor is one part of a complete motion system. The application also requires a compatible Siemens servo drive, motion controller, feedback connection, motor cabling, and suitable mechanical connection to the machine.
What should be checked before replacing a 1FK7042 motor?
The existing servo drive, feedback arrangement, mechanical mounting, shaft connection, machine load, and configured motion parameters should be checked. The complete axis configuration should be considered rather than selecting a replacement only by series designation.
What can cause positioning problems after motor replacement?
Incorrect feedback connections, drive parameters, motor direction settings, mechanical coupling problems, excessive machine load, or issues elsewhere in the servo control loop can contribute to positioning problems. Troubleshooting should therefore cover both the electrical and mechanical portions of the axis.
