- Schneider
- XCC-RE5RN
- Bracket with Gap Compensator
- France
- 85 x 93 x 80 mm
- 0.345 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 6
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Summary

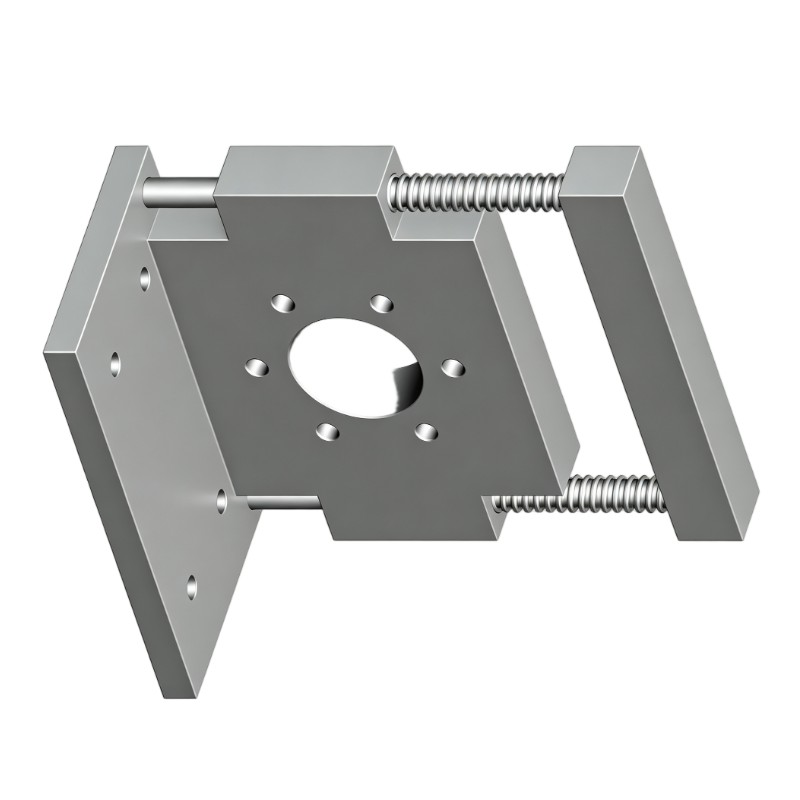

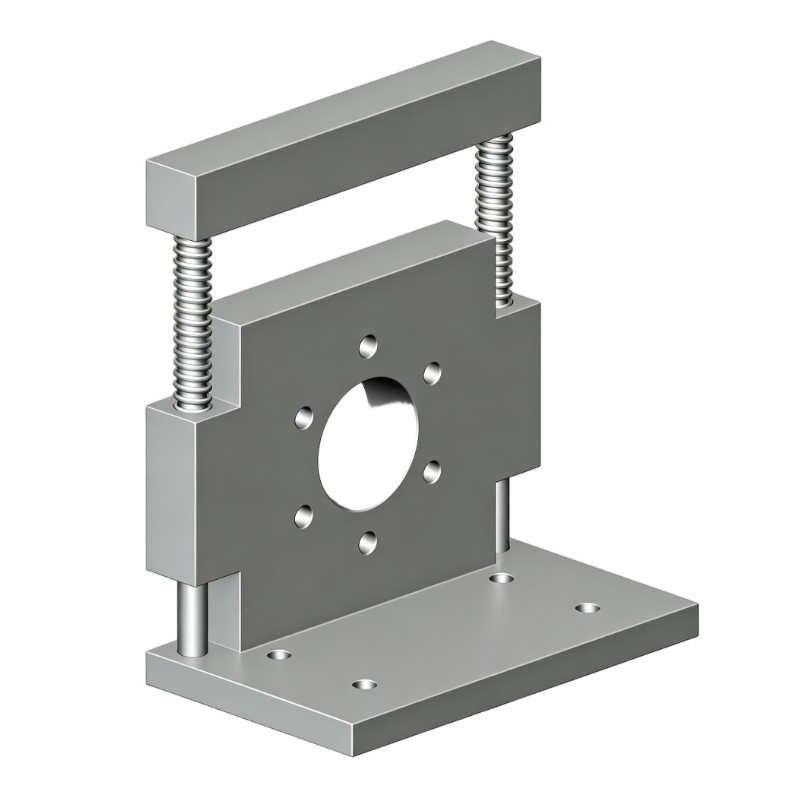

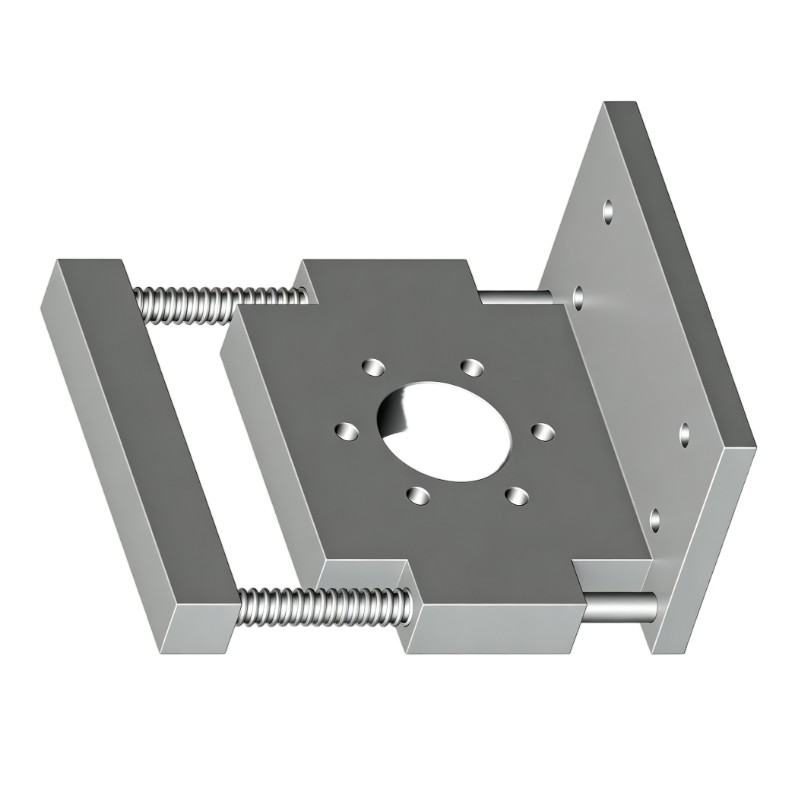

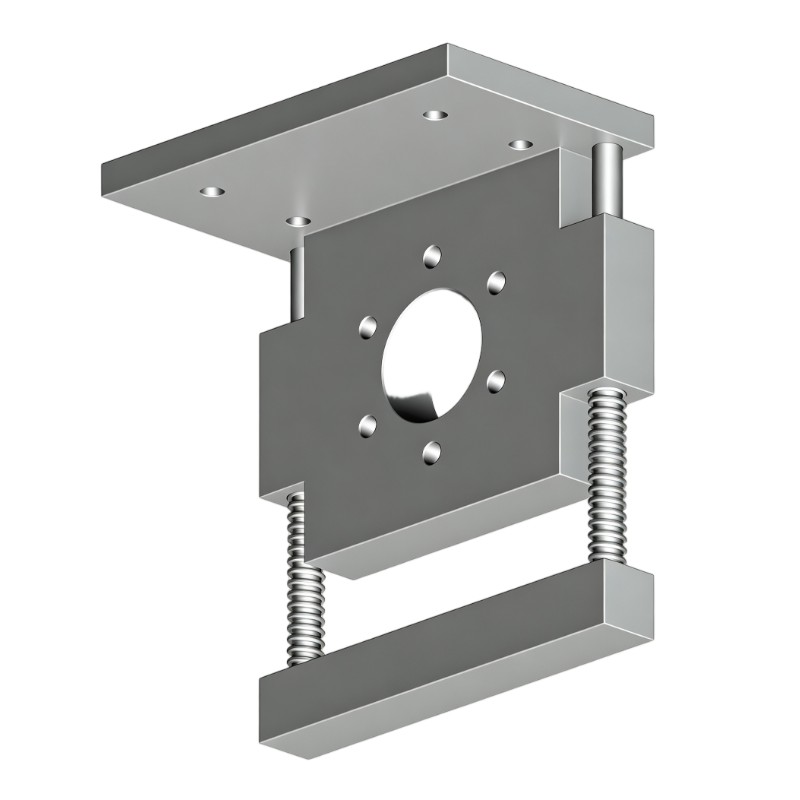

The Schneider XCC-RE5RN Bracket with Gap Compensator is a mounting accessory designed for Schneider XCC series rotary encoders. It provides a flexible installation solution by compensating for mechanical play between the encoder and machine shaft, helping maintain stable encoder operation and accurate motion feedback in industrial applications.
Applications
Encoder Installation
Used to mount compatible XCC rotary encoders securely onto industrial machines.
Motion Control Systems
Supports encoder applications where stable mechanical positioning is required for accurate feedback.
Industrial Machinery
Suitable for production equipment, automation systems, and rotating machinery.
Encoder Replacement Projects
Used as a replacement mounting accessory when upgrading or maintaining existing encoder installations.
Advantages
Mechanical Gap Compensation
Helps compensate for installation tolerance and mechanical movement between the encoder and machine structure.
Improved Encoder Stability
Provides secure mounting support to reduce mechanical vibration and positioning errors.
XCC Encoder Compatibility
Designed for use with compatible Schneider XCC series encoder models.
Flexible Installation Design
Allows easier integration of encoders into different machine structures.
Reliable Industrial Mounting
Provides a durable mounting solution for continuous automation operation.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | XCC-RE5RN |
| Brand | Schneider Electric |
| Product Series | XCC |
| Product Type | Encoder Mounting Bracket |
| Accessory Type | Bracket with Gap Compensator |
| Compatible Encoder Size | Ø58 mm |
| Dimensions | 85 × 93 × 80 mm |
| Weight | 0.345 kg |
Related Components
| Component | Main Function |
|---|---|
| Schneider XCC Incremental Encoders | Provide rotary speed and position feedback |
| Schneider XCC Absolute Encoders | Provide absolute position measurement |
| Encoder Couplings | Connect encoder shafts with machine shafts |
| Servo Motors | Provide controlled mechanical movement |
| Motion Controllers | Process encoder feedback signals |
| PLC Controllers | Manage automation control logic |
Technical FAQs
1. What is the Schneider XCC-RE5RN used for?
The XCC-RE5RN is a mounting bracket with a gap compensator used to install compatible XCC series rotary encoders on industrial equipment.
2. What type of encoder can use the XCC-RE5RN?
It is designed for Schneider XCC encoders with a 58 mm mounting size, including compatible incremental encoder models.
3. Why is a gap compensator required for encoder installation?
A gap compensator helps absorb mechanical tolerance differences and reduces the impact of alignment variations between the encoder and machine structure.
4. Is the XCC-RE5RN an electrical component?
No. It is a mechanical mounting accessory used to support encoder installation and improve mechanical stability.
5. What should be checked before replacing the XCC-RE5RN?
The encoder model, mounting dimensions, mechanical connection method, installation position, and compatibility with the existing machine structure should be checked before replacement.
Recommended Models
| Model / Series | Product Type | Recommended Application |
|---|---|---|
| Schneider XCC-RE5RN | Encoder Bracket with Gap Compensator | XCC Ø58 mm encoder mounting |
| Schneider XCC-RE5SN | Encoder Plain Bracket | Standard encoder installation |
| Schneider XCC-RE9RN | Encoder Bracket with Gap Compensator | Larger encoder mounting applications |
| Schneider XCC-1510 Series | Incremental Encoder | Rotary feedback applications |
| Schneider XCC-2514 Series | Absolute Encoder | Precision position feedback |
Popular Related Components
| Component | Main Application |
|---|---|
| XCC Encoder Mounting Brackets | Encoder mechanical installation |
| Incremental Encoders | Speed and position feedback |
| Absolute Encoders | Absolute position detection |
| Encoder Couplings | Mechanical shaft connection |
| Servo Drives | Motion control and feedback processing |
| Motion Controllers | Precision automation control |
