Product Summary

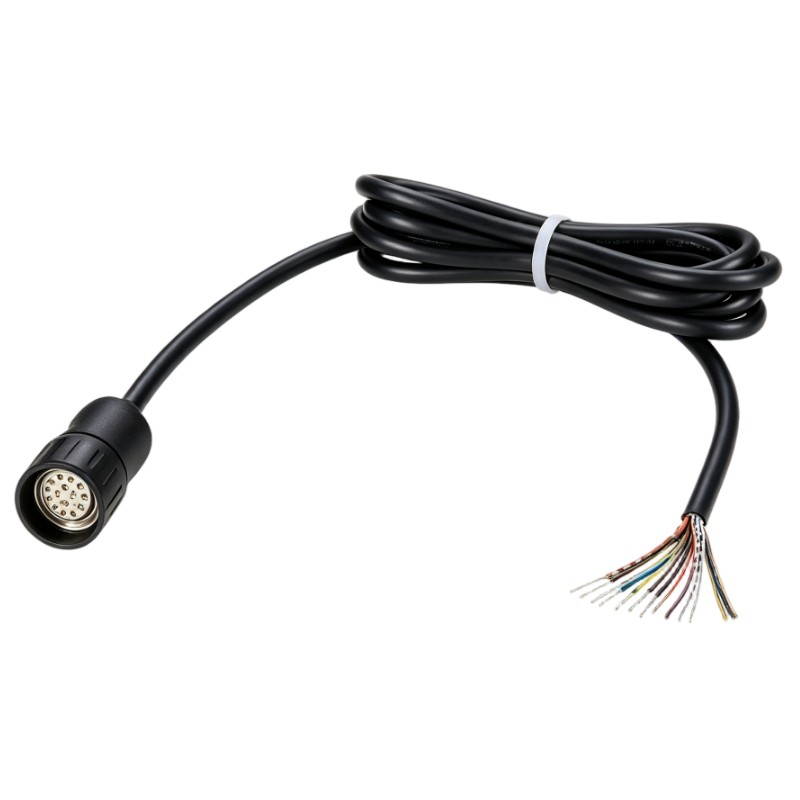

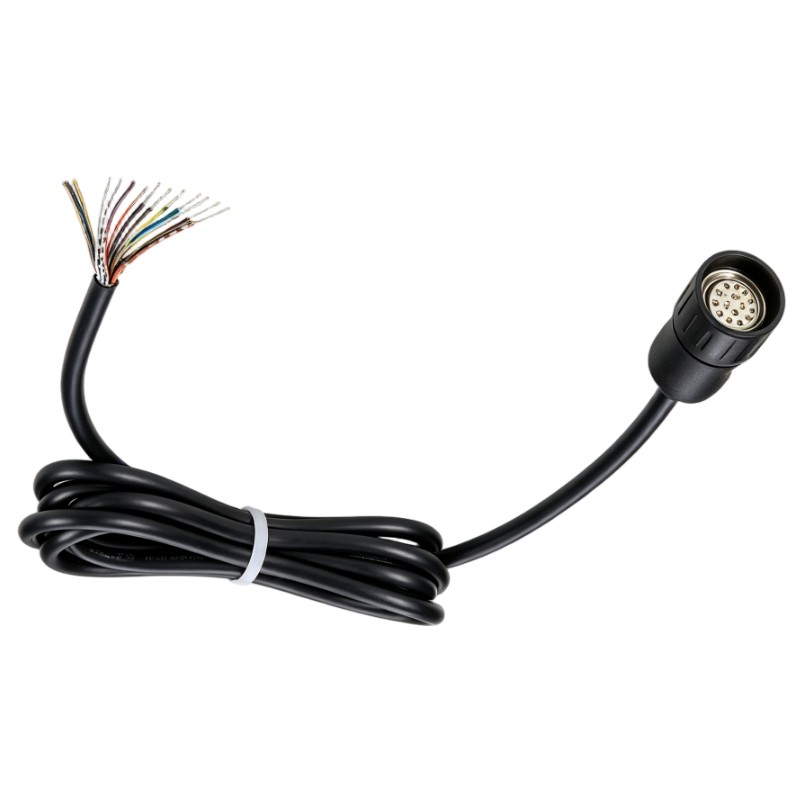

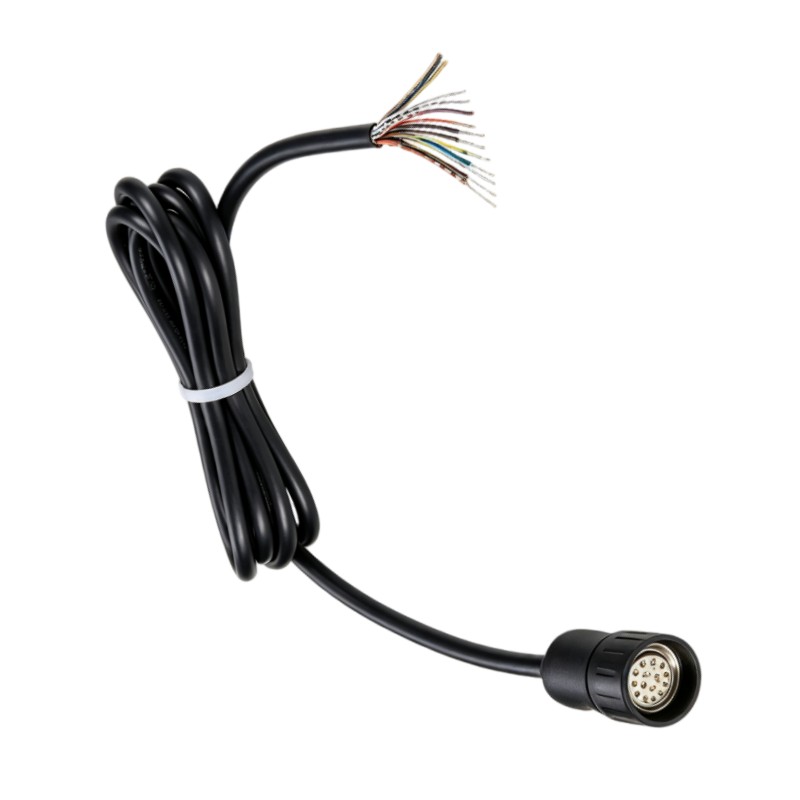

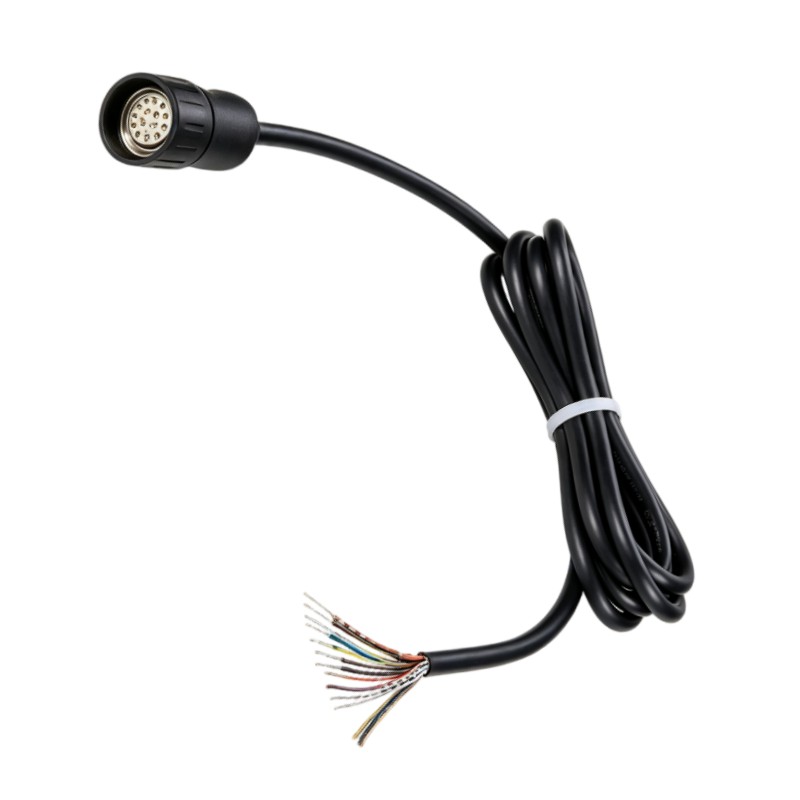

The Schneider XCC-PM23121L5 Pre-wired M23 Female Connector is a connection accessory designed for Schneider XCC incremental encoders. It provides a pre-wired M23 female connector with a 5-meter cable, simplifying encoder installation and improving the reliability of signal transmission between the encoder and control system.
Applications
Encoder Connection
Used to connect Schneider XCC incremental encoders with PLCs, drives, and motion control equipment.
Motion Control Systems
Provides a reliable wiring solution for encoder feedback applications in automated machinery.
Industrial Automation Equipment
Suitable for packaging machines, conveyors, robotics, and production equipment requiring encoder signal connections.
Encoder Maintenance Projects
Used as a replacement cable assembly for existing XCC encoder installations.
Advantages
Pre-wired Installation
Reduces wiring time by providing a ready-to-use M23 connector and cable assembly.
Reliable Signal Transmission
Helps maintain stable encoder communication by using a dedicated connection solution.
XCC Encoder Compatibility
Designed specifically for Schneider XCC incremental encoder applications.
Flexible Cable Length
The 5-meter cable provides installation flexibility for different machine layouts.
Simplified Maintenance
Allows faster replacement and easier troubleshooting during encoder system maintenance.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | XCC-PM23121L5 |
| Brand | Schneider Electric |
| Product Series | XCC |
| Product Type | Pre-wired M23 Female Connector |
| Application | Incremental Encoder Connection |
| Connector Type | M23 Straight Female Connector |
| Cable Length | 5 meters |
| Number of Wires | 10 |
| Weight | 0.33 kg |
Related Components
| Component | Main Function |
|---|---|
| Schneider XCC Incremental Encoders | Provide rotary speed and position feedback |
| Schneider XCC Absolute Encoders | Provide absolute position measurement |
| Encoder Mounting Brackets | Support encoder mechanical installation |
| Servo Drives | Process feedback signals and control motors |
| Motion Controllers | Execute positioning and motion control tasks |
| PLC Controllers | Process encoder data and manage automation logic |
Technical FAQs
1. What is the Schneider XCC-PM23121L5 used for?
The XCC-PM23121L5 is a pre-wired M23 female connector cable assembly used for connecting Schneider XCC incremental encoders with automation control systems.
2. What type of connector does the XCC-PM23121L5 use?
It uses a straight M23 female connector designed for compatible incremental encoder applications.
3. Why use a pre-wired encoder connector?
A pre-wired connector reduces installation time, minimizes wiring errors, and provides a more reliable connection compared with manual wiring.
4. What devices can connect with the XCC-PM23121L5?
It is mainly used with Schneider XCC incremental encoders and compatible encoder interface systems.
5. What should be checked before replacing this cable assembly?
The encoder model, connector type, number of wires, cable length, wiring configuration, and controller compatibility should be verified before replacement.
Recommended Models
| Model / Series | Product Type | Recommended Application |
|---|---|---|
| Schneider XCC-PM23121L5 | Pre-wired M23 Female Connector | 5-meter encoder connection |
| Schneider XCC-PM23121L2 | Pre-wired M23 Connector | Short-distance encoder wiring |
| Schneider XCC-PM23121L10 | Pre-wired M23 Connector | Long-distance encoder connection |
| Schneider XCC-1510PS11Y | Incremental Encoder | Standard rotary feedback |
| Schneider XCC-1912PS36KN | Incremental Encoder | High-resolution motion feedback |
Popular Related Components
| Component | Main Application |
|---|---|
| XCC Pre-wired Connectors | Encoder signal connection |
| Incremental Encoders | Speed and relative position feedback |
| Absolute Encoders | Precise position measurement |
| Encoder Cables | Signal transmission |
| Servo Drives | Closed-loop motion control |
| PLC Controllers | Automation signal processing |
