Product Summary

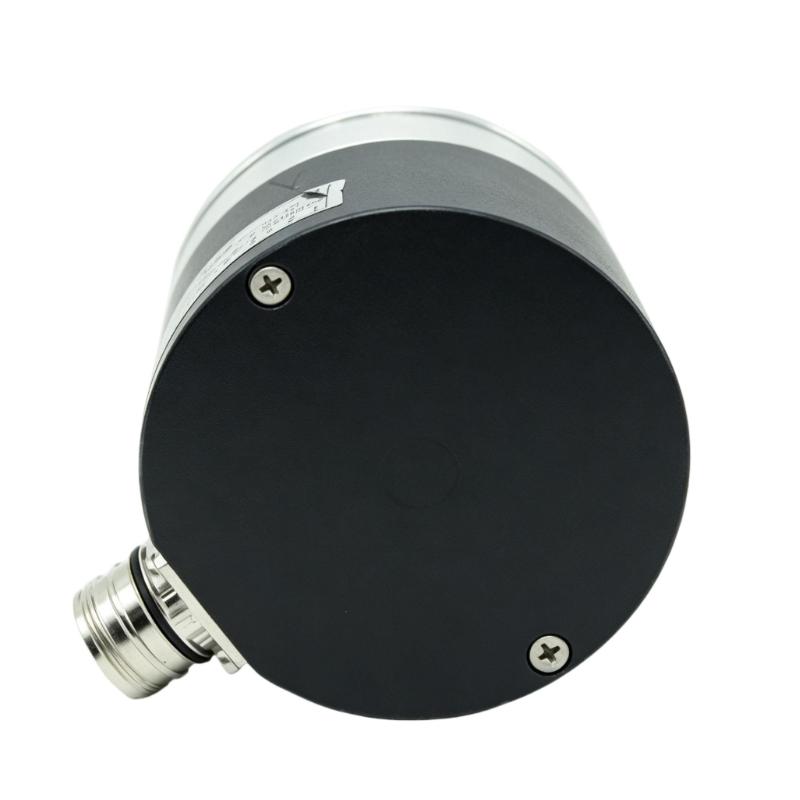

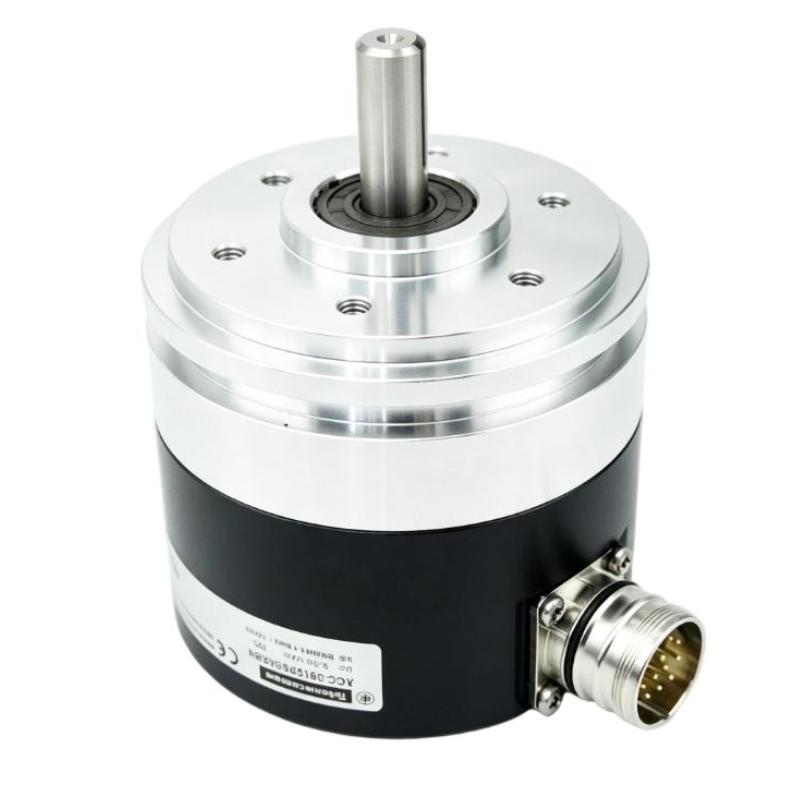

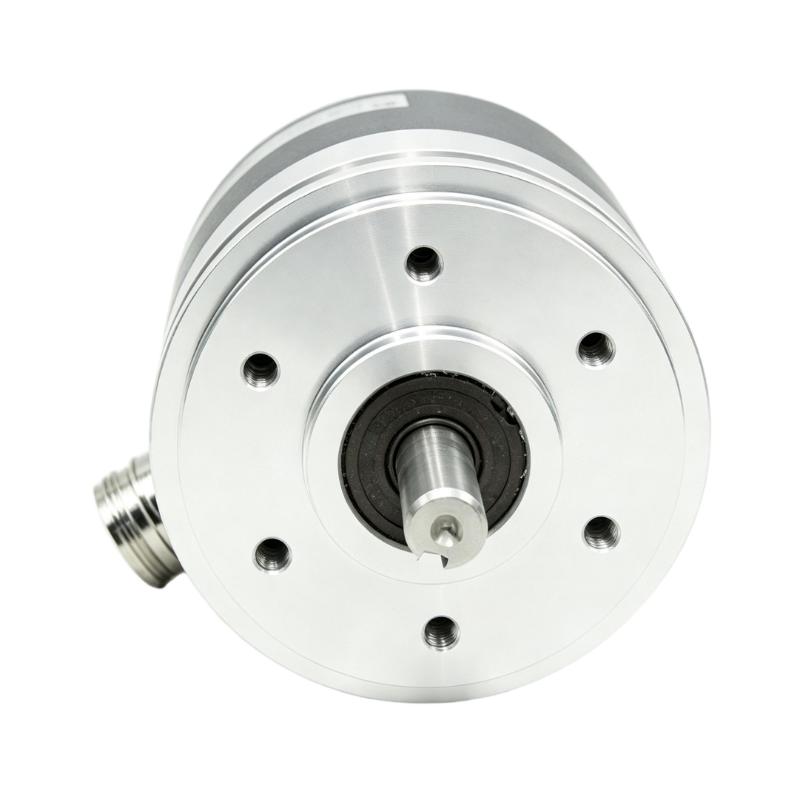

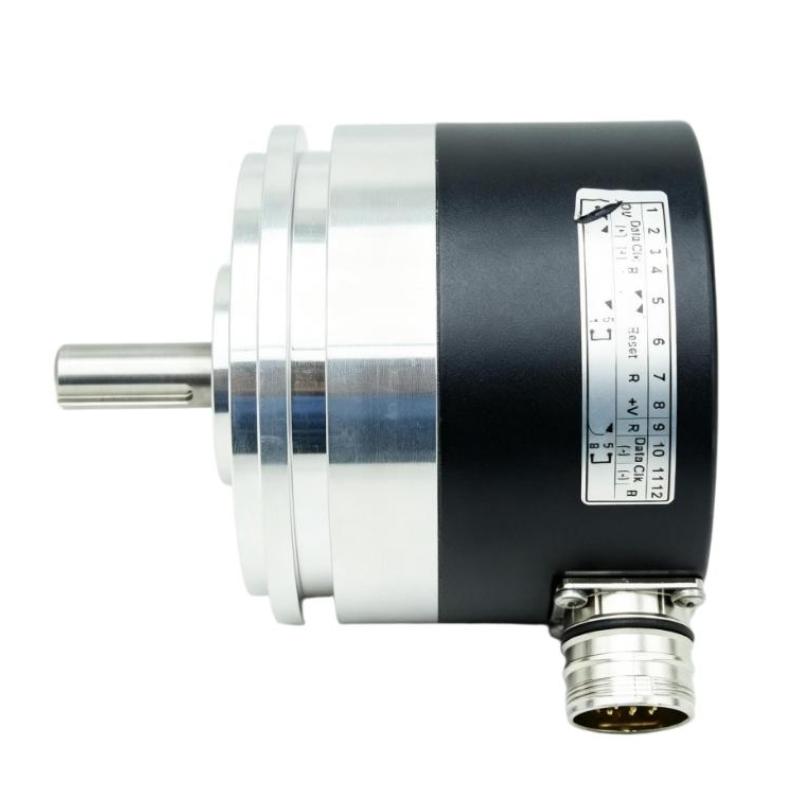

The Schneider XCC-3930TS84SBN XCC Multi-turn Absolute Encoder is a high-precision rotary feedback device designed for industrial automation and motion control systems. It provides absolute position information across multiple shaft rotations, allowing controllers to accurately track position even after power interruptions. This encoder is suitable for applications requiring reliable position monitoring, machine synchronization, and advanced motion control.
Applications
Motion Control Systems
Used for precise position feedback in servo systems, automated machinery, and industrial motion applications.
Robotic Equipment
Provides accurate rotary position information for robotic arms and automated handling systems.
Industrial Machinery
Suitable for machines requiring multi-turn position measurement and repeatable movement control.
Automation Systems
Supports applications such as packaging equipment, conveyors, and production machinery that require reliable feedback signals.
Advantages
Multi-turn Position Tracking
Provides accurate position measurement across multiple rotations without losing position information.
High Feedback Accuracy
Helps improve machine positioning performance through reliable absolute position data.
No Homing Required After Power Loss
Maintains position information, reducing the need for repeated reference movements during system startup.
Strong Industrial Compatibility
Works with compatible PLCs, motion controllers, and drive systems for advanced automation applications.
Reliable Long-term Operation
Designed for continuous industrial use where stable feedback performance is required.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | XCC-3930TS84SBN |
| Brand | Schneider Electric |
| Product Series | XCC |
| Product Type | Multi-turn Absolute Encoder |
| Encoder Type | Optical Absolute Encoder |
| Output Type | SSI 25-bit Binary |
| Shaft Type | Through Shaft |
| Diameter | 90 mm |
| Weight | 1.06 kg |
Related Components
| Component | Main Function |
|---|---|
| Schneider Servo Drives | Process encoder feedback and control motor movement |
| Schneider Servo Motors | Provide precision mechanical motion |
| Modicon PLC Controllers | Receive and process encoder position data |
| Motion Controllers | Execute advanced positioning functions |
| Variable Speed Drives | Control motor speed and operation |
| Encoder Cables | Provide signal transmission between encoder and controller |
Technical FAQs
1. What is the Schneider XCC-3930TS84SBN used for?
The XCC-3930TS84SBN is a multi-turn absolute encoder used to provide accurate rotary position feedback for industrial automation and motion control systems.
2. What is the difference between a multi-turn absolute encoder and a single-turn encoder?
A multi-turn absolute encoder can track position across multiple shaft rotations, while a single-turn encoder only provides position information within one rotation.
3. Why choose a multi-turn absolute encoder for industrial applications?
It is suitable for systems requiring continuous position tracking over multiple rotations, such as robotics, machine tools, and automated production equipment.
4. What communication method does the XCC-3930TS84SBN use?
The encoder uses SSI communication with a 25-bit binary output format for transmitting absolute position data.
5. What should be checked before replacing this encoder?
The encoder mounting type, shaft configuration, communication interface, supply requirements, mechanical dimensions, and controller compatibility should be verified before replacement.
Recommended Models
| Model / Series | Product Type | Recommended Application |
|---|---|---|
| Schneider XCC-3930TS84SBN | Multi-turn Absolute Encoder | Multi-axis position feedback |
| Schneider XCC-2514TS81SB | Single-turn Absolute Encoder | Single rotation position control |
| Schneider XCC-1510PS11Y | Incremental Encoder | Speed and relative position feedback |
| Schneider XCC Series | Industrial Encoder Family | Automation feedback applications |
| Schneider Motion Control Series | Motion Control Equipment | Precision positioning systems |
Popular Related Components
| Component | Main Application |
|---|---|
| Multi-turn Absolute Encoders | Multi-rotation position measurement |
| Single-turn Absolute Encoders | Single rotation position feedback |
| Incremental Encoders | Speed and pulse feedback |
| Servo Drives | Closed-loop motion control |
| Servo Motors | Precision mechanical movement |
| PLC Controllers | Encoder signal processing |
