Product Summary

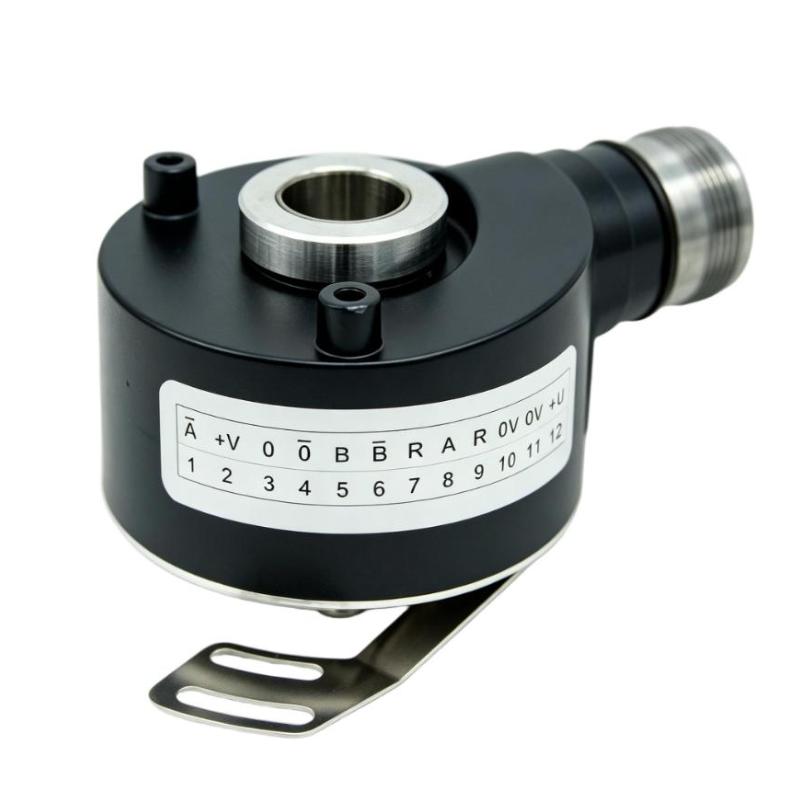

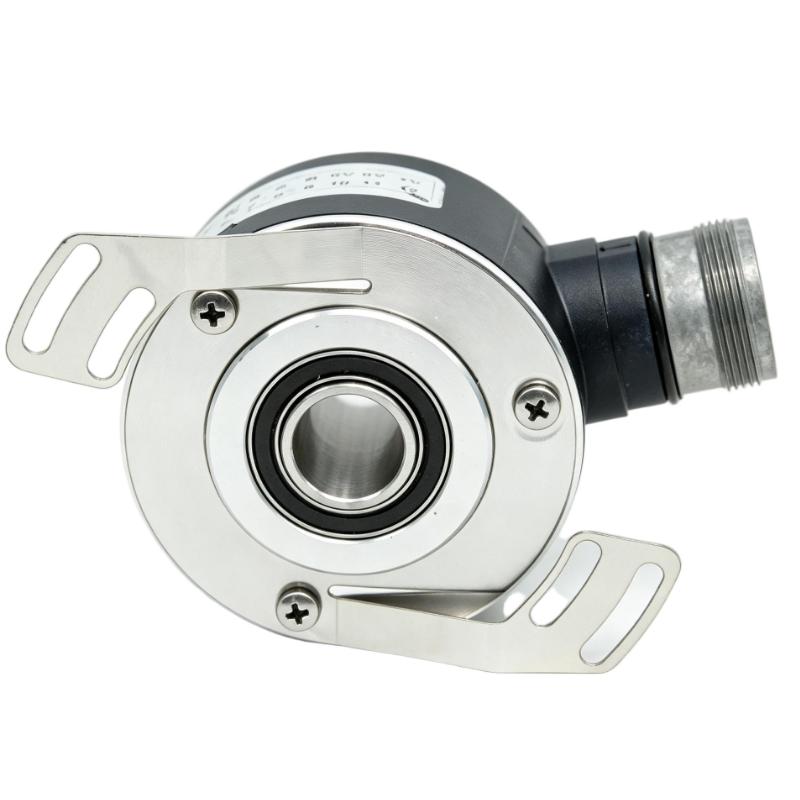

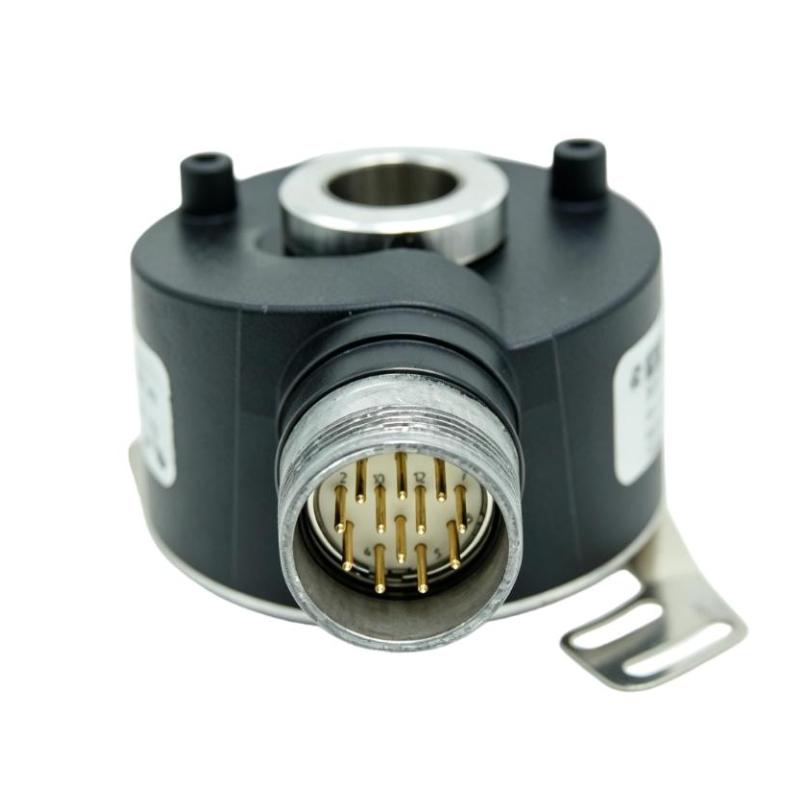

The Schneider XCC-1912PS36KN XCC Incremental Encoder is a rotary feedback device designed for industrial automation and motion control applications. It converts shaft rotation into electrical pulse signals, allowing PLCs, counters, drives, and motion controllers to monitor speed, direction, and relative position. It is suitable for machines that require accurate and reliable motion feedback during operation.
Applications
Motion Control Systems
Used to provide speed and position feedback for servo systems, motors, and automated machinery.
Industrial Machines
Suitable for packaging equipment, conveyors, production machines, and rotating mechanisms.
Motor Feedback Applications
Provides pulse signals for drive systems requiring accurate rotational monitoring.
Automation Equipment
Supports machine synchronization, counting, and movement control functions.
Advantages
Reliable Incremental Feedback
Provides stable pulse signals for accurate speed and relative position measurement.
High Counting Accuracy
Helps control systems achieve precise motion monitoring and improved machine performance.
Wide System Compatibility
Can be integrated with compatible PLCs, drives, counters, and industrial controllers.
Durable Industrial Design
Designed for continuous operation in demanding automation environments.
Efficient Motion Control
Improves system response by providing real-time rotational feedback information.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | XCC-1912PS36KN |
| Brand | Schneider Electric |
| Product Series | XCC |
| Product Type | Incremental Encoder |
| Encoder Type | Rotary Incremental Encoder |
| Output Type | Push-Pull Incremental Signal |
| Resolution | 3600 Points |
| Diameter | 90 mm |
| Weight | 1.36 kg |
Related Components
| Component | Main Function |
|---|---|
| Schneider Servo Drives | Process encoder feedback and control motor movement |
| Schneider Variable Speed Drives | Control motor speed and operation |
| Modicon PLC Controllers | Receive and process encoder signals |
| Motion Controllers | Execute positioning and synchronization tasks |
| Servo Motors | Provide mechanical rotation and movement |
| Encoder Mounting Brackets | Provide mechanical installation support |
Technical FAQs
1. What is the Schneider XCC-1912PS36KN used for?
The XCC-1912PS36KN is an incremental encoder used to provide rotary speed and position feedback in industrial automation systems.
2. How does an incremental encoder provide feedback?
It generates pulse signals based on shaft rotation, allowing the control system to calculate movement direction, speed, and relative position.
3. What applications require a 3600-point encoder?
Encoders with higher resolution are commonly used in machines requiring more accurate motion monitoring, speed control, and positioning feedback.
4. Can the XCC-1912PS36KN work with PLC systems?
Yes. It can be connected to compatible PLCs, counters, motion controllers, and drive systems that support incremental encoder signals.
5. What should be checked before replacing this encoder?
The encoder resolution, shaft size, output signal type, mounting method, wiring configuration, and controller compatibility should be confirmed before replacement.
Recommended Models
| Model / Series | Product Type | Recommended Application |
|---|---|---|
| Schneider XCC-1912PS36KN | Incremental Encoder | High-resolution rotary feedback |
| Schneider XCC-1510PS11Y | Incremental Encoder | Standard motion feedback applications |
| Schneider XCC-2514TS81SB | Single-Turn Absolute Encoder | Absolute position measurement |
| Schneider XCC-3930TS84SBN | Multi-turn Absolute Encoder | Multi-rotation position control |
| Schneider XCC Series | Industrial Encoder Family | Automation feedback applications |
Popular Related Components
| Component | Main Application |
|---|---|
| Incremental Encoders | Speed and relative position feedback |
| Absolute Encoders | Direct position measurement |
| Servo Drives | Closed-loop motion control |
| Variable Speed Drives | Motor speed regulation |
| PLC Controllers | Encoder signal processing |
| Motion Controllers | Precision machine positioning |
