Product Summary

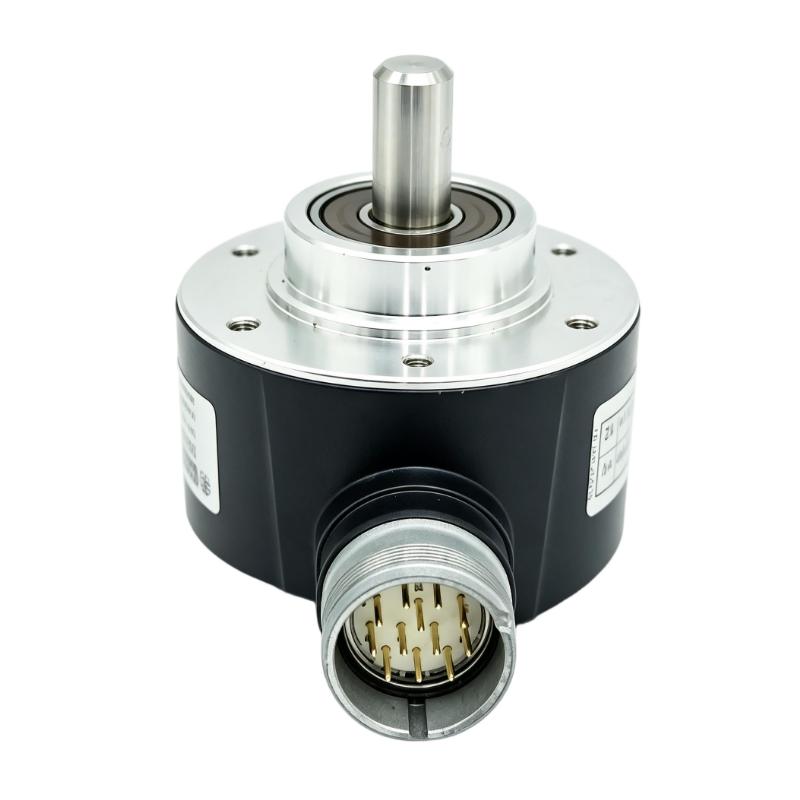

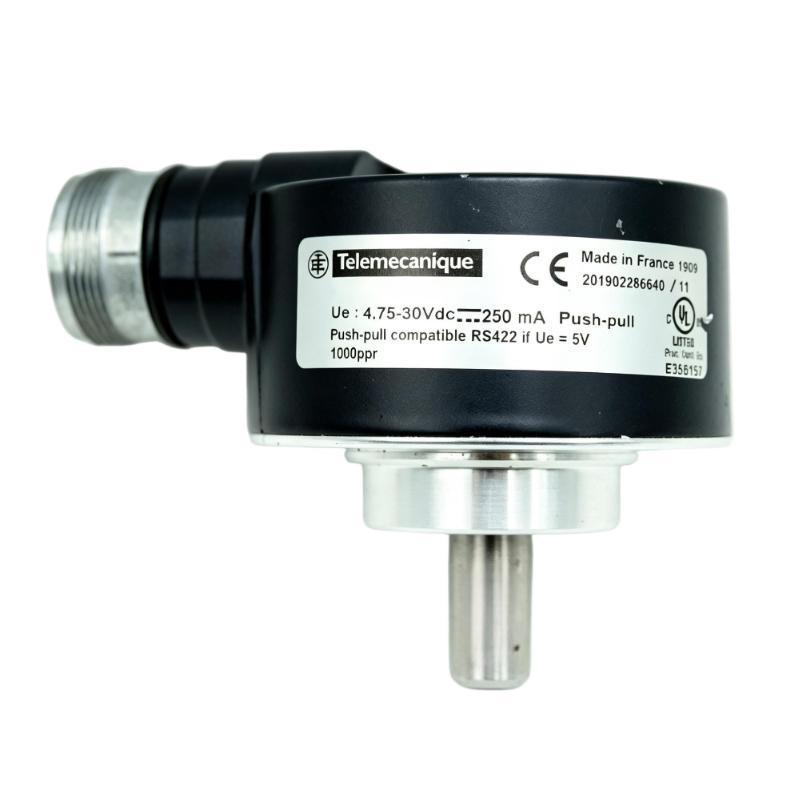

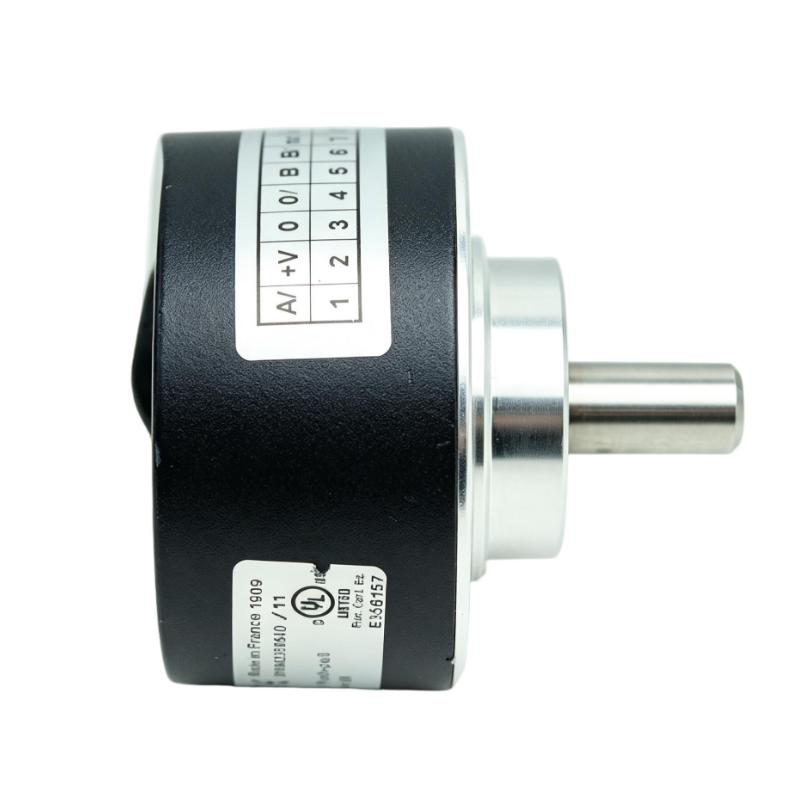

The Schneider XCC-1510PSM11Y XCC Incremental Encoder is a rotary feedback device designed for industrial automation and motion control applications. It converts shaft rotation into electrical pulse signals, allowing control systems to monitor speed, direction, and relative position. With its compact 58 mm housing design, it is suitable for machines requiring reliable and accurate rotational feedback.
Applications
Motion Control Systems
Used for speed and position feedback in servo systems, drive systems, and automated machinery.
Industrial Equipment
Suitable for packaging machines, conveyors, machine tools, and rotating equipment.
Motor Feedback Applications
Provides encoder signals for monitoring motor speed and movement.
Automation Systems
Supports counting, synchronization, and position monitoring functions in industrial control applications.
Advantages
Accurate Pulse Feedback
Provides reliable incremental signals for precise speed and relative position measurement.
Compact Installation Design
The compact encoder structure makes it suitable for applications with limited mounting space.
High-speed Signal Processing
Supports fast pulse output for demanding motion monitoring and control requirements.
Easy System Integration
Can be connected with compatible PLCs, drives, counters, and motion controllers.
Reliable Industrial Operation
Designed for stable performance in continuous automation environments.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | XCC-1510PSM11Y |
| Brand | Schneider Electric |
| Product Series | XCC |
| Product Type | Incremental Encoder |
| Encoder Type | Rotary Incremental Encoder |
| Shaft Type | Solid Shaft |
| Output Type | Push-Pull |
| Resolution | 1024–16384 Points |
| Diameter | 58 mm |
| Weight | 0.465 kg |
Related Components
| Component | Main Function |
|---|---|
| Schneider Servo Drives | Process encoder feedback and control motor operation |
| Schneider Variable Speed Drives | Manage motor speed and rotation control |
| Modicon PLC Controllers | Receive and process encoder pulse signals |
| Motion Controllers | Execute positioning and synchronization tasks |
| Servo Motors | Provide mechanical movement |
| Encoder Cables | Transmit feedback signals between devices |
Technical FAQs
1. What is the Schneider XCC-1510PSM11Y used for?
The XCC-1510PSM11Y is an incremental encoder used to provide rotary speed and relative position feedback for industrial automation systems.
2. How does the XCC-1510PSM11Y generate feedback signals?
It converts mechanical rotation into electrical pulse signals, allowing controllers to calculate movement direction, speed, and relative position.
3. What type of applications require an incremental encoder?
Incremental encoders are commonly used in motion control, motor feedback, machine positioning, and speed monitoring applications.
4. Can the XCC-1510PSM11Y connect to PLC systems?
Yes. It can work with compatible PLCs, counters, drives, and motion controllers that support incremental encoder inputs.
5. What should be checked before replacing the XCC-1510PSM11Y?
The encoder resolution, shaft type, output signal, connector type, mounting dimensions, wiring configuration, and controller compatibility should be verified before replacement.
Recommended Models
| Model / Series | Product Type | Recommended Application |
|---|---|---|
| Schneider XCC-1510PSM11Y | Incremental Encoder | Compact rotary feedback applications |
| Schneider XCC-1510PS11Y | Incremental Encoder | Standard 58 mm encoder applications |
| Schneider XCC-1912PS36KN | Incremental Encoder | High-resolution motion feedback |
| Schneider XCC-2514TS81SB | Single-Turn Absolute Encoder | Absolute position measurement |
| Schneider XCC-3930TS84SBN | Multi-turn Absolute Encoder | Multi-rotation position control |
