1. Product Overview

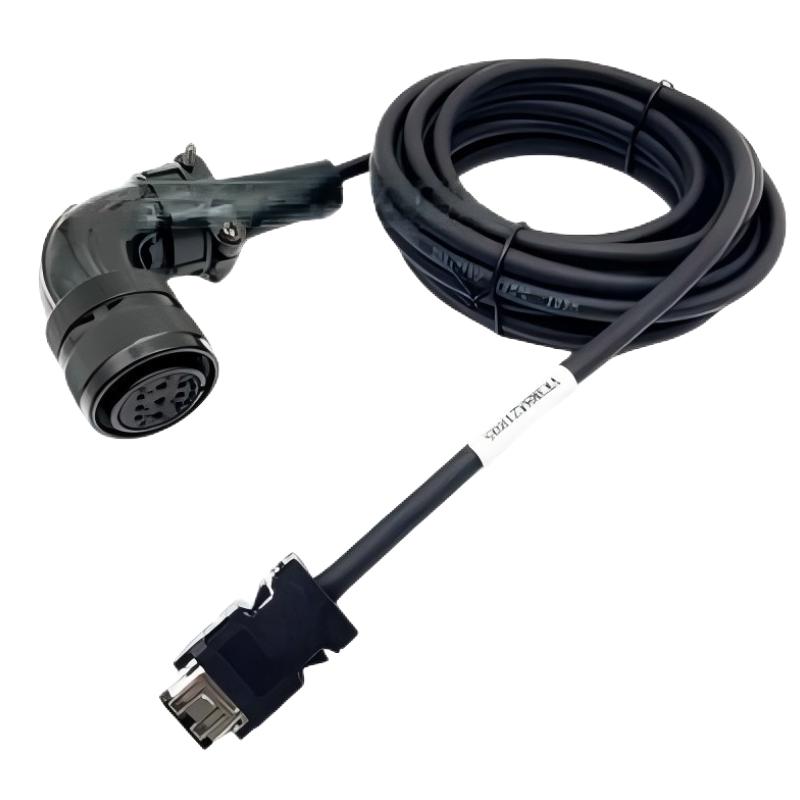

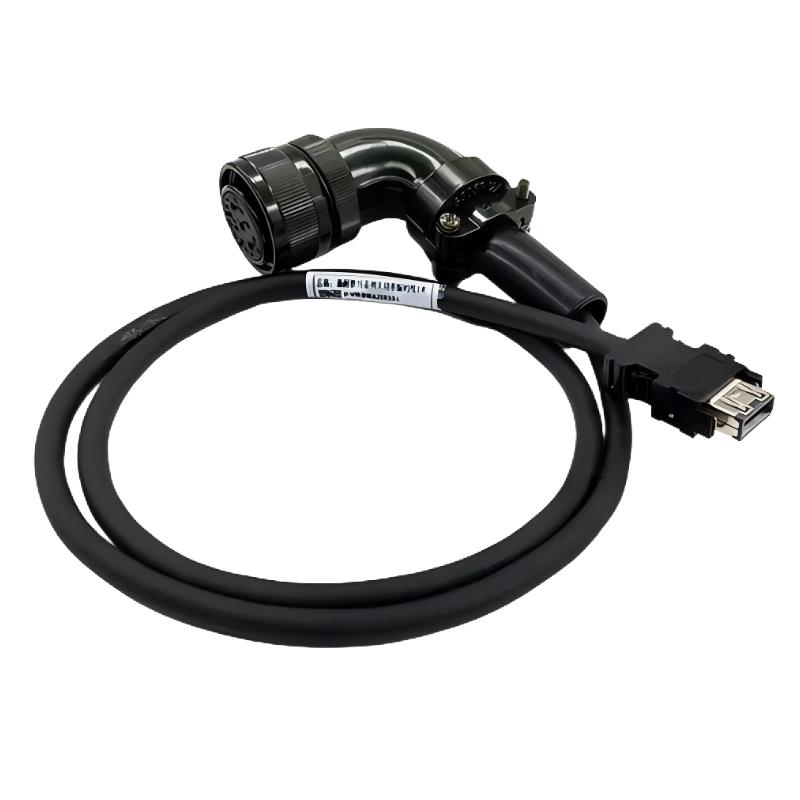

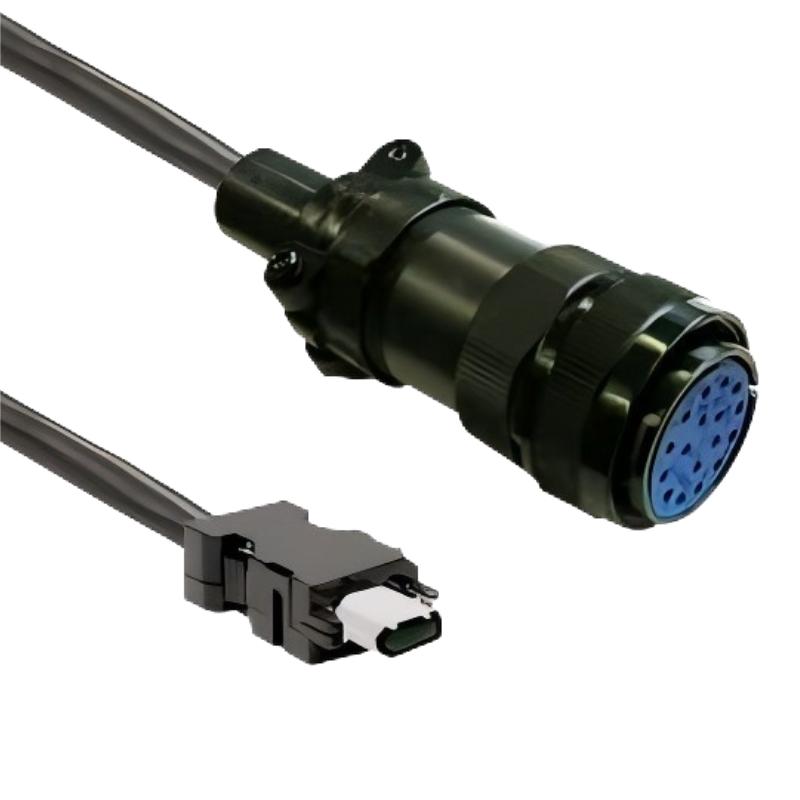

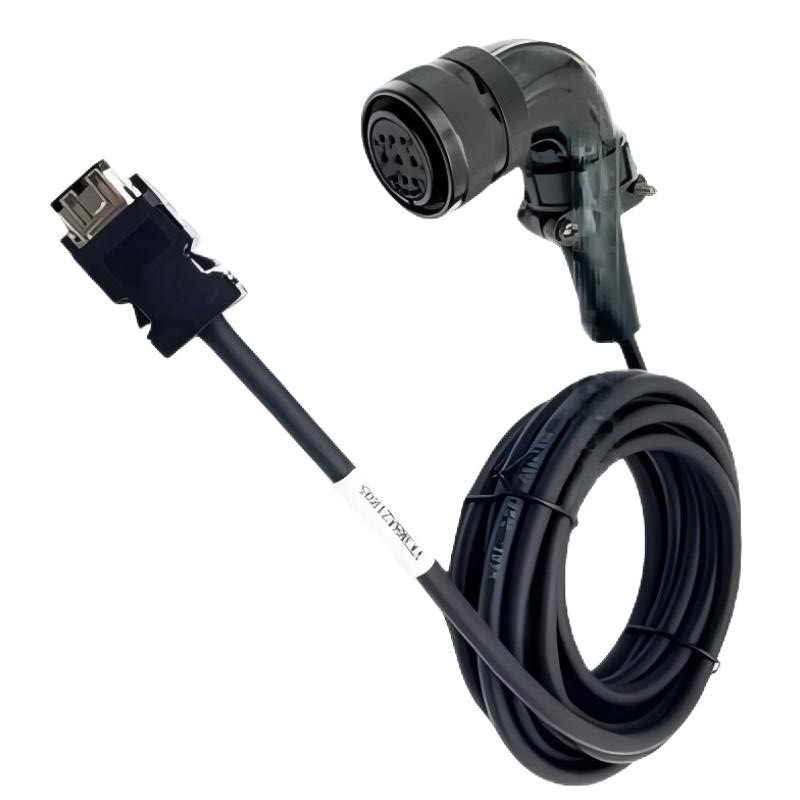

The Schneider VW3M8A21R10 BCH16 Servo Motor Encoder Cable is an industrial automation cable intended for compatible servo motor encoder feedback applications. Encoder cables provide the connection between designated feedback devices and control equipment, helping servo systems receive the information required for controlled motor operation.

In industrial motion-control systems, encoder feedback supports the monitoring of motor movement and may provide position, speed, or other motion-related information, depending on the encoder and drive configuration. A suitable cable helps maintain the intended feedback connection and supports reliable operation of compatible servo equipment.

The Schneider VW3M8A21R10 has a specified cable length of 10 meters and a weight of 0.85 kg. This length can be useful when the servo motor and its corresponding connection point are separated by a longer routing distance. Proper cable selection remains essential because encoder feedback connections may require specific connector arrangements, electrical characteristics, and shielding provisions.

Before installation or replacement, engineers should verify the complete model number and confirm compatibility with the specific BCH16 servo motor and associated drive. Similar-looking cables are not necessarily interchangeable, and the exact connector pinout and feedback interface should be confirmed from the applicable technical documentation.

2. Technical Specifications

The cable length and weight listed above are the supplied product specifications. Connector pin assignments, feedback signal characteristics, shielding details, and supported drive combinations should be confirmed for the exact cable and equipment configuration.

3. Function and Working Principle

A servo motor encoder cable provides the physical connection required to transmit encoder feedback signals between designated components in a motion-control system. The encoder detects motion-related information, and the servo drive or controller uses the available feedback as part of its control process.

The general feedback process includes several stages.

3.1 Motion Detection

An encoder associated with the servo motor detects motion-related information, such as rotational position or movement. The type of information available depends on the encoder design and system configuration.

3.2 Feedback Signal Transmission

The VW3M8A21R10 is intended for a compatible BCH16 servo motor encoder application. When correctly matched and installed, the cable provides the specified electrical path for the encoder connection.

3.3 Feedback Processing

The connected drive or controller receives the feedback signals and processes them according to the configured motion-control system. Reliable transmission depends on correct cable selection, secure connectors, and appropriate installation.

3.4 Closed-Loop Motion Regulation

In a closed-loop servo system, feedback can be used to compare actual motor behavior with the commanded movement. The control system uses this information to regulate motion according to its design.

3.5 Fault Monitoring

Depending on the equipment configuration, the drive or controller may detect encoder-related faults, missing feedback, or other abnormalities. A damaged or incompatible cable can contribute to these conditions, although faults may also originate from the encoder, drive, or system configuration.

The exact feedback format, electrical characteristics, and supported interface must be verified for the installed equipment rather than inferred from the cable model number alone.

4. Role in Servo Motor and Motion-Control Systems

Servo systems rely on coordinated operation between motors, encoders, drives, controllers, and associated cabling. The encoder cable supports the feedback connection required by the configured system.

4.1 Encoder Feedback Transmission

The cable provides the designated connection between the motor-side encoder and the corresponding feedback interface. Correct cable selection helps maintain the intended signal path.

4.2 Closed-Loop Control

Motion-control systems may use encoder feedback to monitor motor position and movement. A reliable feedback connection helps the control system perform its intended monitoring and regulation functions.

4.3 Servo Drive Integration

The cable must match the feedback interface supported by the connected drive. Incorrect cable selection or connector wiring may prevent the drive from recognizing the encoder or completing commissioning.

4.4 Flexible Equipment Layout

The 10-meter cable length can support installations where the motor and connection point are relatively far apart. The actual route must still meet the specified bending, shielding, and mechanical-protection requirements.

4.5 Maintenance and Replacement

When an encoder cable becomes damaged or unreliable, replacing it with the correct model helps preserve the intended equipment configuration. Checking the full part number and connector arrangement is particularly important when multiple servo cables are installed in one machine.

5. Industrial Applications

The Schneider VW3M8A21R10 may be considered for compatible BCH16 servo motor encoder applications after the exact motor and drive configuration has been confirmed.

5.1 Automated Manufacturing Machinery

Manufacturing equipment often uses servo motors for positioning, indexing, feeding, and coordinated motion. Encoder feedback helps the control system monitor motor movement and execute programmed machine sequences.

5.2 Packaging Equipment

Packaging machinery may use servo-driven mechanisms for material feeding, cutting, sealing, labeling, and product positioning. Correct encoder cabling helps maintain the feedback connection required by the motion-control design.

5.3 Assembly and Positioning Systems

Automated assembly equipment often requires repeatable positioning and coordinated movement. Suitable encoder connections allow compatible servo systems to use feedback as part of their control process.

5.4 Material Handling Equipment

Automated transfer mechanisms, pick-and-place equipment, and positioning stages may use servo motors for controlled movement. Cable selection must match the motor, encoder, drive, and installation conditions.

5.5 Machine Repair and Retrofit Projects

During maintenance or equipment modernization, encoder cables may require replacement because of wear, physical damage, or connector deterioration. Verifying the VW3M8A21R10 model number helps reduce the risk of an unsuitable substitute being installed.

These examples describe common servo automation environments. They do not establish compatibility with every machine or control system listed.

6. Installation and System Integration

Correct installation helps maintain a reliable encoder feedback connection and protects the cable from mechanical or electrical damage. Always follow the manufacturer’s model-specific instructions and the site’s electrical safety procedures.

Step 1: Verify the Cable Model

Confirm that the complete part number is VW3M8A21R10. Compare the cable label with the existing part, approved spare-parts list, and equipment documentation.

Do not confuse it with similar models that may have different lengths, connector arrangements, or intended applications.

Step 2: Isolate the Equipment

Place the machine in a safe state and isolate the relevant power sources according to the site’s lockout/tagout procedure. Follow the servo drive manufacturer’s instructions before disconnecting motor or encoder wiring.

Do not connect or disconnect the cable while equipment is energized unless the manufacturer explicitly permits the procedure.

Step 3: Inspect the Cable and Connectors

Examine the cable jacket, connector housings, locking features, and accessible contacts for visible damage. Look for cuts, crushed sections, contamination, bent contacts, or deteriorated strain relief.

Do not install a cable that shows signs of damage or has uncertain compatibility.

Step 4: Confirm Motor and Drive Compatibility

Verify that the cable is suitable for the installed BCH16 servo motor model and the designated drive feedback interface. Check connector types and pin assignments against the applicable technical documentation.

Physical connector fit alone does not prove electrical compatibility.

Step 5: Plan the Cable Route

The VW3M8A21R10 has a specified length of 10 meters. Measure the intended route and confirm that the cable reaches both endpoints without being stretched.

Avoid sharp edges, pinch points, hot surfaces, and locations where moving machine components may pull or abrade the cable. Follow the specified minimum bend radius and any restrictions on cable movement.

Step 6: Maintain Appropriate Separation

Route the encoder cable according to the equipment manufacturer’s recommendations. Where specified, maintain appropriate separation from motor power cables and other potential sources of electrical interference.

Follow the required shielding and grounding arrangements. Do not introduce unapproved grounding connections or modify the cable construction.

Step 7: Connect Both Ends Securely

Align the connectors with their designated ports and secure them using the specified locking method. Ensure that the connectors are fully engaged and that the cable is not carrying mechanical loads from the connected devices.

Step 8: Restore Power and Commission

After completing the installation checks, restore power according to the approved commissioning procedure. Review drive and controller diagnostics for encoder-related alarms or abnormal feedback status.

Complete the required functional tests before returning the machine to normal operation. If a fault occurs, follow the approved troubleshooting process.

7. Common Problems and Troubleshooting

Encoder cable faults can affect servo initialization, feedback detection, motion stability, and system availability. Troubleshooting should begin with model verification and physical inspection before progressing to the encoder, drive, and configuration.

7.1 Inspect the Cable and Connectors

Check the cable jacket for cuts, abrasion, crushing, or heat damage. Confirm that connectors are securely engaged and that their locking mechanisms are intact.

7.2 Verify the Correct Model

Confirm that the installed cable is the specified VW3M8A21R10 and is approved for the particular BCH16 motor and drive configuration. Similar model numbers do not guarantee equivalent wiring or functionality.

7.3 Review Drive Diagnostics

Use the drive’s diagnostic tools to identify the reported fault. Record the exact alarm or error code before resetting the system or replacing additional components.

7.4 Investigate Electrical Interference

Poor routing or an unsuitable shielding and grounding arrangement, where applicable, may contribute to signal problems. Follow the manufacturer’s wiring recommendations and inspect the installation for potential interference sources.

7.5 Check Related Equipment

If the cable and connectors appear correct but the fault persists, investigate the encoder, motor, drive, controller, and system configuration. Do not assume that every encoder-related alarm originates from the cable.

7.6 Replace Faulty Components Safely

If the cable is damaged or fails approved testing, replace it with a verified compatible part. Do not splice, open, or modify the cable unless a manufacturer-approved procedure specifically permits the work.

8. Preventive Maintenance and Reliability

Regular inspection helps identify cable problems before they interrupt servo operation.

• Inspect the cable jacket: Look for cuts, abrasion, crushing, heat damage, and other signs of deterioration.
• Check connector security: Ensure that connectors remain fully engaged and locking features are intact.
• Maintain correct routing: Keep the cable away from sharp edges, moving mechanisms, and unsuitable heat sources.
• Observe bending requirements: Follow the specified minimum bend radius and any limitations on continuous movement.
• Protect against mechanical stress: Use suitable supports and strain relief to prevent pulling or twisting at connector ends.
• Review recurring alarms: Track feedback faults and investigate repeated patterns rather than relying only on alarm resets.
• Maintain spare-part identification: Store approved replacement cables with clear model-number labeling.
• Document maintenance activities: Record replacement dates, observed faults, part numbers, and functional test results.

The appropriate maintenance interval depends on the operating environment, cable movement, equipment criticality, and site maintenance policy.

9. Compatible System Components

The exact compatible motor and drive part numbers for the VW3M8A21R10 should be confirmed before installation. The following table identifies component categories that may require verification.

This table is a verification checklist rather than a confirmed compatibility list. Confirm the intended motor and drive pairing using the applicable documentation.

10. Replacement and Alternative Selection

When replacing the Schneider VW3M8A21R10, engineers should prioritize functional equivalence and compatibility rather than relying only on cable length or connector appearance.

A cable with a similar name or physical appearance should not be treated as an approved substitute without technical confirmation. If the original model is unavailable, verify the proposed alternative against the complete motor and drive configuration.

11. Key Benefits of Correct Encoder Cable Selection

Selecting the correct encoder cable supports the intended performance and maintainability of a servo motion-control installation.

Reliable feedback connection: A compatible cable provides the specified physical connection for encoder feedback signals.

Support for servo system operation: Correct cabling helps maintain the feedback path required by the configured motion-control system.

Extended routing reach: The specified 10-meter length can accommodate installations where the motor and connection point are separated by a longer cable route.

Reduced risk of connection faults: Correct connector selection and secure installation help prevent avoidable feedback interruptions.

Simplified maintenance: Accurate model identification helps technicians source the correct replacement and maintain equipment records.

More efficient troubleshooting: Checking cable specifications, installation conditions, and diagnostic information helps technicians isolate feedback-related faults systematically.

These benefits depend on using the cable for its specified application and following the applicable installation and commissioning requirements.

12. Technical FAQs

Q1: What is the Schneider VW3M8A21R10?

The Schneider VW3M8A21R10 is identified as a BCH16 servo motor encoder cable. It is intended for compatible encoder feedback connections, subject to verification of the specific motor and drive configuration.

Q2: What is the cable length?

The specified cable length is 10 meters.

Q3: How much does the VW3M8A21R10 weigh?

The supplied product weight is 0.85 kg.

Q4: What is the purpose of a servo motor encoder cable?

An encoder cable provides the designated connection for feedback signals between a servo motor’s encoder and compatible control equipment. The feedback is used by the motion-control system according to its design.

Q5: Can this cable be used with any BCH16 servo motor?

Compatibility should not be assumed for every BCH16 model. Confirm the exact motor, encoder interface, connector arrangement, and drive requirements before installation.

Q6: Can the VW3M8A21R10 replace another Schneider encoder cable?

Only if the alternative is confirmed to have the correct function, connector configuration, electrical characteristics, and system compatibility. Similar model numbers do not guarantee interchangeability.

Q7: What causes encoder cable alarms?

Potential causes include loose connectors, damaged conductors, incorrect cable selection, electrical interference, or faults in the encoder or drive. Review the specific diagnostic code before deciding on corrective action.

Q8: Does the 10-meter length affect installation?

Yes. The cable must reach both connection points without excessive tension and must be routed according to the applicable bending, separation, and mechanical-protection requirements.

Q9: How should the cable be maintained?

Inspect the cable jacket and connectors, maintain proper routing and strain relief, and investigate recurring feedback alarms. Follow the equipment manufacturer’s maintenance procedures.

Q10: What should be checked before commissioning?

Verify the cable part number, motor and drive compatibility, connector engagement, cable routing, and available drive diagnostics. Complete the required functional tests before returning the machine to normal service.

13. Conclusion

The Schneider VW3M8A21R10 BCH16 Servo Motor Encoder Cable has a specified cable length of 10 meters and a weight of 0.85 kg. It is intended for compatible servo motor encoder feedback applications, where a reliable feedback connection is an important part of motion-control system operation.

Before installation or replacement, confirm compatibility with the specific BCH16 motor and associated drive, including connector configuration and feedback requirements. Proper routing, secure connections, regular inspection, and systematic troubleshooting help reduce preventable feedback faults and support reliable operation of industrial servo equipment.
