1. Product Overview

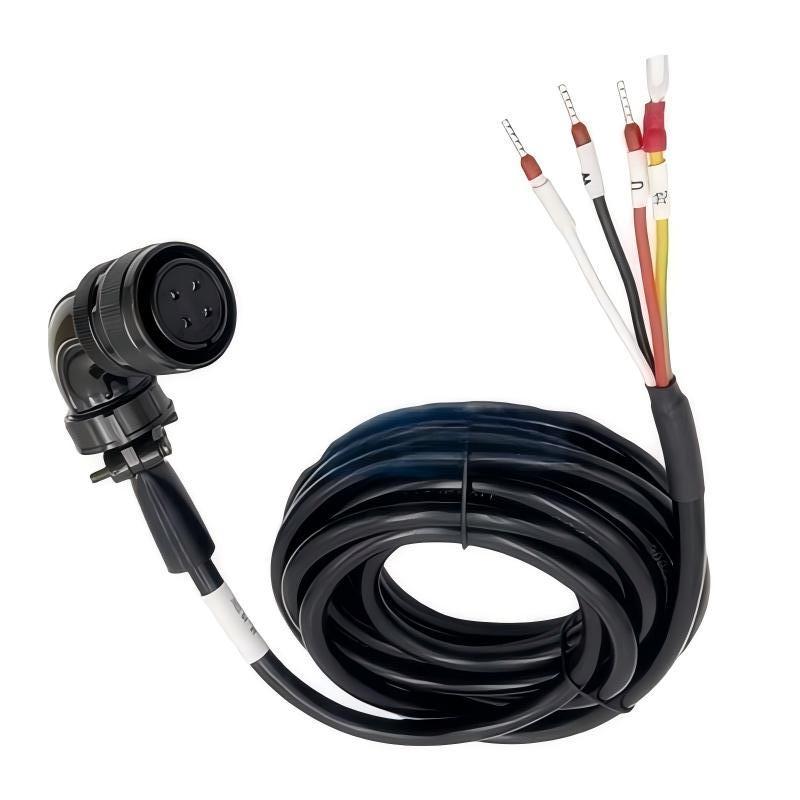

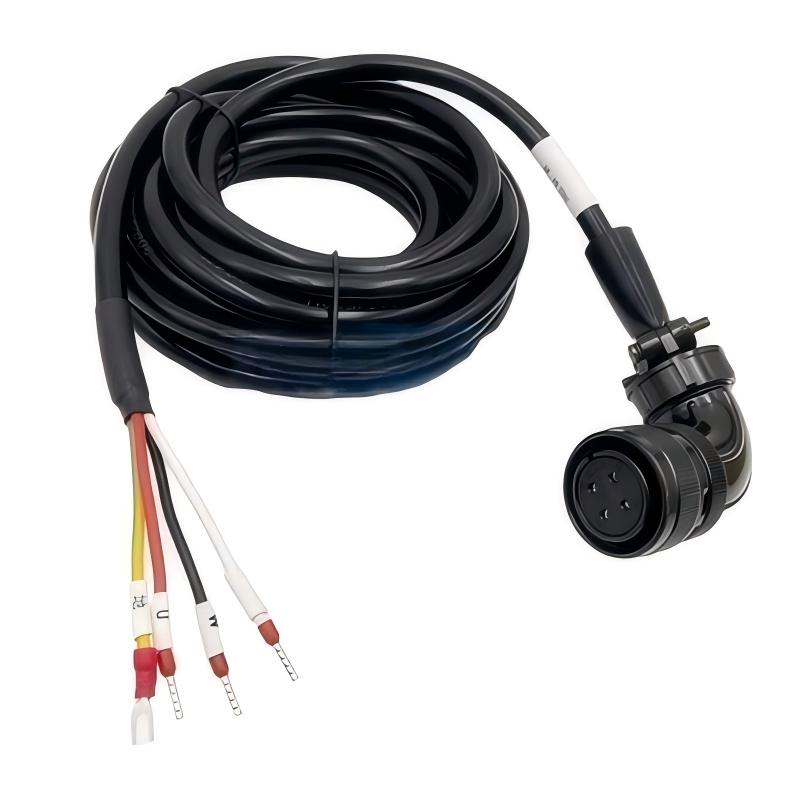

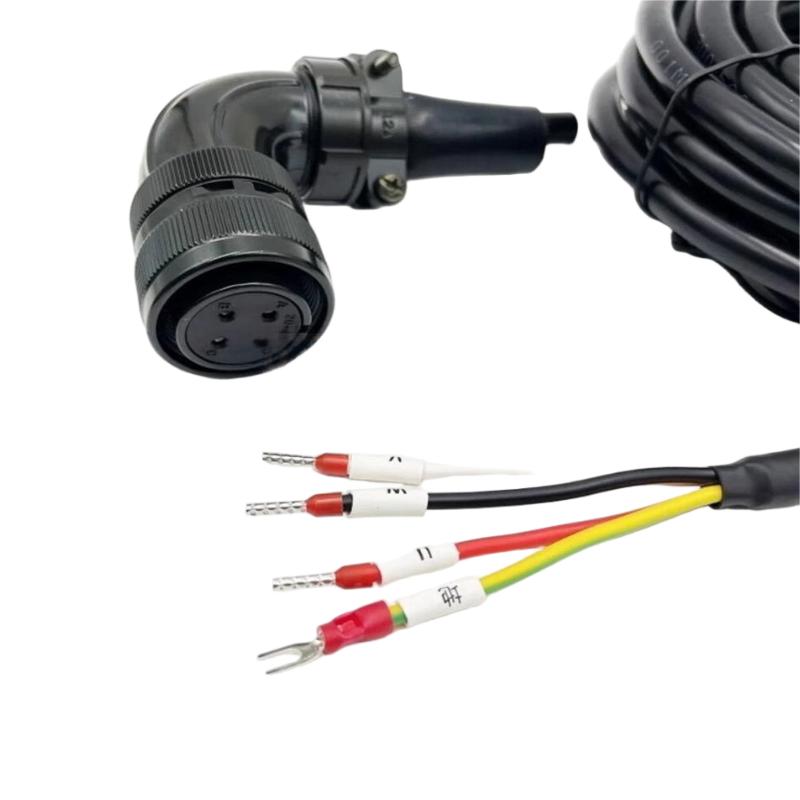

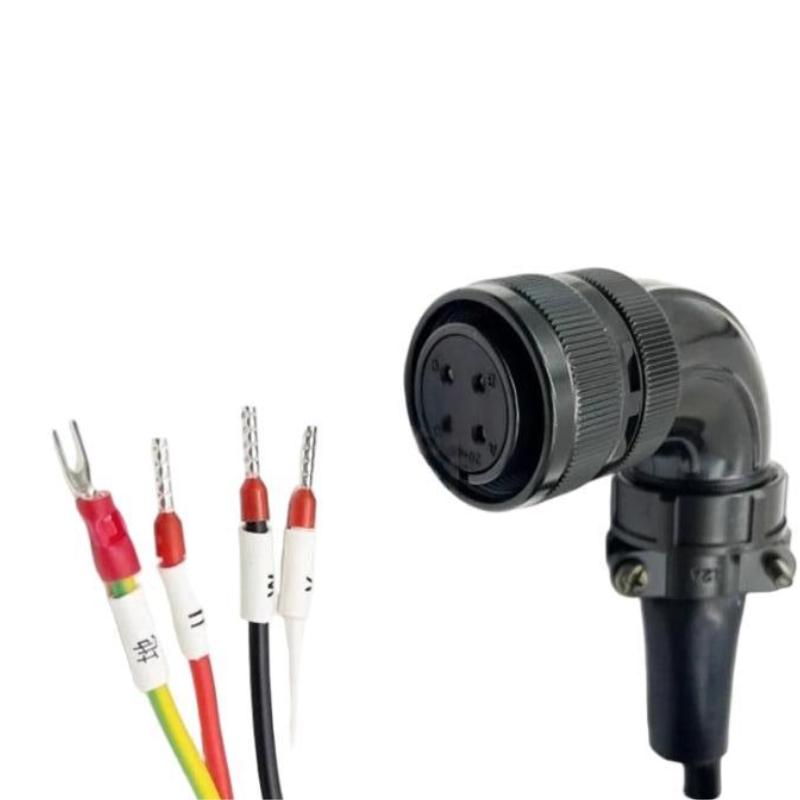

The Schneider VW3M5A21R05 Servo Motor Power Cable is an industrial automation cable intended for power connection applications in compatible servo motor systems. Servo technology is widely used in automated machinery that requires controlled movement, accurate positioning, and coordinated motion. A suitable power cable helps establish the electrical connection between designated servo components according to the system’s installation requirements.

The VW3M5A21R05 has a supplied cable length of 5 meters and a listed weight of 0.8 kg. This length may be appropriate for installations where the servo drive and motor are separated by a moderate distance, provided the cable meets the manufacturer’s requirements for the intended equipment.

Selecting the correct servo motor power cable involves more than matching the cable length. Connector configuration, electrical characteristics, cable construction, and compatibility with the connected drive and motor must also be verified. Using an unsuitable cable can lead to connection problems, installation difficulties, or equipment faults.

Before installing or replacing the VW3M5A21R05, confirm the complete model number and compare it with the system’s wiring diagrams and equipment documentation. Exact electrical ratings, connector details, and supported equipment should be established from the applicable technical specifications rather than inferred from the product code alone.

2. Technical Specifications

The model number, cable length, and weight reflect the supplied product information. Additional characteristics, including conductor configuration, connector pin assignments, shielding, and electrical ratings, should be confirmed before commissioning.

3. Function and Working Principle

A servo motor power cable provides the electrical connection required by a compatible servo motor system. In a typical motion-control installation, the servo drive regulates electrical power supplied to the motor according to commands from a controller or automation system. The motor converts electrical energy into mechanical movement to operate the connected machine.

The cable forms part of the system’s electrical infrastructure. Its suitability depends on the required connection, the connected equipment, and the manufacturer’s specifications.

3.1 Electrical Power Connection

The cable connects designated servo components through the specified conductors and connectors. Correct conductor arrangement and connector compatibility are essential to establishing the intended electrical connection.

3.2 Servo Drive and Motor Coordination

The servo drive controls motor operation according to the configured motion requirements. The power cable must be suitable for the intended drive and motor combination and comply with the applicable electrical specifications.

3.3 Maintaining Connection Integrity

Secure connections and an undamaged cable jacket help maintain a reliable electrical path. Incorrect connections, damaged conductors, or incompatible replacement cables may cause faults or interrupt machine operation.

3.4 Integration with Motion-Control Equipment

A servo system may include a motion controller, servo drive, motor, feedback components, and other automation devices. The power cable has a specific connection role and should not be confused with a feedback cable, encoder cable, or communication cable.

The precise connection arrangement and electrical requirements of the VW3M5A21R05 should be verified using the model-specific documentation before installation.

4. Role in Industrial Automation Systems

Servo motor power cables are important components in automated motion-control installations. Although they do not perform control calculations themselves, their suitability and condition can affect system availability and maintenance requirements.

4.1 Connecting Servo Drives and Motors

The cable supports the intended electrical connection between compatible servo components. Correct model selection helps ensure that the connector arrangement and electrical characteristics match the system design.

4.2 Supporting Automated Motion

Servo motors are commonly used in applications requiring controlled movement, repeatable positioning, and coordinated machine operation. Reliable electrical connections help the drive and motor operate according to the intended configuration.

4.3 Supporting Machine Layouts

The 5-meter cable length may be suitable when the drive and motor are separated by a moderate routing distance. Engineers should measure the actual route and account for cable trays, machine frames, cabinet openings, and maintenance access.

The cable should be routed without excessive tension, sharp bends, or interference with moving components. Any cable-length restrictions specified by the equipment manufacturer must also be observed.

4.4 Simplifying Maintenance and Replacement

When an existing cable becomes worn or damaged, matching the original part number helps reduce the risk of installing an incompatible replacement. Technicians should verify the model number, connector configuration, length, and equipment compatibility before installation.

4.5 Supporting Operational Reliability

Correct cable selection, suitable routing, and regular inspection help reduce avoidable connection faults. These practices are particularly important in production environments where unexpected servo interruptions can affect machine availability.

5. Industrial Applications

The Schneider VW3M5A21R05 may be evaluated for compatible servo motor installations after its technical characteristics and equipment compatibility have been confirmed.

5.1 Manufacturing Machinery

Automated manufacturing equipment uses servo systems for positioning, feeding, indexing, and coordinated machine movements. A correctly specified power cable helps establish the required electrical connection between compatible servo components.

5.2 Packaging Equipment

Packaging machinery may use servo motors to coordinate product feeding, cutting, sealing, and transfer operations. Cable length and routing should match the machine layout and operating conditions.

5.3 Material Handling Systems

Conveyors, transfer mechanisms, and automated handling equipment may incorporate servo-driven axes. Appropriate cabling helps maintain the intended electrical connection between the drive and motor.

5.4 Printing and Converting Machinery

Printing, winding, cutting, and converting equipment may depend on coordinated servo motion. Correct cable selection and installation support reliable electrical connections and easier maintenance.

5.5 Assembly and Positioning Equipment

Automated assembly machines may use servo motors to move components into defined positions. The cable must be selected according to the exact drive and motor specifications.

5.6 Equipment Repair and Modernization

During industrial equipment repair or modernization, the VW3M5A21R05 may be considered as a replacement when its part number and connection requirements match the intended application. Compatibility should be verified before it is introduced into an existing system.

These examples describe general application environments for compatible servo motor power cables and do not confirm suitability for every machine listed.

6. Installation and System Integration

Correct installation helps protect the cable and connected servo equipment. The following steps provide a general checklist; model-specific instructions and electrical requirements take precedence.

Step 1: Verify the Model Number

Confirm that the cable label identifies VW3M5A21R05. Compare the part number with the equipment documentation, wiring diagrams, and replacement-parts list.

Step 2: Isolate the Equipment

Place the machine in a safe state and isolate all relevant power sources according to the site’s lockout/tagout procedures. Verify that the equipment is de-energized before disconnecting or handling the cable.

Step 3: Inspect the Cable

Examine the outer jacket, connectors, strain reliefs, and accessible cable sections. Look for cuts, crushing, deformation, contamination, or other visible damage. Do not install a cable with compromised insulation or damaged connectors.

Step 4: Confirm Connector Compatibility

Check that the connectors match the designated interfaces on the servo drive and motor. Never force a connector into position or assume that visually similar connectors have the same electrical arrangement.

Step 5: Plan the 5-Meter Cable Route

Measure the required distance between the connection points and account for the actual routing path. Ensure the cable reaches the required connections without excessive tension and remains within the manufacturer’s specified bending limits.

Avoid sharp edges, pinch points, unsuitable heat sources, and locations where moving machinery could damage the cable. If the installation includes moving components, verify that the cable is suitable for the required movement and bending conditions.

Step 6: Verify Electrical Requirements

Review the approved wiring diagrams and product specifications. Confirm the required cable type and electrical characteristics before making connections. Do not guess conductor assignments, terminal functions, or connector pinouts.

Step 7: Connect and Secure the Cable

Connect the cable according to the approved installation procedure. Ensure that the connectors are correctly aligned and secured as specified. Use appropriate supports where required without applying excessive pressure to the cable jacket.

Step 8: Complete Pre-Commissioning Checks

Inspect the completed installation and verify that the cable is correctly connected, routed, and protected. Ensure it does not interfere with moving components or obstruct maintenance access.

Step 9: Restore Power and Test

Restore power according to the approved commissioning procedure. Review the servo drive’s diagnostic information and verify motor operation under controlled conditions before returning the machine to normal service.

7. Common Problems and Troubleshooting

Problems involving a servo motor power cable can result from physical damage, connector issues, incorrect installation, or faults elsewhere in the servo system. A systematic inspection helps identify the cause.

7.1 Inspect Cable and Connector Condition

Check for visible damage, contamination, loose connections, and signs of overheating. Electrical testing should be performed by qualified personnel using appropriate instruments and safe procedures.

7.2 Verify Compatibility

Confirm that the installed cable is the correct model for the intended drive and motor. A cable that fits physically may still have unsuitable electrical characteristics or connector assignments.

7.3 Review Servo Drive Diagnostics

Record relevant fault codes and diagnostic messages before changing settings or replacing additional components. This information can help distinguish a connection problem from faults involving the motor, drive, power supply, or control configuration.

7.4 Examine the Cable Route

Inspect cable trays, cabinet openings, machine frames, and areas exposed to vibration or abrasion. Poor routing can cause repeated damage and shorten cable service life.

7.5 Replace Defective Cables

Replace cables with damaged insulation or compromised connectors using approved compatible parts. Avoid improvised repairs unless an authorized procedure specifically permits them.

8. Preventive Maintenance and Reliability

Regular inspection helps identify cable deterioration before it causes unexpected downtime.

• Inspect the cable jacket: Look for cuts, abrasion, crushing, discoloration, and other visible damage.
• Check connectors: Inspect for contamination, damage, and secure engagement.
• Review cable routing: Ensure that the cable is protected from sharp edges, excessive bending, and mechanical interference.
• Monitor servo alarms: Investigate recurring faults and record diagnostic information.
• Maintain cable identification: Use clear labels where appropriate to reduce the risk of incorrect reconnection.
• Document replacements: Record the installed model, replacement date, and inspection findings.
• Use approved spare parts: Verify the complete model number and system compatibility before replacement.
• Follow safe procedures: Isolate the equipment before handling electrical connections.

Inspection frequency should reflect the operating environment, machine duty, cable movement, and the site’s maintenance policy.

9. Compatible System Components

The following table identifies component categories to review when evaluating the VW3M5A21R05. It does not confirm compatibility with any specific equipment model.

Compatibility should be established using the exact cable, drive, and motor specifications. Do not assume that the VW3M5A21R05 is interchangeable with other Schneider cable models simply because they share a similar product prefix or connector appearance.

10. Replacement and Alternative Selection

When replacing the Schneider VW3M5A21R05, prioritize technical compatibility rather than selecting a cable based solely on length, appearance, or price.

If the original model is unavailable, an alternative should be selected only after its electrical specifications, connector compatibility, mechanical requirements, and suitability for the intended servo system have been confirmed. A cable with the same length is not necessarily a valid substitute.

11. Key Benefits of Correct Cable Selection

Correctly selecting a servo motor power cable supports effective installation and maintenance of industrial motion-control systems.

Suitable Cable Length

The supplied 5-meter length may suit installations where the servo drive and motor require a moderate routing distance. Actual suitability depends on the measured cable route and the manufacturer’s requirements.

Organized Equipment Layout

A correctly sized cable helps engineers plan connections between the drive and motor while avoiding unnecessary excess cable. Proper routing must still prevent mechanical stress and interference.

Reliable Electrical Connections

Correct connector matching, secure installation, and suitable cable routing help reduce avoidable connection problems.

Simplified Maintenance

Using the correct model supports accurate spare-parts identification and reduces the risk of installing an incompatible replacement.

Practical Installation Planning

The supplied cable length of 5 meters and weight of 0.8 kg provide useful information for equipment layout, material handling, and maintenance planning.

These benefits depend on correct product identification, verified system compatibility, and compliance with the applicable installation instructions.

12. Technical FAQs

Q1: What is the Schneider VW3M5A21R05?

The Schneider VW3M5A21R05 is identified as a servo motor power cable for compatible industrial automation applications. Its precise connection details should be confirmed using the applicable product documentation.

Q2: What is the cable length?

The supplied cable length is 5 meters.

Q3: How much does the VW3M5A21R05 weigh?

The supplied product weight is 0.8 kg.

Q4: Can this cable be used with any Schneider servo motor?

No. Compatibility depends on the exact servo drive and motor models, connector configuration, and electrical requirements. Confirm the intended combination before installation.

Q5: Is the VW3M5A21R05 a feedback or encoder cable?

It is identified as a servo motor power cable. It should not be substituted for a feedback, encoder, or communication cable unless the technical documentation explicitly confirms that function.

Q6: What should be checked before installation?

Verify the model number, cable length, connector configuration, electrical characteristics, equipment compatibility, and planned cable route. Inspect the cable for visible damage before use.

Q7: Can a longer cable be used instead?

A different cable length may be suitable only if it meets the manufacturer’s electrical and installation requirements and has the correct connectors. Confirm that the alternative is approved for the intended system.

Q8: What may cause a servo fault after installation?

Possible causes include incorrect connections, incompatible connectors, cable damage, configuration problems, or faults in the drive, motor, and power supply. Review system diagnostics to identify the cause.

Q9: How should the cable be maintained?

Inspect the cable jacket, connectors, and routing regularly. Protect the cable from abrasion, crushing, excessive bending, and unsuitable environmental conditions. Replace damaged cables with approved compatible parts.

Q10: What information is required to confirm compatibility?

The key information includes the complete cable part number, the connected servo drive and motor models, the connector arrangement, and the applicable wiring documentation.

13. Conclusion

The Schneider VW3M5A21R05 Servo Motor Power Cable is an industrial automation cable with a supplied length of 5 meters and a listed weight of 0.8 kg. It may be suitable for compatible servo motor installations where the cable length and connection requirements match the system design.

Before installation or replacement, verify the connector configuration, electrical characteristics, and compatibility with the intended servo drive and motor. Proper routing, secure connections, preventive inspection, and systematic troubleshooting help reduce avoidable faults and support reliable operation of industrial motion-control equipment.
