- Schneider
- VW3A1007
- Altivar Remote Terminal
- France
- 110 × 90 × 25 mm
- 0.275 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 4
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
Product Overview

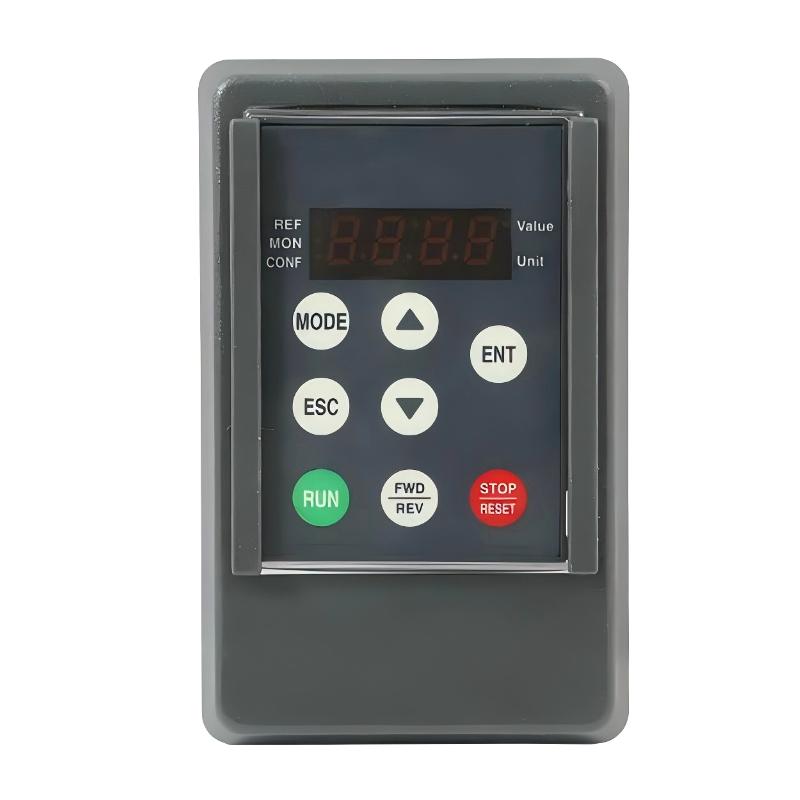

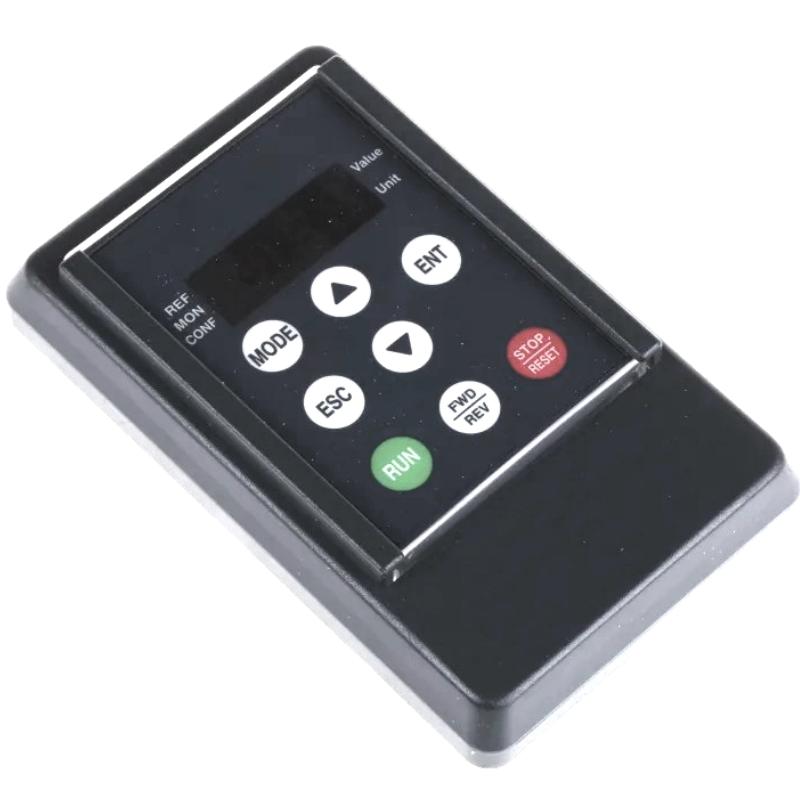

The Schneider VW3A1007 Altivar Remote Terminal serves as a remote operator interface for compatible Altivar drive installations. Its main purpose is to bring drive operation and monitoring functions to a location that is easier for the operator to reach.
This arrangement is useful when the variable speed drive is mounted inside an electrical cabinet, machine enclosure, or equipment compartment. Instead of opening the enclosure for routine interaction, the operator can work from the remote terminal position.
The VW3A1007 can be used in motor-control installations where drive status, operating information, and applicable control or parameter functions need to be accessible from the machine or control-panel side.
Technical Specifications
Product Features
- Schneider Electric Altivar Remote Terminal
- Model VW3A1007
- Remote interface for compatible Altivar drives
- Provides access to drive operating information
- Suitable for remote drive operation
- Useful for cabinet-mounted drive applications
- Applicable to machine control panels
- Supports operator access away from the main drive
- Suitable for drive monitoring and adjustment tasks
- Compact operator-interface format
- Applicable to maintenance and replacement work
Working Principle
The VW3A1007 sits on the operator side of the drive-control arrangement rather than performing the motor-control power conversion itself.
Operator → VW3A1007 → Altivar Drive → Motor
When connected to a compatible drive, the terminal exchanges the applicable operating information and commands with the drive. The drive remains responsible for motor-control functions, while the remote terminal gives the operator access to supported functions.
A typical operating sequence may involve:
- Viewing drive operating information.
- Checking the current operating condition.
- Accessing applicable drive parameters.
- Entering supported commands or adjustments.
- Observing the resulting drive response.
This separation is useful in installations where the drive and the operator interface need to occupy different physical locations.
Role in an Altivar Drive System
| System Element | Function |
|---|---|
| VW3A1007 | Remote operator interface |
| Altivar Drive | Variable speed motor control |
| Drive Interface | Handles communication with the terminal |
| Control Panel | Provides operator access location |
| Electric Motor | Receives the drive output |
| Machine / Process | Uses the controlled motor |
The terminal extends operator access to the drive without becoming part of the drive’s power-conversion stage.
Industrial Applications
| Application | Typical Use |
|---|---|
| Conveyor Equipment | Remote motor-drive operation |
| Pumping Systems | Drive monitoring and adjustment |
| HVAC Equipment | Accessible drive interface |
| Production Machinery | Operator access to drive functions |
| Material Handling | Remote motor-control interface |
| Process Equipment | Drive status monitoring |
| Machine Panels | Cabinet-door operator access |
| Industrial Automation | Drive operation and diagnostics |
Installation and Maintenance
- Confirm the VW3A1007 model before installation or replacement.
- Verify compatibility with the intended Altivar drive.
- Check the required connection arrangement.
- Inspect the connecting cable and connectors.
- Ensure the terminal is securely mounted.
- Select an operator location that allows convenient access.
- Protect the terminal from impact and excessive mechanical stress.
- Check communication with the connected drive.
- Verify displayed drive information.
- Test applicable operator functions.
- Confirm supported parameter-access functions.
- Check drive status and diagnostics after installation.
- Inspect the interface connection if communication becomes intermittent.
When the terminal fails to operate correctly, check the connection path and the associated drive before concluding that the terminal itself has failed.
Related Components
| Component | Function |
|---|---|
| Schneider Electric VW3A1007 | Altivar Remote Terminal |
| Altivar Variable Speed Drive | Motor control |
| Drive Interface | Terminal-to-drive communication |
| Connecting Cable | Interface connection |
| Electric Motor | Controlled load |
| Control Cabinet | Drive installation enclosure |
| Machine Control Panel | Operator interface location |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Schneider Electric VW3A1007 | Altivar Remote Terminal | Remote drive operation |
| Schneider Electric VW3A1006 | Altivar Remote Terminal | Remote drive interface |
| Schneider Electric ATV12 | Altivar Variable Speed Drive | Compact machine applications |
| Schneider Electric ATV320 | Altivar Machine Drive | Machine control |
| Schneider Electric ATV630 | Altivar Process Drive | Process applications |
| Schneider Electric ATV930 | Altivar Process Drive | Advanced process control |
| Schneider Electric ATV340 | Altivar Machine Drive | Machine performance applications |
Key Advantages
- Altivar remote operator interface
- Model VW3A1007
- Enables remote access to compatible drive functions
- Suitable for cabinet-mounted drives
- Supports drive monitoring and operator interaction
- Useful for machine and process equipment
- Separates operator access from the main drive location
- Suitable for maintenance and replacement applications
Technical FAQs
Why would an operator need the VW3A1007 outside the drive cabinet?
A drive may be installed inside an electrical enclosure for protection and space management, while routine operation takes place at the machine or control-panel level. A remote terminal allows the operator interface to remain accessible without routinely accessing the drive enclosure.
What should be verified before pairing the VW3A1007 with an Altivar drive?
The drive model and its supported remote-terminal interface should be checked first. The physical connection, communication arrangement, and available terminal functions should also correspond to the selected drive configuration.
Can a communication cable cause symptoms that appear to be a terminal failure?
Yes. An open conductor, poor connector contact, damaged cable, or incorrect connection can interrupt communication between the terminal and drive. Checking the complete interface path can prevent unnecessary replacement of a functioning terminal.
Does the VW3A1007 perform the motor-control function?
No. The terminal serves as the operator interface. The connected Altivar drive performs the actual variable-speed motor-control function, while the VW3A1007 provides access to supported drive information and commands.
