Product Overview

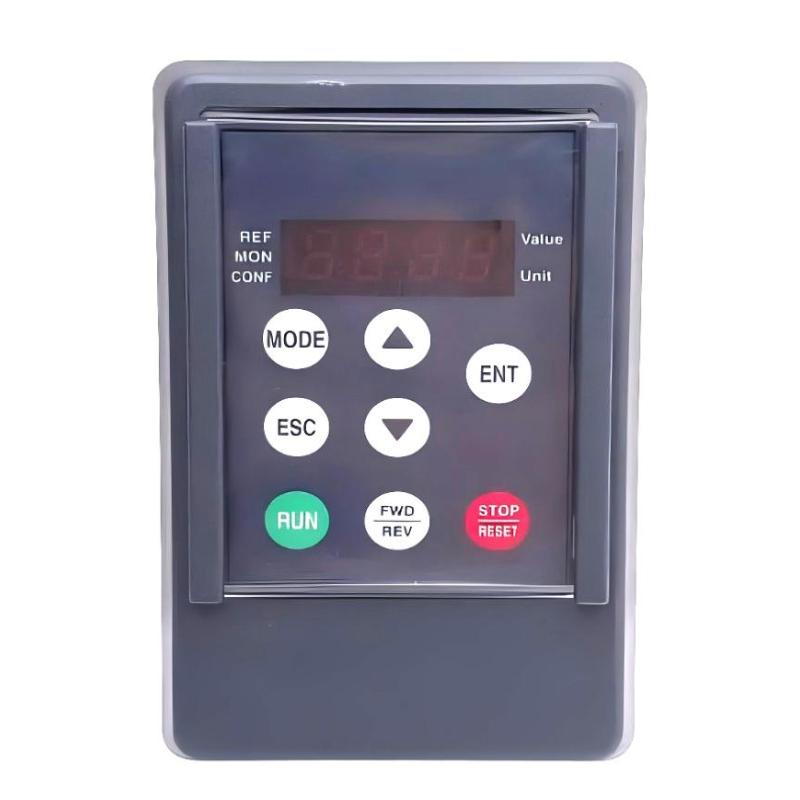

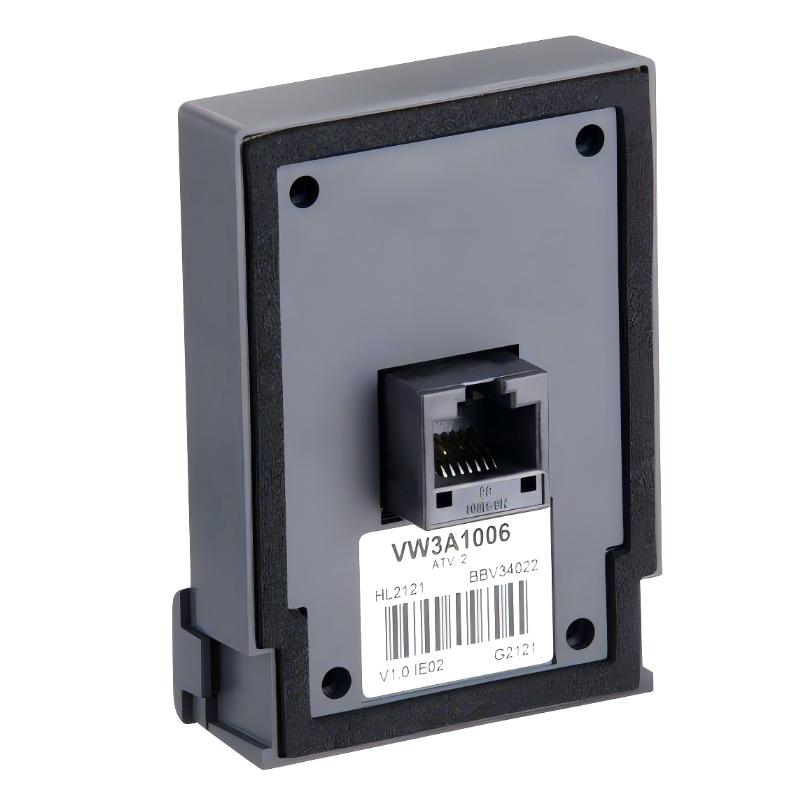

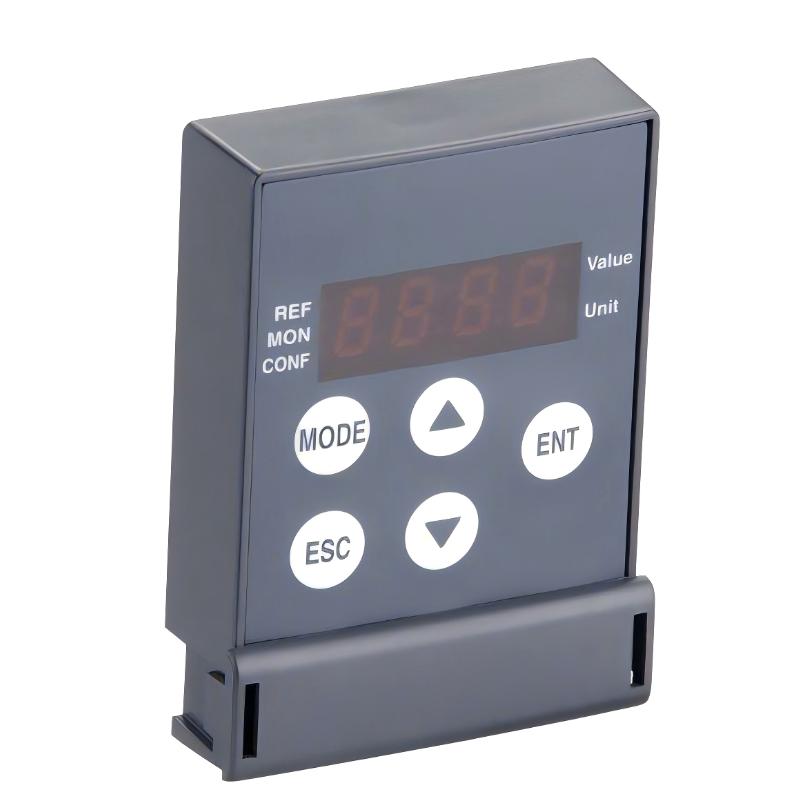

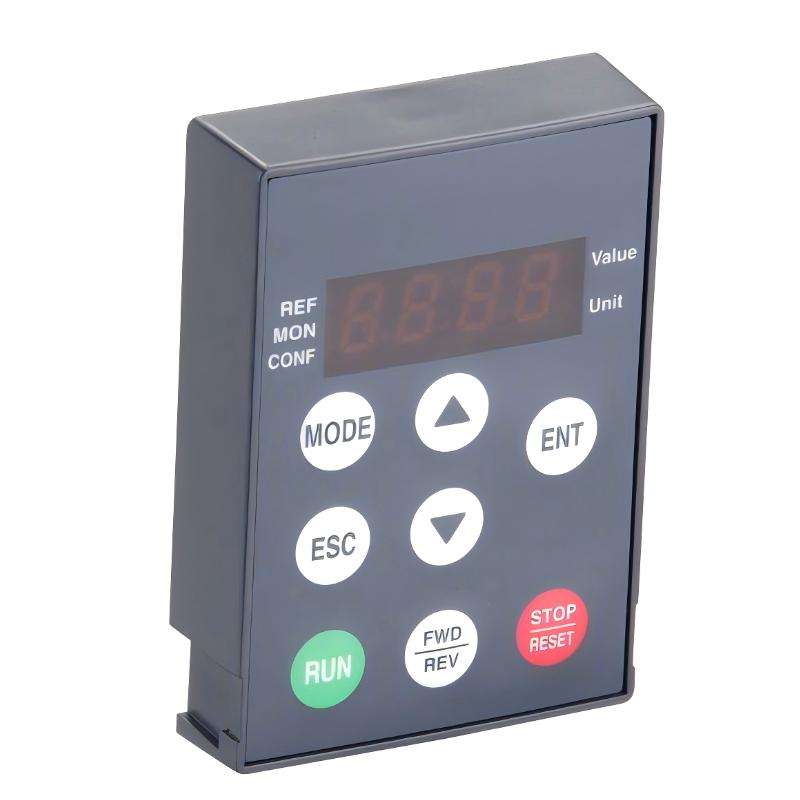

The Schneider VW3A1006 Altivar Remote Terminal is a remote operator interface used with compatible Altivar variable speed drives. It gives operators access to drive-related commands and information without requiring direct access to the main drive enclosure.
In a practical installation, the terminal can be positioned where the operator needs to monitor or interact with the drive, while the main drive remains installed inside a cabinet or equipment enclosure. This arrangement is useful for motor-control panels, machine interfaces, and applications where local access to the drive itself is inconvenient.
The VW3A1006 belongs to the Altivar accessory ecosystem and is associated with drive operation, monitoring, and parameter access.
Technical Specifications
Product Features
The VW3A1006 provides a remote interface for compatible Altivar drive installations.
Key characteristics include:
- Schneider Electric Altivar Remote Terminal
- Model VW3A1006
- Remote operator interface for drive systems
- Supports drive monitoring and operator interaction
- Allows drive access away from the main enclosure
- Suitable for motor-control applications
- Applicable to machine control panels
- Supports convenient access to drive functions
- Designed as an accessory for compatible Altivar installations
- Useful for drive maintenance and replacement projects
Working Principle
The VW3A1006 functions as an operator-side interface connected to a compatible Altivar drive.
A typical arrangement is:
Operator → VW3A1006 → Drive Interface → Altivar Drive → Motor
Drive information is made available through the remote terminal, allowing the operator to interact with the drive from a more accessible location.
Depending on the supported drive functions, the interface can be used for activities such as:
-
Drive Monitoring
Operators can view relevant operating information from the remote location.
-
Parameter Access
Drive settings can be accessed through the operator interface when supported by the connected drive.
-
Command Interaction
Applicable drive commands can be entered from the remote terminal.
-
Maintenance
Technicians can use the remote interface when checking drive operation or making required adjustments.
The remote terminal does not replace the drive controller itself. It serves as the operator-facing interface for the compatible Altivar drive system.
Role in an Altivar Drive System
The VW3A1006 occupies the operator-interface layer of an Altivar installation.
| System Element | Function |
|---|---|
| VW3A1006 | Remote operator interface |
| Altivar Drive | Motor speed and drive control |
| Control Logic | Determines required motor operation |
| Motor | Converts electrical power into mechanical motion |
| Operator | Monitors and interacts with the drive |
| Machine / Process | Performs the required production function |
A remote terminal can be particularly useful when the drive is installed inside a control cabinet but operators need access from the cabinet door or another accessible operating location.
Industrial Applications
| Application | Typical Use |
|---|---|
| Manufacturing Machinery | Local drive operation and monitoring |
| Conveyor Systems | Motor-control access |
| Pump Systems | Drive monitoring and adjustment |
| HVAC Equipment | Motor drive operation |
| Material Handling | Accessible drive interface |
| Process Machinery | Operator access to variable speed drives |
| Machine Control Panels | Remote drive interaction |
| Industrial Automation | Drive status and parameter access |
Installation and Maintenance
The VW3A1006 should be installed as part of the compatible Altivar drive interface arrangement.
Recommended practices include:
- Confirm the VW3A1006 model.
- Verify compatibility with the connected Altivar drive.
- Check the interface and connection arrangement.
- Inspect the connecting cable and connectors.
- Ensure connections are properly seated.
- Mount the terminal in an accessible operator location.
- Protect the interface from mechanical damage.
- Check display and operator functions after installation.
- Verify communication with the connected drive.
- Confirm that drive information is displayed correctly.
- Test applicable operator commands.
- Check parameter access where required.
- Review drive diagnostics after commissioning.
If the terminal does not communicate with the drive, the investigation should include the terminal, connection cable, connectors, drive interface, and drive configuration rather than immediately replacing the terminal.
Related Components
| Component | Function |
|---|---|
| Schneider Electric VW3A1006 | Altivar Remote Terminal |
| Altivar Variable Speed Drive | Motor control |
| Drive Interface | Connects operator terminal with drive |
| Connecting Cable | Carries interface signals |
| Electric Motor | Controlled mechanical load |
| Control Panel | Houses control equipment |
| Operator Interface | Provides monitoring and command access |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Schneider Electric VW3A1006 | Altivar Remote Terminal | Remote drive operation |
| Schneider Electric VW3A1008 | Altivar Remote Terminal | Drive operator interface |
| Schneider Electric VW3A1101 | Altivar Remote Terminal | Remote drive access |
| Schneider Electric ATV12 | Altivar Variable Speed Drive | Compact motor control |
| Schneider Electric ATV320 | Altivar Machine Drive | Machine automation |
| Schneider Electric ATV630 | Altivar Process Drive | Process applications |
| Schneider Electric ATV930 | Altivar Process Drive | High-performance process control |
Key Advantages
- Altivar remote operator interface
- Model VW3A1006
- Allows drive access from a remote operating position
- Useful for cabinet-mounted drive installations
- Supports drive monitoring and operator interaction
- Suitable for machine and process applications
- Simplifies operator access to compatible Altivar systems
- Useful for drive maintenance and replacement
Technical FAQs
Why use a remote terminal when the Altivar drive already has its own interface?
A remote terminal allows the operator interface to be positioned where it is easier to access. This is useful when the drive itself is mounted inside a cabinet, enclosure, or equipment area that is not intended for routine operator access.
What should be checked when the VW3A1006 does not communicate with the drive?
Check the compatibility of the terminal and drive first, followed by the connecting cable, connectors, interface connection, and drive configuration. A communication problem can occur anywhere along this interface path.
Can the remote terminal be used for drive commissioning?
Where supported by the connected Altivar drive, the remote interface can be useful for viewing operating information, accessing parameters, and performing applicable drive setup or adjustment tasks.
What is the difference between the remote terminal and the variable speed drive itself?
The VW3A1006 serves as the operator interface, while the Altivar drive performs the actual motor-control functions. The drive handles power conversion and motor operation; the remote terminal gives the operator access to supported drive information and commands.
