Product Overview

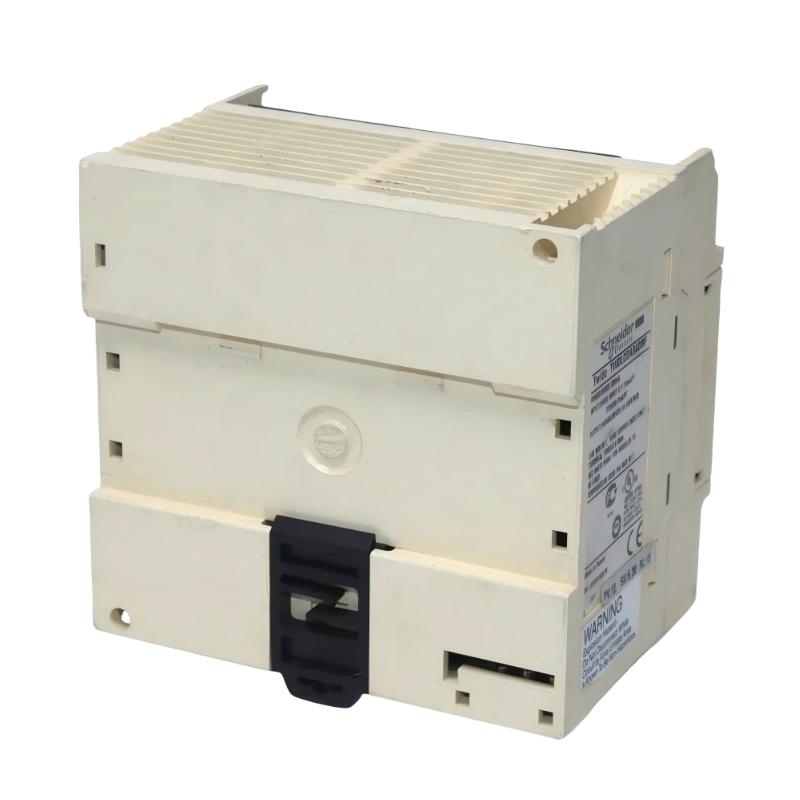

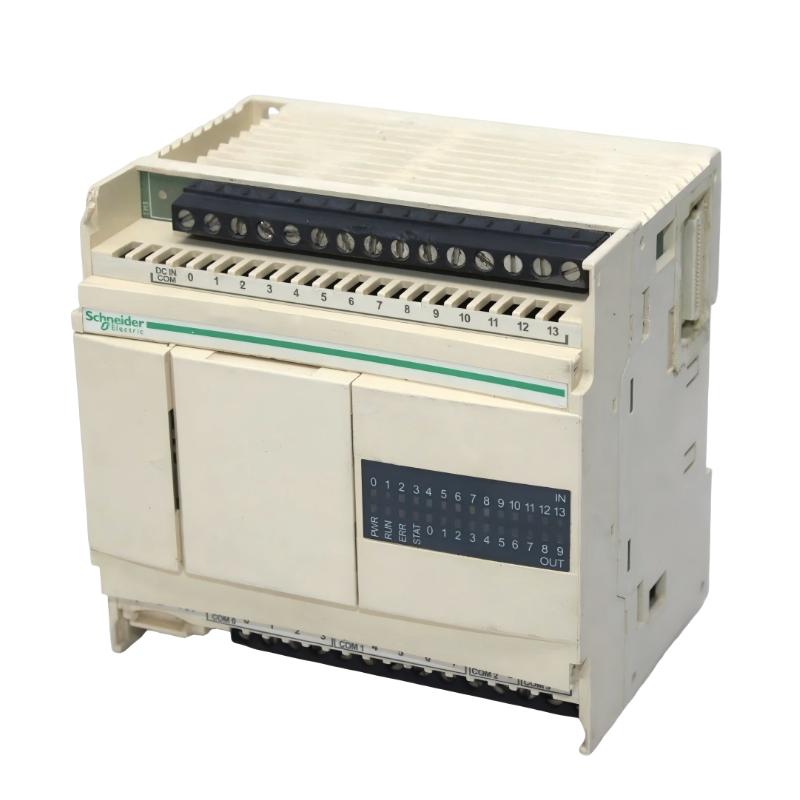

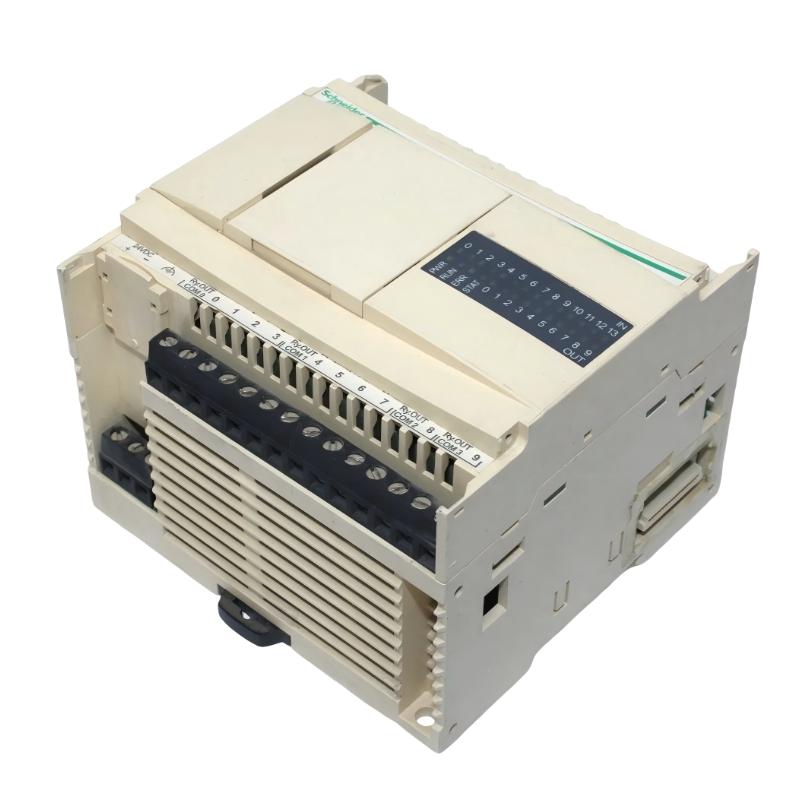

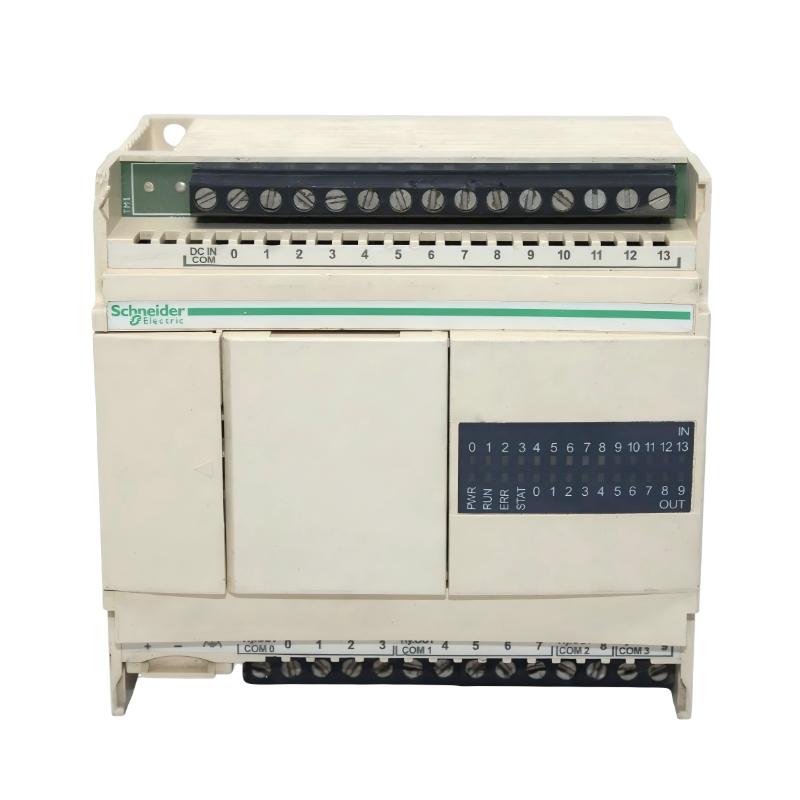

The Schneider TWDLCDA24DRF Modicon Twido Programmable Controller is a compact PLC intended for machine automation and control applications within the Modicon Twido platform. It combines PLC processing with local I/O functionality, allowing a relatively small control system to handle field signals without requiring a large modular rack.

In practical machine applications, the controller can sit close to the equipment it controls. Push buttons, limit switches, proximity sensors, auxiliary contacts, and other field devices supply status information, while the controller processes those conditions and determines when outputs should operate.

The TWDLCDA24DRF is particularly relevant to compact control panels where space and wiring simplicity matter. A small packaging machine, conveyor section, pumping unit, or automated assembly station may use a compact Twido controller as the main control element.

The controller’s integrated I/O also makes it different from an expansion-only module. It can directly participate in the machine’s control sequence, while additional Twido modules can be considered when the application exceeds the available local I/O or requires other functions.

For maintenance engineers, the controller should be evaluated as part of the complete automation system. An apparent PLC fault may actually originate from field wiring, a sensor, an output load, the application program, or the controller’s power and communication environment.

Technical Specifications

Product Features

The TWDLCDA24DRF combines the functions needed for compact PLC-based machine control.

• Schneider Electric Modicon Twido Programmable Controller
• Model TWDLCDA24DRF
• Compact PLC construction
• Integrated local I/O capability
• Suitable for machine sequence control
• Handles discrete field information
• Controls connected machine equipment
• Suitable for compact control cabinets
• Can be combined with Twido expansion hardware
• Useful for legacy Twido maintenance and replacement

Its actual suitability should be determined from the existing application requirements, including I/O, output type, expansion requirements, communication, and control-program configuration.

Working Principle

The TWDLCDA24DRF continuously executes the stored PLC application while monitoring the connected field signals.

A typical control path is:

Field Inputs → TWDLCDA24DRF → PLC Logic → Local Outputs → Machine Equipment

Imagine an automated conveyor where a start push button initiates operation, a proximity sensor confirms product presence, and a limit switch verifies the position of a mechanical stop.

The controller receives these conditions through its input circuits and evaluates them according to the programmed sequence.

For example:

Start Command + Safety Condition + Product Present → Conveyor Operation

When the required conditions are satisfied, the controller changes the appropriate output state. The connected relay, contactor, solenoid, or other interface then controls the physical equipment.

The process repeats continuously:

Read Inputs → Execute Program → Update Outputs → Monitor Status → Repeat

This cycle allows the controller to coordinate several machine functions without requiring every control decision to be implemented through separate hardwired relay logic.

Role in a Modicon Twido Control System

The TWDLCDA24DRF functions as the central control point in a compact Twido installation.

A simplified arrangement is:

Sensors / Switches → TWDLCDA24DRF → Actuators

For larger applications, the architecture can be expanded:

Field Devices → Twido Local I/O → TWDLCDA24DRF → Expansion / Communication → External Equipment

This arrangement suits machines where the main control functions can be concentrated around one compact PLC.

Relay Output Considerations

The DRF version is associated with a controller configuration using relay-type output switching. This makes the output side particularly relevant when the controller is connected to different types of machine loads.

Typical applications can include control of:

• Relays
• Contactors
• Solenoid valves
• Indicator devices
• Machine-control circuits

When troubleshooting an output problem, the PLC output indication alone should not be treated as proof that the external device is receiving the required operating condition.

A useful diagnostic sequence is:

PLC Output Status → Output Terminal → External Wiring → Relay / Contactor → Load

If the PLC indicates the expected output state but the equipment does not operate, the investigation can move toward the wiring, interface component, power circuit, or load.

Industrial Applications

The actual application depends on the Twido program and the connected field equipment.

Installation and Maintenance

Because the TWDLCDA24DRF combines processor and local I/O functions, a replacement should be approached as a complete controller change rather than simply an electrical component swap.

Recommended practices include:

• Confirm the complete TWDLCDA24DRF model.
• Record the current controller configuration.
• Back up the PLC application.
• Document local input and output assignments.
• Identify connected sensors and actuators.
• Check controller diagnostics.
• Inspect the power supply.
• Check input wiring and terminal conditions.
• Inspect output wiring and external loads.
• Verify communication connections where applicable.
• Compare PLC I/O states with actual machine conditions.
• Review the relevant application logic.
• Follow the approved electrical isolation procedure.
• Remove the existing controller carefully.
• Install the replacement controller.
• Restore the required application configuration.
• Verify local I/O assignments.
• Check controller startup and diagnostics.
• Test representative inputs.
• Test representative relay outputs.
• Verify connected loads.
• Run representative machine sequences.
• Confirm alarms, permissives, and interlocks.
• Record the final controller configuration.

For an intermittent fault, it is useful to monitor the input and output states while the machine is operating rather than relying only on a static inspection.

Compatible System Components

The TWDLCDA24DRF can be combined with supporting Twido hardware and conventional field devices.

The exact component selection should follow the original machine electrical design.

Recommended Related Models

For SEO grouping and replacement searches, the following models are selected from the Modicon Twido compact PLC and associated I/O range, with emphasis on similar machine-control applications.

Key Advantages

• Schneider Electric Modicon Twido Programmable Controller.
• Model TWDLCDA24DRF.
• Compact PLC architecture.
• Combines control processing with local I/O.
• Suitable for machine sequence control.
• Relay-output configuration suited to various control circuits.
• Useful for sensor, relay, contactor, and actuator coordination.
• Suitable for compact automation cabinets.
• Relevant to Twido maintenance and replacement applications.

Technical FAQs

What makes the TWDLCDA24DRF suitable for compact machine control?

Its compact PLC architecture combines program execution with local I/O, allowing control functions and field interfaces to be concentrated in one controller. This is useful for machines with a relatively contained control system.

What should be checked when a relay output appears active but the external device does not operate?

Start by confirming the PLC output state, then check the corresponding terminal and external circuit. The relay or contactor, supply circuit, wiring, and load should also be checked because a correct PLC output state does not necessarily mean the final load is receiving the required power.

Can additional Twido modules be used when the local controller configuration is insufficient?

The answer depends on the original Twido system architecture and the type of additional function required. Before adding hardware, engineers should check the controller’s expansion capability, available space, required I/O type, and the existing application configuration.

What information should be preserved before replacing a TWDLCDA24DRF?

At minimum, preserve the PLC application, I/O assignments, controller configuration, communication parameters where applicable, and field wiring documentation. Recording the original state makes it much easier to verify the replacement during commissioning.
