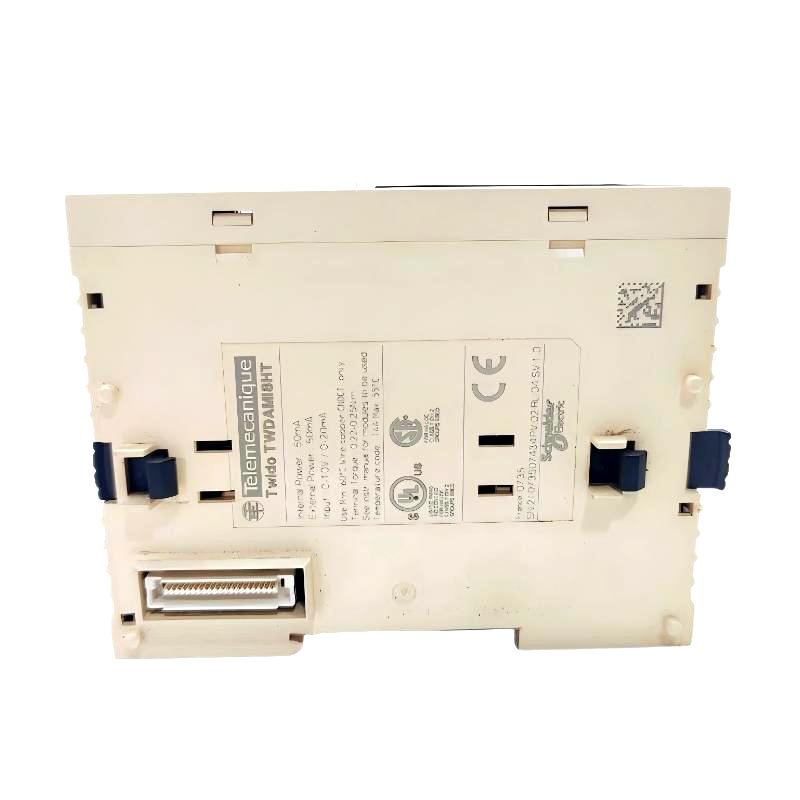

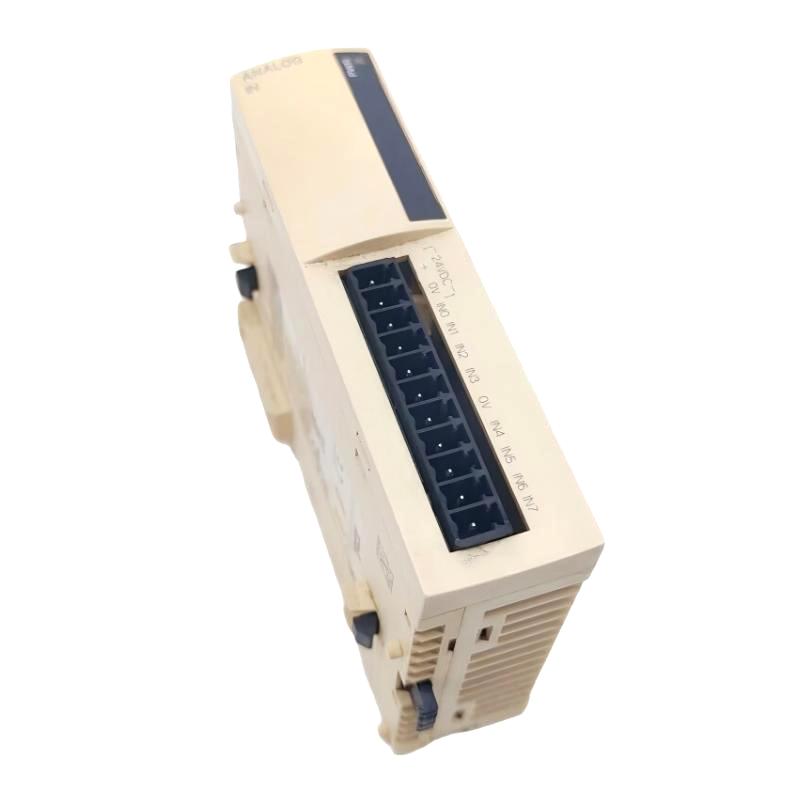

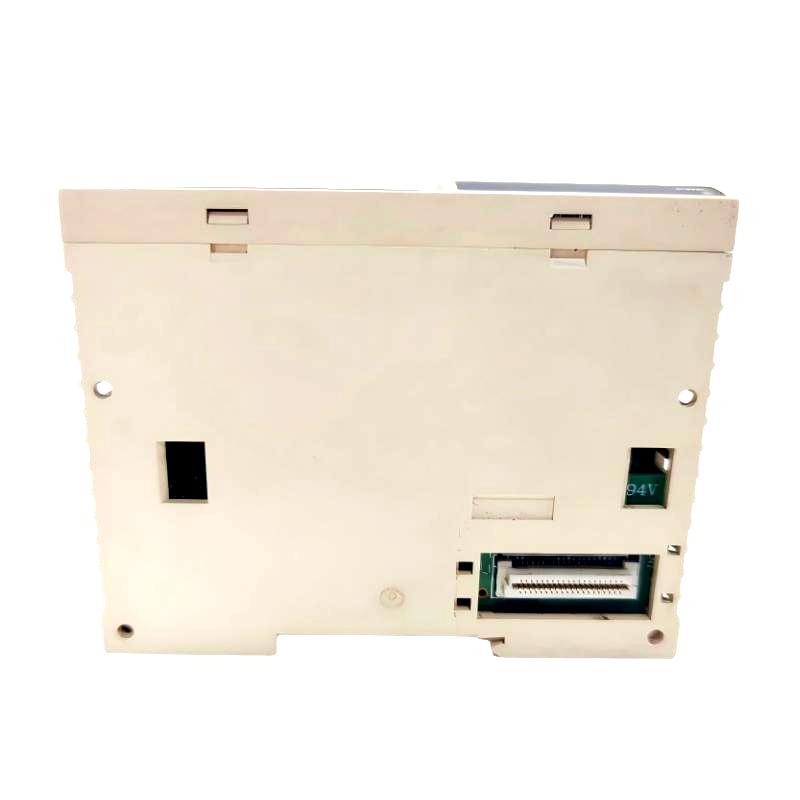

1. Product Overview

The Schneider Electric TWDAMI8HT Analog Input Module is an eight-channel analog input expansion module designed for compatible Modicon Twido programmable logic controller (PLC) systems. It enables a PLC to receive analog signals from industrial sensors and transmitters, convert the signals into digital values, and use the resulting measurements in control programs.

The module supports two common industrial signal types: 0–10 V DC voltage inputs and 0–20 mA DC current inputs. These signals are widely used for measuring process variables such as pressure, flow, liquid level, and other operating parameters. By integrating eight analog input channels into one expansion module, the TWDAMI8HT helps connect multiple instruments to a single PLC system.

The TWDAMI8HT uses 10-bit analog-to-digital conversion, providing 1,024 digital increments across the configured measurement range. The PLC application can process these digital values for equipment monitoring, alarm generation, data acquisition, and control logic.

As a member of the Schneider Electric Twido product family, the TWDAMI8HT was designed for applications requiring additional analog measurement capacity. Its eight-channel configuration is useful when several instruments must be connected to a compact control system without using an individual module for every measurement point.

The module is particularly relevant to maintenance teams and industrial spare-parts suppliers supporting legacy Twido installations. Since the model has been discontinued, buyers should confirm the exact reference, physical condition, and compatibility with the installed PLC before purchasing.

Product Highlights

• Manufacturer: Schneider Electric
• Model: TWDAMI8HT
• Product type: Analog input expansion module
• PLC platform: Modicon Twido
• Number of analog input channels: 8
• Voltage input range: 0–10 V DC
• Current input range: 0–20 mA DC
• Analog-to-digital resolution: 10 bit
• Digital conversion range: 0–1023
• Rated supply voltage: 24 V DC
• Connection type: Removable screw terminal block
• Dimensions supplied: 235 × 90 × 70 mm
• Weight supplied: 0.085 kg
• Product status: Discontinued

2. Technical Specifications

Specifications should be checked against the applicable Twido hardware documentation and the installed system configuration. The dimensions and weight above are the values supplied for this product listing; confirm the actual module dimensions and net weight before using them for mechanical design or shipping calculations.

3. Function and Working Principle

The primary function of the TWDAMI8HT is to collect analog measurements from compatible industrial instruments and make the resulting data available to a Twido PLC.

Unlike digital inputs, which typically represent ON/OFF states, analog inputs represent values that can vary continuously within a defined range. The module measures these signals and converts them into digital values for use by the PLC program.

3.1 Eight-Channel Analog Signal Acquisition

The TWDAMI8HT provides eight analog input channels, allowing a compatible PLC system to monitor multiple instruments through one expansion module.

Typical applications include:

• Reading voltage-output sensors.
• Acquiring current-loop measurements.
• Monitoring pressure transmitters.
• Collecting flow and level measurements.
• Measuring other process variables represented by supported voltage or current signals.

The number of available channels can help simplify the layout of an automation system. However, the input configuration must follow the module’s documented restrictions. The TWDAMI8HT is designed to operate in voltage or current mode; users should not assume that voltage and current signals can be freely mixed across individual channels in the same configuration.

3.2 Voltage Input: 0–10 V DC

In voltage mode, the module accepts a nominal signal range of 0–10 V DC. A compatible sensor or transmitter can use this voltage to represent a measurement such as position, pressure, or another process variable.

The module converts the measured voltage into a digital value between 0 and 1023. With 10-bit resolution, the nominal range contains 1,024 increments.

For an ideal 0–10 V input range, one digital increment corresponds to approximately 9.78 mV. Actual measurement performance also depends on the module’s accuracy, operating conditions, signal quality, and wiring.

The PLC application must scale the raw input value into the relevant engineering unit. For example, a transmitter may map its 0–10 V output to a pressure range defined by the instrument manufacturer. The controller program then converts the digital reading into the corresponding pressure value.

3.3 Current Input: 0–20 mA DC

In current mode, the TWDAMI8HT supports a nominal 0–20 mA DC input range. Current signals are widely used in industrial instrumentation because properly designed current loops can provide dependable measurement transmission in industrial environments.

Compatible transmitters can represent pressure, flow, level, or other process variables through the current signal. The PLC program reads the converted digital value and scales it according to the instrument’s configured range.

A 4–20 mA transmitter may be usable when the application and module configuration support the required signal arrangement. In that case, the PLC program should map 4 mA to the transmitter’s lower measurement limit and 20 mA to its upper measurement limit.

The module does not automatically interpret a current value as a physical measurement. Correct scaling, alarm thresholds, and fault-handling logic must be implemented in the PLC application.

3.4 Analog-to-Digital Conversion

The module converts incoming analog signals into digital values through an analog-to-digital conversion process.

The general process is:

1. A compatible field instrument generates a voltage or current signal.
2. The signal is connected to the appropriate input terminals.
3. The module measures the input according to its configured signal type.
4. The analog-to-digital converter produces a digital value.
5. The PLC program reads and scales the value.
6. The application uses the measurement for monitoring, calculations, alarms, or control decisions.

The raw digital value represents the measured electrical signal, not necessarily a temperature, pressure, or flow value. Engineering-unit conversion must be defined in the PLC application.

3.5 Sampling and Response Time

The TWDAMI8HT has a sampling duration of approximately 160 ms. Its documented total input system transfer time is approximately eight sampling periods plus one PLC scan time.

This characteristic is important when evaluating the module for applications involving rapidly changing signals. Because measurements are acquired over time, users should assess whether the module’s response characteristics satisfy the actual process requirements.

For slow-changing variables such as many pressure, level, and general process measurements, this type of module may be appropriate when the required response time is compatible with the application. Faster measurement requirements should be assessed against the full system specifications.

4. Role in Industrial Automation Systems

The TWDAMI8HT serves as the interface between analog field instruments and a compatible Twido PLC. It enables the controller to receive process information and use that information in the automation program.

4.1 Process Monitoring

The module can acquire analog signals from compatible transmitters and sensors. The PLC program can use these measurements to monitor operating conditions and determine whether a process remains within its configured limits.

For example, a fluid-handling system may use pressure and flow transmitters to provide measurements to the controller. The TWDAMI8HT acquires the electrical signals, while the PLC application converts them into engineering values for display and monitoring.

4.2 Multi-Point Measurement

Eight analog input channels allow multiple measurement points to be connected through one expansion module, subject to the module’s signal-type configuration requirements.

This can be useful in systems where several instruments must be monitored simultaneously. The PLC application can assign a defined purpose to each input and use the acquired values for calculations, alarms, or coordinated machine operation.

4.3 Alarm and Limit Monitoring

Analog measurements can be compared with configured upper and lower thresholds. If a value moves outside the expected range, the PLC program can generate an alarm or initiate an application-defined response.

For example, an unusually high pressure reading may trigger an operator warning or a controlled shutdown sequence. The actual response depends on the PLC program and the wider system design; the analog input module itself is not a safety-rated controller.

4.4 Equipment Control

In machine automation, analog feedback may be used to monitor process variables and coordinate equipment operation. The PLC can evaluate input values and use them as conditions in its control logic.

The TWDAMI8HT is an input module. It receives voltage or current signals but does not directly generate analog output commands to field actuators.

4.5 Legacy PLC Maintenance

Many industrial facilities continue to operate Twido PLC systems as part of existing production equipment. When the original I/O architecture remains in use, the TWDAMI8HT may be important for maintaining analog measurement functions.

Replacing the original module with another model can affect the I/O configuration, wiring, program logic, and commissioning process. Correct identification is therefore essential when sourcing replacement stock.

5. Typical Industrial Applications

Manufacturing Machinery

Manufacturing equipment often uses analog transmitters to monitor pressure, flow, and other process variables. The TWDAMI8HT can collect compatible signals for use in machine monitoring and control logic.

Packaging and Assembly Lines

Packaging and assembly machinery may need multiple analog measurements for process monitoring, equipment diagnostics, or quality checks. Eight input channels can accommodate several measurement points where the selected signals and configuration are supported.

Water and Wastewater Treatment

Water and wastewater systems commonly use level, pressure, and flow instruments. Compatible transmitters can provide voltage or current signals to a Twido PLC through the TWDAMI8HT.

The PLC program can then process the measurements for monitoring, alarm generation, and coordination with pumps or other equipment.

Pumping and Fluid-Handling Systems

Pumping installations may use pressure and flow transmitters to monitor operating conditions. The module can provide analog measurement data for application logic that coordinates pumps, generates warnings, or records operating values.

HVAC and Building Equipment

Some HVAC and utility applications use analog sensors to monitor pressure, flow, and other operating parameters. Where the sensor output and PLC configuration are compatible, the TWDAMI8HT can serve as the input interface.

General Process Instrumentation

Compact process skids and industrial equipment may require several analog input channels but have limited room for additional hardware. An eight-channel module can consolidate measurement acquisition in a supported Twido installation.

6. Installation and System Integration

Correct installation and configuration are important for measurement accuracy, reliable operation, and safe maintenance.

6.1 Confirm PLC Compatibility

Before installing the TWDAMI8HT, verify that the module is supported by the installed Modicon Twido controller and its expansion configuration.

Check the controller reference, supported expansion modules, available module positions, software version, and power budget. Do not assume that every Schneider Electric PLC can accept this module simply because it comes from the same manufacturer.

6.2 Configure the Correct Signal Type

Determine whether the application requires voltage or current input mode. Configure the module according to the manufacturer’s instructions and make sure the physical wiring matches the software configuration.

A mismatch between the selected input type and the actual signal wiring can produce incorrect readings and may damage the input circuit. Since the module’s input channels must follow the applicable configuration restrictions, confirm the requirements before wiring the field devices.

6.3 Connect Field Instruments

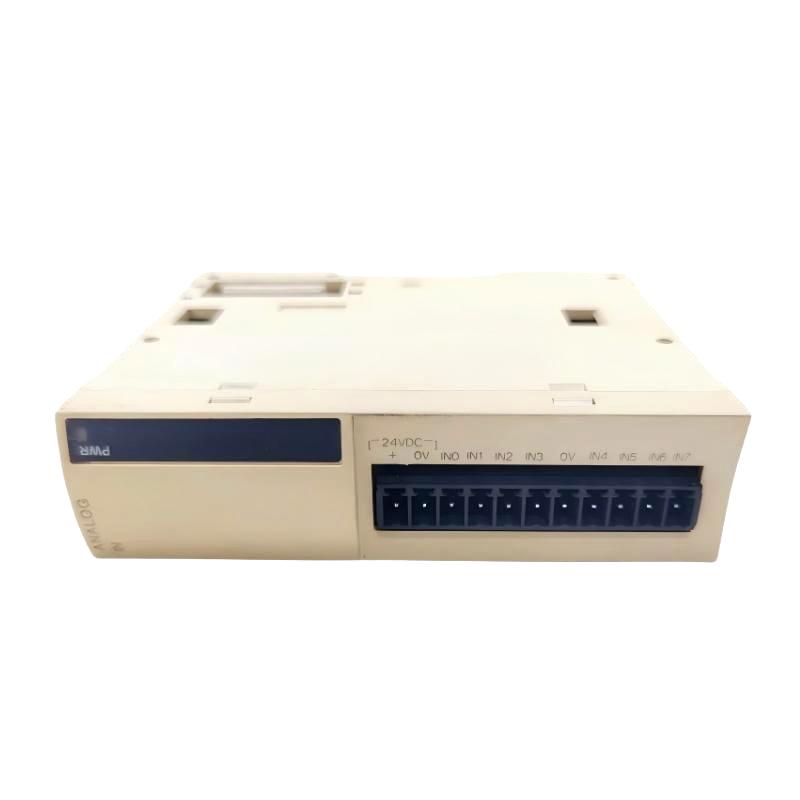

The TWDAMI8HT uses a removable screw terminal block. Follow the official wiring diagram for terminal assignments and signal connections.

Shielded twisted-pair cable is recommended for analog signal wiring to help reduce the effects of electrical interference. Where practical, route analog cables away from motor power cables, variable-speed drives, contactors, and other significant sources of electrical noise.

Check signal polarity, common connections, shielding, and grounding. Do not assume terminal assignments based on a different module in the Twido family.

6.4 Check the Power Supply

The module has a rated supply voltage of 24 V DC, with an allowable range of 19.2–30 V DC including ripple.

Verify that the power supply and PLC expansion system have sufficient capacity for the complete configuration. The power budget should account for all installed modules and connected equipment rather than the TWDAMI8HT alone.

6.5 Configure the PLC Program

Use programming software compatible with the installed Twido system to configure the module and access its analog data.

The program should include the correct scaling relationship for each measurement. For a 0–10 V input, scaling depends on the sensor’s specified voltage-to-measurement relationship. For a current transmitter, scaling must match its configured current range and engineering limits.

Verify that each PLC input address corresponds to the intended field instrument and that the program uses the correct conversion range.

6.6 Test the Input Channels

After installation, test the required channels individually. Compare the PLC readings with known input signals where practical, and confirm that the values change as expected.

If readings are incorrect or unstable, check the signal type, wiring, transmitter power, terminal connections, shielding, cable routing, configuration, and scaling logic. Use an appropriate calibrated instrument when independent verification is required.

6.7 Maintain Configuration Records

For legacy installations, retain the exact module reference, controller model, wiring diagrams, PLC program backup, input configuration, and sensor details.

These records help maintenance personnel restore the original system after a module replacement and reduce the risk of wiring or configuration errors.

7. Compatible System Components

The TWDAMI8HT is intended for compatible Modicon Twido PLC systems. The following table describes common component categories associated with an analog input application.

These are system-level component categories, not a guarantee that every specific model is compatible. Verify the controller, instrument, wiring, and configuration before commissioning.

8. Recommended Alternative Models and Replacement Considerations

The TWDAMI8HT is a discontinued analog input module. Schneider Electric’s product information states that no direct replacement is listed for this reference. Any alternative should therefore be evaluated against the actual application and target PLC platform.

Can TM2AMI8HT Directly Replace TWDAMI8HT?

Do not assume that TM2AMI8HT is a direct replacement. Although the two modules have similar channel counts and voltage/current signal capabilities, they have different product references and may have different compatibility requirements.

Before selecting TM2AMI8HT, confirm the controller model, supported expansion architecture, wiring, configuration software, I/O mapping, and power budget. Functional similarity does not guarantee plug-and-play compatibility.

Can a TM3 Module Replace TWDAMI8HT?

A suitable TM3 analog input module may be considered when upgrading to a supported newer controller platform. However, TM3 modules are designed for specific controller families and should not be assumed to plug directly into a legacy Twido system.

A modernization project should assess the controller, I/O modules, wiring, application program, communication interfaces, and commissioning requirements as a complete system.

Replacement Checklist

Before selecting an alternative, verify:

1. Channel count: Confirm that the replacement provides enough analog input channels.
2. Signal types: Verify the required voltage and current ranges.
3. Resolution and accuracy: Ensure that the replacement meets the application’s measurement requirements.
4. PLC compatibility: Confirm controller support and expansion rules.
5. Wiring: Check terminal assignments, common connections, shielding, and grounding.
6. Software configuration: Review I/O addresses, input settings, and application logic.
7. Commissioning: Test each required channel and verify scaling before returning the system to operation.

For repairs where the original PLC architecture must remain unchanged, sourcing a tested original TWDAMI8HT may reduce engineering changes. For long-term modernization, compare compatible alternatives within the context of the full control system.

9. Key Advantages

Eight Analog Input Channels

The TWDAMI8HT provides eight input channels in one expansion module, supporting multiple measurement points within a compatible Twido system.

Support for Common Industrial Signals

The module supports 0–10 V DC and 0–20 mA DC inputs, allowing it to work with many types of compatible industrial transmitters and sensors.

Straightforward PLC Data Processing

The module converts analog signals into digital values that can be read and processed by the PLC application for monitoring, alarms, and control logic.

Integration with Existing Twido Installations

For supported configurations, the module provides an established way to expand analog input capacity without automatically replacing the complete PLC system.

Removable Screw Terminal Block

The removable screw terminal block supports field wiring and can simplify certain maintenance tasks when installed according to the manufacturer’s instructions.

Useful for Legacy Spare-Parts Management

Accurate identification of the TWDAMI8HT helps maintenance teams and spare-parts suppliers support existing machines that rely on the original analog input configuration.

10. Technical FAQs

What is the Schneider TWDAMI8HT?

The TWDAMI8HT is an eight-channel analog input expansion module for compatible Schneider Electric Modicon Twido PLC systems. It supports voltage and current measurement signals.

How many input channels does it have?

The module has eight analog input channels.

What voltage input range does it support?

It supports a nominal voltage input range of 0–10 V DC.

What current input range does it support?

It supports a nominal current input range of 0–20 mA DC. Verify the transmitter’s signal range and the selected module configuration before use.

What is the module’s resolution?

The TWDAMI8HT uses 10-bit analog-to-digital conversion, providing 1,024 increments across the configured measurement range.

Can voltage and current signals be mixed across all eight channels?

The module documentation specifies that all used inputs must follow the selected signal type. Do not assume that voltage and current modes can be mixed freely across individual channels in the same configuration.

What is the rated supply voltage?

The rated supply voltage is 24 V DC, with an allowable range of 19.2–30 V DC including ripple.

Is the TWDAMI8HT discontinued?

Yes. Schneider Electric lists the TWDAMI8HT as discontinued. Its published lifecycle information includes an end-of-sale date of July 19, 2022 on the Australian product page. Regional lifecycle records can vary.

Does the TWDAMI8HT have a direct replacement?

Schneider Electric’s product information states that no direct replacement is listed for this exact reference. TM2AMI8HT and suitable newer analog input modules may be considered only after a compatibility assessment.

What are the dimensions and weight?

The supplied product listing gives dimensions of 235 × 90 × 70 mm and a weight of 0.085 kg. Confirm whether the dimensions refer to the physical module or packaging before using them for enclosure design or shipping calculations.

11. Procurement and Replacement Considerations

Because the TWDAMI8HT is discontinued, accurate identification is essential when sourcing replacement stock. Modules from the same manufacturer or product family may differ in channel configuration, signal ranges, wiring requirements, and controller compatibility.

Before ordering, consider the following:

• Verify that the complete reference is TWDAMI8HT.
• Confirm whether unused surplus, used, or refurbished stock is acceptable.
• Request clear photographs of the model label and terminal block.
• Ask whether the module has been functionally tested.
• Confirm the warranty and return conditions.
• Verify that the existing PLC controller supports the module.
• Check that the required voltage or current configuration matches the application.
• Retain a backup of the PLC program and relevant hardware settings.
• For a modernization project, evaluate the alternative module and target PLC as part of the complete system.

For critical production equipment, the replacement should be tested with the actual field signals and PLC program before the system returns to normal operation.

12. Conclusion

The Schneider Electric TWDAMI8HT Analog Input Module is an eight-channel analog input expansion module designed for compatible Modicon Twido PLC systems. Its support for 0–10 V DC and 0–20 mA DC signals makes it suitable for acquiring measurements from a variety of compatible industrial instruments.

With eight channels in one module, the TWDAMI8HT can support process monitoring, multi-point data acquisition, alarm logic, and equipment control in legacy automation installations. Its 10-bit conversion range provides digital measurement data for the PLC application to scale and interpret.

Since the TWDAMI8HT is discontinued and has no direct replacement listed by Schneider Electric, purchasers should verify the exact part number, product condition, and system compatibility before ordering. TM2AMI8HT and newer analog input modules may be evaluated as alternatives, but they should not be treated as automatic plug-in replacements.

Careful selection, correct wiring, and commissioning tests help maintain reliable analog measurement and reduce the risk of unnecessary downtime in industrial automation systems.
