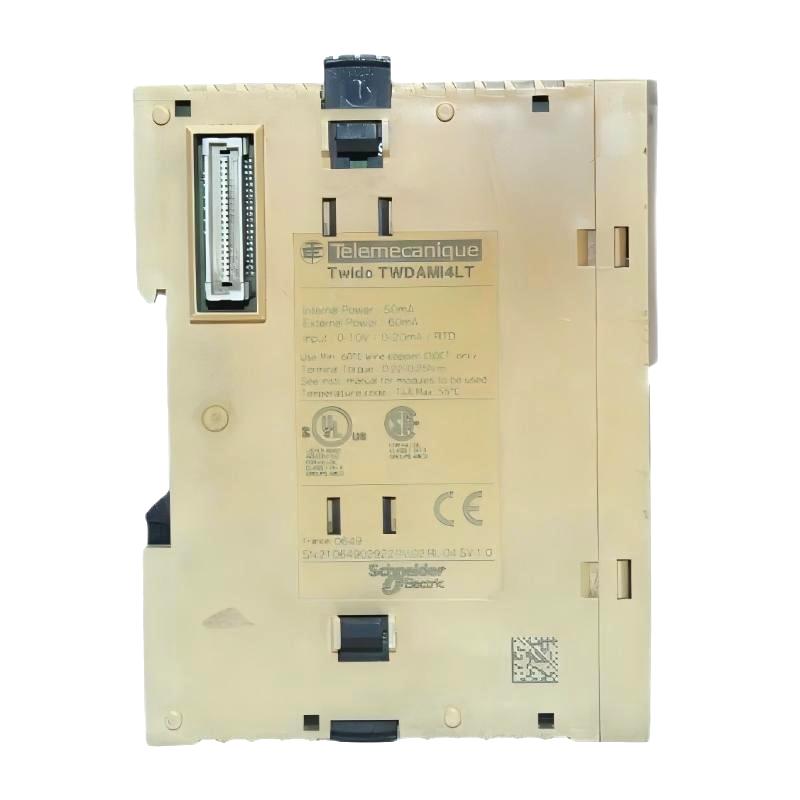

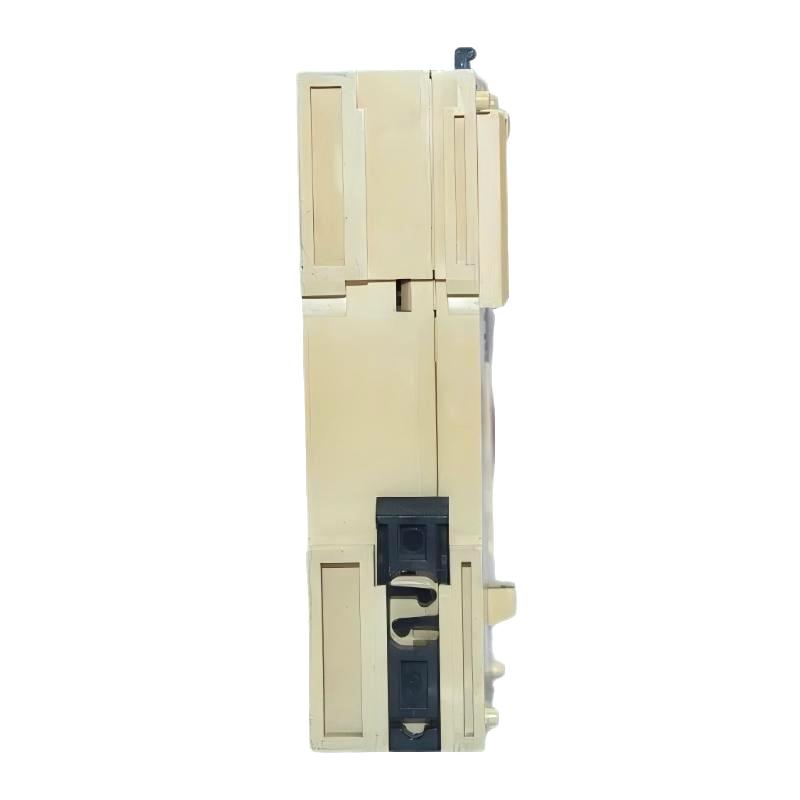

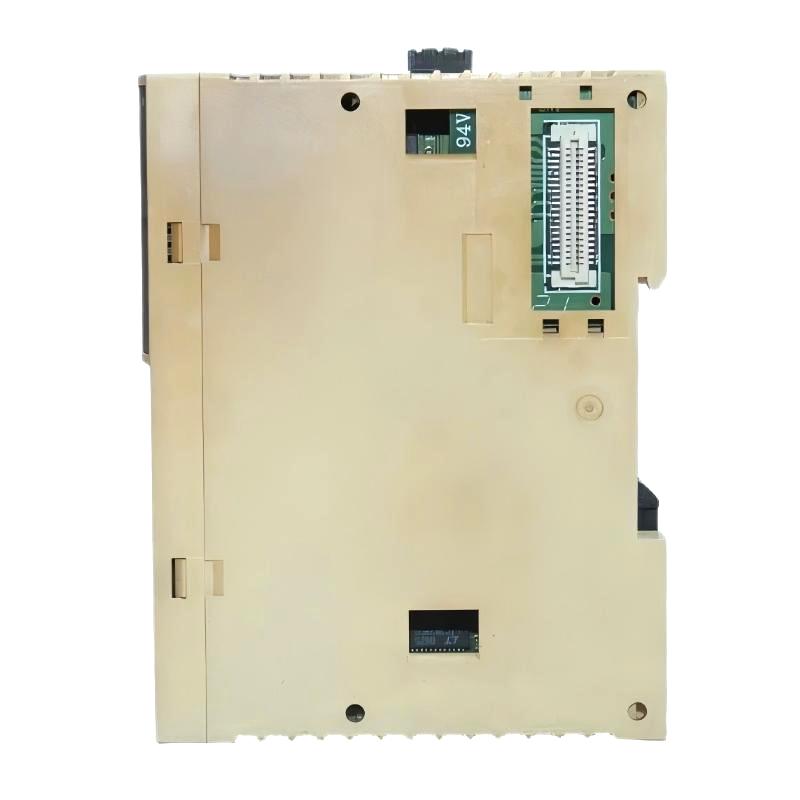

1. Product Overview

The Schneider Electric TWDAMI4LT Analog Input Module is a four-channel analog input expansion module designed for compatible Modicon Twido PLC systems. It allows a programmable logic controller to acquire analog measurements from industrial sensors and transmitters, convert those measurements into digital values, and use the resulting data in control programs.

The TWDAMI4LT supports multiple input types, including 0–10 V DC voltage signals, current signals, and compatible resistance temperature detector (RTD) sensors. Depending on the selected input configuration, it can be used to monitor process variables such as pressure, flow, liquid level, temperature, and other physical measurements.

The module uses 12-bit analog-to-digital conversion, providing 4,096 digital increments across the configured measurement range. This allows the PLC application to process analog measurements for equipment monitoring, alarm generation, data acquisition, and process control.

As part of Schneider Electric’s Twido automation family, the TWDAMI4LT was designed to expand the analog measurement capabilities of compatible PLC installations. Its four input channels can help reduce the number of separate modules required in applications that need several measurement points.

The module is particularly relevant to industrial maintenance and spare-parts management where existing Twido controllers remain in service. It can support the maintenance of legacy machinery and control panels that depend on the original analog input configuration.

The TWDAMI4LT has been discontinued. Before purchasing a replacement, users should confirm the complete part number, product condition, and compatibility with the installed PLC hardware and software.

Product Highlights

• Manufacturer: Schneider Electric
• Model: TWDAMI4LT
• Product type: Analog input module
• Product family: Modicon Twido
• Number of analog input channels: 4
• Voltage input: 0–10 V DC
• Current input: 0–20 mA DC, subject to the selected configuration
• Temperature sensor inputs: Compatible Pt100, Pt1000, Ni100 and Ni1000 RTDs
• Analog-to-digital resolution: 12 bit
• Rated supply voltage: 24 V DC
• Connection type: Removable screw terminal block
• Dimensions supplied: 250 × 102 × 76 mm
• Weight supplied: 0.085 kg

2. Technical Specifications

Technical note: The voltage, current and temperature input modes must be configured according to the manufacturer’s instructions. The module documentation specifies that the input channels used in a configuration must follow the applicable mode restrictions; do not assume that every channel can simultaneously use a different signal type. Confirm the exact sensor wiring, input range, and configuration requirements before commissioning. The supplied dimensions may represent packaging measurements rather than the module’s physical dimensions.

3. Function and Working Principle

The main function of the TWDAMI4LT is to acquire analog measurements from compatible field devices and make the resulting data available to a supported Twido PLC.

Industrial sensors often produce signals that vary continuously rather than switching between simple ON and OFF states. The module measures these signals and converts them into digital values that the PLC program can evaluate.

3.1 Four-Channel Analog Signal Acquisition

The TWDAMI4LT provides four analog input channels for measurement acquisition. These channels can be used to collect data from several instruments in a single control system.

Depending on the selected configuration, typical applications include:

• Measuring pressure using compatible transmitters.
• Monitoring flow and liquid level.
• Reading voltage-output sensors.
• Acquiring current-loop measurements.
• Measuring temperature with compatible RTD sensors.

The number of channels available for each signal type depends on the actual configuration and wiring requirements. The four-channel rating does not mean that every possible signal type can be mixed arbitrarily across all four inputs.

3.2 Voltage Input: 0–10 V DC

The voltage input mode accepts a nominal signal range of 0–10 V DC. A connected instrument can use this voltage to represent a physical measurement, position, or another process variable.

The module converts the input voltage into a digital value. With 12-bit conversion, the nominal range contains 4,096 increments, from 0 to 4095.

For an ideal 0–10 V range, one digital increment represents approximately 2.44 mV. Actual measurement accuracy also depends on the module’s specified tolerance, signal quality, wiring, and operating conditions.

The PLC program must scale the raw value into the appropriate engineering unit. For example, if a compatible transmitter maps 0–10 V to a pressure range, the program can convert the digital value into a pressure reading for monitoring or control.

3.3 Current Input: 0–20 mA DC

The current input mode supports a nominal range of 0–20 mA DC. Current signals are commonly used in industrial automation because they are suitable for many transmitter applications and can provide robust measurement transmission when the loop is correctly designed.

A 4–20 mA transmitter may also be usable within a compatible current-input configuration. In that case, the application must map 4 mA to the transmitter’s configured lower measurement limit and 20 mA to its upper limit.

For example, a level transmitter may use 4–20 mA to represent the usable measurement range of a tank. The PLC program can calculate the corresponding level value from the raw input data.

The module itself does not determine the engineering meaning of the current signal. Correct scaling, alarm thresholds, and fault-handling logic must be defined in the PLC application.

3.4 Temperature Measurement with RTD Sensors

The TWDAMI4LT supports compatible resistance temperature detector sensors, including Pt100, Pt1000, Ni100, and Ni1000 types.

RTD sensors change resistance as temperature changes. The module measures the sensor input according to its configured temperature mode and provides a digital value to the PLC.

RTD measurement is useful in applications where temperature monitoring is important, such as process skids, machinery, fluid-handling equipment, and industrial environmental control.

Sensor type and wiring are critical. A Pt100 sensor should not be configured as a Ni1000 sensor, and the correct sensor connection method must be used. Confirm the supported sensor range and wiring arrangement in the relevant hardware documentation before installation.

3.5 Analog-to-Digital Conversion

The module’s conversion process can be summarized as follows:

1. A compatible sensor or transmitter generates a voltage, current, or resistance-based measurement.
2. The signal is connected to the appropriate input terminals.
3. The module measures the signal according to its selected input mode.
4. The analog-to-digital converter produces a digital value.
5. The PLC application reads and scales the value.
6. The control program uses the result for monitoring, alarms, calculations, or control decisions.

The module provides the measurement interface, while the PLC program determines how the measurement is interpreted and used.

3.6 Sampling and Response Time

The TWDAMI4LT has a sampling duration of approximately 160 ms. The total input acquisition and transfer time depends on the configured input mode and the controller’s scan time.

This characteristic should be considered when designing an application that needs frequent measurements or rapid responses to changing process conditions. It is appropriate to evaluate the module’s acquisition performance against the actual control requirements rather than assuming that every input value is updated instantaneously.

4. Role in Industrial Automation Systems

Analog measurement is essential in many automation applications because a PLC often needs more information than simple ON/OFF status signals can provide.

The TWDAMI4LT adds analog acquisition capability to compatible Twido systems and helps connect field instrumentation to the controller’s application logic.

4.1 Process Monitoring

The module can acquire analog measurements from compatible pressure, flow, level, or temperature instruments. The PLC program can use these values to display process conditions, monitor operating limits, and coordinate machine functions.

For example, a compact process skid may use analog measurements to track fluid pressure and temperature. The PLC can compare the measurements with configured operating limits and generate alarms when conditions fall outside the expected range.

4.2 Temperature Monitoring

Where compatible RTD sensors are used, the module can provide temperature data to the PLC application. This can be useful for monitoring equipment temperature, fluid temperature, or environmental conditions.

The PLC program can apply temperature thresholds, trend measurements, and coordinate equipment operation based on the acquired values.

4.3 Alarm and Event Logic

Analog data can be compared against configured limits to identify abnormal process conditions. The PLC can generate alarms or trigger an application-defined response when a measured value is too high, too low, or outside its expected range.

Alarm behavior depends on the PLC program and overall control-system design. The analog input module should not be treated as an independent safety controller.

4.4 Multi-Point Data Acquisition

With four analog input channels, the TWDAMI4LT can support applications requiring several measurement points within a single PLC system.

This can reduce the need to install separate input modules for every individual measurement, provided that the required signals and channel configuration are supported.

4.5 Legacy PLC System Maintenance

In existing Twido installations, the module may be an important component of the original control architecture. Replacing it with a different product can affect wiring, PLC configuration, program logic, and maintenance procedures.

For this reason, accurate identification of the TWDAMI4LT is important when troubleshooting analog measurement problems or sourcing a spare module for an established machine.

5. Typical Industrial Applications

Manufacturing and Assembly Machinery

Manufacturing equipment may use analog sensors to monitor pressure, position, temperature, or other process variables. The TWDAMI4LT can acquire compatible signals for use in machine sequencing, monitoring, and application-specific control logic.

Packaging Equipment

Packaging machinery may require temperature monitoring, pressure measurement, or feedback from analog sensors. The module can supply these measurements to a compatible Twido PLC where the application requires multiple analog channels.

Water and Wastewater Systems

Water-treatment and wastewater applications frequently use pressure, level, and flow instruments. Compatible voltage or current transmitters can provide process measurements to a Twido-based controller through the module.

Pumping and Fluid-Handling Equipment

Pump systems may use pressure transmitters and other instruments to monitor process conditions. The PLC application can use these measurements to coordinate pump operation, generate alarms, or support maintenance diagnostics.

Temperature-Control Applications

Compatible RTD sensors can provide temperature measurements for machinery, tanks, fluid systems, and other industrial equipment. The module allows the PLC to process the acquired values, provided that the selected sensor type and wiring arrangement are supported.

HVAC and Utility Equipment

HVAC and utility systems may require analog measurement of temperature, pressure, or other operating conditions. The TWDAMI4LT can be used in a compatible legacy PLC installation where its signal types and response characteristics meet the application requirements.

General Process Skids

Compact skids and packaged equipment may require several analog measurements but have limited space for additional I/O hardware. A four-channel input module can help consolidate measurements when the system configuration supports it.

6. Installation and System Integration

Correct installation is important for accurate measurements, reliable operation, and safe maintenance.

6.1 Verify Controller Compatibility

Before installation, confirm that the TWDAMI4LT is supported by the installed Modicon Twido controller and its expansion arrangement.

Check the controller reference, supported I/O configuration, software version, available expansion positions, and system power budget. Do not assume that the module is compatible with every Schneider Electric PLC merely because the manufacturer is the same.

6.2 Confirm the Input Mode

Determine whether the connected field devices require voltage, current, or RTD temperature input mode. Configure the module according to the manufacturer’s instructions.

For current or voltage signals, verify the transmitter’s output range and the corresponding module configuration. For RTD sensors, confirm the sensor type and required wiring arrangement.

Incorrect wiring or an input configuration that does not match the physical signal can cause inaccurate readings and may damage the input circuit.

6.3 Connect the Field Devices

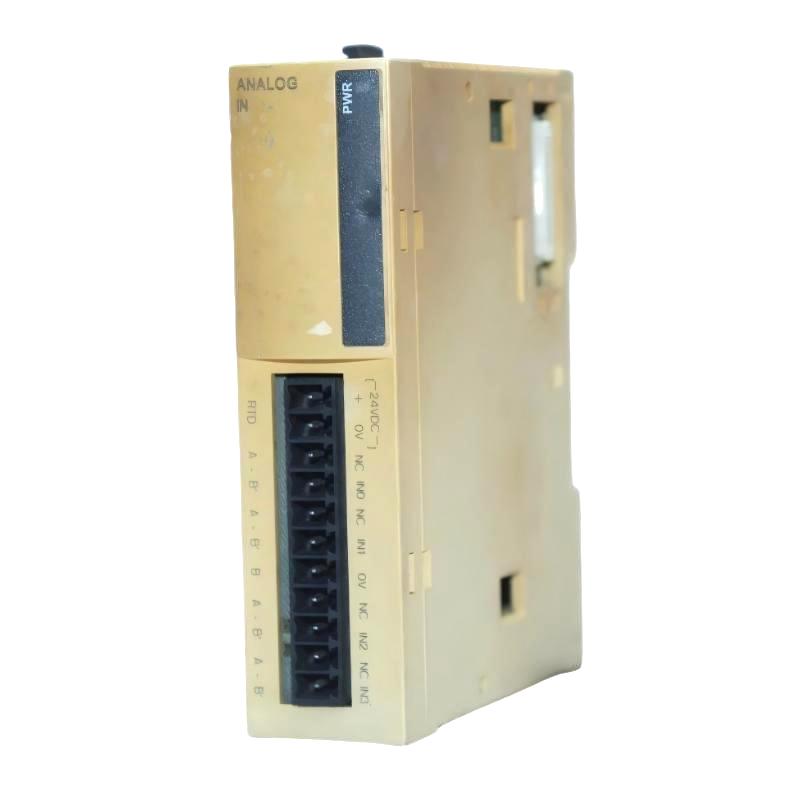

The module uses a removable screw terminal block. Follow the official wiring diagram for terminal assignments and signal connections.

For applicable analog signals, shielded twisted-pair cable is recommended to improve noise immunity. Route low-level measurement wiring away from motor cables, variable-speed drives, contactors, and other sources of electrical interference where practical.

Pay attention to signal polarity, common connections, shielding, and grounding. For RTD inputs, use the specified sensor wiring method rather than assuming that a generic two-wire connection will provide the required measurement performance.

6.4 Check the Power Supply

The module has a rated supply voltage of 24 V DC, with a documented allowable range of 20.4–28.8 V DC.

Check the external supply capacity and the internal 5 V DC current available from the PLC system. The power budget should account for all connected modules and accessories, not just the TWDAMI4LT.

6.5 Configure the PLC Application

Use programming software compatible with the installed Twido system to configure the module and access its analog data.

The application should include suitable scaling for each measurement, taking account of the selected signal range or sensor type. For current and voltage transmitters, confirm the lower and upper engineering limits. For RTD sensors, ensure that the configured sensor type matches the physical sensor.

6.6 Validate the Measurements

After installation, verify each required input channel separately.

For voltage and current inputs, compare the displayed or programmed value with a known signal where practical. For temperature inputs, check the reading against an appropriate reference measurement.

If readings are unstable or incorrect, investigate the signal type, wiring, sensor condition, power supply, cable routing, configuration, and scaling logic. Confirm that the PLC program interprets the raw data correctly before using it for process control.

6.7 Document the Configuration

For legacy systems, retain records of the controller model, module reference, sensor types, wiring arrangement, input configuration, and PLC program version.

These records help maintenance personnel restore the original configuration if the module needs to be replaced and reduce the risk of incorrect sensor wiring during future service work.

7. Compatible System Components

The TWDAMI4LT is intended for compatible Twido PLC installations. The following table describes common system components that may be used with an analog measurement application.

These are component categories rather than a guarantee of compatibility with every specific model. Verify the complete system configuration before installation.

8. Recommended Alternative Models and Replacement Considerations

The TWDAMI4LT is a discontinued Twido analog input module. Schneider Electric identifies the TM2AMI4LT as a replacement reference for the TWDAMI4LT. However, the replacement should still be checked against the installed controller, software, wiring, and application requirements.

Can TM2AMI4LT Replace TWDAMI4LT?

TM2AMI4LT is the identified replacement reference, but it should not automatically be treated as a plug-and-play substitute in every installation. Confirm the controller compatibility, input configuration, terminal connections, software requirements, and physical mounting arrangement.

Even where the signal capabilities are similar, the replacement may require configuration changes or application testing.

When Should a Newer I/O Platform Be Considered?

A newer I/O platform may be appropriate when the existing Twido controller is also being upgraded or when spare-parts availability becomes a long-term concern.

A platform migration should evaluate the controller, I/O modules, field wiring, programming software, communications, and application logic as a complete system. A newer module should not be selected based on channel count alone.

Replacement Checklist

Before selecting an alternative, verify:

1. Number of channels: Confirm that four input channels are sufficient for the application.
2. Signal types: Check the required voltage, current, and RTD sensor inputs.
3. Resolution and accuracy: Confirm that the replacement meets the measurement requirements.
4. PLC compatibility: Verify the supported controller and expansion configuration.
5. Wiring: Review terminal assignments, sensor wiring, and shielding.
6. Software: Check configuration tools, data mapping, and required program changes.
7. Commissioning: Test every input and verify the measurement scaling before returning the equipment to service.

For a repair that must preserve the existing configuration, a tested original module may minimize engineering changes. For a modernization project, TM2AMI4LT or a suitable newer I/O option should be evaluated within the complete control-system design.

9. Key Advantages

Four Analog Input Channels

The TWDAMI4LT provides four measurement channels, allowing compatible PLC systems to acquire data from several field devices using one expansion module.

Multiple Measurement Types

The module supports voltage, current, and compatible RTD temperature measurement modes. This makes it suitable for applications that require analog process data from different categories of instruments, subject to the module’s channel-configuration restrictions.

12-Bit Resolution

Its 12-bit analog-to-digital conversion provides 4,096 increments across the configured range, allowing the PLC application to process measurement values for monitoring and control.

Integration with Existing Twido Systems

For supported configurations, the module can extend analog input capacity without requiring an immediate replacement of the entire controller system.

Removable Screw Terminal Block

The removable screw terminal block supports field wiring and can simplify certain maintenance procedures when used according to the manufacturer’s installation instructions.

Useful for Legacy Equipment Maintenance

Correct identification of the original TWDAMI4LT can help maintenance teams restore established analog measurement functions in existing industrial machinery and control panels.

10. Technical FAQs

What is the Schneider TWDAMI4LT?

The TWDAMI4LT is a four-channel analog input module for compatible Schneider Electric Modicon Twido PLC systems. It supports voltage, current, and compatible RTD temperature inputs.

How many analog inputs does it have?

The module provides four analog input channels. The supported signal types and configuration restrictions must be checked before connecting the field devices.

What voltage input range does the module support?

The voltage input range is 0–10 V DC.

What current input range does it support?

The nominal current input range is 0–20 mA DC. A 4–20 mA transmitter may be used where its signal and configuration are compatible with the module and application.

Can the TWDAMI4LT measure temperature?

Yes. It supports compatible RTD sensor types, including Pt100, Pt1000, Ni100, and Ni1000. The sensor type and wiring must match the module configuration.

What is the module’s resolution?

The module uses 12-bit analog-to-digital conversion, providing 4,096 increments across the configured input range.

What is the rated supply voltage?

The rated supply voltage is 24 V DC, with a documented allowable range of 20.4–28.8 V DC.

Is the TWDAMI4LT discontinued?

Yes. The model has been discontinued. Schneider Electric product information lists the end-of-sale date as December 31, 2016, and the end-of-service date as December 31, 2021.

What is the recommended replacement?

TM2AMI4LT is the identified replacement reference. Compatibility with the installed controller, software, wiring, and application must still be verified before installation.

What are the dimensions and weight?

The supplied listing gives dimensions of 250 × 102 × 76 mm and a weight of 0.085 kg. Confirm whether the dimensions refer to the physical module or packaging before using them for enclosure design or shipping calculations.

11. Procurement and Replacement Considerations

Because the TWDAMI4LT is a discontinued product, accurate model identification is important when sourcing replacement stock. Modules from the same manufacturer or product family may have different input configurations, wiring requirements, and controller compatibility.

Before ordering, consider the following:

• Verify that the complete reference is TWDAMI4LT.
• Confirm whether unused surplus, used, or refurbished stock is acceptable.
• Request clear photographs of the module label and terminal block.
• Ask about functional testing and available warranty coverage.
• Verify the exact signal types required by the installed application.
• Confirm the controller model and expansion compatibility.
• Check whether the existing PLC program and configuration records are available.
• For modernization projects, evaluate the replacement module together with the target controller and overall I/O architecture.

For critical machinery, the replacement should be tested with the actual sensor types and application configuration before the system returns to normal operation.

12. Conclusion

The Schneider Electric TWDAMI4LT Analog Input Module is a four-channel analog acquisition module designed for compatible Modicon Twido PLC systems. Its support for 0–10 V DC, current signals, and compatible RTD temperature sensors makes it suitable for a range of industrial measurement and monitoring applications.

The module can help existing Twido installations acquire process values for equipment monitoring, alarm logic, and application-specific control. Its four-channel capacity is useful where several measurement points must be integrated into a compact control system.

Since the TWDAMI4LT is discontinued, purchasers should verify the exact part number, product condition, and system compatibility before ordering. TM2AMI4LT is the identified replacement reference, but the actual replacement process should include a review of PLC support, wiring, configuration, and application testing.

Careful selection and commissioning help maintain reliable measurement acquisition and reduce the risk of unnecessary downtime in legacy automation systems.
