1. Product Overview

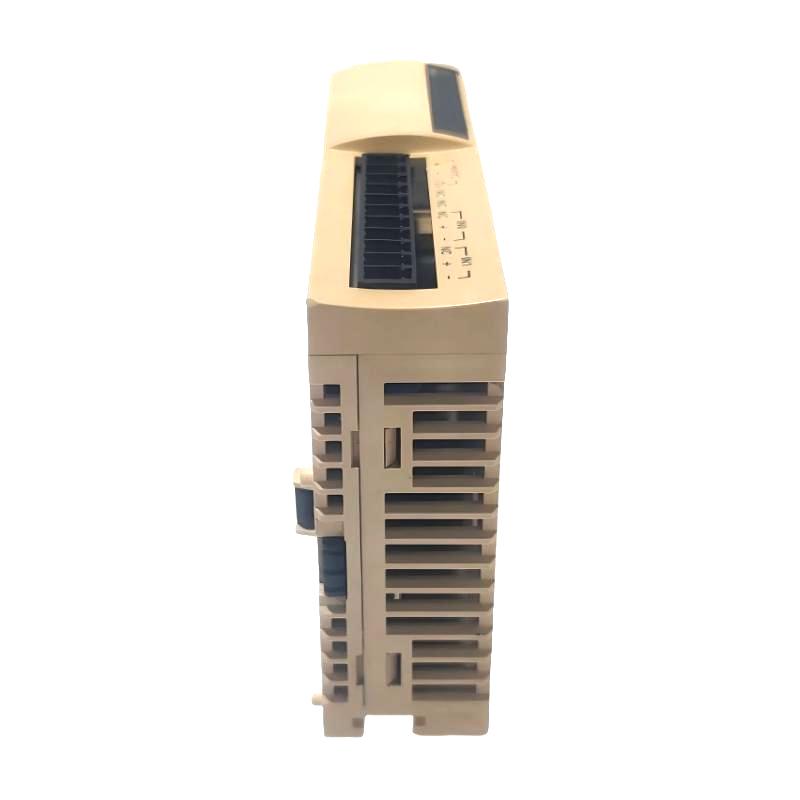

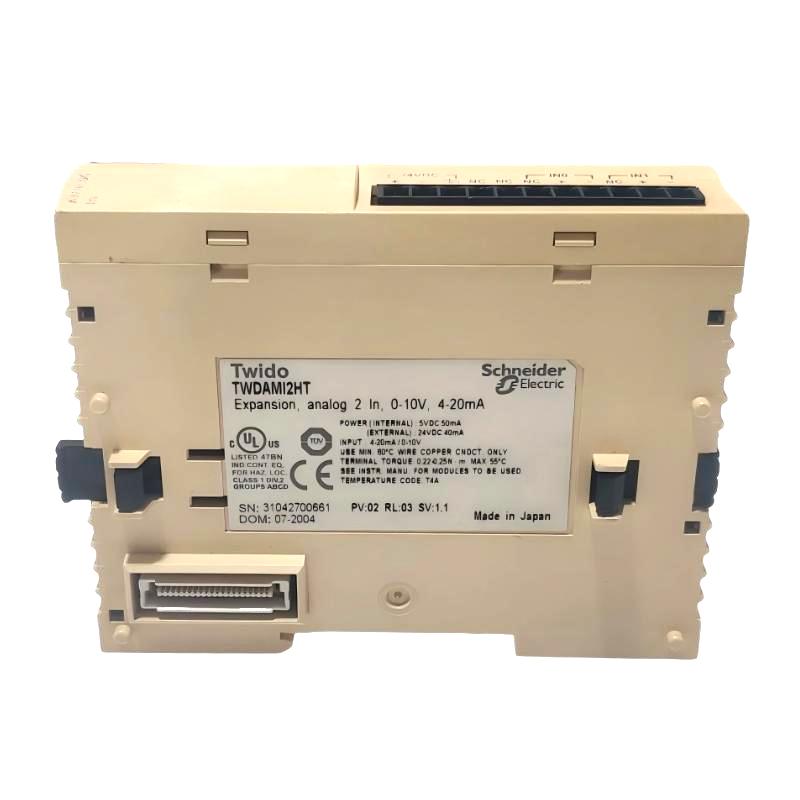

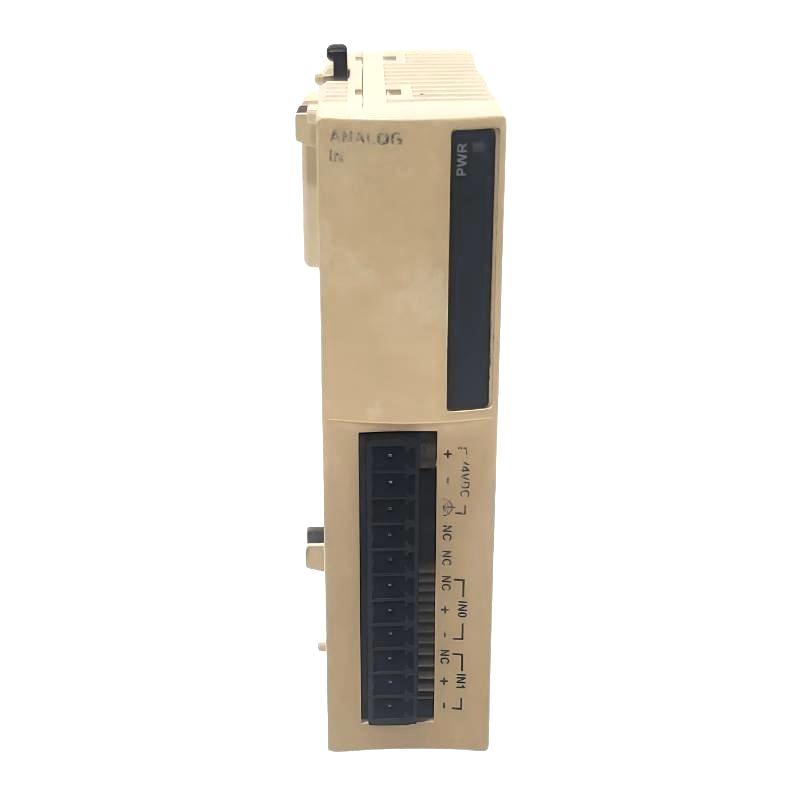

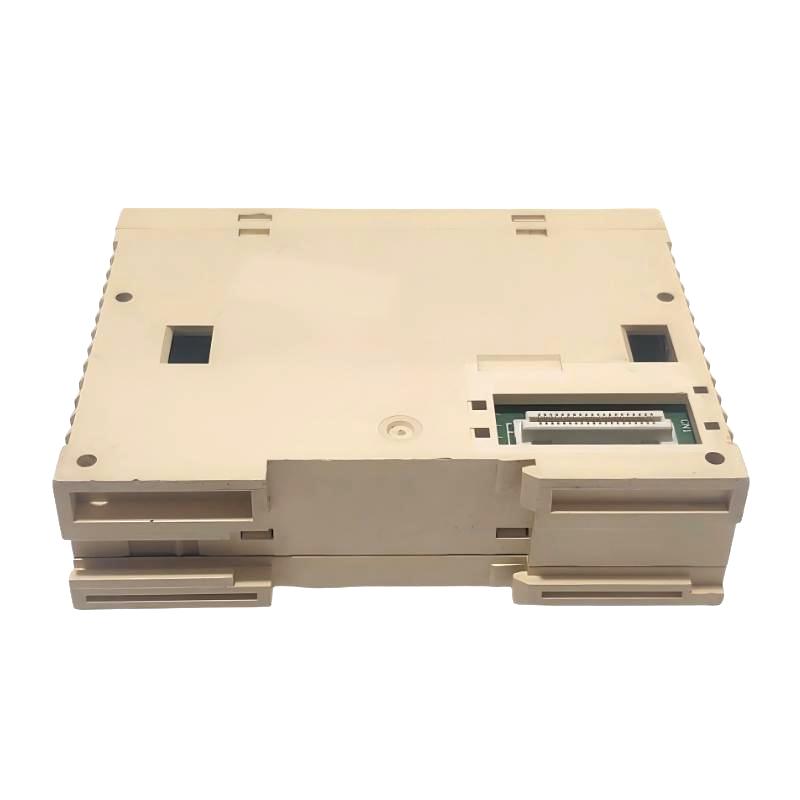

The Schneider Electric TWDAMI2HT Analog Input Module is a two-channel analog input expansion module designed for compatible Modicon Twido programmable logic controller (PLC) systems. It enables a PLC to acquire analog signals from industrial instruments and convert them into digital values that can be processed by the control program.

The TWDAMI2HT supports 0–10 V DC voltage signals and 4–20 mA DC current signals. These signal types are widely used in industrial automation to transmit measurements such as temperature, pressure, flow, liquid level, position, and other process variables. By integrating analog measurement capabilities into a Twido control system, the module helps connect field instrumentation with PLC-based monitoring and control applications.

The module uses 12-bit analog-to-digital conversion, providing 4,096 possible digital increments across the configured input range. The PLC application can use these digital values to monitor operating conditions, compare measurements with configured limits, trigger alarms, and execute control logic.

As part of the Schneider Electric Twido automation family, the TWDAMI2HT is intended for applications that require additional analog input capability without replacing the existing controller. It is suitable for maintaining compatible legacy systems in manufacturing, machine automation, utilities, and process-related applications.

For industrial maintenance teams, system integrators, and spare-parts purchasers, the TWDAMI2HT can be relevant when repairing an existing Twido PLC installation or restoring an analog measurement channel. Because this model has been discontinued, buyers should verify the exact reference and condition before ordering.

Product Highlights

• Manufacturer: Schneider Electric
• Model: TWDAMI2HT
• Product type: Analog input module
• PLC platform: Modicon Twido
• Number of analog inputs: 2
• Voltage input range: 0–10 V DC
• Current input range: 4–20 mA DC
• Resolution: 12 bit
• Rated supply voltage: 24 V DC
• Dimensions supplied: 250 × 102 × 76 mm
• Weight supplied: 0.085 kg

2. Technical Specifications

Specifications are intended as a product reference. Confirm the applicable hardware documentation and installed PLC configuration before commissioning. The listed dimensions may reflect packaging or shipping measurements rather than the module’s actual body dimensions.

3. Function and Working Principle

The TWDAMI2HT receives analog signals from compatible field devices and converts them into digital values for processing by a Twido PLC. This enables the controller to use continuously varying measurements in its automation logic.

3.1 Analog Signal Acquisition

Industrial sensors and transmitters frequently produce voltage or current signals that correspond to a measured physical quantity. For example, a pressure transmitter may generate a 4–20 mA signal representing the pressure range configured for the application.

The TWDAMI2HT accepts two analog input channels. Each channel can be configured for a supported signal type using the applicable programming software and module configuration.

Typical signal sources include:

• Pressure transmitters
• Flow measurement instruments
• Level transmitters
• Temperature transmitters with compatible voltage or current outputs
• Position sensors with supported analog outputs
• Industrial measuring instruments

The exact compatibility depends on the electrical characteristics of the field device and the selected input configuration.

3.2 Voltage Input: 0–10 V DC

In voltage mode, the module measures a signal between 0 and 10 V DC. The input signal is converted into a digital value that the PLC program can process.

With 12-bit resolution, the conversion range contains 4,096 increments, represented by values from 0 to 4095. Across a nominal 0–10 V range, one ideal digital increment corresponds to approximately 2.44 mV.

For example, a voltage signal can represent a sensor’s measured position or a process value scaled by the sensor manufacturer. The PLC program then converts the digital reading into an engineering value using the appropriate scaling formula.

3.3 Current Input: 4–20 mA DC

In current mode, the TWDAMI2HT accepts a 4–20 mA DC signal. This signal format is commonly used in industrial environments because current-loop measurements can be suitable for long cable runs and electrically noisy installations when correctly designed.

A typical application maps 4 mA to the lower measurement limit and 20 mA to the upper limit. The PLC program uses the measured digital value and configured engineering range to calculate the corresponding pressure, flow, level, or other process variable.

The 4 mA lower endpoint also allows the application to distinguish the normal measurement range from certain fault conditions, although fault detection depends on the transmitter, wiring, and application logic.

3.4 Analog-to-Digital Conversion

The module uses an analog-to-digital conversion process to transform the incoming signal into a digital representation.

The general sequence is:

1. A compatible sensor or transmitter generates an analog output.
2. The signal is wired to one of the module’s input channels.
3. The module measures the input and converts it into a digital value.
4. The PLC application reads the input data.
5. The program scales the data and applies monitoring, alarm, or control logic.

The conversion value is not automatically a temperature, pressure, or flow reading. Engineering-unit conversion must be configured in the PLC application according to the instrument’s measurement range.

3.5 Signal Processing and Response Time

The module’s sampling and transfer characteristics affect how quickly changes in a field signal become available to the PLC program. For the TWDAMI2HT, the documented total input transfer time is approximately 32 ms plus one PLC scan under the specified operating conditions.

This response time should be considered when designing fast control loops, monitoring rapidly changing signals, or coordinating measurements with other control tasks. Actual application response also depends on the PLC scan cycle, program structure, and connected instrument.

4. Role in Industrial Automation Systems

The TWDAMI2HT provides an interface between field instrumentation and a Twido PLC. It allows measurements from external equipment to become part of the controller’s logic, monitoring, and alarm functions.

4.1 Process Monitoring

A PLC can use analog measurements to monitor whether a process remains within its expected operating range. The module can acquire compatible signals from pressure, flow, and level transmitters, allowing the controller to evaluate process conditions.

For example, a water-treatment skid may use a current-output pressure transmitter. The module receives the signal, and the PLC program converts the corresponding digital value into a pressure reading for local display or control logic.

4.2 Alarm Management

Analog measurements can be compared with configured limits in the PLC program. If a measured value exceeds an upper limit or falls below a lower limit, the controller can initiate an alarm, activate an indicator, or execute a protective sequence where appropriate.

The module provides the measurement input; the alarm thresholds, response logic, and operator notification functions must be implemented in the application.

4.3 Equipment Control

In a machine-control application, analog feedback can be used to monitor position, pressure, temperature, or another process variable. The PLC can evaluate the measured value and use it to coordinate actuators or other equipment.

The TWDAMI2HT is an input module, not an analog output module. It receives signals from external devices and does not directly generate analog control outputs.

4.4 Expansion of Existing PLC Systems

When an existing Twido PLC installation requires additional analog measurement channels, a compatible expansion module can provide a practical way to increase input capacity.

Before adding the module, the engineer should verify the controller model, expansion configuration, power budget, programming software, and total supported I/O capacity.

4.5 Maintenance of Legacy Automation Equipment

The TWDAMI2HT can be important in legacy equipment where the PLC program, sensor wiring, and machine operation were designed around the original module. Retaining the original part may minimize changes to the existing system.

However, the module’s discontinued status means that availability, condition, and long-term serviceability should be considered when planning repairs or future upgrades.

5. Typical Industrial Applications

Manufacturing Machinery

Manufacturing equipment may use analog sensors to measure pressure, position, temperature, or other operating parameters. The TWDAMI2HT can acquire compatible voltage and current signals for monitoring and sequencing within a Twido PLC application.

Packaging and Assembly Equipment

Packaging and assembly machines may require analog feedback from measurement devices or process instruments. The module can supply the PLC with analog input values used for quality checks, machine-state monitoring, and control decisions.

Water and Wastewater Systems

Water-handling systems commonly use pressure, level, and flow transmitters. Where the instruments provide compatible 0–10 V or 4–20 mA outputs, the module can supply measurement data to a supported Twido controller.

Pumping Systems

In a pumping application, a compatible pressure transmitter can provide feedback for monitoring pressure conditions. The PLC program can use this measurement to manage pump sequencing, generate alarms, or coordinate other equipment.

Any safety-related shutdown or protective function must be designed according to the system’s risk assessment and applicable safety requirements; a standard analog input module should not be assumed to provide a safety-rated function.

HVAC and Building Equipment

Compatible transmitters can provide measurements such as duct pressure, temperature, or fluid pressure. The module can bring these signals into a Twido-based control system where they can be processed by the application.

General Process Instrumentation

The module may also be used in skids and compact process equipment where two analog channels are sufficient for measurement acquisition. Its suitability depends on signal range, required accuracy, response time, environmental conditions, and the supported PLC configuration.

6. Installation and System Integration

Correct installation and signal wiring are essential for accurate analog measurement. Incorrect wiring, unsuitable grounding, or mismatched signal types can lead to unstable readings or equipment damage.

6.1 Confirm PLC Compatibility

Before installation, verify that the TWDAMI2HT is supported by the specific Twido controller and expansion arrangement. Check the controller model, supported module count, software version, and configuration requirements.

Do not assume that every Schneider Electric PLC can accept this module simply because the manufacturer is the same. The TWDAMI2HT belongs to the Twido product family and should be evaluated against the applicable hardware documentation.

6.2 Verify the Signal Type

Determine whether each field device provides a 0–10 V DC output or a 4–20 mA DC output. Configure the channel for the appropriate signal type before relying on the measured data.

A voltage-output device should not be connected as though it were a current-loop transmitter, or vice versa. Check the transmitter’s output specifications and the module wiring diagram before making connections.

6.3 Use Appropriate Wiring

Shielded twisted-pair cable is recommended for analog signal wiring to help reduce the effect of electrical interference. Route analog signal cables away from motor power cables, variable-speed drives, contactors, and other significant noise sources where practical.

Follow the manufacturer’s wiring diagram for terminal assignments, common connections, and shielding arrangements. Do not assume terminal polarity or common wiring based solely on another module in the same product family.

6.4 Check Power Requirements

The module has a rated supply voltage of 24 V DC, with an allowable range of 20.4–28.8 V DC. Confirm that the system power supply meets the requirements of the complete PLC and expansion configuration.

When planning a replacement or adding another module, verify both the external 24 V DC supply budget and the internal 5 V DC capacity available from the controller or expansion system.

6.5 Configure and Scale Input Values

Use the supported programming software to configure the module and access its input data. In the PLC program, scale the digital value into the engineering units required by the application.

For a 4–20 mA transmitter, the scaling relationship should use the instrument’s configured lower and upper measurement limits. For a 0–10 V sensor, use the sensor’s specified voltage-to-measurement relationship.

Validate the scaling with known input values before placing the equipment into normal operation.

6.6 Test the Installation

After wiring and configuration, check each channel independently. Verify that the displayed or programmed value changes as expected when the field signal changes.

If readings are unstable or outside the expected range, check the signal type, transmitter power, terminal connections, shielding, cable routing, PLC configuration, and scaling logic. Compare measurements with an appropriate calibrated instrument when necessary.

6.7 Maintain Configuration Records

For legacy systems, keep a record of the exact module reference, controller model, wiring, signal ranges, program version, and relevant configuration settings. These records can shorten troubleshooting time and reduce the risk of errors when a replacement module is installed.

7. Compatible System Components

The TWDAMI2HT is designed for compatible Twido PLC installations. The following table describes the types of components commonly associated with an analog input application.

These are system-level component categories rather than a guarantee of direct compatibility with every model. Confirm the controller and field-device specifications before installation.

8. Recommended Alternative Models and Replacement Considerations

The TWDAMI2HT is a discontinued Twido analog input module. Schneider Electric’s product information indicates that it has no direct replacement listed for the exact reference, so selecting an alternative requires checking the complete application rather than choosing a module based on signal range alone.

Is TM2AMI2HT a Direct Replacement?

It should not be assumed to be a direct replacement. Although TM2AMI2HT provides similar two-channel voltage/current input functionality, it has a different product reference and must be checked against the installed controller, software, wiring, and expansion architecture.

Can a TM3 Module Replace TWDAMI2HT?

A suitable TM3 analog input module may be considered when modernizing the control system, but TM3 compatibility depends on the target controller and exact module model. A TM3 module should not be assumed to plug directly into a legacy Twido installation.

Before selecting an alternative, review the following:

1. Signal compatibility: Confirm the required voltage and current ranges.
2. Channel count: Check the number of required analog inputs.
3. Resolution and accuracy: Compare the measurement performance needed by the application.
4. Controller compatibility: Verify the PLC family, expansion architecture, and software support.
5. Wiring: Check terminal assignments, common connections, and sensor power requirements.
6. Application changes: Assess whether the program’s I/O mapping and scaling logic need modification.
7. Commissioning: Test all input channels and verify readings against known signals before returning the system to service.

For maintenance of an existing Twido system, obtaining a tested original module may reduce engineering changes. For a broader upgrade, compare the complete control-system requirements before choosing a newer I/O platform.

9. Key Advantages

Two Analog Input Channels

The TWDAMI2HT provides two analog input channels in a compact expansion module, allowing compatible Twido systems to acquire measurements from two field devices.

Support for Common Industrial Signals

The module supports 0–10 V DC and 4–20 mA DC input signals, covering many common industrial transmitters and measurement devices.

12-Bit Resolution

The 12-bit conversion range provides 4,096 digital increments, allowing the PLC application to process analog measurements for monitoring and control.

Integration with Existing Twido Systems

For supported configurations, the module adds analog input capability without necessarily requiring a complete PLC replacement.

Useful for Legacy Equipment Maintenance

The original module reference can help maintenance teams restore an existing configuration and minimize changes to established sensor wiring and control logic.

Broad Application Potential

With compatible instrumentation, the module can be used in manufacturing, packaging, pumping, water treatment, HVAC, and other applications requiring basic analog measurement acquisition.

10. Technical FAQs

What is the Schneider TWDAMI2HT?

The TWDAMI2HT is a two-channel analog input module for compatible Schneider Electric Modicon Twido PLC systems. It accepts 0–10 V DC and 4–20 mA DC signals.

How many input channels does the TWDAMI2HT have?

The module has two analog input channels. Each channel must be configured and wired according to the required signal type and the manufacturer’s instructions.

What signal types does it support?

It supports 0–10 V DC voltage inputs and 4–20 mA DC current inputs. Confirm the signal range and wiring requirements of the connected field device.

What is the resolution of the module?

The module uses 12-bit analog-to-digital conversion, corresponding to 4,096 increments across the configured input range.

What is its rated supply voltage?

The rated supply voltage is 24 V DC, with a documented allowable range of 20.4–28.8 V DC.

Is the TWDAMI2HT discontinued?

Yes. Schneider Electric’s product information lists the TWDAMI2HT as discontinued, with the published end-of-sale date of December 31, 2016, and end-of-service date of December 31, 2021. Availability of spare units may therefore depend on remaining inventory and the industrial spare-parts market.

Does the TWDAMI2HT have a direct replacement?

Schneider Electric’s product listing states that the exact TWDAMI2HT reference has no direct replacement listed. Alternative modules or newer I/O families require a compatibility and application review before use.

Can the TWDAMI2HT measure temperature directly?

The module accepts 0–10 V and 4–20 mA signals; it is not a dedicated thermocouple or RTD input module. Temperature measurement is possible when a suitable transmitter converts the temperature measurement into a supported voltage or current signal.

What are the dimensions and weight?

The supplied listing gives dimensions of 250 × 102 × 76 mm and a weight of 0.085 kg. Confirm whether the dimensions are for the module or its packaging before using them for mechanical installation or shipping calculations.

11. Procurement and Replacement Considerations

Because the TWDAMI2HT is a discontinued product, accurate identification is essential when sourcing replacement stock. Similar-looking Schneider Electric analog input modules may differ in their controller compatibility, terminal arrangement, input configuration, or application requirements.

Before purchasing, consider the following:

• Verify that the complete model reference is TWDAMI2HT.
• Confirm the required condition, such as unused surplus, used, or refurbished.
• Request clear photographs of the module label and terminals.
• Ask whether the unit has been functionally tested.
• Confirm warranty coverage and return conditions.
• Check whether the existing PLC configuration and program are available for commissioning.
• Verify the actual module dimensions if they are needed for enclosure design or shipping estimates.
• For modernization projects, assess the controller, I/O modules, wiring, software, and application as a complete system.

For critical equipment, a replacement should be validated with the actual sensor signals and PLC application before the machine returns to normal production.

12. Conclusion

The Schneider Electric TWDAMI2HT Analog Input Module provides two analog input channels for compatible Modicon Twido PLC systems. Its support for 0–10 V DC and 4–20 mA DC signals, combined with 12-bit resolution, makes it suitable for acquiring common industrial measurements from compatible sensors and transmitters.

The module can support process monitoring, alarm logic, and equipment control in legacy automation installations. However, its discontinued status makes exact model verification, product-condition assessment, and spare-parts planning particularly important.

For repairs, a tested original TWDAMI2HT may be the most straightforward option when the existing Twido configuration is retained. If a newer platform is being considered, alternative analog I/O modules should be evaluated for signal compatibility, controller support, wiring, software requirements, and commissioning needs before implementation.
