1. Product Overview

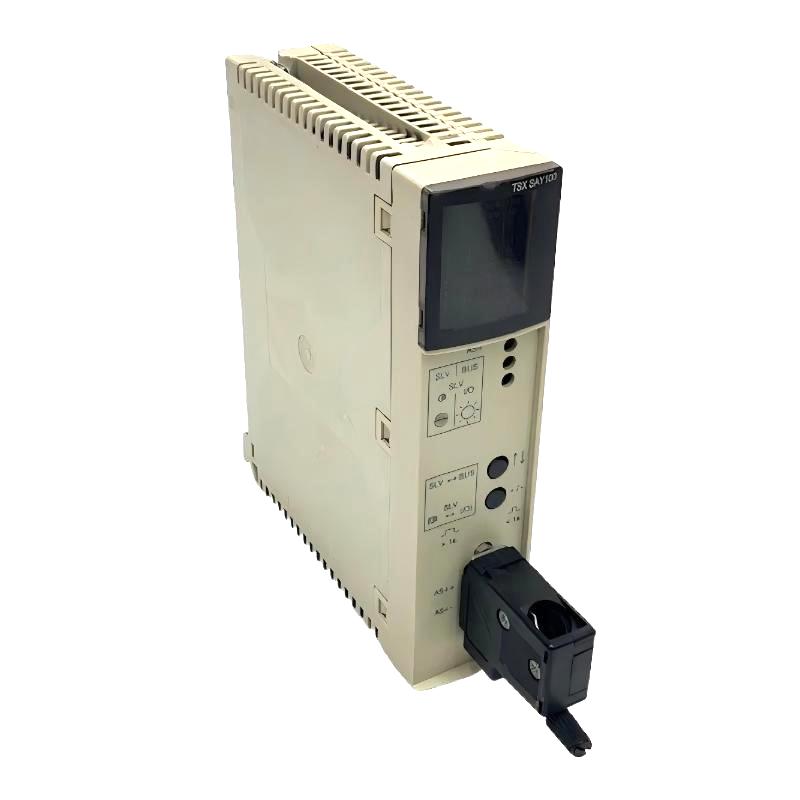

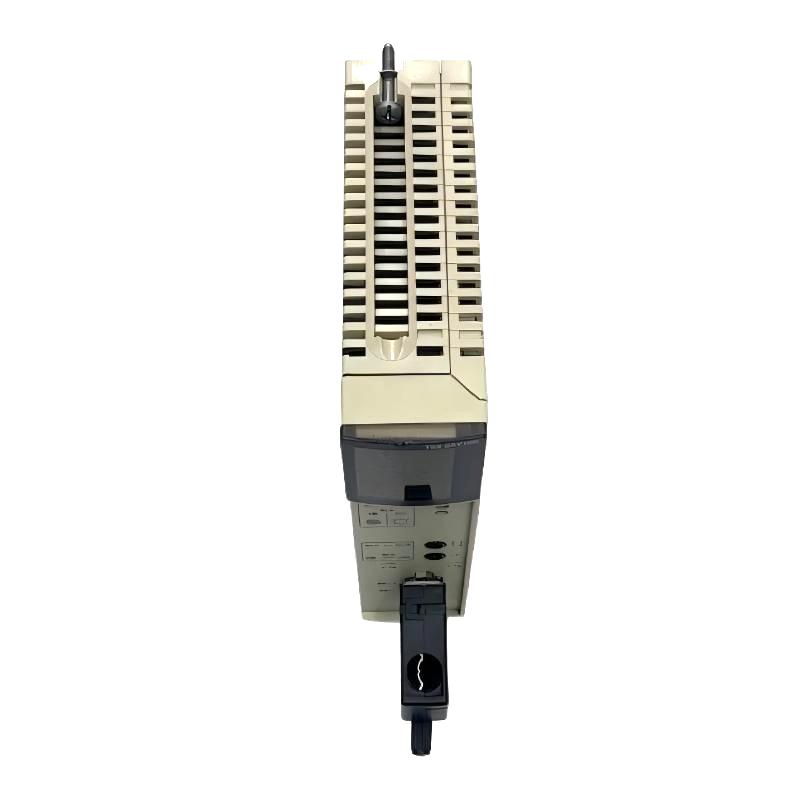

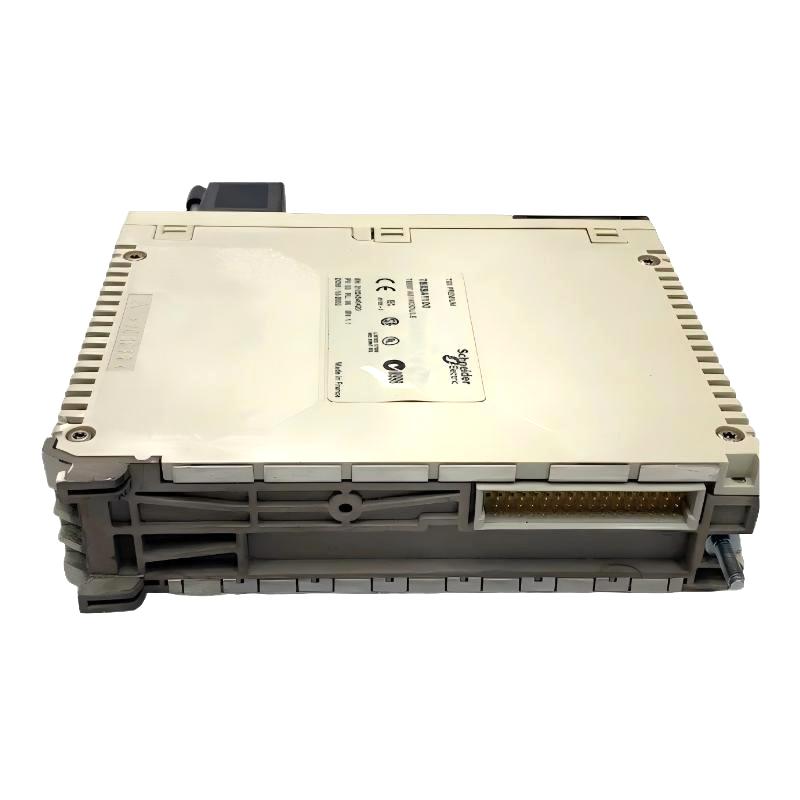

The Schneider Electric TSXSAY100 AS-i Coupler is an AS-Interface (AS-i) master module designed for compatible Modicon Premium programmable logic controller (PLC) systems. It enables a Premium PLC to communicate with supported AS-i sensor and actuator devices through a dedicated two-wire bus network.

In industrial automation, sensors and actuators are distributed throughout machines and production lines. These devices provide essential information about equipment status, product position, machine movement, and process conditions. They also receive commands that control actuators and other field equipment. An AS-i network offers a practical way to connect multiple compatible devices using a common bus infrastructure rather than running an individual signal cable for every device directly to the control cabinet.

The TSXSAY100 manages communication between the PLC and connected AS-i slave devices. It interrogates devices on the network, collects input and device-status information, and makes the relevant data available to the PLC application. The PLC program can then use this information to execute control sequences, monitor equipment conditions, and generate appropriate output commands.

Supporting the AS-i M2 profile, the TSXSAY100 can manage up to 31 AS-i slave devices on a standard segment. With compatible devices providing up to four inputs and four outputs per slave, the theoretical maximum is 124 inputs and 124 outputs across the segment. Actual capacity depends on the connected devices, their configuration, and the applicable AS-i system requirements.

The module is designed for installation in a compatible Modicon Premium PLC rack. It occupies a standard module position, excluding positions reserved for the processor and power supply. Its front panel includes status indicators and diagnostic controls that help maintenance personnel inspect module operation and identify communication or I/O problems.

The TSXSAY100 is particularly relevant to factories maintaining established Modicon Premium control systems. It may be used in applications involving distributed sensors, intelligent actuators, machine controls, and compact field-device networks. Because it belongs to a legacy automation platform, buyers should verify current availability, product condition, and system compatibility before purchasing.

2. Technical Specifications

Specification note: The dimensions and weight above are taken from the supplied product listing. Confirm the physical dimensions against the actual unit or its mechanical drawing before planning cabinet installation. The stated I/O capacity represents a maximum configuration rather than a guarantee that every slave arrangement will provide the same number of usable channels.

3. Function and Working Principle

3.1 AS-Interface Master Communication

The main function of the TSXSAY100 is to operate as the AS-i master for a compatible Modicon Premium PLC system.

An AS-i network consists of a master and connected slave devices. The master coordinates communication with the slaves, while the slaves interface with sensors, actuators, and other supported field devices. This structure allows many distributed devices to communicate through a shared network.

The TSXSAY100 manages the communication cycle on the AS-i segment. It exchanges data with the connected slaves and makes the relevant information available to the PLC application. This reduces the need for the application program to manage every low-level bus transaction individually.

The PLC remains responsible for executing the control logic. The TSXSAY100 provides the communication interface that connects the controller to the AS-i device network.

3.2 Acquisition of Sensor Signals

Industrial sensors provide information about the physical state of a machine or process. Examples include proximity switches, position sensors, push buttons, limit switches, and other compatible discrete devices.

When these devices are connected through supported AS-i slave interfaces, their input states are communicated across the AS-i network. The TSXSAY100 manages the relevant data exchange and makes the information available to the PLC system.

The PLC program can then use these signals to determine whether a product has reached a station, whether a machine guard is in the expected state, or whether a particular operating sequence can proceed.

The actual signal types and available channels depend on the connected slave devices and their configuration.

3.3 Control of Actuators

AS-i slave devices can also provide output channels for compatible actuators and discrete control functions. Depending on the installed devices, these outputs may be used to control indicators, valve interfaces, small actuators, or other supported equipment.

The PLC program determines the desired output states according to its control logic. The TSXSAY100 manages communication with the AS-i network so that the relevant output data can be exchanged with the connected slave devices.

The module does not independently determine the machine’s operating sequence. Instead, it serves as the communication link between the PLC application and the AS-i field network.

3.4 AS-i M2 Profile Support

The TSXSAY100 supports the AS-i M2 profile. This profile defines the communication capabilities available for compatible AS-i devices.

In a standard segment, the module supports up to 31 slave devices. With compatible devices providing up to four inputs and four outputs per slave, the maximum theoretical segment capacity is 124 inputs and 124 outputs.

Actual network capacity may be lower if connected devices provide fewer channels, use different functions, or impose other configuration requirements. Engineers should verify the slave profile, addressing arrangement, and supported capabilities before designing the network.

3.5 Diagnostic Monitoring

Troubleshooting is an important part of maintaining an industrial communication network. The TSXSAY100 provides front-panel indicators and diagnostic controls to help maintenance personnel examine the module and connected slave devices.

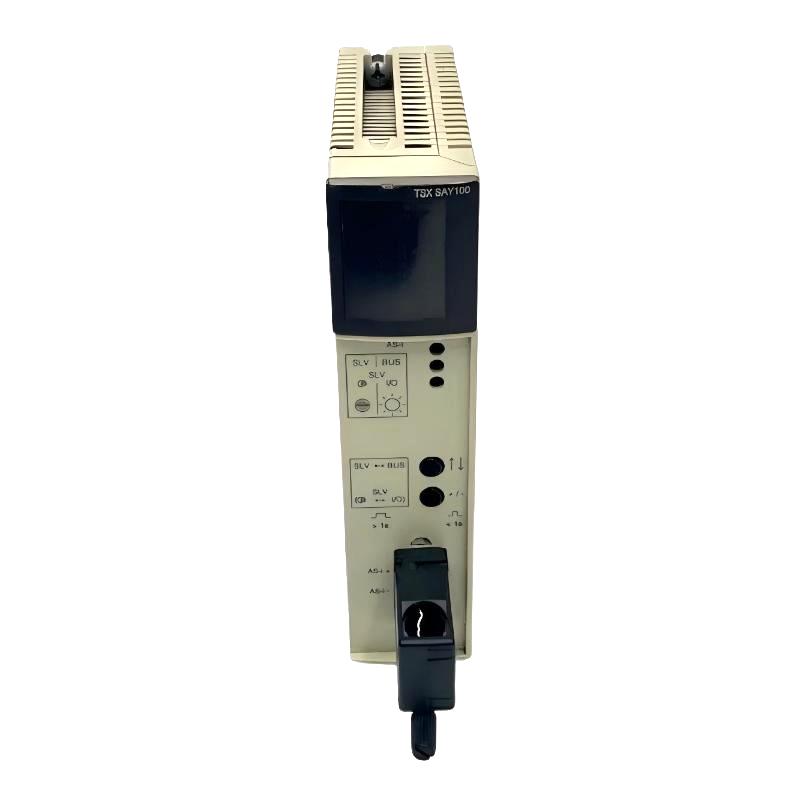

The front panel includes indicators for operating status, module faults, AS-i communication activity, and I/O-related faults. Additional indicators support the display of network or slave information.

These diagnostic functions can help technicians identify whether a problem is associated with the module, a particular slave, or the AS-i communication network. Detailed diagnosis may also require checking PLC software diagnostics, field wiring, the AS-i power supply, and the condition of individual devices.

4. Role in Industrial Automation Systems

4.1 Integration of Distributed Field Devices

Sensors and actuators are often installed at multiple points throughout a production machine. Directly connecting every device to centralized I/O can result in extensive wiring and a complicated cabinet layout.

An AS-i network provides an alternative by connecting compatible field devices through a shared communication infrastructure. The TSXSAY100 acts as the master interface between this network and a compatible Modicon Premium PLC.

This arrangement can simplify the organization of field-device connections, particularly in installations with many discrete signals distributed across a machine.

4.2 Reduction of Individual Signal Wiring

In a conventional centralized arrangement, each field signal may require a separate connection back to a PLC input or output module. An AS-i architecture can consolidate communication for multiple supported devices over the network.

This can help reduce the number of individual signal conductors routed between remote devices and the control cabinet. It may also simplify equipment layout and make future modifications easier to manage.

The actual reduction in wiring depends on the number of devices, their locations, the network layout, and the use of compatible AS-i slave interfaces.

4.3 Improved Equipment Diagnostics

The TSXSAY100 provides information that can help technicians monitor AS-i communication and inspect individual slave-device status.

When a sensor stops responding or a bus fault occurs, diagnostic indicators and PLC software tools can help narrow down the source of the problem. This can reduce the time required to investigate network faults and restore normal operation.

Effective troubleshooting still requires a systematic approach. Technicians should inspect the network cable, connectors, power supply, slave devices, and PLC configuration rather than relying on a single status indicator.

4.4 Support for Established Modicon Premium Systems

Many industrial facilities retain older PLC installations because the equipment remains operational and replacing the entire control system may require extensive engineering, testing, and production downtime.

For these installations, the TSXSAY100 can provide the AS-i communication capability required by the original control architecture. Using a compatible replacement module may help preserve the existing program structure, field-device network, and maintenance procedures.

Before replacing the module, verify the exact model, hardware condition, configuration, and supported software environment.

5. Industrial Applications

Manufacturing and Assembly Lines

Assembly lines use sensors and actuators to coordinate product movement, positioning, clamping, machine sequencing, and equipment status.

The TSXSAY100 can provide the AS-i master interface for compatible field devices connected to a Modicon Premium PLC. This arrangement can help organize distributed discrete signals across multiple machine stations.

Packaging Machinery

Packaging equipment may use sensors to detect products, verify packaging positions, monitor machine movement, and coordinate discrete actuator commands.

Where the original control system supports AS-i communication, the TSXSAY100 can exchange information between the PLC and compatible field-device interfaces. Correct device addressing and configuration are essential for reliable operation.

Material Handling and Conveying

Conveyor systems and automated material-handling equipment often require numerous sensors to detect product presence, monitor transfer points, and coordinate machine sections.

An AS-i network can connect compatible field devices distributed along the equipment. The TSXSAY100 enables a supported Modicon Premium PLC to communicate with the network and use the received signals in its control logic.

Automotive and Component Manufacturing

Automotive and component production lines may use distributed sensors, actuator interfaces, indicator devices, and machine-status signals.

In a compatible legacy PLC installation, the TSXSAY100 may support the communication architecture connecting these field devices to the controller. Application suitability depends on the exact device network and the original system design.

Food and Beverage Machinery

Processing and packaging machinery can use discrete sensors and actuators for product detection, equipment sequencing, and material transfer.

Where compatible AS-i devices and a supported Modicon Premium controller are already installed, the TSXSAY100 can form part of the existing field-device communication system. Environmental suitability must be assessed separately for the installed module and the equipment surrounding it.

General Industrial Automation

The TSXSAY100 may also be found in machine tools, auxiliary equipment, production cells, and other installations using compatible Modicon Premium PLCs.

In all cases, the module should be selected according to the requirements of the original PLC platform, the AS-i slave devices, and the communication configuration.

6. Installation and System Integration

Correct installation is essential for stable communication between the PLC and the AS-i network. Before replacing or installing a TSXSAY100, review the PLC hardware configuration, field-device list, wiring drawings, and applicable safety procedures.

6.1 Verify the PLC Platform

The TSXSAY100 is designed for the Modicon Premium PLC family. Confirm that the installed processor and rack support the module.

The module is intended for a standard rack position, excluding positions reserved for the processor and power supply. Confirm the permitted position and module arrangement in the original hardware documentation.

Do not assume that the TSXSAY100 can be installed in another Schneider Electric PLC family simply because the product has the same manufacturer.

6.2 Confirm the AS-i Network Design

Before installation, identify the connected AS-i slaves, their addresses, supported profiles, and available I/O channels.

Confirm that the total slave count and device configuration are within the module’s supported limits. If the network has been modified over time, compare the physical installation with the PLC project and original network documentation.

6.3 Check the AS-i Power Supply

The TSXSAY100 receives its module power through the compatible Premium PLC rack. The AS-i field network requires an appropriate AS-i power supply for the connected devices.

Do not assume that powering the PLC rack automatically supplies all field devices on the AS-i bus. Verify the AS-i power supply arrangement, current capacity, cable length, and the requirements of the connected slaves.

Place the AS-i power supply according to the network design and the power demands of the connected devices.

6.4 Connect the AS-i Bus Correctly

The module uses a three-way SUB-D connector for the AS-i bus connection. Confirm that the connector assembly is suitable for the module and the selected AS-i cable.

Observe the specified cable polarity and connector assembly procedure. Inspect the connector and its cover for damage, and ensure that the cable is securely retained.

Route the AS-i cable according to the system documentation. Where the installation includes power cables and other control wiring, follow the applicable separation and electromagnetic compatibility requirements.

6.5 Configure the PLC Application

The TSXSAY100 works with the supported Modicon Premium configuration and the relevant PLC programming environment. Legacy installations may use PL7 Micro, PL7 Junior, or PL7 Pro, depending on the controller and project.

Verify that the installed PLC application includes the correct hardware configuration and the expected AS-i device data. After replacing a module, confirm that the configuration corresponds to the actual hardware and that the controller reports the expected operating status.

Avoid making unverified changes to the PLC program or network addressing during routine module replacement.

6.6 Inspect Status Indicators

After installation, check the module’s front-panel indicators and available software diagnostics.

Confirm that the module reports normal operation and that the expected AS-i slaves are communicating. Investigate any module fault, communication fault, or I/O-related warning before returning the equipment to service.

A fault may originate from the AS-i power supply, a cable connection, a slave device, a configuration mismatch, or the master module itself. Diagnose the full network rather than immediately assuming the coupler has failed.

6.7 Follow Electrical Safety Procedures

Before replacing hardware or working on field wiring, follow the site’s isolation and lockout/tagout procedures. Ensure that connected machinery cannot start unexpectedly.

Follow the original manufacturer’s instructions for module installation and removal. Do not assume that a procedure permitted for one configuration is valid for all connected PLC and AS-i equipment.

7. Compatible System Components

The following table identifies relevant component categories for a TSXSAY100 installation. Actual compatibility depends on the installed Modicon Premium configuration and the AS-i device network.

The table describes system component categories, not a guarantee that every component can be combined in every installation. Check the original hardware and network documentation before ordering parts or modifying the system.

8. Recommended Alternative Models and Replacement Considerations

When the TSXSAY100 requires replacement, the most appropriate choice depends on whether the objective is to preserve the original Modicon Premium installation or migrate to a newer automation platform.

TSXSAY100: Same-Model Replacement

For a legacy Modicon Premium installation, the exact TSXSAY100 is the most direct option to investigate first.

Before purchasing, confirm the complete model number, module condition, front-panel indicators, bus connector, and compatibility with the existing PLC configuration. For used or refurbished units, request photographs of the actual module and details of the testing performed.

TSXSAY1000: Related Premium AS-i Module

The TSXSAY1000 is another AS-Interface master module in the Modicon Premium family, but it supports a different AS-i capability set, including standard and extended addressing.

It should not be treated as a plug-in replacement without checking the original network design, slave addressing, supported profiles, PLC configuration, and software requirements. The physical and functional similarities between two modules do not establish complete compatibility.

BMXEIA0100: Modernization Candidate

The BMXEIA0100 is a Modicon X80 AS-Interface master module identified as a replacement for the related TSXSAY1000 model. It may be relevant when evaluating migration from a legacy Premium platform to Modicon X80.

However, it should not be assumed to be a direct replacement for the TSXSAY100. A migration assessment should review the controller platform, rack and power supply, module compatibility, field wiring, AS-i network configuration, PLC program, communications, and commissioning requirements.

If the existing Premium system must remain in service with minimal engineering changes, sourcing a verified TSXSAY100 may be more appropriate than changing the platform.

9. Key Advantages

AS-i Network Integration

The TSXSAY100 provides an AS-i master interface for compatible Modicon Premium PLC systems, allowing supported field devices to exchange data with the controller through an AS-i network.

Support for Distributed Devices

By managing communication with multiple AS-i slaves, the module can support a distributed field-device architecture and help organize sensor and actuator connections across a machine or production line.

Substantial Discrete I/O Capacity

A standard AS-i segment can support up to 31 slave devices. With compatible four-input/four-output slaves, the theoretical maximum is 124 inputs and 124 outputs. The usable capacity depends on the actual device configuration.

Built-In Diagnostic Indicators

Front-panel status indicators and diagnostic controls help maintenance personnel inspect the module, communication activity, and slave-related conditions.

Integration with Existing Premium Systems

For compatible legacy installations, the TSXSAY100 can maintain the established AS-i interface without automatically requiring a complete PLC platform replacement.

Useful for Legacy Spare-Parts Procurement

The module may be important to plants maintaining older Modicon Premium automation systems. Accurate model verification and functional testing are essential when sourcing discontinued or refurbished equipment.

10. Technical FAQs

Q1: What is the Schneider TSXSAY100?

The TSXSAY100 is an AS-Interface master module for the Schneider Electric Modicon Premium PLC platform. It enables a compatible Premium PLC to exchange data with supported AS-i slave devices.

Q2: How many AS-i devices can the TSXSAY100 support?

The module supports up to 31 AS-i slave devices on a standard segment. The actual number of connected devices must comply with the applicable network and configuration requirements.

Q3: What is the maximum I/O capacity?

With compatible slave devices offering up to four inputs and four outputs each, the theoretical maximum is 124 inputs and 124 outputs per standard segment. Actual capacity depends on the connected devices and their supported configuration.

Q4: What does AS-i M2 mean?

AS-i M2 identifies the AS-Interface profile supported by the TSXSAY100. It defines the communication capabilities available for compatible devices. Device selection should be based on the module’s supported profile and the requirements of the application.

Q5: Does the TSXSAY100 require a separate AS-i power supply?

The module receives its own power through the compatible Premium PLC rack. The connected AS-i network devices require an appropriate AS-i power supply. The exact arrangement should be checked against the original network design.

Q6: Which PLC platform is compatible with the TSXSAY100?

The TSXSAY100 is designed for the Modicon Premium PLC family. The specific processor, rack position, and configuration must be checked before installation.

Q7: Can the TSXSAY100 be replaced by the TSXSAY1000?

Not automatically. Although both are AS-Interface master modules in the Modicon Premium family, their supported AS-i capabilities differ. Confirm addressing, profile support, PLC configuration, and system requirements before considering the TSXSAY1000.

Q8: Can the BMXEIA0100 replace the TSXSAY100?

The BMXEIA0100 is a Modicon X80 AS-i master module associated with replacement of the TSXSAY1000. It should not be treated as a direct replacement for the TSXSAY100 without a full compatibility and migration assessment.

Q9: What should be checked before purchasing a TSXSAY100?

Verify the model label, module condition, connector integrity, PLC compatibility, AS-i profile, and the condition of the front-panel indicators. For used equipment, request actual product photographs, testing information, and clear warranty terms.

11. Procurement and Maintenance Considerations

The TSXSAY100 is a specialized communication module for an established PLC platform. When sourcing this component, buyers should check the complete model number and the requirements of the existing installation rather than relying only on the generic description “AS-i coupler.”

Before placing an order, consider the following:

• Model verification: Confirm TSXSAY100 rather than TSXSAY1000 or another AS-i interface.
• PLC compatibility: Verify that the installed Modicon Premium processor and rack support the module.
• Network configuration: Confirm the AS-i profile, number of slaves, addressing arrangement, and available I/O channels.
• Power supply: Check the PLC rack supply and the separate power supply arrangement for the AS-i network.
• Connector condition: Inspect the three-way SUB-D connector and its associated connection hardware.
• Module condition: Review the front-panel indicators, housing, contacts, and any evidence of damage.
• Testing and warranty: For used or refurbished units, request information about functional testing and the supplier’s return policy.
• Lifecycle planning: Consider future spare-parts availability and whether a longer-term PLC modernization plan is necessary.

Because compatibility depends on the complete control architecture, the replacement module should be checked against the original PLC project and field-network documentation before being returned to service.

12. Conclusion

The Schneider Electric TSXSAY100 AS-i Coupler is an AS-Interface master module designed for compatible Modicon Premium PLC systems. It enables communication with distributed AS-i sensors and actuators, supports up to 31 slave devices on a standard segment, and provides diagnostic indicators to assist with maintenance and troubleshooting.

Its principal value lies in connecting an established Premium PLC architecture to an AS-i field-device network. For factories maintaining legacy automation equipment, the TSXSAY100 may be a relevant spare part for restoring or maintaining existing communication functions.

When selecting a replacement, verify the exact model, supported AS-i profile, slave configuration, PLC compatibility, and network power arrangement. Related modules such as the TSXSAY1000 and BMXEIA0100 should be evaluated carefully rather than assumed to be direct substitutes.

With proper model verification and system-level compatibility checks, the TSXSAY100 can support maintenance and continued operation of suitable legacy industrial automation installations.
