1. Product Overview

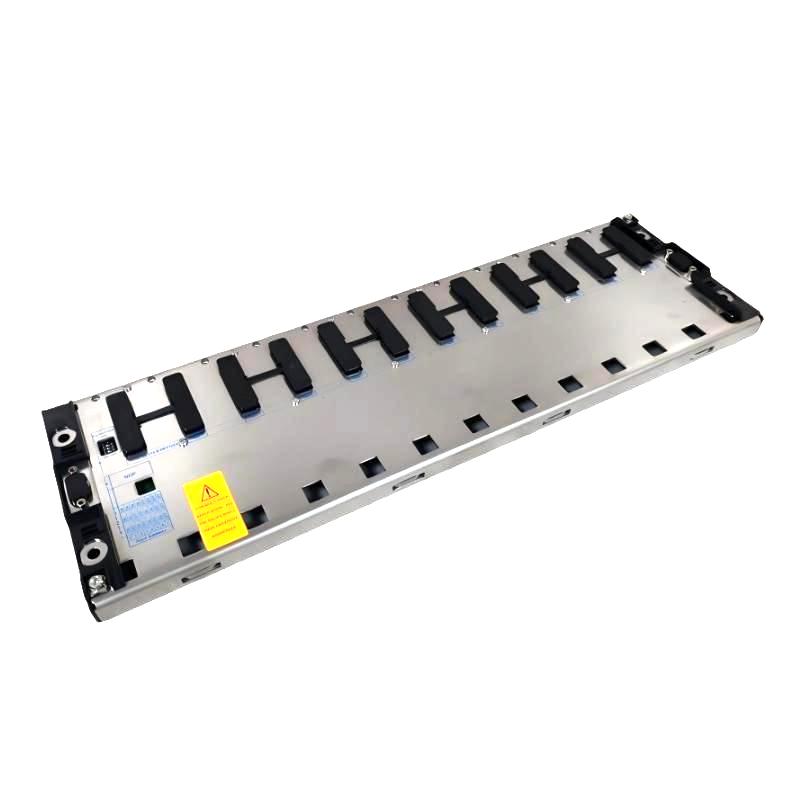

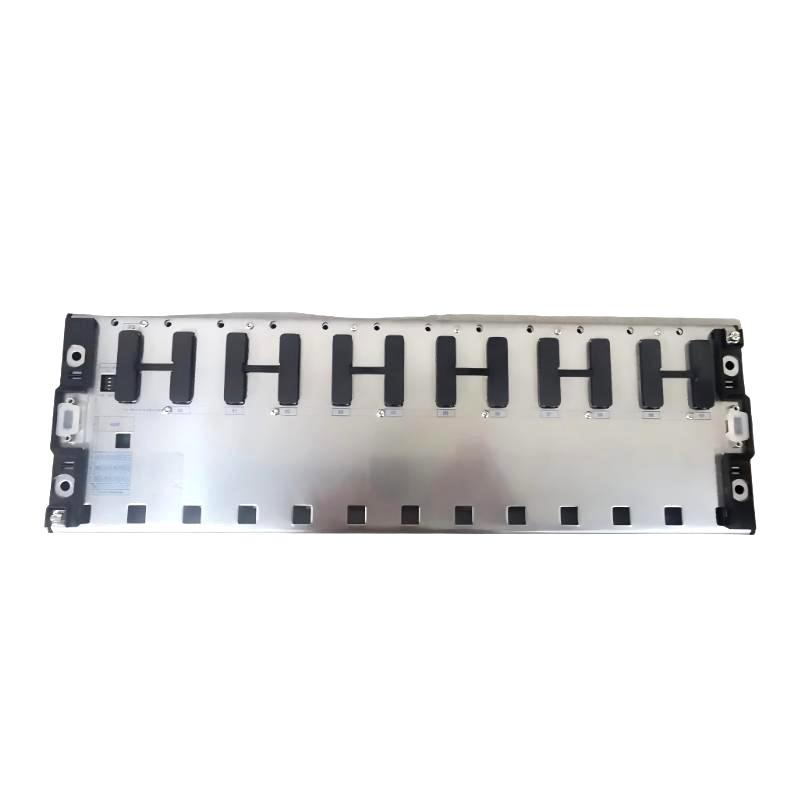

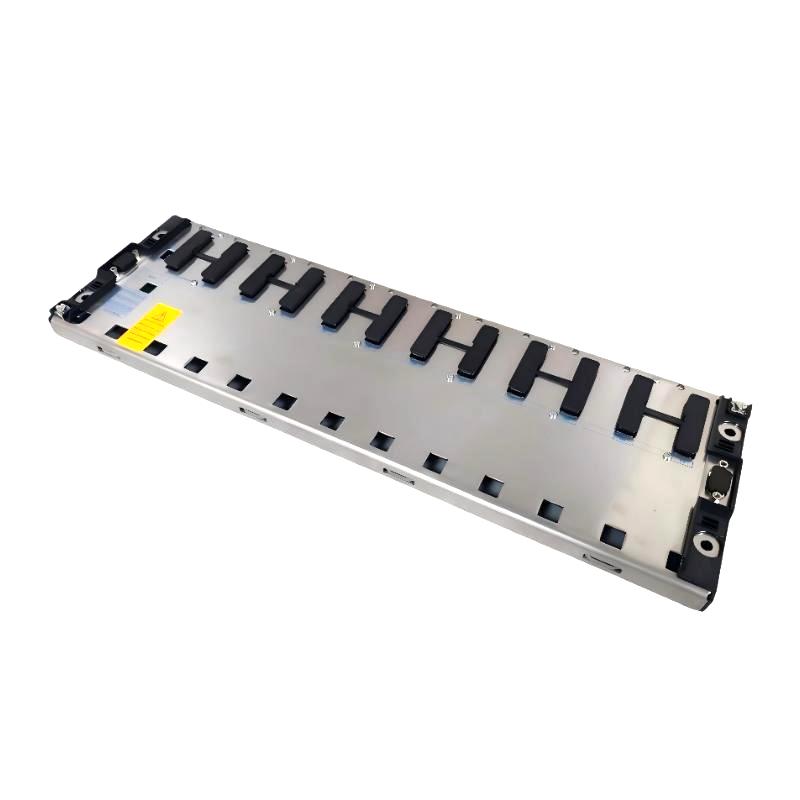

The Schneider Electric TSXRKY12EX Extendable Rack is a rack assembly designed for industrial automation systems based on the Modicon Premium PLC platform. It is intended for multi-rack configurations, allowing compatible processor, power supply, input/output, and application-specific modules to be installed as part of a distributed programmable logic controller architecture.

In industrial automation, a PLC rack provides the mechanical structure and electrical connections needed to integrate control modules into an organized system. For applications that require more modules than can be accommodated by a single rack, an extendable rack makes it possible to expand the control architecture while maintaining a structured arrangement of equipment.

The TSXRKY12EX supports a 12-slot configuration and incorporates two female SUB-D 9 connectors for remote X-Bus connections. These interfaces support communication between racks in a compatible Modicon Premium installation. The rack is designed for installation in industrial control cabinets, equipment frames, and panels, subject to the applicable mounting requirements.

This product is particularly relevant to plants that continue to operate legacy Modicon Premium PLC systems. Replacing or expanding a rack in an established control installation requires careful attention to module compatibility, rack configuration, bus connections, power supply arrangements, and the physical dimensions of the existing equipment.

For maintenance teams, system integrators, and industrial spare-parts purchasers, the TSXRKY12EX can be an important component when maintaining an existing PLC installation. Before purchasing, users should verify the exact model number, connector condition, physical dimensions, and compatibility with the installed processor and expansion architecture.

2. Technical Specifications

Important specification note: The dimensions above are the supplied product-listing dimensions. Published rack drawings may distinguish between the rack body, mounting-hole spacing, installed modules, and connector clearance. Confirm the required mechanical envelope against the original equipment drawing before planning a replacement or cabinet modification.

3. Function and Working Principle

3.1 Mechanical Support for PLC Modules

The primary function of the TSXRKY12EX is to provide a mounting structure for compatible Modicon Premium automation modules. The rack organizes the modules into a defined arrangement and helps maintain their physical positioning within the control cabinet.

A properly installed rack supports an orderly system layout, simplifies module identification, and helps maintenance personnel access individual components during inspection or replacement. It also establishes the mounting arrangement required for the supported PLC hardware.

The rack itself is not a programmable controller. It does not independently execute a control program or perform signal-processing tasks. These functions are provided by the processor, I/O modules, and other installed components.

3.2 Support for Multi-Rack Architectures

Large industrial control systems may require more I/O channels and application modules than can be installed in one rack. The TSXRKY12EX is designed for use in a multi-rack Modicon Premium configuration.

In a compatible system, additional racks allow the control installation to accommodate a greater number of supported modules. The arrangement can be useful when machinery has multiple control sections, when field signals are distributed across a large installation, or when a legacy PLC system has been expanded over time.

The rack must be configured according to the requirements of the installed processor, the system architecture, and the applicable hardware documentation. A rack with the correct number of slots is not automatically compatible with every PLC platform.

3.3 X-Bus Remote Connections

The TSXRKY12EX incorporates two female SUB-D 9 connectors for remote X-Bus connections. These connectors are used within the supported Modicon Premium multi-rack architecture.

The bus connection allows compatible rack assemblies to participate in the PLC system’s module communication arrangement. Correct cable selection, connector installation, rack addressing where applicable, and termination are important for reliable operation.

The connectors should be inspected for bent contacts, damaged shells, contamination, and loose mounting hardware. Any bus cable or termination component must be selected according to the requirements of the specific PLC configuration.

3.4 Integration with the PLC Power Supply

The rack accommodates a compatible TSXPSY power supply in the supported Modicon Premium arrangement. The power supply provides the electrical power required by the installed control hardware according to its design specifications.

The rack does not replace the function of the power supply. During installation or replacement, technicians must confirm the correct power supply model, module position, electrical connections, and system loading requirements.

3.5 Integration with Processor and I/O Modules

A compatible TSXP57 processor and supported input/output modules can be installed within the appropriate Modicon Premium configuration. The processor executes the control program, while I/O modules interface with field devices such as sensors, push buttons, valves, contactors, and other industrial equipment.

The rack provides the physical and connection framework that brings these components together. Its role is therefore fundamental to system organization, even though it does not independently perform the control logic.

4. Role in Industrial Automation Systems

4.1 Centralized Control Cabinet Organization

The TSXRKY12EX can form part of an established PLC cabinet where multiple control modules are arranged in a common rack structure. This arrangement helps maintenance teams identify the position of the processor, power supply, and other modules.

A clearly organized rack layout can reduce troubleshooting time and simplify the replacement of individual modules, provided that the installed hardware and system documentation are properly maintained.

4.2 Expansion of Existing PLC Installations

In a multi-rack configuration, an extendable rack can provide additional installation capacity for supported modules. This is useful when an established control system requires more I/O or application-specific hardware than the original rack arrangement can accommodate.

Expansion must still remain within the limits of the processor, supported rack architecture, bus configuration, and applicable hardware specifications. Adding a rack does not guarantee that every module combination will be supported.

4.3 Maintenance of Legacy Control Equipment

Industrial facilities often retain older PLC systems because the installed equipment remains functional and the cost of a complete control-system migration may be significant. In these environments, maintaining the existing rack architecture can help reduce unnecessary changes to wiring, programs, and operating procedures.

The TSXRKY12EX may therefore be relevant to maintenance projects involving equipment refurbishment, spare-parts replacement, and restoration of an existing Modicon Premium installation.

When maintaining legacy equipment, it is important to distinguish between replacing a failed component with the same model and migrating the system to a newer platform. The first approach may preserve the existing architecture, while the second can require engineering changes and additional commissioning.

4.4 Distributed Machine and Process Control

Multi-rack PLC arrangements can be used in machinery and industrial processes where the control hardware must support a relatively large number of signals or specialized modules.

Depending on the original system design, compatible Modicon Premium racks may be found in production lines, material-handling systems, packaging machinery, process skids, utility equipment, and other automated installations.

The TSXRKY12EX should be selected for these applications only when the existing or planned control architecture explicitly supports this rack type.

5. Industrial Applications

Manufacturing and Production Lines

Production lines commonly use PLC systems to coordinate motors, conveyors, sensors, actuators, and machine interlocks. An extendable rack can provide mounting capacity for the supported control modules used in an established Modicon Premium installation.

In maintenance applications, the correct rack can help preserve the original module arrangement and reduce the need to redesign the control cabinet solely because a rack component has failed.

Packaging and Material Handling

Packaging and material-handling equipment may require multiple digital I/O modules and specialized control hardware to manage product detection, machine sequencing, and equipment coordination.

Where these systems use a compatible Modicon Premium multi-rack architecture, the TSXRKY12EX may serve as part of the existing control infrastructure.

Process Automation

Industrial process systems can include pumps, valves, motors, pressure transmitters, temperature sensors, and other field instruments. PLC hardware organizes the control and signal interfaces required to operate this equipment.

The TSXRKY12EX can support the physical arrangement of compatible modules in legacy systems, but the rack alone does not determine the process-control capabilities of the installation.

Water and Wastewater Equipment

Water treatment and wastewater installations often use PLC-based control for pumping stations, filtration equipment, dosing systems, and auxiliary machinery.

Where an existing system uses the supported Modicon Premium rack architecture, maintaining the correct rack hardware can help preserve the established control arrangement during equipment servicing.

Power and Utility Facilities

Utility installations may rely on long-running automation systems to supervise auxiliary equipment, cooling systems, pumps, and other plant processes. A compatible rack can remain important when the original PLC architecture is retained for maintenance or spare-parts support.

The suitability of any component depends on the specific installation requirements, environmental conditions, and approved system design.

6. Installation and System Integration

Correct installation is essential for reliable operation. Before installing or replacing a TSXRKY12EX, technicians should review the PLC configuration, mechanical drawings, wiring documentation, and applicable safety procedures.

6.1 Verify the Complete Model Number

Confirm that the component required by the existing system is specifically TSXRKY12EX.

The Modicon Premium product family includes both standard and extendable racks. Similar-looking model numbers may have different functions or support different rack configurations. In particular, TSXRKY12 and TSXRKY12EX should not be treated as interchangeable without checking the system requirements.

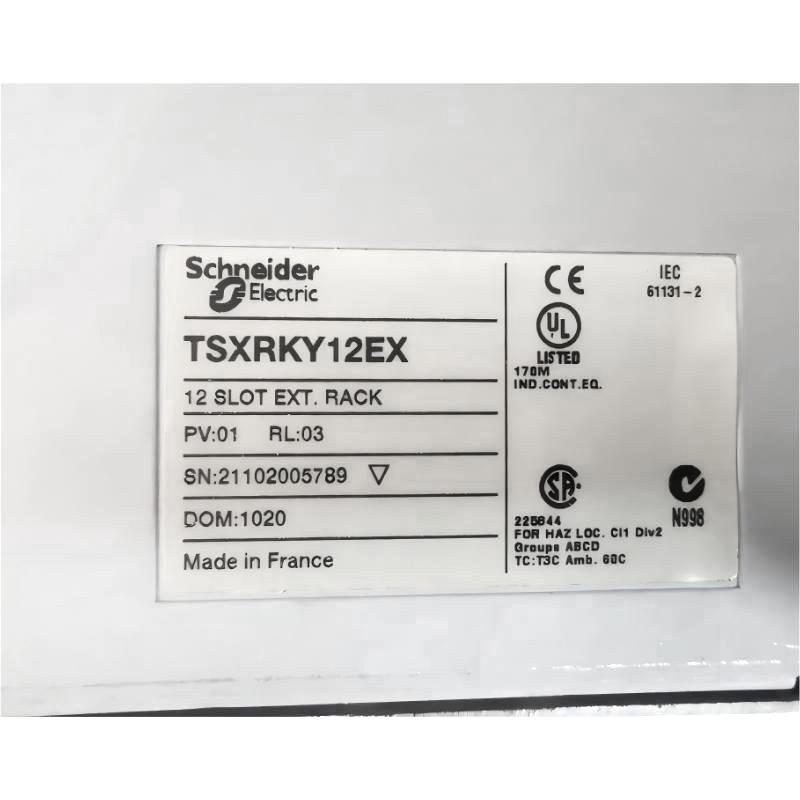

Check the model marking on the original component and compare it with the equipment list and rack layout.

6.2 Confirm Mounting Requirements

The rack supports compatible panel mounting and 35 mm symmetrical DIN rail mounting arrangements.

For panel mounting, verify the mounting-hole positions, required fixing hardware, structural support, and available clearance. For DIN rail installation, confirm that the rail type and mounting clips are suitable for the rack and the installed equipment.

The dimensions of the complete installation must account for the rack, installed modules, cable connectors, bus cables, and the clearance needed for maintenance.

6.3 Inspect X-Bus Connections

Inspect both SUB-D 9 connectors before installation. Confirm that the connectors are clean, mechanically secure, and free from visible damage.

Use the correct bus cable and any required termination components specified for the system. Avoid forcing connectors into position or allowing cable weight to place unnecessary stress on the connector shells.

If the rack is part of a multi-rack installation, check the cable route and rack arrangement against the system documentation before powering up the PLC.

6.4 Confirm Module Compatibility and Positioning

The rack is intended for supported Modicon Premium modules, including compatible TSXP57 processors, TSXPSY power supplies, I/O modules, and application-specific modules.

Not every module can be installed in every position or configuration. Review the system documentation to confirm the permitted module combinations, processor requirements, and any special positioning rules.

6.5 Check Grounding and Electrical Safety

Follow the original installation documentation for rack grounding and the relationship between the PLC system’s internal reference and protective earth.

Before replacing or modifying the rack, isolate electrical power according to the site’s lockout/tagout and electrical-safety procedures. Confirm that connected equipment cannot start unexpectedly and that stored electrical energy has been safely addressed.

Never insert, remove, or reconnect modules while the system is energized unless the equipment documentation explicitly permits the procedure.

6.6 Perform Functional Checks

After installation, inspect the rack mounting, module seating, power supply installation, and bus connections.

Where appropriate, verify that the PLC starts correctly, the expected modules are recognized, and the system reports no rack communication or configuration errors. Test the relevant control functions in accordance with the commissioning procedure before returning the equipment to normal operation.

7. Compatible System Components

The following table identifies component types associated with the supported Modicon Premium architecture. Exact compatibility depends on the installed processor, module versions, rack arrangement, and system documentation.

This table describes component categories rather than a guarantee that every listed component can be combined in one rack. The complete PLC configuration should be checked before ordering or installing hardware.

8. Recommended Alternative Models and Replacement Considerations

When sourcing a replacement rack, the most important distinction is whether the goal is to maintain the original Modicon Premium architecture or migrate to a newer automation platform.

TSXRKY12EX: Same-Model Replacement

For an existing Modicon Premium system, sourcing the exact TSXRKY12EX model is generally the most straightforward way to preserve the original rack architecture, provided the replacement matches the required hardware revision and physical configuration.

Before ordering, confirm the model marking, condition, connector integrity, mounting dimensions, and the supplier’s warranty and return policy.

TSXRKY12: Similar Capacity, Different Configuration

The TSXRKY12 is a related 12-slot rack, but it is designed for a non-extendable configuration. The number of slots alone is not enough to establish equivalence.

If the installation requires remote X-Bus connections for a multi-rack architecture, verify the complete rack model and connection arrangement before considering a standard rack as an alternative.

BMEXBP1200: Modernization Candidate

Schneider Electric identifies the BMEXBP1200 Modicon X80 Ethernet backplane as a replacement candidate for the TSXRKY12EX.

However, the BMEXBP1200 belongs to a different automation platform. It should not be treated as a direct mechanical or electrical drop-in replacement. Migration may require a review of the processor, module compatibility, communications architecture, power supply, control program, wiring, cabinet layout, and commissioning requirements.

For a legacy system that must remain operational with minimal engineering changes, the original TSXRKY12EX may be more appropriate than an immediate platform migration.

9. Key Advantages

Supports Established Modicon Premium Systems

The TSXRKY12EX is designed for the Modicon Premium automation platform. For suitable legacy installations, retaining the original rack model can simplify maintenance and help preserve the existing hardware arrangement.

12-Slot Module Capacity

The 12-slot design provides a structured mounting arrangement for compatible PLC hardware. Actual usable module positions and permitted combinations must be verified against the system configuration.

Multi-Rack Expansion Capability

The extendable rack design supports compatible multi-rack architectures, allowing the PLC installation to accommodate additional supported modules within the limits of the processor and bus configuration.

Dedicated X-Bus Connections

Two female SUB-D 9 connectors provide the specified remote X-Bus interfaces used in the compatible multi-rack installation.

Flexible Mounting Options

Panel mounting and compatible 35 mm symmetrical DIN rail mounting support different cabinet and machine-frame layouts, subject to the rack’s mounting requirements.

Useful for Industrial Spare-Parts Maintenance

For factories that continue to operate legacy Modicon Premium PLCs, a correctly identified replacement rack can be useful during maintenance, equipment refurbishment, or the restoration of an existing control system.

10. Technical FAQs

Q1: What is the Schneider TSXRKY12EX?

The TSXRKY12EX is a 12-slot extendable rack for Schneider Electric’s Modicon Premium PLC platform. It is designed for multi-rack configurations and includes two female SUB-D 9 connectors for remote X-Bus connections.

Q2: How many slots does the TSXRKY12EX have?

The TSXRKY12EX has 12 slots. The supported module combination and permitted installation positions depend on the specific Modicon Premium system configuration.

Q3: What is the difference between TSXRKY12EX and TSXRKY12?

The TSXRKY12EX is designed for extendable, multi-rack configurations, while the TSXRKY12 is a non-extendable rack intended for a single-rack configuration. Their similar slot counts do not make them automatic substitutes.

Q4: Which PLC platform is compatible with the TSXRKY12EX?

It is associated with the Schneider Electric Modicon Premium automation platform and supports compatible TSXP57 processors, TSXPSY power supplies, I/O modules, and application-specific modules. The exact combination must be checked against the original system documentation.

Q5: Can the TSXRKY12EX be replaced by the BMEXBP1200?

The BMEXBP1200 is listed as a replacement candidate, but it belongs to the Modicon X80 platform. Replacing the TSXRKY12EX with a BMEXBP1200 may involve system migration and engineering changes. It should not be assumed to be a direct drop-in replacement.

Q6: What are the dimensions and weight of the TSXRKY12EX?

The dimensions supplied for this product listing are 570 × 210 × 55 mm, and the weight is 2.34 kg. Confirm the mechanical drawing and installation envelope before designing or modifying a control cabinet.

Q7: What should be checked before purchasing a TSXRKY12EX?

Confirm the complete model number, physical condition, slot and connector arrangement, mounting requirements, and compatibility with the existing PLC system. For used or refurbished equipment, request clear product photographs and confirm the supplier’s testing, warranty, and return terms.

Q8: Is the TSXRKY12EX suitable for a new PLC installation?

The TSXRKY12EX is primarily relevant to compatible Modicon Premium systems, especially existing installations requiring maintenance or expansion. For a new project, the appropriate current platform should be selected based on control requirements, lifecycle support, module availability, and engineering considerations.

11. Procurement and Replacement Considerations

When purchasing a TSXRKY12EX for industrial maintenance, verify more than the product description. A rack can have the correct number of slots but still be unsuitable if the connector arrangement, rack type, mounting dimensions, or supported PLC architecture does not match the installation.

Before placing an order, consider the following:

• Model verification: Confirm TSXRKY12EX rather than a similarly named standard rack.
• Physical inspection: Check the rack structure, slot condition, connectors, and mounting points.
• System compatibility: Confirm the processor, power supply, installed modules, and multi-rack arrangement.
• Bus accessories: Verify whether the installation requires specific X-Bus cables or termination components.
• Condition and testing: Ask whether the component is new, used, or refurbished, and request applicable test information.
• Lifecycle planning: Consider whether maintaining the existing Premium system or migrating to a newer platform better meets the plant’s long-term requirements.

Because lifecycle status and after-sales support may vary by region, confirm current service arrangements with the relevant supplier before relying on a particular support date.

12. Conclusion

The Schneider Electric TSXRKY12EX Extendable Rack is a 12-slot rack designed for multi-rack configurations in compatible Modicon Premium PLC systems. Its mechanical mounting structure and dual SUB-D 9 X-Bus connectors support the integration of compatible control modules into an established industrial automation architecture.

For maintenance teams and industrial spare-parts buyers, the TSXRKY12EX can be a relevant component when preserving an existing PLC installation. Correct model identification, verification of rack connections, and confirmation of module compatibility are essential before installation.

Although the BMEXBP1200 is identified as a replacement candidate, it belongs to the Modicon X80 platform and requires a separate migration assessment. For applications where preserving the original control architecture is the priority, the exact TSXRKY12EX model should be evaluated first.

Choosing the correct rack helps support reliable maintenance, organized control hardware, and the continued operation of compatible legacy automation systems.
