1. Product Overview

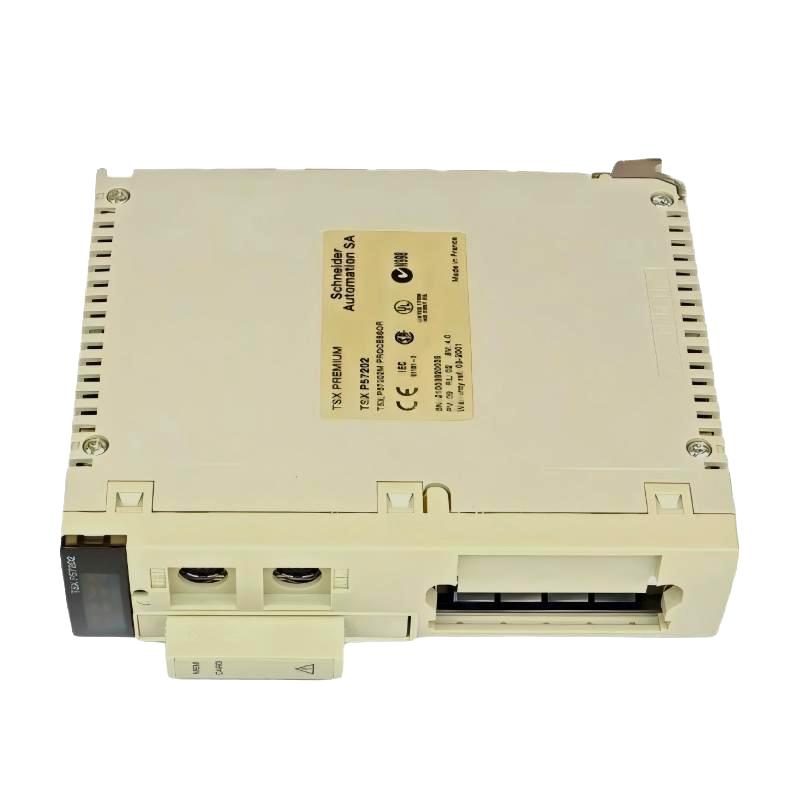

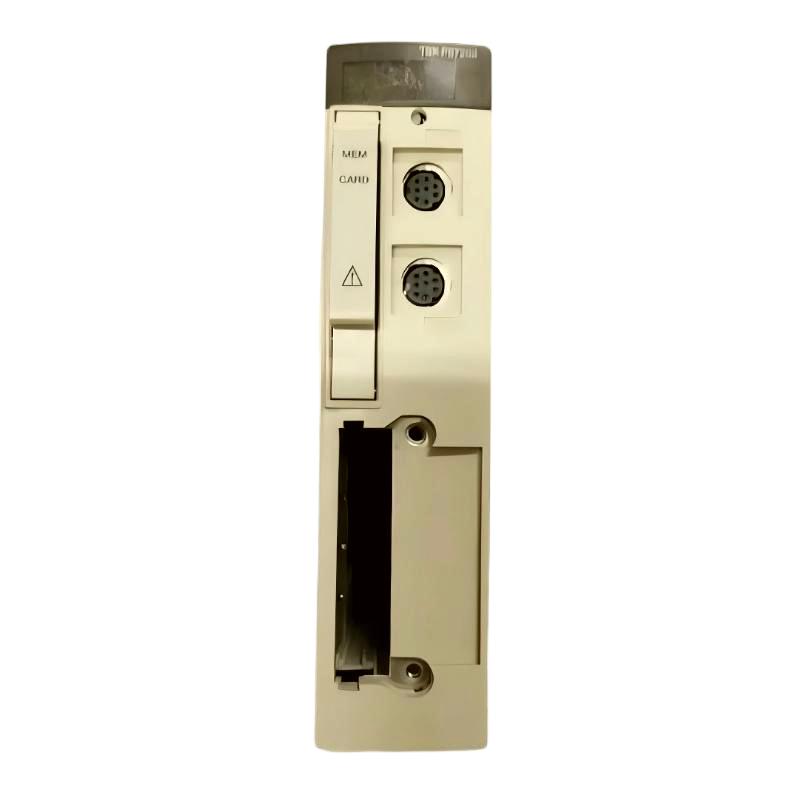

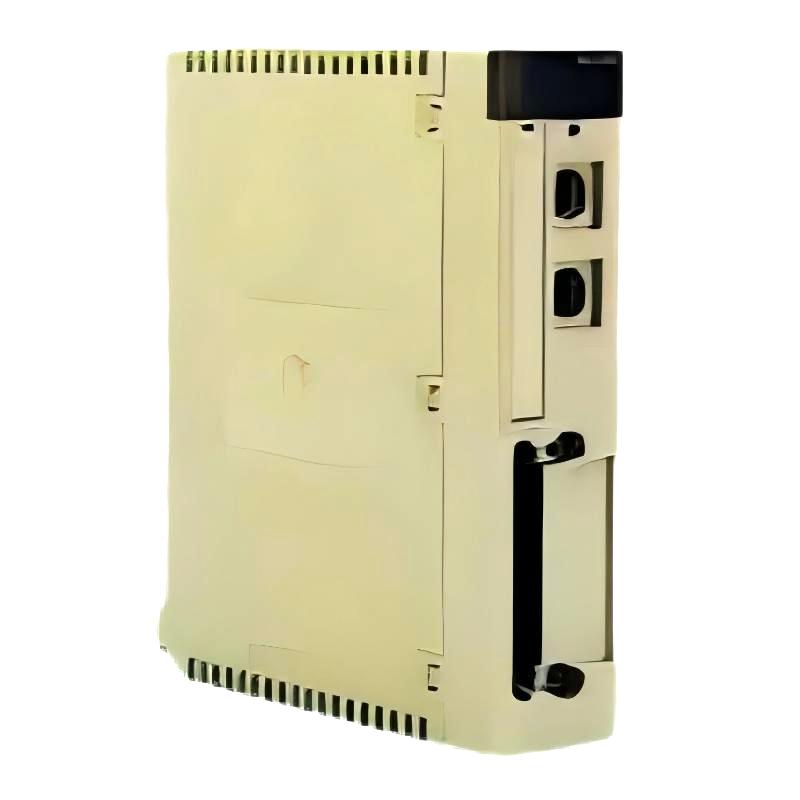

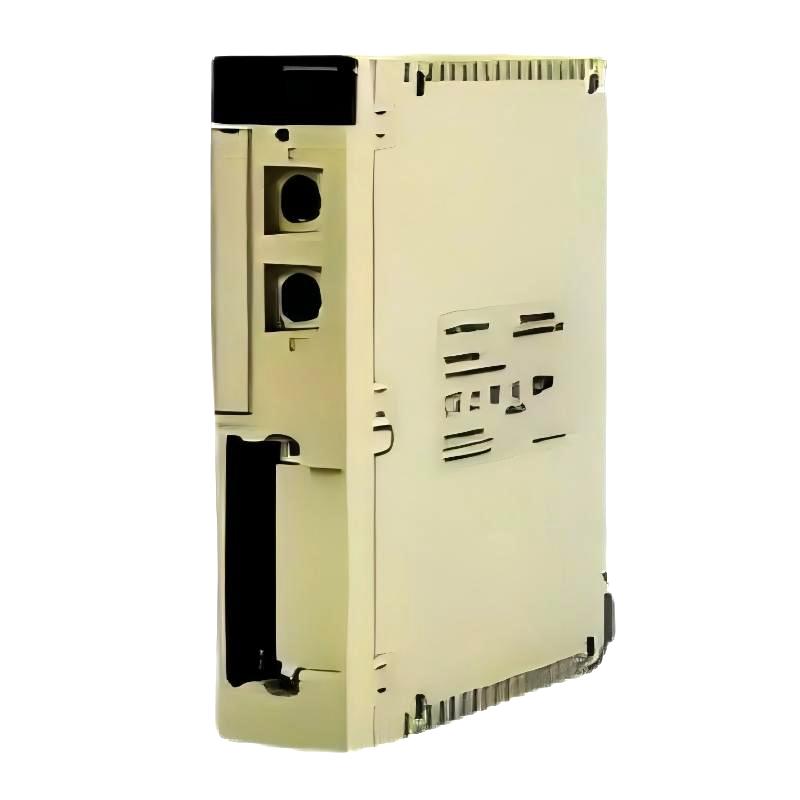

The Schneider Electric TSXP57202M Processor Module is a programmable logic controller (PLC) CPU designed for the Modicon Premium automation platform. As the central processing unit of a compatible PLC system, it executes user programs, processes control data, manages input and output operations, and coordinates communication with supported automation devices.

The TSXP57202M is intended for industrial control applications that require reliable sequencing, equipment coordination, and centralized management of machine or process operations. It can be used as part of an established Modicon Premium architecture incorporating compatible racks, power supplies, digital and analog I/O modules, communication interfaces, and field devices.

The processor is associated with the PL7 Pro programming environment and supports structured control applications for industrial machinery and process equipment. Depending on the installed configuration, a Modicon Premium system can handle a wide range of discrete signals, analog measurements, and application-specific control functions.

For maintenance teams, the TSXP57202M is particularly relevant when supporting legacy automation equipment. Correctly identifying the original CPU is important when restoring an existing PLC system, preserving established control logic, and reducing unnecessary changes to the surrounding equipment.

The TSXP57202M has been discontinued. Organizations sourcing this module should therefore verify its exact part number, physical condition, hardware revision, and compatibility with the existing PLC configuration. Replacement planning should also distinguish between a functionally compatible legacy processor and a newer controller platform that may require a broader migration project.

2. Technical Specifications

Note: Dimensions and weight are provided according to the supplied product information. Published product records may list packaging dimensions or weights that differ from the dimensions of the component itself. Confirm the exact unit and packaging measurements before ordering or shipping. I/O capacities and memory details should also be checked against the applicable technical documentation and installed configuration.

3. Function and Working Principle

The TSXP57202M serves as the main processing unit in a compatible Modicon Premium PLC system. Its primary role is to execute the application program and coordinate the processing of data received from connected modules and communication devices.

3.1 Control Program Execution

A PLC program defines how the automation system responds to field signals, equipment states, operator commands, and process conditions. The TSXP57202M executes the configured logic and determines the actions required by the application.

For example, in an automated production line, the CPU may coordinate conveyor operation, monitor machine status, control sequencing, and respond to sensor signals. The specific functions depend on the application program and the modules installed in the PLC rack.

3.2 Input and Output Processing

Industrial control systems rely on input signals to determine the current state of machinery and processes. Output signals are then used to control compatible actuators, relays, valves, and other equipment.

The TSXP57202M supports a Modicon Premium system configuration with substantial discrete and analog I/O capacity. Appropriate modules must be selected for the signal types and electrical requirements of the installation.

Discrete inputs may represent limit-switch positions, equipment status, or other on/off conditions. Analog inputs may provide measurements such as pressure, temperature, flow, and level. The CPU processes the data made available by the configured system and executes the corresponding control logic.

3.3 Task and Sequence Management

Industrial automation applications often require several control activities to operate together. These may include machine sequencing, status monitoring, interlock logic, event handling, and data processing.

The processor executes the tasks defined in the application and coordinates the resulting control operations. Engineers must configure the application according to the required process behavior and verify that execution performance meets the demands of the equipment.

3.4 Communication with Automation Devices

The TSXP57202M operates within the communication architecture supported by the Modicon Premium platform. Depending on the installed configuration, the system can exchange data with compatible operator interfaces, remote equipment, communication modules, and field devices.

Communication settings, network hardware, addressing, and software configuration must be verified before commissioning. A processor’s communication capabilities should not be assumed to support every modern industrial protocol without additional compatible hardware.

4. Role in Industrial Control Systems

The TSXP57202M can perform several important functions within a compatible industrial automation installation.

Centralized processing: The CPU executes the control program and coordinates the logic used to operate the system.

I/O coordination: It processes data from compatible digital and analog modules and manages application responses to input conditions.

Machine sequencing: The processor can coordinate the steps involved in manufacturing, packaging, material handling, and other automated operations.

Equipment status monitoring: Application logic can evaluate feedback signals and identify operating conditions that require a response or operator attention.

Communication management: The CPU works with the supported communication interfaces and compatible modules to exchange data within the automation architecture.

Legacy system maintenance: A correctly identified replacement processor can help restore an existing control installation, provided that the program, hardware, and configuration requirements are satisfied.

In an established factory, the processor is only one part of the complete control system. Reliable operation also depends on the condition of the rack, power supply, I/O modules, wiring, communication network, and field equipment.

5. Industrial Applications

5.1 Manufacturing and Production Lines

The TSXP57202M can be used in compatible Modicon Premium systems controlling manufacturing equipment, production stations, conveyors, and automated assembly processes.

The CPU executes logic that coordinates equipment states, evaluates sensor feedback, and manages the sequence of operations. This supports consistent machine behavior and helps maintenance teams diagnose faults through the configured control system.

5.2 Packaging Machinery

Packaging equipment commonly requires coordinated control of sensors, motors, actuators, and sequential operations.

A PLC based on the TSXP57202M can execute the application logic required to coordinate these operations, provided that the installed I/O modules and other hardware are suitable for the machine.

5.3 Material Handling and Conveying

Conveyor systems and material-handling equipment depend on accurate sequencing and feedback from field devices. The processor can coordinate equipment start and stop conditions, monitor operational signals, and execute programmed interlocks.

The exact functionality depends on the control program, motor-control equipment, field wiring, and the wider automation architecture.

5.4 Process Equipment

Industrial process equipment may require the monitoring of analog measurements and the coordination of discrete control signals.

When used with compatible analog modules and field instrumentation, the TSXP57202M can participate in applications involving temperature, pressure, flow, and level measurements. It is important to verify the signal ranges, module compatibility, and control requirements of each application.

5.5 Utilities and Infrastructure

Legacy Modicon Premium PLC installations may be found in pumping systems, water-treatment equipment, building services, and other utility-related applications.

The TSXP57202M can support the programmed control functions of these systems where the existing hardware and software configuration is compatible.

5.6 Maintenance of Legacy Automation Equipment

Because the TSXP57202M is discontinued, its ongoing value is often associated with maintenance and spare-parts procurement for existing installations.

Sourcing the correct CPU can help reduce downtime when a processor fails. However, replacement should be accompanied by checks of the program backup, hardware revision, rack configuration, communication settings, and the condition of the surrounding system.

6. Installation and System Integration

Correct installation helps prevent compatibility issues and reduces the risk of unexpected downtime.

6.1 Verify the PLC Rack

Before installing the TSXP57202M, confirm that the rack and associated hardware belong to a compatible Modicon Premium configuration.

Check the rack model, available slots, power supply, installed I/O modules, and communication components. Physical fit alone does not guarantee that a processor is suitable for a particular system.

6.2 Check Power Requirements

The processor operates as part of a rack-based PLC system supplied by a compatible power supply. Verify the CPU’s current consumption using the applicable technical documentation and calculate the total power requirement for all installed modules.

The power budget must include the processor, I/O modules, communication modules, and other devices supplied by the rack. Do not estimate the complete rack load from the CPU specification alone.

6.3 Back Up the Application

Before replacing a processor, preserve the available PLC program, project files, configuration information, and communication settings.

Where possible, verify that the backup can be opened in the required programming environment. An incomplete or incompatible project file can complicate system recovery even when the replacement hardware is correct.

6.4 Confirm Programming Software Compatibility

The TSXP57202M is associated with the PL7 Pro engineering environment. Confirm the programming software version and project requirements before connecting to the processor or downloading the application.

Older automation projects may depend on particular software versions, configuration settings, or hardware revisions. These requirements should be checked before making changes to the installed system.

6.5 Verify Communication Settings

Check the communication interfaces, cable types, device addressing, and network configuration used by the existing installation.

If the system includes operator interfaces, remote devices, or additional communication modules, confirm that each component is compatible with the processor and application. Incorrect communication settings may prevent normal operation even when the CPU itself is functional.

6.6 Test Before Returning to Service

After installation, verify the processor status, program execution, I/O response, and communication behavior. Test the required operating sequences and equipment interlocks before returning the system to production.

Industrial control equipment should be installed and tested by qualified personnel following the site’s electrical safety procedures and applicable technical documentation.

7. Compatible System Components

The following component categories may be relevant to a Modicon Premium system using the TSXP57202M. Exact compatibility depends on the installed hardware and application configuration.

This table describes component roles rather than guaranteeing that all products can be combined in one configuration. Confirm the specific hardware references before purchasing or integrating components.

8. Recommended Alternative and Replacement Models

Selecting an alternative for the TSXP57202M requires distinguishing between a functional replacement within the legacy platform and a migration to a newer PLC family.

The TSXP57203M may be suitable as a functional replacement in certain existing Modicon Premium installations, but it is not physically identical to the TSXP57202M. Verify rack space, hardware compatibility, application requirements, and the complete system configuration before substitution.

The BMEP582020 belongs to the Modicon M580 family. Moving from Modicon Premium to M580 is a platform migration, not a simple CPU exchange. It may require application conversion, I/O compatibility assessment, communication changes, hardware replacement, and commissioning.

Before choosing an alternative, document the existing PLC architecture and confirm the recommended replacement path for the specific installation.

9. Key Advantages

Centralized PLC Control

The TSXP57202M provides the processing functions required to execute application logic and coordinate control operations in a compatible Modicon Premium system.

Support for Complex I/O Configurations

The processor supports large system-level discrete and analog I/O configurations when used with compatible modules. This makes accurate rack planning and I/O selection important parts of the overall design.

Integration with Established Automation Systems

For facilities already using Modicon Premium equipment, retaining a compatible processor can help preserve the existing control architecture and reduce the need for immediate system redesign.

Flexible Application Development

The associated programming environment supports the development and maintenance of industrial control applications. Actual functionality depends on the program, hardware configuration, and engineering software.

Useful for Spare-Parts Management

A clearly identified model number helps maintenance teams specify the required replacement and reduce the risk of ordering a processor from the wrong product family.

Support for Legacy Equipment Maintenance

Sourcing a suitable TSXP57202M unit can help support older production equipment while the facility evaluates longer-term modernization options.

10. Technical FAQs

Q1: What is the Schneider TSXP57202M?

The TSXP57202M is a Schneider Electric processor module for the Modicon Premium PLC platform. It executes user programs and coordinates control operations, I/O processing, and supported communication functions.

Q2: Which programming software is associated with the TSXP57202M?

The processor is associated with PL7 Pro. Confirm the software version and project compatibility before programming, diagnosing, or replacing a processor in an existing installation.

Q3: What are the dimensions and weight of the TSXP57202M?

The supplied product information lists dimensions of 160 × 150 × 40 mm and a weight of 0.5 kg. Verify these values against the actual unit and its packaging requirements before arranging installation or transport.

Q4: Is the TSXP57202M discontinued?

Yes. Schneider Electric lists the TSXP57202M as a discontinued product. Its lifecycle status should be considered when planning procurement, spare-parts availability, and long-term maintenance.

Q5: Can the TSXP57203M replace the TSXP57202M?

Schneider Electric identifies the TSXP57203M as a functional replacement candidate. However, the TSXP57203M is wider and uses two slots, whereas the TSXP57202M uses one slot. Check the rack layout and application compatibility before replacement.

Q6: Can the TSXP57202M be replaced by a Modicon M580 processor?

A Modicon M580 processor such as the BMEP582020 is a newer-platform replacement candidate. It is not a direct plug-in replacement for a Modicon Premium CPU. A migration assessment is necessary.

Q7: What should be checked before installing a replacement processor?

Confirm the exact part number, rack model, available slots, power requirements, installed I/O modules, application backup, programming software, and communication configuration. These checks help reduce the risk of incompatibility.

Q8: Can a used or refurbished TSXP57202M be used for maintenance?

A used or refurbished unit may be considered for a legacy system, but its condition and compatibility should be verified. Request product identification, testing details, warranty information, and confirmation of the supplied condition before purchasing.

Q9: What information should be included in a quotation request?

Provide the full model number TSXP57202M, required quantity, preferred condition, delivery destination, and any requirements for testing or warranty. If the module is intended to replace an existing CPU, include the rack model and relevant configuration details.

11. Procurement and Replacement Considerations

Because the TSXP57202M is discontinued, procurement should prioritize exact identification and application compatibility.

Confirm the full part number. Check the product label and ensure that the supplied unit is TSXP57202M rather than a similar Modicon Premium processor.

Verify product condition. New old stock, used, and refurbished products may have different service histories and warranty arrangements. Confirm the condition before placing an order.

Request testing information. For critical applications, ask whether the processor has been inspected and functionally tested. Confirm which functions were tested and what warranty coverage is offered.

Preserve application files. Maintain a verified program backup and the engineering records required to restore the control system.

Check physical compatibility. Confirm the rack arrangement and available slot space, particularly when considering a different processor model such as the TSXP57203M.

Plan for lifecycle changes. Since the original processor is discontinued, consider whether maintaining legacy hardware remains appropriate for the expected service life of the equipment.

Assess modernization options. If the installation is approaching the end of its maintenance lifecycle, evaluate migration to a newer PLC platform as a separate engineering project.

12. Conclusion

The Schneider Electric TSXP57202M Processor Module is a Modicon Premium PLC CPU designed for industrial automation systems requiring centralized program execution, I/O coordination, and control of connected equipment. It remains relevant to maintenance and spare-parts procurement for facilities operating compatible legacy PLC installations.

When sourcing this discontinued module, confirm the complete model number, physical specifications, product condition, programming environment, and existing rack configuration. A functional replacement such as the TSXP57203M may be worth evaluating, while a move to the Modicon M580 platform requires a broader compatibility and migration assessment.

Careful part identification and engineering verification help reduce procurement errors, support equipment recovery, and maintain the reliability of established industrial control systems.
