1. Product Overview

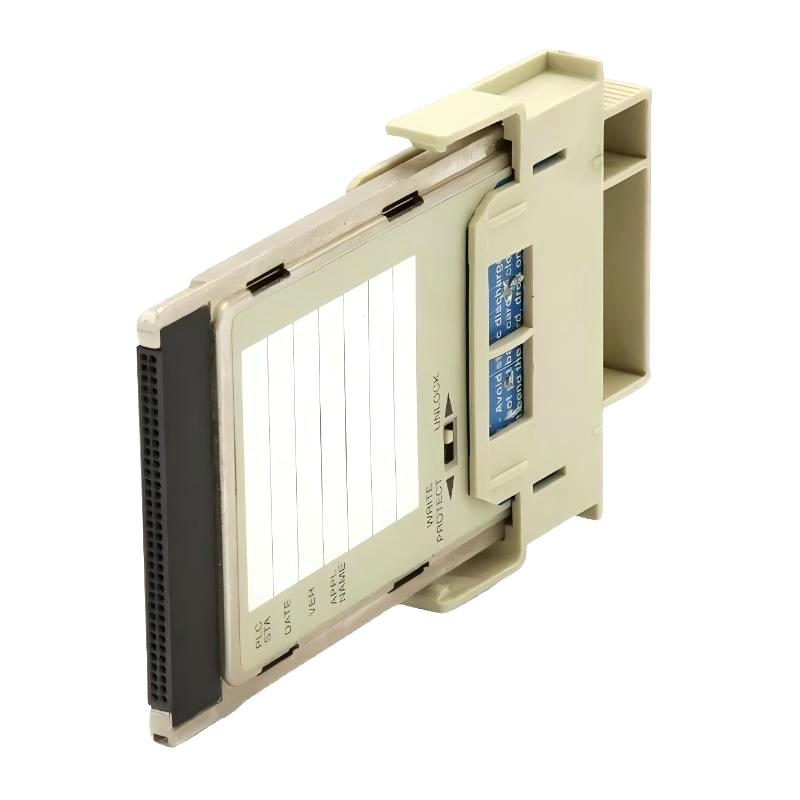

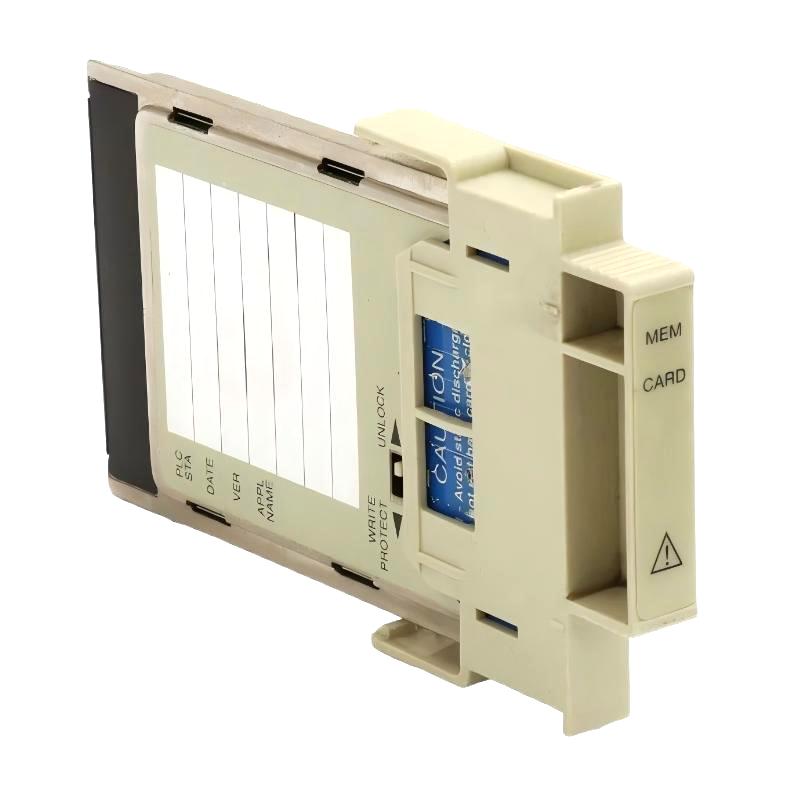

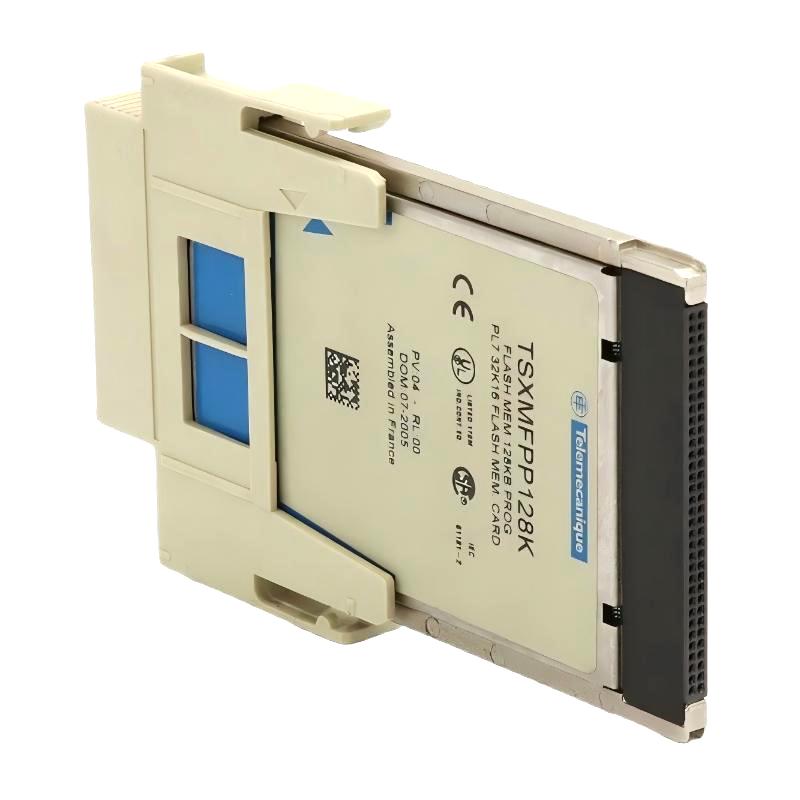

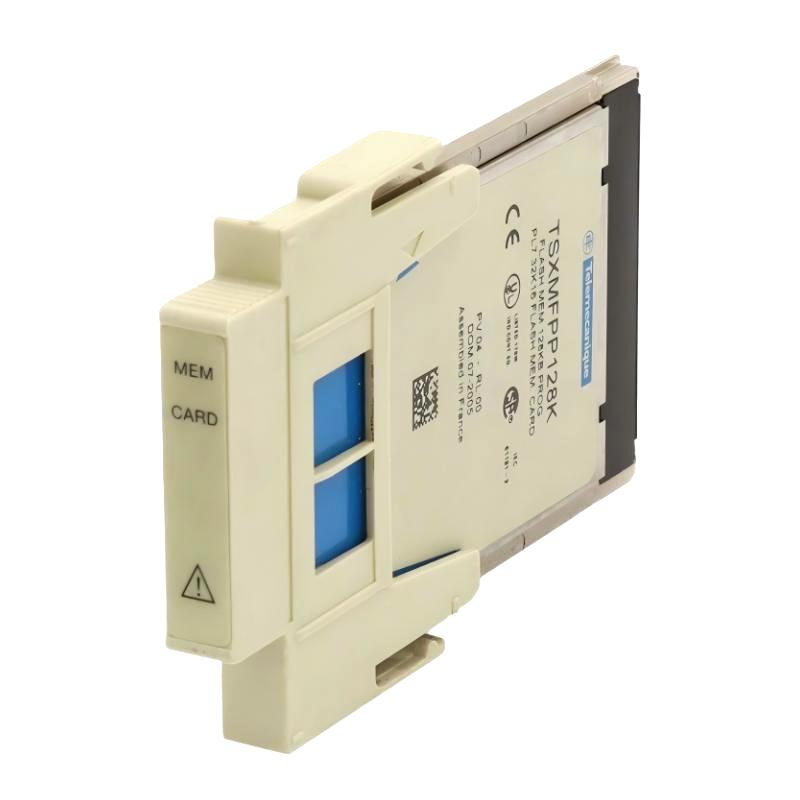

The Schneider TSXMFPP128K Flash EPROM Application Memory Expansion is identified in the supplied product information as an application memory component for industrial automation equipment. Memory components are important in programmable control systems because they provide storage for application programs and other information required by compatible hardware.

In industrial environments, dedicated memory expansions can support controller configuration, application management, and maintenance of established automation installations. For legacy control systems, selecting the correct memory component is particularly important because compatibility may depend on the controller family, memory architecture, and programming environment.

The TSXMFPP128K model designation should be verified against the original product label and the relevant technical documentation before purchase or installation. Its precise memory capacity, compatible controller series, and supported programming functions should not be inferred from the model number alone.

2. Technical Specifications

Specification note: The dimensions and weight are based on the supplied product information. Confirm whether the dimensions refer to the component itself or its packaging. The exact memory specifications and supported equipment should also be verified before ordering.

3. Function and Working Principle

Application memory provides storage for information used by compatible automation equipment. Depending on the controller design, this may include application programs, configuration information, or other system-specific data.

Flash EPROM is a form of non-volatile memory that retains stored information without continuous power. In industrial control systems, dedicated memory components must operate within the hardware and software environment supported by the host equipment.

A general application-memory workflow may include the following steps:

1. Program preparation: Application information is developed or maintained using compatible engineering software.
2. Data programming: Supported information is written to the memory component using the approved method.
3. Data retention: The memory retains the stored information within its specified operating conditions.
4. Controller access: Compatible equipment accesses the stored information according to its design.
5. System verification: The application and controller configuration are checked after programming or replacement.

These steps describe general memory operation. The exact functions and programming procedures supported by the TSXMFPP128K must be confirmed from its documentation.

4. Role in Industrial Automation Systems

Application memory can be a critical part of an automation system’s hardware configuration. A suitable memory expansion helps meet the storage requirements of compatible equipment and supports maintenance of existing installations.

4.1 Application Program Storage

Programmable controllers use application programs to coordinate machine operations, process input signals, and control outputs. Where supported, dedicated application memory can store the program required by the controller.

4.2 Memory Expansion

Some automation platforms support additional memory to accommodate application requirements. The suitability of the TSXMFPP128K for a particular expansion task must be verified against the controller’s supported memory options.

4.3 Legacy System Maintenance

Older industrial control systems may depend on dedicated memory components that cannot be replaced with standard consumer storage devices. Correct part identification helps preserve the original hardware configuration.

4.4 Application Management

Memory components may support application programming, maintenance, or restoration activities. These operations should follow the procedures approved for the specific controller and memory type.

The precise role of the TSXMFPP128K in a Schneider Electric installation should be confirmed before assigning it to a particular controller or application.

5. Industrial Applications

Manufacturing and Machine Automation

Manufacturing equipment relies on programmable controllers to coordinate production sequences, monitor sensors, and manage machine operation. Compatible application memory can support the storage requirements of these systems.

Process Control

Industrial process installations often use established control platforms for extended periods. Maintaining the correct memory component can help support servicing and application management.

Packaging and Material Handling

Automated packaging and material-handling equipment may use dedicated controller memory to retain supported application information. The selected memory component must match the controller’s requirements.

Industrial Equipment Repair

Maintenance providers and equipment refurbishment teams may need original memory components when servicing legacy automation systems. Verifying the complete part number helps reduce procurement errors and installation delays.

These are general applications of industrial application memory and do not establish specific controller compatibility for the TSXMFPP128K.

6. Installation and System Integration

Before installing the Schneider TSXMFPP128K, confirm that the component is intended for the target equipment.

Recommended installation and integration steps include:

1. Verify the part number: Check the complete TSXMFPP128K designation against the original component and equipment documentation.
2. Identify the host controller: Confirm the exact controller model and supported memory options.
3. Check technical compatibility: Review memory capacity, interface, firmware requirements, and programming compatibility.
4. Back up application data: Create and verify an approved backup before changing the memory configuration whenever possible.
5. Inspect the component: Check the housing and contacts for visible damage or contamination.
6. Follow approved procedures: Observe the equipment manufacturer’s instructions for power isolation, insertion, removal, and programming.
7. Validate operation: Confirm that the controller recognizes the memory component and that the application functions as expected.

Do not assume that installing a memory expansion automatically transfers an application or increases usable memory. The supported behavior depends on the controller architecture and configuration.

7. Common Problems and Troubleshooting

These troubleshooting recommendations are general. Specific diagnostic indicators and corrective procedures for the TSXMFPP128K depend on the verified equipment configuration.

8. Preventive Maintenance

Proper handling and application-data management help maintain the reliability of industrial memory components.

Recommended practices include:

• Store spare components in a clean, dry, antistatic environment.
• Protect electrical contacts from contamination and electrostatic discharge.
• Avoid physical shock and environmental conditions outside the specified limits.
• Maintain verified backups of important application programs and configuration data.
• Record the model number and the controller associated with each memory component.
• Follow approved procedures when programming, installing, or removing the component.
• Investigate recurring memory-related faults instead of repeatedly resetting the controller.
• Replace defective components only with verified compatible parts.

Maintenance intervals and replacement criteria should follow the relevant equipment documentation.

9. Compatibility and Replacement Considerations

When purchasing a replacement Schneider TSXMFPP128K Flash EPROM Application Memory Expansion, verify the technical requirements of the target automation system.

Important checks include:

• Complete model number and any suffix.
• Compatible controller series and hardware revision.
• Memory capacity and technology.
• Physical and electrical interface.
• Firmware and software compatibility.
• Supported application format and programming procedure.
• Installation and configuration requirements.
• Product condition and availability of a verified application backup.

A memory component with a similar appearance or storage technology may not be a suitable replacement. Compatibility depends on the controller’s supported hardware, memory architecture, and software environment.

For legacy automation installations, checking the original component and controller documentation is particularly important before ordering.

10. Key Benefits of a Compatible Application Memory Expansion

When confirmed as suitable for the target equipment, an application memory expansion can offer several practical benefits:

• Application storage: Supports the storage of programs and other information required by compatible equipment.
• System maintenance: Helps technicians maintain or replace dedicated memory components.
• Legacy equipment support: Can help preserve established automation installations.
• Configuration continuity: Supports application-data retention when used as intended.
• Reduced procurement risk: Accurate model verification lowers the chance of ordering incompatible components.

Actual benefits depend on the confirmed functions of the TSXMFPP128K and the requirements of the host controller.

11. Frequently Asked Questions

Q1: What is the Schneider TSXMFPP128K?

The supplied product description identifies the Schneider TSXMFPP128K as a Flash EPROM Application Memory Expansion. Its precise function and compatible equipment should be confirmed from the original product documentation.

Q2: What are the dimensions and weight of the TSXMFPP128K?

The supplied dimensions are 135 × 95 × 30 mm, and the stated weight is 0.044 kg.

Q3: What is the memory capacity of the TSXMFPP128K?

The exact memory capacity has not been confirmed here. Check the product label or technical documentation before selecting it for a specific application.

Q4: Which Schneider Electric controllers support this memory expansion?

The compatible controller series has not been established. Verify the exact controller model and its supported memory options before ordering.

Q5: Does installing the memory expansion automatically load an application?

Not necessarily. Depending on the controller architecture, application data may need to be programmed or transferred using an approved engineering procedure.

Q6: Can the TSXMFPP128K replace another Flash EPROM card?

Not automatically. The replacement must meet the controller’s hardware, memory, software, and application-compatibility requirements.

Q7: What should buyers verify before purchasing?

Confirm the complete model number, memory specifications, compatible controller, interface, dimensions, product condition, and required programming procedure. If the component will support an existing application, ensure that a verified backup is available.

12. Conclusion

The Schneider TSXMFPP128K Flash EPROM Application Memory Expansion is identified in the supplied product information as an industrial automation memory component. Application memory can support program storage and configuration management in compatible control systems, but the exact functions of this model should be verified before use.

For reliable procurement and system integration, confirm the component’s technical specifications, supported controller, memory capacity, and programming requirements. Accurate identification and proper application-data management help reduce compatibility risks and support the continued operation of industrial automation equipment.
