Product Overview

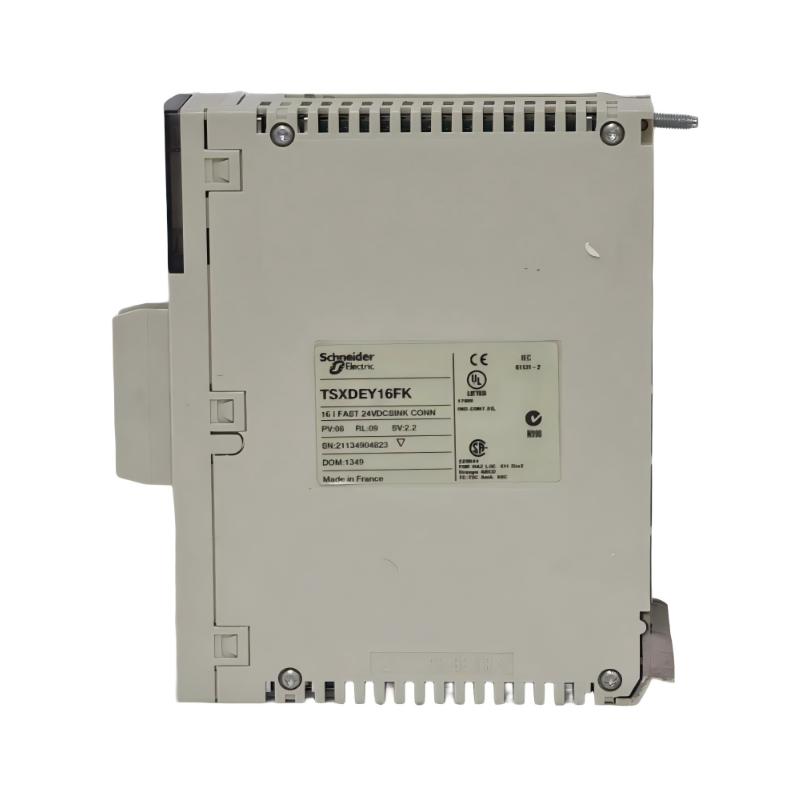

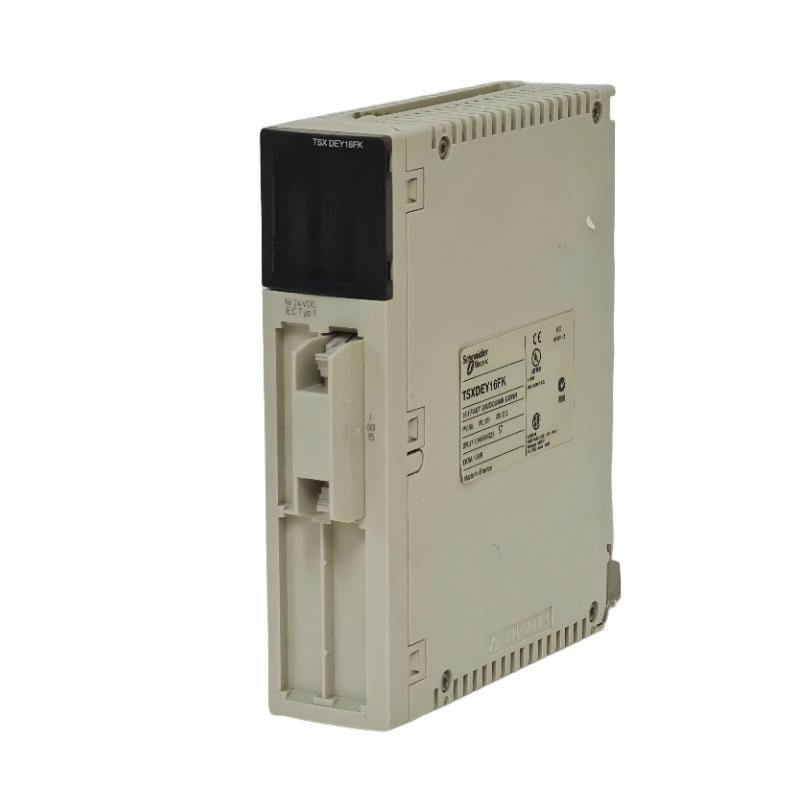

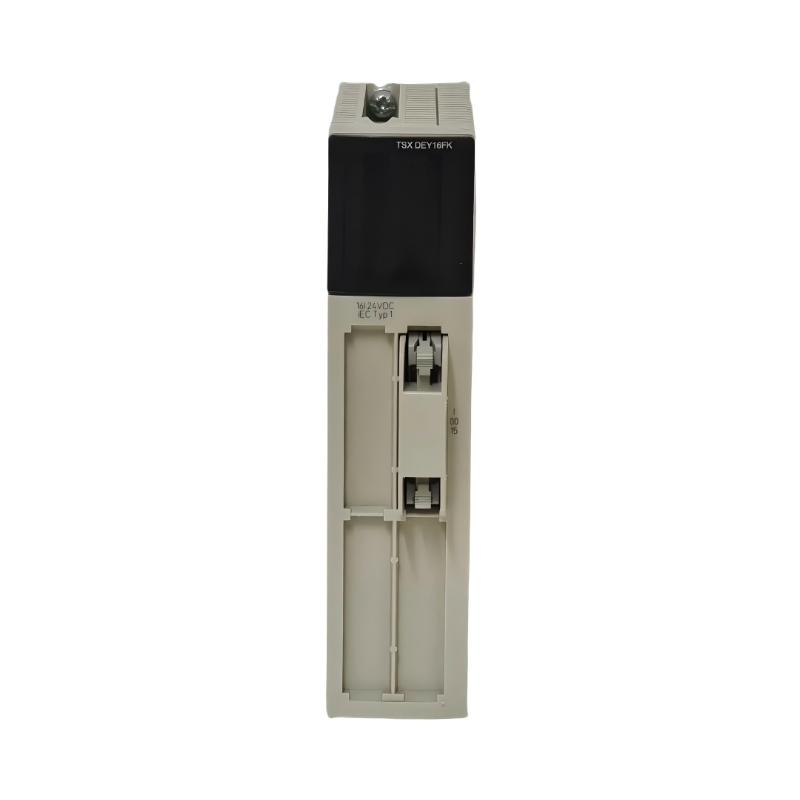

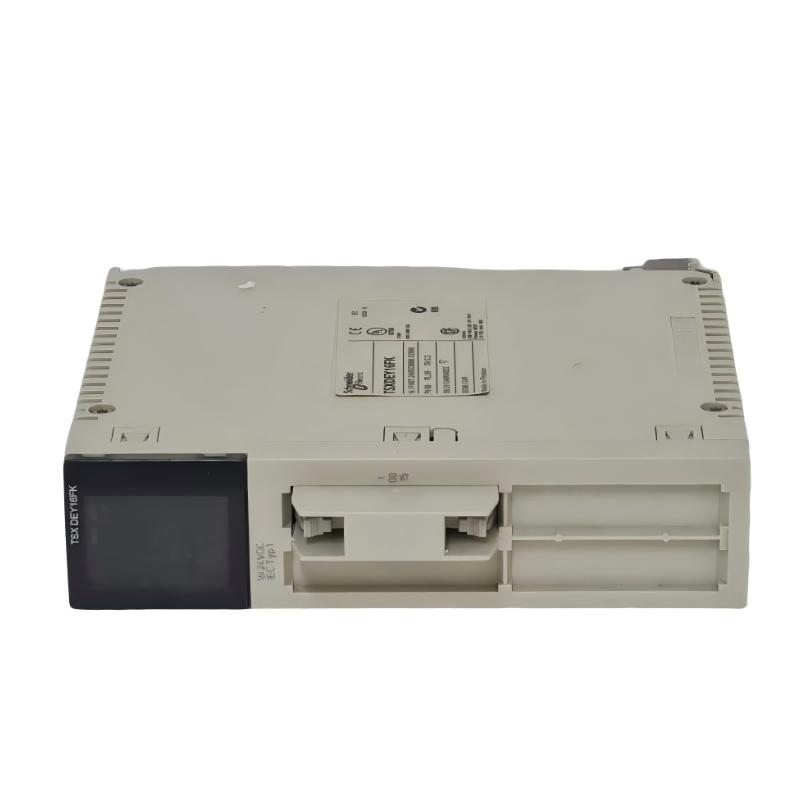

The Schneider TSXDEY16FK Modicon Premium Discrete Input Module acquires 24 V DC signals from field sensors and switching devices and transfers their states to a Modicon Premium PLC. Its 16 isolated fast inputs make it suitable for automation tasks where the controller must respond to changes in sensor status, machine interlocks or position-related signals without relying solely on standard cyclic input processing.

The module uses positive logic and is compatible with supported 2-wire and 3-wire sensor arrangements. Its HE-10 connector allows field signals to be connected through a suitable pre-wired cable or interface assembly, helping organize wiring between the control cabinet and distributed machine devices.

A key capability is its support for event-triggered processing. When an input transition meets the configured conditions, it can initiate an event task in the PLC application. This is useful when certain signals require prompt handling, such as detecting a machine position, monitoring a fast-moving sequence or responding to a specific sensor transition. Actual response behavior depends on input filtering, PLC configuration and the application program.

Technical Specifications

Product Features

• 16 isolated input channels: Acquires multiple field signals through one Modicon Premium input module.
• 24 V DC positive logic: Supports compatible sensors and switching devices using the specified input logic.
• Fast input response: Offers a specified response-time range of 0.1–7.5 ms, depending on configuration and conditions.
• Event-triggered processing: Supports input events that can activate configured PLC event tasks.
• HE-10 connection: Uses a multi-channel connector suited to compatible pre-wired connection systems.
• Sensor compatibility: Supports specified 2-wire and 3-wire sensor arrangements when their electrical characteristics meet the input requirements.
• Online input masking: Allows supported inputs to be masked or unmasked during online operation.
• Channel isolation: Isolated inputs help separate field signal circuits according to the module’s electrical design.
• PLC integration: Supplies discrete signal states for the Modicon Premium control program.
• Cabinet wiring organization: Supports grouped sensor connections through a compatible cable and interface arrangement.

Working Principle

The TSXDEY16FK monitors the electrical state of each connected input channel. When a field sensor or switching device changes state, the module evaluates the signal against its electrical input thresholds and makes the resulting state available to the PLC system.

The module’s specified response time ranges from 0.1 to 7.5 ms. The selected input filtering and application configuration affect how quickly a signal transition is recognized. For signals configured to trigger event processing, a qualifying input transition can initiate the corresponding PLC event task, allowing the application to handle selected events separately from its ordinary cyclic logic.

Input wiring must match the module’s positive-logic arrangement and electrical limits. Sensors should provide valid logic levels, and their residual voltage and leakage current must remain within compatible limits. Incorrect sensor selection or unsuitable wiring can cause missed transitions or false input states.

During commissioning, each channel should be tested against its actual field device. Input LEDs and PLC status monitoring can help determine whether a problem originates in the sensor, cable, connector, module configuration or application logic.

Role in a Modicon Premium Control Architecture

The TSXDEY16FK acts as the discrete field-signal acquisition layer in a Modicon Premium PLC system. It collects sensor and switching-device states, makes those states available to the controller and supports event-based processing for selected fast signals.

Industrial Applications

Installation and Maintenance

1. Verify the module reference: Confirm that the installed module is TSXDEY16FK and that the Modicon Premium rack and CPU configuration support it.
2. Check the field voltage: Ensure connected sensors provide compatible 24 V DC positive-logic signals within the specified electrical range.
3. Inspect the HE-10 connector: Check connector alignment, contact condition and secure mating before applying power.
4. Confirm sensor compatibility: Verify the sensor’s output type, residual voltage, leakage current and wiring arrangement against the module’s input requirements.
5. Check the 24 V DC supply: Confirm that the field supply remains within the required range under the combined sensor load.
6. Inspect cable routing: Keep signal cables properly secured and separated from sources of electrical interference according to the cabinet wiring design.
7. Verify channel assignments: Match each field device to the correct module channel and PLC address in the electrical drawings and application program.
8. Test input response: Operate each sensor or switch and confirm that the module and PLC indicate the expected state.
9. Review event configuration: Confirm that event-triggered inputs, event tasks and related application logic are configured for the intended signals.
10. Check input filtering: Ensure the selected response and filtering settings suit the signal characteristics and machine operating speed.
11. Investigate intermittent signals: Check sensor alignment, connector contacts, cable continuity, supply stability and electrical noise before replacing the module.
12. Document the installation: Record channel assignments, sensor types, wiring references, PLC configuration and commissioning test results.

Compatible System Components

Recommended Related Models

Key Advantages

• Acquires 16 isolated 24 V DC discrete input signals.
• Supports fast input response and configured event-triggered processing.
• Uses an HE-10 connector for grouped field-signal wiring.
• Supports compatible 2-wire and 3-wire sensor arrangements.
• Provides online input masking functions for supported configurations.
• Integrates with compatible Modicon Premium PLC applications.

Technical FAQs

How does the TSXDEY16FK handle fast input events differently from ordinary PLC scanning?

The module supports event-triggered processing for configured inputs. When a qualifying transition occurs, the PLC can execute the associated event task rather than waiting for the signal to be handled only through ordinary cyclic logic. The actual behavior depends on the CPU, program configuration and input settings.

What electrical characteristics should be checked when connecting a 3-wire proximity sensor?

Verify the sensor output type, positive-logic compatibility, operating voltage, output current and signal levels in both ON and OFF states. The module requires valid input levels, so sensor leakage current and residual voltage should also be considered when troubleshooting false or missing transitions.

Why might an input LED change state while the application does not respond as expected?

The physical input may be recognized while the PLC address mapping, input masking, event configuration or application logic prevents the expected action. Check the channel assignment and PLC status first, then review the associated logic and event-task configuration.

When should a TSXDEY16FK be replaced with a different Modicon Premium input module?

Choose another input module when the application requires a different input voltage, logic type, channel count, connection method or response behavior. Before changing models, verify rack and CPU compatibility as well as the field wiring and program changes required by the replacement.
