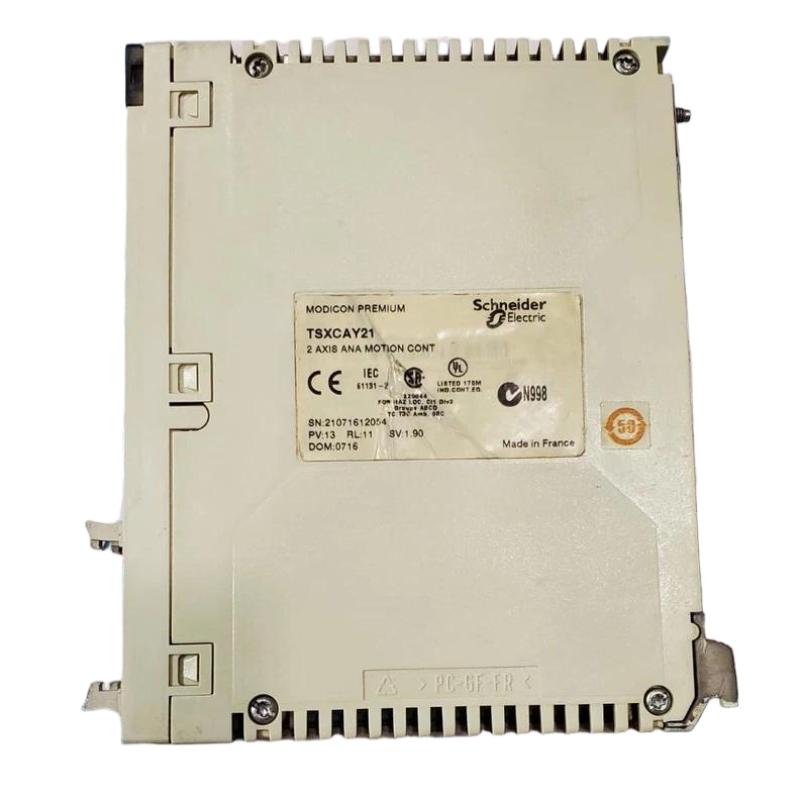

1. Product Overview

The Schneider Electric TSXCAY21 Servo Motion Control Module is an industrial motion-control component designed for the Modicon Premium automation platform. It provides specialized motion-control functions for servo motor applications, allowing a compatible PLC system to coordinate positioning, speed references, encoder feedback, and servo-drive control signals.

Unlike a standard digital or analog I/O module, the TSXCAY21 is designed to manage motion-related operations. It supports up to two independent axes and provides the interfaces required to coordinate servo drives and position feedback devices. This makes it suitable for established automation systems that require controlled movement, repeatable positioning, and synchronized machine operations.

The module supports several operating modes, including automatic, manual, direct-drive, OFF, and follower operation. Depending on the application configuration, it can support motion sequences, positioning tasks, and relationships between axes. Its motion profiles include trapezoidal and parabolic profiles, which can be selected according to the requirements of the machine and the configured movement.

The TSXCAY21 also incorporates monitoring functions for motion-system conditions. These include checks associated with encoder feedback, servo-drive presence, emergency-stop signals, sensor power, parameter validity, and execution of commanded movement. Such diagnostic functions help the PLC application identify abnormal operating conditions and support maintenance procedures.

As a member of the Modicon Premium platform, the TSXCAY21 is intended for compatible legacy control architectures. It should not be treated as a universal servo controller or as a direct replacement for modern motion-control modules without a compatibility assessment.

For maintenance engineers, system integrators, and industrial automation equipment suppliers, the TSXCAY21 remains relevant when supporting existing machinery built around Modicon Premium PLC systems. Before purchasing a replacement, users should confirm the complete model reference, connector arrangement, firmware and configuration requirements, and the characteristics of the connected servo drives and encoders.

2. Technical Specifications

Specification note: The functional specifications above are based on the documented TSXCAY21 product reference. The dimensions supplied for this listing should be checked against the actual module drawing because mechanical dimensions can differ from package dimensions or measurements taken with connectors. Confirm the exact connector types and installation arrangement before ordering.

3. Function and Working Principle

The TSXCAY21 coordinates motion-related signals between a compatible PLC system, servo drives, and encoder feedback devices. Its function is to provide the interfaces and processing support required for controlled movement along one or two axes.

A typical servo motion system includes a controller, motion-control hardware, a servo drive, a servo motor, a feedback encoder, and mechanical transmission components. Each component performs a different task within the overall movement-control process.

3.1 Motion Command Processing

The PLC application defines the required movement, operating mode, and positioning parameters. The TSXCAY21 works within the configured Modicon Premium system to support motion-control operations and coordinate the required signals.

Depending on the application, the system may command a target position, establish a movement profile, or coordinate an axis with another axis. The controller configuration and application program determine the actual machine sequence.

Motion commands must be configured with suitable position limits, movement distances, acceleration parameters, and operating conditions. Incorrect configuration can cause positioning errors or unexpected machine behavior.

3.2 Servo Speed Reference

The module provides analog speed-reference functionality for the servo-control arrangement. This reference is used by the compatible drive according to the drive’s input configuration.

The servo drive interprets the reference and controls the motor accordingly. The drive and motor, rather than the analog reference output alone, determine the resulting mechanical movement.

Correct scaling, reference polarity, electrical connection, and drive parameter configuration are essential for predictable operation.

3.3 Encoder Feedback

Encoder feedback is important for monitoring position and movement. The TSXCAY21 supports specified incremental and absolute encoder interfaces.

Incremental encoders generate signals associated with movement, allowing the control system to track changes in position. Absolute encoders provide a position value through their supported communication or parallel-output arrangement.

The module uses the configured feedback interface to support motion monitoring. The encoder type, electrical interface, resolution, signal frequency, and connection arrangement must match the selected hardware configuration.

Incorrect encoder wiring or incompatible feedback settings can result in inaccurate positioning, loss of feedback, or motion faults.

3.4 Axis Control and Motion Profiles

The TSXCAY21 supports motion profiles such as trapezoidal and parabolic profiles. These describe how the commanded movement changes over time, including acceleration, travel, and deceleration behavior.

A trapezoidal profile generally consists of acceleration, constant-speed travel, and deceleration phases. A parabolic profile uses a different acceleration pattern to achieve the desired movement characteristics.

The appropriate profile depends on the machine’s mechanical design, load, cycle time, and positioning requirements. Profile selection should be validated under the actual operating conditions.

3.5 Servo-Drive Monitoring

The module supports checks related to servo-drive presence, feedback signals, command consistency, sensor power, and movement execution.

These checks help the control system identify conditions that may prevent normal motion. The PLC application can use available status information to generate alarms, inhibit subsequent operations, or initiate a defined recovery procedure.

The TSXCAY21 does not replace a complete machine safety system. Emergency-stop and other safety functions must be implemented through an appropriate safety architecture.

4. Role in Industrial Control Systems

Motion control is essential in machines that require repeatable positioning, controlled speed, or coordinated movement. The TSXCAY21 provides dedicated motion interfaces within compatible Modicon Premium PLC systems, helping bridge the control program and servo equipment.

4.1 Positioning Control

Positioning applications require a machine axis to move to a specified location. The motion-control system coordinates commands and feedback to support the requested movement.

Examples include moving a tooling head to a defined position, positioning a material-handling mechanism, or moving a component through a series of processing stations.

The achieved accuracy depends on the complete system, including the encoder, drive, motor, mechanical transmission, configuration, and operating conditions.

4.2 Multi-Axis Machine Coordination

The TSXCAY21 supports up to two axes. This can be useful for equipment that requires two independently controlled movements or a follower relationship between axes.

For example, one axis may control a feed mechanism while another controls a positioning slide. The exact relationship between axes is determined by the machine design and configured motion program.

Axis coordination should be tested for travel limits, movement timing, mechanical interference, and recovery behavior following faults.

4.3 Servo Speed and Movement Control

Servo applications often require controlled acceleration, deceleration, and speed-reference generation. The TSXCAY21 supports the motion-control functions required for its compatible servo arrangement.

The control system can use these capabilities to support repeatable production cycles and predictable machine movement. Actual dynamic performance depends on the servo drive, motor, load, tuning parameters, and mechanical construction.

4.4 Feedback and Fault Monitoring

Motion systems depend on reliable feedback and valid control signals. The module supports checks for several operating conditions, helping maintenance teams identify faults associated with feedback, servo-drive availability, and command execution.

A well-designed application should define how the machine responds to each relevant fault. Depending on the risk assessment, the response may include stopping movement, disabling a sequence, displaying an alarm, or requiring operator intervention.

4.5 Integration with Existing PLC Logic

The TSXCAY21 operates within the Modicon Premium automation platform. Its motion-control functions can be coordinated with other PLC logic for material handling, machine sequencing, process interlocks, and operator commands.

For legacy systems, preserving the original configuration and documenting the existing signal connections can be especially important during troubleshooting or module replacement.

5. Industrial Applications

5.1 Packaging Machinery

Packaging equipment may require controlled feeding, indexing, cutting, sealing, or product positioning. Servo motion control can help achieve repeatable movement and consistent machine cycles.

The TSXCAY21 may be suitable for existing compatible systems where its supported axis count and control functions meet the application requirements.

5.2 Material Handling Systems

Material-handling machinery often uses servo-controlled axes to move components between defined locations. Encoder feedback helps the system monitor movement and determine when a positioning task has reached its target.

Examples include automated transfer mechanisms, positioning slides, and specialized handling equipment.

5.3 Industrial Assembly Machines

Assembly equipment may require components to be positioned accurately before fastening, pressing, inspection, or another manufacturing operation. Servo motion control can coordinate the movement of tooling and workpieces.

The required positioning performance depends on the complete mechanical and control system rather than the motion module alone.

5.4 Machine Tools and Special-Purpose Equipment

Certain machine tools and special-purpose machines use servo axes to move tooling, feed materials, or position workpieces. The TSXCAY21 can be considered for legacy machines built around a compatible Modicon Premium architecture.

Before integration, confirm the machine’s required travel range, feedback interface, speed reference, acceleration characteristics, and positioning performance.

5.5 Printing and Converting Machinery

Printing and converting equipment may require controlled web feeding, indexing, cutting, or coordinated movement between mechanisms. A motion-control system can help maintain repeatable operation and coordinate the sequence of machine actions.

The TSXCAY21 should only be used where its supported interfaces and performance characteristics satisfy the equipment’s actual motion requirements.

5.6 Legacy Automation Maintenance

Industrial plants may continue to operate machines whose original control systems are based on Modicon Premium PLCs. In these cases, the TSXCAY21 can be an important maintenance or spare-parts reference.

When replacing an existing module, engineers should record the original hardware reference, wiring arrangement, encoder type, drive parameters, and motion configuration before removing the installed unit.

6. Installation and System Integration

Proper installation and configuration are essential for safe, repeatable motion control. Before installing the TSXCAY21, verify that the PLC rack, processor, servo drive, encoder, and wiring arrangement are compatible with the module.

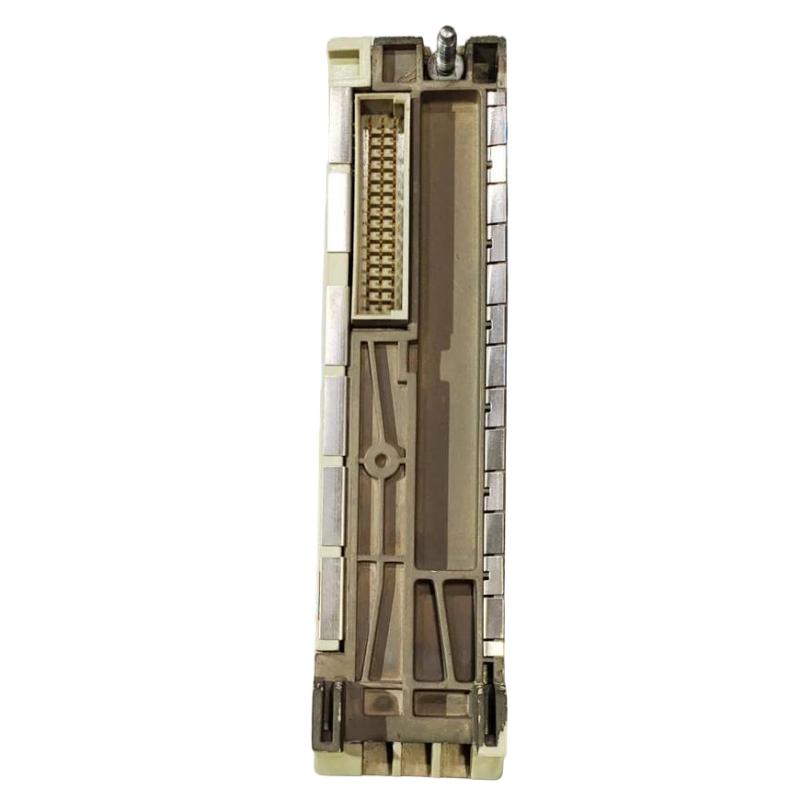

6.1 Mechanical Installation

The module should be installed in the designated compatible Modicon Premium rack or supported system arrangement. The dimensions provided for this listing should be verified against the exact unit and the manufacturer’s mechanical drawing.

Ensure that the installation provides sufficient clearance for connectors, cable routing, maintenance, and ventilation. The cabinet must protect the equipment from unsuitable environmental conditions, mechanical damage, and electrical contamination.

Do not rely on nominal dimensions alone when planning a replacement. Connector orientation, cable bend radius, and the rack’s mechanical layout can affect the required installation space.

6.2 Electrical Connections

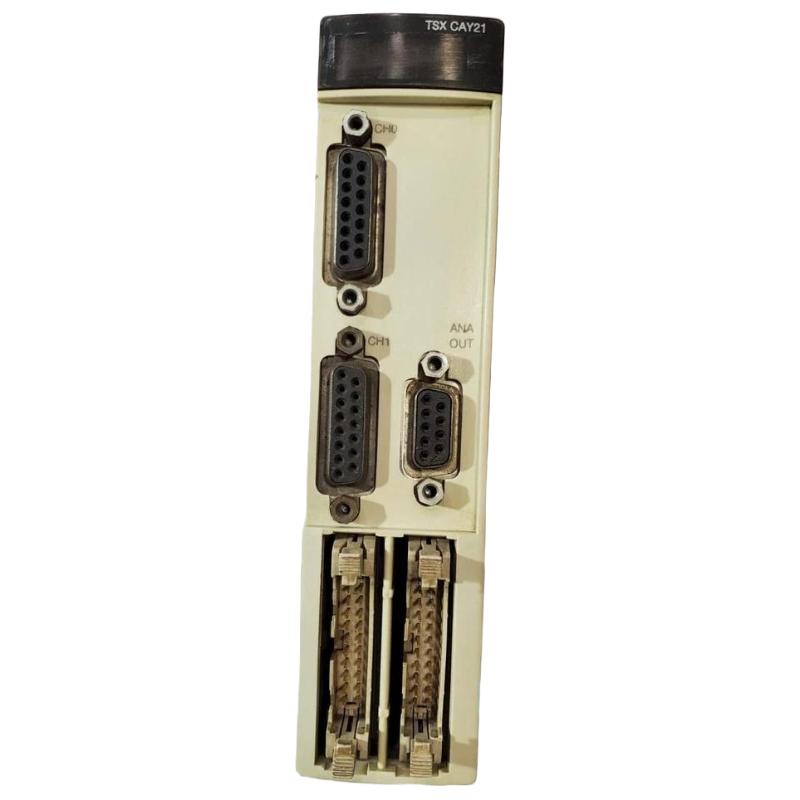

The documented TSXCAY21 uses multiple connection interfaces for motion-related signals, including:

• A connector for auxiliary inputs, reflex output, sensors, and associated supply connections.
• A connector for servo-drive control signals and related input/output power.
• A SUB-D connector for the analog speed reference.
• SUB-D connectors for incremental or absolute encoder interfaces.

The precise wiring depends on the servo drive, encoder, auxiliary sensors, and application. Follow the relevant connection diagrams and verify the pin assignments before energizing the system.

Pay particular attention to signal polarity, encoder power, signal reference, shielding, and the separation of low-level feedback wiring from high-current motor cables.

6.3 Encoder Configuration

Select the encoder interface according to the connected device. The module supports specified incremental encoder signals and absolute encoder arrangements, including SSI and a supported parallel-output configuration.

The encoder’s electrical characteristics and data format must match the module configuration. Check the required supply voltage, signal levels, resolution, frequency, and connection pinout.

After wiring, verify that the feedback value changes in the expected direction when the axis moves. An incorrect direction or unstable feedback should be resolved before enabling automatic motion.

6.4 Servo-Drive Integration

The servo drive must be configured to accept the speed-reference and control signals supplied by the motion-control system.

Verify the drive’s input type, reference scaling, enable and validation signals, fault output, and required operating parameters. The drive and motion-control configuration must agree on the intended operating mode.

Before enabling movement, confirm that the motor is correctly connected, the mechanical load can move safely, and the machine’s travel limits and stopping behavior are appropriate.

6.5 PLC and Motion Configuration

The module must be configured within the supported Modicon Premium programming environment. The application should define axis parameters, motion profiles, feedback settings, reference scaling, operating modes, and required interlocks.

A typical commissioning procedure includes:

1. Confirming the module reference and rack position.
2. Verifying the servo drive and encoder connections.
3. Checking the axis configuration and movement limits.
4. Validating feedback direction and reference scaling.
5. Testing low-speed movement under controlled conditions.
6. Verifying stopping behavior and fault responses.
7. Testing the complete automatic sequence before production operation.

The exact engineering procedure depends on the installed controller, software version, drive, and machine application.

6.6 Maintenance and Troubleshooting

If the axis fails to move correctly, check the module status, drive-ready signal, encoder feedback, speed-reference signal, emergency-stop circuit, power supply, and application parameters.

Unstable movement may be associated with incorrect tuning, mechanical backlash, encoder interference, unsuitable acceleration settings, or an incorrect reference scale.

Record the original configuration before replacing the module. A replacement with a different hardware revision or configuration may require additional engineering verification.

7. Compatible System Components

The TSXCAY21 is part of the Modicon Premium automation platform. The following components describe the main categories of equipment that may form part of a compatible motion-control system.

Compatibility must be verified using the complete hardware references. A servo drive or encoder should not be considered compatible simply because it is intended for motion-control applications.

8. Recommended Alternative Models

Choosing an alternative to the TSXCAY21 requires careful consideration of the existing PLC platform, axis count, encoder interface, servo-drive interface, and application requirements.

The models listed above are comparison candidates, not guaranteed replacements. The TSXCAY21’s official product information indicates that it has not been assigned a direct replacement. Any migration should therefore be assessed against the machine’s functional requirements and the capabilities of the proposed alternative.

A replacement assessment should include axis count, feedback interfaces, speed-reference requirements, motion profiles, control response, available diagnostic information, and compatibility with the PLC application.

9. Key Advantages of the Schneider TSXCAY21

Dual-Axis Motion Control

The module supports up to two independent axes, allowing compatible machines to coordinate multiple movement functions within a single motion-control arrangement.

Support for Incremental and Absolute Feedback

Its supported encoder interfaces provide flexibility for different feedback architectures. Correct selection and configuration are essential to achieving reliable motion measurement.

Multiple Motion Operating Modes

Automatic, manual, direct-drive, OFF, and follower modes support different stages of machine operation, commissioning, and motion coordination.

Configurable Motion Profiles

Trapezoidal and parabolic profiles provide options for controlling acceleration and movement behavior according to the application.

Integrated Motion Diagnostics

The module supports checks associated with servo-drive presence, feedback, parameter validity, and movement execution. These checks can help the PLC application identify abnormal conditions.

Integration with Modicon Premium Systems

For existing Premium-based machines, the TSXCAY21 provides dedicated motion-control functionality without requiring the original application to be redesigned solely to replace a general-purpose I/O module.

Practical Support for Legacy Equipment

The module remains relevant to maintenance teams supporting established machinery. Verified spare parts and accurate configuration records can help reduce downtime while a long-term modernization plan is evaluated.

10. Technical FAQs

Q1: What is the Schneider TSXCAY21 used for?

The TSXCAY21 is a servo motion-control module for compatible Modicon Premium PLC systems. It provides interfaces and functions for controlling up to two axes, including speed-reference output, encoder feedback, and servo-drive control signals.

Q2: How many axes can the TSXCAY21 control?

The module can control up to two independent axes. The actual motion functions depend on the configured axis type, drive, feedback device, and application program.

Q3: Which encoder types are supported?

The module supports specified incremental encoder interfaces, including 5 V RS422 and 10–30 V totem-pole types, as well as supported absolute encoder arrangements, including SSI and a parallel-output interface.

Q4: Which motion profiles are available?

The documented motion profiles include trapezoidal and parabolic profiles. The appropriate profile depends on the machine’s movement requirements, load, acceleration limits, and positioning objectives.

Q5: What operating modes does the module support?

The documented modes include automatic, manual, OFF, direct drive, and follower operation. Their use depends on the configured motion application.

Q6: What is the operating temperature range?

The documented operating temperature range is 0 to 60°C. Storage temperature is specified as -25 to 70°C, with relative humidity of 5–95% without condensation.

Q7: What is the weight of the TSXCAY21?

The documented product weight is approximately 0.48 kg. The dimensions supplied for this listing should be confirmed against the exact module drawing before installation planning.

Q8: Is the TSXCAY21 discontinued?

Schneider Electric lists the TSXCAY21 as discontinued in several regional product records. The exact commercial and service status varies by region. Check the applicable regional product page before planning procurement or repairs.

Q9: Does the TSXCAY21 have a direct replacement?

Schneider Electric’s product information states that the TSXCAY21 has not been assigned a direct replacement. A substitute must be selected through an engineering assessment of the PLC platform, servo drive, encoder, axis requirements, and application software.

Q10: What should be checked if a servo axis does not move?

Check the module status, servo-drive readiness, encoder feedback, speed reference, control signals, power supply, emergency-stop circuit, and application parameters. Test the system under controlled conditions and follow the machine’s safety procedures.

11. Conclusion

The Schneider Electric TSXCAY21 Servo Motion Control Module is a dedicated motion-control component for compatible Modicon Premium PLC systems. With support for up to two axes, specified incremental and absolute encoder interfaces, analog speed-reference functionality, and several operating modes, it is designed for positioning and servo-control applications in industrial machinery.

Its motion profiles and diagnostic checks help integrate movement control with the wider PLC application. However, reliable performance depends on the correct combination of controller, drive, motor, encoder, mechanical system, and application configuration.

For maintenance teams and industrial automation suppliers, the TSXCAY21 is most relevant when supporting existing Modicon Premium installations. Because the product is discontinued in several regions and has no direct replacement assigned by Schneider Electric, exact model verification and compatibility assessment are especially important when sourcing a replacement or planning a system upgrade.
