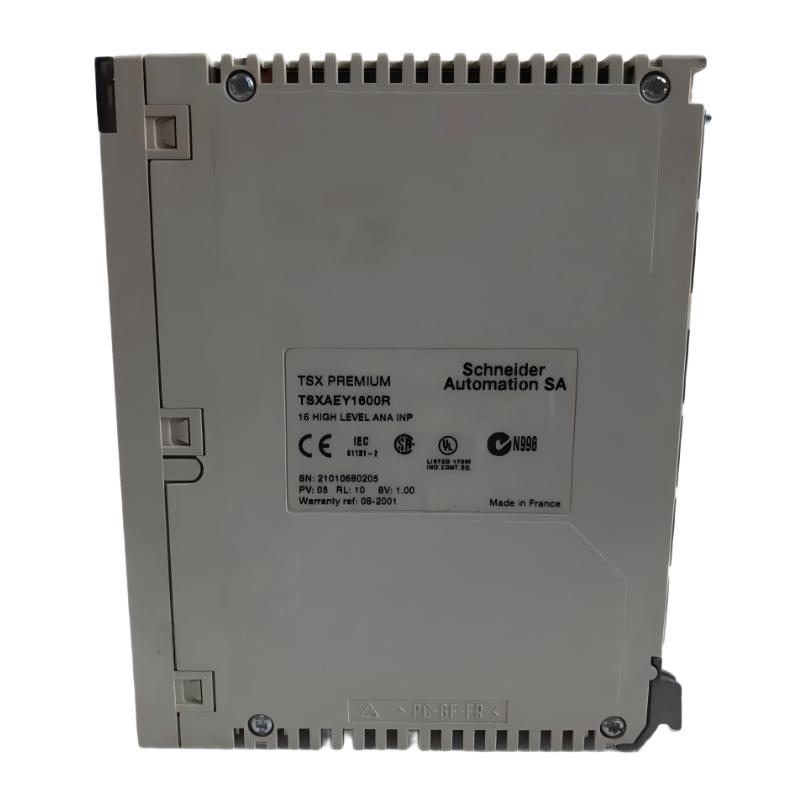

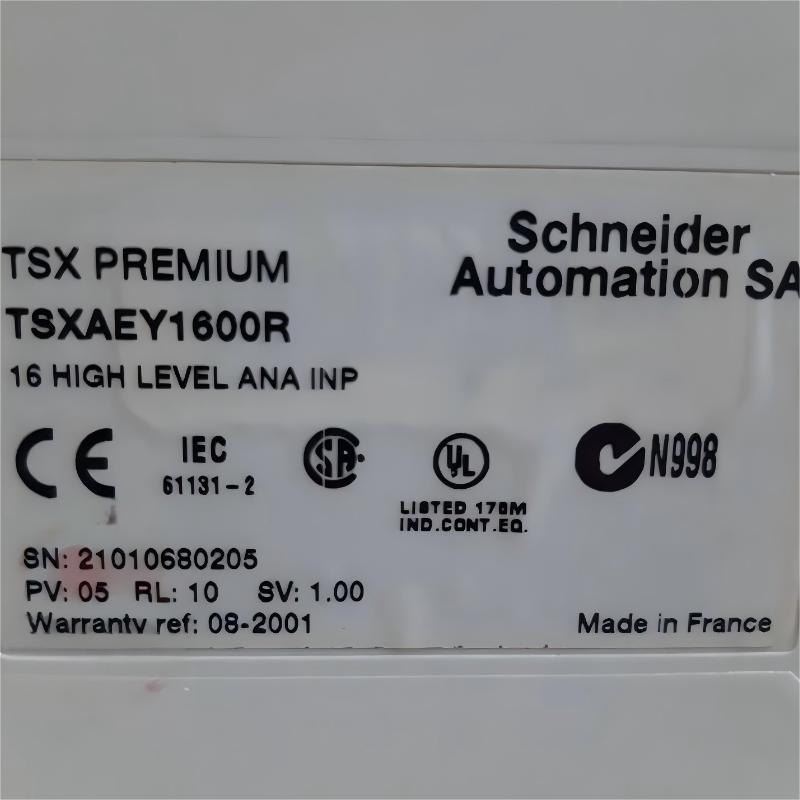

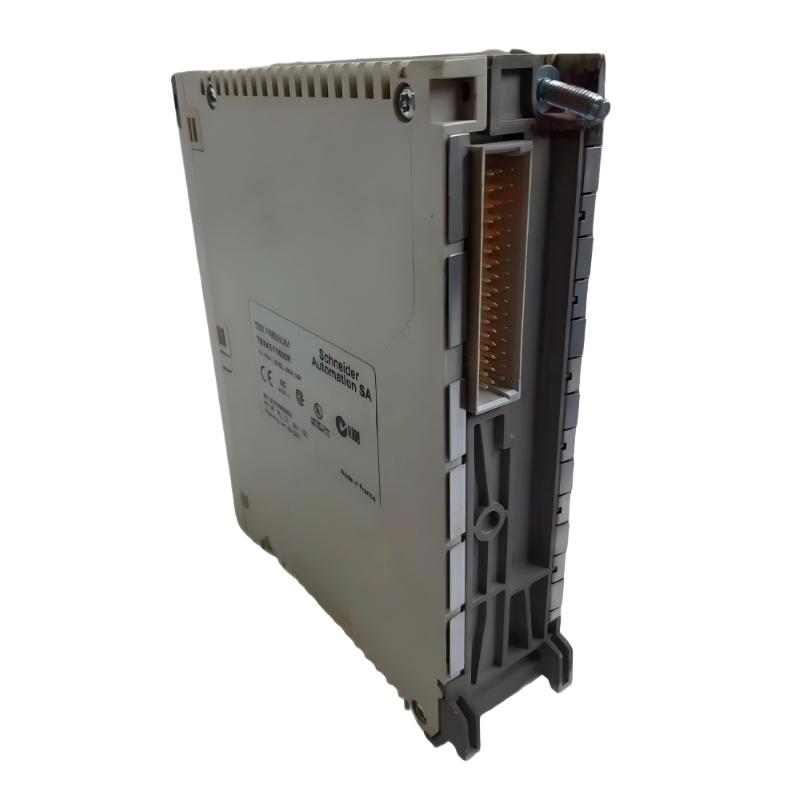

1. Product Overview

The Schneider Electric TSXAEY1600R Analog Input Module is associated with the Modicon Premium programmable logic controller (PLC) platform, which was developed for industrial automation, process monitoring, and machine control applications. Analog input modules play an essential role in PLC systems by receiving continuous electrical signals from field instruments and converting them into digital values that the controller can process.

The TSXAEY1600 product family is designed for high-level analog signal acquisition, supporting voltage and current inputs across multiple channels. This capability allows a compatible control system to monitor variables such as pressure, flow, level, electrical current, and other process conditions represented by standard industrial analog signals.

By integrating analog input functionality into a PLC rack, engineers can collect information from multiple field instruments and use it for monitoring, alarm management, process sequencing, and closed-loop control. The module is intended for applications where reliable acquisition of analog measurements is important to the operation of industrial equipment.

The TSXAEY1600 family provides 16 analog input channels and uses 12-bit analog-to-digital conversion. Its multirange input design supports several standard voltage and current signal ranges, helping simplify integration with different types of industrial transmitters and measuring instruments.

The module is associated with the Modicon Premium automation platform. Consequently, installation planning must take account of the appropriate PLC rack, processor, communication arrangement, power requirements, terminal connections, and configuration software. It should not be assumed to be directly interchangeable with modules from newer Modicon product families.

For maintenance departments and system integrators working with established production lines, the TSXAEY1600 family may be relevant when maintaining existing control equipment or sourcing replacement parts. Before purchasing the exact TSXAEY1600R reference, the complete ordering code and hardware revision should be checked to ensure that the supplied unit matches the original installation.

2. Technical Specifications

Technical note: The electrical specifications above refer to the documented TSXAEY1600 base model. The supplied dimensions and weight follow the product information provided for this listing. The exact suffix, mechanical dimensions, and ordering-code differences for TSXAEY1600R should be confirmed against the nameplate and the applicable hardware documentation before installation or replacement.

3. Function and Working Principle

The principal function of an analog input module is to acquire continuous electrical signals from industrial instruments and convert them into digital values that can be processed by a PLC.

Unlike a discrete input module, which generally recognizes an ON or OFF state, an analog input module measures a range of signal values. This makes it suitable for applications in which a controller must monitor changing process conditions rather than simply detect a switching event.

3.1 Analog Signal Acquisition

Industrial transmitters and measuring instruments commonly produce voltage or current signals corresponding to a physical variable. For example, a pressure transmitter may use a 4–20 mA output to represent a defined pressure range.

The TSXAEY1600 family supports multiple standard voltage and current ranges. Each connected field device must use a signal type and range compatible with the selected input configuration.

When the electrical signal reaches the module, the input circuitry conditions the signal before conversion. Correct wiring and configuration are essential because a mismatch between the transmitter output and the selected input range can produce incorrect readings or unexpected process values.

3.2 Analog-to-Digital Conversion

The module uses a 12-bit analog-to-digital conversion system to represent the measured input as digital data.

The resulting digital value is made available to the PLC system for use in the application program. The controller can then apply scaling, comparisons, filtering, and other calculations required by the process.

Resolution describes the number of discrete digital levels available to represent an analog range. It does not independently determine the complete measurement accuracy. Accuracy also depends on the input range, electrical conditions, transmitter performance, wiring, and environmental temperature.

3.3 Voltage Input Measurement

Voltage inputs are useful when connected instruments provide voltage outputs, such as 0–10 V or ±10 V signals. These signals may represent pressure, position, speed, level, or other measured quantities.

The PLC application converts the acquired digital value into an engineering unit using the configured signal range and scaling relationship. For example, a 0–10 V signal may represent a level from 0 to 100 percent.

The exact relationship depends on the transmitter calibration and the program’s scaling configuration.

3.4 Current Input Measurement

Current signals, particularly 4–20 mA, are widely used in industrial instrumentation because current-loop transmission is suitable for many long-distance field connections and can offer practical resistance to electrical interference.

The TSXAEY1600 family supports 0–20 mA and 4–20 mA input ranges. A compatible transmitter can therefore provide process information to the PLC through the appropriate current input connection.

When using a 4–20 mA transmitter, the application program should account for the lower and upper signal limits. A 4 mA input normally represents the configured measurement minimum, while 20 mA represents the configured maximum, subject to the instrument’s calibration and application settings.

3.5 Data Processing and Monitoring

After analog conversion, the PLC can use the measured values for control decisions and operational monitoring. Common functions include:

• Comparing process values against warning and alarm thresholds.
• Calculating scaled engineering units.
• Monitoring changes in pressure, flow, or level.
• Recording measurements for trend analysis.
• Coordinating pumps, valves, motors, and other equipment.
• Providing measurement data to an HMI or supervisory system.

The analog input module supplies measurement data. The actual control behavior is determined by the PLC program, the connected instruments, and the wider automation architecture.

4. Role in Industrial Control Systems

Analog measurement is fundamental to industrial automation because many physical variables change continuously. A PLC requires reliable input data to understand the process state and determine whether control actions are necessary.

The TSXAEY1600 family provides multiple analog input channels within a Modicon Premium control system, helping integrate field instrumentation with the controller.

4.1 Process Variable Monitoring

The module can collect analog signals from compatible instruments measuring pressure, flow, liquid level, and other process variables. The PLC program can process the values and make them available for operator displays or supervisory monitoring.

Centralized acquisition also allows measurements from different locations to be evaluated within a common control program.

4.2 Closed-Loop Control

In a closed-loop control application, the PLC compares a measured process variable with a desired setpoint. The difference between the two values can be used by the control algorithm to determine the required response.

For example, a pressure transmitter can provide feedback to a PLC controlling a pump or regulating valve. The analog input module acquires the measurement, while the control program and output equipment perform the regulation.

The quality of the complete control loop depends on the transmitter, input configuration, PLC processing, control strategy, and final control element.

4.3 Alarm Management

Analog input values can be compared with configured limits to identify abnormal conditions. If a measured pressure, temperature, flow, or level exceeds a predefined threshold, the PLC may generate an alarm or initiate a programmed response.

Alarm thresholds should reflect the actual process requirements. Where a process requires an independent safety function, the complete protection architecture must be designed and validated separately.

4.4 Integration with Existing Equipment

The Modicon Premium platform is used in established industrial control installations. In such systems, replacing a failed analog input module with a compatible unit can help maintain existing control functionality without requiring a complete PLC redesign.

However, a replacement must match the required hardware reference, input characteristics, connector arrangement, rack compatibility, and configuration requirements. Similar model names alone do not establish interchangeability.

5. Industrial Applications

5.1 Water and Wastewater Treatment

Water treatment systems use analog transmitters to monitor variables such as tank level, line pressure, and flow rate. These measurements help PLC systems coordinate pumps, valves, and treatment equipment.

A 16-channel analog input arrangement can support multiple measurement points within a compatible control installation, subject to the available instrumentation and system configuration.

5.2 Manufacturing and Production Lines

Industrial production lines often require continuous measurement of operating parameters. Analog signals can be used to monitor hydraulic pressure, pneumatic pressure, material level, and other process conditions.

The acquired data can support equipment sequencing, quality monitoring, and operational alarms.

5.3 Chemical and Process Industries

Process facilities may use pressure, flow, and level transmitters throughout their production systems. Analog input modules provide a connection between these instruments and the PLC, enabling centralized monitoring and process coordination.

For installations with demanding environmental or safety requirements, the complete module and system specifications must be evaluated against the intended application.

5.4 Pumping and Fluid Handling Systems

Pump stations and fluid handling equipment commonly use analog signals to measure discharge pressure, flow rate, and storage tank level.

A PLC can use these values to coordinate pump operation, monitor process limits, and generate maintenance alarms. The analog input module contributes measurement data but does not independently control the pump.

5.5 Energy and Utility Systems

Industrial utility systems may monitor fluid flow, pressure, tank levels, and other operating variables to support equipment supervision and resource management.

The TSXAEY1600 family can be considered for existing compatible Modicon Premium installations where its input ranges and measurement characteristics satisfy the application requirements.

5.6 Industrial Machinery Maintenance

For maintenance teams responsible for older PLC installations, analog input modules are important replacement components. A correctly matched module can restore the acquisition of field signals required by established machine logic.

Before replacing a module, technicians should verify the original reference, connector type, signal configuration, wiring, and PLC diagnostics to reduce the risk of introducing a new fault.

6. Installation and System Integration

Correct installation is essential to obtain dependable analog measurements. The module must be compatible with the PLC rack and application, and the field signals must be wired according to the documented terminal assignments.

6.1 Mechanical Installation

The supplied product information lists dimensions of 260 × 180 × 55 mm and a weight of approximately 0.34 kg. These values should be verified against the exact hardware variant before preparing a mounting layout.

The module should be installed in its designated Modicon Premium rack or supported mounting arrangement. Ensure that the cabinet provides suitable environmental protection, mechanical support, ventilation, and access for wiring and maintenance.

The module’s IP20 rating indicates that additional enclosure protection may be necessary when installed in environments containing dust, moisture, or other contaminants.

6.2 Electrical Connections

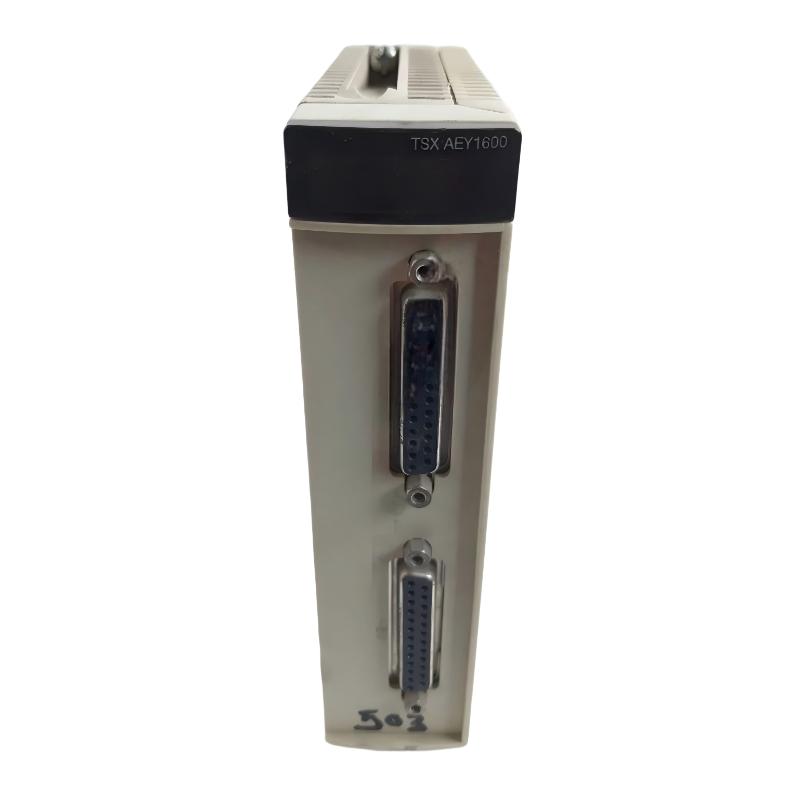

The TSXAEY1600 base model is documented with two 25-way SUB-D connectors. Field wiring should follow the correct connector pin assignments and signal polarity.

Before connecting a transmitter, verify:

• The transmitter’s output type and range.
• The selected analog input range.
• The correct positive, negative, and common connections.
• The transmitter power supply requirements.
• The wiring arrangement and grounding practices.
• The connector and cable assembly required by the installation.

Incorrect wiring can lead to inaccurate readings, signal faults, or equipment damage. Do not assume that the wiring arrangement of a similar module is identical.

6.3 Analog Signal Configuration

Each input must be configured to match the connected instrument. For example, a 4–20 mA pressure transmitter must be connected and configured as a current input rather than a voltage input.

The PLC application should also define the relationship between the raw digital measurement and the required engineering unit. Appropriate scaling is important when the transmitter range differs from the physical range displayed by the HMI.

Where digital filtering or other input processing is required, configure it according to the module’s documented capabilities and the needs of the application.

6.4 PLC Configuration

The module must be recognized and configured within the supported Modicon Premium PLC environment. The controller hardware, rack arrangement, and engineering software must match the requirements of the existing system.

Typical integration tasks include:

1. Verifying the exact module reference and rack position.
2. Confirming the electrical input ranges.
3. Mapping the input channels into the application.
4. Configuring scaling and engineering units.
5. Checking acquisition timing and filtering requirements.
6. Testing each channel against a known input value.
7. Confirming that alarms and control logic respond correctly.

The precise configuration procedure depends on the installed processor, software version, and application architecture.

6.5 Commissioning and Troubleshooting

During commissioning, verify each analog channel independently. Apply a known signal where practical and compare the PLC reading with the expected value.

If a reading is incorrect, investigate the transmitter, signal wiring, channel configuration, scaling calculation, and common connections. Check for electrical interference and verify that the selected range matches the instrument output.

For an existing system, record the original configuration before replacing the module. This makes it easier to restore the previous channel mapping and scaling behavior.

7. Compatible System Components

The TSXAEY1600 family belongs to the Modicon Premium automation platform. The exact components required depend on the installed PLC architecture and the application.

Compatibility must be confirmed using the exact hardware references and the applicable Modicon Premium documentation. A component from a newer Schneider Electric platform should not be assumed to fit or operate directly in an older Premium rack.

8. Recommended Alternative Models

When sourcing a replacement for an older analog input module, the alternative should be selected according to the required signal ranges, channel count, isolation, mechanical arrangement, and PLC platform.

Replacement warning: The BMXAMI0810 is a recommended successor for the TSXAEY1600 base model, but it is not a direct plug-in replacement. It belongs to the Modicon X80 platform, provides fewer channels, and requires a compatible X80 system architecture. A migration may involve hardware changes, configuration work, and wiring review.

The TSXAEY1600C is a related reference, not proof that all electrical and mechanical details are identical to TSXAEY1600R. Always verify the full part number before ordering a substitute.

9. Key Advantages of the Schneider TSXAEY1600 Family

16-Channel Analog Acquisition

Sixteen analog input channels allow multiple field instruments to be connected through one module. This can reduce the number of separate input modules required in applications with many measurement points.

Multirange Voltage and Current Inputs

Support for multiple voltage and current ranges provides flexibility when integrating compatible industrial transmitters. Correct channel configuration remains necessary for reliable measurement.

12-Bit Conversion

The 12-bit analog-to-digital conversion provides digital representations of acquired analog values for PLC processing. Application requirements should be evaluated using the complete accuracy and resolution specifications, rather than resolution alone.

Integration with Modicon Premium Systems

The module is designed for the Modicon Premium automation platform. This makes the base reference relevant to maintenance and spare-parts sourcing for compatible existing installations.

Support for Process Monitoring

The acquired signals can be used in PLC programs for process supervision, alarm generation, data scaling, and control calculations.

Established Industrial Application

For plants that continue to operate compatible Premium systems, sourcing a verified module can help maintain existing automation functions while a longer-term migration strategy is planned.

10. Technical FAQs

Q1: What is the Schneider TSXAEY1600R Analog Input Module used for?

It is listed as an analog input module associated with the Schneider Electric Modicon Premium platform. The documented TSXAEY1600 base model provides 16 voltage/current input channels for acquiring industrial measurement signals.

Q2: How many input channels does the TSXAEY1600 family provide?

The documented TSXAEY1600 base model provides 16 analog input channels. Confirm the channel count and features of the exact TSXAEY1600R variant before purchasing.

Q3: Which input signal ranges are supported by TSXAEY1600?

The documented base model supports voltage ranges of ±10 V, 0–10 V, 0–5 V, and 1–5 V, together with current ranges of 0–20 mA and 4–20 mA.

Q4: What is the analog-to-digital conversion resolution?

The documented TSXAEY1600 base model uses 12-bit analog-to-digital conversion. Actual measurement performance also depends on the selected range, specified error, signal quality, and field instrument.

Q5: Which PLC platform is compatible with this module?

The base reference is designed for the Modicon Premium automation platform. The rack, processor, hardware revision, and software configuration must be checked before installation.

Q6: What are the dimensions and weight of TSXAEY1600R?

The product information supplied for this listing gives dimensions of 260 × 180 × 55 mm and a weight of approximately 0.34 kg. Verify these details against the exact variant’s nameplate and mechanical documentation before preparing a replacement installation.

Q7: Can the module measure 4–20 mA transmitter signals?

The documented TSXAEY1600 base model supports a 4–20 mA input range. The transmitter must be connected to the appropriate terminals, and the PLC configuration must use the correct current range and engineering-unit scaling.

Q8: What should be checked if the analog reading is incorrect?

Check the field transmitter, signal wiring, channel configuration, selected input range, common connections, scaling calculations, and possible electrical interference. If available, use module and controller diagnostics to help isolate the fault.

Q9: Is the TSXAEY1600R interchangeable with TSXAEY1600?

The relationship between the exact TSXAEY1600R suffix and the TSXAEY1600 base reference must be verified. Similar model names do not guarantee identical specifications, connectors, or hardware revisions.

Q10: What is the recommended replacement for TSXAEY1600?

Schneider Electric lists the BMXAMI0810 from the Modicon X80 family as a replacement for the TSXAEY1600 base model. It has eight inputs rather than 16 and uses a different platform, so system migration and compatibility checks are necessary.

11. Conclusion

The Schneider Electric TSXAEY1600 family is a 16-channel multirange analog input solution for compatible Modicon Premium PLC systems. Its support for standard voltage and current signals and 12-bit conversion makes it suitable for acquiring process measurements from compatible industrial transmitters.

Within an established control system, analog input data can support pressure and flow monitoring, level measurement, alarm management, and PLC-based process control. Reliable operation depends on correct signal wiring, channel configuration, scaling, and commissioning.

For maintenance teams and industrial automation suppliers, confirming the exact TSXAEY1600R ordering code is particularly important before purchasing or replacing the module. Where a migration to a newer platform is being considered, the listed BMXAMI0810 replacement should be evaluated as part of a complete system upgrade rather than treated as a direct plug-in substitute.
