1. Product Overview

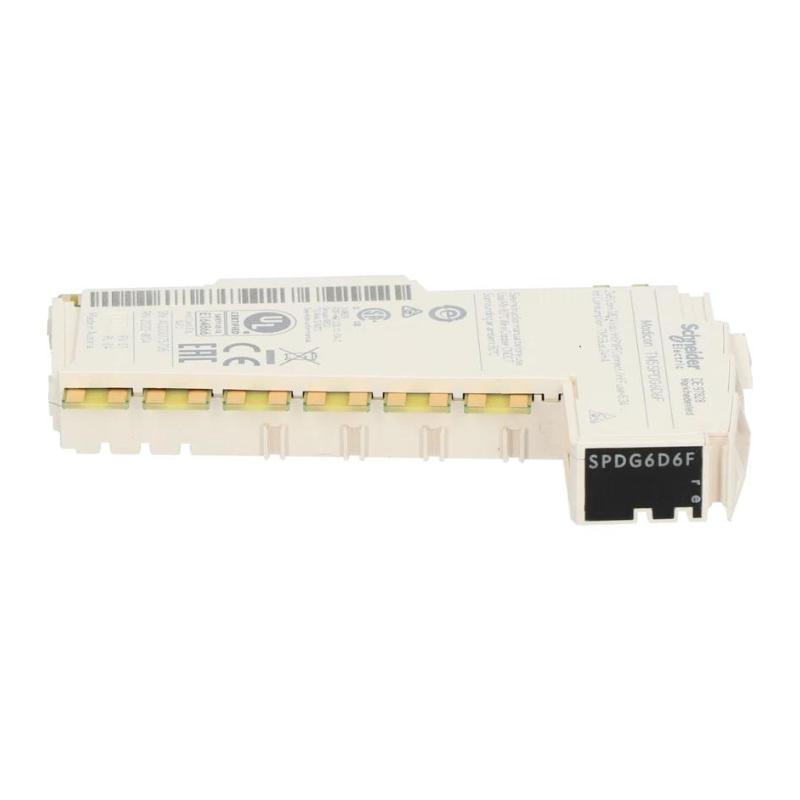

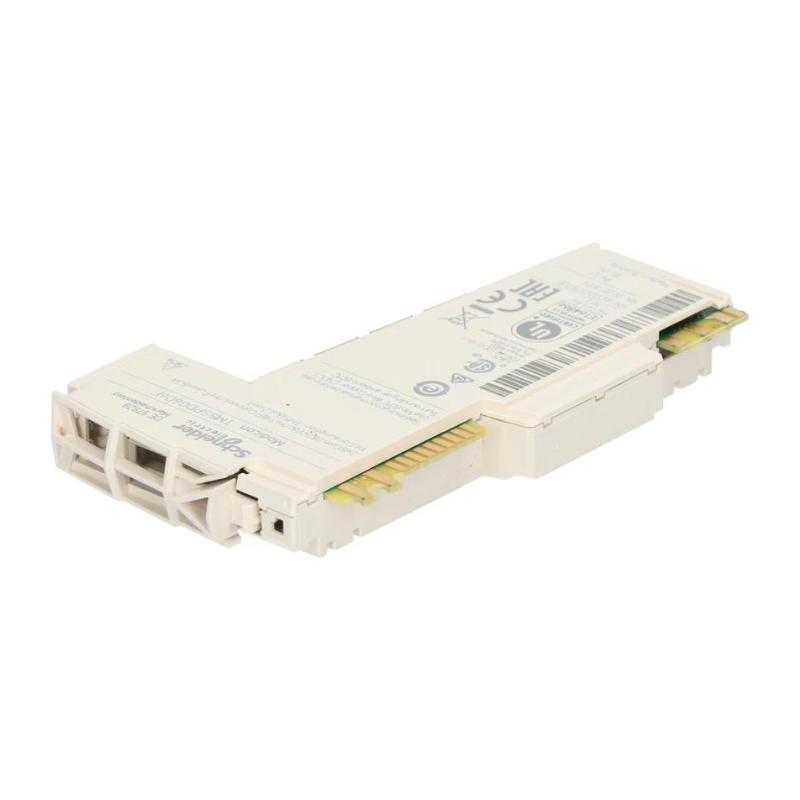

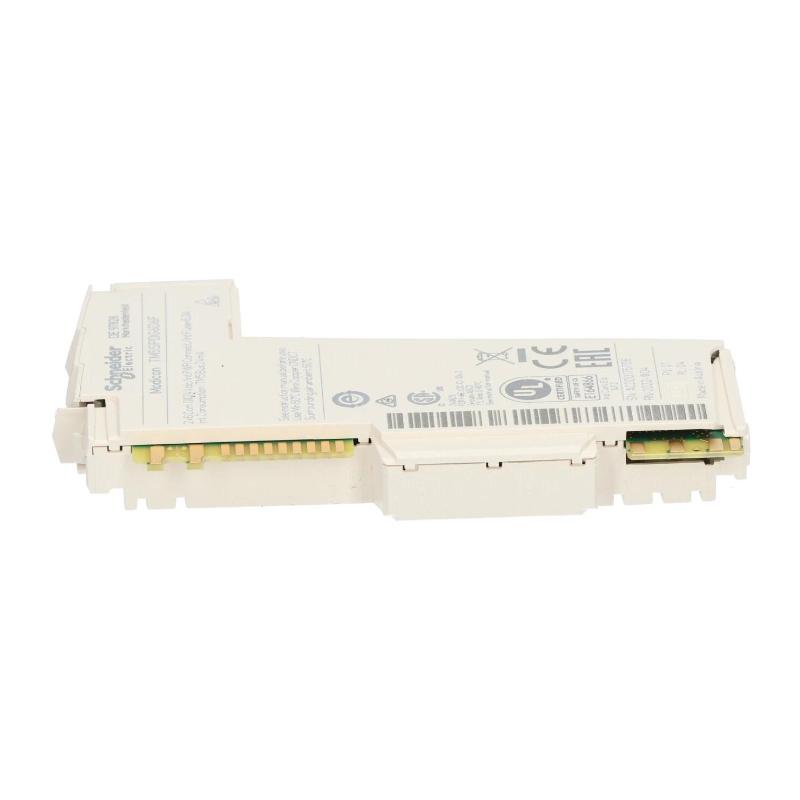

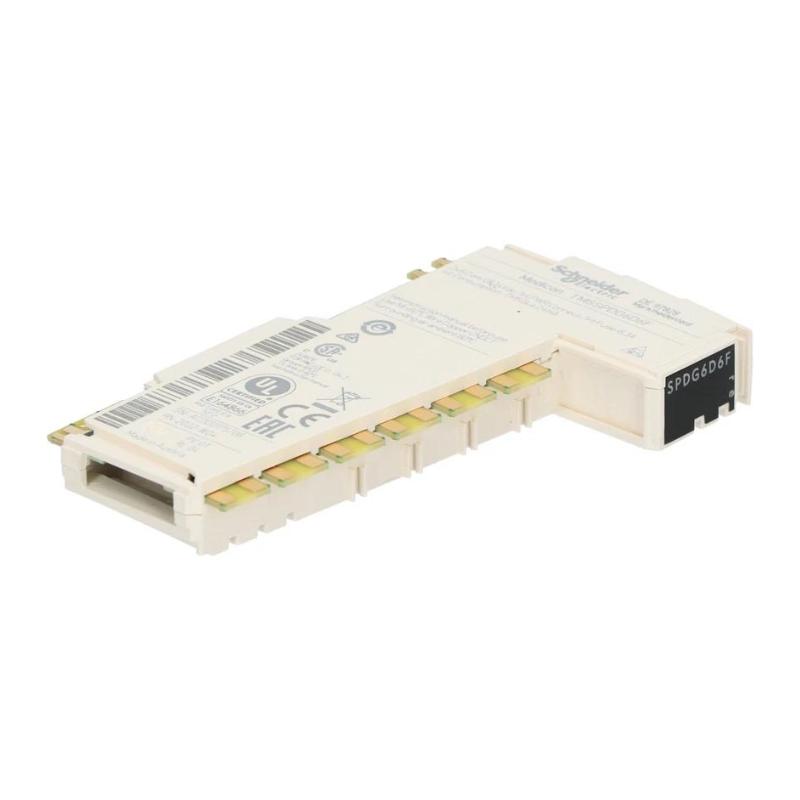

The Schneider Electric TM5SPDG6D6F Universal Power Distribution Module is a power distribution component in the Modicon TM5 modular I/O system. It distributes the 24 V DC I/O power segment to field devices and compatible I/O circuits, helping organize power connections within industrial automation equipment.

Unlike conventional digital or analog I/O modules, the TM5SPDG6D6F does not primarily acquire sensor signals or execute control commands. Its main function is to provide convenient distribution points for the 24 V DC and 0 V DC potentials used by compatible I/O devices.

The module provides six 24 V DC connections and six 0 V DC connections. It also includes an exchangeable 6.3 A slow-blow fuse in the 24 V DC distribution path. The fuse status can be monitored through the module’s status indicators and the I/O mapping information in compatible engineering software.

The TM5SPDG6D6F is intended for use in compatible Modicon TM5 configurations, including systems based on Modicon M258 logic controllers and LMC058 motion controllers. Its compact construction makes it suitable for industrial control cabinets where organized wiring and efficient use of DIN-rail space are important.

With dimensions of 99 × 12.5 × 75 mm and a weight of 0.025 kg, this module is suitable for compact modular automation installations.

2. Technical Specifications

The module distributes power from the compatible 24 V DC I/O power segment. It should not be treated as an independent power supply. The external supply, bus base, terminal block, connected devices, and wiring must be correctly configured for the intended application.

3. Function and Working Principle

The TM5SPDG6D6F simplifies the distribution of power within a modular automation system. Its operation can be understood through three principal functions: distributing power potentials, protecting the 24 V DC distribution path, and reporting module status.

3.1 Distribution of 24 V DC and 0 V DC

The module provides six connection points for 24 V DC and six for 0 V DC. These terminals allow compatible field devices and I/O circuits to receive their required power connections without requiring separate distribution terminals for every connection.

Typical loads include compatible sensors, digital I/O circuits, and other field devices supported by the system design.

The connected devices must remain within the current capacity of the power segment, the fuse, the terminal connections, and the conductors. The six connection points do not mean that each connection can independently carry the full 6.3 A rating.

3.2 Integrated Fuse Protection

The TM5SPDG6D6F includes an exchangeable 6.3 A slow-blow fuse in the 24 V DC distribution path. This fuse helps protect against excessive current in the protected circuit.

If the fuse opens, the module can indicate the condition through its status LED and the relevant I/O mapping information, where supported by the system configuration.

The fuse is a protective component, not a substitute for correct wire sizing, proper circuit design, or suitable protection of downstream equipment. A replacement fuse must match the specified rating and type.

3.3 Status Monitoring

The module includes status indicators that help technicians identify its operating condition and potential faults.

Depending on the indicator state, troubleshooting may involve checking the module supply, verifying the fuse, investigating the feed voltage, or reviewing controller diagnostics.

These indicators are particularly useful during commissioning and maintenance because a distribution fault can affect multiple connected I/O devices at the same time.

3.4 Integration with the TM5 System

The TM5SPDG6D6F is installed as part of the modular TM5 assembly using a compatible bus base and terminal block. It works with the system’s 24 V DC I/O power segment and is integrated into the wider controller and I/O configuration.

Its role is to support the electrical distribution architecture rather than perform the logical processing handled by the controller.

4. Role in Industrial Automation Systems

Organized Power Distribution

Industrial control panels may contain many sensors and I/O devices that require 24 V DC power. The TM5SPDG6D6F provides dedicated connection points for distributing the required supply and return potentials.

Simplified Panel Wiring

By consolidating distribution terminals in a modular component, the module can help make control-panel wiring more organized and easier to inspect during maintenance.

Protection of the Distribution Circuit

The integrated 6.3 A slow-blow fuse provides protection for the module’s designated 24 V DC distribution path. Correct fuse selection and wiring remain essential to safe operation.

Easier Fault Identification

The module’s status indicators and available diagnostic information can help maintenance personnel identify a blown or missing fuse and investigate supply-related faults.

Modular System Expansion

The module can be incorporated into supported Modicon TM5 configurations, allowing power distribution to be arranged alongside compatible digital, analog, and other I/O modules.

5. Industrial Applications

5.1 PLC Control Cabinets

PLC cabinets commonly contain digital sensors, actuators, and modular I/O components that require 24 V DC power. The TM5SPDG6D6F can provide distribution points for compatible loads within a correctly designed TM5 system.

5.2 Packaging Machinery

Packaging machines may use photoelectric sensors, proximity switches, and other field devices. The module can help organize their power connections, provided the total load and wiring remain within the applicable limits.

5.3 Material Handling Systems

Conveyors, transfer stations, and automated handling equipment often require multiple field devices powered from a 24 V DC I/O segment. A dedicated distribution module can simplify the arrangement of supply and return connections.

5.4 Automated Assembly Equipment

Assembly machines frequently use several sensors and control components distributed across the machine. The TM5SPDG6D6F can support a structured wiring layout for compatible devices connected to the same power segment.

5.5 Industrial Testing Equipment

Testing machines may contain position sensors, status switches, and other control devices that need a stable and properly distributed DC supply. The module can provide convenient power connection points within a compatible automation architecture.

5.6 General Machine Automation

The module is suitable for applications where a modular TM5 control system benefits from organized distribution of 24 V DC and 0 V DC connections. Its suitability depends on the load, environmental conditions, and system design.

6. Installation and System Integration

Correct installation is important because a power distribution fault can affect several connected devices simultaneously.

6.1 Verify System Compatibility

Before installation, confirm that the TM5SPDG6D6F is supported by the controller, firmware, engineering software, and TM5 system configuration.

The module is associated with Modicon M258 and LMC058 controller configurations. Verify the exact hardware combination before adding the module or selecting it as a replacement part.

6.2 Install the Bus Base and Terminal Block

The module is used with a compatible TM5 bus base, such as the TM5ACBM11 or TM5ACBM15, and the TM5ACTB12 terminal block.

Follow the appropriate assembly instructions and ensure that the module is seated correctly. Check that the bus base, terminal block, and adjacent modules are securely installed.

6.3 Disconnect Power Before Wiring

Before installing or removing the module, replacing the fuse, or changing field wiring, isolate the relevant power sources and follow the site’s electrical safety procedures.

Never replace a fuse or rewire energized terminals unless a specific approved procedure explicitly permits it.

6.4 Verify the 24 V DC Supply

Confirm that the module is connected to the intended 24 V DC I/O power segment. Check the supply voltage, polarity, wiring, and power-source capacity.

The connected I/O modules and their field devices must be supplied from the appropriate power segment. Incorrectly combining returns from different power sources can cause malfunction and create serious electrical hazards.

6.5 Connect the Distribution Terminals

Use the six 24 V DC and six 0 V DC connections according to the system wiring plan.

Before energizing the circuit:

• Verify each conductor’s destination.
• Confirm the polarity of all DC connections.
• Check conductor size against the expected current.
• Ensure that terminal connections are secure.
• Confirm that the total load is within the permitted current capacity.

Unused terminals and terminals identified as no connection must not be wired.

6.6 Check the Fuse

Verify that the specified 6.3 A slow-blow fuse is correctly installed. If the module reports a blown or missing fuse, isolate the circuit and investigate the cause before replacement.

A fuse should never be bypassed or replaced with one of a higher rating to prevent repeated trips. Recurrent fuse operation may indicate a short circuit, excessive load, damaged cable, or faulty field device.

6.7 Configure the Controller and I/O Mapping

Add the module to the supported system configuration where required. Check the relevant I/O mapping or diagnostic information in the engineering software.

Confirm that the configured hardware matches the physical installation and that the controller reports the expected module status.

6.8 Commission the Distribution Circuit

After installation, verify the supply voltage and inspect the module’s status indicators. Check that the protected 24 V DC distribution path is operating normally.

Test connected field devices individually where practical. If several devices fail simultaneously, investigate the shared supply, fuse, and common wiring before replacing individual sensors or I/O modules.

7. Troubleshooting Common Problems

Problem 1: Several Connected Devices Lose Power

Possible causes:

• The 24 V DC I/O power segment is missing.
• The integrated fuse has opened.
• A shared supply conductor is loose or damaged.
• A short circuit or excessive load has affected the distribution circuit.

Recommended checks:

1. Isolate the circuit and inspect the power supply and distribution wiring.
2. Check the module’s status indicators.
3. Verify the fuse condition using the appropriate safe procedure.
4. Inspect downstream wiring and connected loads for short circuits.
5. Restore power only after the fault has been corrected.

Problem 2: The Red Error Indicator Flashes

Possible causes:

• The fuse is blown or missing.
• The feed voltage is insufficient.
• The module has detected an error or is in a reset state.

Recommended checks:

1. Record the exact LED pattern.
2. Check the supply voltage and relevant power connections.
3. Inspect the integrated fuse.
4. Review the controller’s diagnostic information.
5. Follow the documented troubleshooting procedure for the indicated status.

The precise meaning of an LED pattern depends on the module’s documented status table; do not diagnose a fault based on color alone.

Problem 3: The Fuse Opens Repeatedly

Possible causes:

• A downstream short circuit.
• Excessive total current.
• Incorrect wiring.
• A damaged field device or cable.
• An unsuitable replacement fuse.

Recommended checks:

1. Disconnect or isolate the affected downstream circuits.
2. Inspect the wiring and connected loads.
3. Measure or calculate the expected circuit current.
4. Verify that the specified fuse type and rating are installed.
5. Reconnect loads systematically after correcting the underlying fault.

Repeated fuse replacement without correcting the cause can damage equipment and create a fire hazard.

Problem 4: The Controller Does Not Recognize the Module

Possible causes:

• Incorrect module assembly.
• A bus-base or terminal-block connection problem.
• An unsupported hardware or firmware configuration.
• An I/O configuration mismatch.

Recommended checks:

1. Verify the module’s installation.
2. Inspect the bus base and terminal block.
3. Review controller diagnostics.
4. Confirm compatibility with the installed controller and software.
5. Compare the physical arrangement with the configured I/O system.

Problem 5: Connected Sensors Behave Intermittently

Possible causes:

• Loose supply or return connections.
• Voltage drop under load.
• Electrical interference.
• Excessive current on the shared power segment.
• An unstable or unsuitable external power supply.

Recommended checks:

1. Inspect the wiring and terminal connections.
2. Measure the supply voltage under normal load.
3. Verify conductor size and current capacity.
4. Review grounding and cable-routing practices.
5. Check whether the affected devices share the same power-distribution path.

Problem 6: A Replacement Module Does Not Resolve the Fault

Possible causes:

• The actual fault is in the power supply or field wiring.
• A downstream device is shorted.
• The fuse or distribution segment remains overloaded.
• The module was installed with an incompatible bus base or terminal block.

Recommended checks:

1. Verify the complete model number.
2. Check the power supply and downstream circuits.
3. Confirm the fuse specification.
4. Inspect the module assembly and terminal connections.
5. Validate the system configuration before returning the equipment to service.

8. Compatible System Components

Compatibility should be confirmed for the complete system, including controller model, firmware, bus base, terminal block, power supply, and connected I/O devices.

9. Replacement and Alternative Selection

When replacing the TM5SPDG6D6F, the primary selection criteria are its distribution function, connection arrangement, fuse protection, and compatibility with the existing TM5 system.

Other TM5 distribution modules may provide different numbers of 24 V DC or 0 V DC connections, use a different power source, or have a different protection arrangement. They should not be treated as direct replacements without checking the electrical design.

A digital input module, analog input module, or output module is not an equivalent substitute because its primary function is different.

10. Key Advantages

Multiple Power Distribution Points

The module provides six 24 V DC and six 0 V DC connections, helping organize power wiring for compatible field devices and I/O circuits.

Integrated Fuse Protection

The exchangeable 6.3 A slow-blow fuse provides protection for the designated 24 V DC distribution path and can help technicians identify certain circuit faults.

Compact Modular Design

Its 99 × 12.5 × 75 mm dimensions and 0.025 kg weight support installation in space-constrained control cabinets.

Status Monitoring

Module status indicators and supported I/O mapping diagnostics assist maintenance personnel with identifying power and fuse-related problems.

Integration with Modicon TM5

The module is designed for compatible Modicon TM5 configurations and can be installed alongside other supported I/O components.

Simplified Maintenance

A dedicated distribution module can make wiring easier to inspect and help maintenance teams investigate shared supply faults more systematically.

11. Technical FAQs

Q1: What is the Schneider TM5SPDG6D6F used for?

It is a power distribution module used to distribute 24 V DC and 0 V DC connections within a compatible Modicon TM5 automation system.

Q2: How many distribution connections does it provide?

The module provides six 24 V DC connections and six 0 V DC connections.

Q3: Does the TM5SPDG6D6F generate its own 24 V DC supply?

No. It distributes power from the compatible 24 V DC I/O power segment. A suitable external power source is required for the system.

Q4: What fuse does the module use?

It uses an exchangeable 6.3 A, 250 V slow-blow fuse in the 24 V DC distribution path. Use the specified fuse type and rating.

Q5: Which controllers are compatible?

The module is associated with Modicon M258 and LMC058 controller configurations. Verify the exact hardware and software compatibility requirements before installation.

Q6: Which bus base and terminal block are associated with this module?

The associated components include the TM5ACBM11 or TM5ACBM15 bus base and the TM5ACTB12 terminal block. Confirm the exact arrangement for the application.

Q7: What are the dimensions and weight?

The dimensions are 99 × 12.5 × 75 mm, and the weight is 0.025 kg.

Q8: Can each terminal carry 6.3 A independently?

No. The 6.3 A rating relates to the protected distribution path and must not be interpreted as an independent current rating for every terminal. Follow the applicable terminal, conductor, fuse, and power-segment limits.

Q9: What should I check if several I/O devices stop working at the same time?

Check the shared 24 V DC supply, the module’s fuse and status indicators, the common wiring, and the total connected load. A shared power fault can affect multiple devices simultaneously.

Q10: Can I replace the module with another TM5 power distribution module?

Only if the alternative supports the required distribution connections, supply arrangement, fuse protection, mechanical interface, and controller configuration. Similar dimensions alone do not guarantee compatibility.

12. Conclusion

The Schneider Electric TM5SPDG6D6F Universal Power Distribution Module is a compact power-distribution component for compatible Modicon TM5 industrial automation systems. Its six 24 V DC connections, six 0 V DC connections, and exchangeable 6.3 A slow-blow fuse help organize field-device power wiring and support maintenance diagnostics.

For industrial automation engineers, system integrators, and spare-parts buyers, correct selection requires attention to the power segment, total load, fuse specification, bus base, terminal block, and controller configuration. Proper conductor sizing and safe wiring practices are essential because a distribution fault can affect several connected devices.

When installed and maintained according to the system requirements, the TM5SPDG6D6F can support structured, serviceable power distribution in PLC control cabinets, packaging machinery, material handling systems, and other compatible industrial automation applications.
