1. Product Overview

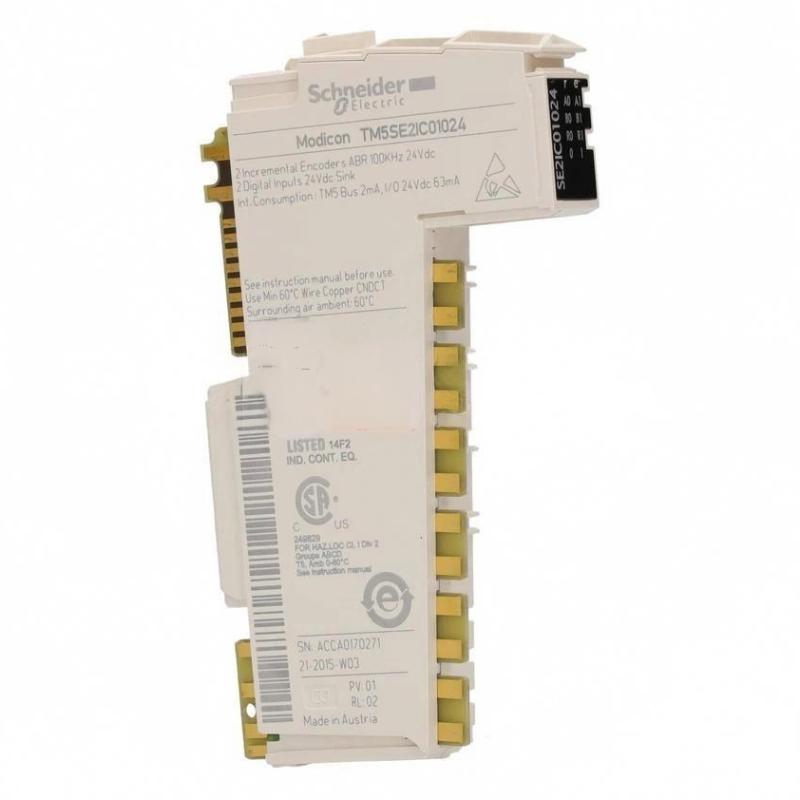

The Schneider Electric TM5SE2IC01024 Counter Module is an industrial automation component intended for counter-related signal processing in compatible control systems. Counter modules are used in applications that require the acquisition of pulse signals, event counting, and measurement of repetitive machine activity.

In industrial automation, counting functions can support production monitoring, conveyor operation, equipment sequencing, and movement-related measurements. When integrated with a compatible PLC or motion controller, the acquired information can be used to monitor operating conditions, track production quantities, and trigger programmed actions.

The TM5SE2IC01024 is supplied with dimensions of 99 × 12.5 × 75 mm and a weight of 0.025 kg. Its compact form factor is useful for control cabinet planning, spare-parts management, and replacement identification.

For system integrators and maintenance engineers, it is important to distinguish this model from other modules in the Schneider Electric TM5 product family. Similar model numbers do not necessarily indicate identical electrical interfaces, counter functions, or controller compatibility. The exact specifications of the TM5SE2IC01024 should be confirmed before installation or procurement.

2. Technical Specifications

Note: Dimensions and weight are based on the supplied product information. Electrical ratings, channel configuration, counting frequency, and controller compatibility should be verified against the exact model’s technical documentation.

3. Function and Working Principle

Counter modules process supported input signals and provide counting-related information to an automation controller. Their capabilities depend on the module’s hardware design, electrical interface, and configured operating mode.

Pulse Signal Acquisition

Industrial sensors and encoders can generate electrical pulses when a product passes a detection point, a rotating shaft moves, or a machine mechanism completes a movement. A compatible counter module processes these signals so that the controller can use the resulting data.

Reliable signal acquisition requires the connected field device to match the module’s electrical and functional requirements.

Event and Production Counting

Many production systems must record repeated events, such as completed machine cycles, product passage, or packaging operations. Counter data can be used by a PLC program to compare the actual number of events against a preset target.

For example, an automated packaging line may use counting information to determine when a batch has reached its required quantity. The implementation depends on the supported counter functions and the application program.

Movement-Related Measurement

Where the module supports the relevant sensor or encoder interface, pulse information may be used to monitor movement or repetitive mechanical operations. Applications can include conveyor monitoring, indexing systems, and equipment cycle tracking.

The relationship between pulse count and physical movement depends on sensor resolution, mechanical installation, and the calculations performed by the controller.

Integration with PLC Logic

A counter module operates as part of a wider automation system. The PLC or motion controller processes the available data and coordinates other equipment, including drives, motors, actuators, and operator interfaces.

Before using the TM5SE2IC01024 for a particular counting or measurement task, verify its documented signal interfaces and supported operating modes.

4. Role in Industrial Automation Systems

Counter-related signal processing helps automation systems monitor repetitive events and movement-related information. When correctly integrated, the resulting data can support production tracking, sequence control, and process monitoring.

A typical automation architecture may include:

• PLC or motion controller: Executes the control program and evaluates the acquired data.
• Counter module: Processes supported input signals.
• Sensor or encoder: Generates pulses representing events or movement.
• Power supply: Provides the required electrical power to the module and field devices.
• Mounting and connection components: Provide the necessary mechanical and electrical interfaces.
• HMI: Displays production counts, operating status, or alarms when configured.
• Industrial communication equipment: Connects the controller to other devices when required by the system design.

The exact role of the TM5SE2IC01024 depends on its verified capabilities and the configuration of the installed control system.

5. Industrial Applications

Packaging Machinery

Packaging lines often require product counting, batch monitoring, and sequence coordination. Counter information can help a PLC track completed operations and initiate programmed actions when a production target is reached.

Conveyor Systems

Conveyor equipment may use sensors to count products or monitor movement-related events. Accurate results depend on suitable sensor placement, compatible signal characteristics, and reliable wiring.

Automated Assembly Equipment

Assembly machinery often performs repetitive operations according to a programmed sequence. Counting information can help determine whether the required number of operations has been completed before the system advances to another stage.

Material Handling Systems

Material handling equipment can use counting functions to track discrete events and support production reporting. The module’s input characteristics must match the field device used in the application.

Industrial Machine Monitoring

Counting-related information can contribute to machine monitoring and operational reporting. When incorporated into appropriate PLC logic, the data can help operators identify unexpected process behavior and track equipment activity.

6. Installation and System Integration

Correct installation and configuration are essential for reliable signal acquisition and stable equipment operation.

Step 1: Verify the Exact Model

Inspect the product label and confirm that the unit is TM5SE2IC01024. Check the complete model number against the intended hardware configuration and procurement records.

Do not use wiring diagrams or parameter settings for another module solely because its product number looks similar.

Step 2: Confirm Controller Compatibility

Verify that the intended PLC or motion controller supports this exact model. Review the hardware configuration requirements, firmware compatibility, and engineering software support before installation.

Step 3: Inspect Mounting and Connection Components

Identify the required mounting base, terminal block, and other connection accessories from the model-specific documentation. Inspect all components for physical damage and ensure that the installation arrangement is correct.

Step 4: Isolate Electrical Power

Disconnect the relevant power sources before installing or wiring the module. Follow the facility’s lockout/tagout procedures and confirm that the equipment is safe to work on.

Step 5: Connect Field Signals

Use the correct wiring diagram to identify the signal terminals and common connections. Confirm the sensor or encoder’s output type, voltage, polarity, and supply requirements before connecting it.

Incorrect wiring or an incompatible signal may cause unreliable counting or equipment damage.

Step 6: Configure the Controller

Add the correct module to the controller’s hardware configuration using supported engineering software. Configure the required parameters according to the module’s verified capabilities and the application requirements.

Step 7: Perform Commissioning Tests

After checking the wiring and configuration, restore power according to the approved procedure. Confirm that the controller recognizes the module and review any available diagnostic information.

Test the system using known input events and compare the recorded values with the actual process before returning the machine to full operation.

7. Troubleshooting Common Problems

Counter Values Do Not Change

Possible causes:

• The sensor or encoder is not generating pulses.
• Field-device power is missing.
• Signal wiring is loose or incorrect.
• The input signal is unsupported.
• The module or controller is incorrectly configured.

Recommended actions:

1. Verify that the sensor or encoder is powered and operating.
2. Check the wiring against the correct model-specific diagram.
3. Review the controller’s hardware configuration.
4. Confirm that the input signal meets the module’s electrical requirements.

Counts Are Inconsistent

Possible causes:

• Electrical interference from motors, drives, or switching equipment.
• Poor cable routing or shielding.
• Loose terminals or intermittent connections.
• Sensor misalignment or mechanical vibration.
• An unsuitable input signal or configuration.

Recommended actions:

• Inspect field wiring and terminal connections.
• Separate signal cables from high-power wiring where practical.
• Check sensor mounting and mechanical stability.
• Compare recorded counts with the actual number of events.

The Controller Does Not Recognize the Module

Possible causes:

• Incorrect module selection in the hardware configuration.
• An unsupported controller or firmware combination.
• Improper installation or incompatible connection components.
• A fault in the module or associated hardware.

Recommended actions:

• Confirm the complete product number.
• Check the controller’s hardware compatibility information.
• Inspect the module installation and connection components.
• Review available diagnostics before replacing hardware.

Counting Performance Does Not Meet Requirements

Possible causes:

• The input frequency exceeds the supported limit.
• The signal voltage or format is incompatible.
• Wiring introduces electrical interference or signal distortion.
• The application program processes the data incorrectly.

Recommended actions:

• Determine the maximum expected input frequency.
• Verify the module’s documented counting performance.
• Check the field device’s output specifications and wiring.
• Test the application using known input conditions.

8. Compatible System Components

Compatibility should be verified for the exact module and controller combination. Accessories used with another TM5 module should not automatically be assumed suitable for this model.

9. Replacement and Alternative Selection

When sourcing a replacement for the TM5SE2IC01024, physical dimensions alone are not sufficient to establish compatibility. The replacement must satisfy the original application’s electrical, functional, and system-integration requirements.

If an exact replacement is unavailable, verify functional equivalence using the applicable technical documentation or a qualified automation engineer. Similar product numbers do not guarantee that two modules are electrically or operationally interchangeable.

10. Key Advantages

• Compact form factor: The supplied dimensions of 99 × 12.5 × 75 mm support space-conscious installation planning.
• Low specified weight: The supplied weight of 0.025 kg is useful for inventory and handling records.
• Counter-related functionality: Intended for evaluation in applications requiring counting-related signal processing, subject to verification of exact capabilities.
• PLC integration potential: Counter information can be incorporated into supported control logic.
• Flexible application design: Counting functions can support production monitoring, event tracking, and machine sequencing.
• Maintenance identification: Accurate product information helps reduce spare-parts selection errors.

11. Technical FAQs

Q1: What is the Schneider TM5SE2IC01024 Counter Module used for?

It is identified as a counter module for industrial automation. Its exact input interface, channel configuration, and counting functions should be confirmed from the technical documentation for this model.

Q2: What are its dimensions and weight?

The supplied dimensions are 99 × 12.5 × 75 mm, and the supplied weight is 0.025 kg.

Q3: Can it be connected to an encoder?

Encoder compatibility depends on the module’s supported signal interface, electrical ratings, and wiring requirements. Verify these details before connecting an encoder.

Q4: Which PLC controllers are compatible?

Check the manufacturer’s hardware compatibility information for the exact TM5SE2IC01024 model and the intended controller. Do not infer compatibility from other TM5 modules.

Q5: Why might the counter fail to register pulses?

Possible causes include missing field-device power, incorrect wiring, an unsupported input signal, incorrect controller configuration, or a hardware fault. Check these conditions systematically before replacing the module.

Q6: What should be checked before ordering a replacement?

Confirm the full model number, input signal requirements, channel configuration, counting functions, operating voltage, controller compatibility, connection accessories, dimensions, and weight.

Q7: What is the maximum counting frequency?

The maximum counting frequency has not been confirmed here for the exact TM5SE2IC01024 model. Verify the model-specific specifications and compare them with the application’s maximum expected pulse frequency.

12. Conclusion

The Schneider Electric TM5SE2IC01024 Counter Module is identified as a counter-related component for industrial automation applications. Its supplied dimensions of 99 × 12.5 × 75 mm and weight of 0.025 kg provide useful information for product identification, installation planning, and spare-parts management.

For reliable integration, engineers should verify the module’s input characteristics, channel configuration, counting performance, electrical requirements, controller compatibility, and connection accessories. Correct installation, configuration, and commissioning help support dependable operation and reduce avoidable equipment downtime.
