1. Product Overview

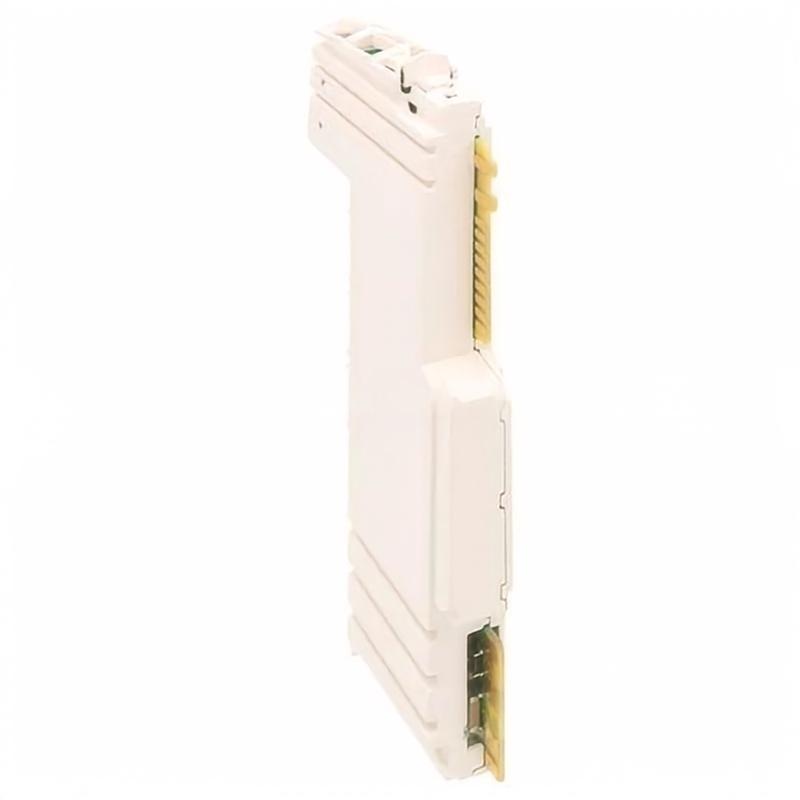

The Schneider Electric TM5SE1IC01024 Counter Module is an expert high-speed counter module in the Modicon TM5 modular I/O system. It is designed to process incremental encoder signals and provide accurate counting and measurement data for industrial automation and motion-related applications.

Unlike standard digital input modules, which are generally intended for conventional on/off signals, this module supports high-speed counting at frequencies up to 100 kHz. It can be used for up-counting, down-counting, frequency measurement, period measurement, frequency generation functions, and encoder-based axis monitoring, subject to the controller configuration and application requirements.

The TM5SE1IC01024 is compatible with specified Modicon M258 and LMC058 controller systems. Its compact design helps engineers integrate high-speed counting functions into modular control cabinets without requiring a separate, full-size counter device.

For industrial equipment manufacturers, system integrators, and maintenance teams, this module can support applications that require reliable pulse acquisition, encoder feedback, and precise event counting.

2. Technical Specifications

Specifications should be checked against the exact module revision, controller platform, and application configuration before installation.

3. Function and Working Principle

The TM5SE1IC01024 receives pulse signals from an incremental encoder and processes them through its high-speed counter function. The resulting count or measurement data can then be used by the programmable controller for machine sequencing, position-related calculations, speed monitoring, and other control tasks.

High-Speed Pulse Counting

When an encoder rotates or a machine component moves, the encoder generates electrical pulses. The module detects these signals and updates its counter value. With a maximum counting frequency of 100 kHz, it is suitable for applications where pulse rates exceed the practical requirements of ordinary digital input processing.

Incremental Encoder Feedback

Incremental encoders provide pulse information related to movement. Depending on the encoder signal configuration and the application program, the controller can use the collected information to calculate movement, monitor rotation, or determine whether a mechanism has reached a target count.

Correct signal wiring, encoder compatibility, and parameter configuration are essential for reliable results.

Up-Counting and Down-Counting

The counter can support applications that require counts to increase or decrease. This functionality can be useful in production equipment, material handling systems, and automated machinery where pulse totals are used to track movement or completed operations.

Frequency and Period Measurement

Pulse frequency can provide information about the operating speed of rotating equipment. Period measurement can help determine the interval between pulses. The controller can use these measurements as part of a monitoring or control strategy.

Reference and Homing Functions

In encoder-based systems, reference signals can help establish a known position. When configured appropriately, reference-related inputs and controller logic can support homing or position-reference procedures.

4. Role in Industrial Automation Systems

The TM5SE1IC01024 serves as a specialized signal acquisition component within a larger control architecture. It does not replace the PLC or motion controller; instead, it supplies high-speed counting information for the controller to process.

A typical system may include:

• PLC or motion controller: Executes the control program and uses counter values.
• TM5SE1IC01024 counter module: Acquires and processes incremental encoder signals.
• Incremental encoder: Generates pulses corresponding to movement or rotation.
• TM5 bus base and terminal block: Provide the required mechanical and electrical integration.
• 24 V DC power supply: Supplies the required I/O power segment and compatible field devices.
• HMI or supervisory system: Displays status, production counts, or diagnostic information when configured.

This architecture can help separate high-speed signal acquisition from the controller’s general-purpose digital I/O tasks.

5. Industrial Applications

Packaging Machinery

Packaging equipment often relies on encoder pulses to track conveyor movement, product spacing, and the position of material. The counter module can supply pulse information for synchronization and sequence control when correctly integrated with the controller.

Material Handling and Conveyors

In conveyor systems, encoder feedback can help monitor belt movement, count items, and identify movement discrepancies. Application accuracy depends on encoder resolution, mechanical installation, and the control program.

Manufacturing and Assembly Equipment

Automated assembly machines may use pulse counting to monitor component movement, index mechanisms, or determine when a preset movement threshold has been reached.

Motion and Position Monitoring

When used with a compatible controller and encoder, the module can contribute to position monitoring and reference procedures. It should not be assumed to provide a complete motion-control function independently of the controller and other system components.

Rotating Machinery

Encoder pulses can be used to monitor rotational behavior and derive speed-related information. The measured values can support process monitoring or control responses implemented in the PLC application.

6. Installation and System Integration

Correct installation is essential to achieving reliable high-speed signal acquisition.

Step 1: Verify System Compatibility

Before installation, confirm that the TM5SE1IC01024 is supported by the target controller and the installed programming environment. Check the system configuration, module order, firmware requirements, and applicable hardware documentation.

Step 2: Check the Bus Base and Terminal Block

The module is part of the Modicon TM5 system and requires the appropriate TM5 bus base and terminal block. Associated components include the TM5ACBM11 or TM5ACBM15 bus base and the TM5ACTB12 terminal block, subject to the system configuration.

Inspect all components for physical damage and ensure that they are correctly seated.

Step 3: Isolate Power Before Wiring

Switch off the relevant power sources and follow the site’s lockout/tagout procedures before installing or removing the module or connecting field wiring. Confirm that the cabinet is safe to work on before touching terminals.

Step 4: Connect the Encoder

Use an encoder that matches the module’s supported incremental encoder input requirements. Verify the encoder supply voltage, signal wiring, common reference, and terminal assignments against the applicable wiring diagram.

Incorrect wiring or an incompatible signal type can cause missing pulses, unstable counts, or equipment malfunction.

Step 5: Verify the 24 V DC Supply

Check that the I/O power segment is within the specified 20.4–28.8 V DC range. Confirm that the power supply has sufficient capacity for the module and connected field devices.

Step 6: Configure the Module in the Engineering Software

Add the module to the correct controller configuration and set the required parameters. Depending on the application, these may include counter resolution, reference signal behavior, input configuration, and the use of auxiliary inputs.

Confirm that the selected controller and software version support the intended configuration.

Step 7: Test Before Returning to Production

After wiring and configuration checks, restore power according to the approved commissioning procedure. Confirm that module status indicators are normal and that encoder pulses produce the expected count changes.

Test the equipment at a controlled speed before allowing full production operation.

7. Troubleshooting Common Problems

Counter Value Does Not Change

Possible causes:

• Encoder is not generating pulses.
• Encoder power supply is missing or incorrect.
• Signal wiring is incorrect or loose.
• Module configuration does not match the connected encoder.

Recommended checks:

1. Verify the encoder supply and signal connections.
2. Inspect the mechanical coupling between the encoder and the moving equipment.
3. Confirm that the module is correctly configured in the engineering software.
4. Use an appropriate diagnostic instrument to verify the signal, following site safety procedures.

Incorrect or Unstable Counts

Possible causes:

• Electrical interference from motors, drives, or switching equipment.
• Poor cable routing or inadequate shielding.
• Loose terminals or unsuitable signal wiring.
• Encoder alignment or mechanical vibration problems.

Recommended checks:

• Inspect cable routing and grounding arrangements.
• Separate encoder wiring from high-power cables where practical.
• Check terminal tightness and encoder mounting.
• Compare the observed pulse behavior with the expected mechanical movement.

Module Reports an Error

Possible causes:

• Power supply or bus configuration problems.
• Incorrect module placement or incomplete seating.
• Unsupported controller configuration.
• A module or connected component fault.

Recommended checks:

• Review module status indicators and controller diagnostics.
• Verify the bus base, terminal block, and power segment.
• Check the configured module type and firmware compatibility.
• Replace hardware only after external wiring and configuration issues have been ruled out.

Encoder Feedback Is Inconsistent During High-Speed Operation

Possible causes:

• Encoder frequency exceeds the application’s supported operating range.
• Signal quality deteriorates because of wiring or interference.
• The encoder, signal format, or configuration is unsuitable.
• The controller program is not processing the acquired data as intended.

Recommended checks:

• Confirm that the input frequency remains within the module’s 100 kHz maximum.
• Review the encoder specification and wiring requirements.
• Test the system at progressively higher speeds.
• Review the controller program and diagnostic values before changing hardware.

8. Compatible System Components

Compatibility depends on the specific controller, hardware arrangement, and software version. Verify the complete configuration before ordering replacement components.

9. Replacement and Alternative Selection

When replacing a TM5SE1IC01024, selecting a module solely because it is described as a counter module is not sufficient. The replacement must meet the application’s electrical, signal-processing, and system-integration requirements.

Use a manufacturer-confirmed compatible part number when an exact replacement is required. Do not assume that another TM5 module or a different high-speed counter can be substituted without reviewing its specifications and system compatibility.

10. Key Advantages

• High-speed signal acquisition: Supports incremental encoder counting up to 100 kHz.
• Compact design: The supplied dimensions of 99 × 12.5 × 75 mm allow integration into space-conscious control cabinets.
• Encoder-based measurement: Supports counting and measurement tasks that depend on pulse signals.
• Modular integration: Fits into compatible Modicon TM5 configurations.
• Controller-based flexibility: Count and measurement data can be incorporated into PLC logic and machine sequences.
• Broad application potential: Can support packaging, material handling, manufacturing, and machine-control tasks when correctly configured.

11. Technical FAQs

Q1: What is the Schneider TM5SE1IC01024?

It is a Modicon TM5 high-speed counter module designed to process incremental encoder signals for industrial counting and measurement applications.

Q2: What is the maximum counting frequency?

The specified maximum counting frequency is 100 kHz. Actual application performance also depends on encoder signal quality, wiring, configuration, and the overall control system.

Q3: Which controllers are compatible with this module?

The specified compatible controller families include Modicon M258 and Modicon LMC058. Confirm compatibility with the exact controller hardware, software, and firmware in use.

Q4: What power supply does it use?

The module uses a 24 V DC I/O power segment, with a specified operating range of 20.4–28.8 V DC.

Q5: Can it be used with an incremental encoder?

Yes. It is designed for one incremental encoder with a supported 24 V DC input arrangement. Check the encoder’s signal format and wiring against the module requirements.

Q6: What are its dimensions and weight?

The supplied dimensions are 99 × 12.5 × 75 mm, and the specified weight is 0.025 kg.

Q7: What should be checked before replacing an existing unit?

Confirm the full model number, controller compatibility, encoder interface, supply requirements, bus base, terminal block, and application configuration. Inspect the existing wiring and fault history before commissioning the replacement.

12. Conclusion

The Schneider Electric TM5SE1IC01024 Counter Module is a compact high-speed counting solution for compatible Modicon TM5 automation systems. With incremental encoder support and a counting frequency of up to 100 kHz, it can provide useful pulse acquisition and measurement data for packaging equipment, conveyors, manufacturing machinery, and other automated processes.

For successful operation, engineers should verify controller compatibility, encoder wiring, the 24 V DC supply, module configuration, and the condition of the associated TM5 components. Careful commissioning and systematic troubleshooting help maintain reliable counting performance and reduce unnecessary production interruptions.
