1. Product Overview

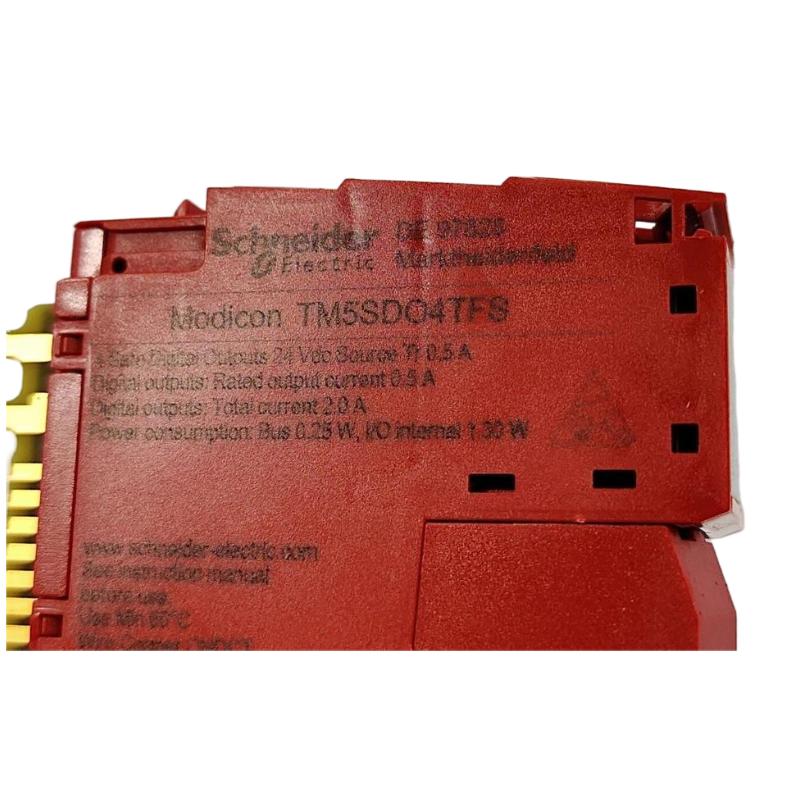

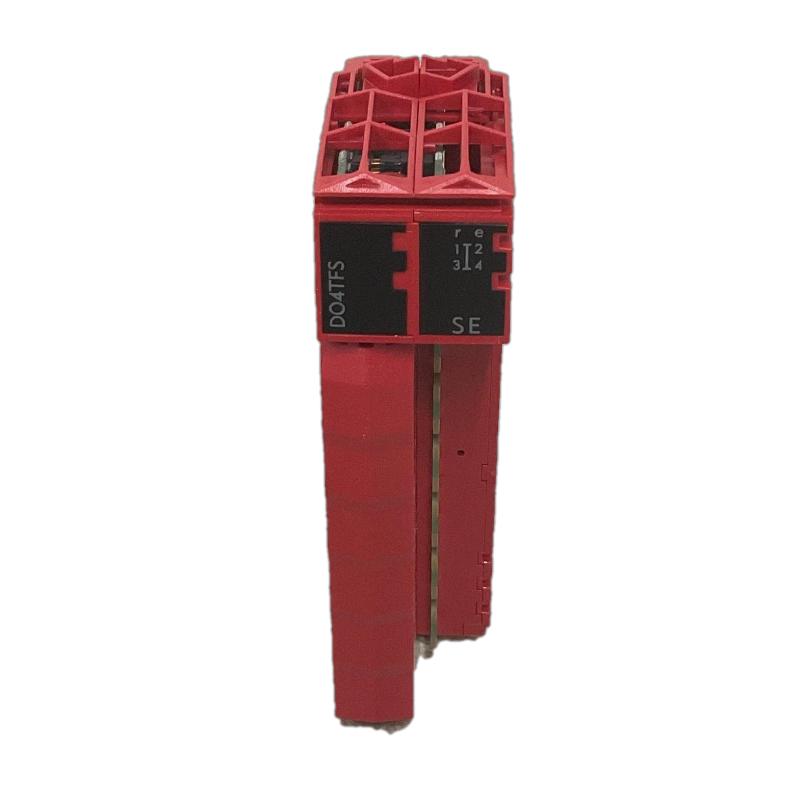

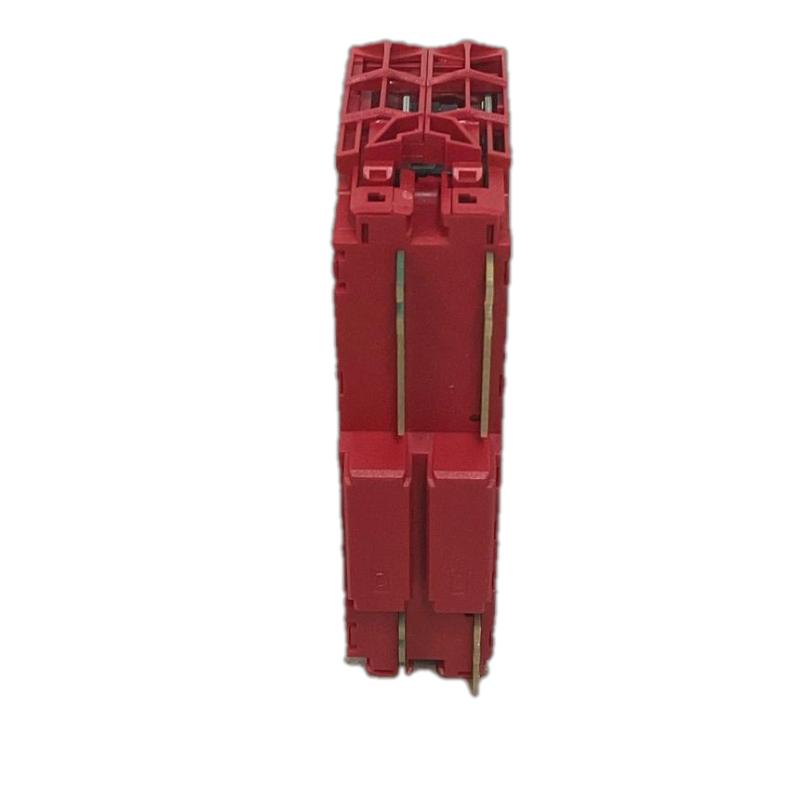

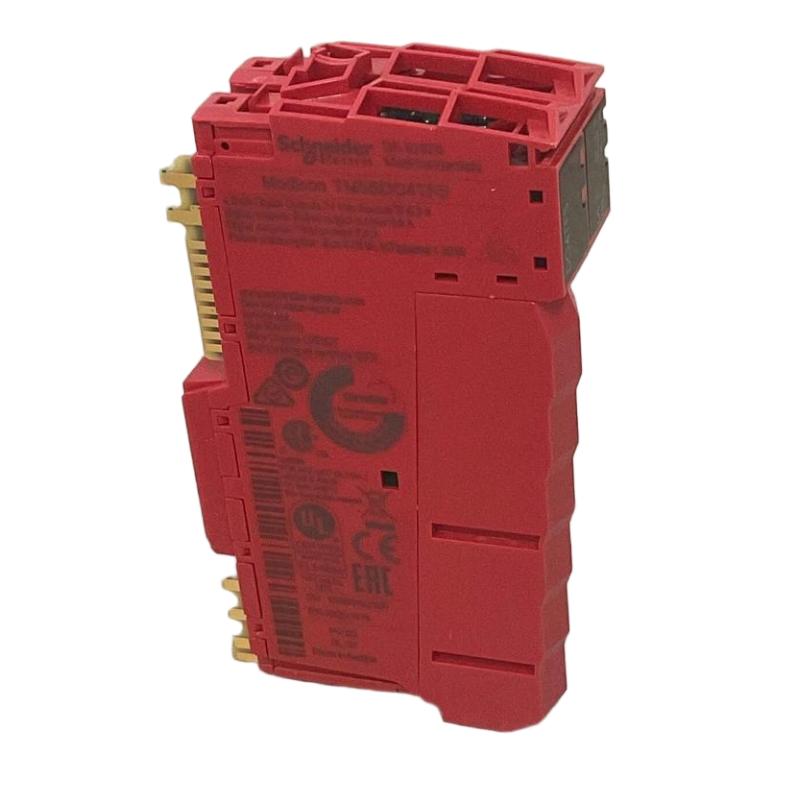

The Schneider Electric TM5SDO4TFS is a safety DC discrete output module designed for safety-related control applications within the Modicon TM5 automation platform. It provides four solid-state digital outputs intended for controlling compatible 24 V DC field devices in supported industrial automation systems.

Unlike a standard discrete output module, a safety output module is designed to participate in a safety-related control architecture. Depending on the system configuration and application design, it can help execute safety-related commands that bring machinery or equipment to a defined safe state.

The TM5SDO4TFS supports applications involving machine control, packaging equipment, material handling, and other automated industrial processes. Its output monitoring and integrated protection functions help support fault detection and system diagnostics. The actual safety performance achieved depends on the complete safety system, correct configuration, risk assessment, and validation of the application.

The module provides four outputs, with a rated output voltage of 24 V DC and a rated current of 0.5 A per channel. Its compact form factor supports modular control cabinet designs where space and organized wiring are important.

For maintenance engineers, system integrators, and industrial equipment purchasers, identifying the exact model is essential. The TM5SDO4TFS should not be treated as interchangeable with a standard TM5 discrete output module simply because the product names or physical dimensions appear similar.

2. Technical Specifications

The electrical ratings above describe the product’s published characteristics. Safety ratings must be interpreted in the context of the manufacturer’s specified operating modes and the complete safety application. They do not automatically establish the safety level of an entire machine.

3. Function and Working Principle

3.1 Safety-Related Digital Output Control

The primary function of the TM5SDO4TFS is to provide safety-related discrete output signals to compatible field circuits. These outputs can be incorporated into a machine’s safety control architecture where the controller, application logic, wiring, and connected devices are designed and validated for that purpose.

A typical safety-related control sequence involves the following stages:

1. Safety-related inputs and system conditions are evaluated by the configured safety control system.
2. The safety application determines whether the required operating conditions are satisfied.
3. The controller issues the appropriate safety-related output command.
4. The output module switches the assigned output according to its configuration and operating conditions.
5. Output monitoring and diagnostic functions help identify certain wiring, load, or module faults.

The actual behavior depends on the controller, safety program, output configuration, and external circuitry. The module should always be configured and tested according to the applicable safety requirements.

3.2 Four Solid-State Outputs

The TM5SDO4TFS provides four discrete output channels. Each channel has a rated current of 0.5 A, subject to the module’s total current limitations and other specified operating conditions.

Solid-state outputs use electronic switching components rather than conventional mechanical output contacts. This design supports electronic switching and monitoring within a compatible control system.

When selecting a field device, engineers must check its nominal voltage, operating current, inrush current, load characteristics, and compatibility with the output module. A device’s current consumption must remain within the applicable channel and common-current limits.

3.3 Output Monitoring and Diagnostics

Output monitoring is important in safety-related automation because a controller needs more than a command signal alone to manage faults effectively.

The TM5SDO4TFS includes diagnostic functions and status indicators that can help identify module status, output conditions, and certain detected errors. Depending on the configured application, these functions can support troubleshooting when a connected actuator fails to operate as expected.

Diagnostic information should be interpreted together with the controller’s safety diagnostics, wiring diagrams, and field-device condition. A diagnostic indication is evidence to investigate, not automatic proof that the output module itself has failed.

3.4 Integrated Electrical Protection

The module includes short-circuit and overload protection. These features help protect the output channels under specified fault conditions.

Protection does not eliminate the need for correct circuit design. Engineers must still select suitable wiring, compatible loads, external protection where required, and the correct power supply arrangement.

Any protective action or fault recovery procedure should follow the product documentation and the validated safety application.

4. Role in Industrial Automation and Safety Systems

4.1 Machine Safety Control

Safety-related outputs can form part of the control architecture used to manage hazardous machine functions. Depending on the validated design, the module may be used to issue commands to compatible safety-related actuators or interface circuits.

Examples include safety-related commands associated with machine stopping functions, equipment isolation interfaces, or other defined safe-state actions. The specific function depends on the complete system design and must not be inferred from the module model alone.

4.2 Packaging and Processing Equipment

Packaging and processing machinery often combines standard automation functions with safety-related control. A safety output module can provide the output interface for selected safety functions in a supported system.

The control design should clearly separate ordinary process commands from safety-related commands. Standard PLC logic alone must not be assumed to provide the required machinery safety performance.

4.3 Material Handling Systems

Conveyors, transfer systems, and automated handling equipment may require safety-related control functions coordinated with sensors, guards, interlocks, and other protective devices.

The TM5SDO4TFS can be considered for a compatible safety architecture where its output characteristics and supported system configuration meet the application’s requirements.

4.4 Motion Control Applications

The Modicon TM5 platform supports modular automation configurations used with compatible motion-control systems. A safety output module may be incorporated into a supported architecture to manage selected safety-related output functions.

Controller compatibility, communication architecture, safety logic, and firmware requirements must be confirmed before implementation.

4.5 Maintenance and Replacement

When a safety output module is suspected of failure, replacement must be managed as a safety-related maintenance activity. The technician should preserve the validated configuration, verify the exact part number, inspect associated wiring, and perform the required functional tests before the machine returns to operation.

A replacement is not complete simply because the module powers up or its status indicators appear normal. The relevant safety functions must be verified according to the site’s procedures.

5. Industrial Applications

Packaging Machinery

Automated packaging equipment uses coordinated control for machine movement, material feeding, cutting, sealing, and product transfer. Safety-related output channels may be included in the system architecture for specific protective functions, provided that the complete design supports them.

Material Handling and Conveying

Automated handling systems can require safety-related commands when protective devices detect unsafe conditions. Output signals may be used within a validated control design to manage compatible external circuits.

Assembly Equipment

Assembly machines combine automated sequences with operator access, tooling, and moving mechanisms. A safety output module can be part of the system used to execute defined safety responses.

Industrial Production Lines

Production lines often coordinate several machines through controllers and distributed I/O. A supported safety output module can provide discrete safety-related outputs within the approved system architecture.

Machine Building and OEM Equipment

Original equipment manufacturers may use modular safety I/O to organize machine control hardware. Before adopting the TM5SDO4TFS, the designer should confirm the required safety functions, channel count, output load characteristics, controller support, and applicable safety standards.

These examples describe potential application areas. The suitability of the module for a specific safety function must be established through system design, risk assessment, and validation.

6. Installation and System Integration

Installation should be performed by qualified personnel familiar with industrial electrical systems and functional safety practices.

6.1 Verify the Hardware Configuration

Before installation, confirm the complete model number and ensure that the module is supported by the intended controller and safety architecture.

Check the following:

• Supported controller model and firmware.
• Required TM5 safety bus base.
• Required safety terminal block.
• Output voltage and current requirements.
• Safety application configuration.
• Wiring and grounding requirements.
• Environmental and mounting limitations.

The TM5SDO4TFS requires compatible safety-coded system components. Do not substitute a standard base or terminal block without explicit confirmation that the combination is approved.

6.2 Isolate Power Before Installation

Follow the site’s lockout/tagout procedures and isolate all relevant power sources before installing, removing, or rewiring the module. Verify that the affected circuits are de-energized using an appropriate method.

External field circuits may have separate power sources. Isolating the controller’s supply alone may not remove all hazardous voltages.

Never insert or remove the module under power unless the exact system documentation explicitly permits that operation and the required safety procedures are followed.

6.3 Inspect the Module and Accessories

Inspect the module, safety bus base, terminal block, and connecting surfaces for visible damage or contamination.

Check for:

• Cracked housing or damaged connectors.
• Bent contacts.
• Signs of overheating.
• Loose or damaged wiring terminals.
• Incorrectly identified accessories.

Damaged components should not be installed in a safety-related control system.

6.4 Mount the Module Correctly

Install the module in the approved Modicon TM5 arrangement, using the required safety-coded base and terminal components.

Ensure that the module is properly seated and secured. Follow the specified mounting and spacing instructions so that wiring access, heat dissipation, and maintenance clearance are adequate.

6.5 Connect the Output Circuits

Use the correct wiring diagram for the TM5SDO4TFS and its associated terminal block. Verify terminal assignments, supply connections, polarity where applicable, load requirements, and external protection.

Each output channel is rated at 0.5 A, and the maximum current per output common is 2 A. The connected loads must comply with these limits and all other applicable specifications.

Do not assume that the outputs are galvanically isolated from one another. Follow the documented circuit arrangement and grounding requirements.

6.6 Configure the Safety Application

After installation, configure the module in the supported engineering environment. Verify that the hardware is recognized and that each output is assigned to the intended safety-related function.

Review the applicable safety configuration, diagnostic behavior, and output settings. The required safety performance depends on the complete application and the selected configuration.

Changes to safety logic or output behavior should be managed through the site’s approved change-control process.

6.7 Commission and Validate the System

Commissioning must include more than checking whether an output switches.

The validation process should include:

1. Verification of the module model and system configuration.
2. Inspection of the field wiring and protective measures.
3. Confirmation that controller diagnostics are clear or understood.
4. Functional testing of each required output.
5. Verification of the intended safe-state response.
6. Testing of relevant fault-detection and recovery procedures.
7. Documentation of test results and approved configuration.

The machine should not be returned to normal operation until the relevant safety functions have passed the required verification and validation procedures.

7. Troubleshooting Common Problems

Problem 1: The Module Is Not Recognized

Possible causes:

• Incorrect hardware configuration.
• Incompatible controller or firmware.
• Incorrect safety bus base or terminal block.
• Improper module seating.
• Power or system-bus problems.

Recommended checks:

1. Review the controller’s hardware and diagnostic information.
2. Confirm the exact module number and supported system combination.
3. Isolate power before inspecting the module and base connections.
4. Verify the required supply and bus arrangement.
5. Restore power and repeat the approved startup procedure.

If the module remains unrecognized, investigate the configuration and associated hardware before assuming the module is defective.

Problem 2: An Output Does Not Activate

Possible causes:

• The safety application has not issued the required command.
• A safety condition or interlock remains unsatisfied.
• The output address is configured incorrectly.
• The connected field circuit is open.
• The load is incompatible or exceeds the rated current.
• The module has detected a fault and disabled the channel.

Recommended checks:

Review the safety controller’s diagnostics, confirm the required operating conditions, inspect the output configuration, and verify the field circuit against the wiring diagram.

Do not bypass an interlock or force a safety output merely to make equipment run. Determine why the safety function is withholding the command and correct the underlying issue.

Problem 3: Short-Circuit or Overload Diagnostics Appear

Possible causes:

• Damaged field wiring.
• A short circuit in the connected device.
• Excessive load current.
• Incorrect supply connections.
• A faulty field device.

Recommended checks:

Isolate the affected circuit according to the approved procedure. Inspect the wiring and load, and compare the measured or calculated current with the specified limits.

After correcting the fault, follow the documented recovery procedure. Do not repeatedly reset the output without identifying the cause.

Problem 4: The Output Operates Intermittently

Possible causes:

• Loose connections.
• Unstable power supply.
• Electrical interference.
• Intermittent field-device faults.
• Incorrect safety configuration.
• A recurring overload or wiring fault.

Inspect the installation under safe conditions, review diagnostic history, and check whether the problem correlates with a particular machine operation.

Where interference is suspected, review cable routing, grounding, and separation between control wiring and power circuits.

Problem 5: The Controller Reports a Safety-Related Error

Possible causes:

• Incorrect safety application configuration.
• A detected output or wiring fault.
• An incompatible hardware combination.
• An unexpected module state.
• A problem elsewhere in the safety control system.

Record the complete diagnostic message and follow the manufacturer’s troubleshooting procedure. Check associated inputs, controller status, output wiring, and connected devices before replacing hardware.

Any changes to the safety program must be reviewed, authorized, and validated according to the established safety process.

Problem 6: The Replacement Module Does Not Restore Operation

A replacement module may be installed correctly but still fail to restore the system because the original fault remains in the wiring, load, power supply, or safety configuration.

Confirm the replacement model, verify the required accessories, inspect the field circuits, and check the configured safety application. Complete the required safety-function tests before releasing the equipment for production.

8. Compatible System Components

The TM5SDO4TFS must be integrated with the system components specified for the applicable Modicon TM5 safety configuration.

The listed base and terminal block are important parts of the specified module arrangement. Always verify the complete hardware configuration before ordering accessories or replacing components.

9. Replacement and Alternative Selection

Selecting a replacement for a safety output module requires more detailed checks than selecting an ordinary digital output module.

The preferred replacement is an identical TM5SDO4TFS with a verified compatible revision and the correct associated components.

Another safety output module should be considered only when its compatibility and suitability have been established for the specific application. A standard discrete output module is not an acceptable substitute for a safety output module solely because the channel count or physical size is similar.

10. Key Advantages

Four Safety-Related Output Channels

The module provides four output channels for supported safety-related control applications, allowing several output functions to be integrated within the appropriate system architecture.

24 V DC Output Operation

Its 24 V DC rated output is suited to compatible low-voltage industrial control circuits, subject to the specified operating range and load limitations.

Integrated Output Protection

Short-circuit and overload protection help the module respond to certain electrical fault conditions. Correct circuit design and wiring remain essential.

Diagnostic Support

Module and output status indicators, together with controller diagnostics, can help maintenance personnel identify faults and reduce unnecessary component replacement.

Compact Modular Design

The supplied dimensions of 99 × 25 × 75 mm support space planning in modular control cabinets. The required base, terminal block, wiring clearance, and mounting arrangement must also be considered.

Support for Safety-System Integration

When used with a compatible controller, correct safety configuration, and validated application, the module can form part of an industrial machinery safety architecture.

11. Technical FAQs

Q1. What is the Schneider TM5SDO4TFS?

The TM5SDO4TFS is a safety DC discrete output module in the Schneider Electric Modicon TM5 family. It provides four solid-state safety-related digital outputs for supported automation configurations.

Q2. What are its dimensions and weight?

The supplied product data lists dimensions of 99 × 25 × 75 mm and a weight of 0.025 kg.

Q3. How many output channels does the module provide?

The module provides four discrete output channels.

Q4. What is the rated output voltage?

The rated output voltage is 24 V DC, with a specified operating range of 20.4–28.8 V DC.

Q5. What is the rated current per output?

The rated current is 0.5 A per channel, with a maximum current of 2 A per output common. All other load and operating limitations must also be observed.

Q6. Does the module include short-circuit protection?

Yes. The product specifications identify short-circuit and overload protection. The appropriate fault-recovery procedure must be followed after a protection event.

Q7. Which accessories are required?

The documented configuration requires the compatible TM5ACBM3FS safety bus base and TM5ACTB52FS safety terminal block. Confirm the approved arrangement for the actual system before installation.

Q8. Can the TM5SDO4TFS replace a standard TM5 output module?

Not as a direct assumption. Safety output modules and standard output modules serve different roles. Replacement must account for safety functions, electrical ratings, controller compatibility, configuration, and validation requirements.

Q9. Does the module alone guarantee SIL 3 or PL e for a machine?

No. Published module safety ratings do not automatically establish the safety performance of an entire machine. Achieving a required safety level depends on the complete architecture, compatible components, application design, configuration, installation, and validation.

Q10. What should be checked before purchasing a replacement?

Confirm the full model number, hardware revision, output characteristics, safety requirements, controller compatibility, and required safety-coded accessories. Also verify product condition and availability.

Q11. What should be done if a safety output remains disabled?

Review the controller diagnostics and safety application conditions, inspect the field circuit, and identify any detected overload or short circuit. Do not bypass safety logic or repeatedly reset the output without correcting the underlying problem.

12. Conclusion

The Schneider Electric TM5SDO4TFS Safety DC Discrete Output Module is designed to provide four 24 V DC solid-state outputs for supported safety-related industrial automation applications. Its 0.5 A rated current per channel, integrated electrical protection, and diagnostic functions make it a specialized component for compatible Modicon TM5 safety architectures.

Successful integration depends on selecting the correct safety bus base and terminal block, verifying controller compatibility, respecting electrical limits, and configuring the module according to the approved safety application. Installation and replacement must be followed by the required functional testing and safety validation.

For industrial automation engineers, maintenance teams, and equipment purchasers, the key consideration is not just physical compatibility but whether the module is appropriate for the intended safety function. Confirm the complete product specification and system requirements before installation or replacement.
