- Schneider
- TM5SDI4DFS
- Safe DC Discrete Input Module
- France
- 99 × 25 × 75 mm
- 0.025 kg
- Xiamen, China
- New & In Stock
- T/T, PayPal, Western Union
- 1 Year
- 1-3 Working Days
- DHL, UPS, TNT, FedEx and EMS.
- 24-Hour Service
- COO
- 5
Our advantage
Global Logistics
We have a 10-year logistics and express cooperation agreement, so our products can be shipped to any place in the world.
Brand new and original
Our products are imported in bulk from the place of origin. Because of the cooperative relationship, our products are all original and 100% new.
24-hour service
We provide 7*24 hours service to our customers. We will be there whenever you need us.
Price advantage
All our products are priced very favorably because we have our own warehouse and supply.
| Company Information | |||
| [email protected] | |||
| Mobile | +8615980777398 | ||
| +8615980777398 | |||
| 15980777398 |
1. Product Overview

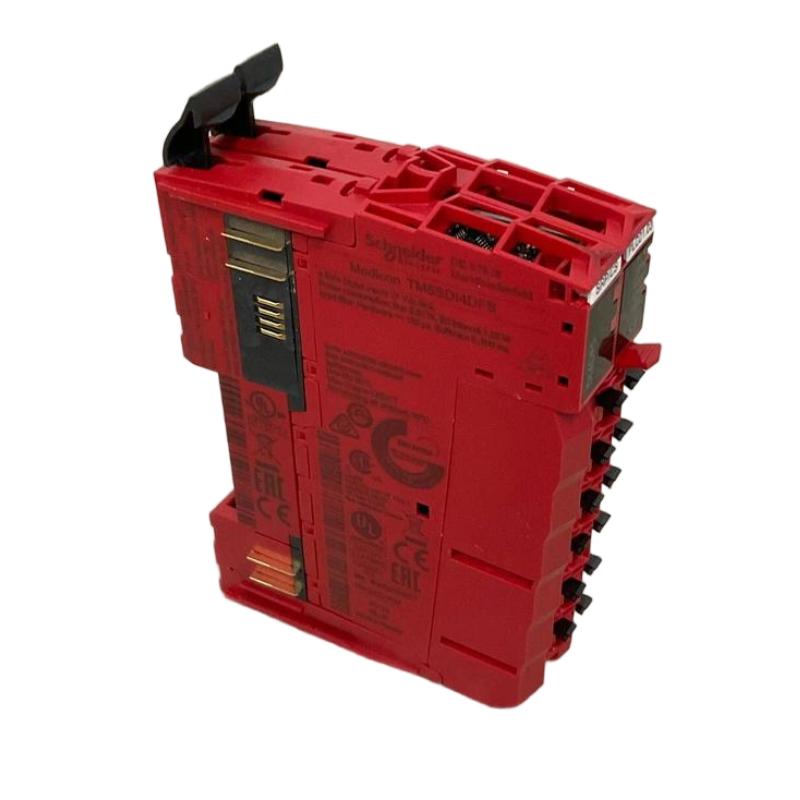

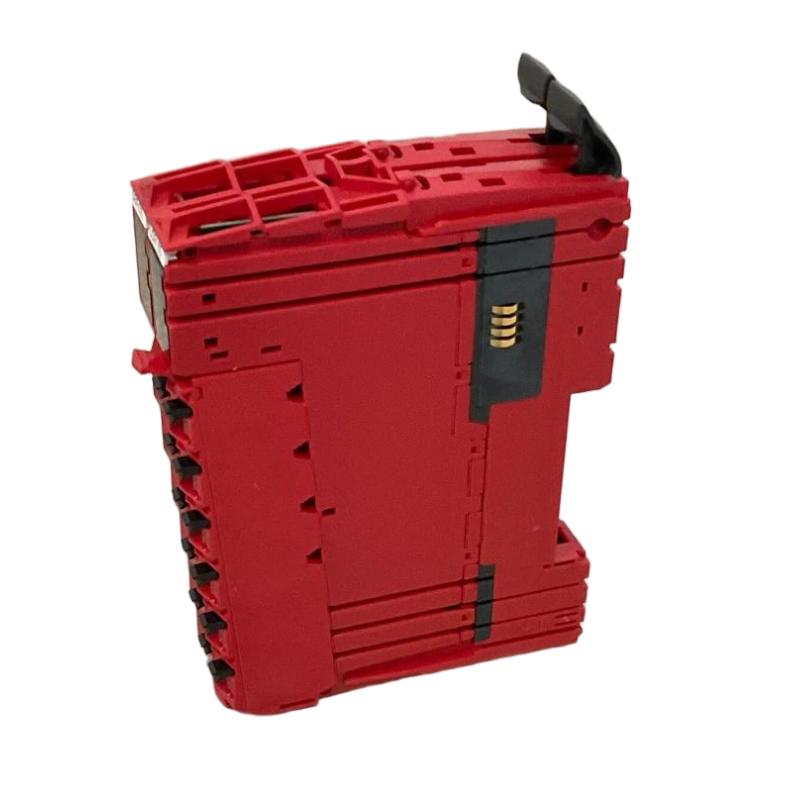

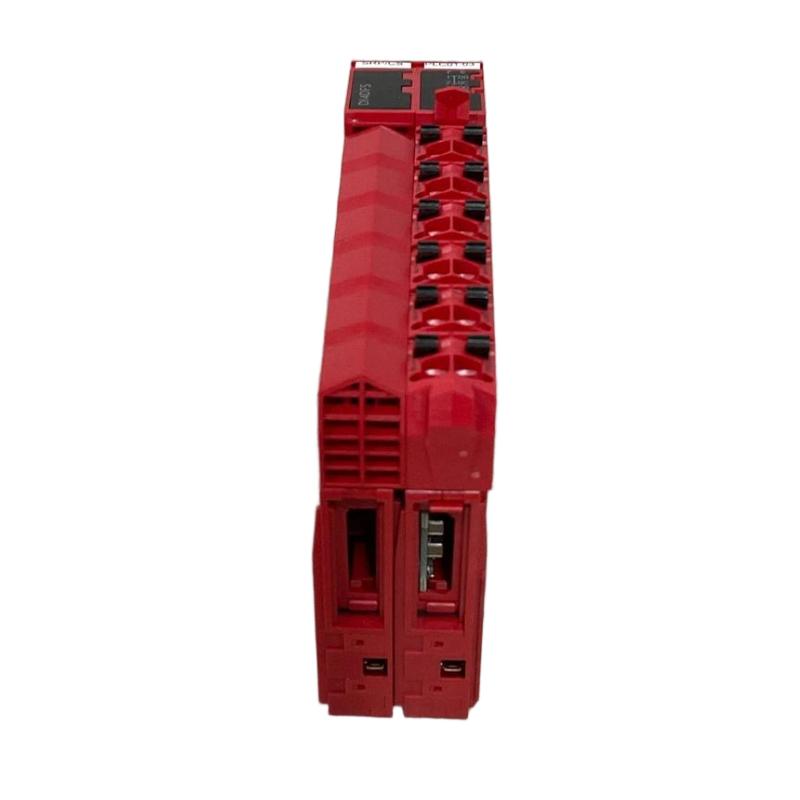

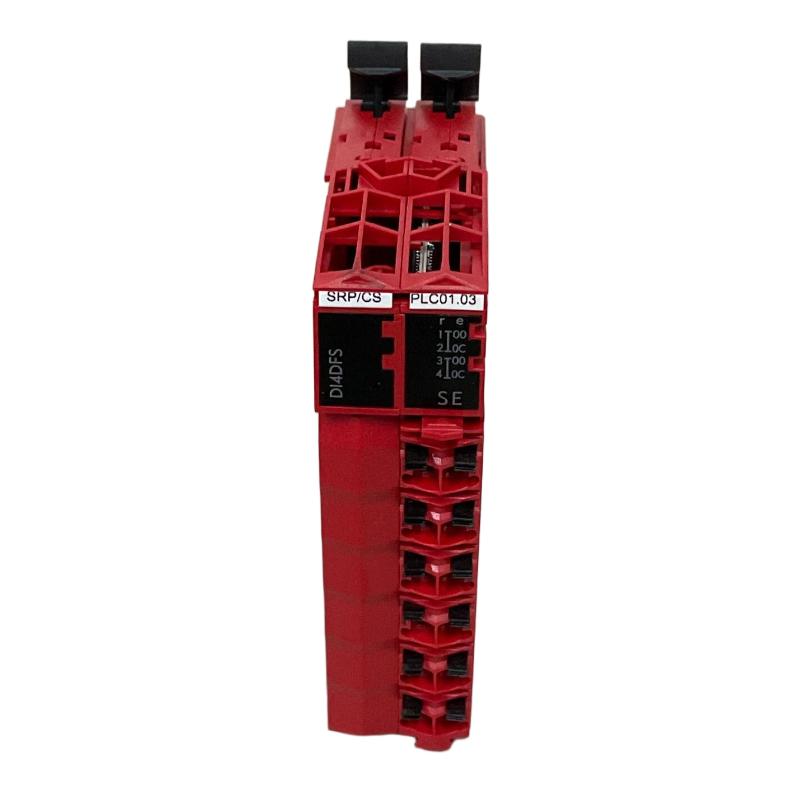

The Schneider TM5SDI4DFS Safe DC Discrete Input Module is an industrial automation component designed for applications involving discrete DC input signals. Identified by the model number TM5SDI4DFS, it is intended for integration into a compatible automation architecture where field signals must be acquired and processed by the control system.
Discrete DC input modules provide an interface between external devices and a controller. Depending on the application and supported hardware, connected devices may include switches, sensors, auxiliary contacts, and other equipment that generate binary status signals. These signals allow a controller to monitor operating conditions, coordinate machine sequences, and respond to changes in equipment status.
The term “Safe” in the product description indicates that safety-related requirements may be relevant to its application. However, the precise safety functions, certifications, supported controller combinations, and configuration requirements must be verified against the documentation for the exact product version. A safety-related module must be used within an approved and validated system architecture; the module alone should not be assumed to provide a complete safety function.
The TM5SDI4DFS has supplied dimensions of 99 × 25 × 75 mm and a stated weight of 0.025 kg. These specifications are useful when planning control cabinet layouts, mounting space, wiring access, and replacement requirements.
Before purchasing or installing this module, engineers should verify its input voltage range, channel configuration, terminal assignments, diagnostic capabilities, and compatibility with the intended controller and I/O system.
2. Technical Specifications
| Parameter | Specification |
|---|---|
| Brand | Schneider Electric |
| Model | TM5SDI4DFS |
| Product Type | Safe DC Discrete Input Module |
| Product Category | Industrial automation and control |
| Primary Function | Acquisition of compatible discrete DC input signals |
| Dimensions | 99 × 25 × 75 mm |
| Weight | 0.025 kg |
| Input Channel Count | Verify against exact product documentation |
| Input Voltage Range | Confirm from the applicable technical specifications |
| Input Signal Type | Discrete DC, subject to the module’s specified ratings |
| Safety Function | Verify the exact supported safety functionality |
| Safety Certification | Confirm the applicable certification and approved system configuration |
| Controller Compatibility | Verify supported controller, firmware, and I/O architecture |
| Installation Environment | Industrial control cabinet, subject to environmental ratings |
The dimensions and weight are based on the supplied product information. Electrical ratings, channel count, safety certification, and other unprovided specifications must be confirmed before installation or replacement.
3. Function and Working Principle
A safe DC discrete input module receives binary electrical signals from connected field devices and transfers the corresponding information into a compatible automation system. Its operation depends on the electrical design of the module and the configuration of the wider control system.
3.1 DC Signal Acquisition
Field devices provide DC signals representing specific machine or process conditions. Examples include switch states, equipment status contacts, and sensor outputs that are compatible with the module’s input requirements.
Correct voltage levels, polarity where applicable, wiring arrangements, and field-device characteristics are essential for reliable signal acquisition.
3.2 Input Signal Processing
The module processes the incoming electrical signal and determines its recognized state according to its hardware design. The exact signal thresholds, response times, filtering characteristics, and diagnostic behavior must be checked in the product documentation.
For safety-related applications, the permitted input configurations and fault-detection mechanisms are especially important. Engineers must not infer these capabilities solely from the product name.
3.3 Communication with the Controller
After processing an input signal, the module transfers the relevant input information through its supported automation architecture. The controller can then use that information in the control program.
Depending on the system design, input states may support equipment monitoring, operating sequences, permissive conditions, or safety-related logic implemented by appropriately rated and configured system components.
3.4 Safety-Related Signal Handling
Where the module is approved for safety-related use, it must be integrated according to the applicable safety design requirements. This may include compatible safety controllers, approved configuration tools, specified wiring practices, diagnostic procedures, and documented validation.
The exact safety integrity capability and permitted architecture must be established from the applicable technical documentation. Ordinary control logic should not be treated as a substitute for a validated safety function.
4. Role in Industrial Automation Systems
The TM5SDI4DFS may be used in compatible automation architectures that require DC discrete input acquisition and, where explicitly supported, safety-related input handling.
Machine Status Monitoring
Discrete DC signals can represent equipment conditions such as machine-ready status, position feedback, access-device status, or auxiliary contact states. These signals allow the controller to monitor field conditions and coordinate machine operation.
Sequence and Interlock Management
Input states can help a controller determine whether required conditions have been met before proceeding with a sequence. For example, a machine may wait for a position signal before starting the next movement.
When an interlock performs a safety function, the complete design must meet the applicable safety requirements. A standard input signal or ordinary PLC program should not be assumed to provide a certified safety function.
Distributed I/O Integration
Modular I/O architectures allow field signals to be collected in organized groups within a control system. This can simplify wiring, maintenance, and system expansion. The TM5SDI4DFS must be installed with the specific compatible hardware and software configuration.
Safety-System Integration
If the module is intended for a safety-related application, its use must follow the approved system architecture. Engineers should confirm the controller, communication path, firmware, configuration, wiring, and validation requirements before commissioning.
5. Industrial Applications
Manufacturing and Assembly Machinery
Automated production equipment uses discrete signals to monitor component positions, machine states, and process conditions. A compatible input module can transfer these signals to the control system for sequencing and monitoring.
Packaging Equipment
Packaging machines often depend on discrete sensors and switches to coordinate product movement, machine positioning, and process-stage completion. The selected module must support the connected devices’ electrical characteristics.
Material Handling Systems
Conveyors, transfer mechanisms, and automated handling equipment use discrete signals to monitor operating conditions and position states. Proper integration allows the controller to respond to these conditions according to the application logic.
Process Automation
Process equipment may use DC discrete signals for valve feedback, auxiliary equipment status, and other binary conditions. The module’s environmental ratings, input specifications, and system compatibility should be checked for the intended installation.
Safety-Related Machine Applications
Where the TM5SDI4DFS is approved for a safety-related function, it may be considered as part of the relevant safety architecture. Its exact permitted applications and certification must be confirmed before use. The entire safety function, including sensors, wiring, controller, outputs, and final elements, must be designed and validated appropriately.
6. Installation and System Integration
Correct installation is necessary to ensure reliable input acquisition and compliance with the requirements of the surrounding automation system.
6.1 Verify the Complete Model Number
Confirm that the product label identifies the module as TM5SDI4DFS. Compare the model number and applicable hardware revision with the system bill of materials and the required technical documentation.
Do not assume that similarly named TM5-series modules have the same electrical characteristics, channel configuration, or safety functionality.
6.2 Check Mounting Space
The supplied dimensions are 99 × 25 × 75 mm, with a stated weight of 0.025 kg. Ensure that the planned installation provides enough space for the module, its approved mounting arrangement, wiring bends, and required clearances.
The physical dimensions alone do not establish compatibility with a particular terminal base or I/O bus.
6.3 Isolate Power Before Wiring
Follow the site’s approved isolation and lockout procedures before installing, removing, or rewiring the module. Verify that the relevant equipment is in a safe condition.
Do not perform live insertion or removal unless the manufacturer explicitly permits the procedure for the exact hardware configuration.
6.4 Verify DC Input Wiring
Check each terminal against the correct wiring diagram. Confirm the permitted input voltage, signal type, polarity where applicable, common connections, and field-device requirements.
Incorrect wiring can lead to invalid signal states or damage to connected equipment. Never apply voltage until the permissible electrical ratings have been confirmed.
6.5 Confirm System and Safety Compatibility
Verify that the controller, I/O bus, terminal base, firmware, and engineering software support the exact module.
For safety-related applications, also verify the approved safety configuration, required companion components, diagnostic behavior, and validation procedure. Do not substitute an unapproved component or configuration in a safety-related circuit.
6.6 Configure and Commission
After installation, confirm that the module is recognized by the controller and that input states correspond to the actual field conditions.
Perform the required functional checks and review system diagnostics. For safety-related applications, complete the prescribed validation and documentation before releasing the equipment for operation.
7. Troubleshooting Common Problems
Problem 1: The Module Is Not Recognized
Possible causes:
- Incorrect installation or bus connection.
- Incompatible controller or I/O configuration.
- Missing system power.
- Incorrect hardware configuration or firmware.
- Module or connection failure.
Recommended checks:
- Confirm the complete model number.
- Inspect the module’s installation and bus connections with the equipment safely isolated.
- Check the controller’s hardware configuration and diagnostic messages.
- Verify power according to the applicable system documentation.
- Confirm compatibility before replacing the module.
Problem 2: A DC Input Signal Is Not Detected
Possible causes:
- Incorrect field wiring or polarity.
- Missing field-device power.
- Input voltage outside the specified range.
- Defective sensor or switch.
- Incorrect input mapping or configuration.
Recommended checks:
- Compare the wiring with the correct terminal diagram.
- Confirm that the field device is operating properly.
- Verify the signal using an appropriate instrument and safe procedure.
- Check the input state reported by the controller.
- Investigate the field device, wiring, and module separately.
Problem 3: Input States Are Intermittent
Possible causes:
- Loose connections or damaged conductors.
- Electrical interference.
- Inadequate grounding or unsuitable cable routing.
- Unstable field-device operation.
- Signal characteristics outside the specified input requirements.
Recommended checks:
Inspect wiring and terminals with the system safely isolated. Review cable routing and grounding practices, and confirm that the field signal complies with the module’s documented requirements.
Problem 4: Controller Diagnostics Report an I/O Fault
Possible causes:
- Communication interruption.
- Configuration mismatch.
- Power-supply problems.
- Hardware or connection failure.
Recommended checks:
Record the complete diagnostic message, review the module and controller status, and follow the applicable diagnostic procedure. Avoid repeatedly resetting faults without identifying their cause.
Problem 5: A Safety-Related Test Fails
Possible causes:
- Incorrect safety configuration.
- Incompatible hardware or firmware.
- Wiring that differs from the approved design.
- A fault elsewhere in the safety chain.
- Incomplete commissioning or validation.
Recommended checks:
Stop the affected commissioning activity and follow the approved safety procedure. Review the entire safety function, diagnostic records, and configuration with qualified personnel. Do not bypass safety functions or force the system into operation to clear a fault.
8. Compatible System Components
The exact compatible components must be established from the module’s technical documentation and the intended system architecture.
| Component Category | Purpose | Verification Required |
|---|---|---|
| Compatible automation or safety controller | Processes input information and executes the approved control logic | Supported controller, firmware, and architecture |
| TM5-series bus or terminal components | Provide the required mechanical and electrical connection | Exact module and base compatibility |
| Compatible DC sensors and switches | Generate discrete input signals | Input voltage, signal type, and wiring |
| Power supply | Powers the relevant system components | Required voltage, current capacity, and distribution |
| Engineering and configuration software | Supports configuration and diagnostics | Supported hardware and software versions |
| Safety-related system components, where applicable | Form part of the approved safety architecture | Certification, compatibility, and validation requirements |
| Cabinet and wiring accessories | Support mounting and electrical connections | Installation and environmental requirements |
Do not assume that all components in the same product family are interchangeable. Verify the full configuration before purchasing or commissioning replacement equipment.
9. Replacement and Alternative Selection
Selecting a replacement for the Schneider TM5SDI4DFS requires checking its electrical, mechanical, functional, and safety-related requirements.
| Selection Factor | What to Verify |
|---|---|
| Exact model | Confirm TM5SDI4DFS and the applicable hardware revision |
| Input functionality | Verify support for the required DC discrete signals |
| Channel configuration | Confirm the required number and arrangement of inputs |
| Electrical characteristics | Match voltage range, signal thresholds, and wiring requirements |
| System compatibility | Confirm controller, bus, terminal base, and firmware support |
| Safety requirements | Verify certification and approved use in the intended architecture |
| Physical dimensions | Compare against the supplied dimensions of 99 × 25 × 75 mm |
| Configuration | Determine whether hardware or software changes are required |
| Commissioning | Perform the required functional tests and safety validation |
A standard discrete input module should not be treated as a substitute for a safety-related input module unless the replacement has been formally assessed and approved for the intended application.
10. Key Advantages
When correctly selected and integrated, a compatible safe DC discrete input solution can offer several practical benefits:
- Compact installation: The supplied dimensions support control cabinet layout planning.
- DC signal acquisition: Allows compatible field-device states to be incorporated into the automation system.
- Modular system integration: Supports organized I/O arrangements within compatible architectures.
- Equipment monitoring: Enables the controller to respond to discrete operating conditions.
- Diagnostic support: Available system diagnostics can assist with fault investigation and maintenance.
- Safety-system integration: Where explicitly certified and correctly configured, the module may contribute to an approved safety architecture.
These benefits depend on the exact module specifications, compatible system components, correct wiring, and proper commissioning.
11. Technical FAQs
What is the Schneider TM5SDI4DFS?
The Schneider TM5SDI4DFS is identified as a Safe DC Discrete Input Module for industrial automation applications. Its exact input configuration and permitted safety-related use must be confirmed from the applicable product documentation.
What are the dimensions and weight?
The supplied dimensions are 99 × 25 × 75 mm, and the stated weight is 0.025 kg.
What type of signals does the module handle?
The product description identifies it as a DC discrete input module. The permitted voltage range, input thresholds, wiring arrangement, and supported field-device types must be verified before connection.
Is the TM5SDI4DFS suitable for safety-related applications?
Its suitability depends on the exact certification, supported controller, approved architecture, and application requirements. Verify these details before using it in a safety function.
Can it be installed in any Schneider PLC system?
No. Compatibility depends on the controller, I/O bus, terminal base, firmware, and configuration. The complete system combination must be checked.
Why might a connected input fail to change state?
Potential causes include incorrect wiring, a missing field-device supply, an unsuitable voltage level, a faulty sensor, configuration errors, or hardware failure. Begin by checking the wiring and documented electrical requirements.
Can it replace a standard discrete input module?
Not automatically. A safety-related input module and a standard input module may have different functions and approvals. Any substitution must be assessed against the application requirements and the approved system design.
What should be checked before commissioning?
Verify the model number, electrical ratings, system compatibility, wiring, configuration, and diagnostic status. If the module is used in a safety-related application, complete the prescribed safety validation before the equipment enters service.
12. Conclusion
The Schneider TM5SDI4DFS Safe DC Discrete Input Module is an industrial automation component intended for compatible systems that require discrete DC signal acquisition. Its supplied dimensions of 99 × 25 × 75 mm and weight of 0.025 kg provide useful information for cabinet planning and replacement evaluation.
Before installation, engineers should verify the complete electrical specifications, input configuration, controller compatibility, and any applicable safety certification. Correct wiring, configuration, diagnostics, and commissioning are essential for dependable operation.
For safety-related applications, the module must be used only within an approved and validated system architecture. Confirming the exact product documentation and compatibility requirements is the most important step when selecting, installing, or replacing the TM5SDI4DFS.
