1. Product Overview

The Schneider Electric TM3DM32R is a mixed digital input/output expansion module in the Modicon TM3 series. It combines 16 digital inputs and 16 relay outputs in one compact module, allowing a compatible programmable logic controller (PLC) to monitor field signals and control external equipment through a single expansion unit.

Designed for industrial automation applications, the TM3DM32R provides a practical solution for systems that require both signal acquisition and relay-based switching. Its 16 digital inputs support 24 V DC signals and sink/source wiring configurations. The 16 relay outputs use normally open contacts and can switch compatible electrical loads within the specified voltage and current limits.

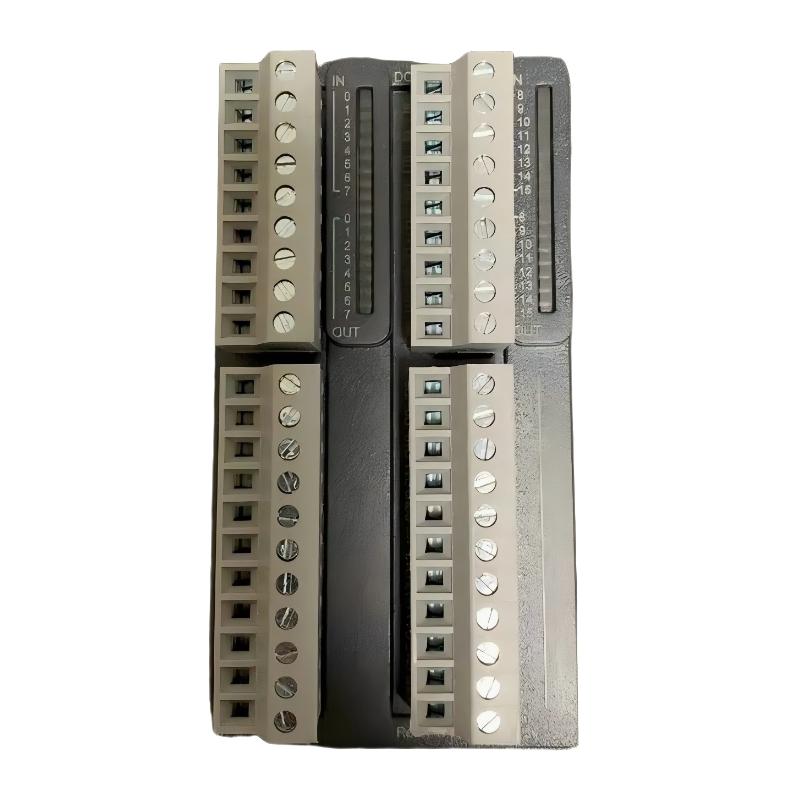

The module uses removable screw terminal blocks for field wiring. This arrangement allows sensors, switches, relays, indicators, contactor control circuits, and other compatible devices to be connected to the PLC system. Each input and output channel has a corresponding status indicator to support commissioning and maintenance.

As part of the Modicon TM3 expansion platform, the TM3DM32R is intended for compatible Modicon M221, M241, M251, and M262 controller configurations, subject to the relevant hardware and software requirements. It can be used to extend the onboard I/O capacity of a control system without requiring a complete controller replacement.

The TM3DM32R is suitable for machine automation, packaging equipment, material handling, assembly systems, and other industrial applications where a combination of 24 V DC digital inputs and relay switching outputs is required.

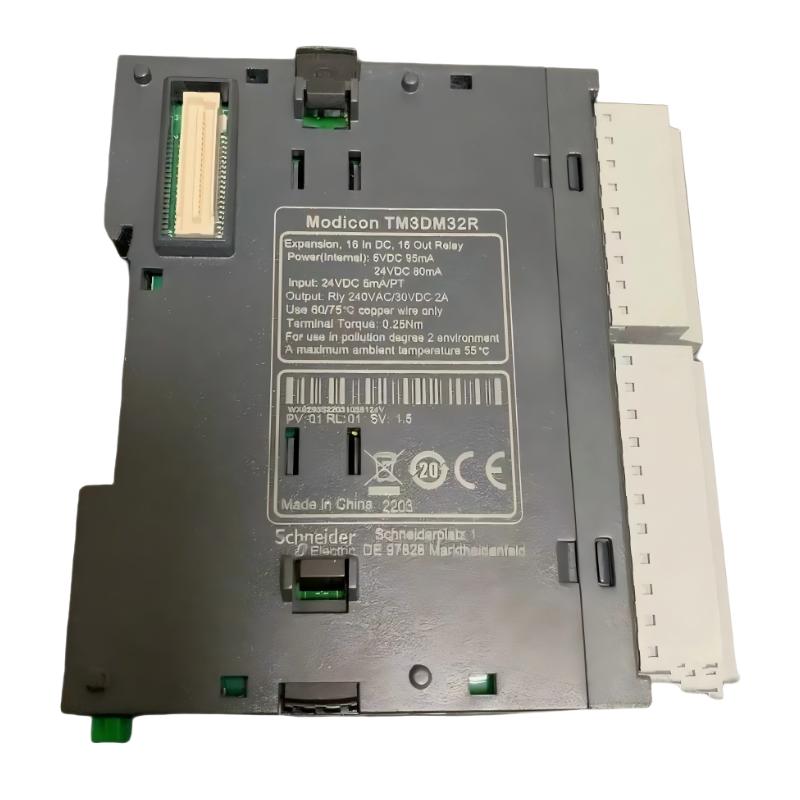

2. Technical Specifications

The listed dimensions follow the supplied product information. Confirm the dimensional orientation and mounting clearance against the physical unit or the applicable Schneider Electric mechanical drawing before cabinet layout.

3. Function and Working Principle

The TM3DM32R combines digital signal acquisition and relay output control in one expansion module. Its input section monitors external digital signals, while its output section switches relay contacts in response to commands from the PLC program.

3.1 Digital Input Signal Acquisition

The module provides 16 digital input channels designed for 24 V DC signals. These inputs can receive signals from compatible proximity sensors, limit switches, push buttons, selector switches, auxiliary contacts, and other field devices.

When an input signal reaches the specified ON-state threshold, the corresponding input channel changes state and the information becomes available to the controller through the TM3 expansion bus.

The PLC program can then use the input status to determine machine conditions, evaluate interlocks, trigger sequences, or update alarms. For example, a limit switch can indicate that a moving mechanism has reached a defined position.

3.2 Sink/Source Input Compatibility

The TM3DM32R supports sink/source input logic. This allows the input circuit to be configured for compatible positive-logic or negative-logic field wiring arrangements.

The selected wiring method must match the electrical characteristics of the connected sensors and switches. Incorrect common connections or incompatible signal polarity can cause an input to remain permanently ON or OFF.

Engineers should follow the module wiring diagram and verify the input common connections before commissioning.

3.3 Relay Output Switching

The module provides 16 normally open relay output channels. When the PLC program commands an output, the corresponding relay changes contact state, allowing the connected circuit to be switched.

Relay outputs are useful when a control system needs to switch compatible AC or DC loads rather than provide a transistor-type output signal. Depending on the load and electrical ratings, the outputs can be used in control circuits for contactors, indicator lamps, interface relays, solenoid valves, and other equipment.

The relay output is a switching contact, not an analog control signal. It does not generate a variable voltage or current reference.

3.4 PLC-Based Control Sequence

The TM3DM32R operates under the control of the compatible PLC. The controller reads input states, executes the application logic, and updates output commands.

For example, a machine sequence may use an input from a position switch to confirm that a component has arrived at a workstation. The PLC then evaluates the operating conditions and activates a relay output to operate a compatible control circuit.

The module provides the physical I/O interface, while sequencing, timing, interlocking, alarms, and process decisions are implemented in the controller program.

3.5 Electrical Isolation

The module includes specified isolation between input circuits, output circuits, and internal logic. Isolation ratings depend on the circuit relationship and are defined in the technical documentation.

Isolation helps separate different parts of the control system electrically, but it does not eliminate the need for proper grounding, wiring practices, external protection, or compliance with electrical installation requirements.

4. Role in Industrial Control Systems

The TM3DM32R provides a combined interface for field signal monitoring and relay-based control. It is particularly useful in applications where both input and output capacity must be expanded.

4.1 Combined I/O Expansion

Instead of installing separate modules for every digital input and relay output requirement, the TM3DM32R provides 16 inputs and 16 relay outputs in one unit.

This combination can simplify hardware selection for machines with a balanced requirement for signal monitoring and switched control outputs. The actual benefit depends on the I/O count, load characteristics, and system architecture.

4.2 Machine Status Monitoring

The input channels can collect status signals from switches, sensors, and auxiliary contacts. The controller can use this information to monitor operating conditions and determine whether a sequence may proceed.

Typical signals include guard-position feedback, cylinder end-position sensors, material-presence detection, motor auxiliary contacts, and operator push buttons. Safety-related functions must use appropriately rated safety devices and architectures; a standard TM3DM32R input is not, by itself, a safety-rated input.

4.3 Relay-Based Equipment Control

The relay outputs allow the PLC to switch compatible electrical circuits. Depending on the application, they may control interface relays, contactor coils, indicator lamps, or other loads within the module’s rated limits.

For inductive loads, appropriate external suppression is essential. A relay output should not be assumed to include built-in short-circuit protection.

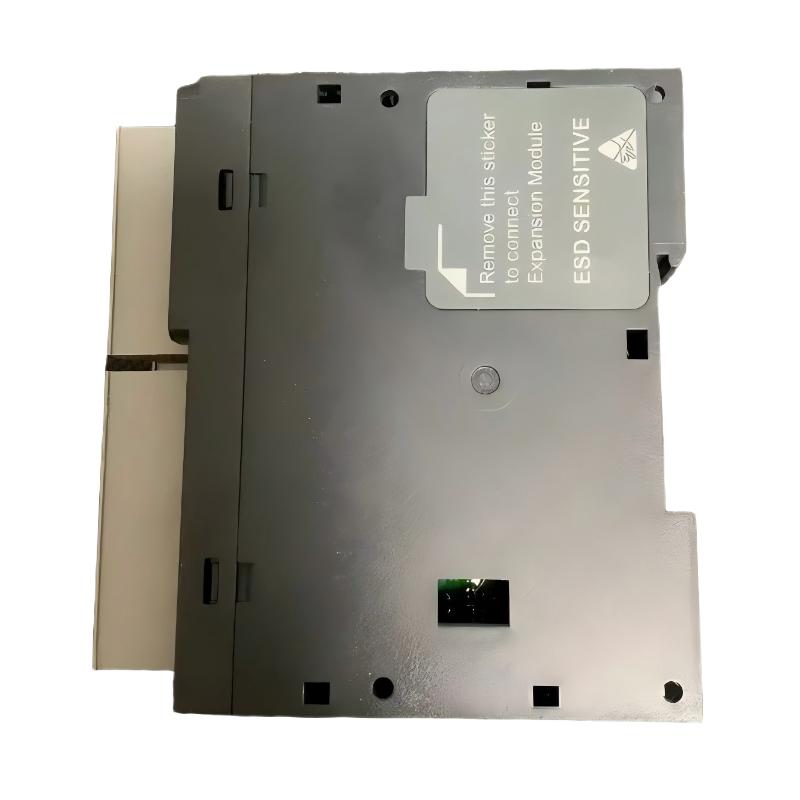

4.4 Modular PLC Architecture

The TM3DM32R connects to a supported Modicon control system through the TM3 expansion interface. This modular approach allows system designers to add I/O capacity while retaining the main controller, provided the complete system remains within the controller’s supported expansion limits.

The permitted module count, current consumption, and physical arrangement should be checked for the selected controller and installed expansion modules.

4.5 Maintenance and Troubleshooting

Individual channel LEDs provide visual feedback about input and output states. Maintenance personnel can compare the LED status with field-device operation and PLC diagnostics to help identify wiring errors, failed sensors, incorrect output commands, or load-related problems.

LED indicators assist troubleshooting but do not replace electrical measurements or verification of the connected circuit.

5. Industrial Applications

5.1 Packaging Machinery

Packaging machines commonly use many digital sensors and switched actuators. Inputs may monitor package presence, guard switches, material position, and mechanism travel. Relay outputs may operate interface circuits, indicator lamps, or compatible control devices.

The TM3DM32R can combine these functions in one expansion module, subject to the electrical requirements of the connected equipment.

5.2 Conveyor and Material Handling Systems

Conveyor systems use digital signals to detect products, monitor position, and coordinate transfer between machine sections. Relay outputs may be used for compatible contactor or interface-relay control circuits.

The module can support this type of application where the required load current, switching frequency, and electrical protection are within the specified limits.

5.3 Automated Assembly Equipment

Assembly machines often require digital feedback from fixtures, clamps, sensors, and operator controls. The PLC uses these signals to coordinate the sequence and command external devices.

The TM3DM32R provides a combined input and relay output interface for supported control architectures. Safety functions such as emergency stopping and guard monitoring must be implemented using suitable safety-rated components and system design.

5.4 Industrial Test Stations

Automated test stations may use inputs to detect fixture positions, component presence, and completion signals. Relay outputs can switch compatible external control circuits or trigger auxiliary equipment.

The module is suitable where discrete ON/OFF control is sufficient and analog measurement or high-speed switching is not required from the output section.

5.5 Pump and Auxiliary Equipment Control

Industrial utility systems may use digital inputs to monitor pressure-switch contacts, level switches, and equipment status. Relay outputs can command compatible control circuits for pumps or auxiliary equipment.

The TM3DM32R should be connected to the appropriate contactor or interface circuit when the actual motor or load current exceeds the relay output rating. Motor starting and protection must be handled by correctly rated equipment.

5.6 HVAC and Building Equipment

Ventilation and facility-control systems often combine equipment status monitoring with discrete switching functions. The module can collect digital signals and control compatible relay circuits in an appropriate PLC-based installation.

Selection should account for the electrical ratings, environmental conditions, wiring distance, and control requirements of the facility equipment.

6. Installation and System Integration

Proper installation is necessary to ensure reliable input detection, safe relay switching, and stable communication with the controller.

6.1 Controller Compatibility

The TM3DM32R belongs to the Modicon TM3 expansion range. Confirm the supported controller model, firmware, programming software, and expansion arrangement before integrating the module.

Although the TM3 range is associated with Modicon M221, M241, M251, and M262 controllers, compatibility should be verified for the exact model and configuration.

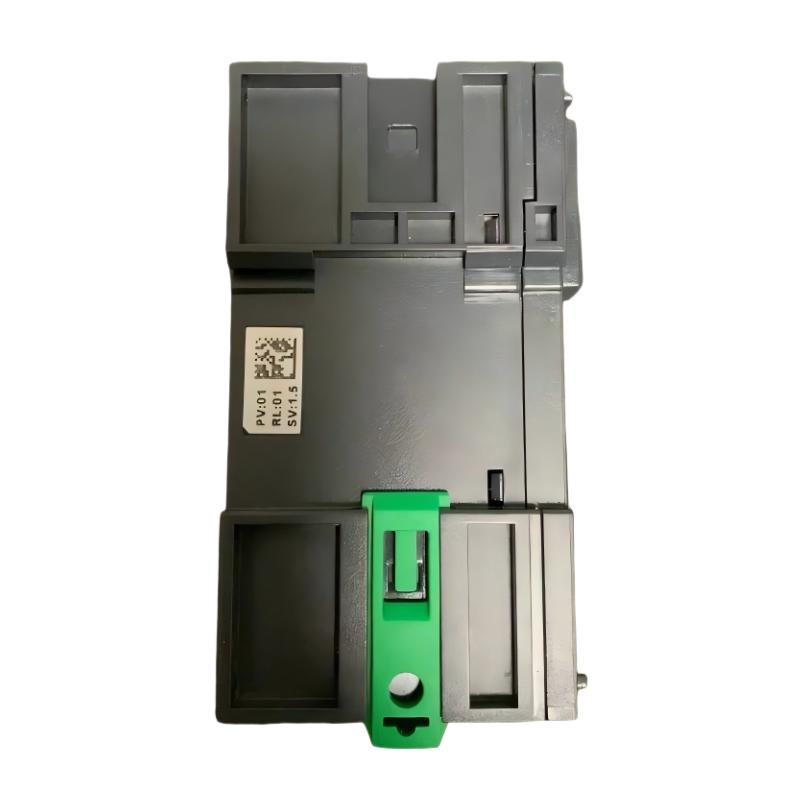

6.2 Mounting and Cabinet Layout

Install the module using the specified mounting arrangement and ensure that the cabinet provides adequate space for the unit, terminal blocks, wiring ducts, and maintenance access.

The module has an IP20 rating and should be installed in an enclosure that provides suitable protection against dust, moisture, accidental contact, and other environmental hazards.

Avoid excessive heat, vibration, and electrical interference. Ensure that the module can be accessed safely for inspection and replacement.

6.3 Input Wiring

The digital input section uses 24 V DC signals. Verify the sensor voltage, input polarity, common connections, and sink/source wiring method before connecting field devices.

The documented input thresholds distinguish the ON and OFF states. Signals within an undefined transition region should not be relied upon for deterministic state detection.

Use suitable conductors and follow the specified terminal and wiring requirements. For long cable runs, assess electrical noise and voltage drop even when the installation is within the stated cable-length guidance.

6.4 Relay Output Wiring

Each output is a normally open relay contact with a rated current of 2 A per output. The documented maximum current is 4 A per common line, so the common-line limit must also be respected.

The module does not provide built-in short-circuit protection for the relay outputs. Select appropriate fuses or protective devices for the external circuits and the wiring.

For inductive DC loads, use an appropriate freewheeling diode or other suitable suppression device. For inductive AC loads, use a suitable RC snubber or other approved suppression arrangement. The protective device must be selected for the actual load and circuit voltage.

Do not connect capacitive loads. Verify load type, inrush current, switching frequency, and electrical life requirements before using a relay channel.

6.5 Electrical Load Planning

The rated current of an output does not mean every load can be switched indefinitely at that current under all conditions. Relay life depends on the switched voltage, current, load type, switching frequency, ambient temperature, and suppression arrangement.

Where the connected equipment exceeds the permitted output ratings, use an appropriately rated contactor or interface relay. Do not connect a motor or high-current load directly to the module unless the complete load and switching conditions are explicitly within the product specifications.

6.6 Software Configuration

Use the supported Schneider Electric engineering software to configure the controller and identify the expansion module. Assign the input and output channels to the relevant variables in the PLC program.

Develop the application logic so that each output is activated only when the required operating conditions are met. Include suitable interlocks, fault handling, startup behavior, and response to communication or controller faults where appropriate.

6.7 Commissioning and Functional Testing

Before normal operation, complete the following checks:

• Verify the model number and terminal assignments.
• Confirm the 24 V DC input supply and sensor compatibility.
• Check sink/source wiring and input common connections.
• Verify relay output wiring, load ratings, and common-line current.
• Confirm external overcurrent protection and inductive-load suppression.
• Test each input channel with its field device.
• Test each output using a controlled and appropriately protected load.
• Verify that PLC variables correspond to the correct physical channels.
• Check the response to loss of field power and other foreseeable faults.
• Record the final wiring and configuration for maintenance.

If a channel does not operate correctly, investigate the field device, wiring, common connection, PLC program, external protection, and load characteristics before replacing the module.

7. Compatible System Components

The TM3DM32R is intended to be used with compatible Modicon control-system components.

Component selection must account for controller compatibility, expansion limits, load current, terminal arrangement, power requirements, and the environmental conditions of the installation.

8. Recommended Alternative Models

The following Modicon TM3 modules may be considered when evaluating a different I/O arrangement. They do not all provide the same combination of inputs and relay outputs as the TM3DM32R.

Confirm exact model availability and technical specifications before selecting an alternative. In particular, compare input count, output count, relay type, terminal style, electrical ratings, common-line limits, and compatibility with the existing PLC configuration.

9. Key Advantages

Combined Input and Relay Output Functions

The TM3DM32R combines 16 digital inputs and 16 relay outputs in one module. This can reduce the number of separate expansion modules needed for systems requiring both functions.

24 V DC Digital Inputs

The input section supports standard 24 V DC industrial signals and sink/source wiring arrangements, making it suitable for a broad range of compatible sensors and switches.

Relay-Based Switching

Normally open relay outputs provide switching contacts for compatible AC or DC control circuits. This can be useful when the connected equipment requires relay contacts rather than transistor outputs.

Individual Channel Indicators

Input and output status LEDs provide immediate visual feedback during installation, commissioning, and maintenance.

Removable Screw Terminals

Removable screw terminal blocks support field wiring and can simplify wiring preparation and service when used according to the manufacturer’s instructions.

Modular System Expansion

The module integrates into supported Modicon TM3 configurations, allowing a compatible PLC system to gain additional digital input and relay output capacity.

Flexible Industrial Applications

The combination of signal acquisition and relay switching makes the module suitable for packaging, assembly, conveyor, utility, and other discrete-control applications where the electrical requirements match its ratings.

10. Technical FAQs

Q1: What is the Schneider TM3DM32R?

The Schneider Electric TM3DM32R is a mixed digital I/O expansion module in the Modicon TM3 series. It provides 16 digital inputs and 16 relay outputs.

Q2: How many inputs and outputs does the TM3DM32R have?

It has 16 digital inputs and 16 relay outputs, for a total of 32 I/O channels.

Q3: What is the input voltage?

The rated input voltage is 24 V DC. Verify the sensor’s output type, signal polarity, and common wiring before connecting it.

Q4: What type of outputs does the module use?

The module uses 16 normally open relay outputs. Each output is rated for up to 2 A, subject to the specified load, voltage, common-line limits, and power limitations.

Q5: Can the relay outputs switch AC and DC loads?

The relay contacts can switch compatible AC or DC loads within the product’s specified electrical limits. The permitted load depends on voltage, current, load type, and switching conditions. Consult the applicable power-limit tables before use.

Q6: Does the TM3DM32R have built-in short-circuit protection?

No. The relay outputs do not have built-in short-circuit protection. Appropriate external circuit protection must be provided.

Q7: Can it control a motor directly?

Do not assume that a relay output can directly switch a motor. Motor starting current and inductive switching conditions can exceed the output’s limits. Use an appropriately rated contactor or interface device and provide the required protection.

Q8: Which PLCs can use the TM3DM32R?

It is designed for compatible Modicon TM3 expansion configurations, including supported M221, M241, M251, and M262 systems. Verify the exact controller and expansion limits before installation.

Q9: What are the dimensions and weight?

The supplied product information lists dimensions of 95 × 84.15 × 51 mm and a weight of 0.208 kg. Confirm dimensional orientation against the mechanical drawing before using these values for cabinet design.

Q10: What is the mechanical life of the relays?

The specified mechanical life is 20 million operations. Actual electrical life is lower and depends on the switched voltage, current, load type, switching frequency, and operating conditions.

Q11: Can the module be used with inductive loads?

Yes, when the load is compatible with the relay ratings and the required external suppression is installed. A suitable freewheeling diode is commonly used for inductive DC loads, while a suitable RC snubber or other approved suppression device may be required for inductive AC loads.

Q12: Is the TM3DM32R an analog I/O module?

No. It is a digital mixed I/O module. It handles discrete ON/OFF input signals and relay switching outputs rather than continuously variable analog signals.

11. Conclusion

The Schneider Electric TM3DM32R is a mixed digital I/O expansion module designed for compatible Modicon TM3 control systems. With 16 digital inputs and 16 normally open relay outputs, it combines field signal acquisition and relay-based switching in one module.

Its 24 V DC input interface, removable screw terminals, individual channel indicators, and modular integration make it suitable for a range of discrete industrial automation applications. The relay outputs can control compatible electrical circuits when their voltage, current, load type, and switching frequency remain within the specified limits.

For reliable operation, engineers should verify controller compatibility, input wiring, relay load ratings, common-line current, external protection, and inductive-load suppression. Correct selection and installation help ensure that the TM3DM32R can operate effectively within the wider PLC control system.
