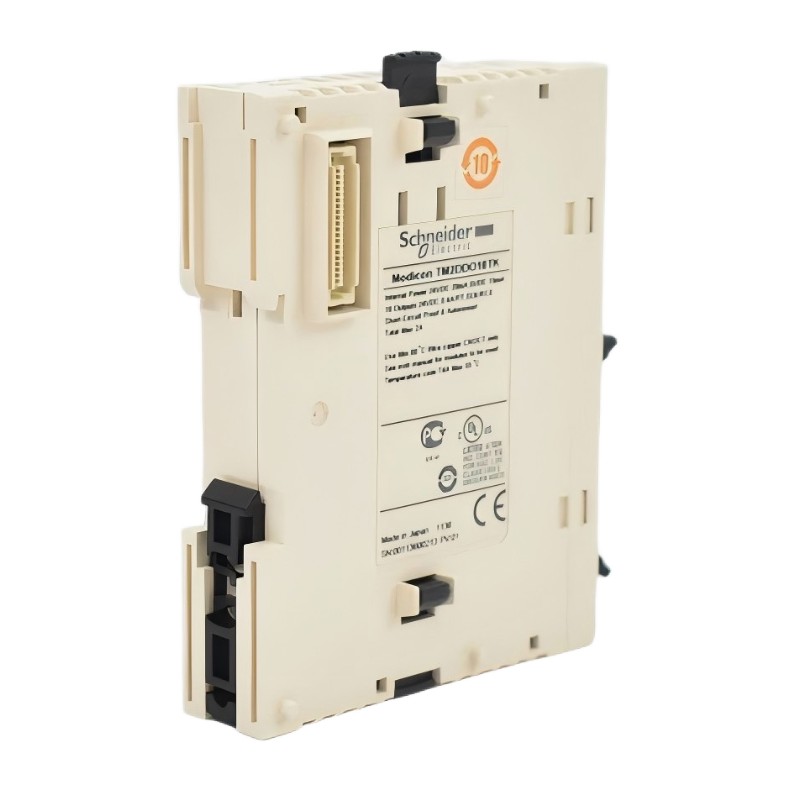

1. Product Overview

The Schneider Electric TM2DDO16TK is a 16-channel discrete output module designed for industrial automation and PLC-based control systems. Part of the Modicon M238 controller ecosystem, this module provides 24 V DC transistor outputs for controlling compatible industrial devices, including indicator lights, interface relays, solenoid valves, and other low-power control loads.

Featuring source-type transistor outputs, a single HE10 output connector, and a compact design, the TM2DDO16TK enables a controller to manage multiple discrete output signals in a relatively small installation space. Its fast switching response makes it suitable for applications requiring frequent on/off control and reliable communication between a PLC program and field devices.

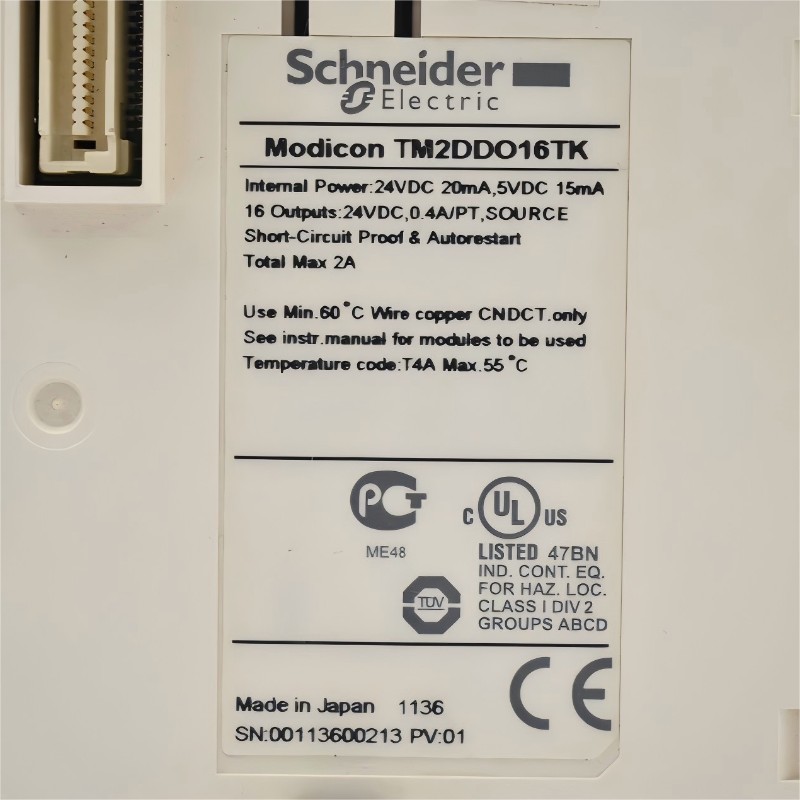

The TM2DDO16TK supports 16 output channels with a maximum rated output current of 0.4 A per channel and a maximum current of 2 A for the shared output common. Built-in overload and short-circuit protection with automatic reactivation helps protect the module under specified fault conditions.

With dimensions of 90 × 81.3 × 21.4 mm and a weight of approximately 0.07 kg, the Schneider TM2DDO16TK is a compact option for industrial control cabinets, machine automation, and equipment maintenance projects requiring a compatible discrete output module.

2. Technical Specifications

Note: Always confirm the exact electrical limits and installation requirements against the applicable Schneider Electric hardware documentation before commissioning.

3. Function and Working Principle

The primary function of the Schneider TM2DDO16TK is to convert digital commands from a compatible controller into 24 V DC transistor output signals. These signals allow the control system to switch compatible field devices between defined operating states.

3.1 Digital Output Signal Conversion

The controller executes its application program and determines the required state of each output channel. The TM2DDO16TK receives the corresponding output commands and switches the associated transistor circuit.

When an output is commanded ON, the source-type transistor output supplies the appropriate positive-side switching signal to a compatible load. When the output is commanded OFF, the transistor switches off, interrupting the normal output current path.

This process allows the PLC to control external equipment according to programmed logic, sensor feedback, timing sequences, and machine operating conditions.

3.2 Sixteen Independent Output Commands

The TM2DDO16TK provides 16 discrete output points. Each channel can be assigned to a separate control function, subject to the module’s electrical ratings and application configuration.

Typical output assignments include:

• Operating and status indicator lamps
• Interface relays and contactor control circuits
• Compatible solenoid valves
• Machine status signals
• Auxiliary control devices
• Discrete command signals for other automation equipment

The 16-channel arrangement helps reduce the number of individual output modules needed in applications with multiple discrete control points.

3.3 Fast Switching Response

The module has a specified switching response time of approximately 450 microseconds for both turn-on and turn-off transitions. This fast response supports applications involving repeated switching, machine sequencing, and time-sensitive discrete control.

Actual system response also depends on PLC scan time, application logic, field wiring, load characteristics, and the response of connected equipment.

3.4 Output Protection

The TM2DDO16TK incorporates overcurrent and short-circuit protection with automatic reactivation under specified conditions. When an abnormal current condition occurs, the module’s protection mechanism can switch off the outputs. Reactivation occurs when the relevant protection conditions permit it.

Protection features do not eliminate the need for correctly rated external fuses, suitable wiring, and proper load selection. The total current drawn through the shared common must remain within the specified limit.

4. Role in Industrial Control Systems

The TM2DDO16TK serves as the output interface between a PLC controller and external equipment. It enables software commands to operate electrical devices used in manufacturing, processing, packaging, and machine control.

4.1 PLC Output Expansion

In systems requiring more discrete output points than the controller can provide directly, a compatible expansion arrangement can help accommodate additional field devices. The TM2DDO16TK offers 16 transistor outputs within a compact module footprint.

Compatibility must be checked against the controller model, hardware generation, firmware, and supported I/O configuration. The TM2DDO16TK belongs to the Modicon M238 product ecosystem and should not be assumed to work with every Schneider Electric PLC.

4.2 Machine Sequence Control

Many industrial machines operate through a series of programmed steps. The PLC may activate a valve, turn on an indicator, energize an interface relay, or issue a command to another device as the machine progresses through its sequence.

The TM2DDO16TK provides the discrete output points required for these functions, provided the connected loads are compatible with its output type and electrical ratings.

4.3 Integration with Field Devices

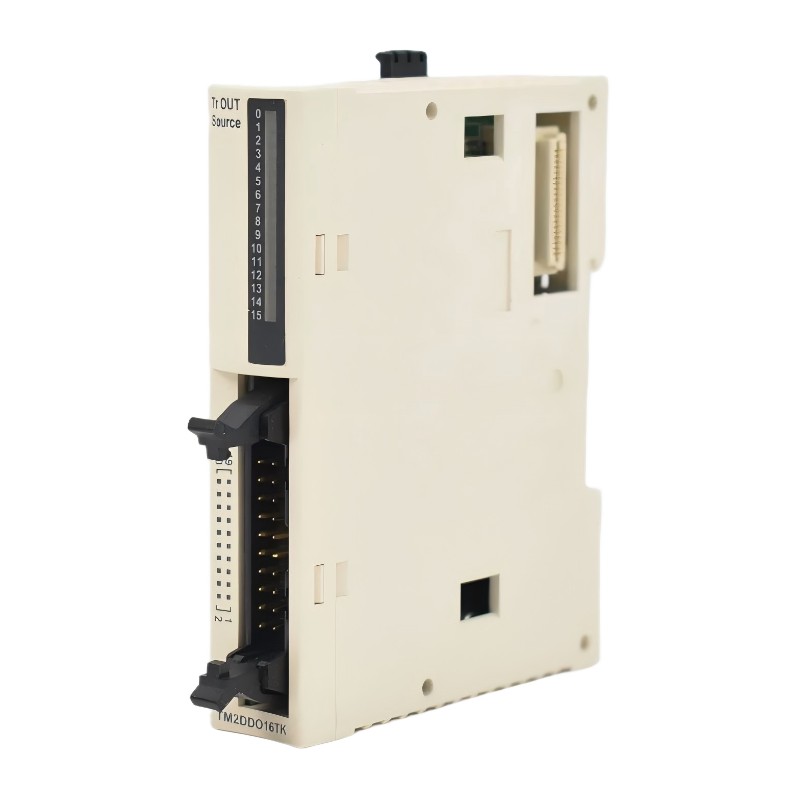

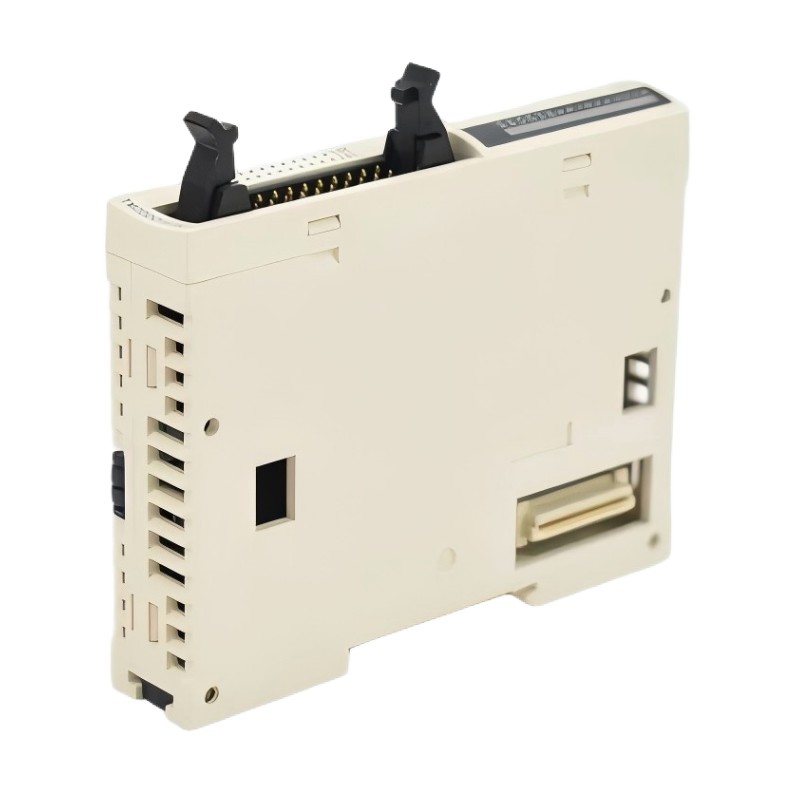

The module’s HE10 connector provides the interface for output wiring. Suitable connector assemblies and wiring arrangements connect the module to the corresponding field circuits.

Correct wiring is particularly important because the output channels share a common line and are not individually isolated from one another. System designers must account for the source-output configuration, common wiring, load current, and any required external interface components.

4.4 Maintenance and Equipment Restoration

For industrial facilities maintaining existing Modicon M238-based systems, the TM2DDO16TK may be required as a replacement part for a failed output module. Using the correct model helps preserve the original electrical interface and application configuration.

Before replacement, technicians should verify the module reference, connector arrangement, output logic, current requirements, and controller compatibility. Since the product has been discontinued in several markets, stock condition, authenticity, and remaining service support should also be checked.

5. Industrial Applications

5.1 Manufacturing Automation

In automated production equipment, the TM2DDO16TK can control discrete signals for machine status lamps, interface relays, compatible valves, and auxiliary devices. Its 16 channels allow several output functions to be handled through a single module.

5.2 Packaging Machinery

Packaging equipment often uses PLC-controlled sequences for feeding, positioning, sealing, cutting, and product transfer. The module can provide output commands to compatible control devices used in these sequences.

Applications must respect the output current limit and the total current permitted on the common line. Loads exceeding the transistor output ratings require suitable interface devices.

5.3 Material Handling Systems

Conveyors, transfer stations, and sorting equipment use discrete signals to coordinate motors, indicators, diverters, and other machine functions. The TM2DDO16TK can support these control tasks through compatible interface circuits.

It should not be used to drive a motor or other high-current load directly unless the load is specifically compatible with the module’s output ratings. Motor starters, contactors, or suitable drive interfaces are generally used where required.

5.4 Process Equipment

Industrial process skids and auxiliary equipment may require discrete commands for valve actuation, equipment status, and local signaling. The TM2DDO16TK can provide output signals to compatible devices when integrated into a supported PLC architecture.

For safety-related functions, a standard transistor output module should not be treated as a safety-rated output device. The required safety architecture must be designed and validated separately.

5.5 Existing PLC Installations

The TM2DDO16TK is relevant to maintenance and repair of installed systems using compatible Modicon M238 hardware. Replacement may help restore an established machine without redesigning its entire output interface, provided the original controller and associated components remain supported and operational.

6. Installation and System Integration

Correct installation is essential for reliable operation and long-term service life.

6.1 Verify Controller Compatibility

Before installation, confirm that the TM2DDO16TK is supported by the target controller and system configuration. Check the controller’s hardware documentation, I/O expansion requirements, software configuration, and applicable firmware.

Do not assume that a connector or similar module designation guarantees compatibility with other Modicon product families.

6.2 Mounting and Cabinet Layout

The module is designed for mounting on a 35 mm symmetrical DIN rail. Install it in a suitable control cabinet with adequate mechanical support, wiring clearance, and environmental protection.

The supplied dimensions are 90 × 81.3 × 21.4 mm. Additional space may be needed for the connector, wiring, cable bend radius, and maintenance access.

6.3 Output Wiring

The TM2DDO16TK uses one HE10 connector for its output connections. Select the correct connector assembly and wiring arrangement for the application.

During wiring:

• Follow the official terminal and connector assignment diagram.
• Confirm the source-type output configuration.
• Connect the required 24 V DC supply and common wiring correctly.
• Use conductors and connectors rated for the expected current.
• Install appropriately rated external fuses for the loads.
• Keep each output within the specified current limit.
• Keep the shared output common within its maximum current rating.
• Do not connect unused or designated no-connection terminals.

The output common and associated supply connections must be wired according to the manufacturer’s diagram. Incorrect wiring can cause malfunction or equipment damage.

6.4 Load Selection

Before connecting a field device, confirm its rated voltage, steady-state current, inrush current, and switching characteristics.

The specified output current is 0.4 A per output, while the maximum current for the shared output common is 2 A. These limits must be observed together. Sixteen channels operating simultaneously must not be assumed to support 0.4 A each at the same time, because the shared common imposes an additional total-current restriction.

For inductive loads, such as relays or solenoid valves, use suitable suppression components when required by the load and wiring design. For higher-current equipment, use an appropriately rated interposing relay, contactor, or other interface device.

6.5 Software Configuration and Testing

Configure the module and map its output channels in the supported programming environment. Assign each output address to the intended machine function and verify the programmed logic before operating the equipment.

A recommended commissioning sequence includes:

1. Inspect the module and connector for damage.
2. Confirm the controller and module compatibility.
3. Check the 24 V DC supply and common wiring.
4. Verify external fuses and field-device ratings.
5. Confirm output-channel mapping in the control program.
6. Test each output under controlled conditions.
7. Verify the connected load’s response.
8. Check for unexpected heating, overload indications, or wiring faults.
9. Document the final channel assignments.

All installation and maintenance work should be performed by qualified personnel using the site’s electrical safety procedures.

7. Compatible System Components

The TM2DDO16TK is associated with the Modicon M238 logic controller range. Documentation also identifies compatibility with certain Twido and Advantys OTB environments, depending on the particular system configuration.

Potential system components include:

Compatibility should always be confirmed against the specific controller documentation and installed hardware revision before ordering or commissioning.

8. Recommended Alternative Models

The TM2DDO16TK has been discontinued in several regional markets. Schneider Electric identifies the Modicon TM3 expansion I/O range as a replacement direction for relevant controller families. However, a replacement must be selected according to the target PLC, output logic, current requirements, connector, and application configuration.

Important: The TM3DQ16TK is not a guaranteed direct, plug-in replacement for the TM2DDO16TK. The TM3 family is intended for specified controller platforms, and its electrical characteristics and integration requirements may differ. Confirm controller compatibility, channel ratings, connector wiring, dimensions, software configuration, and replacement guidance before substituting any model.

9. Key Advantages

9.1 Sixteen Output Channels

The TM2DDO16TK provides 16 discrete output points in one compact module, supporting multiple machine-control functions while conserving panel space.

9.2 Fast Switching Performance

A specified response time of approximately 450 microseconds for both switching transitions makes the module suitable for many repeated discrete control operations.

9.3 Compact and Lightweight Construction

With dimensions of 90 × 81.3 × 21.4 mm and a weight of approximately 0.07 kg, the module can be integrated into suitable control cabinets with limited available space.

9.4 Integrated Output Protection

Overload and short-circuit protection with automatic reactivation helps manage specified output fault conditions. Correct external protection and wiring remain essential.

9.5 Standardized Output Interface

The 24 V DC source-type transistor outputs support a range of compatible industrial control loads and interface devices.

9.6 Useful for Legacy-System Maintenance

For existing compatible installations, the original model reference can simplify identification and sourcing during repairs. Buyers should confirm the unit’s condition, authenticity, and regional availability because the product has been discontinued in several markets.

10. Technical FAQs

Q1: What is the Schneider TM2DDO16TK?

The Schneider Electric TM2DDO16TK is a 16-channel discrete transistor output module associated with the Modicon M238 logic controller range. It provides 24 V DC source-type output signals for compatible industrial control applications.

Q2: How many output channels does the TM2DDO16TK have?

It has 16 discrete transistor output channels. Each channel can be assigned to a compatible control function within the system’s electrical limits.

Q3: What is the rated output voltage?

The rated output voltage is 24 V DC. The specified output voltage range is 20.4–28.8 V DC.

Q4: What is the maximum output current?

The rated output current is 0.4 A per output. The maximum current for the shared output common is 2 A. Both limits must be observed when calculating the allowable load.

Q5: What connector does the TM2DDO16TK use?

The module uses one HE10 connector for output wiring. The connector assembly and pin assignments must match the official wiring documentation.

Q6: What is the response time of the module?

The specified turn-on and turn-off response times are approximately 450 microseconds. Overall machine response also depends on the PLC program, scan time, wiring, and connected equipment.

Q7: Does the TM2DDO16TK provide short-circuit protection?

Yes. It includes overcurrent and short-circuit protection with automatic reactivation under specified conditions. External fuses and correctly rated wiring are still required.

Q8: Are the output channels isolated from one another?

No. The output channels are not individually isolated. The module provides specified isolation between the outputs and the internal logic, but the output channels share a common line.

Q9: Can the TM2DDO16TK drive motors directly?

The module is intended for discrete control signals, not direct operation of loads that exceed its electrical ratings. Motor control generally requires a suitable contactor, motor starter, drive, or interface device selected for the application.

Q10: Is the TM2DDO16TK still available?

Its lifecycle status varies by region, and Schneider Electric has listed it as discontinued in several markets. Availability may depend on remaining inventory and specialist suppliers. Confirm the exact part number, condition, warranty, and regional lifecycle information before purchasing.

Q11: Can the TM3DQ16TK replace the TM2DDO16TK?

Not automatically. Although both are 16-channel, 24 V DC transistor output modules with an HE10 connector, they belong to different product ranges and may support different controller platforms. Verify the complete system configuration before selecting the TM3DQ16TK as an alternative.

Q12: What should be checked before replacing a faulty module?

Verify the model number, controller compatibility, output type, supply voltage, common-current limit, HE10 connector wiring, software configuration, and condition of connected field devices. Disconnect power and follow the site’s electrical safety procedures before replacing the module.

11. Conclusion

The Schneider Electric TM2DDO16TK is a compact 16-channel discrete output module designed to provide 24 V DC source-type transistor signals for compatible industrial automation systems. Its fast switching response, HE10 connector, DIN-rail mounting, and integrated output protection make it suitable for a variety of PLC-controlled machine functions.

With dimensions of 90 × 81.3 × 21.4 mm and a weight of approximately 0.07 kg, the TM2DDO16TK is particularly relevant to maintenance and repair of existing installations using compatible Modicon M238 hardware.

Because the module has been discontinued in several markets, procurement requires careful verification of availability, condition, and authenticity. For replacement or modernization projects, engineers should also confirm controller compatibility and evaluate supported alternatives in the Modicon TM3 range before making a substitution.

Selecting the correct output module and following the specified wiring, current limits, and commissioning procedures helps maintain reliable operation and safe integration within an industrial control system.
