Product Overview

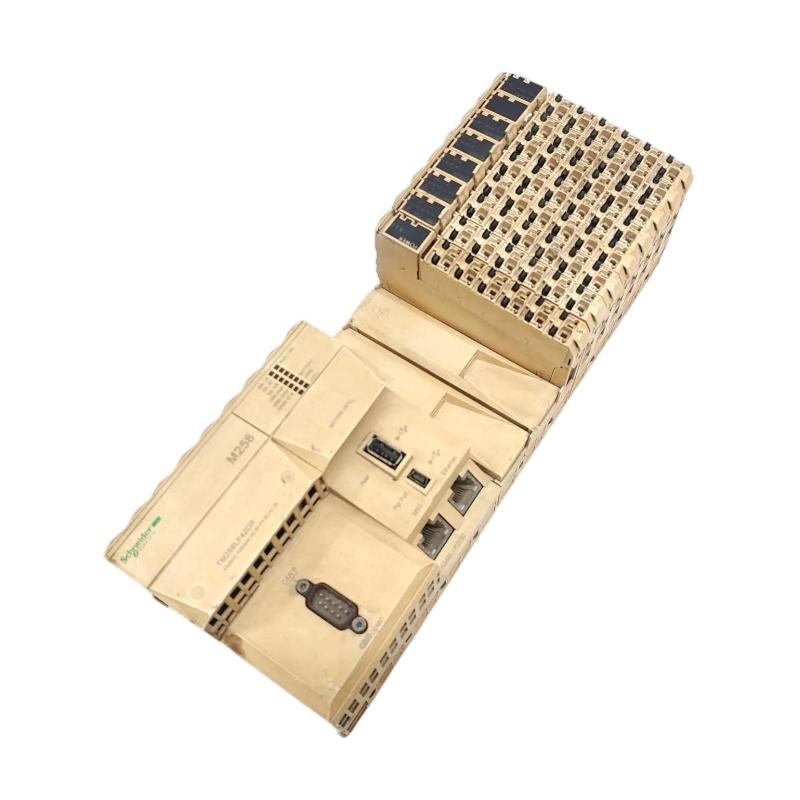

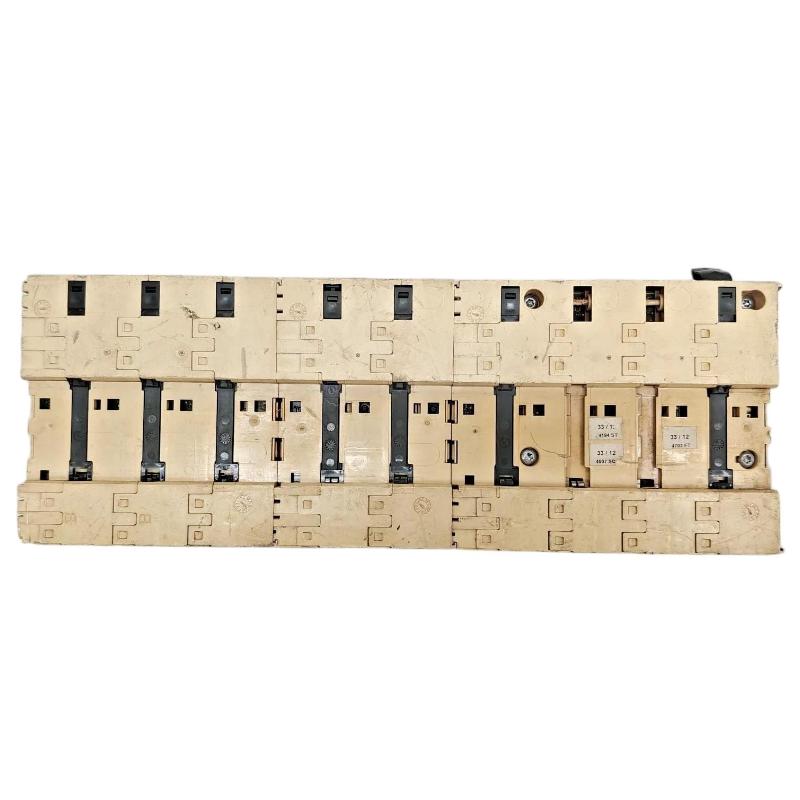

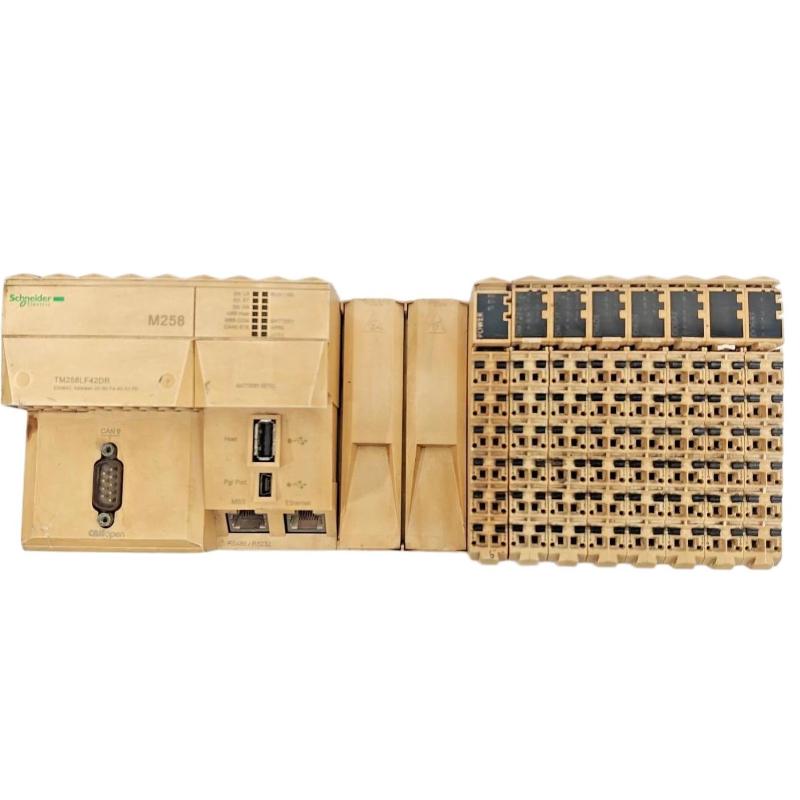

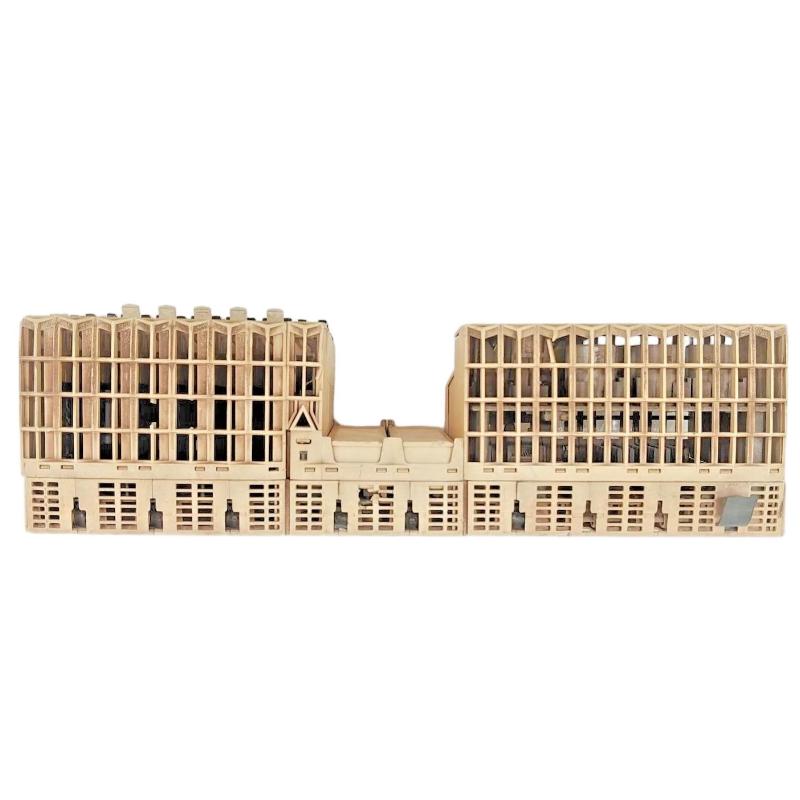

The Schneider TM258LF42DR Modicon M258 Compact Base Logic Controller is a high-performance programmable controller from the Modicon M258 series, developed for advanced machine automation applications requiring complex control logic, distributed I/O management, and flexible system integration.
The M258 platform is positioned for applications that require more processing capability and expansion flexibility than basic compact PLC systems. The TM258LF42DR functions as the central control unit, executing automation programs, managing connected I/O modules, and coordinating multiple industrial devices within a machine control architecture.
Compared with smaller controller platforms, the TM258LF42DR is suitable for larger machine structures that require additional expansion capacity, multiple communication connections, and coordinated operation between sensors, actuators, drives, and operator interfaces.
It is commonly used in packaging equipment, production machinery, robotics systems, material handling applications, and OEM automation solutions where stable control performance and modular system design are required.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | TM258LF42DR |
| Product Family | Modicon M258 |
| Product Type | Compact Base Logic Controller |
| Function | PLC Control and Machine Automation Management |
| Application | Industrial Automation / Machine Control |
| Controller Type | Programmable Logic Controller |
| Expansion Capability | Modicon TM5 / TM7 I/O System |
| Dimensions | 262.5 x 99 x 85 mm |
| Weight | 0.8 kg |
Product Features
The Schneider TM258LF42DR provides a scalable control platform for demanding machine automation applications.
Key characteristics include:
- Schneider Modicon M258 Compact Base Logic Controller
- Model TM258LF42DR
- Designed for advanced industrial machine control
- Provides high-performance PLC program execution
- Supports distributed automation architectures
- Compatible with Modicon TM5 and TM7 expansion systems
- Suitable for applications requiring multiple I/O modules
- Supports integration with HMI, drives, and field devices
- Provides flexible machine control configuration
- Designed for modular automation systems
- Suitable for OEM machine development
- Supports complex sequencing and control operations
The controller is commonly selected for automation projects where a compact PLC platform must handle advanced logic processing and system coordination.
Working Principle
The Schneider TM258LF42DR operates as the main processing unit in a machine automation system.
A simplified control structure is:
Field Sensors → TM5/TM7 I/O Modules → TM258LF42DR Controller → Drives / Actuators → Machine Operation
During operation, the controller continuously executes the application program stored in its memory. Input signals from sensors and connected devices are collected through the automation system, processed according to programmed logic, and converted into output commands.
The controller manages tasks including:
- Machine sequence control
- Digital and analog signal processing
- Device coordination
- Communication with automation equipment
- Motion-related control functions
- Equipment status monitoring
Through its expansion capability, the TM258LF42DR can manage larger automation systems where multiple modules and devices need synchronized operation.
Role in a Machine Control Architecture
The TM258LF42DR serves as the central processing and automation coordination layer in a Modicon M258 control system.
A typical architecture can be represented as:
Sensors / Field Devices → TM5/TM7 Expansion Modules → TM258LF42DR Controller → HMI / Drives / Actuators
Within this structure:
- Field devices provide machine status feedback.
- Expansion modules collect and distribute control signals.
- The TM258LF42DR executes user programs.
- HMI systems provide operator interaction.
- Drives and actuators perform machine movements.
The controller acts as the core decision-making unit, coordinating different automation components to achieve complete machine operation.
Industrial Applications
The Schneider TM258LF42DR is suitable for industrial systems requiring advanced PLC control and expandable automation structures.
| Application | Typical Use |
|---|---|
| Packaging Machinery | Multi-stage process control |
| Assembly Lines | Coordinated machine operations |
| Robotics Systems | Automation sequence management |
| Material Handling Equipment | Conveyor and transfer control |
| Production Machinery | Centralized machine control |
| Automated Testing Systems | Process monitoring and execution |
| OEM Equipment | Custom automation solutions |
| Industrial Manufacturing | Distributed control applications |
The controller is suitable for machines requiring reliable processing capability and flexible expansion options.
Installation and Maintenance
Installation of the TM258LF42DR should be based on the complete automation system design, including I/O requirements, communication networks, and application software.
Recommended practices include:
- Verify controller model compatibility.
- Confirm TM5/TM7 expansion configuration.
- Check power supply wiring.
- Verify communication parameters.
- Load and test PLC application programs.
- Confirm I/O addressing.
- Inspect terminal connections.
- Check field device operation.
- Verify HMI and drive communication.
- Backup controller programs.
- Record system configuration.
During troubleshooting, faults should be analyzed across the complete control system, including PLC logic, expansion modules, communication links, and connected equipment.
Related Components
The TM258LF42DR is commonly integrated with the following automation components:
| Component | Function |
|---|---|
| Modicon TM5 I/O Modules | Expand control and signal processing capacity |
| Modicon TM7 I/O Modules | Provide distributed field connections |
| HMI Terminals | Operator monitoring and control |
| Servo Drives | Precision motion control |
| Variable Speed Drives | Motor control applications |
| Industrial Communication Devices | Data exchange between systems |
| Sensors | Machine condition feedback |
| Actuators | Execute control actions |
| Engineering Software | PLC programming and diagnostics |
These components work together to create a complete industrial machine automation system.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Schneider TM258LF42DR | Modicon M258 Compact Base Logic Controller | Advanced machine automation |
| Schneider TM258LD42DT | Modicon M258 Compact Base Logic Controller | Compact machine control |
| Schneider TM251MESE | Modicon M251 Logic Controller | Ethernet-based machine automation |
| Schneider TM251MESC | Modicon M251 Logic Controller | Distributed machine control |
| Schneider TM241CE40T | Modicon M241 Controller | General automation applications |
| Schneider Modicon M258 Series | Logic Controller Platform | High-performance machine control |
Model selection should be based on processing requirements, expansion capacity, communication architecture, and machine complexity.
Key Advantages
- Schneider Modicon M258 series controller
- Model TM258LF42DR
- Designed for advanced machine automation
- Supports scalable TM5/TM7 expansion systems
- Provides powerful PLC processing capability
- Suitable for complex control applications
- Supports integration with HMI and industrial devices
- Designed for modular machine architectures
- Suitable for OEM and production equipment
- Provides flexible automation system expansion
Technical FAQs
What type of machines are suitable for the Schneider TM258LF42DR?
The TM258LF42DR is suitable for complex automation equipment such as packaging machines, robotics systems, assembly equipment, and production lines requiring coordinated PLC control.
How does the TM258LF42DR support system expansion?
The controller can be integrated with Modicon TM5 and TM7 expansion modules, allowing additional I/O functions and distributed devices to be added according to machine requirements.
What advantages does the M258 platform provide compared with basic compact PLCs?
The Modicon M258 platform provides stronger processing capability, greater expansion flexibility, and better support for complex machine architectures compared with entry-level compact controllers.
What should be verified before replacing a TM258LF42DR controller?
Engineers should confirm the PLC program, I/O configuration, expansion modules, communication settings, power connections, and connected field devices before installing a replacement controller.
