Product Overview

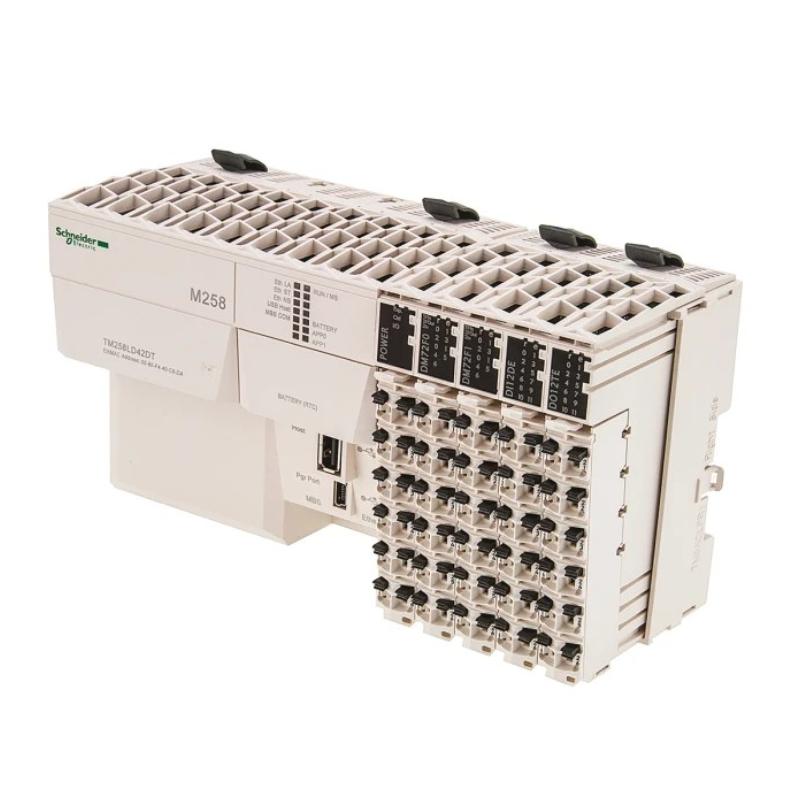

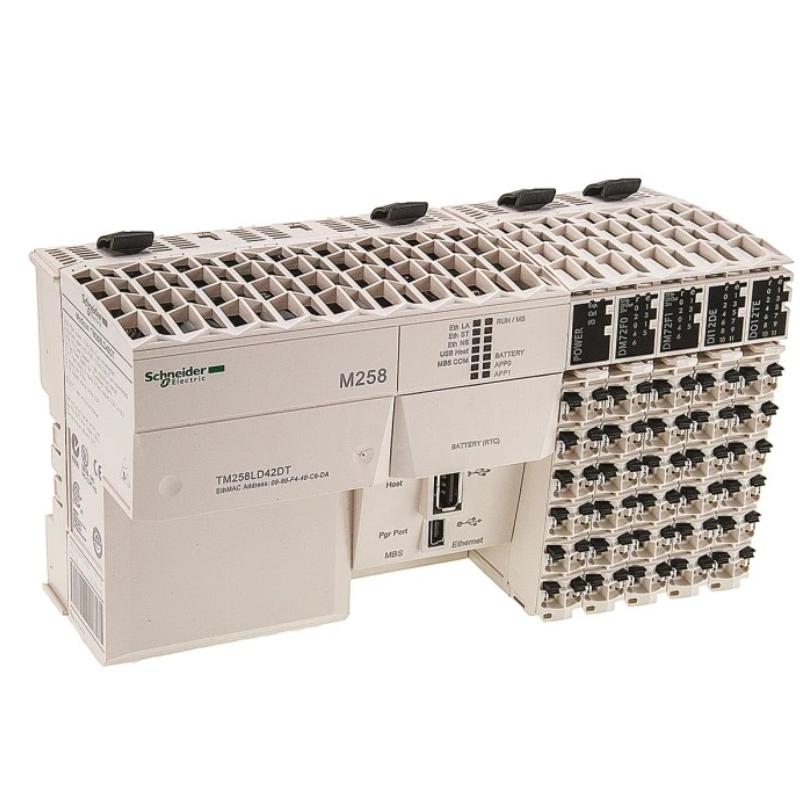

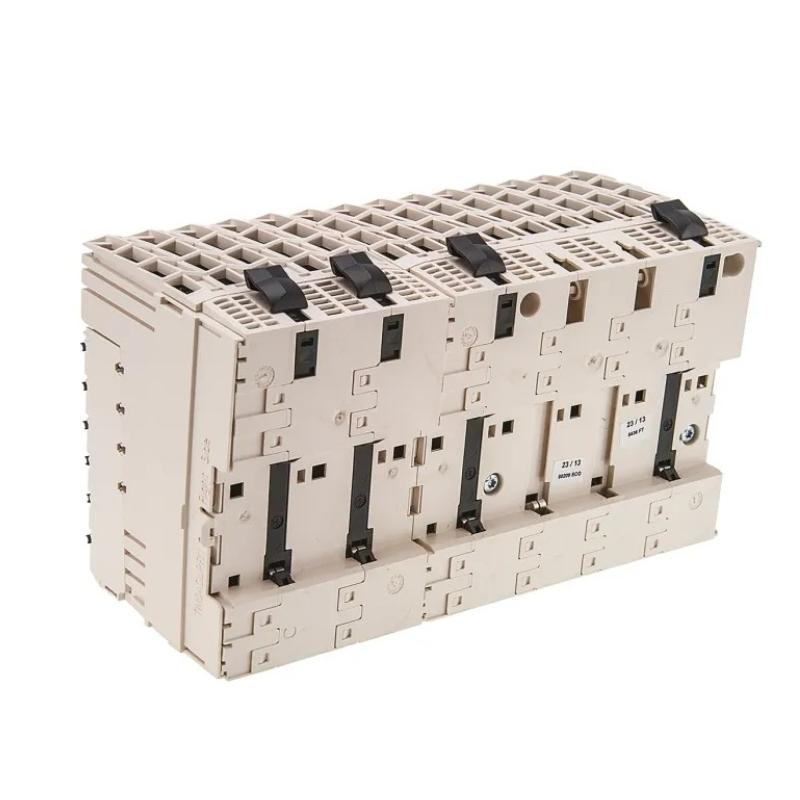

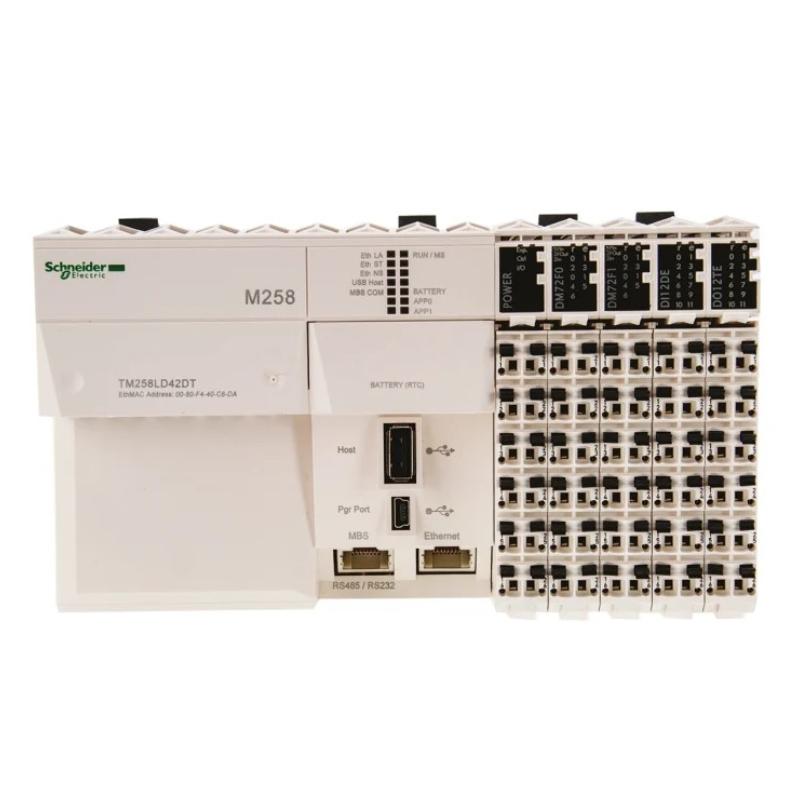

The Schneider TM258LD42DT Modicon M258 Compact Base Logic Controller is a programmable controller from the Modicon M258 series, developed for advanced machine automation applications that require high-speed processing, flexible I/O management, and reliable communication between automation devices.
Compared with smaller compact PLC platforms, the M258 series provides stronger processing capability and a wider range of integrated control functions, making it suitable for complex machine architectures involving multiple I/O points, distributed devices, and coordinated automation sequences.
The TM258LD42DT functions as the central control unit of an automation system, executing user application programs, managing connected I/O modules, and coordinating field devices such as sensors, actuators, drives, and operator interfaces.
It is commonly applied in packaging systems, material handling equipment, assembly machinery, and industrial production machines where performance, scalability, and system integration are required.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | TM258LD42DT |
| Product Family | Modicon M258 |
| Product Type | Compact Base Logic Controller |
| Function | PLC Control and Machine Automation Management |
| Application | Industrial Automation / Machine Control |
| Controller Type | Programmable Logic Controller |
| Expansion Capability | Modicon TM5 / TM7 I/O System |
| Dimensions | 175 x 99 x 85 mm |
| Weight | 0.5 kg |
Product Features
The Schneider TM258LD42DT provides a compact but powerful control platform for demanding automation applications.
Key characteristics include:
- Schneider Modicon M258 Compact Base Logic Controller
- Model TM258LD42DT
- Designed for advanced machine automation systems
- Provides PLC program execution capability
- Supports distributed I/O architectures
- Compatible with Modicon TM5 and TM7 expansion systems
- Suitable for high-performance machine control
- Supports integration with drives, HMI systems, and field devices
- Provides flexible automation system configuration
- Designed for modular machine architectures
- Suitable for OEM equipment development
- Supports complex sequencing and control applications
The controller is commonly selected for machines requiring more processing capability than basic PLC platforms while maintaining a compact installation footprint.
Working Principle
The Schneider TM258LD42DT operates as the main processing unit within a machine automation system.
A simplified control structure is:
Sensors / Field Devices → TM258LD42DT Controller → I/O System → Drives / Actuators → Machine Operation
During operation, the controller continuously executes the user application program stored in its memory. It receives input information from connected devices, processes control logic, and sends output commands according to the programmed machine sequence.
The controller manages functions including:
- Digital and analog signal processing through expansion modules
- Machine sequence execution
- Device coordination
- Motion-related control tasks
- Communication with HMI and supervisory systems
- Data exchange between automation components
Through integration with Modicon expansion systems, the TM258LD42DT can support larger automation structures where multiple field devices and remote components need to operate together.
Role in a Machine Control Architecture
The TM258LD42DT serves as the central control and coordination layer within a Modicon M258 automation system.
A typical architecture can be represented as:
Field Sensors → TM5/TM7 I/O Modules → TM258LD42DT Controller → HMI / Drives / Actuators
Within this structure:
- Sensors provide machine operating information.
- Expansion modules collect and distribute field signals.
- The TM258LD42DT executes automation programs.
- HMI devices provide operator interaction.
- Drives and actuators perform machine movements.
The controller acts as the decision-making center of the automation system, coordinating multiple devices to complete complex machine operations.
Industrial Applications
The Schneider TM258LD42DT is designed for industrial automation systems requiring advanced machine control capability.
| Application | Typical Use |
|---|---|
| Packaging Machinery | Coordinating multi-step production processes |
| Assembly Equipment | Managing automated assembly sequences |
| Material Handling Systems | Conveyor and transfer control |
| Industrial Machines | Central PLC control functions |
| Robotics Equipment | Device coordination and automation logic |
| Production Lines | Distributed machine management |
| Automated Inspection Systems | Process monitoring and control |
| OEM Equipment | Custom machine automation solutions |
The controller is suitable for applications where machine performance, flexibility, and expandability are important design requirements.
Installation and Maintenance
Installation of the TM258LD42DT should be completed according to the overall machine control architecture, including I/O expansion, communication networks, and application requirements.
Recommended practices include:
- Confirm controller model compatibility.
- Verify required TM5/TM7 expansion modules.
- Check power supply wiring.
- Configure communication parameters.
- Load and verify PLC application programs.
- Confirm I/O addressing.
- Inspect terminal connections.
- Test connected field devices.
- Verify HMI and network communication.
- Backup controller programs.
- Record system configuration.
During troubleshooting, faults should be analyzed across the complete automation system, including PLC software, I/O modules, communication links, and connected field equipment.
Related Components
The TM258LD42DT is commonly integrated with the following Schneider automation components:
| Component | Function |
|---|---|
| Modicon TM5 I/O Modules | Expand digital and analog control points |
| Modicon TM7 I/O Modules | Provide distributed field I/O |
| HMI Terminals | Operator interface and visualization |
| Servo Drives | Precision motion control |
| Variable Speed Drives | Motor speed regulation |
| Industrial Networks | Device communication |
| Sensors | Machine status feedback |
| Actuators | Execute control commands |
| Engineering Software | PLC programming and diagnostics |
These components work together to build a complete machine automation solution.
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Schneider TM258LD42DT | Modicon M258 Compact Base Logic Controller | Advanced machine control |
| Schneider TM258LF42DT | Modicon M258 Logic Controller | Complex automation systems |
| Schneider TM251MESE | Modicon M251 Logic Controller | Ethernet-connected machine automation |
| Schneider TM241CE40T | Modicon M241 Controller | General machine control |
| Schneider TM221CE16T | Modicon M221 Controller | Compact automation applications |
| Schneider Modicon M258 Series | Logic Controller Platform | High-performance machine automation |
Model selection should be based on processing requirements, I/O expansion needs, communication architecture, and machine complexity.
Key Advantages
- Schneider Modicon M258 series controller
- Model TM258LD42DT
- Compact PLC solution for advanced machine automation
- Supports scalable I/O expansion
- Suitable for complex control applications
- Integrates with TM5 and TM7 automation components
- Supports HMI, drive, and field device communication
- Designed for OEM and industrial machinery
- Provides flexible machine control architecture
- Suitable for demanding automation environments
Technical FAQs
What makes the TM258LD42DT different from the Modicon M221 and M251 controllers?
The TM258LD42DT belongs to the higher-performance Modicon M258 platform, which is intended for more complex machine automation tasks requiring greater processing capability, expanded I/O architecture, and advanced system coordination.
Which expansion systems can be integrated with the TM258LD42DT?
The controller supports Schneider Modicon TM5 and TM7 expansion systems, allowing additional I/O modules and distributed field components to be added according to application requirements.
What types of machines commonly use the TM258LD42DT?
The controller is commonly used in packaging equipment, production machinery, assembly systems, robotics-related applications, and other machines requiring coordinated automation control.
What should be checked when replacing a TM258LD42DT in an existing machine?
Before replacement, engineers should verify PLC application compatibility, I/O configuration, expansion modules, communication settings, power connections, and device addressing to ensure the new controller matches the original automation architecture.
