Product Overview

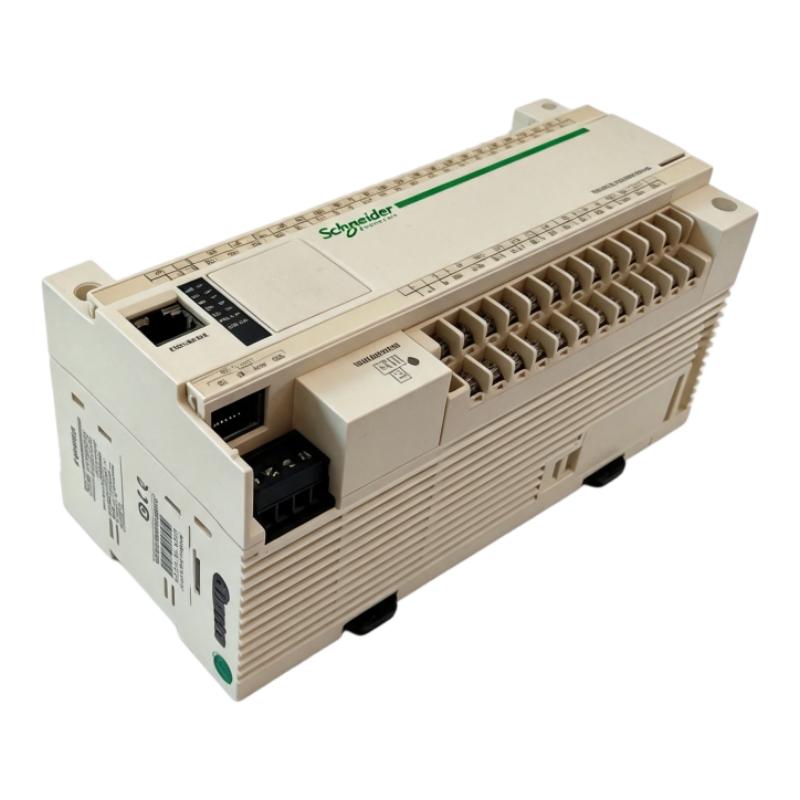

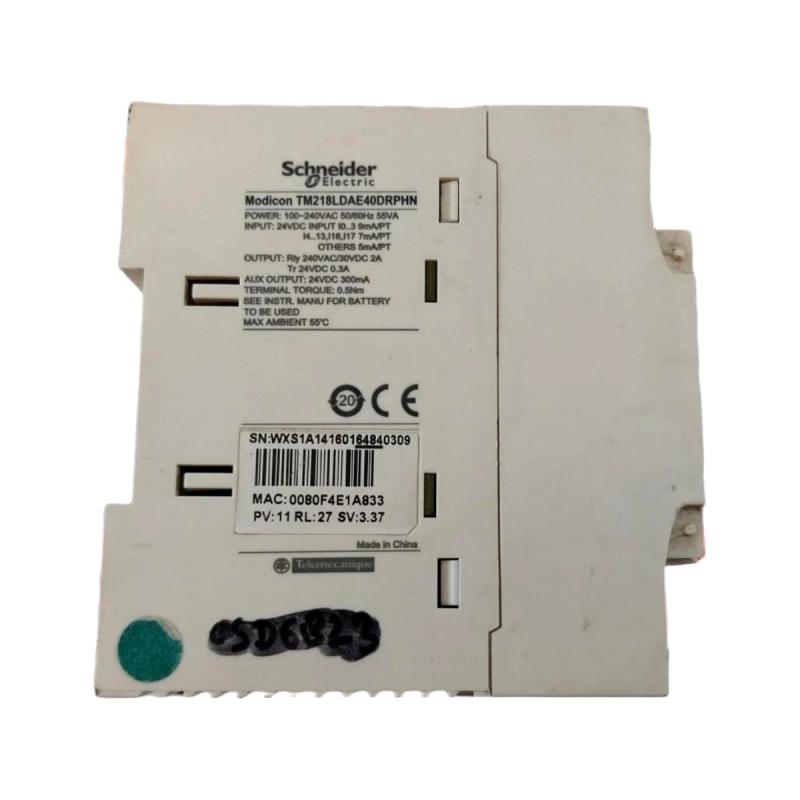

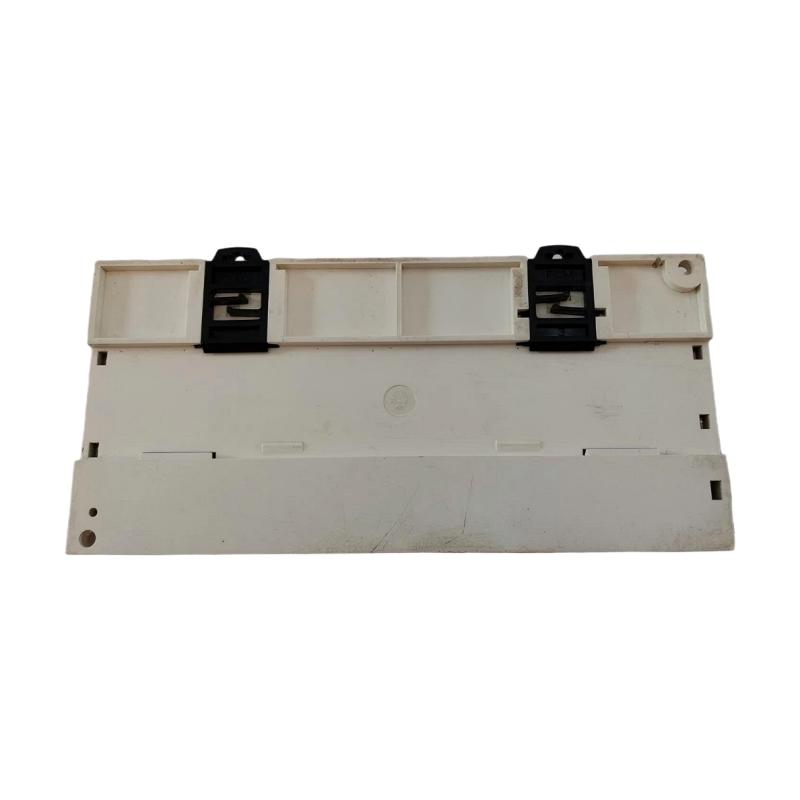

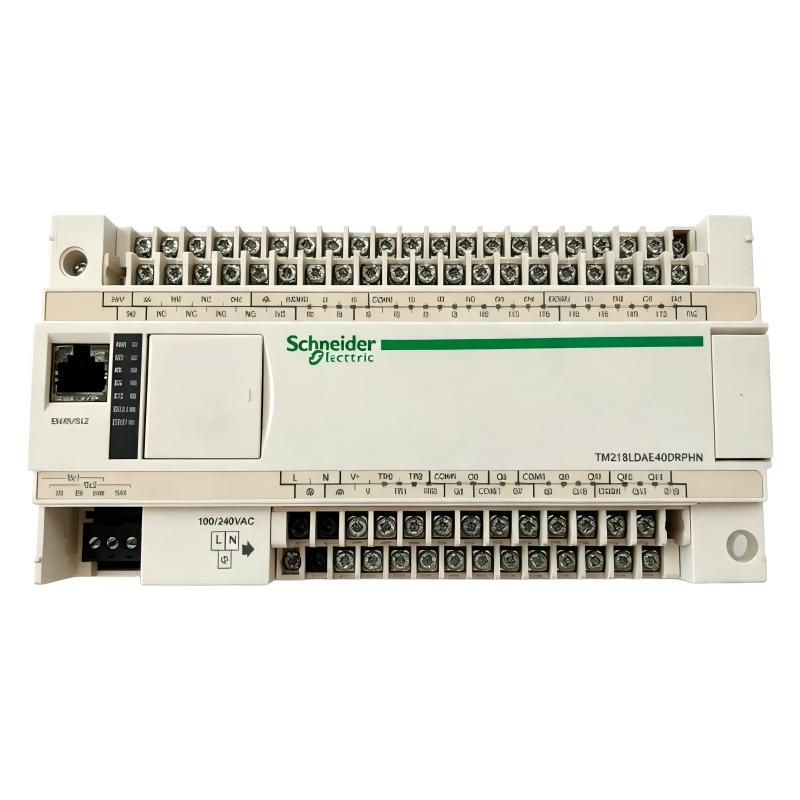

The Schneider TM218LDAE40DRPHN Modicon M218 Logic Controller is a compact and powerful PLC designed for advanced industrial automation applications. It provides reliable machine control, flexible I/O management, high-speed signal processing, and efficient communication capabilities for modern automation systems.
As part of the Modicon M218 Logic Controller family, the TM218LDAE40DRPHN is developed for OEM machine builders, system integrators, and industrial automation engineers who require stable control performance and flexible application solutions.
This controller integrates multiple digital inputs, relay outputs, high-speed counter functions, and fast output functions for pulse-related applications. It is suitable for complex machine control tasks including production equipment, packaging systems, assembly lines, conveyor systems, and customized automation machinery.
The compact structure allows easy installation inside industrial control cabinets while providing sufficient processing capability for demanding automation applications.
The Schneider TM218LDAE40DRPHN features dimensions of 232 x 100 x 81 mm and a lightweight design of 0.29 kg, making it suitable for space-saving industrial control systems.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | TM218LDAE40DRPHN |
| Product Series | Modicon M218 |
| Product Type | Logic Controller / PLC |
| Application | Industrial Machine Automation |
| Digital Inputs | 20 regular inputs + 4 fast inputs |
| Digital Outputs | 12 relay outputs + 4 fast outputs |
| High-Speed Functions | HSC / PTO / PWM / Frequency Generator |
| Analog Input | Not Available |
| Analog Output | Not Available |
| Communication | Ethernet / Serial Communication / USB Programming |
| Installation Type | DIN Rail Mounting |
| Programming Method | IEC 61131-3 Standard Languages |
| Dimensions | 232 x 100 x 81 mm |
| Weight | 0.29 kg |
Function and Working Principle
The Schneider TM218LDAE40DRPHN Modicon M218 Logic Controller works as the central control unit of an automated machine system.
The PLC receives signals from field devices, processes the programmed logic instructions, and controls external equipment according to the configured automation sequence.
The basic operating cycle includes:
- Collecting input signals from sensors and switches
- Executing PLC application logic
- Updating output control signals
- Managing communication and diagnostic functions
The controller can connect with various industrial components, including:
- Proximity sensors
- Photoelectric sensors
- Encoders
- Motors
- Solenoid valves
- Contactors
- Actuators
- Human-machine interfaces
Through continuous processing, the TM218LDAE40DRPHN ensures stable and accurate machine operation.
Main Functions
1. Advanced Machine Logic Control
The TM218LDAE40DRPHN provides reliable logic processing for complex automation tasks.
Typical control functions include:
- Automatic production sequences
- Machine synchronization
- Timing control
- Equipment interlocking
- Process monitoring
- Status management
The controller helps improve production efficiency and reduce manual operation requirements.
2. High-Speed Counting Function
The PLC provides high-speed input functions for applications requiring rapid signal detection.
Common applications include:
- Encoder counting
- Product quantity measurement
- Speed monitoring
- Position detection
- Rotational measurement
High-speed counting allows the controller to process fast-changing signals accurately.
3. Pulse Output and Motion-Related Control
The TM218LDAE40DRPHN includes fast output functions suitable for pulse-based applications.
Typical applications include:
- Stepper motor control
- Positioning systems
- Pulse signal generation
- Speed control
- Machine synchronization
These functions provide improved control accuracy for automation equipment.
4. Flexible Communication Capability
The controller supports integration with industrial automation systems.
Communication applications include:
- HMI connection
- PLC-to-PLC communication
- Industrial network integration
- Machine data exchange
- Remote monitoring systems
This allows the PLC to operate as part of a complete automation architecture.
Industrial Applications
Packaging Machinery
The TM218LDAE40DRPHN is widely used in packaging equipment.
Applications include:
- Filling machines
- Labeling machines
- Sealing equipment
- Wrapping systems
- Conveyor control
The controller provides accurate sequence management and improves machine productivity.
Assembly Automation
The PLC is suitable for automated assembly systems.
Typical applications:
- Component assembly machines
- Inspection equipment
- Automated testing systems
- Production stations
It provides coordinated control between sensors, actuators, and machine mechanisms.
Material Handling Systems
The controller can be applied in:
- Conveyor systems
- Sorting machines
- Transfer equipment
- Automated handling systems
Fast signal processing improves equipment response and operating stability.
OEM Machine Applications
The TM218LDAE40DRPHN is suitable for customized industrial machines.
Common applications include:
- Special-purpose equipment
- Automated production machines
- Industrial testing systems
- Custom control solutions
Installation Guide
Mechanical Installation
Recommended installation procedures:
- Install the PLC on a standard DIN rail.
- Ensure sufficient ventilation around the controller.
- Avoid strong electromagnetic interference sources.
- Confirm the controller is securely mounted.
- Check environmental conditions before operation.
Correct mechanical installation helps improve system reliability.
Electrical Wiring
Before power-up, verify:
- Power supply wiring
- Input terminal connections
- Output terminal connections
- Grounding condition
- Communication cable installation
Recommended practices:
- Separate control cables from power cables.
- Avoid excessive electrical noise.
- Tighten all terminal connections properly.
- Protect wiring from mechanical damage.
Programming and Commissioning
Typical commissioning steps:
- Connect the PLC to the programming environment.
- Configure hardware parameters.
- Download the control application.
- Check I/O operation.
- Test machine functions.
- Verify communication performance.
Proper commissioning ensures stable operation in industrial environments.
Common Fault Symptoms and Troubleshooting
| Fault Symptom | Possible Cause | Recommended Solution |
|---|---|---|
| PLC cannot start | Power supply failure | Check voltage and wiring |
| Input signal unavailable | Sensor or cable fault | Inspect input connections |
| Output device not operating | Relay output problem | Check output circuit |
| Communication interruption | Configuration error | Verify communication settings |
| High-speed counter error | Incorrect parameter setting | Check HSC configuration |
| Pulse output abnormal | Incorrect output setup | Verify PTO/PWM settings |
| Machine sequence failure | PLC program issue | Review control logic |
Maintenance Recommendations
To maintain reliable operation:
- Inspect wiring connections regularly
- Keep the control cabinet clean
- Check operating temperature
- Backup PLC programs
- Monitor diagnostic information
- Inspect connected field devices
Regular maintenance reduces unexpected downtime and extends equipment service life.
Advantages of Schneider TM218LDAE40DRPHN
- Powerful Modicon M218 PLC architecture
- Large digital I/O capacity
- High-speed counting capability
- Pulse and PWM control functions
- Compact industrial design
- Flexible communication capability
- Easy DIN rail installation
- Suitable for OEM automation equipment
Technical FAQs
What is Schneider TM218LDAE40DRPHN?
The Schneider TM218LDAE40DRPHN is a Modicon M218 Logic Controller designed for industrial automation and machine control applications.
What are the main applications of this PLC?
It is commonly used in packaging machines, assembly systems, conveyor equipment, material handling systems, and customized industrial machinery.
Does TM218LDAE40DRPHN support high-speed counting?
Yes. The controller provides high-speed input functions for encoder feedback, counting, and position monitoring applications.
Can this controller be used for motion-related applications?
Yes. The fast output functions support pulse-based applications such as positioning and speed control.
Conclusion
The Schneider TM218LDAE40DRPHN Modicon M218 Logic Controller is a reliable and flexible PLC solution designed for modern industrial automation systems.
With powerful processing capability, extensive I/O resources, high-speed counting functions, pulse control features, and compact installation design, it provides an efficient control platform for machine builders and automation engineers.
For packaging equipment, assembly automation, material handling systems, and OEM machinery applications, the Schneider TM218LDAE40DRPHN helps improve production efficiency, simplify control system design, and enhance industrial automation reliability.
