Product Overview

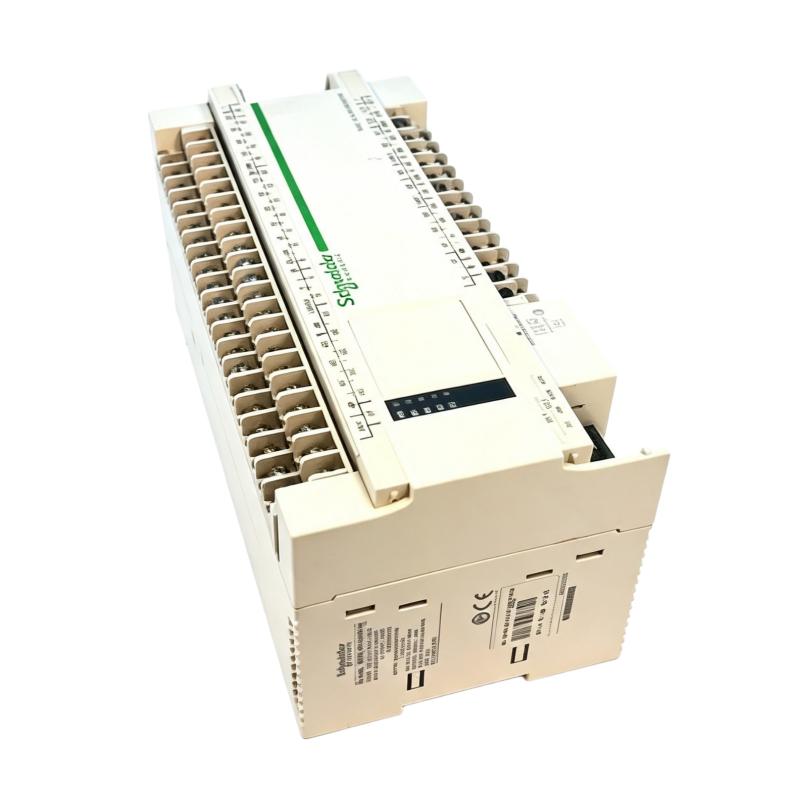

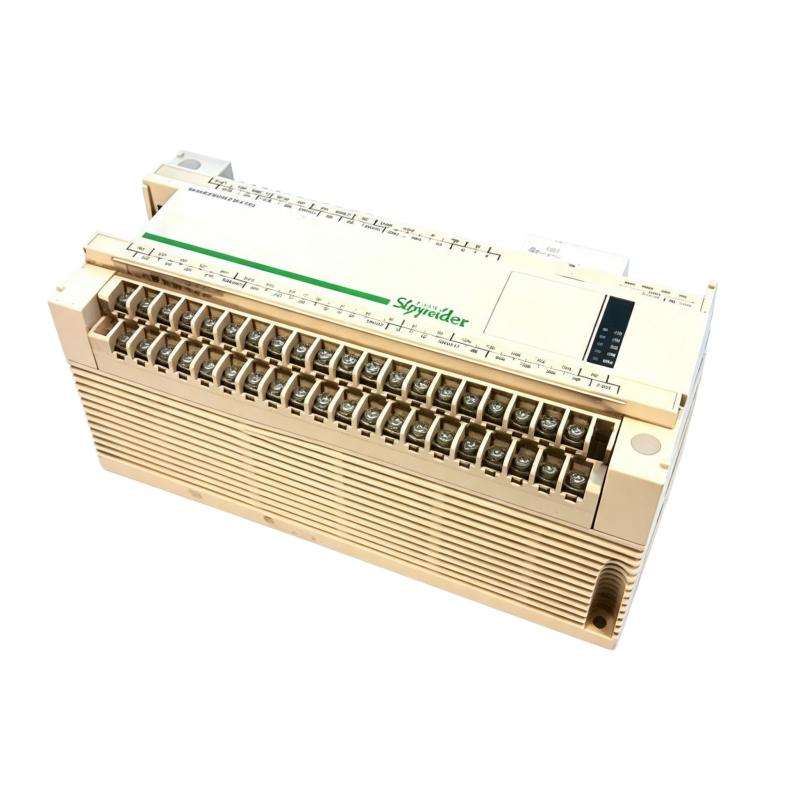

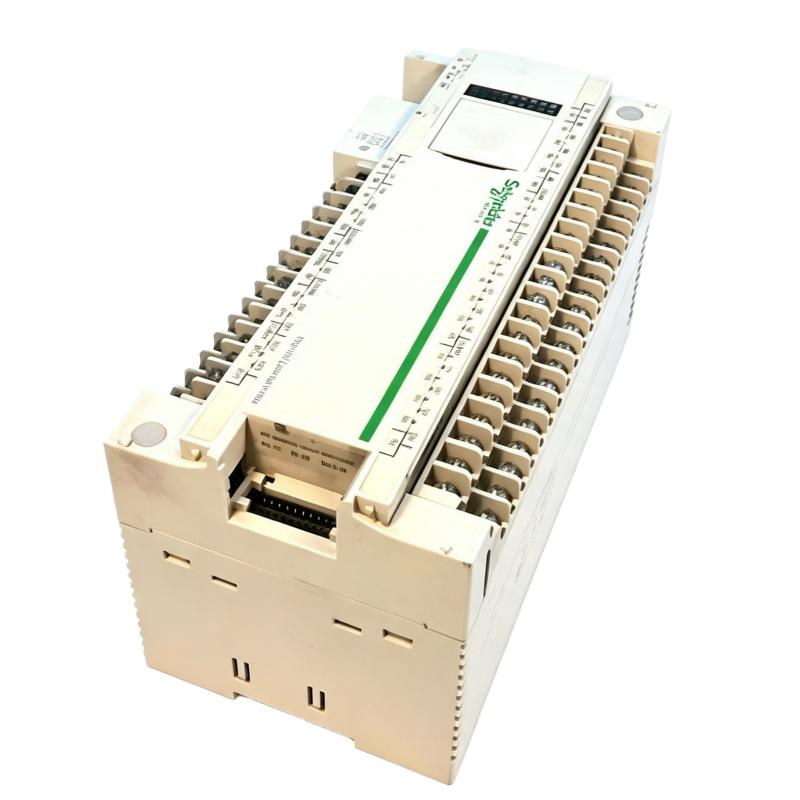

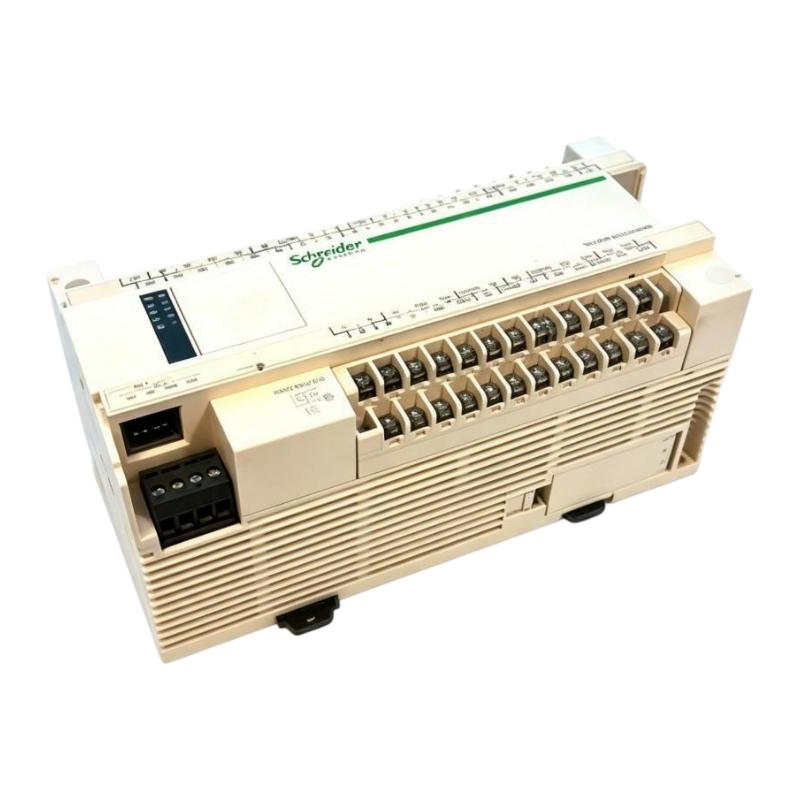

The Schneider TM218LDA40DRPHN Modicon M218 Logic Controller is a compact and high-performance programmable controller designed for industrial machine automation applications. As part of the Modicon M218 controller family, this PLC provides reliable control capabilities for OEM machines, production equipment, and automated systems requiring flexible I/O management and fast processing performance.
The TM218LDA40DRPHN combines powerful logic processing, digital input/output control, high-speed counting functions, and pulse output capabilities in a compact industrial controller design. It is suitable for applications requiring accurate sequence control, motion-related functions, and efficient machine management.
With a compact structure and DIN rail mounting design, the controller can be easily integrated into electrical cabinets and automation control systems. It provides an efficient solution for industries such as packaging, material handling, assembly automation, and general machine manufacturing.
The Schneider TM218LDA40DRPHN features dimensions of 232 x 100 x 81 mm and a weight of 0.73 kg, making it suitable for applications where installation space and control performance are both important factors.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | TM218LDA40DRPHN |
| Product Series | Modicon M218 |
| Product Type | Logic Controller / PLC |
| Controller Application | Machine Automation Control |
| Digital Inputs | 20 regular inputs + 4 fast inputs |
| Digital Outputs | 12 relay outputs + 4 fast outputs |
| Fast Functions | HSC / PTO / PWM / Frequency Generator |
| Analog Input | Not Available |
| Analog Output | Not Available |
| Installation Type | DIN Rail Mounting |
| Programming Method | IEC 61131-3 Programming |
| Dimensions | 232 x 100 x 81 mm |
| Weight | 0.73 kg |
Function and Working Principle
The Schneider TM218LDA40DRPHN works as the central processing unit of an industrial automation system.
During machine operation, the controller receives input signals from various field devices, processes the programmed logic, and sends output commands to connected equipment.
The basic PLC operating cycle includes:
- Reading input signals
- Executing user application logic
- Updating output states
- Performing communication and diagnostic tasks
The controller can manage different industrial devices, including:
- Sensors
- Switches
- Encoders
- Motors
- Solenoid valves
- Relays
- Actuators
Through continuous control processing, the TM218LDA40DRPHN helps machines achieve stable and automated operation.
Main Functions
1. Industrial Machine Sequence Control
The main function of the TM218LDA40DRPHN is controlling automated machine sequences.
Typical applications include:
- Automatic production cycles
- Start and stop control
- Timing operations
- Safety interlocking
- Process coordination
The controller provides reliable logic execution for complex machine operations.
2. High-Speed Counting Function
The controller supports high-speed counting functions for applications requiring rapid signal processing.
Common uses include:
- Encoder counting
- Product quantity measurement
- Speed detection
- Position monitoring
- Machine synchronization
High-speed inputs allow the PLC to process fast-changing field signals accurately.
3. Pulse and PWM Control
The TM218LDA40DRPHN provides fast output functions suitable for pulse-based applications.
Typical applications include:
- Stepper motor control
- Positioning systems
- Speed adjustment
- Pulse signal generation
- Motion-related machine functions
These capabilities improve automation accuracy in industrial equipment.
4. Flexible Programming Capability
The Modicon M218 platform supports IEC 61131-3 programming methods.
Common programming languages include:
- Ladder Diagram (LD)
- Structured Text (ST)
- Function Block Diagram (FBD)
- Sequential Function Chart (SFC)
This flexibility allows engineers to develop control programs according to different machine requirements.
Industrial Applications
Packaging Machinery
The TM218LDA40DRPHN is widely used in packaging equipment.
Typical applications:
- Filling machines
- Labeling systems
- Sealing machines
- Wrapping equipment
- Conveyor control
The PLC provides accurate sequence control and production management.
Assembly Automation
The controller is suitable for automated assembly systems.
Applications include:
- Component assembly machines
- Inspection equipment
- Automated production lines
- Pick-and-place systems
It coordinates sensors and actuators to improve production efficiency.
Material Handling Systems
The PLC can control:
- Conveyor systems
- Sorting machines
- Transfer equipment
- Lifting mechanisms
Its fast processing capability supports reliable material movement control.
OEM Machine Applications
The TM218LDA40DRPHN is commonly used in custom-built industrial machines.
Examples include:
- Special-purpose machines
- Industrial automation equipment
- Small production systems
- Automated testing equipment
Installation Guide
Mechanical Installation
Recommended installation steps:
- Install the controller on a standard DIN rail.
- Ensure sufficient ventilation space around the PLC.
- Avoid strong electromagnetic interference sources.
- Confirm that the controller is securely mounted.
- Check environmental conditions before operation.
Proper mechanical installation improves long-term stability.
Electrical Wiring
Before powering the controller, verify:
- Correct power supply connection
- Proper input wiring
- Correct output terminal connection
- Reliable grounding
- Separation between power cables and signal cables
Incorrect wiring may cause controller malfunction or equipment damage.
Programming and Commissioning
Typical commissioning process:
- Connect the controller to the programming system.
- Configure PLC parameters.
- Download the control program.
- Check input and output status.
- Test machine sequences.
- Verify alarm and protection functions.
A complete commissioning procedure ensures reliable machine operation.
Common Fault Symptoms and Troubleshooting
| Fault Symptom | Possible Cause | Recommended Solution |
|---|---|---|
| PLC cannot start | Power supply problem | Check power connection |
| Input signal missing | Sensor wiring fault | Inspect input terminals |
| Output device not working | Output circuit problem | Check output connection |
| Communication failure | Incorrect configuration | Verify communication settings |
| Program execution stopped | PLC status error | Check controller diagnostics |
| High-speed counting inaccurate | Incorrect parameter setting | Check HSC configuration |
| Unexpected machine movement | Logic program issue | Review PLC program |
Maintenance Recommendations
To maintain reliable operation:
- Regularly inspect wiring connections
- Keep the control cabinet clean
- Check operating temperature
- Backup PLC programs regularly
- Monitor diagnostic information
- Inspect connected field devices
Preventive maintenance helps extend controller service life.
Advantages of Schneider TM218LDA40DRPHN
- Compact industrial PLC design
- Reliable machine control performance
- High-speed counting capability
- Pulse and PWM control functions
- Flexible programming options
- Easy DIN rail installation
- Suitable for OEM automation equipment
- Stable long-term industrial operation
Technical FAQs
What is Schneider TM218LDA40DRPHN?
The Schneider TM218LDA40DRPHN is a Modicon M218 Logic Controller designed for industrial machine automation and PLC control applications.
What applications can use this controller?
It is suitable for packaging machines, assembly equipment, conveyors, material handling systems, and general automation applications.
Does TM218LDA40DRPHN support high-speed inputs?
Yes. The controller provides fast input functions for applications such as high-speed counting and event processing.
Can this controller be used for motion-related applications?
Yes. Its fast outputs support pulse-related functions suitable for certain positioning and motion control applications.
Conclusion
The Schneider TM218LDA40DRPHN Modicon M218 Logic Controller is a reliable PLC solution designed for modern industrial automation systems.
With flexible I/O management, high-speed processing functions, pulse output capability, and compact installation design, it provides an efficient control platform for machine builders and automation engineers.
For packaging, assembly, material handling, and OEM automation applications, the Schneider TM218LDA40DRPHN helps improve machine performance, increase production reliability, and simplify industrial control system design.
