Product Overview

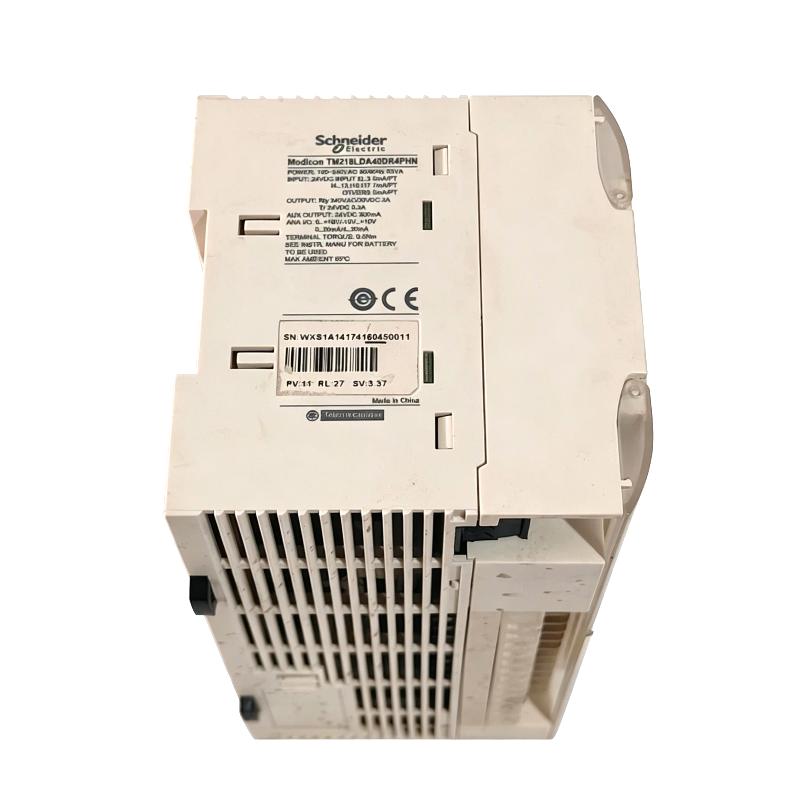

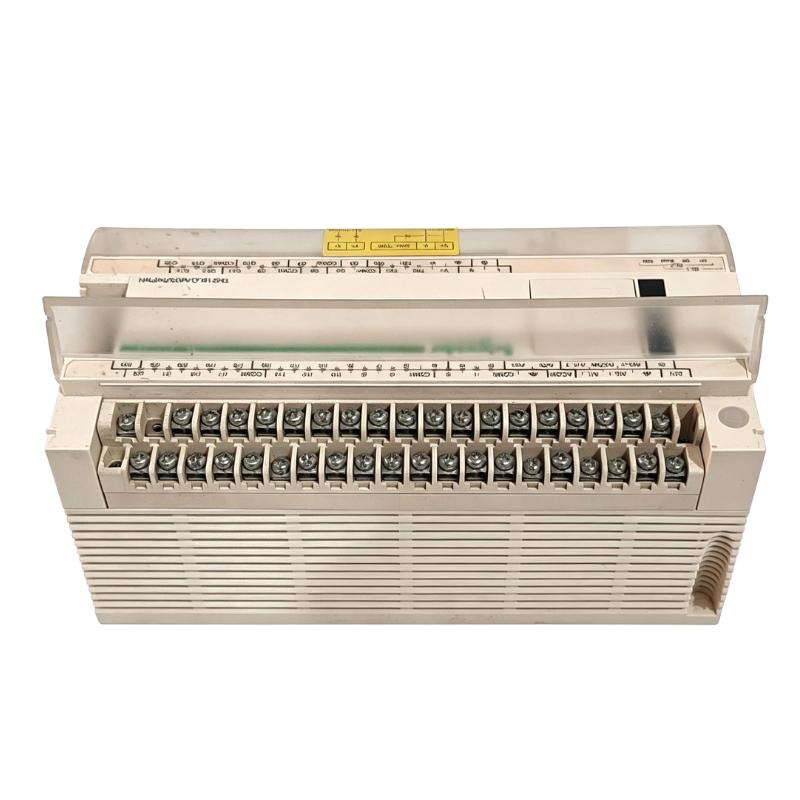

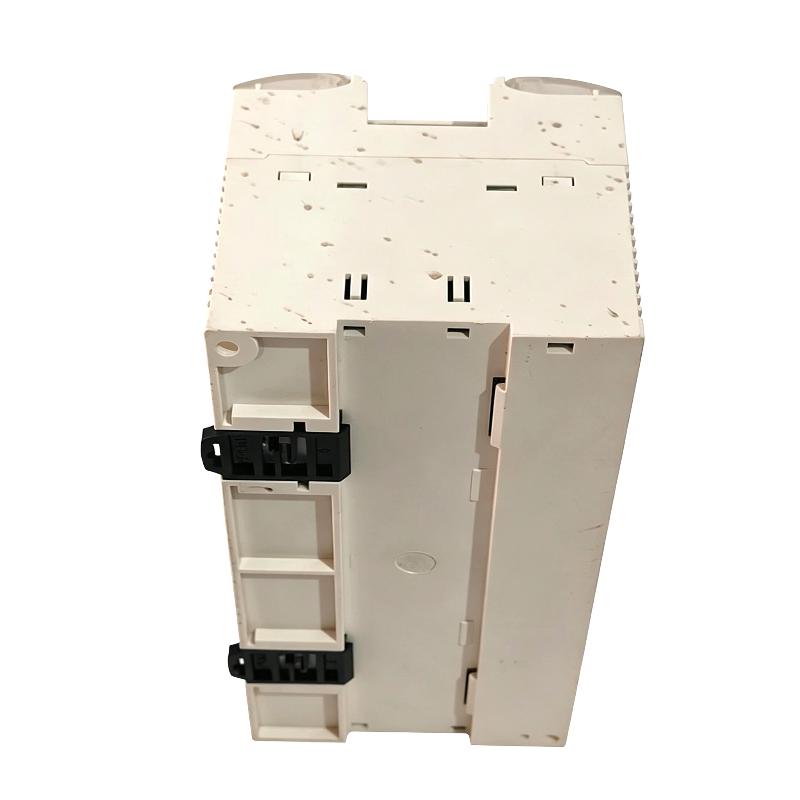

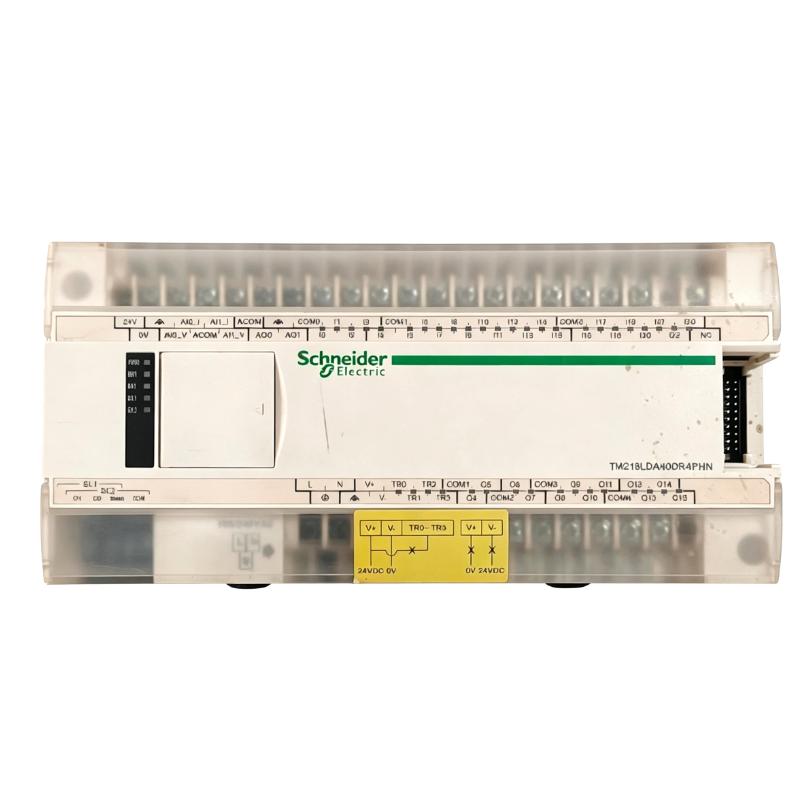

The Schneider TM218LDA40DR4PHN Modicon M218 Logic Controller is a machine-level PLC from the Modicon M218 family. It is intended for applications where the controller needs to coordinate a larger number of machine signals, execute sequential logic, and manage interactions between sensors, actuators, drives, and operator-interface equipment.

Compared with smaller M218 controllers, this model is suited to control architectures requiring more I/O resources within the machine controller. It can serve as the central logic unit for automated equipment, handling programmed sequences, interlocks, status monitoring, and control commands.

A typical machine architecture can be organized as:

Sensors / Switches → TM218LDA40DR4PHN → Actuators / Drives → Machine

The controller’s exact I/O and communication configuration should be matched with the application requirements during system design.

Technical Specifications

Main Features

The TM218LDA40DR4PHN is intended for machine applications that require centralized PLC control and coordination of multiple automation devices.

• Modicon M218 Logic Controller
• Suitable for machine-level automation
• Executes programmed control sequences
• Handles machine interlocks and operating logic
• Coordinates field devices and actuators
• Suitable for integration with drives and HMI systems
• Supports centralized machine-control architecture
• Suitable for OEM equipment and production machinery
• Compact PLC construction
• Designed for industrial control cabinets
• Dimensions of 217 × 90 × 60 mm
• Weight of 0.65 kg

Working Principle

The TM218LDA40DR4PHN continuously processes information received from field devices and executes the application program stored in the controller.

The basic control sequence can be understood as:

Input Signals → PLC Program → Logic Processing → Output Commands

For example, a machine may receive a position signal from a proximity sensor. The controller evaluates that input together with other conditions, such as an enable signal or sequence status. If the programmed conditions are satisfied, the PLC activates the appropriate output to command a valve, contactor, motor-control device, or other actuator.

The controller then receives feedback from the field and continues executing the sequence.

This cyclic process allows the M218 controller to coordinate multiple machine operations while maintaining programmed interlocks and operating conditions.

Machine Control Architecture

The TM218LDA40DR4PHN can act as the central controller in a machine automation cabinet.

A typical architecture is:

Field Devices → M218 Controller → Machine Actuators

with an additional operator and supervisory layer:

HMI ↔ PLC ↔ Drives / Actuators

Typical field devices may include:

• Proximity sensors
• Photoelectric sensors
• Limit switches
• Push buttons
• Pressure switches
• Temperature transmitters
• Solenoid valves
• Motor starters
• Variable frequency drives
• Servo systems

The PLC program determines how these devices interact and establishes the machine’s operating sequence.

For a production machine, this may include startup conditions, automatic cycles, fault handling, equipment interlocks, and controlled shutdown sequences.

I/O and System Integration

When integrating the TM218LDA40DR4PHN into an automation system, the controller should be evaluated as part of the complete control architecture rather than as an isolated PLC.

Important engineering considerations include:

• Required digital inputs
• Required digital outputs
• Analog signal requirements
• Communication interfaces
• Network topology
• HMI connection
• Drive integration
• Expansion requirements
• Machine safety architecture

The PLC handles standard machine-control logic, while safety-related functions should be implemented using the appropriate safety components and architecture.

Where drives are included, the communication method should be selected according to the controller and drive configuration. For applications involving multiple machines or supervisory systems, the overall network structure should also be considered during design.

Industrial Applications

The TM218LDA40DR4PHN can be applied to different types of automated machinery where centralized PLC control is required.

Its application is particularly appropriate where the machine requires a dedicated PLC to coordinate several field devices and operating sequences.

Programming and Commissioning

A machine using the TM218LDA40DR4PHN should be commissioned progressively.

A practical commissioning sequence is:

Controller Power-Up → I/O Verification → Communication Test → Manual Operation → Interlock Test → Automatic Cycle

First, verify that the controller starts correctly and that the field I/O states correspond to the actual machine conditions.

Next, check communication with connected devices such as HMI panels or drives. Manual operation can then be used to verify individual outputs before running the complete automatic sequence.

Finally, test:

• Start/stop logic
• Machine interlocks
• Fault handling
• Sensor feedback
• Actuator responses
• Automatic sequence transitions
• Controlled shutdown behavior

This staged approach helps isolate wiring, configuration, and programming problems.

Installation and Maintenance

Before installing or replacing the TM218LDA40DR4PHN, verify the controller model and the complete machine-control configuration.

Recommended checks include:

• Confirm the complete TM218LDA40DR4PHN model.
• Verify the controller power requirements.
• Check the cabinet installation arrangement.
• Verify field I/O wiring.
• Confirm connected actuator compatibility.
• Check HMI and drive connections.
• Back up the application program.
• Record existing controller configuration.
• Inspect terminals and connectors.

After installation, verify controller startup, I/O operation, communication, and machine sequence logic before returning the equipment to automatic production.

If an existing controller is being replaced, preserving the original program and configuration information can significantly reduce commissioning time.

Related Components

The TM218LDA40DR4PHN normally works with several types of automation hardware.

The exact combination depends on the machine’s I/O requirements, motion system, safety design, and communication architecture.

Recommended Related Models

The selection should be based on the required I/O resources, communication functions, controller configuration, and overall machine architecture.

Key Advantages

• Modicon M218 PLC architecture
• Suitable for centralized machine control
• Supports programmed sequence execution
• Coordinates sensors and actuators
• Suitable for OEM and industrial machinery
• Can integrate with HMI and drive systems
• Supports machine interlocking and fault logic
• Compact controller format
• Suitable for control cabinet installation
• Dimensions of 217 × 90 × 60 mm
• Weight of 0.65 kg

Technical FAQs

What is the Schneider TM218LDA40DR4PHN used for?

The TM218LDA40DR4PHN is a Modicon M218 logic controller used to execute machine-control programs and coordinate field devices, actuators, drives, and operator-interface equipment.

What type of machine can use the TM218LDA40DR4PHN?

It can be applied to packaging equipment, conveyors, assembly machines, material-handling systems, processing equipment, pumping systems, and other OEM machinery requiring centralized PLC control.

What should be considered when integrating this M218 controller with a drive?

The controller and drive must have compatible communication or I/O interfaces. Engineers should also consider the required control method, feedback signals, network topology, drive configuration, and machine sequence before commissioning.

What is the recommended commissioning procedure for the TM218LDA40DR4PHN?

Start with controller power-up and I/O verification, then test communication and individual outputs. After manual functions and interlocks have been confirmed, run the automatic sequence and verify the complete machine cycle.
