Product Overview

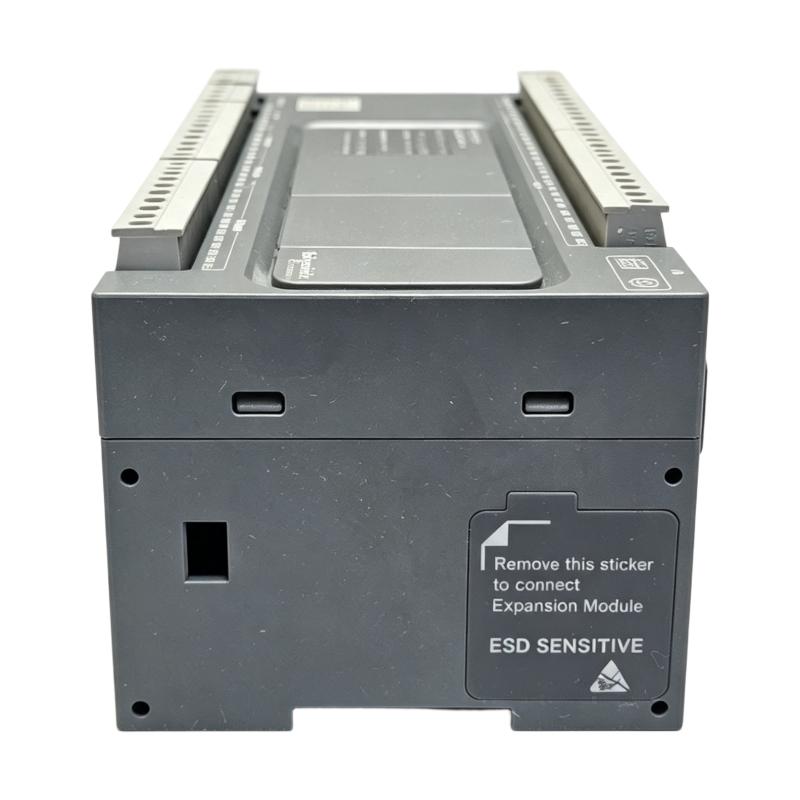

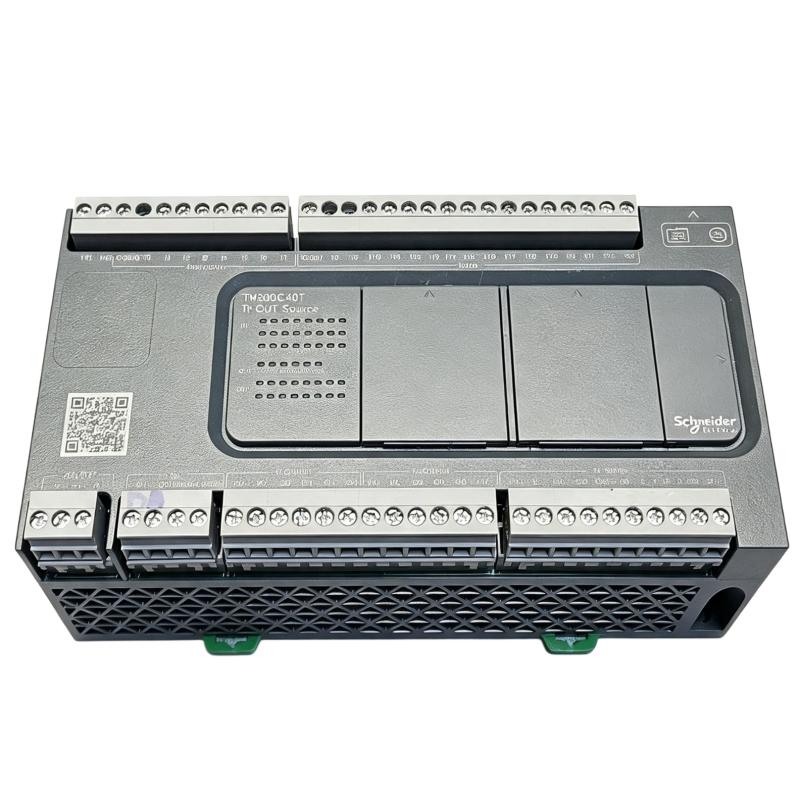

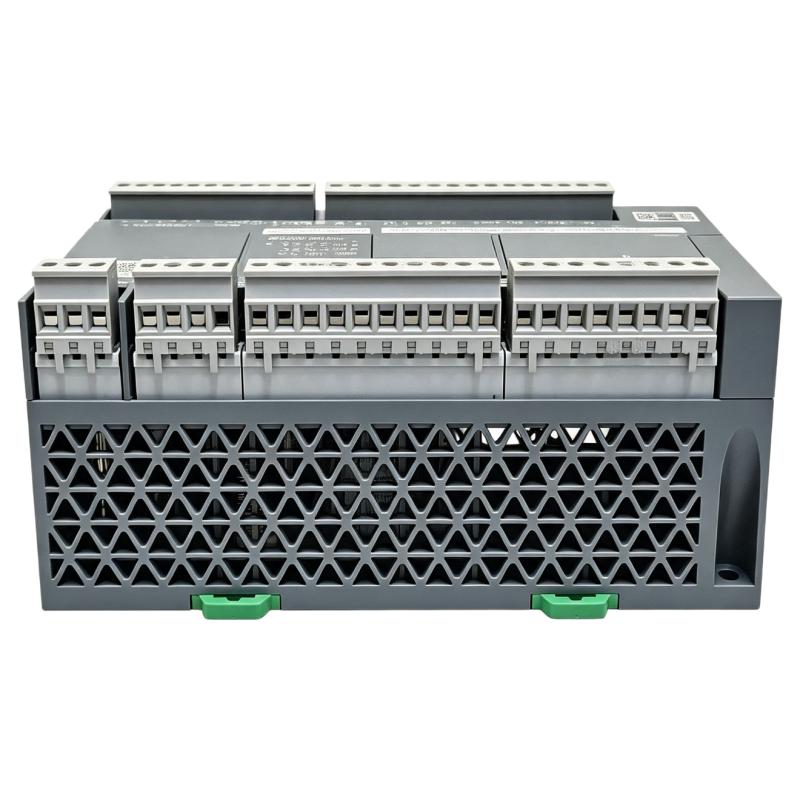

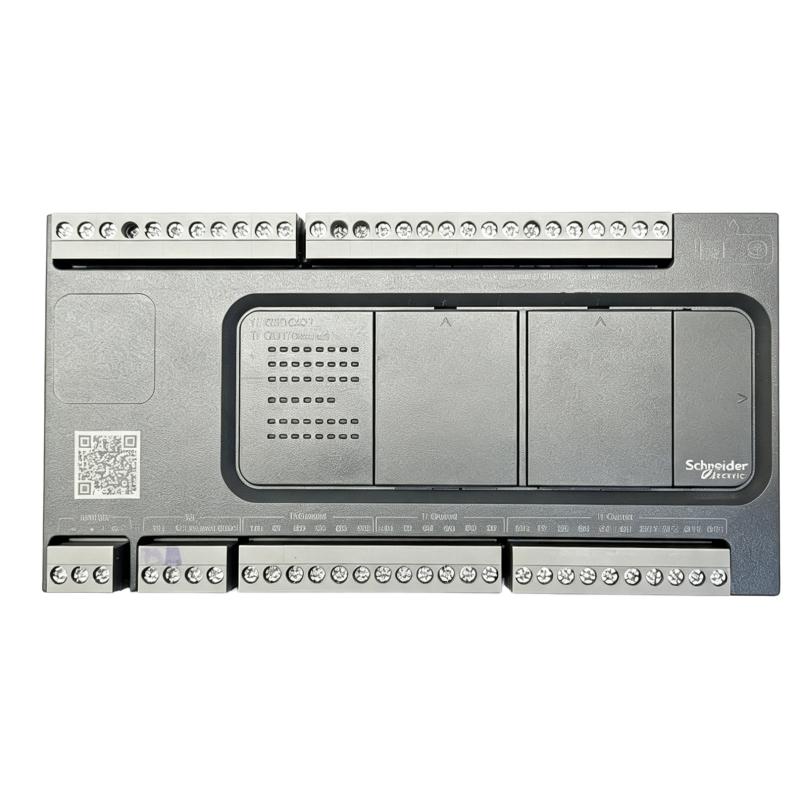

The Schneider TM200C40T Controller M200 40 IO Transistor Source is a compact programmable logic controller designed for industrial automation, machine control, and OEM equipment applications.
The TM200C40T belongs to the Modicon M200 controller series and provides integrated digital input and transistor source output capabilities for advanced machine automation systems. It is designed for applications requiring fast switching response, accurate signal processing, and reliable control of industrial equipment.
With 40 integrated I/O points, the TM200C40T provides flexible control capability for small and medium automation systems. The controller supports high-speed input and output operations, making it suitable for applications requiring fast response, pulse control, and precise electronic switching.
The transistor source output structure provides improved switching performance compared with traditional relay outputs. It is suitable for controlling industrial devices such as actuators, solenoid valves, indicator systems, and other automation components.
The Schneider TM200C40T receives input signals from field devices, processes the information through the PLC CPU, and executes programmed logic operations to control connected equipment.
The Schneider TM200C40T configuration includes:
- Product Type: Controller M200 40 IO Transistor Source
- Model: TM200C40T
- Series: Modicon M200
- Controller Type: Programmable Logic Controller
- I/O Configuration: 40 IO
- Output Type: Transistor Source Output
- Application: Industrial Machine Automation
- Dimension: 175 x 90 x 70 mm
- Weight: 0.522 kg
The Schneider TM200C40T provides a reliable and efficient PLC control solution for automation systems requiring fast electronic output response and stable operation.
Technical Specifications
| Parameter |
Details |
| Manufacturer |
Schneider Electric |
| Model |
TM200C40T |
| Product Type |
Controller M200 40 IO Transistor Source |
| Product Series |
Modicon M200 |
| Controller Type |
PLC Controller |
| Total I/O Points |
40 |
| Input Type |
Digital Input |
| Output Type |
Transistor Source Output |
| Output Logic |
Positive Logic Source |
| Operating Voltage |
24 V DC |
| Output Voltage |
24 V DC |
| Output Current |
0.5 A |
| Installation Type |
Industrial Control Cabinet Mounting |
| Mounting Method |
DIN Rail Installation |
| Dimension |
175 x 90 x 70 mm |
| Weight |
0.522 kg |
| Main Function |
Machine Automation Control |
Function and Working Principle
The Schneider TM200C40T Controller M200 40 IO Transistor Source operates as a programmable automation controller that manages industrial processes through digital signal processing and transistor output control.
The controller continuously monitors input signals from connected sensors, switches, and field devices. The PLC CPU processes these signals according to the stored application program and generates output commands for connected automation equipment.
The working process includes:
- Receiving digital input signals from external devices.
- Processing input information through the PLC processor.
- Executing programmed automation logic.
- Activating transistor source outputs.
- Controlling industrial equipment operation.
The transistor source output design provides:
- Fast switching performance
- Reliable electronic control
- Accurate output response
- Suitable performance for automated machinery
The TM200C40T is ideal for applications requiring stable and precise machine control.
Product Functions
The Schneider TM200C40T provides multiple automation control functions.
| Function |
Description |
| PLC Logic Processing |
Executes user-defined control programs |
| Digital Input Monitoring |
Collects signals from field devices |
| Transistor Output Control |
Provides fast electronic switching |
| High-Speed Control |
Supports rapid automation operations |
| Machine Sequence Control |
Controls programmed operating cycles |
| Equipment Management |
Operates industrial automation devices |
The controller helps improve system efficiency and provides flexible control options for industrial applications.
Industrial Applications
The Schneider TM200C40T is widely used in industrial automation systems.
| Industry |
Application |
| Manufacturing |
Automated machine control |
| Packaging Industry |
High-speed packaging equipment |
| Material Handling |
Conveyor automation systems |
| Electronics Industry |
Precision equipment control |
| Food Processing |
Production line automation |
| Textile Industry |
Industrial machine management |
| OEM Machinery |
Customized automation solutions |
| Assembly Systems |
Automated assembly control |
Typical applications include:
- Packaging machines
- Conveyor systems
- Assembly equipment
- Sorting machines
- Automated production lines
- Motor control applications
- Industrial processing equipment
Installation Guide
Installation Preparation
Before installing the Schneider TM200C40T:
- Confirm the controller model
- Verify 24 V DC power requirements
- Prepare cabinet installation space
- Check input and output wiring
- Inspect terminals and connectors
- Ensure proper grounding
Hardware Installation
Installation steps:
- Install the controller securely inside the control cabinet.
- Connect the 24 V DC power supply.
- Connect digital input devices.
- Connect transistor source output devices.
- Check all wiring connections.
- Download the PLC control program.
- Perform system testing.
Wiring Recommendations
During installation:
- Confirm correct power polarity.
- Use suitable industrial cables.
- Keep signal cables separated from power cables.
- Verify output load compatibility.
- Tighten all terminal connections.
- Check grounding protection.
Correct wiring improves system stability and reduces operational problems.
Commissioning Guide
After installation:
- Verify controller power status.
- Check input signal operation.
- Test transistor output switching.
- Confirm PLC program execution.
- Check connected equipment operation.
- Monitor system response.
Proper commissioning ensures reliable automation performance.
Troubleshooting Guide
| Problem |
Possible Cause |
Solution |
| Controller Cannot Start |
Power supply problem |
Check 24 V DC power connection |
| Input Signal Not Detected |
Incorrect wiring |
Check sensor connections |
| Transistor Output Failure |
Output wiring issue |
Verify output terminals |
| Machine Does Not Operate |
PLC program error |
Check control logic |
| Output Response Abnormal |
Configuration problem |
Review PLC settings |
| Controller Stops Unexpectedly |
Power instability |
Check system power supply |
Maintenance Recommendations
To maintain reliable operation of the Schneider TM200C40T:
- Inspect wiring regularly
- Check power supply stability
- Keep the control cabinet clean
- Verify terminal connections
- Backup PLC programs
- Perform periodic system inspections
Regular maintenance helps improve controller reliability and reduces unexpected equipment downtime.
System Integration
The Schneider TM200C40T can be integrated into various industrial automation systems.
| System |
Application |
| Machine Control System |
Automated equipment control |
| Production Line System |
Process automation |
| OEM Control System |
Customized machinery |
| Industrial Cabinet System |
Centralized PLC control |
| Monitoring System |
Equipment status management |
The controller provides flexible integration capability for modern industrial automation projects.
Key Advantages
- Compact Modicon M200 PLC design
- Integrated 40 IO control capability
- Fast transistor source output performance
- Reliable 24 V DC operation
- Suitable for high-speed automation applications
- Flexible machine control solution
- Space-saving installation design
- Easy maintenance and troubleshooting
- Stable industrial performance
Technical FAQs
What is the Schneider TM200C40T used for?
The Schneider TM200C40T is a Modicon M200 PLC controller designed for industrial automation, machine control, and equipment management.
What type of output does the TM200C40T provide?
The TM200C40T provides transistor source outputs for fast electronic switching control.
How many I/O points does the TM200C40T have?
The controller provides 40 integrated I/O points.
What is the operating voltage of the TM200C40T?
The controller operates with a 24 V DC power supply.
What is the dimension of the Schneider TM200C40T?
The dimension is 175 x 90 x 70 mm.
What is the weight of the TM200C40T?
The weight is 0.522 kg.
What applications are suitable for the TM200C40T?
The TM200C40T is suitable for packaging machines, conveyors, OEM equipment, automated production systems, and compact industrial automation applications.
Conclusion
The Schneider TM200C40T Controller M200 40 IO Transistor Source is a powerful and compact PLC solution designed for modern industrial automation systems.
With integrated 40 IO capability, fast transistor source outputs, reliable processing performance, and flexible control functions, the TM200C40T provides an efficient automation platform for machine builders and industrial users requiring accurate, stable, and dependable equipment control.
