Product Overview

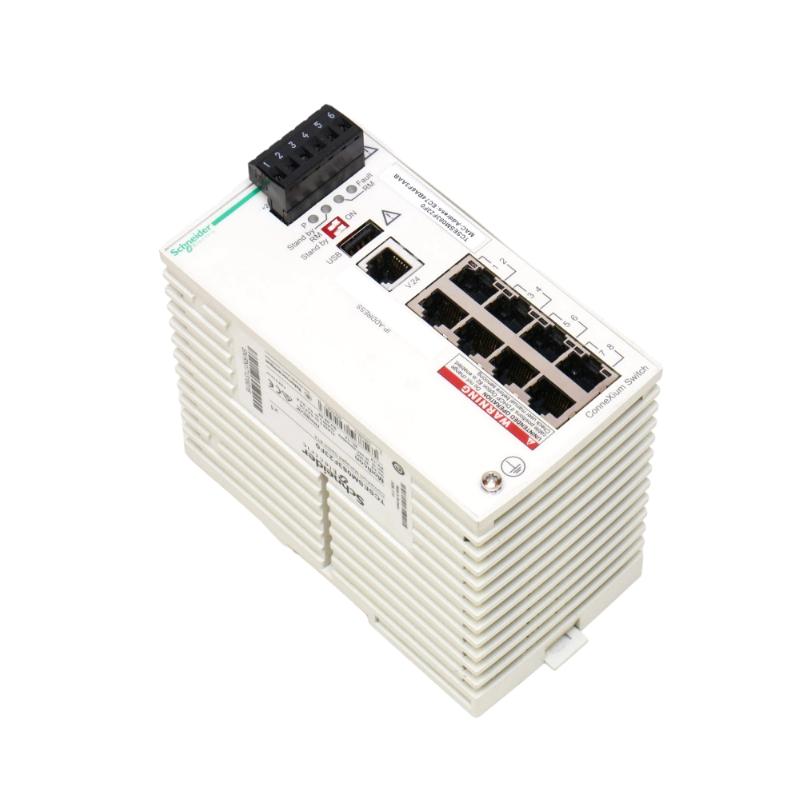

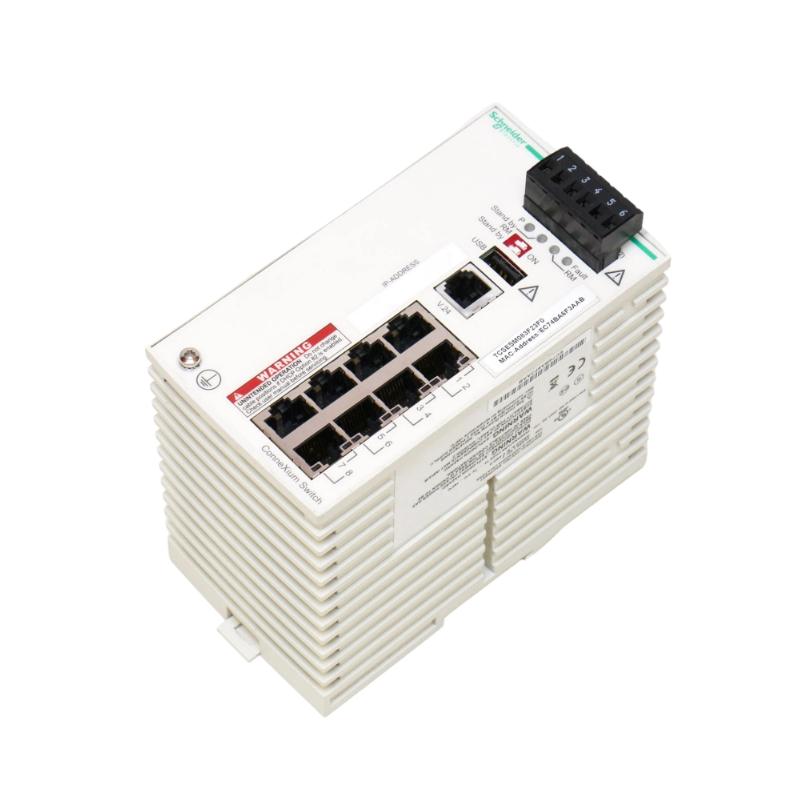

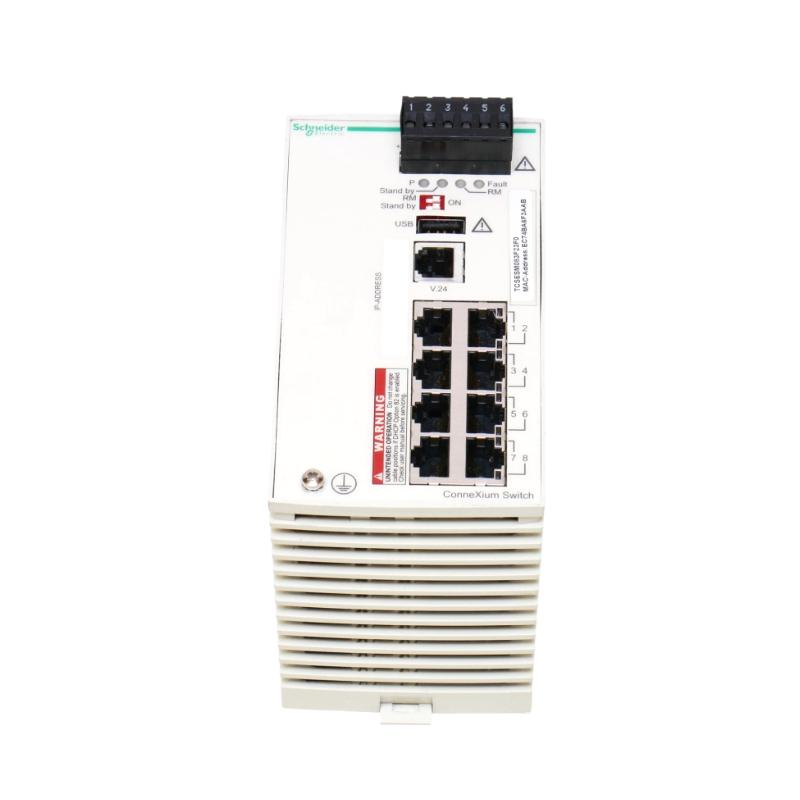

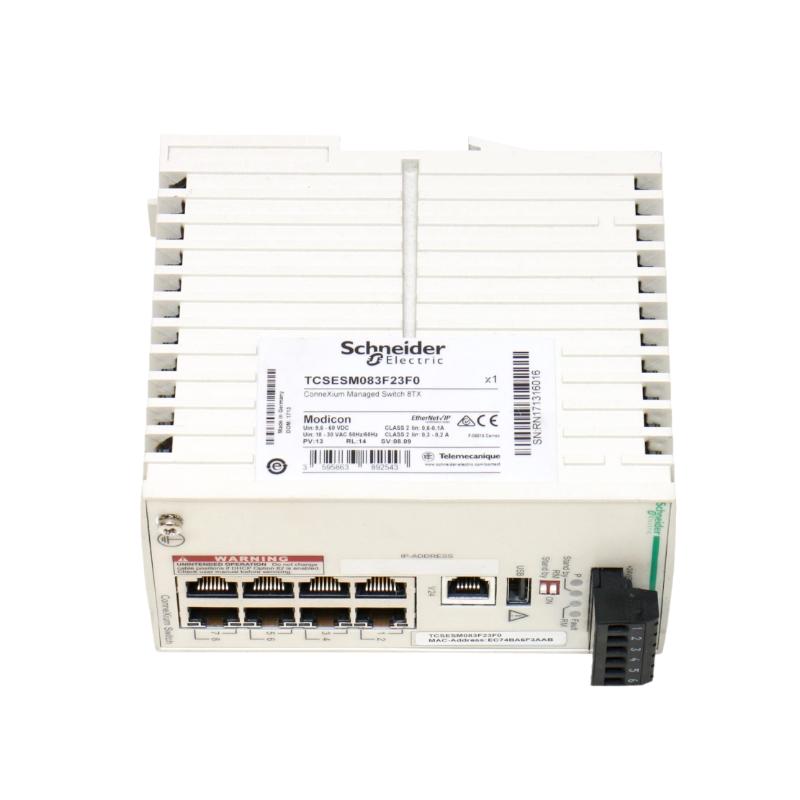

The Schneider TCSESM083F23F0 is a ConneXium managed Ethernet switch used to organize communication between Ethernet-based automation devices. It is suited to control systems where PLCs, remote I/O, HMIs, drives, engineering stations, and supervisory equipment share an industrial Ethernet network.
In a typical automation cabinet, the switch acts as the central communication point for several Ethernet nodes. A controller can exchange data with distributed I/O or an HMI through the switch without requiring separate direct connections between every device. This makes the network easier to structure as the number of connected automation stations increases.
The managed architecture is useful in installations where the Ethernet infrastructure needs more control than a basic plug-and-play switch can provide. It can form part of a ConneXium network alongside other switching equipment, controllers, and industrial Ethernet devices.
For maintenance and system expansion, the switch also provides a practical point from which network connections can be organized and diagnosed. Its application is focused on Ethernet communication infrastructure rather than control logic or process signal handling.
Technical Specifications
| Parameter | Value |
|---|---|
| Manufacturer | Schneider Electric |
| Model / Part Number | TCSESM083F23F0 |
| Product Type | ConneXium Ethernet TCP/IP Managed Switch |
| Series | ConneXium |
| Network Type | Industrial Ethernet |
| Communication | Ethernet TCP/IP |
| Application | Industrial automation network switching |
| Dimensions | 74 × 131 × 111 mm |
| Weight | 0.41 kg |
Product Features
- Managed Ethernet switching for industrial automation networks
- Supports Ethernet TCP/IP communication between connected automation devices
- Suitable for PLC, HMI, remote I/O, drive, and supervisory system connections
- Can be integrated into structured ConneXium industrial Ethernet architectures
- Suitable for control cabinets containing multiple Ethernet-connected devices
- Provides a central switching point for distributed automation equipment
- Supports expansion of Ethernet networks as additional devices are added
- Separates network communication management from controller application processing
Working Principle
The TCSESM083F23F0 receives Ethernet frames from connected automation devices and forwards them through the appropriate network path. The switch operates between the communicating devices, allowing multiple nodes to exchange data over the same Ethernet infrastructure.
A typical communication path is:
PLC / Controller → TCSESM083F23F0 → Remote I/O / HMI / Drive / Supervisory Device
For example, a PLC may send process data to a remote Ethernet I/O station. The data reaches the managed switch through an Ethernet connection, and the switch forwards the network traffic toward the intended device. Responses from the remote station follow the corresponding Ethernet path back to the controller.
The same principle applies when an HMI accesses controller data or when an engineering station communicates with automation equipment. In a larger installation, the TCSESM083F23F0 can also form part of a wider network by connecting to other Ethernet switching or backbone equipment.
Role in a ConneXium Ethernet Control Architecture
The TCSESM083F23F0 occupies the network infrastructure layer of an industrial control architecture. It does not execute PLC programs or directly process field signals. Instead, it provides the Ethernet communication path between controllers, distributed devices, operator interfaces, and other network stations.
PLC / Controller → TCSESM083F23F0 → Distributed Automation Devices → Supervisory / Plant Network
| System Element | Function |
|---|---|
| PLC / Controller | Executes control logic and exchanges process data |
| TCSESM083F23F0 | Switches Ethernet traffic between connected network devices |
| Remote I/O | Exchanges field input and output data with the controller |
| HMI | Provides operator monitoring and control functions |
| Ethernet Drive | Exchanges commands, status, and diagnostic information |
| Engineering Station | Supports configuration, commissioning, and maintenance |
| Plant Ethernet Backbone | Connects the local control network with other network segments |
The switch therefore forms the communication layer between the automation controller and the Ethernet devices distributed throughout the control system.
Industrial Applications
| Application | Typical Use |
|---|---|
| PLC Automation | Connects controllers with Ethernet-based I/O, HMIs, and other automation stations |
| Machine Control | Provides Ethernet communication between machine controllers and distributed equipment |
| Process Automation | Links control stations with networked field and supervisory devices |
| Remote I/O Systems | Provides the network path between controllers and distributed I/O |
| Drive Communication | Connects Ethernet-enabled drives with PLC and supervisory systems |
| HMI Networks | Allows operator terminals to communicate with controllers and automation devices |
| SCADA Systems | Connects control equipment with supervisory computers |
| Industrial Control Cabinets | Provides a centralized Ethernet switching point for cabinet-level automation networks |
Installation and Maintenance
- Mounting: Secure the switch correctly in the designated control cabinet or enclosure and leave adequate access to the Ethernet and power connections.
- Power Wiring: Confirm the applicable power supply arrangement before energizing the switch. Check terminal connections for correct polarity and secure contact.
- Ethernet Connections: Use appropriate industrial Ethernet cabling and make sure every connector is fully seated.
- Network Layout: Define the network topology before installation and document which devices are connected to each port.
- IP Address Planning: Maintain a consistent IP addressing scheme for the connected Ethernet devices and avoid duplicate addresses.
- Switch Configuration: Review the managed-switch configuration before placing the unit into an operating control network.
- Port Identification: Label cables and ports clearly, particularly where several controllers, HMIs, drives, or I/O stations are installed in the same cabinet.
- Commissioning: Check the link status of each connected network device and verify communication between the relevant control stations.
- Cable Inspection: Inspect Ethernet cables, plugs, and connections periodically for looseness, mechanical damage, or other signs of deterioration.
- Environmental Protection: Keep the installation within the applicable environmental conditions and protect the equipment from excessive dust, moisture, vibration, and heat.
- Configuration Records: Keep a current record of the network configuration so that communication settings can be restored during maintenance or replacement.
- Replacement Procedure: Before replacing the switch, record the existing network connections and configuration. After installation, verify all affected communication paths before returning the control system to normal operation.
Compatible System Components
| Component Type | Typical Role |
|---|---|
| Schneider Modicon PLC | Main controller for Ethernet-based automation communication |
| Schneider Remote I/O | Distributed acquisition and output equipment |
| Schneider HMI | Operator interface and process visualization |
| Schneider Ethernet Drive | Networked motor and drive control |
| ConneXium Ethernet Equipment | Additional network infrastructure |
| Industrial Ethernet Cables | Physical communication links between network devices |
| SCADA / Engineering Station | Supervisory monitoring and system maintenance |
Recommended Related Models
| Model | Product Type | Typical Application |
|---|---|---|
| Schneider TCSESM163F23F0 | ConneXium Ethernet TCP/IP Managed Switch | Managed Ethernet networks with additional connected devices |
| Schneider TCSESMO83F2CU0 | ConneXium Managed Switch | Industrial Ethernet network infrastructure |
| Schneider TCSESU083FN0 | ConneXium Unmanaged Switch | Straightforward industrial Ethernet connections |
| Schneider TCSESU043F1N0 | ConneXium Unmanaged Switch | Compact Ethernet automation networks |
| Schneider TCSEGDB23F24FA | Modicon X80 Modbus Plus Proxy Module | Integration between Modbus Plus and Modicon X80 architectures |
Key Advantages
- Provides managed Ethernet switching for industrial automation systems
- Supports structured communication between multiple Ethernet-based devices
- Suitable for controller, HMI, remote I/O, drive, and supervisory connections
- Fits ConneXium-based industrial Ethernet architectures
- Provides a practical network infrastructure point for system expansion
- Helps organize Ethernet connections within distributed control systems
Technical FAQs
What type of device is the TCSESM083F23F0?
The TCSESM083F23F0 is a ConneXium Ethernet TCP/IP managed switch used as industrial network infrastructure. It handles Ethernet communication between connected automation devices rather than executing control programs.
Where is the TCSESM083F23F0 typically installed?
It can be installed in an industrial control cabinet or other suitable automation enclosure where multiple Ethernet devices need to communicate through a managed network infrastructure.
Can a PLC, HMI, and remote I/O communicate through the TCSESM083F23F0?
Yes. When the connected devices use compatible Ethernet communication and are configured correctly, the switch can provide the network path between the PLC, HMI, remote I/O, and other Ethernet stations.
What should be checked if communication is lost after installing the switch?
Check the power connection, Ethernet cable and connector condition, link status, port assignment, IP addressing, and managed-switch configuration. It is also useful to verify whether the problem affects one connection or multiple network devices, as this can help distinguish a local connection issue from a wider network configuration problem.
