Product Overview

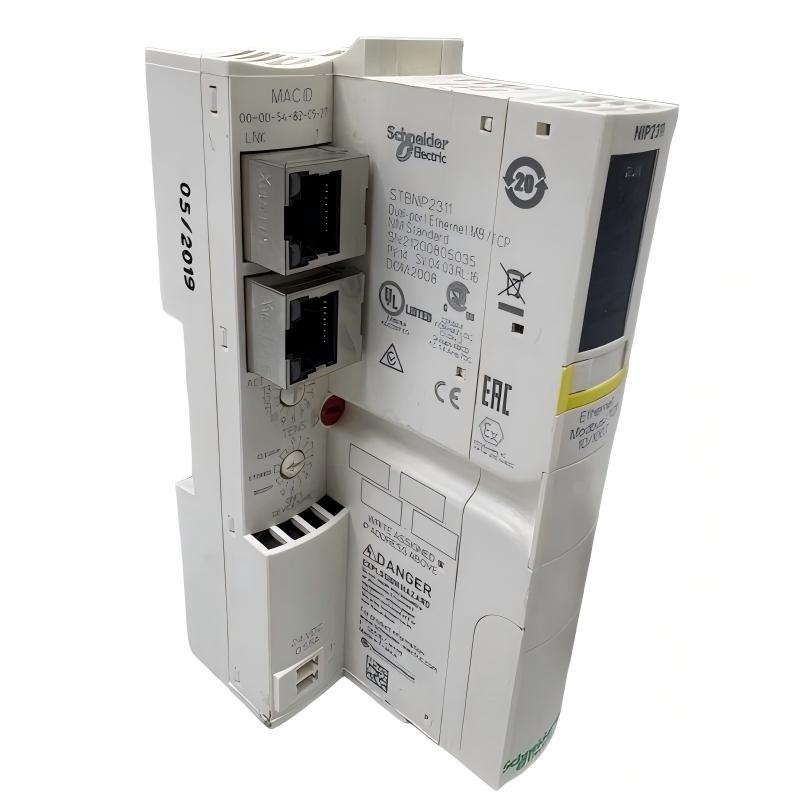

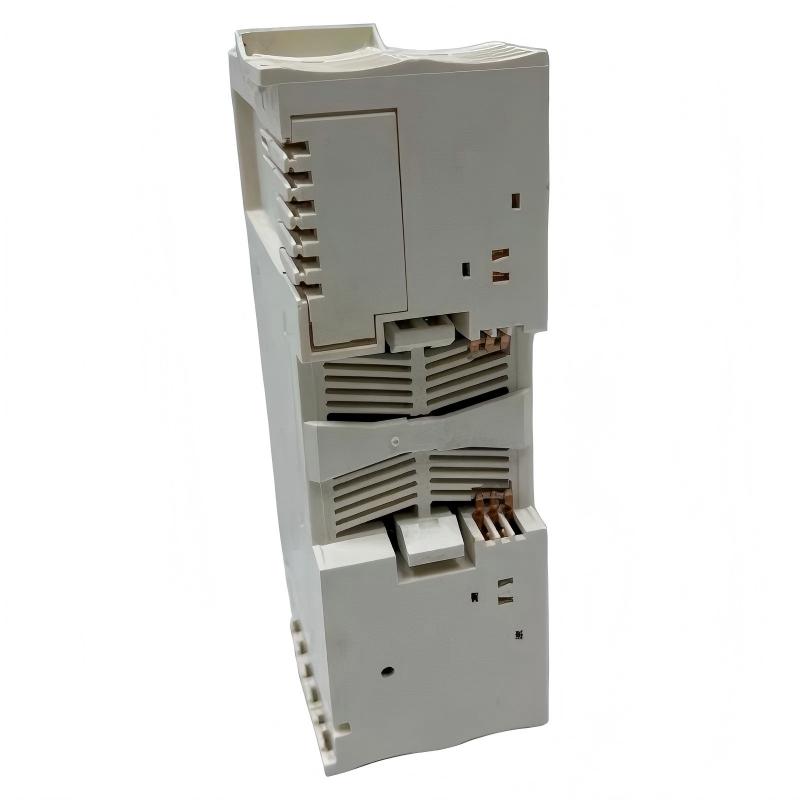

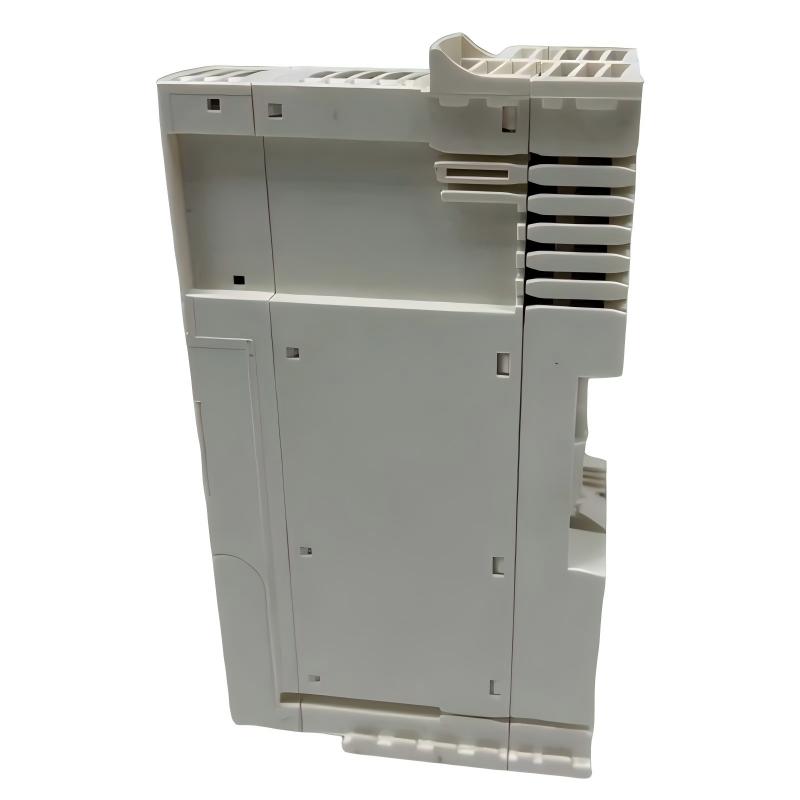

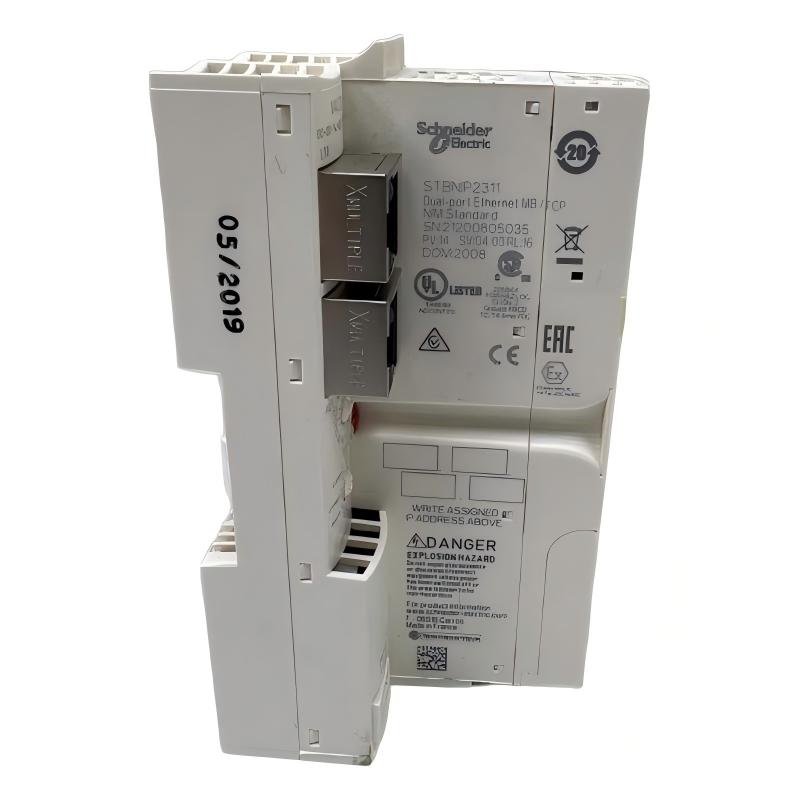

The Schneider STBNIP2311 Network Interface Module is an industrial communication component designed for Schneider Electric Modicon STB distributed I/O systems. It provides reliable network communication, data exchange, and system interface functions to connect automation controllers with distributed field devices.
The Schneider STBNIP2311 network interface module serves as a communication gateway within an industrial automation system. It enables communication between Ethernet networks and STB I/O modules, allowing controllers to exchange process data efficiently and support flexible distributed control architectures.
With a compact industrial design and stable communication performance, the Schneider STBNIP2311 is suitable for machine automation, industrial control systems, remote I/O applications, and equipment maintenance projects.
The Schneider STBNIP2311 configuration includes:
- Product Type: Network Interface Module
- Model: STBNIP2311
- Application: Industrial Network Communication and Distributed I/O Control
- Dimensions: 40.5 x 130 x 70 mm
- Weight: 0.145 kg
The Schneider STBNIP2311 is suitable for Modicon STB automation platforms, industrial Ethernet communication systems, and distributed control applications.
Technical Specifications
| Parameter | Details |
|---|---|
| Manufacturer | Schneider Electric |
| Model | STBNIP2311 |
| Product Type | Network Interface Module |
| Application | Network Communication and I/O Interface |
| Communication Function | Industrial Network Data Exchange |
| Installation Type | Modicon STB Island Mounting |
| Dimensions | 40.5 x 130 x 70 mm |
| Weight | 0.145 kg |
| Main Function | Network Gateway and Communication Management |
| System Application | Industrial Automation and Distributed I/O Systems |
Function and Working Principle
The Schneider STBNIP2311 Network Interface Module operates as a communication interface between industrial networks and Modicon STB distributed I/O modules.
The module collects input and output information from connected I/O devices and transfers data between field-level equipment and higher-level control systems. It helps automation systems achieve centralized monitoring, efficient communication, and flexible system expansion.
The working process includes:
- Receiving communication commands from the automation network.
- Processing network data through the interface module.
- Communicating with connected STB I/O modules.
- Transmitting input and output information.
- Supporting continuous industrial automation operation.
The Schneider STBNIP2311 provides functions including:
- Industrial network communication
- Distributed I/O management
- Data transmission support
- System diagnostic assistance
- Automation system integration
Product Functions
The Schneider STBNIP2311 Network Interface Module provides reliable communication functions for industrial automation systems.
| Function | Description |
|---|---|
| Network Interface | Connects automation systems with distributed I/O modules |
| Data Communication | Transfers control and process information |
| System Integration | Supports connection between controllers and field devices |
| Diagnostic Support | Helps monitor communication status |
| Remote I/O Management | Enables flexible equipment expansion |
The network interface module improves automation efficiency by providing stable communication between control systems and distributed devices.
Industrial Applications
The Schneider STBNIP2311 Network Interface Module is widely used in industrial automation environments.
| Industry | Application |
|---|---|
| Manufacturing | Machine automation systems |
| Automotive | Production line control |
| Packaging | Automated equipment communication |
| Food and Beverage | Process automation |
| Water Treatment | Distributed monitoring systems |
| Chemical Industry | Industrial control systems |
| Energy Industry | Equipment communication networks |
| Factory Automation | Remote I/O applications |
Typical applications include:
- PLC distributed control systems
- Industrial Ethernet networks
- Automation control cabinets
- Remote I/O stations
- Machine communication systems
Installation Guide
Installation Preparation
Before installing the Schneider STBNIP2311:
- Confirm system compatibility
- Disconnect electrical power
- Prepare installation tools
- Check communication cables
- Verify mounting position
- Inspect module condition
Hardware Installation
Installation steps:
- Shut down the automation system completely.
- Install the Schneider STBNIP2311 into the Modicon STB island.
- Secure the module in the correct mounting position.
- Connect communication cables.
- Connect required power wiring.
- Verify all connections before startup.
Configuration and Commissioning
After installation:
- Configure communication parameters
- Check network connection status
- Verify module diagnostic indicators
- Confirm PLC communication
- Test I/O data exchange
- Monitor system operation
Proper commissioning ensures stable network communication and reliable distributed control performance.
Troubleshooting Guide
| Problem | Possible Cause | Solution |
|---|---|---|
| Network Communication Failure | Cable connection problem | Check communication cables |
| Module Not Recognized | Incorrect installation | Verify module mounting |
| I/O Data Not Updating | Communication interruption | Check network settings |
| Communication Alarm | Incorrect parameters | Review configuration |
| Unstable Network Connection | Electrical interference | Check grounding and wiring |
| Module Fault | Hardware failure | Replace network interface module |
Maintenance Recommendations
To maintain reliable Schneider STBNIP2311 operation:
- Keep control cabinets clean
- Prevent dust and moisture exposure
- Check network cables regularly
- Monitor communication status
- Inspect module indicators
- Perform preventive maintenance
Regular maintenance helps reduce communication failures and improves industrial automation system reliability.
System Integration
The Schneider STBNIP2311 Network Interface Module can be integrated into various industrial control environments.
| System | Application |
|---|---|
| Modicon PLC System | Distributed I/O communication |
| Industrial Ethernet Network | Data exchange |
| SCADA System | Remote equipment monitoring |
| HMI System | Operator communication |
| Factory Automation Network | Device connectivity |
The module provides reliable communication between automation controllers and field-level equipment.
Key Advantages
- Reliable industrial communication performance
- Stable network data transmission
- Supports distributed I/O applications
- Compact installation design
- Simplifies automation system integration
- Improves equipment communication reliability
- Supports flexible system expansion
- Reduces maintenance difficulty
- Suitable for industrial automation environments
Technical FAQs
What is the Schneider STBNIP2311 used for?
The Schneider STBNIP2311 is a network interface module used to connect Modicon STB distributed I/O systems with industrial automation networks.
What is the main function of the STBNIP2311?
Its main function is to provide communication between control systems and distributed I/O modules.
What type of equipment uses the Schneider STBNIP2311?
It is used in industrial automation systems, PLC control applications, and distributed I/O networks.
What are the dimensions of the Schneider STBNIP2311?
The dimensions are 40.5 x 130 x 70 mm.
What is the weight of the Schneider STBNIP2311?
The weight is 0.145 kg.
Can the Schneider STBNIP2311 be replaced during maintenance?
Yes. The network interface module can be replaced during professional maintenance procedures when the original communication module requires repair or replacement.
Conclusion
The Schneider STBNIP2311 Network Interface Module is a reliable industrial communication component designed to provide stable network connectivity and distributed I/O management for Schneider Electric automation systems.
With dependable communication performance, compact structure, and flexible integration capability, the Schneider STBNIP2311 helps improve industrial network efficiency, simplify automation system management, and support long-term reliable operation.
