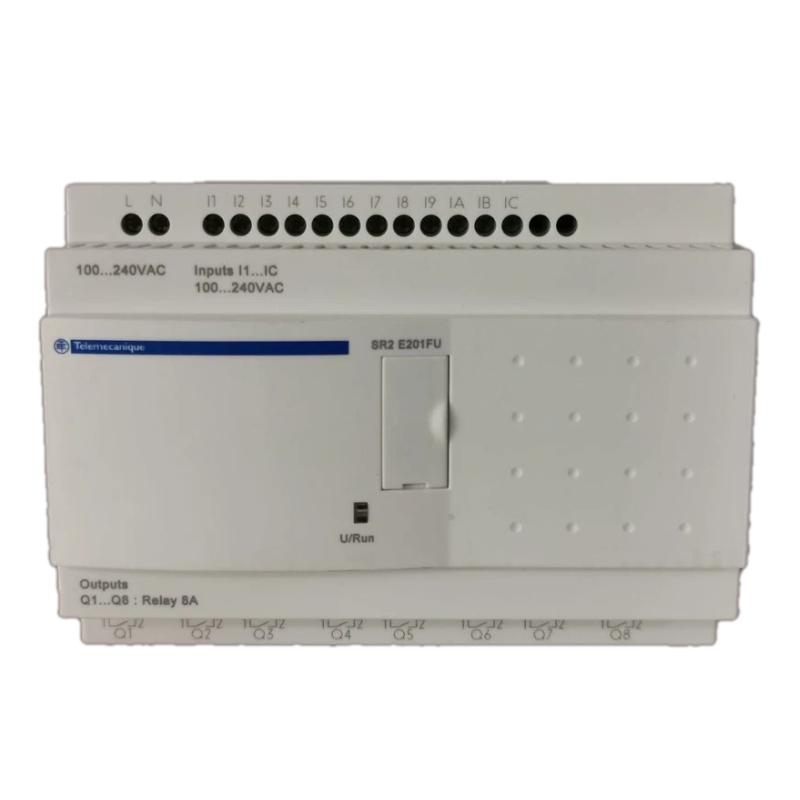

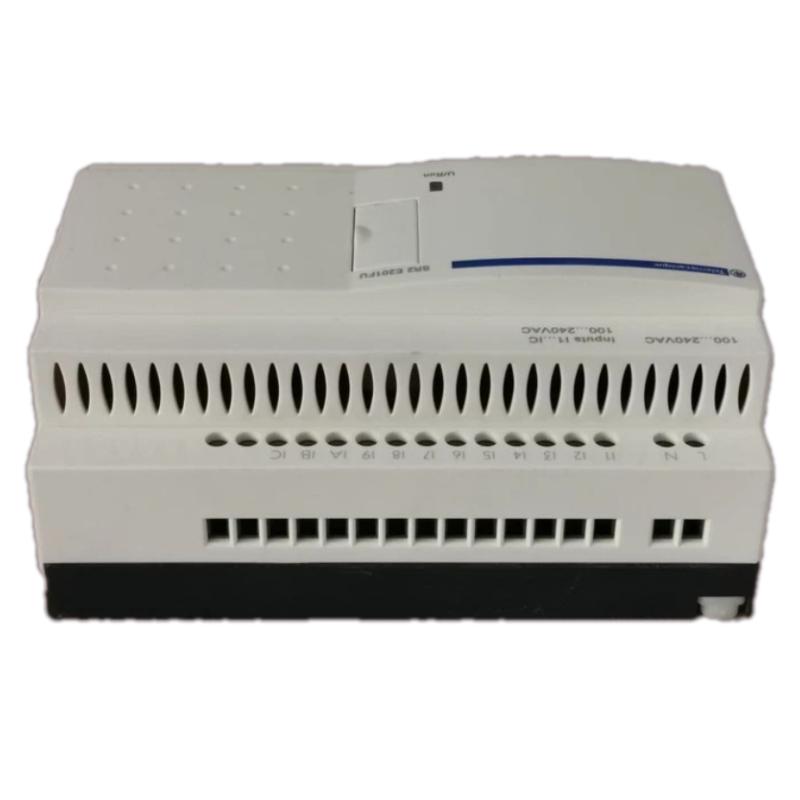

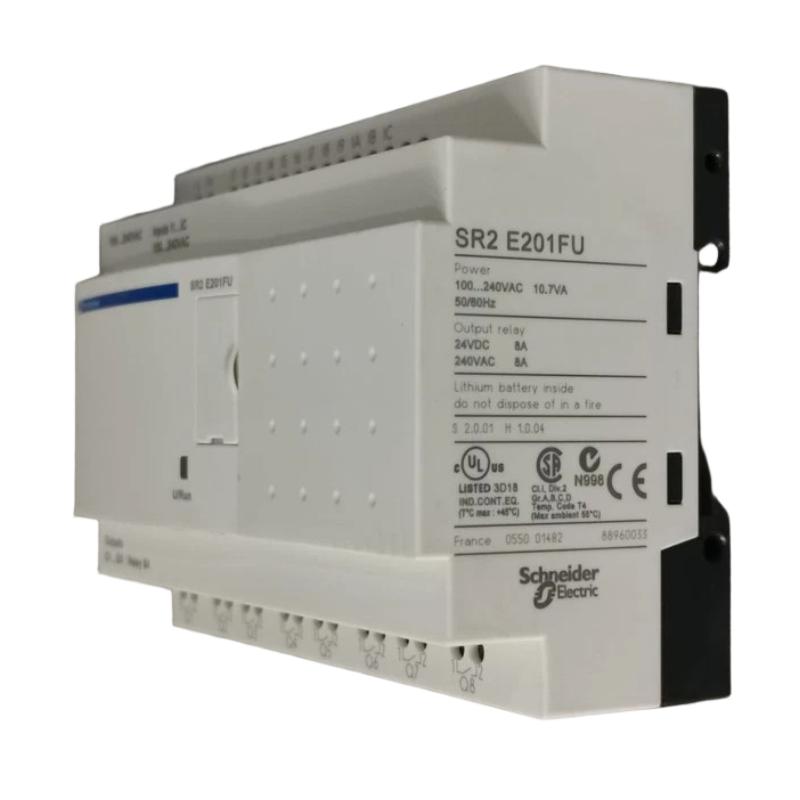

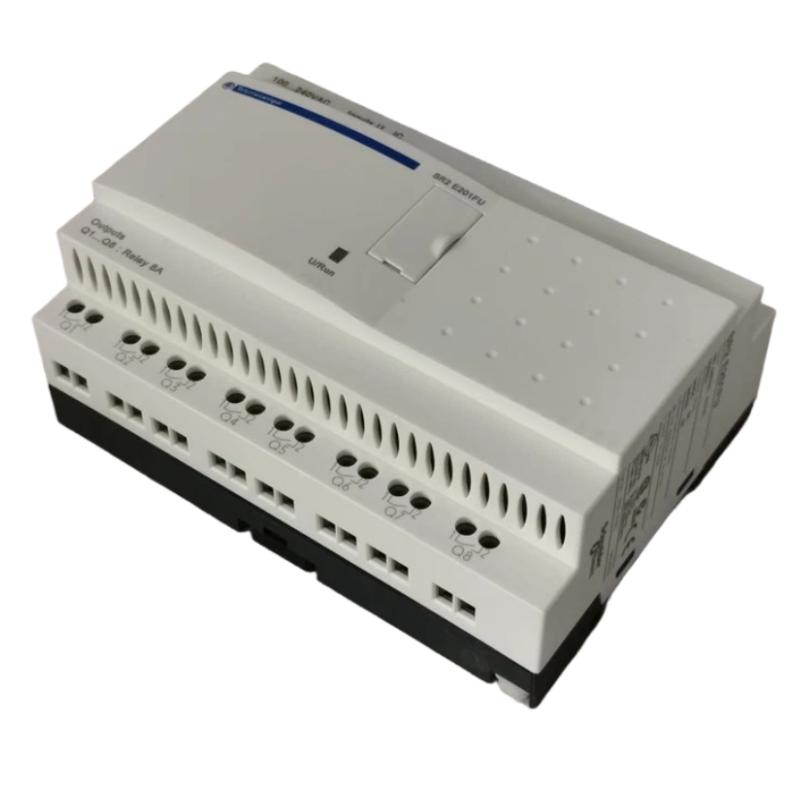

Product Overview

The Schneider Electric SR2E201FU Compact Smart Relay is an intelligent control device designed for compact automation systems, electrical control panels, and small-scale industrial applications. As part of Schneider Electric’s smart relay product family, it provides a practical solution for implementing basic logic control, equipment sequencing, and automated switching functions without requiring a large programmable logic controller (PLC) for every application.

Smart relays are commonly used to control motors, pumps, lighting circuits, ventilation equipment, and other electrical devices that operate according to predefined conditions. By combining control logic and relay-based switching functions in a compact unit, they help simplify electrical system design, reduce wiring complexity, and support reliable operation in applications with straightforward automation requirements.

The Schneider SR2E201FU has listed dimensions of 124.6 × 107.6 × 59.5 mm and a weight of approximately 0.35 kg. Its compact form makes it suitable for control cabinets where installation space, wiring accessibility, and convenient maintenance are important considerations.

Before installation or replacement, users should verify the exact model designation, supply requirements, terminal arrangement, input/output configuration, and programming compatibility against the device label and applicable technical documentation. These details are essential for ensuring safe integration into the intended control system.

Technical Specifications

What Is the Schneider SR2E201FU Smart Relay?

The SR2E201FU is identified as a compact smart relay intended for logic-based control applications. A smart relay occupies a practical position between conventional relay circuits and more extensive PLC-based automation systems. It allows control sequences to be organized into programmed logic rather than implemented entirely through hardwired relay contacts and auxiliary components.

In a conventional electrical control circuit, achieving a sequence of operations may require multiple relays, timers, interlocks, and associated wiring. A smart relay can consolidate suitable control functions into one programmable device, depending on the requirements and capabilities of the selected model.

For example, a compact automation system may need to start a pump when a permitted condition is met, stop it when a level switch changes state, and activate an alarm when an abnormal condition occurs. These functions can often be represented through logic involving inputs, timers, internal states, and outputs.

The exact functions available on the SR2E201FU should be confirmed before the relay is selected for a specific project. The general smart relay operating concept does not establish the precise number of inputs and outputs, supply voltage, or communication features of an individual model.

Function and Working Principle

A smart relay typically receives electrical signals from field devices, evaluates these signals using its programmed logic, and changes its outputs according to the defined control sequence.

1. Input Signal Acquisition

Inputs provide information about the equipment or process being monitored. Depending on the configuration of the control system, field signals may come from push buttons, selector switches, limit switches, float switches, or other compatible devices.

Before connecting any field device, verify whether the relevant input is designed for the signal type and voltage being used. Incorrect wiring or an incompatible signal can prevent reliable operation and may damage the equipment.

2. Programmed Logic Processing

The relay evaluates the input states according to the installed control program. Logic can be arranged to represent operating conditions, permissive signals, interlocks, timing sequences, and other basic automation requirements supported by the device.

For instance, a control program may require a start command and a permissive input to be active before an output can be energized. Additional conditions can be used to prevent operation when a stop command or fault signal is present.

3. Output Control

After evaluating the program, the smart relay changes its output states as required. These outputs may be used to command suitable interface relays, contactors, indicator lamps, or other compatible control equipment.

Motor loads and other high-current equipment should be switched through appropriately rated power devices unless the selected output is explicitly rated for the intended load. The relay’s output ratings and load compatibility must be checked before wiring.

4. Sequence and Timing Functions

Smart relay applications frequently involve timed operations and sequential switching. Examples include controlling ventilation after a machine stops, introducing a delay between operating stages, or coordinating a simple pumping sequence.

The availability and limits of specific timing functions depend on the exact product configuration and programming environment.

5. Monitoring and Maintenance

During commissioning and operation, technicians can compare input states, programmed conditions, and output behavior to identify control problems. This structured approach can reduce troubleshooting time and help distinguish a logic issue from a wiring fault or a problem with the connected equipment.

Role in Industrial Automation Systems

The SR2E201FU can be considered for compact control tasks where a dedicated smart relay is appropriate for the required logic and electrical interface.

In a typical arrangement, field devices provide input signals, the smart relay evaluates the program, and output circuits operate the controlled equipment. Protection devices, power contactors, interface relays, and manual controls may be added according to the application.

Potential responsibilities in a small automation system include:

• Executing basic control sequences.
• Managing permitted start and stop conditions.
• Coordinating timed operations.
• Controlling indicator and alarm circuits.
• Supporting equipment interlocking.
• Reducing the number of separate control relays.
• Simplifying wiring for suitable small-scale applications.
• Providing a central point for implementing straightforward control logic.

The smart relay should not automatically be treated as a replacement for a full PLC, safety controller, or dedicated process-control system. Applications requiring extensive communications, large numbers of I/O points, complex motion control, or certified safety functions may need a different controller architecture.

Industrial and Commercial Applications

Pump Control

A smart relay may be used in a compact pump-control panel to coordinate start and stop commands, monitor permitted operating conditions, and implement simple timing sequences. Float switches or pressure-related contacts can provide process information where compatible with the selected input interface.

The design must include suitable motor protection, contactors, and safeguards for dry running, overload, or other application-specific hazards.

Ventilation and Fan Systems

Small ventilation systems often require basic sequencing, operating schedules, and interlocks. A smart relay can coordinate control signals for fans, dampers, indicator lights, and auxiliary equipment when the required I/O and logic functions are supported.

Lighting Automation

Smart relays can be applied to lighting circuits that require scheduled operation, timed switching, or control from several compatible input devices. Load current and switching characteristics must be considered when choosing the output interface.

Small Machinery

Compact machines may need straightforward operating sequences involving start buttons, stop commands, limit switches, and indicator signals. A smart relay can consolidate these control conditions into a single programmed unit where its capabilities meet the machine’s requirements.

Building Services

Selected building-service applications, such as small ventilation units, auxiliary pumps, and basic equipment-control panels, may benefit from programmable logic in a compact enclosure.

Electrical Control Panels

For panel builders, smart relays can reduce the number of separate components required for simple control logic. They can also make modifications easier when operating sequences change, provided that the device supports the required program and electrical interface.

Installation and System Integration

Correct installation is essential for reliable operation. The SR2E201FU should be installed only after confirming that its electrical requirements and terminal configuration match the intended system.

Verify the Model and Supply Requirements

Check the complete part number and any relevant product markings before connecting the unit. Do not infer the supply voltage from the product family or from the appearance of another similar smart relay.

Confirm the required supply type, voltage range, protective arrangement, and terminal identification. Ensure that the power source complies with the model’s specifications.

Plan the Control Cabinet Layout

The listed dimensions of 124.6 × 107.6 × 59.5 mm should be used as a preliminary reference for panel-layout planning. Additional clearance may be necessary for wiring, ventilation, access to terminals, and maintenance.

Mounting orientation and installation method should follow the product’s specified requirements. The unit should be protected from excessive heat, moisture, conductive dust, vibration, and other environmental conditions that may affect electronic equipment.

Connect Input Devices Correctly

Identify each input signal before wiring. Check the field-device contact arrangement and confirm that the electrical signal is compatible with the smart relay input.

Separate signal wiring from high-power conductors where practical, and follow the panel’s grounding and wiring standards. Labeling each wire can make future maintenance and fault diagnosis more efficient.

Configure Output Circuits

Determine the type of load controlled by each output. Check the output’s electrical rating, switching characteristics, and suitability for the load.

Where required, use a suitably rated contactor or interface relay between the smart relay and the controlled equipment. Provide appropriate circuit protection and suppression components where specified by the system design.

Program and Verify the Logic

Prepare the control program according to the required operating sequence and the functions supported by the exact device. Check start/stop logic, interlocks, timers, and fault responses before allowing the connected machinery to operate.

For a replacement unit, do not assume that the original program is automatically present or compatible. Confirm the required program, software environment, and any available backup before removing the existing device.

Commission the System

Commissioning should proceed in a controlled sequence:

1. Confirm the model and supply requirements.
2. Inspect mounting, wiring, terminal connections, and protective devices.
3. Energize the control circuit under safe conditions.
4. Check input signals individually.
5. Verify the programmed logic and output states.
6. Test interlocks and stop functions.
7. Confirm the behavior of connected contactors and loads.
8. Record the final configuration and test results.

Testing should be performed by qualified personnel using procedures appropriate to the equipment and its hazards.

Troubleshooting the SR2E201FU

When a smart relay does not operate as expected, investigate the power supply, wiring, input devices, program, output circuit, and controlled equipment as separate parts of the system. A symptom alone does not prove that the relay itself has failed.

The Relay Does Not Power Up

Possible causes include an incorrect supply, a disconnected conductor, a blown protective device, or a fault in the power circuit.

Recommended checks:

• Verify the required supply voltage and type.
• Inspect the protective device and supply wiring.
• Confirm terminal assignments against the model-specific diagram.
• Check for loose connections or visible damage.
• Follow appropriate electrical isolation procedures before inspecting wiring.

If the supply is correct and external connections are sound, further testing should follow the manufacturer’s diagnostic guidance.

Inputs Do Not Change State

If an input fails to respond, inspect the connected switch or sensor, field wiring, terminal connections, and signal compatibility. Check whether the device is receiving the correct electrical signal and whether the input is assigned as intended in the program.

A fault in the field device or cable can produce symptoms similar to an input-channel problem.

Outputs Do Not Operate

An output may remain inactive because the program conditions have not been satisfied, the input state is incorrect, or the output circuit has a wiring or load problem.

Check the control logic first, then verify the output connection and any intermediate relay or contactor. Confirm that the connected load is within the output’s specified ratings.

Incorrect Sequence or Timing

Unexpected sequence behavior can result from incorrect program logic, incorrect input assignments, unsuitable timer settings, or external signals changing state unexpectedly.

Review the program against the intended operating sequence and test each condition independently. Changes to the program should be documented so that the final configuration can be maintained consistently.

Intermittent Operation

Intermittent faults may be associated with loose terminals, unstable supply conditions, electrical interference, damaged wiring, excessive temperature, or problems in connected devices.

Inspect the installation environment and connection quality, and monitor the system under controlled operating conditions. Avoid replacing the relay until external causes have been considered.

Maintenance Recommendations

A planned maintenance routine can help preserve reliable operation and reduce unexpected downtime.

Inspect wiring and terminals. Look for loose connections, damaged insulation, discoloration, corrosion, or signs of overheating. Follow safe isolation procedures before working on electrical connections.

Keep the enclosure clean. Prevent dust, moisture, and conductive contamination from accumulating around the control equipment. Use cleaning methods suitable for electronic devices and the installation environment.

Review the control program. Keep a verified backup of the program and record approved modifications. This is especially important when the smart relay controls equipment that must return to a known operating state after maintenance.

Test field devices. Check switches, sensors, and other connected devices for correct operation. A failed field device can cause incorrect control behavior even when the smart relay is functioning normally.

Check the output interface. Inspect connected contactors, interface relays, and other switching components for wear or damage. Confirm that their ratings remain suitable for the actual loads.

Maintain replacement records. Record the full model number, installation location, wiring details, and any relevant configuration information. These records help reduce errors during future replacement.

Compatible System Components

The SR2E201FU may be incorporated into a compact control system with appropriately selected electrical and automation components. Compatibility must be confirmed for the exact model and application.

This list describes common system-level components rather than confirming a specific accessory or direct connection for every SR2E201FU configuration. Terminal compatibility, electrical ratings, and programming requirements should be checked before selecting components.

Replacement and Procurement Considerations

When sourcing the Schneider Electric SR2E201FU Compact Smart Relay, verify the exact product identity rather than relying only on its appearance or general product category.

Key checks include:

• Full model number: SR2E201FU
• Product markings and revision details, where applicable
• Supply voltage and supply type
• Input and output configuration
• Terminal layout and connection requirements
• Program compatibility and availability of a backup
• Mounting and enclosure requirements
• Condition of the existing wiring and associated components
• Required operating functions and control sequence

The listed physical dimensions are 124.6 × 107.6 × 59.5 mm, and the listed weight is 0.35 kg. These values are useful for preliminary cabinet planning, handling, and inventory management.

Before replacing an installed unit, document its wiring and program configuration. A replacement with a similar appearance may have different electrical or functional characteristics, so the complete model designation and specifications should be confirmed.

Technical FAQs

What is the Schneider SR2E201FU?

The SR2E201FU is identified as a Schneider Electric Compact Smart Relay intended for programmable logic control in suitable small-scale automation applications.

What are the dimensions of the SR2E201FU?

The listed dimensions are 124.6 × 107.6 × 59.5 mm.

How much does the SR2E201FU weigh?

The listed weight is approximately 0.35 kg.

What applications can use a compact smart relay?

Depending on the exact model’s capabilities, typical applications include pump control, ventilation, lighting automation, simple machinery, and compact electrical control panels.

Can the SR2E201FU control a motor directly?

Motor control depends on the electrical ratings and output type of the specific unit. For many motor applications, the smart relay provides a control signal to a suitably rated contactor or interface device rather than switching the motor power directly.

What should be checked before installation?

Confirm the supply requirements, terminal layout, input/output compatibility, program requirements, mounting conditions, and protective devices before energizing the system.

What can cause a smart relay to stop responding?

Potential causes include supply problems, wiring faults, incompatible input signals, program errors, output-circuit faults, or failure of connected equipment. Troubleshooting should examine the entire control circuit before concluding that the relay is defective.

Can another smart relay replace the SR2E201FU?

A substitute should not be selected by appearance alone. Verify electrical specifications, I/O configuration, terminal arrangement, program compatibility, and the required control functions before replacement.

Conclusion

The Schneider Electric SR2E201FU Compact Smart Relay is a compact control component intended for suitable logic-based automation tasks. Smart relays can help consolidate basic control sequences, simplify panel wiring, and coordinate electrical equipment in applications that do not require a more extensive controller architecture.

With listed dimensions of 124.6 × 107.6 × 59.5 mm and a weight of approximately 0.35 kg, the SR2E201FU can be considered for installations where compact equipment and organized control-panel design are important. Successful deployment depends on confirming the exact device specifications, configuring the required logic correctly, and ensuring that all connected field devices and output loads are electrically compatible.

For installation, maintenance, and replacement work, verify the full model designation and applicable technical details before making connections. Careful commissioning, documented program backups, and systematic troubleshooting can help support reliable operation throughout the service life of the control system.
