Product Overview

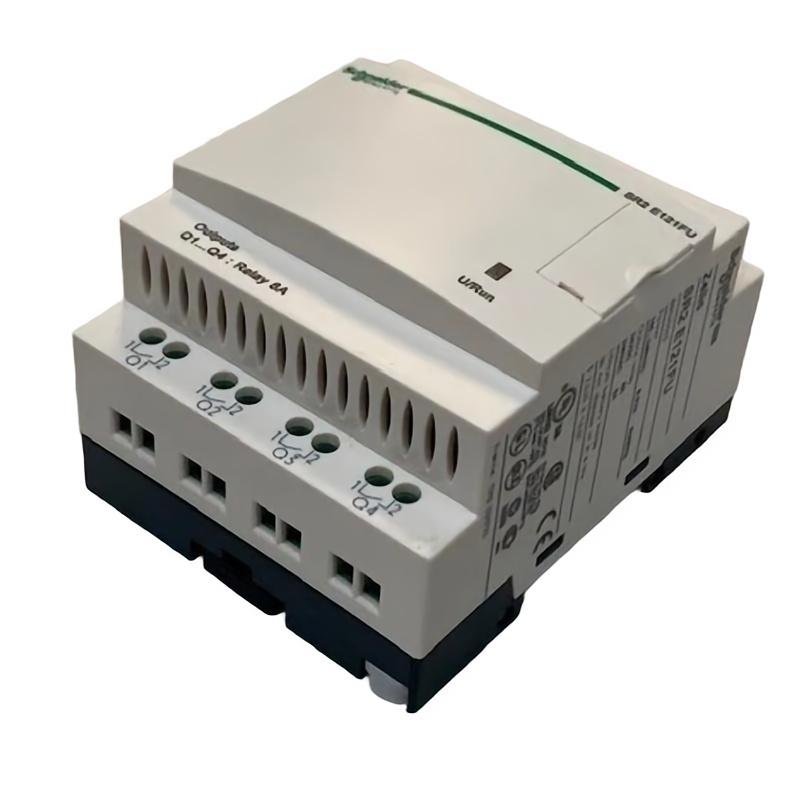

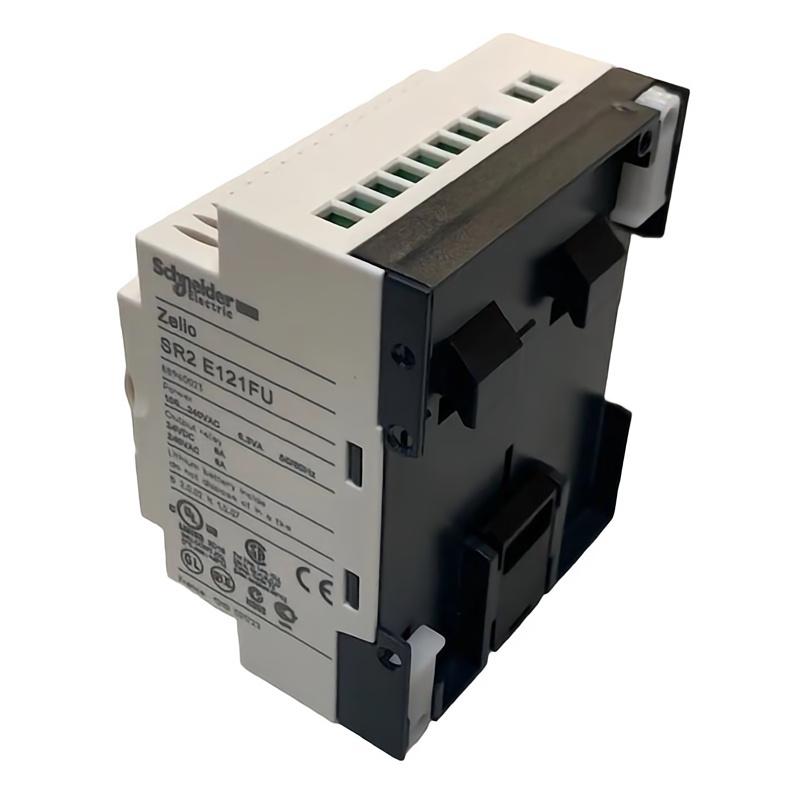

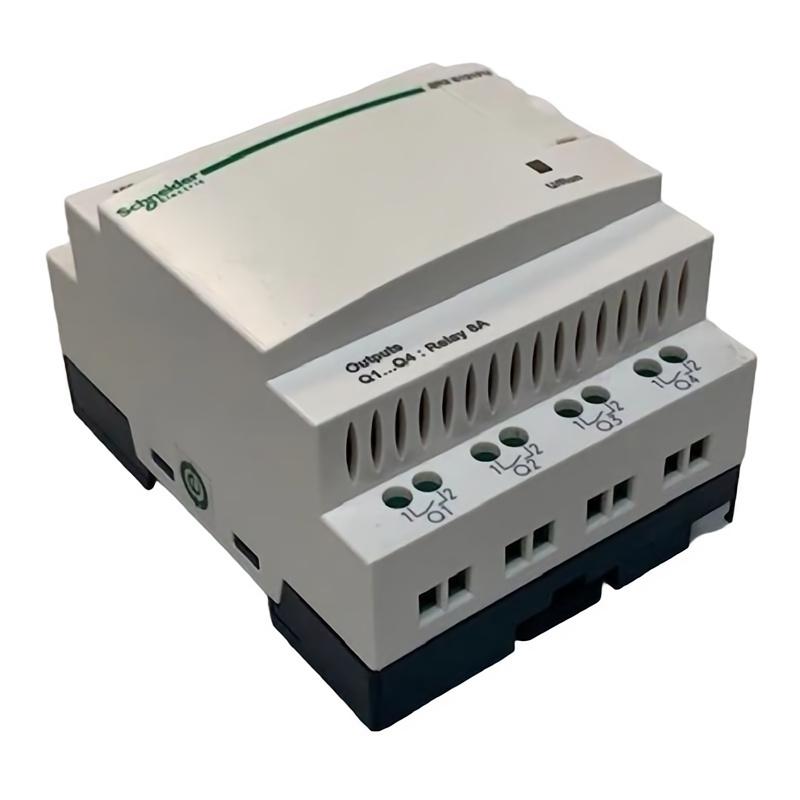

The Schneider Electric SR2E121FU Compact Smart Relay is a programmable control device designed for compact automation applications that require flexible logic processing, switching control, and basic equipment sequencing. Smart relays provide an alternative to conventional hardwired relay circuits by integrating programmable logic and supported control functions into a single compact unit.
In industrial automation, smart relays are commonly used to coordinate auxiliary machinery, control lighting and ventilation, manage simple operating sequences, and automate small equipment installations. By replacing portions of traditional relay-based logic with a configurable program, they can reduce wiring complexity and simplify future control modifications.
The SR2E121FU has listed dimensions of 107.6 × 71.2 × 59.5 mm and a weight of 0.22 kg. Its compact construction makes it suitable for control cabinets and machine enclosures where installation space is limited.
Before installation or replacement, users should verify the exact model designation, supply requirements, input and output configuration, programming interface, and terminal arrangement. These characteristics should be confirmed against the device label and applicable technical documentation rather than inferred from the product’s dimensions or model-family name.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | SR2E121FU |
| Product Type | Compact Smart Relay |
| Product Category | Programmable Control Device |
| Primary Function | Programmable logic and equipment control |
| Typical Applications | Industrial automation and building services |
| Dimensions | 107.6 × 71.2 × 59.5 mm |
| Weight | 0.22 kg |
| Installation | Electrical control panel, subject to model requirements |
| Programming Method | Verify according to the exact model |
| Power Supply Requirements | Confirm from the product label |
| Input Configuration | Confirm from the exact model specification |
| Output Configuration | Confirm from the exact model specification |
| Communication Capabilities | Verify before integration |
| Replacement Requirement | Match the complete model number and electrical configuration |
What Is the Schneider Electric SR2E121FU Smart Relay?
The SR2E121FU is identified as a compact smart relay intended for programmable control tasks. Smart relays are generally used for applications that need more flexibility than a basic collection of hardwired relays but do not require the full functionality of a larger programmable logic controller.
In a conventional control panel, multiple relays, timers, and auxiliary contacts may be needed to implement a sequence of operations. A suitable smart relay can consolidate supported logic functions, making the system easier to configure and maintain.
During operation, connected input devices provide signals representing operator commands or equipment conditions. The relay evaluates these signals according to its stored program and changes the state of its outputs when the programmed conditions are met.
A simplified control arrangement is:
Input Devices → Smart Relay → Programmed Logic → Output Devices
The actual control architecture depends on the application and the verified capabilities of the installed model.
Function and Working Principle
Input Signal Monitoring
The relay receives signals from compatible field devices, which may include push buttons, selector switches, limit switches, and other control contacts. These signals provide information about equipment status and operator commands.
Input wiring must match the device’s electrical requirements. Incorrect connections or incompatible signal levels can prevent the relay from recognizing an input correctly.
Programmed Logic Processing
The smart relay evaluates input states according to its configured program. Depending on the functions supported by the exact model, this may include logical conditions, sequencing, interlocking, and timing operations.
For example, a machine may be permitted to start only when an operator command is present and the required permissive conditions have been satisfied. The relay evaluates these conditions before activating the associated output.
Safety-critical functions must be implemented with appropriately rated safety equipment and circuits. A standard smart relay should not be assumed to provide certified safety protection.
Output Control
When the programmed conditions are satisfied, the relay changes the state of its configured outputs. These outputs may operate compatible interface relays, contactors, indicators, or other control equipment.
Before connecting a load, technicians should verify the output type, rated voltage, switching capacity, and requirements for protecting inductive loads.
Timing and Sequence Control
Some automation applications require delayed switching, timed operation, or coordinated sequences. Where supported by the installed model, programmable timing functions can help manage these requirements without using a separate timer for every operation.
This approach can reduce component count and simplify control-panel wiring.
Configuration and Program Maintenance
The control program determines how the relay responds to input conditions. During commissioning or maintenance, authorized personnel may need to inspect, modify, or restore the configuration.
Maintaining a verified backup of the approved program helps reduce recovery time following equipment replacement or servicing. The appropriate programming method must be confirmed for the exact model.
Role in Industrial Automation
The SR2E121FU can be considered for compact control applications where programmable logic is required for straightforward equipment operation and coordination.
Potential functions include:
- Processing operator start and stop commands
- Executing programmed switching sequences
- Managing supported timing operations
- Coordinating auxiliary equipment
- Implementing basic interlocking logic
- Reducing conventional relay wiring
- Supporting local control-panel automation
- Simplifying authorized program changes
Applications requiring extensive distributed I/O, advanced motion control, complex process regulation, or sophisticated network integration may require a larger PLC system.
Industrial Applications
Small Machine Automation
Compact machines frequently require operating sequences, start and stop control, and basic interlocking conditions. A smart relay can consolidate suitable logic functions into a programmable device.
Pump and Utility Equipment
In appropriate installations, programmable logic can coordinate equipment based on external switches and other control signals. The overall system must include suitable motor protection, overload protection, and any required independent safety controls.
Ventilation and Building Services
Smart relays may be used for basic ventilation, lighting, and auxiliary equipment control where the required logic and electrical characteristics match the installed device.
Packaging and Assembly Equipment
Simple packaging and assembly applications may require coordinated switching, status indication, and basic sequencing. A compact programmable controller can help organize these functions when the application falls within the device’s capabilities.
Electrical Control Panels
Panel builders may use smart relays to consolidate basic control functions while keeping the overall installation compact. Selection should account for terminal access, mounting requirements, supply characteristics, and connected-load ratings.
These are general examples of smart relay applications; the suitability of the SR2E121FU must be established from its verified specifications.
Installation and System Integration
Correct installation is essential for reliable operation and safe maintenance.
Confirm the Complete Model Number

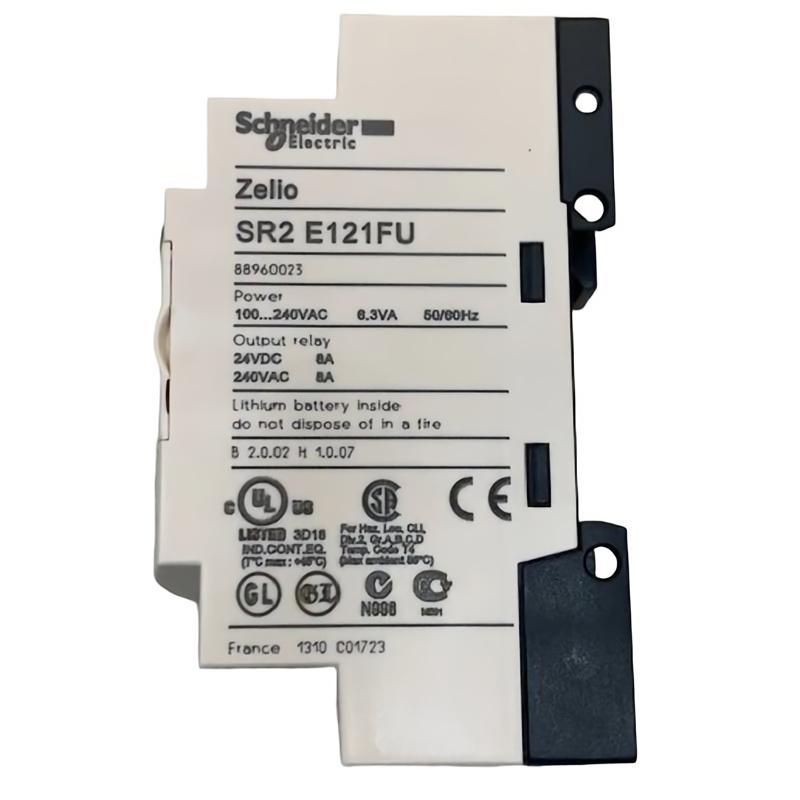

Verify the SR2E121FU designation on the product label. Check the electrical ratings, terminal diagram, input and output configuration, mounting requirements, and programming method for the exact device.
Do not assume that similar model numbers have identical electrical characteristics or functions.
Prepare the Control Cabinet
Install the relay in a suitable enclosure and follow the applicable requirements for mounting, ventilation, temperature, and environmental protection. Keep the device away from excessive moisture, conductive dust, and other conditions that could affect its reliability.
Verify Power and Field Connections
Confirm that the supply voltage and connection arrangement match the product specifications. Connect field inputs and outputs according to the correct terminal diagram.
Check that all connected loads remain within the permitted output ratings. Use suitable interface relays, contactors, and protective components where required.
Configure the Program
Use the programming method and software compatible with the installed device. Verify the input and output assignments, logic conditions, and timing settings before activating the program.
Retain a backup of the approved configuration before making changes.
Commission the System
Test input signals, programmed conditions, and output responses under controlled conditions. Verify that start and stop commands, interlocks, and abnormal operating conditions produce the intended behavior.
Document the final configuration and resolve unexpected behavior before returning the equipment to normal operation.
Programming and Configuration Considerations
A reliable smart relay installation begins with a clear description of the required control sequence. The supported programming method and available functions should be confirmed before developing the program.
A typical workflow includes:
- Define the required operating sequence.
- Identify the input signals and controlled outputs.
- Establish permissive conditions and interlocks.
- Configure supported logic and timing functions.
- Review the program for contradictory or unintended states.
- Test the sequence under controlled commissioning conditions.
- Save a verified program backup and document approved changes.
For example, an auxiliary fan may be required to operate only when an enable condition and an operator command are both present. The program should also define the response to a stop command or the loss of a required operating condition.
The actual implementation must reflect the installed device’s capabilities and the requirements of the controlled equipment.
Troubleshooting the SR2E121FU
When the system does not operate as expected, investigate the power supply, field wiring, program, and connected equipment systematically.
Relay Does Not Power Up
Possible causes include an incorrect supply connection, unsuitable supply voltage, loose terminals, an upstream protection device that has tripped, or a defective relay.
Recommended checks:
- Verify the required supply rating.
- Inspect power wiring and terminal connections.
- Check upstream protective devices.
- Look for visible damage or overheating.
- Follow the diagnostic procedure for the exact model.
Isolate power before handling exposed terminals or changing wiring.
Input Signals Are Not Recognized
Input problems may result from incorrect wiring, a defective field switch, damaged conductors, or an incompatible signal.
Inspect the field device and cable, then confirm that the signal meets the relay’s input requirements. Compare the actual input state with the condition expected by the program.
Outputs Do Not Operate
If the relay appears to be operating but the connected equipment does not respond, inspect the program conditions, output wiring, external load supply, and any interface relay or contactor.
Confirm that the connected load is compatible with the relay’s output type and rated switching capacity.
Incorrect Control Sequence
Unexpected operation may result from incorrect logic, an input assigned to the wrong function, an unmet permissive condition, or an unsuitable timing setting.
Review the program step by step and test individual conditions where practical. Preserve the original approved program before making changes.
Intermittent Operation
Intermittent faults may be associated with loose terminals, unstable power, damaged field wiring, electrical interference, or a malfunctioning external device.
Record when the fault occurs and inspect the installation accordingly. If the problem coincides with motor starting or switching, evaluate grounding, wiring separation, supply quality, and appropriate interference-suppression measures.
Maintenance Recommendations
Regular maintenance helps preserve the reliability of the relay and the wider control system.
- Inspect wiring and terminals for looseness or deterioration.
- Check the control enclosure for excessive heat, dust, and moisture.
- Inspect connected input devices and output loads.
- Maintain verified backups of approved control programs.
- Record recurring faults and corrective actions.
- Confirm replacement compatibility before installing another device.
- Follow the maintenance procedures applicable to the installed equipment.
Program modifications should be authorized and documented so that maintenance personnel can identify the current approved configuration.
Compatible System Components
A smart relay installation may include several supporting components, depending on the application and the verified specifications of the device.
| Component | Typical Function |
|---|---|
| Schneider Electric SR2E121FU | Executes supported programmed control logic |
| Compatible Power Supply | Provides the required operating power |
| Push Buttons and Selector Switches | Provide operator commands |
| Limit or Level Switches | Detect equipment or process conditions |
| Interface Relays | Adapt or isolate control signals where required |
| Contactors | Switch suitable electrical loads |
| Circuit Protection Devices | Protect wiring and connected equipment |
| Indicator Lamps | Display operating status |
| Programming Equipment | Supports configuration and maintenance |
Each component must be checked for electrical and functional compatibility. Accessories used with other Schneider Electric smart relay models should not automatically be assumed suitable for the SR2E121FU.
Replacement and Procurement Considerations
When sourcing a replacement for the Schneider Electric SR2E121FU, verify the complete model designation and compare the critical characteristics of the existing installation.
Important checks include:
- Full model number: SR2E121FU
- Dimensions: 107.6 × 71.2 × 59.5 mm
- Weight: 0.22 kg
- Supply voltage and connection requirements
- Input and output configuration
- Output type and switching ratings
- Programming method and configuration compatibility
- Mounting arrangement and terminal layout
- Environmental requirements
A product with similar dimensions may have different electrical characteristics or supported functions. Physical fit alone does not establish interchangeability.
Technical FAQs
What is the Schneider Electric SR2E121FU?
The SR2E121FU is identified as a compact smart relay for programmable control applications. Its exact electrical and functional characteristics should be confirmed against the specific unit’s technical information.
What are the dimensions of the SR2E121FU?
The listed dimensions are 107.6 × 71.2 × 59.5 mm.
How much does the SR2E121FU weigh?
The listed weight is 0.22 kg.
What is a compact smart relay used for?
A compact smart relay executes supported control logic for applications such as small machines, switching sequences, timing operations, and auxiliary equipment automation.
Can a smart relay replace conventional relay circuits?
It can consolidate suitable control functions into a programmable device when the application’s requirements and electrical ratings are supported. Appropriate circuit protection and safety systems must still be provided.
What should be checked before replacing the SR2E121FU?
Confirm the complete model number, supply requirements, terminal arrangement, input and output configuration, output ratings, mounting requirements, and compatibility with the existing control program.
What can cause a smart relay to malfunction?
Possible causes include power supply problems, wiring errors, faulty field devices, incorrect program logic, overloaded outputs, loose terminals, and electrical interference.
Conclusion
The Schneider Electric SR2E121FU Compact Smart Relay is a compact programmable control component intended for applications that require straightforward logic processing, switching, and equipment sequencing. Smart relay technology can simplify suitable control circuits by consolidating supported functions and reducing dependence on extensive conventional relay wiring.
With listed dimensions of 107.6 × 71.2 × 59.5 mm and a weight of 0.22 kg, the SR2E121FU offers a compact form factor for space-conscious control-panel applications. Successful integration depends on verifying the exact electrical specifications, programming requirements, terminal configuration, and connected-load ratings.
For installation, maintenance, or replacement, accurate model identification, correct wiring, documented program management, and systematic commissioning help maintain dependable operation in an industrial automation system.
