Product Overview

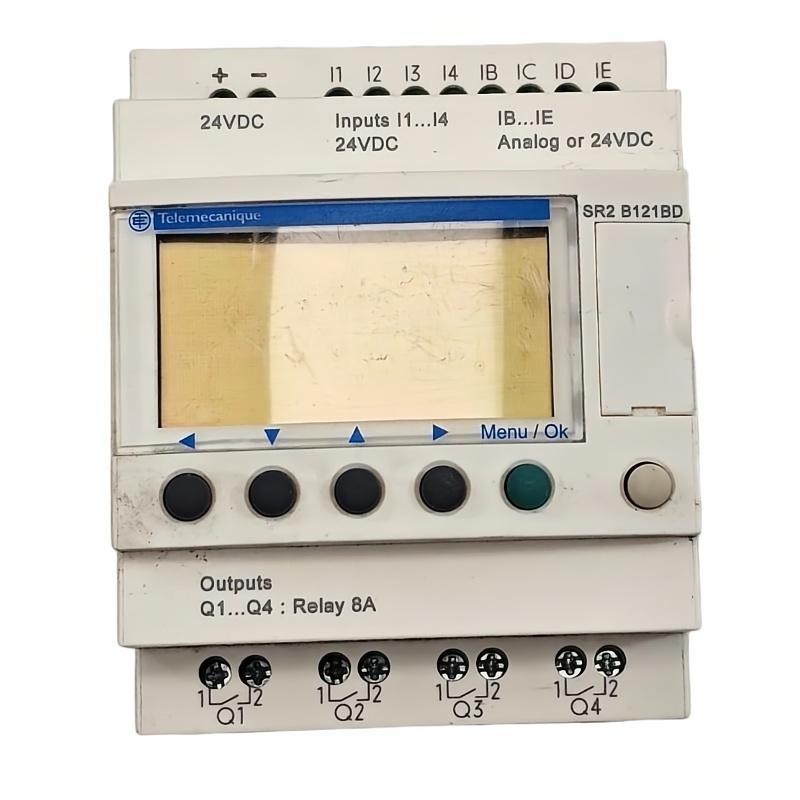

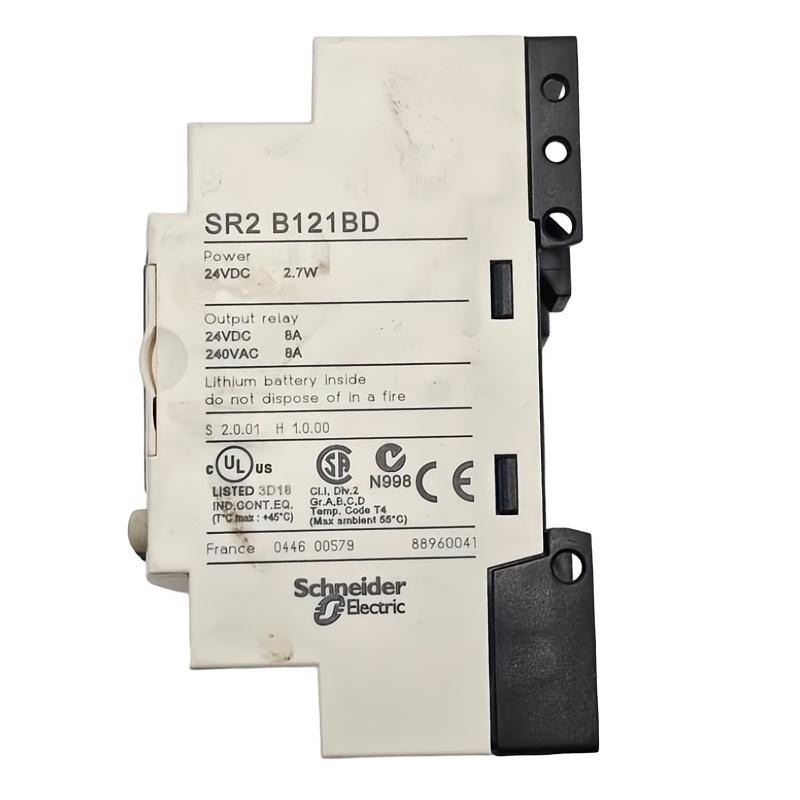

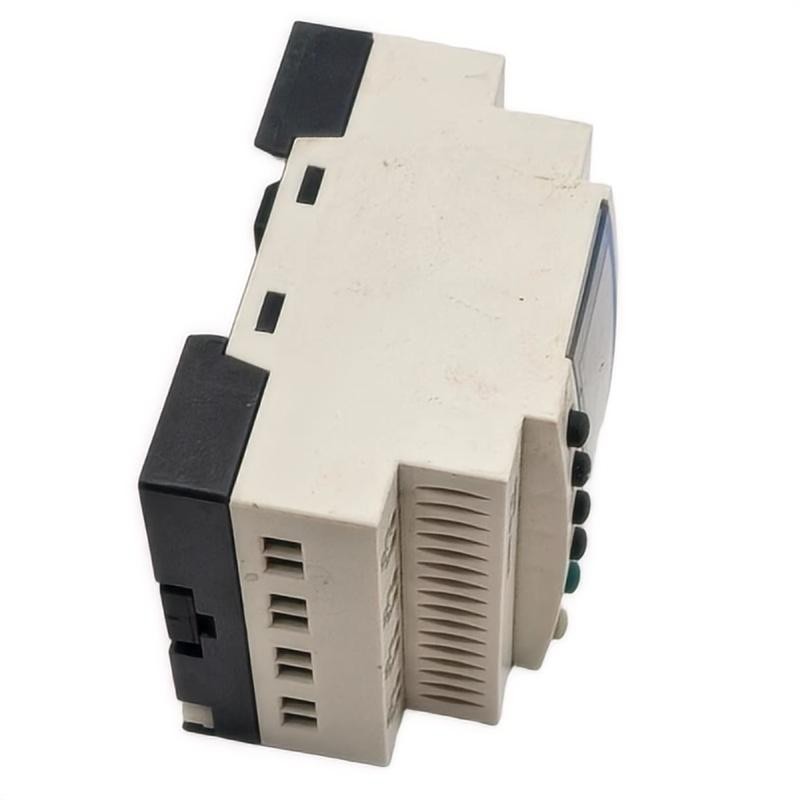

The Schneider Electric SR2B121BD is a Zelio Logic compact smart relay for small machine-control systems, utility equipment, and standalone automation panels. It operates from a 24 V DC supply and combines eight digital inputs, including four inputs configurable for analog measurement, with four relay outputs. An integrated LCD display and real-time clock extend its functionality beyond basic input-driven switching.

The SR2B121BD is particularly useful when a control sequence needs both discrete signals and simple analog measurements. Its digital inputs can receive compatible signals from push buttons, limit switches, and proximity sensors, while the supported analog-capable inputs can be used for suitable voltage signals from devices such as potentiometers or compatible measurement circuits. This allows a single controller to handle several operating conditions without requiring a separate analog module for straightforward applications.

The four relay outputs switch compatible external control circuits according to the programmed logic. They can be used to operate contactors, interface relays, indicator circuits, and other loads within their electrical ratings. The controller does not directly replace the power-switching and protection equipment needed for motors or other high-power loads.

A practical example is a small water-level control panel. Digital inputs can monitor operating switches and high- or low-level contacts, while an analog-capable input can process a compatible voltage signal representing a process measurement. The program can combine these conditions to control a pump contactor, operate an alarm output, and coordinate the sequence according to the programmed requirements.

The built-in real-time clock is an important distinction between the SR2B121BD and the SR2A101BD or SR2A201BD. It allows supported programs to use time-based functions for scheduled operation. A ventilation system, for example, can use a programmed timetable alongside manual commands and equipment interlocks. The clock makes these applications possible without relying exclusively on an external timer.

The integrated LCD and navigation buttons provide local access to supported monitoring and configuration functions. Programming can be carried out using Zelio Soft, with ladder logic and function block diagram methods available for supported applications. Ladder logic is familiar to technicians who work with conventional relay circuits, while function block diagrams can help organize analog comparisons, timers, counters, and other control operations.

Program data is retained in EEPROM memory for up to ten years at the specified reference temperature of 25°C. This helps preserve the stored application during a power interruption. For maintenance purposes, keeping a separate copy of the approved program is still useful when replacing a controller or restoring a machine after a fault.

The SR2B121BD has 12 I/O points in total. Its eight inputs and four relay outputs suit small systems with a limited number of field devices, particularly where analog input capability and clock functions are valuable. Applications requiring numerous outputs, high-speed processing, extensive communications, or advanced motion control may need a different controller architecture.

When using the analog-capable inputs, the signal type and range must match the controller’s supported input configuration. These inputs are not universal substitutes for every industrial analog transmitter interface. Likewise, the relay outputs must be selected according to the connected load’s voltage, current, and switching characteristics.

The SR2B121BD is therefore suited to compact automation tasks that combine 24 V DC control, a small amount of analog measurement, programmable relay switching, and time-based operation.

Technical Specifications

Product Features

• 24 V DC power supply: Fits control panels built around low-voltage DC control circuits.
• Eight digital inputs: Accepts compatible field signals from switches, sensors, and auxiliary contacts.
• Four analog-capable inputs: Supports compatible 0–10 V DC measurements for simple process monitoring.
• Four relay outputs: Switches compatible external AC or DC control circuits.
• Built-in real-time clock: Supports programmed time-based operations and schedules.
• Integrated LCD display: Provides local access to supported monitoring and device functions.
• Ladder logic and FBD programming: Supports different approaches to implementing the control sequence.
• EEPROM program retention: Preserves stored program data for up to ten years at 25°C.
• DIN rail or screw mounting: Supports installation in suitable electrical enclosures.
• Compact mixed-signal control: Combines digital input processing, basic analog measurement, and relay switching in one device.

Working Principle

The SR2B121BD monitors its digital and analog-capable inputs, evaluates the programmed logic, and operates its relay outputs according to the resulting conditions. Its real-time clock also allows supported programs to incorporate time-based operating rules.

24 V DC Supply → SR2B121BD → Program Execution → Relay Outputs → External Control Circuits

Digital input channels receive signals from compatible switches, sensors, and auxiliary contacts. The controller reads these states and makes them available to the program. For example, a limit switch can indicate the position of a machine component, while a push button provides a manual start request.

The analog-capable inputs accept compatible voltage signals within the supported range. A suitable sensor or signal-conditioning device can provide a voltage representing a process variable such as level or position. The program can then compare the measured value against configured thresholds and use the result to determine the next control action.

The supported analog input range is 0–10 V DC. A transmitter that produces a 4–20 mA signal cannot be connected directly as though the input were a current input; a suitable signal-conditioning arrangement or compatible conversion device is required. Correct signal common wiring and voltage limits are also important for accurate measurement.

The program evaluates input states and internal conditions to determine whether each relay output should change state. A pump-control sequence might require a start command, an acceptable level measurement, and a valid interlock before energizing a contactor output. Separate logic can operate an alarm relay when a measurement crosses a configured threshold.

The four relay outputs provide switching contacts for compatible control loads. When an output is activated, the associated contacts change state and switch the external circuit. Where the controlled equipment has a motor or another substantial power load, the relay output normally operates a suitably rated contactor or interface device rather than switching the load directly.

The real-time clock allows the program to use supported time-based functions. For example, a ventilation system can enable operation during programmed periods while still responding to manual commands and interlocks. The clock does not replace the need for appropriate process conditions or safety arrangements; time-based logic must be coordinated with the actual machine requirements.

The integrated LCD provides local access to supported information and navigation functions. Zelio Soft can be used to develop the application, configure supported functions, and transfer the program. During commissioning, the technician should verify digital input states, analog readings, clock-based operations, and relay output responses against the intended sequence.

EEPROM memory retains the stored program for up to ten years at the specified reference temperature. After power is restored, the controller’s behavior depends on its configuration and the states of the external circuits. Machines must be arranged so that a power interruption does not lead to an unexpected or hazardous restart.

When troubleshooting analog behavior, check the source signal, its voltage range, common wiring, and the program’s scaling or comparison logic. If a relay output fails to operate, check the program conditions and output state before investigating the external load circuit. Separating signal, logic, and switching checks makes diagnosis more straightforward.

The SR2B121BD brings together digital control, basic voltage measurement, clock-based functions, and relay switching for compact automation applications that do not require a larger PLC system.

Role in the Industrial Control Architecture

The SR2B121BD operates as the local controller between field devices and external control circuits. It processes digital states, evaluates compatible analog voltage signals, and switches outputs according to the programmed sequence and supported clock functions.

Digital Sensors and Analog Signals → SR2B121BD → Relay Outputs → Contactors and Control Loads

The smart relay handles the application logic, while external switching equipment and protection devices manage the controlled loads. Analog signal compatibility and the required safety functions should be considered when integrating the controller into a machine.

Industrial Applications

Installation and Maintenance

1. Verify the model reference: Confirm that the installed unit is SR2B121BD and that its I/O arrangement suits the application.
2. Prepare the control enclosure: Provide suitable mounting, wiring access, and environmental conditions for the device.

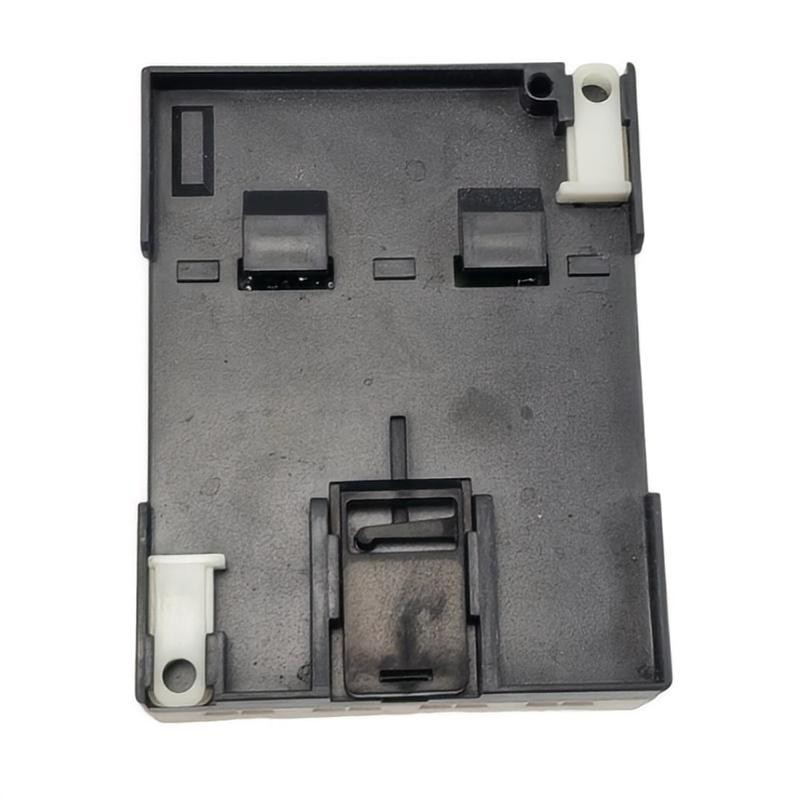

3. Install the controller: Use a compatible 35 mm DIN rail or the supported screw-fixing arrangement.
4. Check the DC supply: Verify that the supply voltage remains within the specified 19.2–30 V DC range.
5. Identify digital input circuits: Label each field signal and verify its polarity and electrical compatibility.
6. Check analog signal wiring: Confirm that each connected source provides a compatible 0–10 V DC signal and that the common wiring is correct.
7. Wire the relay outputs: Follow the terminal diagram and observe the applicable contact and output-group current limits.
8. Configure the program: Implement the required logic using supported ladder logic or function block diagram programming.
9. Set clock-based functions: Establish the required time and schedule settings where the application uses real-time clock functions.
10. Test input processing: Verify digital states and compare analog readings with the expected input signal values.
11. Test output and interlock behavior: Confirm that relay outputs operate as intended and that external control circuits respond correctly.
12. Maintain program records: Keep a verified copy of the application, I/O assignments, analog settings, clock configuration, and wiring diagrams.

If an analog measurement is incorrect, inspect the signal source, voltage range, common wiring, and program interpretation. If a scheduled operation does not occur, check the clock settings and the relevant logic conditions. Isolate the appropriate electrical supply before performing wiring or maintenance work.

Related Components

Recommended Related Models

Key Advantages

• Combines eight digital inputs, four analog-capable inputs, and four relay outputs.
• Operates from a 24 V DC supply.
• Supports compatible 0–10 V DC analog measurement.
• Includes a real-time clock for supported scheduled operations.
• Provides an integrated LCD for local interaction.
• Retains the stored program in EEPROM under the specified conditions.
• Suits small control systems requiring both discrete and basic analog processing.

Technical FAQs

How can the analog-capable inputs be used in a level-control application?

A compatible sensor can provide a 0–10 V DC signal representing the measured level. The program can compare the reading with configured thresholds and use the result to control pump or alarm outputs. The sensor’s output range and wiring must match the smart relay’s supported input characteristics.

Can a 4–20 mA transmitter be connected directly to the SR2B121BD?

The analog-capable inputs support voltage signals rather than direct 4–20 mA input. A compatible signal-conditioning or conversion arrangement is needed to convert the transmitter signal into an appropriate voltage within the supported range.

What does the real-time clock add to the SR2B121BD?

The clock enables supported programs to incorporate time-based operations, such as scheduled lighting or ventilation. The program can combine these schedules with input states and interlocks, so equipment is not controlled by the timetable alone.

How does the SR2B121BD differ from the SR2B201BD?

The SR2B121BD has 12 I/O points, comprising eight inputs and four relay outputs. The SR2B201BD provides 20 I/O points, with greater input and output capacity. Both belong to the 24 V DC Zelio Logic smart relay family and include clock functionality, but the appropriate choice depends on the number and type of field signals required.
