Product Overview

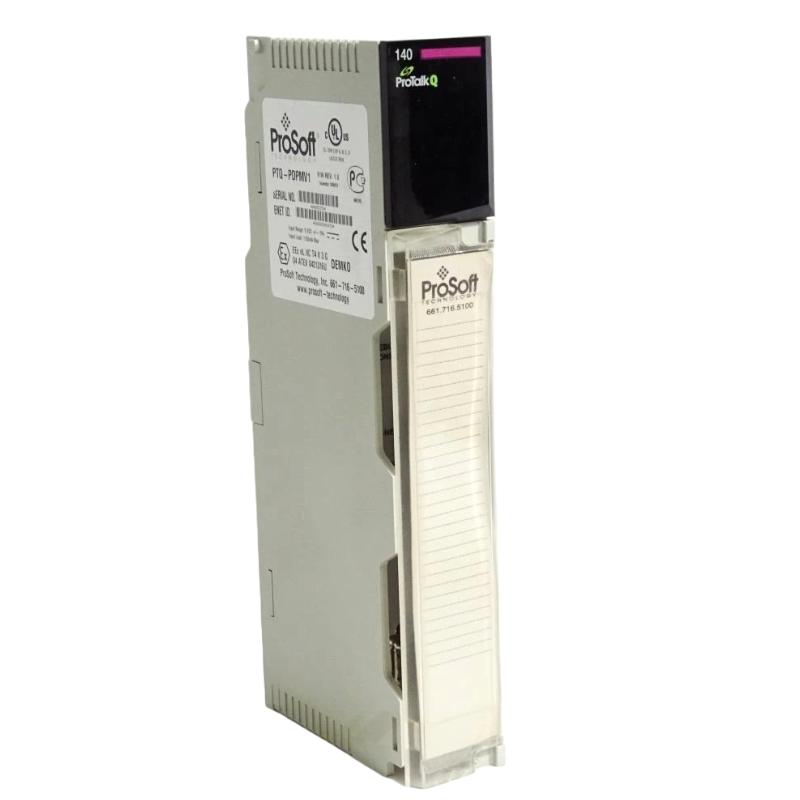

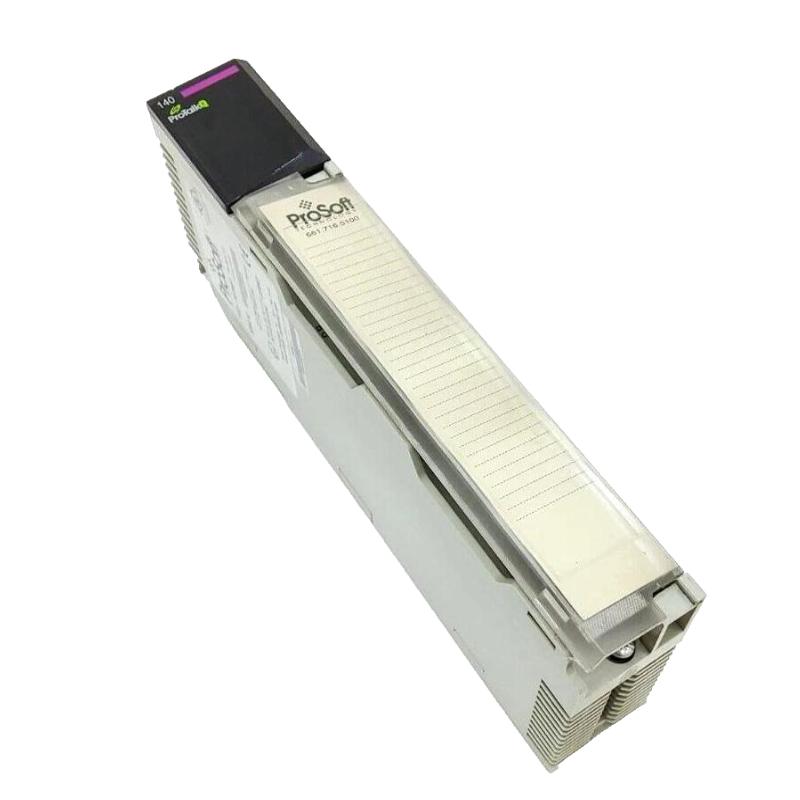

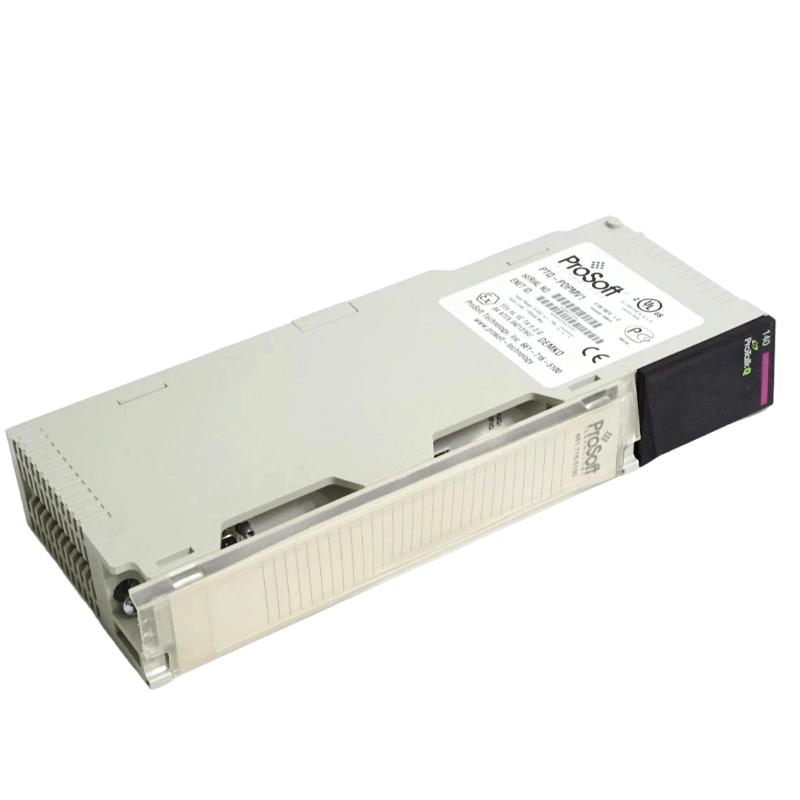

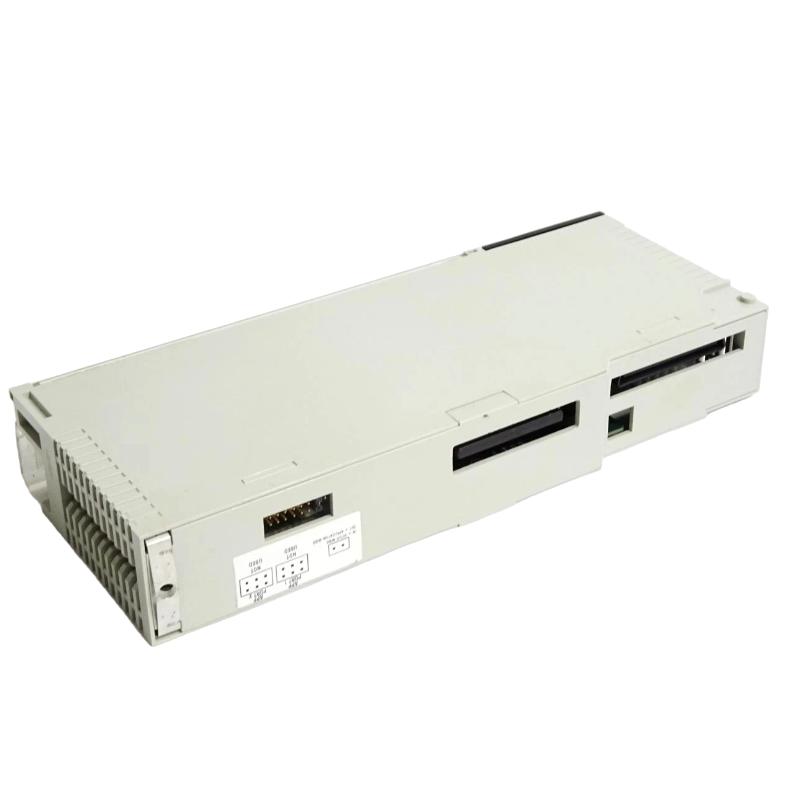

The Schneider PTQ-PDPMV1 ProTalkQ PROFIBUS DP V1 Master Communication Module is a communication interface for integrating PROFIBUS DP networks with compatible industrial control platforms. It allows a host controller to exchange process and diagnostic data with PROFIBUS DP field devices through a dedicated communication module.
The module is useful in systems where existing PROFIBUS DP equipment needs to communicate with a controller without replacing the installed field network. Typical connected devices can include remote I/O stations, drives, motor-control equipment, instrumentation, and other PROFIBUS DP slaves.
As a PROFIBUS DP V1 master, the module manages communication with configured slave devices and transfers the resulting data to the host control system. This separates the fieldbus communication task from the controller’s primary application logic.
For commissioning and maintenance, the PTQ-PDPMV1 should be evaluated as part of the complete PROFIBUS network. Master configuration, slave addresses, GSD-related device information, bus wiring, termination, and device status all affect successful communication.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | PTQ-PDPMV1 |
| Product Family | ProTalkQ |
| Product Type | PROFIBUS DP V1 Master Communication Module |
| Primary Function | PROFIBUS DP network master communication |
| System Role | Fieldbus communication interface |
| Application | Industrial automation and PROFIBUS DP networking |
| Dimensions | 250 × 40.34 × 103.85 mm |
| Weight | 0.19 kg |
Product Features
- ProTalkQ communication module for PROFIBUS DP networks.
- Functions as a PROFIBUS DP V1 master interface.
- Connects a compatible host control platform with PROFIBUS DP field devices.
- Suitable for distributed I/O, drives, instrumentation, and other PROFIBUS devices.
- Allows existing PROFIBUS networks to be integrated into broader control architectures.
- Separates fieldbus communication handling from the host controller’s application logic.
- Supports network diagnostics and communication-status monitoring.
- Suitable for industrial automation installations using PROFIBUS DP.
Working Principle
The PTQ-PDPMV1 operates as the master interface for a configured PROFIBUS DP network. It communicates with connected PROFIBUS slave devices according to the network configuration and exchanges cyclic process data with the field devices.
Input data from remote devices is received through the PROFIBUS network and transferred to the host control system. Conversely, output or control data generated by the host controller is passed through the module to the appropriate PROFIBUS devices.
Host Controller → PTQ-PDPMV1 → PROFIBUS DP Network → Field Devices
Field Devices → PROFIBUS DP Network → PTQ-PDPMV1 → Host Controller
The module therefore acts as a communication bridge and PROFIBUS master rather than as the primary controller for the machine. Communication problems can originate from the master configuration, bus wiring, device addressing, termination, or individual slave devices.
Role in a PROFIBUS DP Control Architecture
The PTQ-PDPMV1 occupies the fieldbus communication layer between the host controller and PROFIBUS DP devices. It allows the controller to exchange I/O and device information with equipment distributed across the PROFIBUS network.
Host Controller → PTQ-PDPMV1 → PROFIBUS DP Master Network → PROFIBUS Slaves → Field Equipment
| System Element | Function |
|---|---|
| Host Controller | Executes application logic and machine-control functions |
| PTQ-PDPMV1 | Manages PROFIBUS DP master communication |
| PROFIBUS DP Network | Transfers process and diagnostic data between devices |
| Remote I/O | Exchanges field signals with the control system |
| Variable Speed Drive | Receives control data and returns operating information |
| Instrumentation | Supplies process measurements and device status |
| Field Actuators | Performs commands issued through the control system |
| Engineering Station | Configures and diagnoses the PROFIBUS communication system |
The module’s position at the fieldbus layer makes it possible to integrate distributed PROFIBUS equipment while retaining centralized control logic in the host controller.
Industrial Applications
| Application | Typical Use |
|---|---|
| Remote I/O Systems | PROFIBUS connection between controller and distributed I/O |
| Motor Control | Communication with PROFIBUS-enabled motor equipment |
| Variable Speed Drives | Exchange of drive commands and operating information |
| Process Instrumentation | Transfer of measurements and device status |
| Packaging Machinery | Distributed field-device communication |
| Manufacturing Lines | PROFIBUS networking between machine stations |
| Material Handling | Communication with distributed control devices |
| Plant Automation | Integration of existing PROFIBUS field networks |
Installation and Maintenance
- Verify that the PTQ-PDPMV1 is compatible with the intended host control platform and PROFIBUS DP architecture.
- Isolate applicable control power before installing or removing the communication module.
- Confirm the PROFIBUS network topology and identify the master and all configured slave devices.
- Verify each PROFIBUS device address against the approved network documentation.
- Inspect the PROFIBUS cable, connectors, shielding, and termination components before commissioning.
- Install the module securely and connect the PROFIBUS network according to the approved wiring arrangement.
- Check that required bus termination is correctly applied at the appropriate network locations.
- Load or verify the master configuration and confirm that the required slave devices are defined correctly.
- Energize the network under controlled conditions and check communication status and diagnostic information.
- Test representative input and output data between the host controller and connected PROFIBUS devices.
- If communication faults occur, isolate the affected slave, cable segment, address, termination, and master configuration systematically.
- After replacement, verify the complete PROFIBUS network, process-data exchange, diagnostics, and controller interaction before returning the automation system to service.
Compatible System Components
| Component | Function |
|---|---|
| ProTalkQ Communication System | Provides the communication platform |
| Host Control Platform | Executes application and machine-control logic |
| PROFIBUS DP Slave Devices | Exchange process data with the master |
| PROFIBUS Remote I/O | Provides distributed field signal interfacing |
| PROFIBUS Drives | Exchanges drive commands and status information |
| PROFIBUS Instrumentation | Supplies process measurements and device diagnostics |
| PROFIBUS Cable | Provides the physical fieldbus connection |
| PROFIBUS Connectors | Provides network device connections |
| PROFIBUS Terminators | Maintains the electrical termination of the bus |
| Engineering Software | Provides configuration and diagnostic functions |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| Schneider ProTalkQ | Communication Module Family | Industrial protocol integration |
| Schneider ProTalkQ PROFIBUS DP | PROFIBUS Communication Family | PROFIBUS network integration |
| Schneider PROFIBUS DP Modules | Fieldbus Communication Modules | Distributed device communication |
| Schneider Modicon PLC | PLC Platform | Industrial control and automation |
| Schneider Modicon Remote I/O | Distributed I/O System | Field signal acquisition and control |
| Schneider Altivar Drives | Variable Speed Drive Family | Motor and drive control |
| Schneider Lexium | Motion Control Family | Servo and machine-axis applications |
Key Advantages
- Provides a dedicated PROFIBUS DP master interface for compatible control platforms.
- Integrates distributed PROFIBUS field devices into a controller-based automation system.
- Supports communication with remote I/O, drives, instrumentation, and other field equipment.
- Helps retain existing PROFIBUS installations within larger automation architectures.
- Separates fieldbus communication handling from the host controller’s application logic.
- Useful for PROFIBUS network expansion, modernization, maintenance, and replacement.
Technical FAQs
What is the difference between the PTQ-PDPMV1 and a PROFIBUS slave module?
The PTQ-PDPMV1 functions as a PROFIBUS DP V1 master, coordinating communication with configured PROFIBUS slave devices. A slave device normally provides process data to the master or receives commands from it rather than managing the bus as the master.
Why can one PROFIBUS slave affect communication with other devices?
A problem in bus wiring, termination, addressing, or a physical network segment can affect communication beyond a single field device. When multiple slaves become unavailable, the network infrastructure and master configuration should be checked before replacing individual slave devices.
What should be verified when adding a new PROFIBUS device?
The device address, device configuration information, process-data arrangement, bus wiring, and termination should be checked against the master configuration. The new device should then be commissioned without disturbing the existing network communication.
Can the PTQ-PDPMV1 replace the host PLC?
No. The module provides PROFIBUS communication and master functions, while the host controller remains responsible for application logic, sequencing, interlocking, and higher-level machine control.
