Product Overview

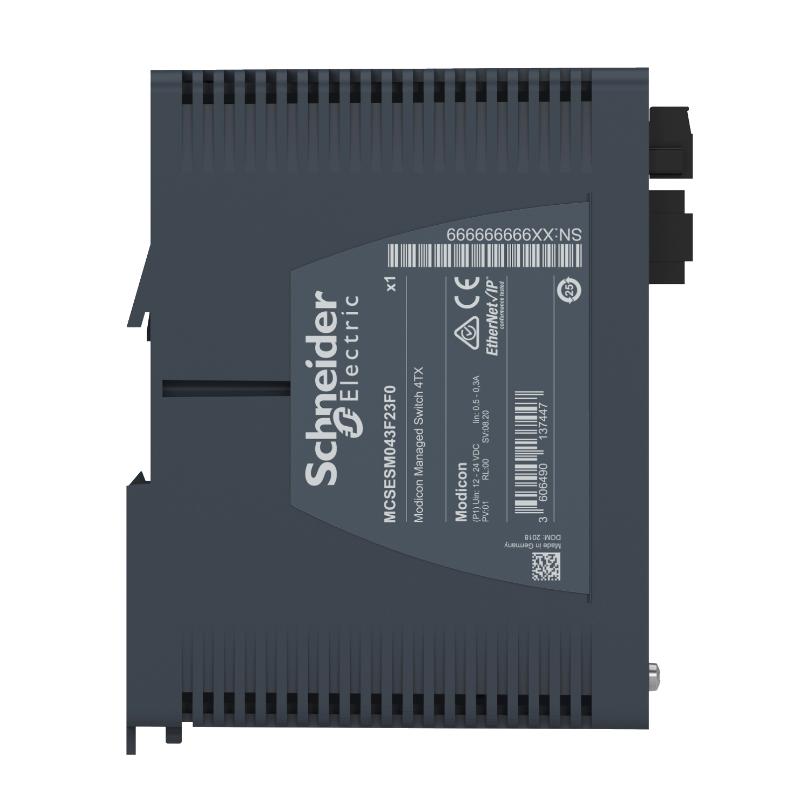

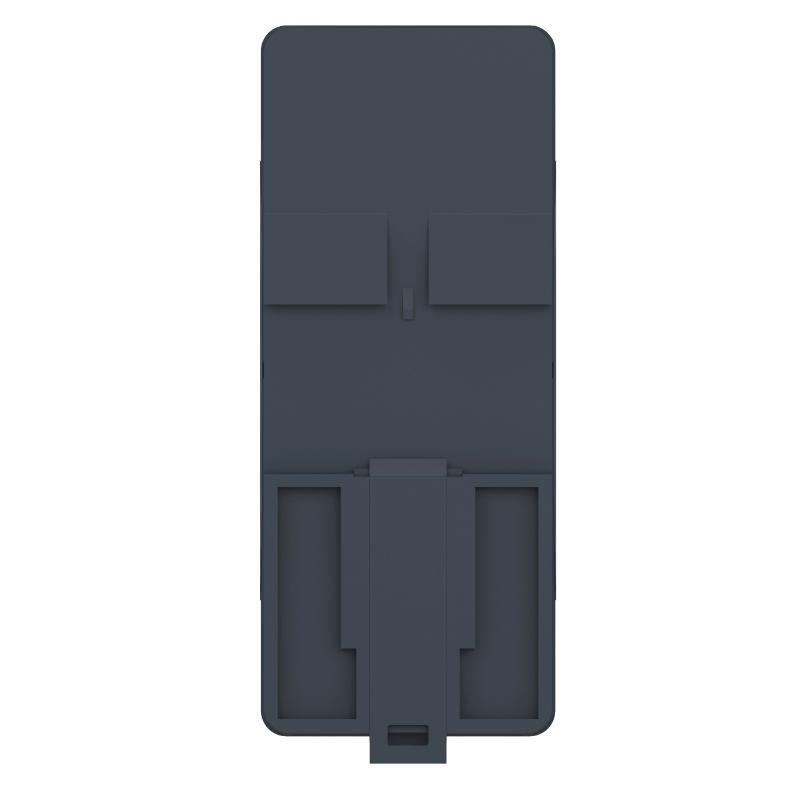

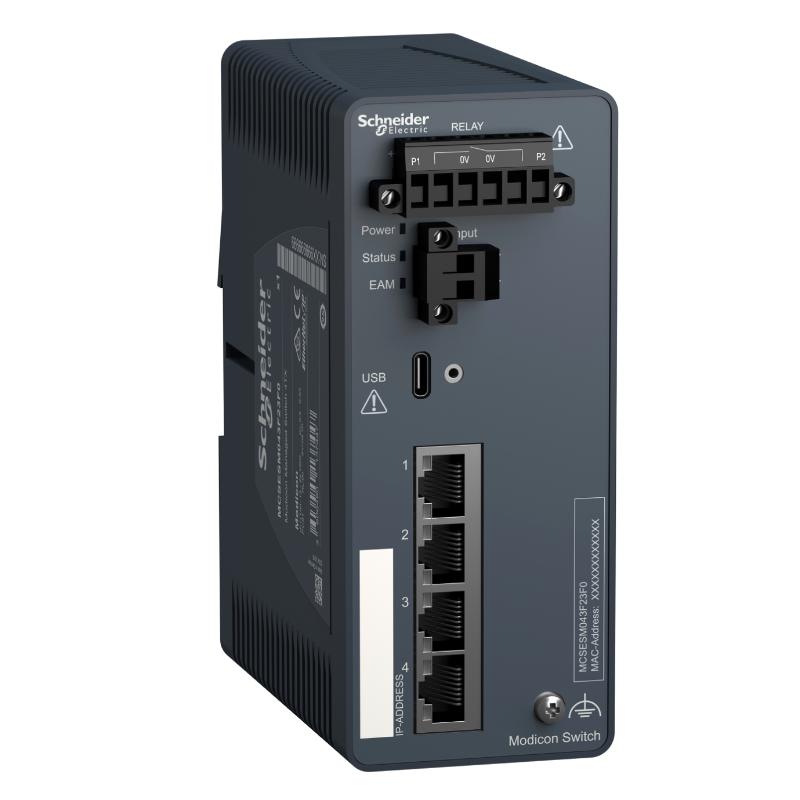

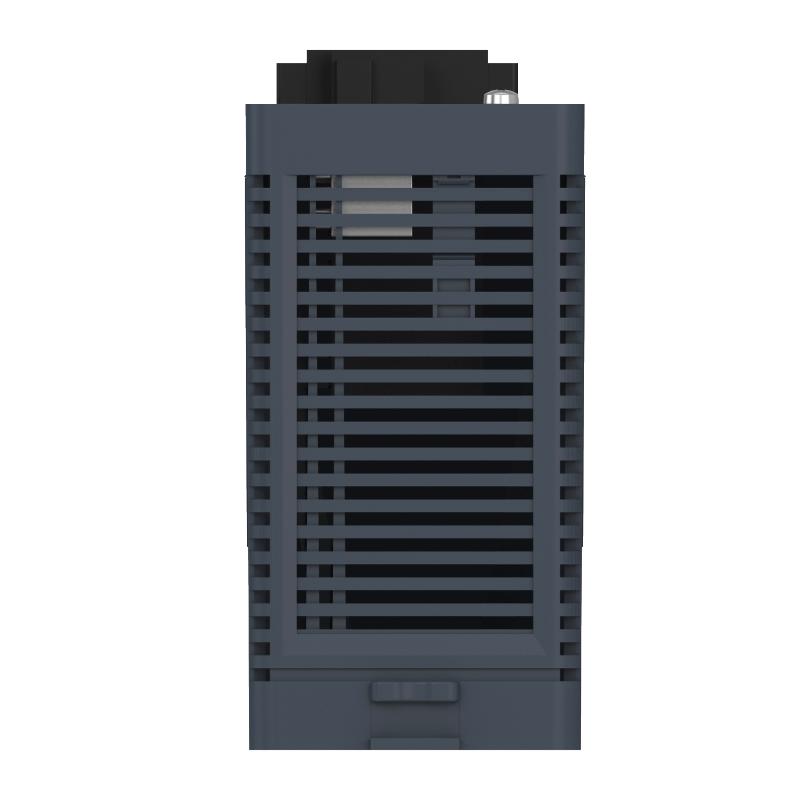

The Schneider MCSESM043F23F0 Networking Switch is an industrial Ethernet switch used to connect automation devices and exchange Ethernet-based data within a machine or plant network. It provides the network interconnection point between controllers, remote I/O, HMIs, drives, and other Ethernet-enabled equipment.

In an industrial cabinet, the switch can be used to consolidate multiple Ethernet connections into a common communication network. This is useful when a machine contains several controllers or field devices that need to exchange data without routing every connection directly back to a central network cabinet.

The switch is suited to industrial automation environments where communication equipment must operate as part of a structured Ethernet infrastructure. Applications can include machine control panels, production lines, material-handling systems, and distributed automation installations.

For troubleshooting, the switch should be considered as part of the complete communication path. Link status, cabling, connected devices, network configuration, and the upstream control system should all be checked when communication between automation devices is interrupted.

Technical Specifications

Product Features

• Industrial networking switch for Ethernet-based automation systems.
• Connects multiple automation devices within a common network infrastructure.
• Suitable for machine-level and plant-level industrial communication.
• Provides a central connection point for compatible Ethernet devices.
• Can be integrated with Schneider Electric automation architectures.
• Suitable for control cabinets and distributed machine networks.
• Supports communication between controllers, I/O, HMI, and other networked equipment.
• Useful for network expansion, equipment replacement, and automation-system maintenance.

Working Principle

The MCSESM043F23F0 operates at the network communication layer, receiving Ethernet frames from connected devices and forwarding them toward the appropriate network destination. The switch allows multiple devices to communicate through a shared industrial Ethernet infrastructure without requiring direct point-to-point connections between every device.

A typical machine network may have a controller, HMI, remote I/O, drive system, and supervisory equipment connected to the switch. Data generated by one device is received by the switch and forwarded through the appropriate network connection.

PLC / Controller → MCSESM043F23F0 → Ethernet Network → HMI / I/O / Drives / Other Devices

The switch does not execute PLC logic or perform machine sequencing. Its function is to maintain the communication path between networked equipment. Consequently, a failed port, damaged Ethernet cable, incorrect connection, or network-side fault can interrupt communication even when the connected controller and field devices remain operational.

Role in a Modicon ConneXium Industrial Ethernet Architecture

The MCSESM043F23F0 occupies the network infrastructure layer between Ethernet-enabled automation devices. It provides the physical communication point through which multiple machine or plant devices can exchange data.

PLC / Controller → MCSESM043F23F0 Networking Switch → Industrial Ethernet Network → Distributed Automation Devices

The switch forms the communication backbone for the connected Ethernet devices while the individual automation components retain their own control and application functions.

Industrial Applications

Installation and Maintenance

1. Verify that the MCSESM043F23F0 is suitable for the intended industrial Ethernet network before installation.
2. Isolate applicable electrical power before performing physical installation or cabinet maintenance.
3. Confirm the intended network topology and identify each connected Ethernet device.
4. Inspect the switch and Ethernet connectors for physical damage before installation.
5. Mount the switch securely and ensure that the installation environment is suitable for the equipment.
6. Connect Ethernet cables according to the approved network layout and cabinet documentation.
7. Check that each connected device is linked to the intended network port.
8. Inspect Ethernet cables for damaged insulation, loose connectors, excessive bending, or mechanical stress.
9. Apply power and verify the switch and connected-port status during commissioning.
10. Check communication between the controller and each required network device.
11. If a communication fault occurs, isolate the affected port, cable, connected device, and upstream network segment systematically.
12. After replacement, verify all required Ethernet links and machine communication functions before returning the automation system to service.

Compatible System Components

Recommended Related Models

Key Advantages

• Provides a dedicated Ethernet interconnection point for industrial automation equipment.
• Supports organized networking of controllers, I/O, HMI, drives, and other Ethernet devices.
• Suitable for distributed machine and plant communication architectures.
• Simplifies network expansion within control cabinets and machine systems.
• Helps separate network infrastructure from the control functions performed by connected devices.
• Useful for maintaining and replacing Ethernet communication infrastructure in Schneider Electric automation systems.

Technical FAQs

Where should the MCSESM043F23F0 be positioned in an automation network?

It is normally positioned within the Ethernet communication layer, where multiple compatible network devices need to exchange data. The exact location depends on the machine topology and the relationship between controllers, distributed I/O, HMI, drives, and higher-level networks.

What should be checked if one connected device loses Ethernet communication?

Start with the affected port and Ethernet cable, then check the link condition of the connected device. If the physical connection is healthy, examine the device configuration and the upstream network path before identifying the switch itself as the fault source.

Can replacing the networking switch change the machine-control program?

The switch handles network communication rather than PLC application logic. However, replacing network hardware can affect communication if port connections, network configuration, or connected-device settings are changed, so the complete communication path should be verified after replacement.

Why is an industrial networking switch useful instead of connecting every device directly to the controller?

A switch provides a structured way to connect multiple Ethernet devices within the same network. This reduces unnecessary point-to-point cabling and allows controllers, HMI systems, remote I/O, drives, and other networked equipment to communicate through a common infrastructure.
