Product Overview

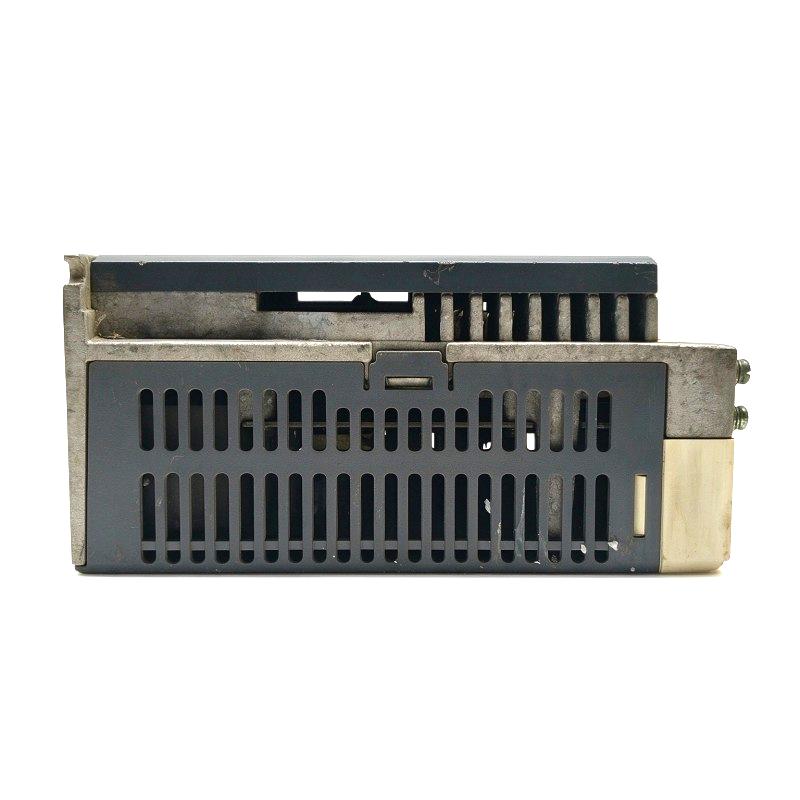

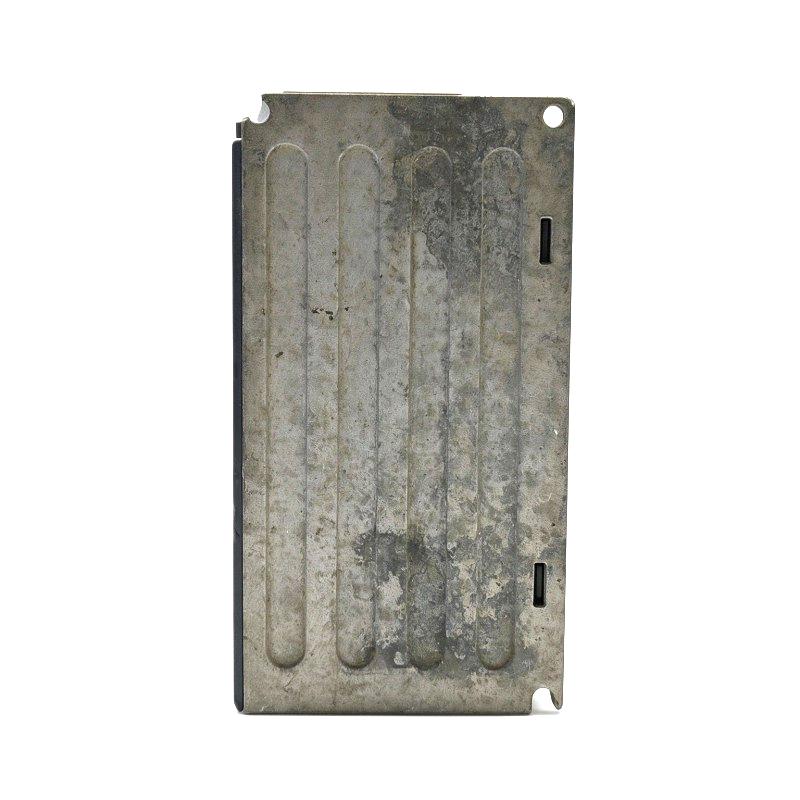

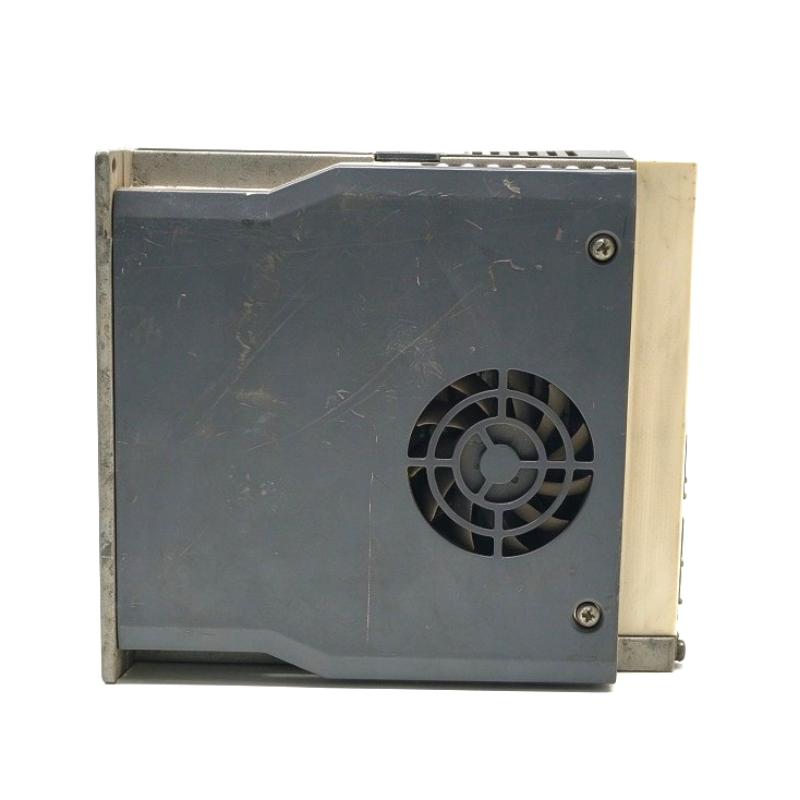

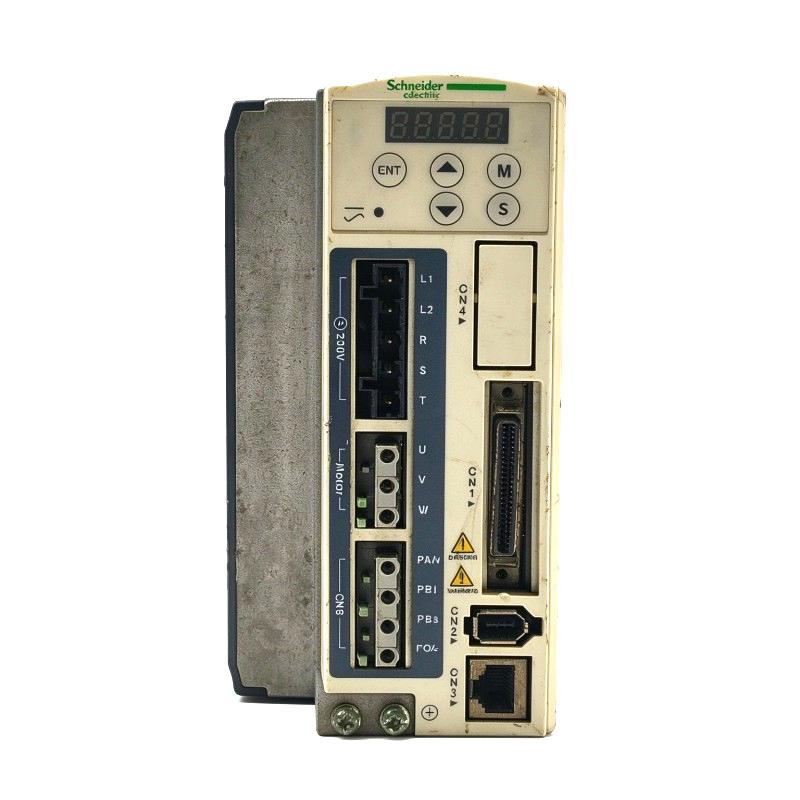

The Schneider Electric LXM23DU07M3X is a 750 W servo drive in the Lexium 23 Plus range. It controls compatible servo motors in machinery that requires repeatable positioning, controlled acceleration, or regulated rotational speed. Its pulse-command interface, programmable I/O, and encoder feedback make it suitable for machine axes that need coordinated movement rather than simple motor start-and-stop control.

With a higher nominal power rating than the 200 W and 400 W models in the same range, the LXM23DU07M3X can serve motion applications with greater motor power requirements. Typical installations include packaging machines, automated assembly equipment, component feeders, and indexing mechanisms. The appropriate choice depends not only on motor power but also on load inertia, acceleration requirements, operating frequency, and the mechanical transmission.

In a packaging machine, for example, a servo axis may advance material to a specified position before a cutting or sealing operation begins. The machine controller sends movement commands, and the drive regulates the connected motor according to the selected control mode. Encoder feedback helps monitor the motor’s response, while configured acceleration and deceleration parameters determine how the mechanism starts and stops.

The LXM23DU07M3X supports position, speed, and torque control functions. Positioning can be implemented through supported pulse commands or configured internal motion sequences. Speed-control applications can use the applicable reference signals and parameters, while torque control is available for processes that require regulated motor torque. The selected operating mode must match the controller’s capabilities and the machine’s intended behavior.

Its programmable digital inputs and outputs allow the drive to exchange control and status signals with the surrounding equipment. Two analog voltage inputs support applicable analog-reference functions. The drive also provides connections for motor encoder feedback, enabling closed-loop regulation of the connected servo motor.

When integrating this model into an existing machine, the distinction between Lexium 23D and Lexium 23A variants is important. The LXM23DU07M3X uses the I/O-oriented configuration; it should not be treated as a CANopen-equipped LXM23A drive. A controller that generates pulse commands can be suitable when its electrical signals, timing, and control logic match the drive’s requirements.

The drive’s actual performance depends on the entire motion system. Motor compatibility, command resolution, encoder wiring, mechanical backlash, and load inertia all influence positioning behavior. Correct commissioning should therefore include checking the motor configuration, verifying command direction, and testing the movement profile under controlled conditions before production operation.

Technical Specifications

Product Features

• 750 W nominal output: Supports servo axes requiring more motor power than lower-rated Lexium 23 Plus models.
• Pulse-based positioning: Accepts supported pulse commands from compatible machine controllers.
• Multiple motion-control functions: Supports position, speed, and torque control according to the selected configuration.
• Eight programmable digital inputs: Allows external control signals to be assigned to supported drive functions.
• Five digital outputs: Provides configured status and control signals for machine coordination.
• Analog voltage inputs: Supports applicable analog-reference functions within the specified input range.
• Encoder feedback: Enables closed-loop regulation of the connected servo motor.
• Internal motion sequences: Supports configured movement procedures for suitable applications.
• Natural-convection cooling: Uses passive cooling, making cabinet airflow and installation clearances important.
• External braking support: Accommodates an external braking resistor where required by the application’s regenerative-energy demand.

Working Principle

The LXM23DU07M3X receives motion commands from a compatible controller or executes a configured internal motion sequence. It regulates the electrical power delivered to the servo motor and uses encoder feedback to monitor the motor’s response.

PLC or Motion Controller → Pulse/Direction Commands → LXM23DU07M3X → Servo Motor → Mechanical Load

The motor encoder supplies feedback to the drive, allowing the control system to regulate movement according to the selected operating mode and configured parameters.

In a positioning application, the controller sends pulse commands representing the requested movement. The drive interprets the command and regulates motor operation according to the pulse scaling, electronic gearing, acceleration, and deceleration settings. For an indexing machine, this allows a fixture or feed mechanism to move through defined increments before the next production operation begins.

The relationship between the command pulses and the resulting mechanical movement depends on the drive configuration, motor feedback, and transmission ratio. If the pulse scaling does not match the controller’s intended movement, the axis may travel farther or shorter than expected. The command settings must therefore be coordinated with the machine’s mechanical design.

For speed control, the drive regulates motor speed according to the selected reference source and operating parameters. A feed roller, for example, may need to maintain a commanded speed while material passes through a processing station. The controller can coordinate this operation with other machine functions through the configured I/O arrangement.

Torque control is useful where the process requires regulation of motor torque rather than position as the primary target. Depending on the machine, this may apply to tension-related mechanisms or other controlled-load applications. Torque limits and mechanical safeguards must be configured to prevent excessive force when a mechanism becomes obstructed.

The programmable digital inputs and outputs support coordination with the machine controller. Inputs can be assigned to applicable enable, reset, limit, or sequence functions, while outputs can communicate configured status information. The actual behavior depends on the selected signal assignments and control parameters.

During deceleration, the motor can return energy to the drive. When a mechanism stops frequently or carries substantial inertia, regenerative energy may exceed what the system can handle without additional braking provisions. An external braking resistor may be required, depending on the drive specifications and the machine’s duty cycle.

The drive’s response is determined by the relationship between its control settings, motor feedback, and mechanical load. Proper motor matching and commissioning are necessary to obtain repeatable movement without excessive vibration, following errors, or unnecessary fault trips.

Role in a Lexium 23 Plus Motion Control System

The LXM23DU07M3X serves as the servo power and control stage between the machine controller and the driven axis. It processes movement commands, regulates motor output, and uses feedback to control the motor’s response.

PLC or Motion Controller → Servo Drive → Servo Motor → Machine Mechanism

Industrial Applications

The LXM23DU07M3X is appropriate when its power rating, electrical supply, motor compatibility, and command interface match the demands of the application.

Installation and Maintenance

1. Verify the supply configuration: Confirm that the incoming AC supply is compatible with the selected single-phase or three-phase arrangement and remains within the specified voltage range.
2. Check motor compatibility: Compare the servo motor’s rated current, voltage, power, encoder type, and feedback connection with the drive’s specifications.
3. Prepare the control cabinet: Provide a suitable enclosure and sufficient airflow for natural-convection cooling.
4. Observe mounting requirements: Install the drive in the prescribed vertical orientation and maintain the specified clearances around the unit.
5. Inspect grounding and protection: Verify protective grounding, supply-side circuit protection, and electrical isolation before energizing the system.
6. Check motor power wiring: Confirm the motor phase connections, terminal tightness, cable ratings, and grounding arrangements.
7. Verify encoder feedback: Check the feedback cable and connector for compatibility and secure installation. Keep signal wiring appropriately separated from sources of electrical interference.
8. Configure the command interface: Set the pulse input parameters and confirm signal polarity, direction logic, timing, and electronic gearing where applicable.
9. Assign digital I/O functions: Configure the required inputs and outputs for the machine’s enable, reset, limit, and status functions.
10. Set motion parameters: Adjust acceleration, deceleration, speed limits, and positioning settings according to the mechanical load and operating cycle.
11. Commission at reduced speed: Verify motor direction, command response, feedback behavior, and stopping performance before increasing to production speed.
12. Document maintenance findings: Record parameter settings, alarms, motor details, wiring changes, and corrective actions to support future troubleshooting.

If the axis develops following errors, inconsistent positioning, or unexpected stops, review the command signals, encoder feedback, mechanical transmission, and active alarm information before changing tuning parameters. This helps distinguish electrical configuration problems from excessive load or mechanical resistance.

Related Components

Recommended Related Models

Key Advantages

• Supports 750 W servo motion applications.
• Provides pulse-based positioning control.
• Supports position, speed, and torque control functions.
• Includes programmable digital inputs and outputs.
• Offers analog voltage inputs for supported command arrangements.
• Uses encoder feedback for closed-loop motor regulation.
• Supports single-phase and three-phase AC supply configurations within specified limits.
• Accommodates external braking arrangements where regenerative energy requires dissipation.

Technical FAQs

How does the LXM23DU07M3X handle positioning commands?

The drive accepts supported pulse-based commands from a compatible controller. The resulting movement depends on pulse scaling, electronic gearing, motor feedback, and the mechanical transmission. These parameters must be configured to match the required travel distance.

What is the purpose of the drive’s programmable digital inputs?

The digital inputs can be assigned to supported control functions, such as enable signals, resets, limits, or internal motion-sequence commands. Their exact behavior depends on the configured functions and the machine’s control logic.

Can the LXM23DU07M3X be used with a CANopen controller?

The LXM23DU07M3X uses the I/O-oriented Lexium 23 Plus configuration rather than the CANopen interface associated with applicable LXM23A variants. A controller using pulse commands can be suitable when its signal outputs match the drive’s requirements. A CANopen-based architecture requires a compatible interface.

What determines whether an external braking resistor is necessary?

The requirement depends on the load inertia, deceleration time, frequency of stopping, and regenerative energy returned by the motor. Applications with frequent deceleration or high-inertia loads need particular attention to the drive’s braking specifications and permitted resistor configuration.
