Product Overview

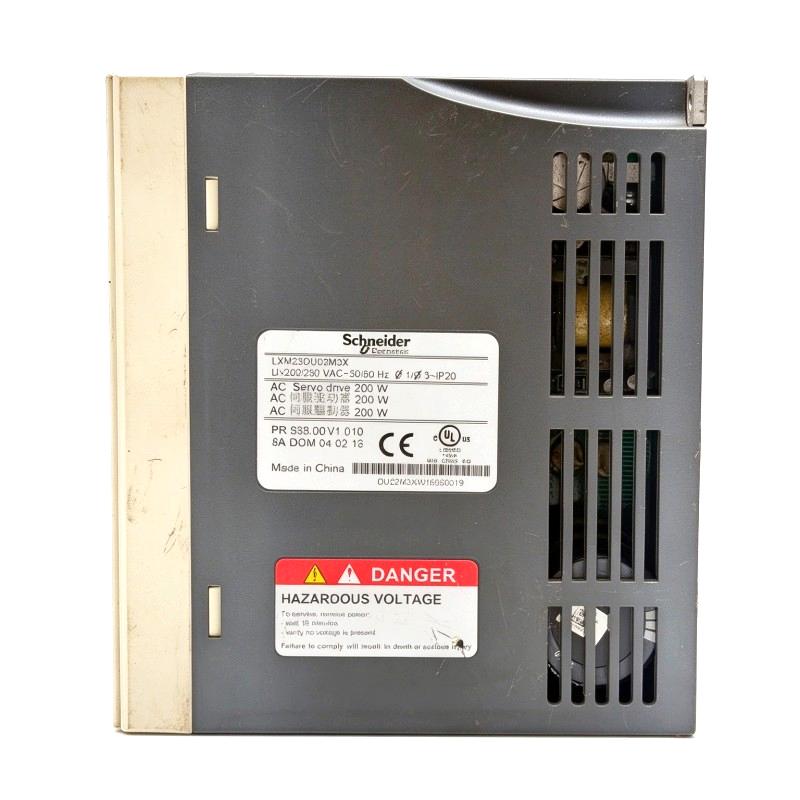

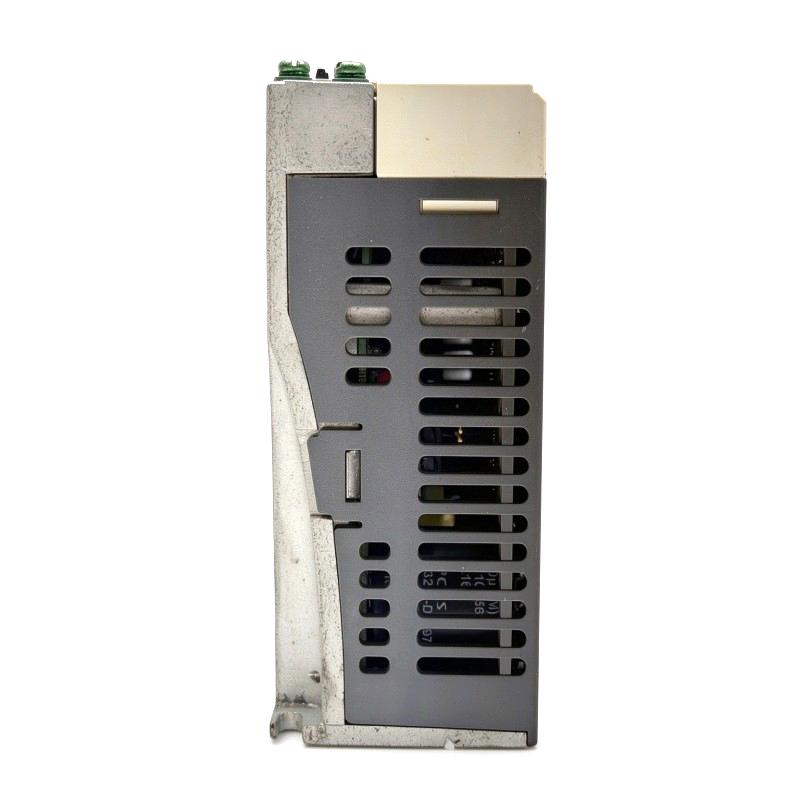

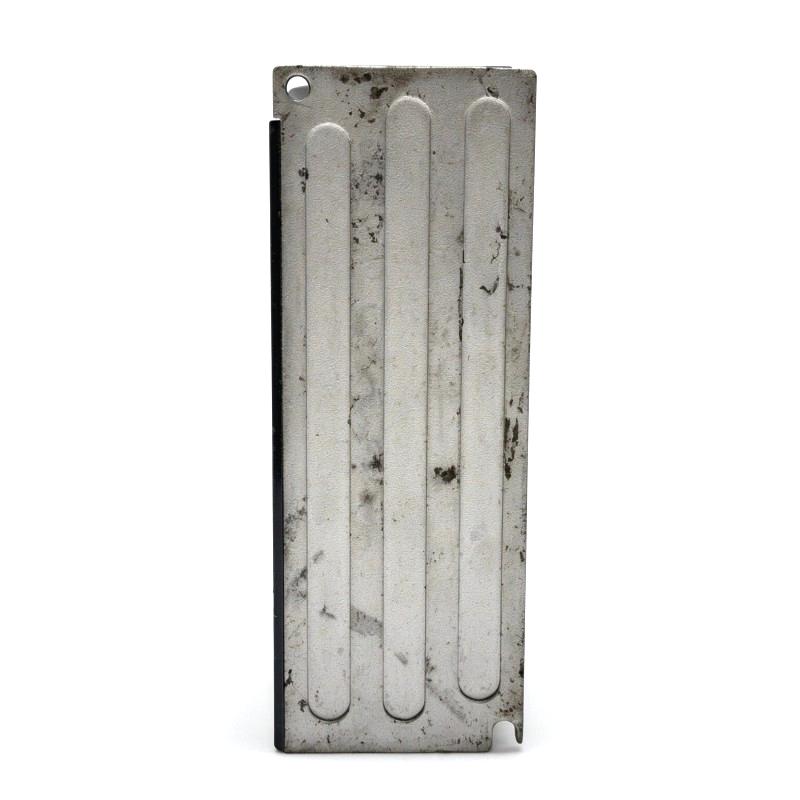

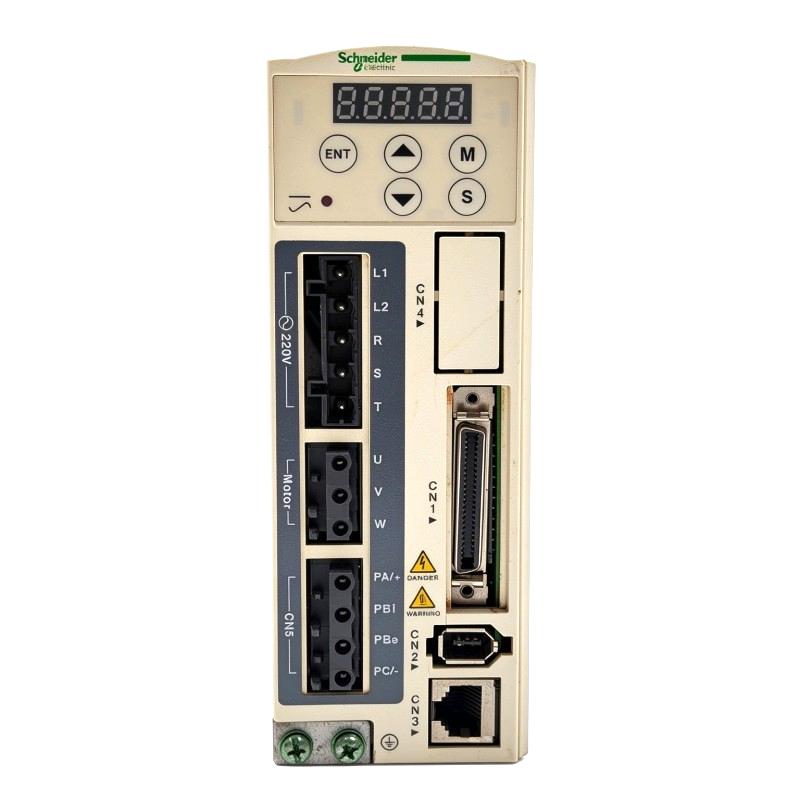

The Schneider Electric LXM23DU02M3X is a 200 W servo drive from the Lexium 23 Plus range. It controls a compatible servo motor in applications that require repeatable positioning, controlled speed, or regulated torque. With programmable I/O and an integrated Modbus interface over RS-485, it can work with a machine controller or operate through configured motion functions, depending on the control arrangement.

This model is suited to compact machinery where a small servo axis must perform a defined movement rather than run continuously at a fixed speed. Examples include component feeders, indexing mechanisms, small assembly stations, and automated fixtures. In these applications, the drive translates a command into motor output and uses encoder feedback to regulate the motor’s response.

The LXM23DU02M3X supports a 200 W nominal output rating and a single-phase supply range of 200–255 V AC. Its I/O-based configuration distinguishes it from Lexium 23A variants that incorporate CANopen communication. The drive also includes an integrated Modbus interface through an RS-485 connection, allowing supported serial communication with compatible control equipment.

Consider a small assembly machine that moves a component into a fixed working position before a pneumatic tool performs its operation. The machine controller can issue a movement command, while the servo drive regulates acceleration and deceleration and monitors the motor’s feedback. Once the positioning sequence is complete, the controller can coordinate the next operation using the configured status and control signals.

The drive’s programmable inputs and outputs support machine-level coordination, while its analog inputs can be used for supported voltage-reference commands. The appropriate arrangement depends on the selected operating mode, wiring, and parameter configuration. For applications that require communication with a PLC, the integrated Modbus interface provides another option for exchanging supported control and status information.

Motor compatibility remains central to the installation. The motor’s rated current, encoder type, feedback connection, and mechanical load must match the drive’s capabilities. Acceleration time, deceleration time, travel limits, and other motion parameters also need to reflect the machine’s actual operating cycle rather than being copied indiscriminately from another axis.

For equipment builders and maintenance engineers, the LXM23DU02M3X offers a compact way to implement servo motion with conventional control wiring and serial communication. Its suitability depends on the required motor power, command method, feedback arrangement, and the precision demanded by the mechanical application.

Technical Specifications

Product Features

• 200 W servo output: Suitable for compact servo axes with modest power requirements.
• Single-phase power option: Accepts a 200–255 V AC single-phase supply.
• Position, speed, and torque control: Supports different motion requirements through the applicable operating modes.
• Programmable digital inputs: Provides eight inputs for supported control signals and operating functions.
• Digital outputs: Offers five outputs for configured status and control signals.
• Analog command capability: Includes two voltage analog inputs with a range of -10 to +10 V.
• Integrated Modbus interface: Supports serial communication with compatible equipment over RS-485.
• Encoder feedback: Uses motor feedback for closed-loop motion regulation.
• Internal motion functions: Supports configured motion sequences for suitable positioning applications.
• Natural-convection cooling: Uses passive airflow rather than a dedicated cooling fan.

Working Principle

The LXM23DU02M3X converts electrical supply power into controlled output for a compatible servo motor. It receives commands through the configured control interface, processes the selected motion parameters, and regulates the motor using encoder feedback.

Machine Controller or Command Source → LXM23DU02M3X → Servo Motor → Mechanical Load

The encoder provides feedback to the drive, allowing it to evaluate actual motor movement against the commanded response.

In position control, a machine controller can issue pulse commands to specify the required movement. The drive interprets the command and regulates the motor’s response according to the configured position and motion parameters. This arrangement suits indexing mechanisms, small transfer units, and fixtures that repeatedly move between defined positions.

The drive also supports built-in motion sequences. When this method is used, the required movement parameters and control conditions are configured in advance. External digital inputs can then be used for the applicable sequence commands. This can simplify the control arrangement in a machine with a limited number of predefined movements.

In speed control, the drive regulates motor speed according to the selected command source. An analog voltage reference can be used in supported configurations, while digital signals and configured parameters determine the associated operating conditions. This is useful where a feeder, roller, or small transport mechanism must run at a controlled speed.

Torque control focuses on regulating motor torque rather than making position the primary target. The operating mode and command source must be configured for the intended process. Mechanical limits, load behavior, and the consequences of a torque change should be considered before this mode is used in production equipment.

The integrated Modbus interface provides a serial communication path through RS-485. A compatible controller can exchange supported data with the drive when the communication settings and application configuration are correct. This interface should not be confused with CANopen; the LXM23DU02M3X is the I/O-oriented Lexium 23 Plus variant with integrated Modbus communication.

During deceleration, the motor may return energy to the drive. If the application involves frequent stopping or a significant inertial load, an external braking resistor may be needed. The requirement depends on the machine’s operating cycle and the drive’s specified braking arrangements.

The final motion response depends on the motor, encoder, load inertia, command resolution, and configured parameters. Proper commissioning is necessary to achieve the intended movement without unnecessary alarms, excessive vibration, or positioning errors.

Role in a Lexium 23 Plus Motion Control System

The LXM23DU02M3X acts as the motor-control stage between the command source and the mechanical axis. It receives motion instructions, regulates motor output, and returns feedback or status information through the configured control interfaces.

PLC or Command Source → Servo Drive → Servo Motor → Machine Axis

The control arrangement depends on the selected operating mode, available command signals, and the requirements of the machine axis.

Industrial Applications

The drive should be selected according to the motor’s electrical ratings, required motion profile, feedback compatibility, and the machine’s operating cycle.

Installation and Maintenance

1. Confirm the supply arrangement: Verify that the available AC supply matches the selected single-phase or supported three-phase configuration.
2. Check motor compatibility: Compare the motor’s rated current, power, encoder type, and feedback connection with the drive’s specifications.
3. Provide cabinet ventilation: Install the drive in a suitable control cabinet and maintain the specified clearance around the unit for natural-convection cooling.
4. Observe mounting orientation: Mount the drive vertically within the permitted tolerance to maintain its intended cooling performance.
5. Inspect grounding and protection: Confirm protective grounding, supply-side circuit protection, and wiring arrangements before energizing the equipment.
6. Check motor power connections: Inspect the motor terminals and cable connections for correct phase wiring and secure termination.
7. Verify encoder wiring: Confirm that the encoder connection is compatible with the motor and drive and that the cable is routed to reduce electrical interference.
8. Configure the control mode: Select the appropriate position, speed, or torque control arrangement and set the corresponding command source.
9. Set digital I/O functions: Assign the required input and output functions and confirm that external signals use the correct voltage and logic.
10. Configure Modbus communication: Where serial communication is used, check the RS-485 wiring, node address, transmission settings, and controller configuration.
11. Test motion at reduced speed: Verify motor direction, command response, stopping behavior, feedback, and fault handling before returning the machine to normal operation.
12. Document maintenance work: Record drive parameters, alarm history, motor information, wiring changes, and the results of commissioning or troubleshooting.

If the drive does not follow the expected motion command, check the active control mode, command source, encoder feedback, and relevant alarm information before changing parameters. Incorrect signal configuration and motor feedback faults can produce symptoms similar to those caused by excessive load or unsuitable acceleration settings.

Related Components

Recommended Related Models

Key Advantages

• Supports 200 W servo motion applications.
• Offers position, speed, and torque control functions.
• Provides eight programmable digital inputs and five digital outputs.
• Includes two analog voltage inputs for supported command arrangements.
• Integrates Modbus communication over RS-485.
• Supports encoder feedback for closed-loop motor regulation.
• Uses natural-convection cooling.

Technical FAQs

What is the difference between the LXM23DU02M3X and a Lexium 23A drive?

The LXM23DU02M3X belongs to the Lexium 23 Plus I/O-oriented range and incorporates Modbus communication over RS-485. Lexium 23A variants use a different interface configuration, including CANopen on applicable models. The controller interface and required communication method should therefore be considered when selecting a drive.

Can the LXM23DU02M3X operate from a single-phase supply?

Yes. Its specified single-phase supply range is 200–255 V AC. The supply circuit, protective devices, grounding, and wiring must meet the drive’s electrical requirements.

How can the drive receive motion commands without a CANopen network?

The drive supports control through its available I/O and configured motion functions. Depending on the application, commands can be supplied through pulse inputs, analog references, digital signals, or supported internal motion sequences. Modbus over RS-485 is also available for compatible communication arrangements.

What should be checked if the servo motor vibrates or positioning becomes inconsistent?

Check encoder wiring, motor configuration, mechanical backlash, load inertia, and the selected control parameters. Excessive gain, unsuitable acceleration settings, electrical interference, or a loose mechanical coupling may contribute to unstable movement. Review the drive’s alarm and status information before changing tuning parameters.
