Product Overview

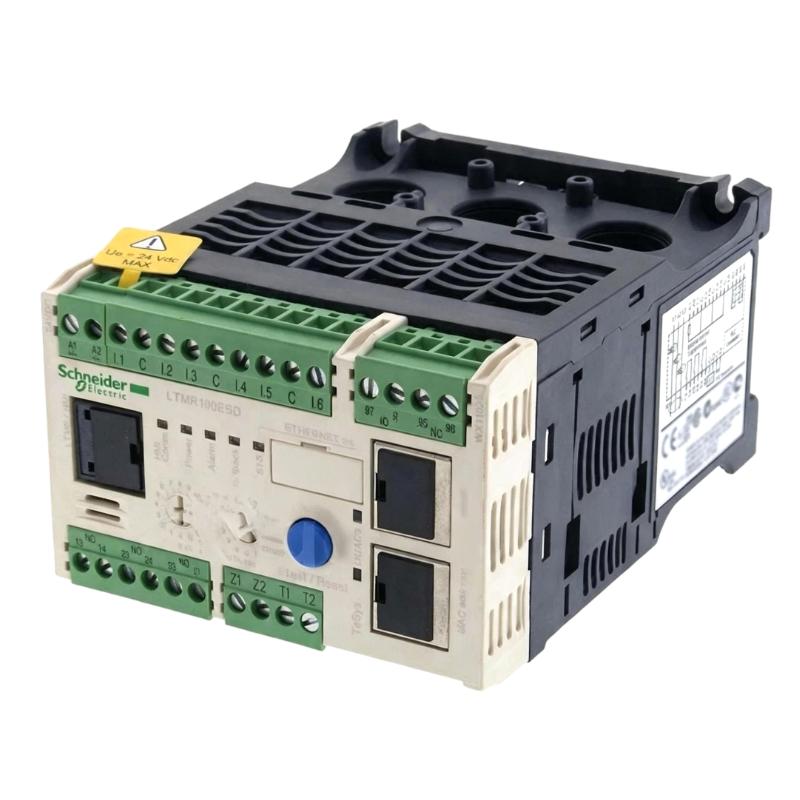

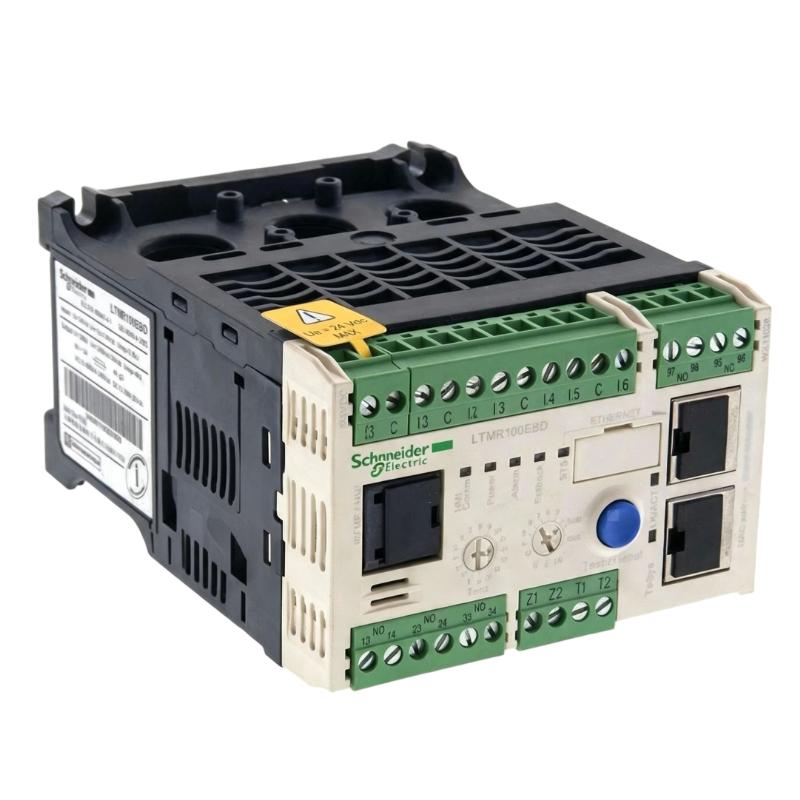

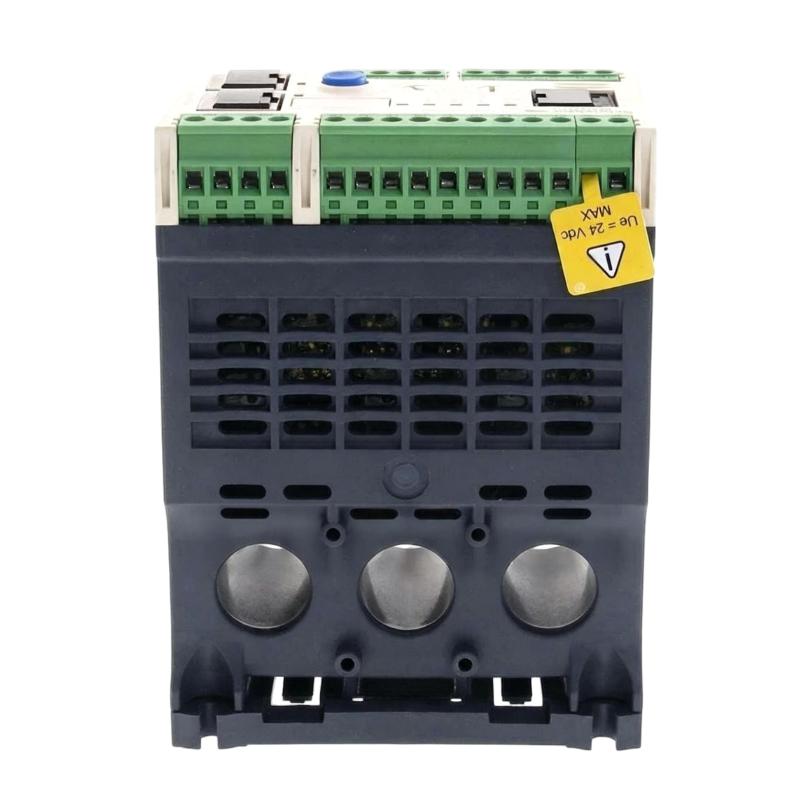

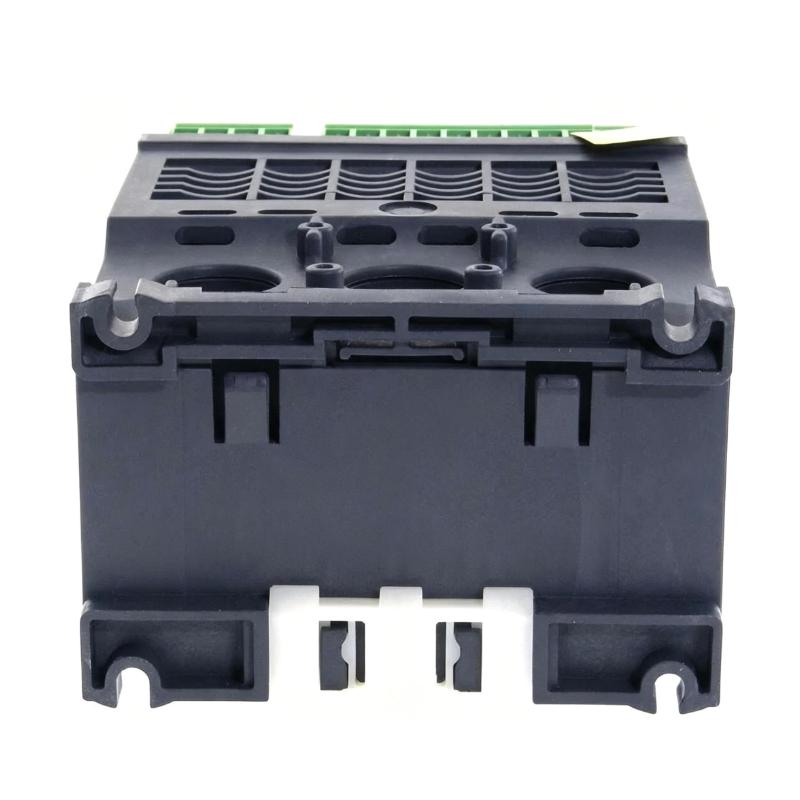

The Schneider LTMR100CFM TeSys T Motor Controller is a motor management device used to monitor, control, and protect motors within industrial automation systems. It fits into the TeSys T architecture between the automation control system and the motor switching equipment, allowing motor operation and status to be managed from a centralized control strategy.
In a typical motor control application, the LTMR100CFM works with a contactor or motor starter. The controller receives operating commands from a PLC or higher-level automation system, monitors motor operating conditions, and coordinates the motor control sequence. This arrangement is suitable for equipment such as pumps, conveyors, fans, compressors, mixers, and other electrically driven machinery.
The controller is particularly useful where motor status and protection information need to be integrated into the plant control system. Instead of treating the motor starter only as a power-switching device, the TeSys T architecture allows motor operating information and fault conditions to become part of the automation and maintenance workflow.
For replacement work, engineers should verify the complete TeSys T configuration, motor operating parameters, associated switching equipment, control wiring, and communication requirements before installing an LTMR100CFM.
Technical Specifications
| Parameter | Specification |
|---|---|
| Model | LTMR100CFM |
| Product Family | Schneider TeSys T |
| Product Type | Motor Controller |
| Primary Function | Motor management, monitoring, control, and protection |
| System Role | Motor control and management interface |
| Application | Industrial motor control and automation |
| Dimensions | 91 × 61 × 122.5 mm |
| Weight | 0.53 kg |
Product Features
- TeSys T motor control and management architecture
- Motor operating status monitoring
- Motor protection and fault handling
- Interface between automation control and motor switching equipment
- Suitable for industrial motor control applications
- Supports centralized motor management strategies
- Compatible with TeSys T motor control components
- Useful for pump, conveyor, fan, compressor, and process equipment applications
- Supports troubleshooting through motor operating and fault information
- Suitable for industrial control panels and automation systems
Working Principle
The LTMR100CFM operates as the motor management point between the automation controller and the motor switching circuit. A PLC or other control system sends a start, stop, or operating command to the motor control system. The LTMR100CFM processes the motor management functions and works with the associated starter or contactor to control motor operation.
During operation, motor-related operating information is monitored by the TeSys T system. If an abnormal motor condition is detected, the controller can initiate the appropriate protection response and make the condition available for system diagnosis.
PLC / Automation Controller → LTMR100CFM → Motor Starter / Contactor → Motor
For troubleshooting, the signal path should be checked from the control command through the LTMR100CFM and switching equipment to the motor. A controller that appears normal does not necessarily indicate that the complete motor power circuit is operating correctly.
Role in a TeSys T Motor Control Architecture
The LTMR100CFM normally sits between the automation control layer and the motor switching/protection equipment. This allows motor commands, operating information, and fault conditions to be handled as part of the wider control architecture.
PLC / Control System → LTMR100CFM → Motor Starter / Switching Equipment → Motor
| System Element | Function |
|---|---|
| PLC / Automation Controller | Generates motor operating commands and receives status information |
| LTMR100CFM | Performs motor management, monitoring, control, and protection functions |
| Motor Starter / Contactor | Switches motor power according to the control sequence |
| Motor Protection Equipment | Supports protection of the motor power circuit |
| Motor | Drives the connected mechanical equipment |
| HMI / Supervisory System | Displays motor status, alarms, and operating information |
Industrial Applications
| Application | Typical Use |
|---|---|
| Pump Systems | Control and monitoring of process and utility pumps |
| Conveyor Systems | Motor management for material handling conveyors |
| Industrial Fans | Monitoring and control of ventilation and process fans |
| Compressor Systems | Motor control for compressed-air and process compressors |
| Manufacturing Machinery | Motor management within production equipment |
| Process Equipment | Control of electrically driven process machinery |
| Material Handling | Motor control for conveyors and handling equipment |
| Plant Utilities | Management of auxiliary motors used throughout industrial facilities |
Installation and Maintenance
- Verify that the replacement controller is LTMR100CFM and matches the existing TeSys T configuration.
- Record the existing motor parameters and protection settings before removing the controller.
- Check the associated motor starter, contactor, and protection components.
- Confirm that control wiring is correctly identified before disconnecting the existing device.
- Inspect terminals and connectors for looseness, oxidation, or mechanical damage.
- Verify that the motor control circuit has been isolated before performing installation work.
- Check the motor nameplate information against the configured motor parameters.
- Confirm that the PLC or automation controller is communicating correctly with the motor management system where applicable.
- After installation, verify the controller status before applying a motor start command.
- Test start and stop commands under controlled operating conditions.
- Confirm that motor status and fault information are correctly reported to the HMI or supervisory system.
- Document the final configuration and protection settings for future maintenance and replacement.
Related Components
| Component | Function |
|---|---|
| TeSys T System | Motor management platform associated with the controller |
| TeSys T Motor Controller | Motor monitoring, control, and protection |
| TeSys Contactor | Motor power switching |
| Motor Starter | Provides the switching interface for motor operation |
| Motor Protection Equipment | Protects the motor and power circuit |
| PLC | Generates motor control commands |
| HMI | Displays motor status and alarms |
| Communication Components | Connect motor management information with the automation system |
Recommended Related Models
| Model / Product Family | Product Type | Typical Application |
|---|---|---|
| LTMR100CFM | TeSys T Motor Controller | Motor management and protection |
| LTMR08MBD | TeSys T Motor Management Controller | Small motor control applications |
| LTMR08PBD | TeSys T Motor Management Controller | Motor monitoring and control |
| LTMR08PFM | TeSys T Motor Management Controller | Industrial motor management |
| TeSys T Series | Motor Management System | Integrated motor control and protection |
| TeSys T Motor Controllers | Motor Management Controllers | Motor monitoring and control |
| TeSys Contactors | Motor Switching Components | Motor power switching |
| TeSys Motor Starters | Motor Starter Components | Industrial motor starting and control |
Key Advantages
- Integrates motor management functions into the automation architecture
- Combines motor monitoring, control, and protection functions
- Suitable for centralized industrial motor management
- Works with TeSys T motor switching and protection components
- Simplifies motor status and fault monitoring
- Applicable to a wide range of industrial motor-driven equipment
Technical FAQs
What is the main role of the LTMR100CFM in a TeSys T system?
The LTMR100CFM acts as the motor management controller between the automation system and the motor switching circuit. It handles motor monitoring, control, protection, and related status information.
Can the LTMR100CFM replace a conventional contactor?
No. The controller and the contactor have different functions. The LTMR100CFM performs motor management and control functions, while the contactor is responsible for switching the motor power circuit.
What should be checked if the motor does not start even though the LTMR100CFM appears operational?
Check the PLC start command, controller status, configured motor parameters, control wiring, motor starter or contactor, protection status, and motor power circuit. The fault may be located downstream of the controller rather than in the LTMR100CFM itself.
What should be verified before replacing an LTMR100CFM?
Verify the complete TeSys T system configuration, motor parameters, control wiring, associated switching equipment, protection settings, and any communication or automation-system configuration. After replacement, test both motor control and status feedback before returning the equipment to normal operation.
