Product Overview

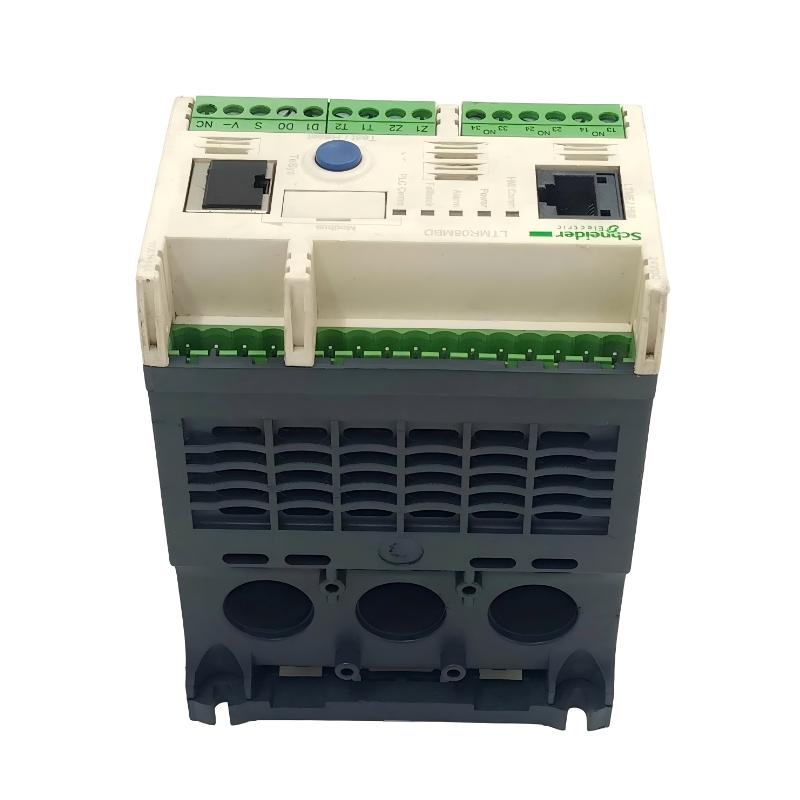

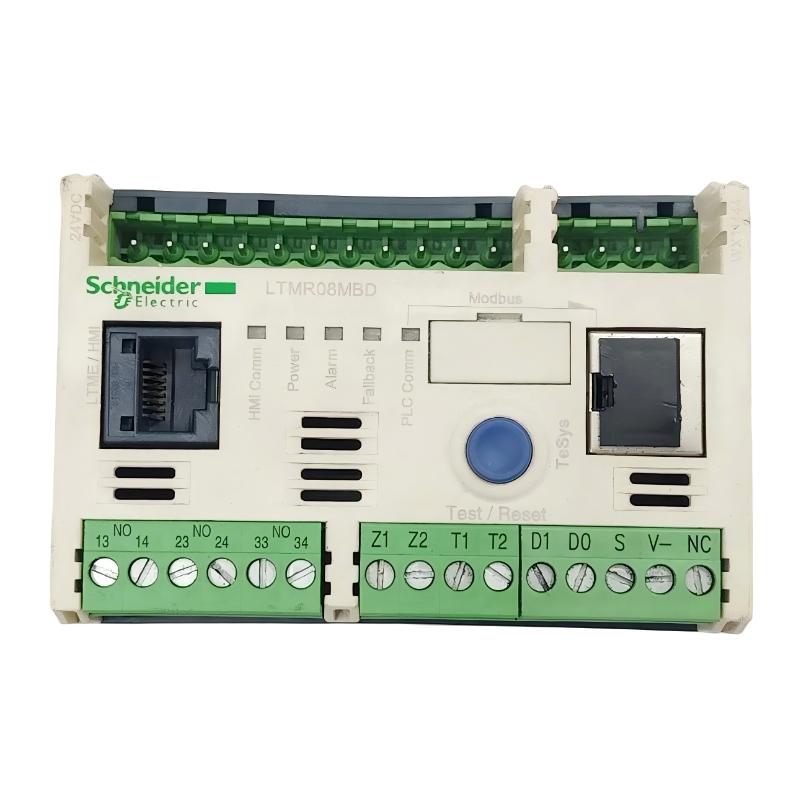

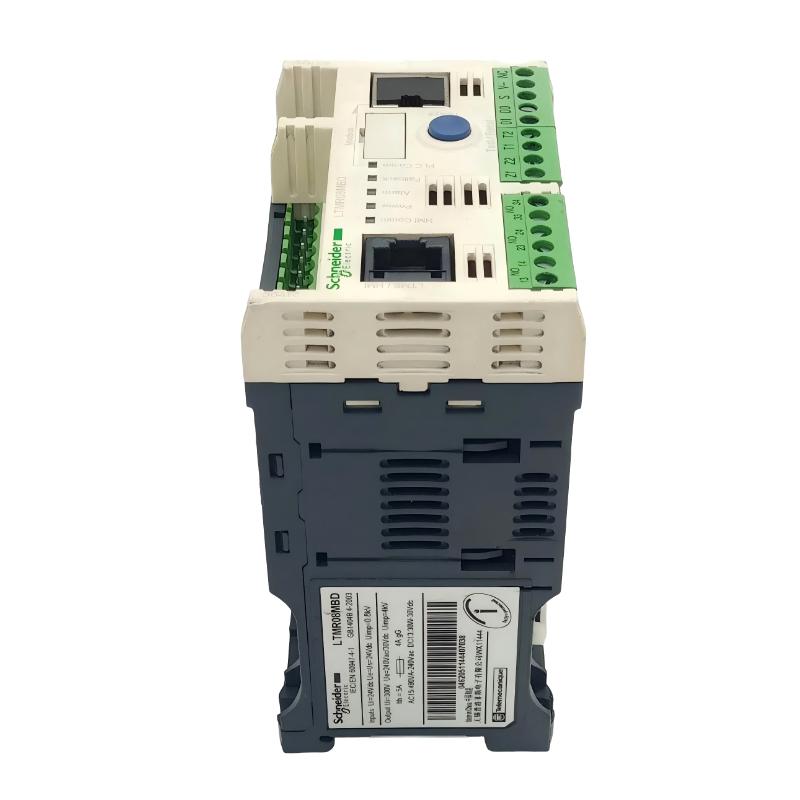

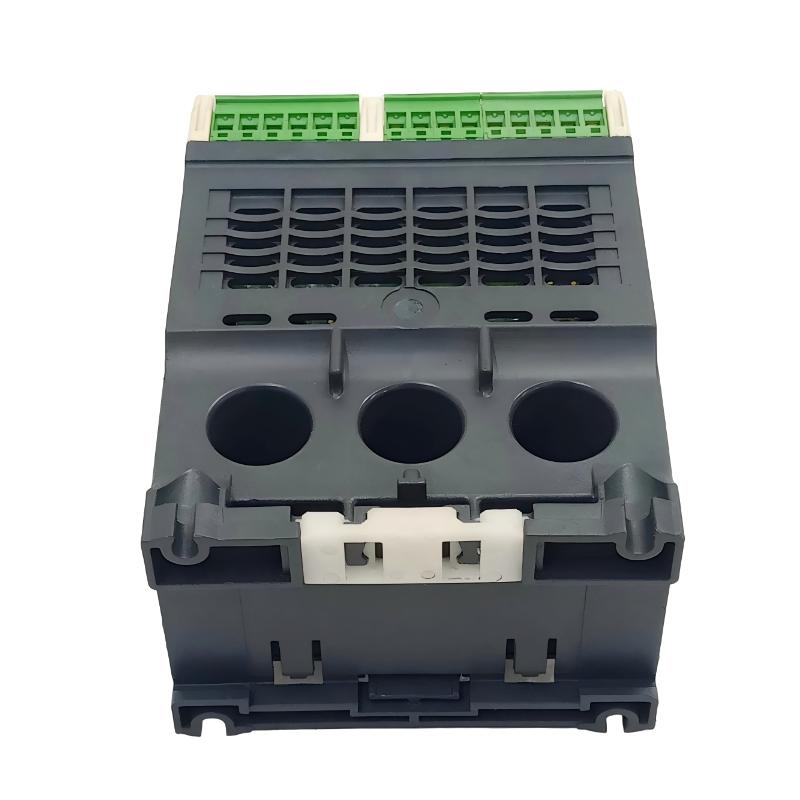

The Schneider LTMR08MBD TeSys T Motor Management Controller is a motor management device for monitoring, controlling, and protecting low-voltage motor applications. It forms part of the TeSys T motor management architecture and works with associated switching and protection equipment in industrial control panels.

LTMR08MBD is suited to motor-driven loads where the control system needs more than a simple start/stop function. Typical equipment includes pumps, conveyors, fans, compressors, mixers, and process machinery. Motor operating information can be monitored by the automation system while protection functions respond to configured operating conditions.

In a typical installation, the controller is positioned within the motor management chain between the automation system and the motor starter. It works with contactors, protection devices, communication components, and field wiring to form a coordinated motor control circuit.

During commissioning or maintenance, attention should be given to motor parameters, control wiring, starter configuration, and communication settings. These items have a direct effect on how the controller interprets motor conditions and executes control commands.

Technical Specifications

Product Features

• TeSys T motor management platform
• Motor monitoring and management functions
• Integrated motor control and protection capabilities
• Suitable for industrial low-voltage motor applications
• Supports integration with automated motor control systems
• Suitable for pumps, fans, conveyors, compressors, and process machinery
• Works with associated TeSys switching and protection components
• Supports motor operating-status monitoring
• Useful for commissioning, diagnostics, and maintenance

Working Principle

The LTMR08MBD manages the operating condition of the connected motor by processing motor-related information and coordinating the motor control circuit.

PLC / Control System → LTMR08MBD → Motor Starter / Contactor → Motor

A start or stop command originates from the PLC, HMI, or other control-system equipment and is handled through the motor management architecture. The LTMR08MBD monitors the motor circuit and communicates operating or protection information back to the control system.

If an abnormal operating condition occurs, the controller can generate the corresponding protection or diagnostic status according to its configured parameters. Troubleshooting should therefore cover the controller, motor starter, wiring, motor parameters, and the motor itself rather than treating every alarm as a controller failure.

Role in a TeSys T Motor Control Architecture

The LTMR08MBD serves as the motor management element within the TeSys T control structure, linking motor operating information and control functions with the higher-level automation system.

Automation Controller → LTMR08MBD → Switching / Protection Equipment → Motor

Industrial Applications

Installation and Maintenance

1. Verify that the LTMR08MBD matches the intended TeSys T motor management configuration.
2. Confirm the rated motor data before entering or checking controller parameters.
3. Inspect the motor control schematic before connecting control and power circuits.
4. Check all control and communication connections for secure termination.
5. Verify the associated contactor or starter configuration.
6. Confirm the motor power wiring and phase connections before energizing the system.
7. Check configured protection parameters against the actual motor application.
8. Verify communication settings when the controller is connected to a PLC or supervisory system.
9. Review diagnostic information before replacing the controller following a motor fault.
10. If the motor fails to start, check the command path, controller status, starter, power circuit, and motor separately.
11. When replacing the controller, record the existing configuration before removing the original unit.
12. Perform a complete start, stop, status, and protection-function test after replacement.

Related Components

Recommended Related Models

Key Advantages

• Combines motor management, monitoring, control, and protection functions.
• Fits within the Schneider TeSys T motor management architecture.
• Suitable for automated industrial motor applications.
• Supports centralized motor status and diagnostic monitoring.
• Can be integrated with associated switching and protection equipment.
• Useful for pumps, conveyors, fans, compressors, and process machinery.

Technical FAQs

What is the primary role of the LTMR08MBD in a motor control panel?

The LTMR08MBD functions as the motor management controller, handling motor monitoring, control, and protection within the TeSys T architecture. It works together with the motor switching and protection components rather than replacing the complete motor starter circuit.

How should a motor fault be investigated when the LTMR08MBD reports an abnormal condition?

First check the diagnostic information and configured motor parameters. Then inspect the motor power circuit, starter or contactor, wiring, and actual motor operating condition. Comparing the controller indication with the physical motor condition helps determine whether the problem is electrical, mechanical, or configuration-related.

What can cause the controller to show normal status while the motor does not start?

A normal controller status does not necessarily confirm that the motor power circuit is functioning. The start command path, contactor operation, control wiring, protection devices, motor feeder, and motor itself should be checked individually.

What information should be retained before replacing an LTMR08MBD?

Record the motor parameters, protection settings, control wiring, communication configuration, and associated starter arrangement. These details are useful for reproducing the original operating configuration and verifying the replacement during commissioning.
