Product Overview

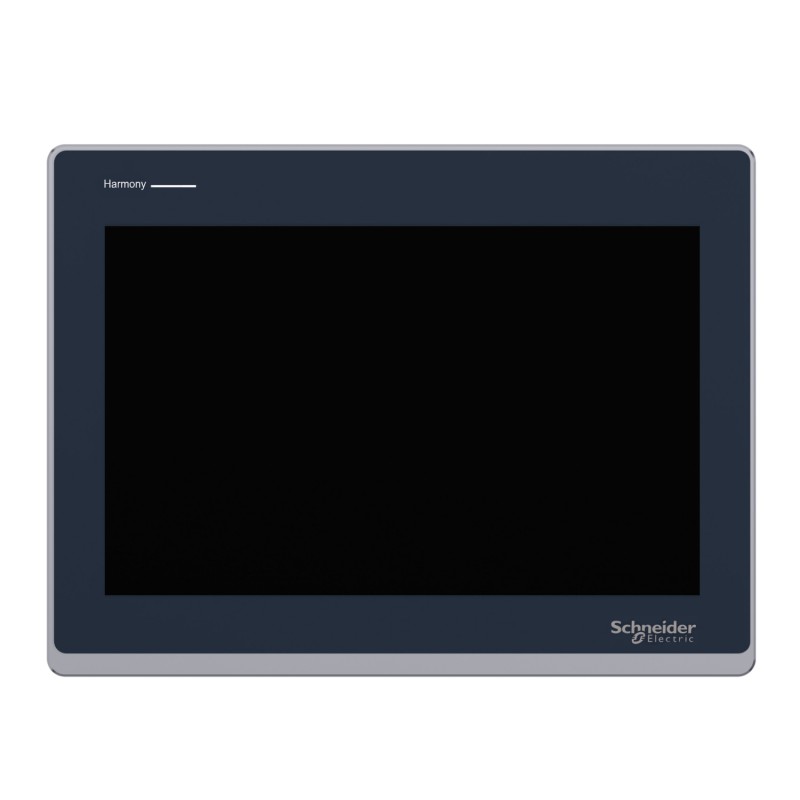

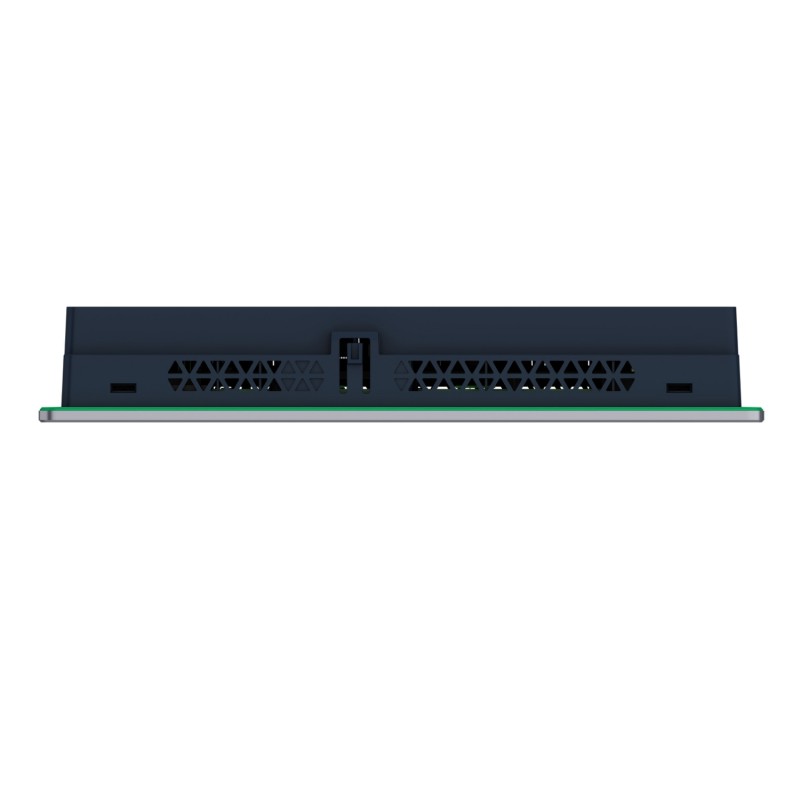

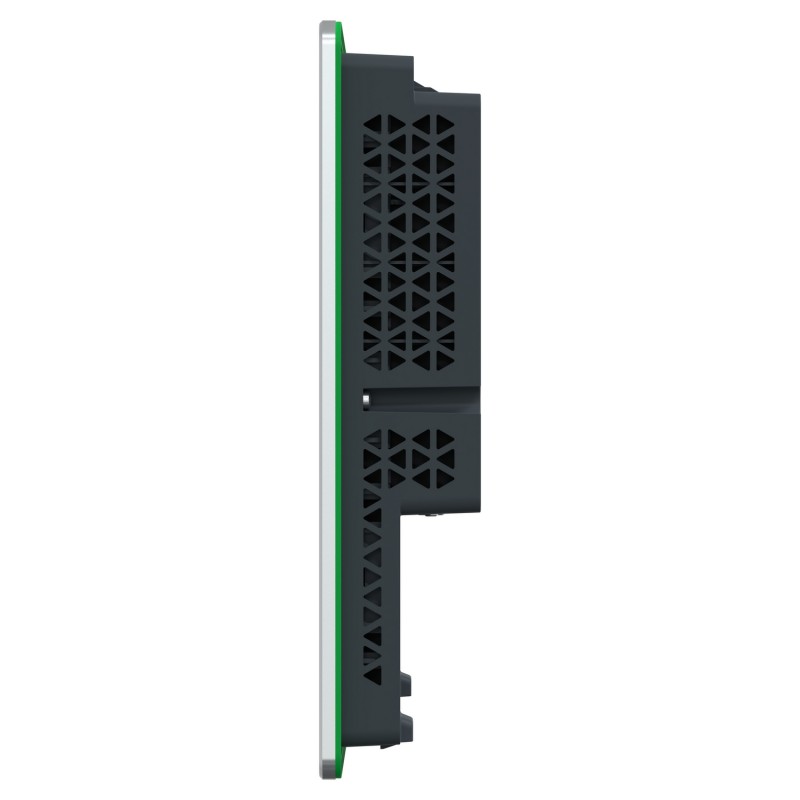

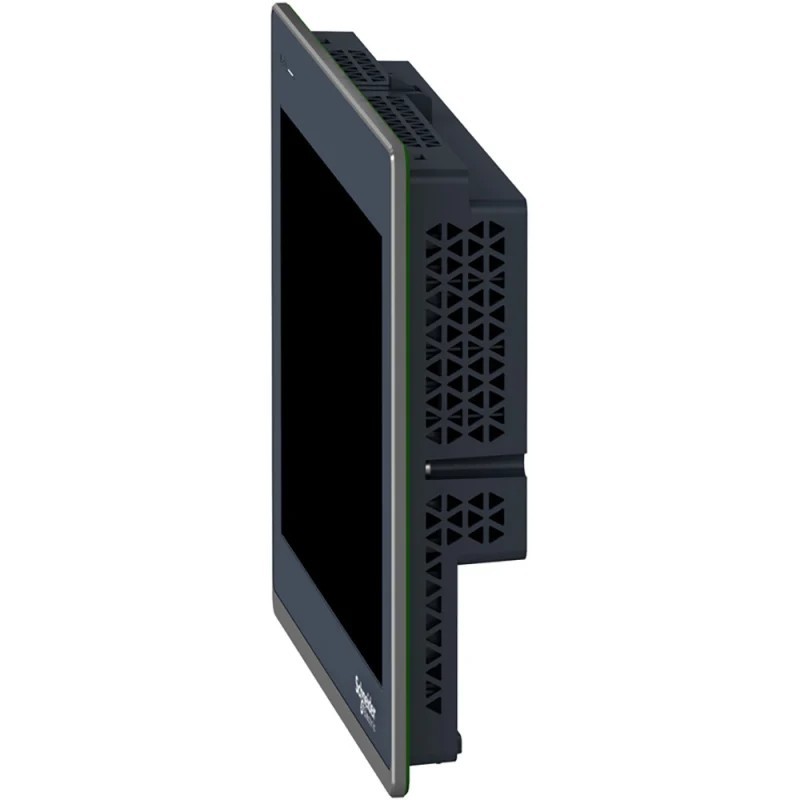

The Schneider Electric HMIST6600 is a 12.1-inch wide touch panel screen in the Harmony ST6 series. It provides a local human-machine interface for industrial equipment, allowing operators to monitor process data, review alarms and interact with machine functions through configured touchscreen pages.

Its 1,280 × 800 pixel WXGA display offers space for multi-section operating screens, trend views, alarm lists and status indicators. This makes the panel suitable for production machinery and process equipment where operators need to see several related operating conditions without switching constantly between screens.

The HMIST6600 supports a 24 V DC power supply, two Ethernet ports, two serial communication interfaces and USB host and device connections. Its analog resistive touchscreen accepts single-touch input, while a multicolor status indicator helps identify the panel’s operating state. HMI applications are developed using compatible EcoStruxure Operator Terminal Expert software. The panel handles visualization and operator input; machine logic and field I/O remain with the connected controller.

Technical Specifications

Product Features

• 12.1-inch wide color display: Provides room for operating values, alarm lists, status indicators and machine controls on the same screen.
• WXGA resolution: The 1,280 × 800 pixel display supports detailed HMI layouts for production and process equipment.
• Single-touch resistive panel: Supports touch-based selection, navigation and data entry through configured screen elements.
• Dual Ethernet ports: Provides network connection options for compatible automation equipment.
• Two serial interfaces: Supports communication with compatible serial devices using the required settings.
• USB host and device connections: Supports applicable peripheral and engineering connections.
• 24 V DC power input: Fits common industrial control-panel power arrangements.
• Multicolor status LED: Indicates the panel’s operating mode.
• Aluminum front panel: Provides a durable operator-facing surface for panel-mounted installations.
• Front-panel protection: Supports use in industrial enclosures when the installation meets the specified conditions.
• Harmony ST6 family compatibility: Shares the product family with smaller and larger display options for different operator-interface requirements.

Working Principle

The HMIST6600 runs an HMI application that defines screen layouts, displayed variables, alarm presentation and operator actions. It communicates with a connected controller or supported device to retrieve process information and send configured commands.

For example, on a production line, the main screen may show equipment status, production counts and active alarms. A maintenance or setup screen may display additional operating values and permitted settings. When an operator selects a screen control or enters a value, the panel transfers the configured input through the selected communication interface. The PLC or machine controller then processes the request according to its application logic.

The Ethernet and serial interfaces support communication with compatible equipment. The actual protocols, data mappings and network arrangement depend on the connected devices and HMI project. The HMIST6600 is an operator terminal rather than a standalone PLC, so machine sequencing and field I/O are handled by the associated control system.

Role in a Harmony ST6 HMI Architecture

The HMIST6600 serves as the visualization and operator-input layer of an industrial automation system. It displays data supplied by the controller and sends configured operator commands through its supported communication interfaces.

Industrial Applications

Installation and Maintenance

1. Verify the model reference: Confirm HMIST6600 and the required communication interfaces before installation.
2. Check the panel cutout: Prepare the specified 295 × 217 mm opening and verify that the mounting arrangement matches the panel design.
3. Inspect the mounting location: Ensure operators can reach the screen comfortably and that the installation permits natural air circulation.
4. Confirm the power supply: Provide a suitable 24 V DC supply and verify polarity and circuit protection before connecting the panel.
5. Isolate power before wiring: Disconnect the supply before installing or removing power and communication cables.
6. Check Ethernet connections: Verify network cabling, connected devices and communication settings for the intended application.
7. Verify serial wiring: Match the COM interface wiring and communication parameters to the connected equipment.
8. Check USB compatibility: Connect only supported peripherals or engineering equipment to the appropriate USB port.
9. Load the HMI application: Transfer a compatible EcoStruxure Operator Terminal Expert project and verify the target device configuration.
10. Test screen navigation: Check touch controls, screen transitions, displayed values and alarm presentation.
11. Verify data exchange: Confirm that the panel receives controller data and sends configured operator commands correctly.
12. Record the configuration: Document the HMI project version, communication settings and maintenance actions for future servicing.

Related Components

Recommended Related Models

Key Advantages

• Provides a 12.1-inch wide color touchscreen for local machine operation.
• Offers WXGA resolution for detailed operating screens and alarm views.
• Supports two Ethernet ports, two serial interfaces and USB connectivity.
• Uses a 24 V DC supply suited to industrial control panels.
• Provides single-touch resistive operation and a multicolor status indicator.
• Belongs to the Harmony ST6 family, with alternative display sizes for different applications.

Technical FAQs

What display resolution does the HMIST6600 support?

The HMIST6600 uses a 1,280 × 800 pixel WXGA display. HMI projects should be configured for this resolution to position text, status indicators and touch controls correctly.

Does the HMIST6600 support multi-touch gestures?

No. Its analog resistive touchscreen supports single-touch operation rather than two-point or multi-touch gestures. HMI screens should therefore use controls that can be operated with a single touch.

How can the HMIST6600 communicate with a PLC?

The panel provides Ethernet and serial communication interfaces. The appropriate connection depends on the PLC’s available ports, supported protocol and the communication settings configured in the HMI project.

What should be considered when replacing an existing HMI with the HMIST6600?

Check the panel cutout, power supply, communication wiring, controller compatibility and HMI project configuration. The replacement project must support the HMIST6600, and the displayed values and operator commands must be mapped correctly to the connected control system.
