Product Overview

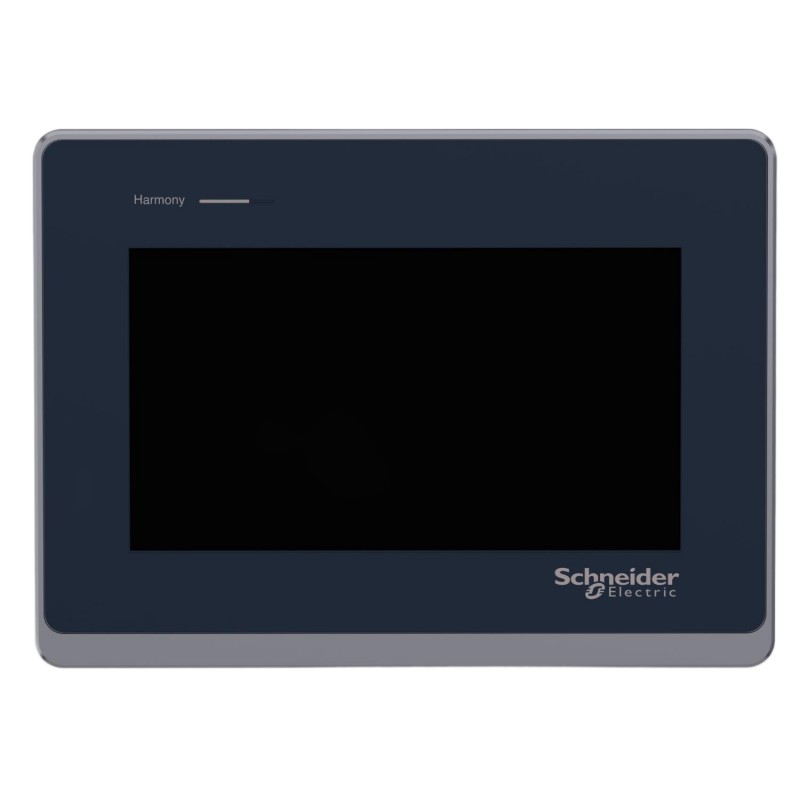

The Schneider Electric HMIST6400 is a 7-inch wide-format touch panel screen in the Harmony ST6 series. It provides a local operator interface for industrial machines, allowing operators to monitor operating conditions, view alarms and interact with configured HMI screens without requiring a computer at the machine.
The 800 × 480 pixel color display is suitable for equipment that needs more screen space than a compact 4.3-inch terminal can provide. Machine builders can organize operating values, status indicators, alarm lists and touch controls across a single interface, making it useful for packaging machinery, material-handling equipment and compact production systems.
The HMIST6400 operates from a 24 V DC supply and supports Ethernet, serial communication and USB connections. It uses a single-touch resistive panel and runs HMI applications developed with compatible EcoStruxure Operator Terminal Expert software. The panel handles visualization and operator input; machine sequencing and field I/O are managed by the connected controller.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | HMIST6400 |
| Product Series | Harmony ST6 |
| Product Type | Touch Panel Screen |
| Display Size | 7-inch wide |
| Display Type | Color TFT LCD |
| Display Resolution | 800 × 480 pixels (WVGA) |
| Effective Display Area | 154.08 × 85.92 mm |
| Display Colors | 16 million colors |
| Touch Panel | Single-touch analog resistive |
| Backlight | White LED |
| Backlight Service Life | 50,000 hours or more under specified test conditions |
| Brightness Control | 16 levels |
| Rated Supply Voltage | 24 V DC |

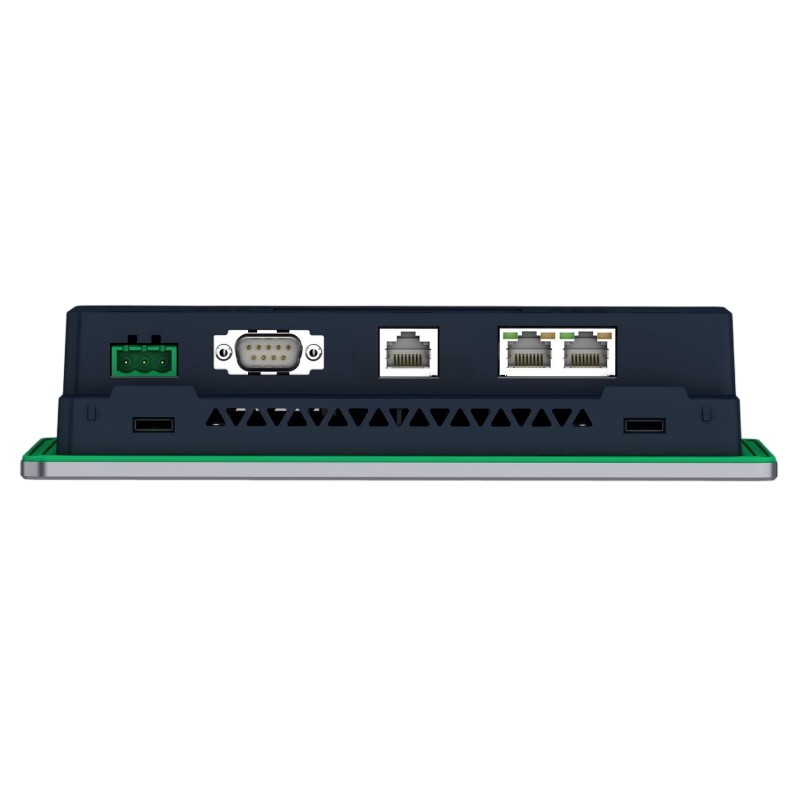

| Ethernet Interfaces | 2 Ethernet ports |
| Serial Interfaces | 2 COM interfaces |

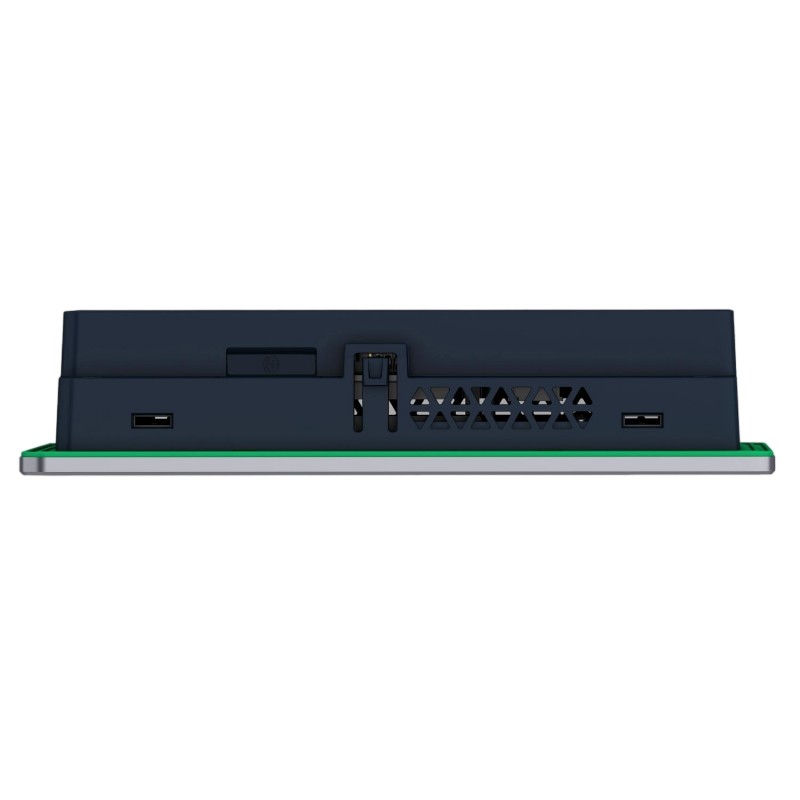

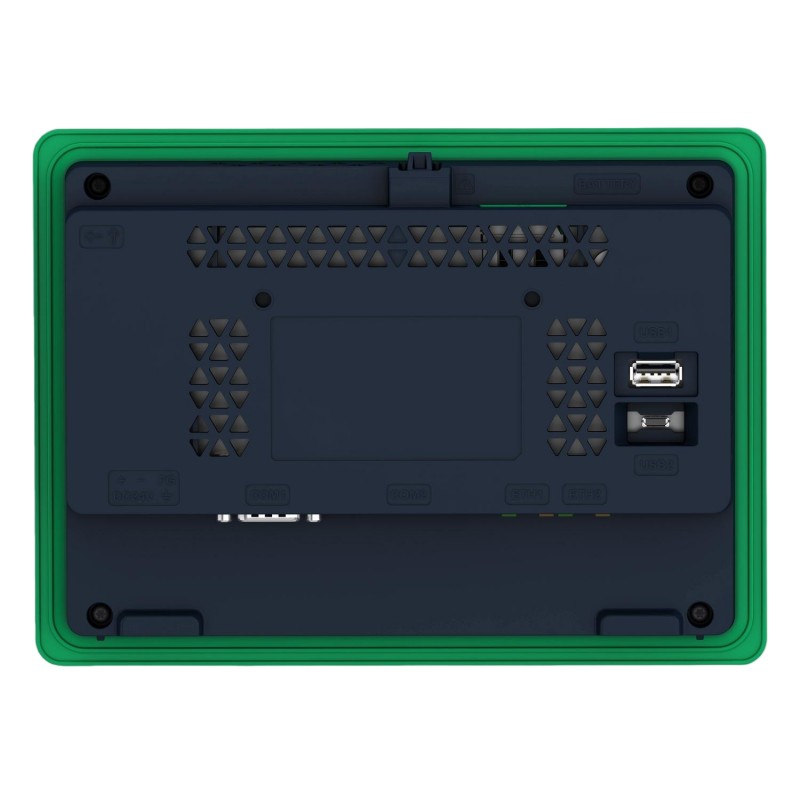

| USB Interfaces | 1 USB host port and 1 USB device port |
| Programming Software | EcoStruxure Operator Terminal Expert |
| Mounting Method | Panel mounting |
| Panel Cutout | 190 × 135 mm |
| Dimensions | 153 × 206 × 45 mm |
| Weight | 0.8 kg |
Product Features
- 7-inch color touchscreen: Provides additional display space for machine status, alarm information and operator controls.
- WVGA resolution: The 800 × 480 pixel display supports structured HMI layouts for compact and medium-sized machines.
- Resistive touch operation: Supports single-touch selection of configured buttons, menus and input fields.
- Dual Ethernet connectivity: Two Ethernet ports support network connections for compatible automation devices.
- Serial communication: Two COM interfaces support connections to compatible serial devices.
- USB connectivity: USB host and device ports support applicable peripherals and engineering connections.
- 24 V DC power input: Fits common industrial control-panel power arrangements.
- Protected front panel: The front panel provides IP65F protection when installed under the specified conditions.
- Status indication: A multicolor status LED helps indicate the panel’s operating state.
- HMI project support: Compatible EcoStruxure Operator Terminal Expert projects can be used to configure screens, tags and operator interactions.
Working Principle
The HMIST6400 runs the configured HMI application and exchanges data with a connected controller or other supported automation equipment. The application determines which values appear on the display, how screen navigation works and which operator actions are available.
For example, on a packaging machine, the screen may show production counts, operating mode, sensor status and active alarms. An operator can navigate to a setup screen or enter a permitted setpoint. The HMI sends the configured command or value through the selected communication interface, while the controller processes the command and manages the machine sequence.
The two Ethernet ports and serial interfaces provide communication options for compatible devices. The actual protocol, tag mapping and network arrangement depend on the connected equipment and application configuration. The HMIST6400 does not replace the PLC or machine controller responsible for control logic and field I/O.
Role in a Harmony ST6 HMI Architecture
The HMIST6400 acts as the visualization and operator-input layer of a machine automation system. It presents data received from the controller and sends configured operator commands through supported communication connections.
| System Component | Function | Relationship to the HMIST6400 |
|---|---|---|
| HMIST6400 Touch Panel Screen | Displays HMI screens and accepts operator input | Provides the local operator interface |
| PLC or Machine Controller | Executes machine logic and manages field I/O | Supplies process data and processes commands |
| Ethernet Network | Transfers data between compatible automation devices | Uses the panel’s Ethernet interfaces |
| Serial Devices | Exchange data through supported serial protocols | Connect through the COM interfaces |
| USB Peripheral | Supports applicable USB functions | Connects through the USB host port when compatible |
| Engineering Workstation | Develops and transfers HMI projects | Configures screens, tags and application behavior |
| 24 V DC Power Supply | Supplies operating power | Powers the touch panel |
| Alarm Management Logic | Detects and reports machine conditions | Supplies alarm data displayed by the HMI |
| Operator Controls | Provide commands through configured screen elements | Allow interaction with the connected control system |
| Industrial Network Switch | Connects compatible network devices | May be used to extend the machine network where required |
Industrial Applications
| Application | Typical Requirement | Role of the HMIST6400 |
|---|---|---|
| Packaging Machinery | Production monitoring, cycle status and operator commands | Displays machine states, alarms and configured controls |
| Material Handling | Equipment status and sequence visibility | Provides a local interface for connected controllers |
| Automated Assembly | Operator prompts and production-state monitoring | Presents process steps and operator inputs |
| Food and Beverage Equipment | Machine status and operating parameter display | Shows configured process values and alarm information |
| HVAC Equipment | Local monitoring and setpoint entry | Provides access to supported HMI screens |
| Pumping Systems | Operating status, alarms and control commands | Displays controller data and accepts configured inputs |
| Industrial Test Stations | Test progress and operator interaction | Displays test states and results supplied by the controller |
| Machine Retrofit Projects | Replacement of an existing operator terminal | Provides an HMI interface when communications and mounting requirements match |
Installation and Maintenance
- Verify the model reference: Confirm HMIST6400 and the required communication interfaces before installation.
- Check the panel cutout: Prepare the specified 190 × 135 mm opening and confirm that the mounting arrangement matches the installation requirements.
- Inspect the mounting location: Ensure the screen is accessible to operators and that the installation allows sufficient ventilation.
- Confirm the power supply: Provide a suitable 24 V DC supply and verify polarity and circuit protection before connecting the panel.
- Isolate power before wiring: Disconnect the supply before installing or removing power and communication cables.
- Check Ethernet connections: Confirm the network cabling, connected devices and communication settings for the intended application.
- Verify serial wiring: Match the COM interface wiring and communication parameters to the connected equipment.
- Check USB compatibility: Connect only supported peripherals or engineering equipment to the appropriate USB port.
- Load the HMI application: Transfer a compatible EcoStruxure Operator Terminal Expert project and verify the target device configuration.
- Test screen navigation: Check touch controls, screen transitions, displayed values and alarm presentation.
- Verify data exchange: Confirm that the panel receives controller data and sends configured operator commands correctly.
- Record the configuration: Document the HMI project version, communication settings and maintenance actions for future servicing.
Related Components
| Component | Function | Relationship to the HMIST6400 |
|---|---|---|
| PLC or Machine Controller | Executes application logic and manages field devices | Provides the data and command handling behind the HMI |
| Ethernet Switch | Connects compatible network devices | Supports network expansion where required |
| Ethernet Cable | Carries network data | Connects the panel to compatible Ethernet equipment |
| Serial Communication Cable | Connects compatible serial devices | Used with the panel’s COM interfaces |
| USB Cable | Supports applicable device or engineering connections | Used with the corresponding USB interface |
| 24 V DC Power Supply | Supplies operating power | Provides the panel’s DC input |
| EcoStruxure Operator Terminal Expert | Creates and configures HMI applications | Used to develop supported screen projects |
| Schneider HMIST6200 | Harmony ST6 4.3-inch touch panel screen | Smaller-display model in the same series |
| Schneider HMIST6500 | Harmony ST6 10.1-inch touch panel screen | Larger-display model in the same series |
| Schneider HMIST6600 | Harmony ST6 12.1-inch touch panel screen | Larger-format model in the same series |
| Schneider HMIST6700 | Harmony ST6 15.6-inch touch panel screen | Larger-format model in the same series |
Recommended Related Models
| Model | Product Type | Relationship | Selection Consideration |
|---|---|---|---|
| Schneider HMIST6400 | Harmony ST6 Touch Panel Screen | Main product | 7-inch wide display with Ethernet, serial and USB connectivity |
| Schneider HMIST6200 | Harmony ST6 Touch Panel Screen | Smaller-display variant | 4.3-inch screen for compact operator interfaces |
| Schneider HMIST6500 | Harmony ST6 Touch Panel Screen | Larger-display variant | 10.1-inch screen for more extensive HMI layouts |
| Schneider HMIST6600 | Harmony ST6 Touch Panel Screen | Large-format variant | 12.1-inch screen for applications requiring more display space |
| Schneider HMIST6700 | Harmony ST6 Touch Panel Screen | Largest display in this group | 15.6-inch screen for larger operator interfaces |
Key Advantages
- Provides a 7-inch wide color touchscreen for local machine operation.
- Offers 800 × 480 pixel resolution for structured HMI layouts.
- Supports dual Ethernet ports, serial communication and USB connectivity.
- Uses a 24 V DC supply suited to industrial control panels.
- Supports single-touch resistive operation and a multicolor status indicator.
- Belongs to the Harmony ST6 family, with alternative display sizes for different applications.
Technical FAQs
What is the difference between the HMIST6400 and HMIST6200 displays?
The HMIST6400 has a 7-inch wide display with 800 × 480 pixel resolution, while the HMIST6200 has a 4.3-inch wide display with 480 × 272 pixel resolution. The larger HMIST6400 offers more screen space for alarms, operating values and touch controls.
How many Ethernet and serial interfaces does the HMIST6400 provide?
The HMIST6400 provides two Ethernet ports and two COM serial interfaces, along with one USB host port and one USB device port. The usable connection and protocol depend on the connected equipment and application configuration.
Can the HMIST6400 directly control motors and field actuators?
The HMIST6400 is an HMI terminal, not a standalone field-I/O controller. It can display operating information and send configured commands to a compatible PLC or machine controller, which handles control logic and actuators.
What should be checked before replacing another HMI with the HMIST6400?
Check the panel cutout, 24 V DC supply, Ethernet or serial communication requirements, controller compatibility and HMI project configuration. The replacement project must be compatible with the HMIST6400 and correctly map the displayed values and operator commands to the connected system.
