Product Overview

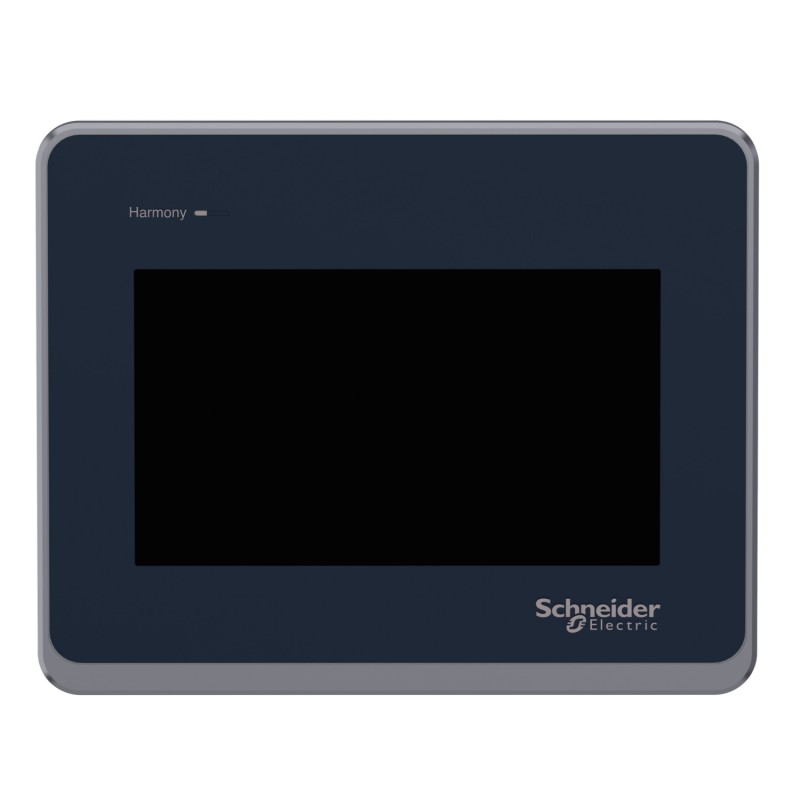

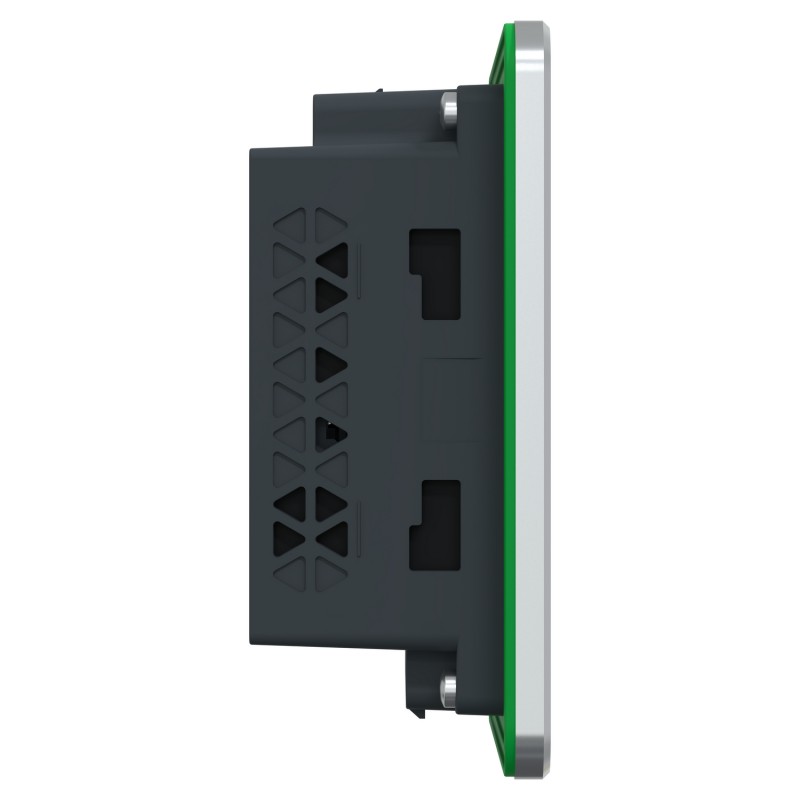

The Schneider Electric HMIST6200 is a 4.3-inch wide-format touch panel screen in the Harmony ST6 series. It provides a local operator interface for viewing machine status, process values, alarms and operating screens on compact industrial equipment.
The panel uses a color TFT LCD with a resistive touchscreen, making it suitable for machine interfaces that rely on clear status displays and straightforward touch-based navigation. Typical applications include packaging equipment, small production machines, material-handling systems and compact process-control stations where operators need access to operating information close to the equipment.

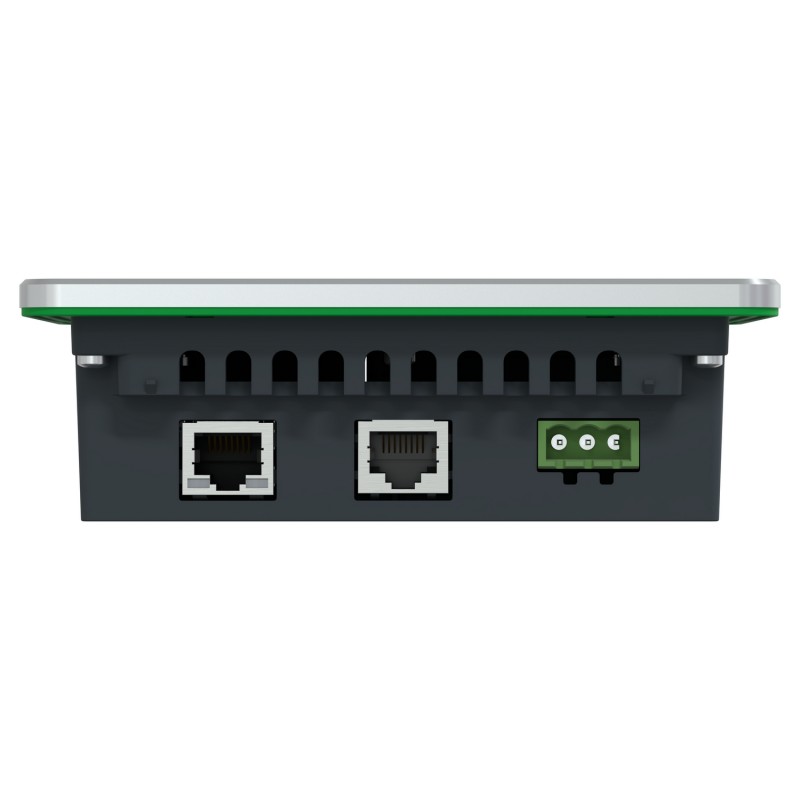

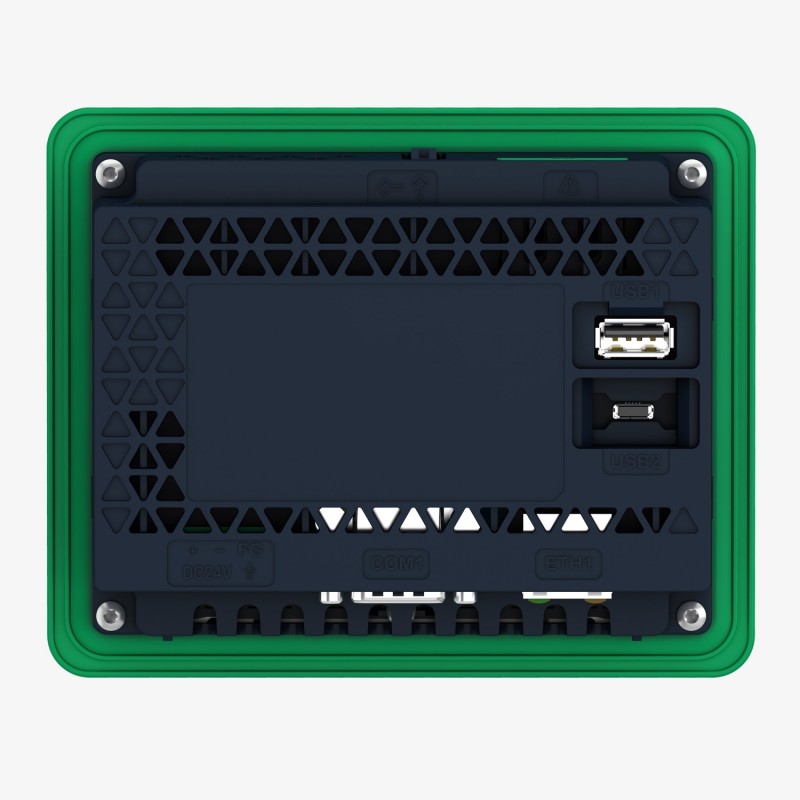

The HMIST6200 supports a 24 V DC power supply and provides one Ethernet interface, one serial communication interface, a USB host port and a USB device port. It runs HMI applications created with compatible EcoStruxure Operator Terminal Expert software. The panel serves as the operator interface; control logic and field I/O depend on the connected automation system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Manufacturer | Schneider Electric |
| Model | HMIST6200 |
| Product Series | Harmony ST6 |
| Product Type | Touch Panel Screen |
| Display Size | 4.3-inch wide |
| Display Type | Color TFT LCD |
| Display Resolution | 480 × 272 pixels |
| Display Colors | 16 million colors |
| Touch Panel | Single-touch analog resistive |
| Backlight | White LED |
| Rated Supply Voltage | 24 V DC |
| Ethernet Interface | 1 Ethernet port, 10/100BASE-TX |
| Serial Interface | 1 COM port |
| USB Interfaces | 1 USB host port and 1 USB device port |
| Cooling Method | Natural air circulation |
| Front Panel Protection | IP65F when installed under the specified conditions |
| Programming Software | EcoStruxure Operator Terminal Expert |
| Panel Cutout | 118.5 × 92.5 mm |
| Dimensions | 108.5 × 134.5 × 43 mm |
| Weight | 0.4 kg |
Product Features
- 4.3-inch wide color display: Presents machine states, alarm messages, process values and operator controls on a compact screen.
- Resistive touchscreen: Supports single-touch interaction for selecting screens, entering values and acknowledging configured messages.
- Ethernet connectivity: Provides a network connection for communication with compatible automation equipment.
- Serial communication: Supports connections to compatible devices through the available COM interface.
- USB host and device ports: Supports applicable USB peripheral and engineering connections.
- 24 V DC power input: Fits common industrial control-panel power arrangements.
- Front-panel protection: The front face provides IP65F protection when correctly installed under the specified conditions.
- Status indication: A multicolor status LED helps operators identify the panel’s operating state.
- HMI application support: Works with compatible EcoStruxure Operator Terminal Expert projects.
- Compact operator interface: Provides local machine interaction without requiring a large-format display.
Working Principle
The HMIST6200 displays the HMI application loaded into the panel. The application defines the screen layout, navigation, displayed values, operator inputs and alarm presentation. When an operator touches a control on the screen, the panel processes the interaction and exchanges the corresponding data with the connected automation system through the configured communication interface.
For example, on a packaging machine, the display can show the current operating mode, cycle status and alarm messages. An operator may select a permitted operating command or adjust a setpoint. The connected controller handles the machine logic and determines how the command affects the equipment.
Ethernet and serial communication allow the panel to exchange data with compatible controllers and devices. The exact tags, protocols and screen behavior depend on the HMI project and the connected control system. The HMIST6200 is an operator terminal rather than a standalone PLC, so machine sequencing and field I/O depend on the associated controller.
Role in a Harmony ST6 HMI Architecture
The HMIST6200 serves as the local visualization and operator-input layer in an industrial automation system. It presents information supplied by a connected controller and sends configured operator commands through the selected communication connection.
| System Component | Function | Relationship to the HMIST6200 |
|---|---|---|
| HMIST6200 Touch Panel Screen | Displays HMI screens and accepts operator input | Provides the local operator interface |
| PLC or Machine Controller | Executes machine logic and manages field I/O | Supplies data and processes operator commands |
| Ethernet Network | Transfers data between compatible devices | Provides Ethernet communication |
| Serial Device | Exchanges data using a supported serial protocol | Connects through the COM interface |
| USB Peripheral | Supports applicable USB functions | Connects to the USB host port when compatible |
| Engineering Workstation | Develops and transfers the HMI project | Used to configure screens and application behavior |
| 24 V DC Power Supply | Supplies operating power | Powers the touch panel |
| Operator Controls | Provide commands through configured screen elements | Allow interaction with the HMI application |
| Alarm and Status Data | Communicates machine conditions and faults | Appears on configured status and alarm screens |
Industrial Applications
| Application | Typical Requirement | Role of the HMIST6200 |
|---|---|---|
| Packaging Machinery | Local cycle monitoring and operator commands | Displays operating status, alarms and configured controls |
| Material Handling | Equipment status and sequence visibility | Provides a local interface for monitoring connected controllers |
| Compact Assembly Machines | Operator prompts and machine-state display | Presents process steps and configured operator inputs |
| Small Process Systems | Local display of process values | Shows data received from the connected control system |
| Pumping Equipment | Operating status and alarm presentation | Displays configured states and operator commands |
| HVAC Equipment | Local status monitoring and setpoint entry | Provides access to configured HMI screens |
| Test Stations | Test sequence visibility and operator input | Displays results and accepts configured commands |
| Industrial Machine Retrofits | Replacement of a compatible operator terminal | Provides a local interface when communications and mounting requirements match |
Installation and Maintenance
- Verify the model reference: Confirm HMIST6200 and the required communication interfaces before installation.
- Check the panel cutout: Prepare the specified panel opening and verify that the mounting arrangement matches the installation requirements.
- Inspect the mounting location: Ensure the panel is accessible to operators and that the installation allows natural air circulation.
- Confirm the power supply: Provide a suitable 24 V DC supply and verify polarity and circuit protection before connecting the panel.
- Isolate power before wiring: Disconnect the supply before installing or removing power and communication cables.
- Check Ethernet wiring: Confirm the network cable, connector and communication settings for the connected controller or device.
- Verify the serial connection: Match the COM interface wiring and communication parameters to the connected equipment.
- Check USB compatibility: Use the USB host and device ports only for supported peripherals and intended engineering connections.
- Load the HMI application: Transfer a compatible EcoStruxure Operator Terminal Expert project and verify the target device configuration.
- Test screen navigation: Check displayed values, touch controls, alarm messages and screen transitions.
- Verify data exchange: Confirm that the panel reads controller data and sends configured operator commands correctly.
- Record the configuration: Document the HMI project version, communication settings and replacement details for future maintenance.
Related Components
| Component | Function | Relationship to the HMIST6200 |
|---|---|---|
| PLC or Machine Controller | Executes application logic and manages field devices | Provides the data and command handling behind the HMI |
| Ethernet Switch | Connects compatible network devices | Supports network communication where required |
| Ethernet Cable | Carries network data | Connects the panel to compatible Ethernet equipment |
| Serial Communication Cable | Connects compatible serial devices | Used with the panel’s COM interface |
| USB Cable | Supports applicable device or engineering connections | Used with the corresponding USB interface |
| 24 V DC Power Supply | Provides operating power | Supplies the panel’s DC input |
| EcoStruxure Operator Terminal Expert | Creates and configures HMI applications | Used to develop supported screen projects |
| Schneider HMIST6400 | Harmony ST6 7-inch touch panel screen | Larger-display model in the same series |
| Schneider HMIST6500 | Harmony ST6 10.1-inch touch panel screen | Larger-display model in the same series |
| Schneider HMIST6600 | Harmony ST6 12.1-inch touch panel screen | Larger-format model in the same series |
| Schneider HMIST6700 | Harmony ST6 15.6-inch touch panel screen | Larger-format model in the same series |
Recommended Related Models
| Model | Product Type | Relationship | Selection Consideration |
|---|---|---|---|
| Schneider HMIST6200 | Harmony ST6 Touch Panel Screen | Main product | 4.3-inch wide display for compact operator interfaces |
| Schneider HMIST6400 | Harmony ST6 Touch Panel Screen | Larger-display variant | 7-inch display for applications needing more screen space |
| Schneider HMIST6500 | Harmony ST6 Touch Panel Screen | Larger-display variant | 10.1-inch display for more extensive HMI layouts |
| Schneider HMIST6600 | Harmony ST6 Touch Panel Screen | Large-format variant | 12.1-inch display for applications with more visualization requirements |
| Schneider HMIST6700 | Harmony ST6 Touch Panel Screen | Largest display in this group | 15.6-inch display for larger operator screens |
Key Advantages
- Provides a compact 4.3-inch wide color touchscreen for local machine operation.
- Supports Ethernet, serial and USB connectivity.
- Uses a 24 V DC supply suited to industrial control panels.
- Offers a resistive touchscreen for straightforward operator interaction.
- Supports HMI projects developed with compatible EcoStruxure Operator Terminal Expert software.
- Belongs to the Harmony ST6 family, which includes larger display options.
Technical FAQs
What is the native display resolution of the HMIST6200?
The HMIST6200 has a 480 × 272 pixel display. HMI screens should be created for the target resolution so that text, status indicators and touch controls are positioned correctly.
Can the HMIST6200 execute PLC logic by itself?
No. It functions as a touch panel screen for visualization and operator input. Machine sequencing, field I/O processing and control decisions are handled by the connected controller or automation equipment.
Which communication connections are available on the HMIST6200?
The panel provides one Ethernet port, one COM serial interface, one USB host port and one USB device port. The actual connection method depends on the connected device and the protocol supported by the HMI application.
What should be checked when replacing an existing operator panel with the HMIST6200?
Check the panel cutout, 24 V DC power connection, communication interface, controller compatibility and HMI project requirements. The replacement project must support the HMIST6200 and correctly map the screens, tags and operator commands to the connected control system.
