Product Overview

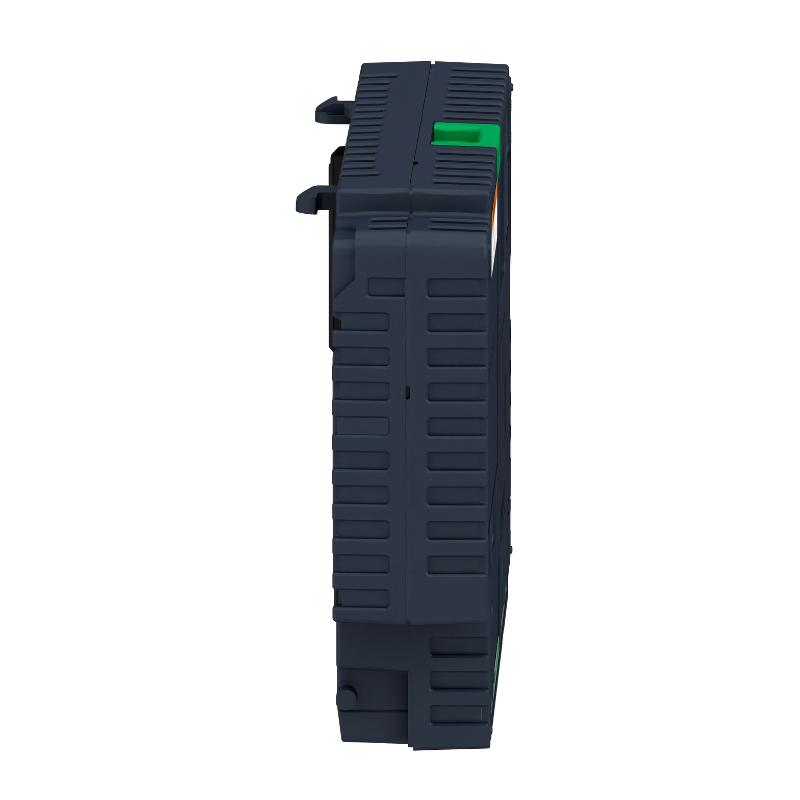

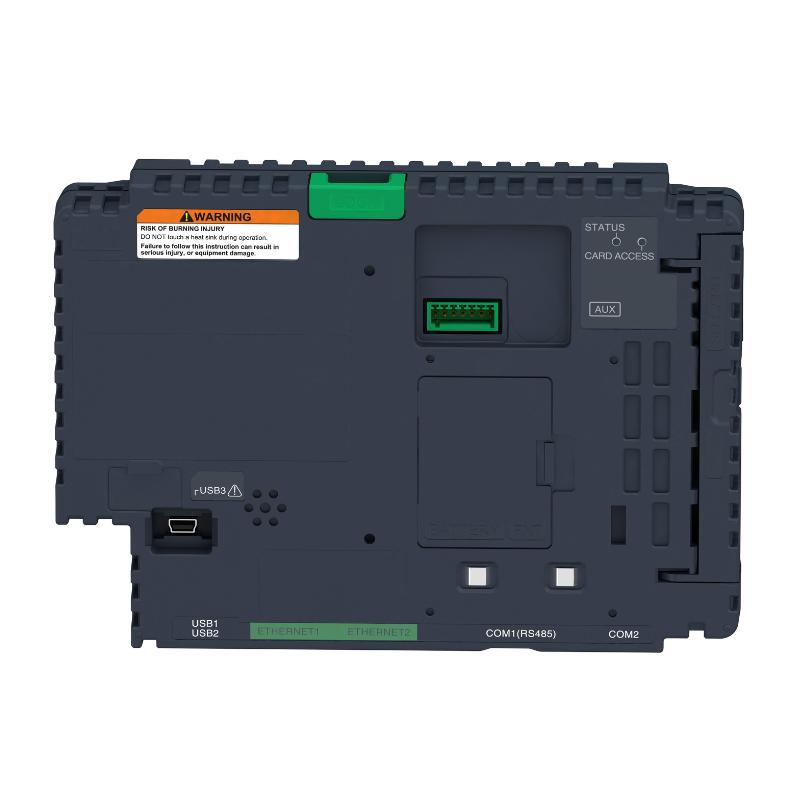

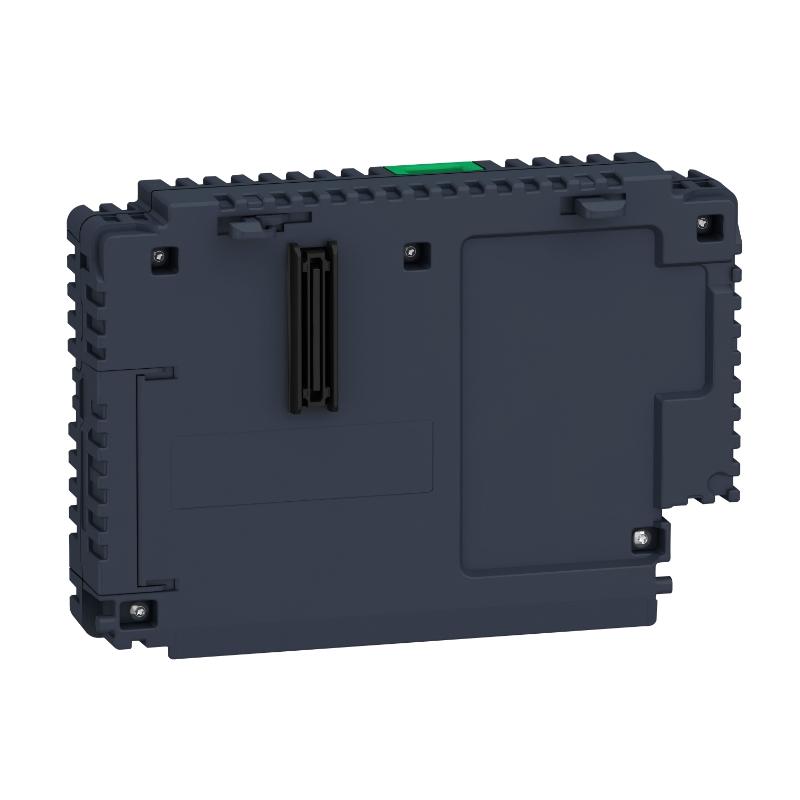

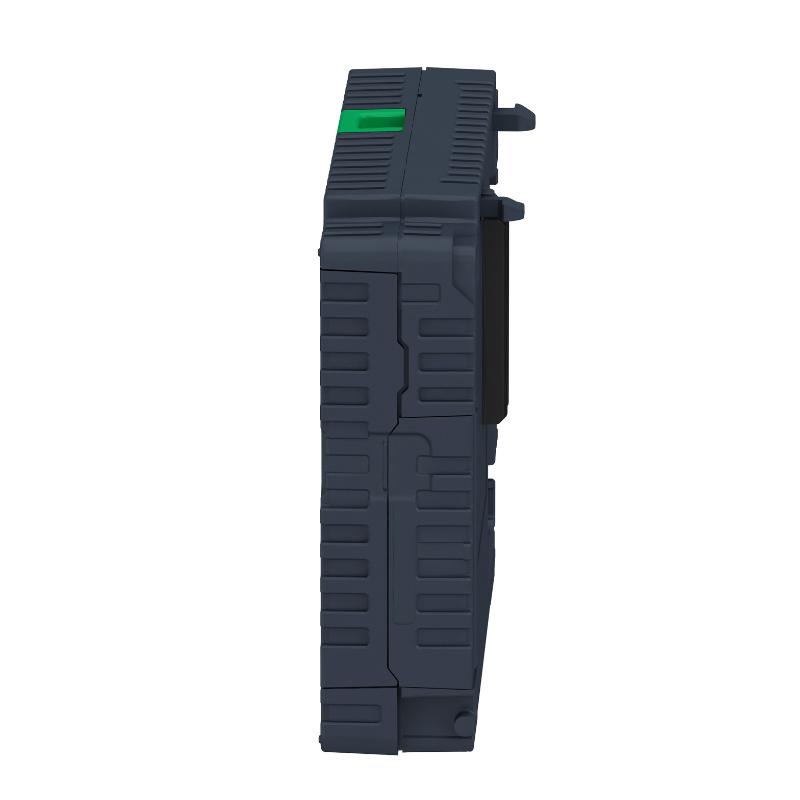

The Schneider HMIG3U is a Harmony GTU base unit for modular HMI installations. It forms the base section of the GTU architecture and is used together with a compatible display module to create a complete operator interface.
The modular arrangement separates the HMI base unit from the display, allowing the operator interface to be assembled according to the requirements of the machine or control cabinet. The HMIG3U can serve as the HMI platform for applications where operators need to monitor equipment, manage parameters, respond to alarms, and interact with machine functions.
In a typical automation architecture, the base unit works with the selected GTU display and communicates with PLCs and other control equipment as part of the operator interface system.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Base unit |
| Product Family | Harmony GTU |
| Model | HMIG3U |
| HMI Architecture | Modular HMI |
| System Function | HMI base unit |
| Display Configuration | Used with compatible Harmony GTU display module |
| Application | Machine and equipment operator interface |
| System Integration | Industrial automation control systems |
| Mounting | Panel-mounted HMI architecture |
| Operator Functions | Monitoring, control, parameter management, and alarm handling |
| Dimensions | 188 × 45 × 131 mm |
| Weight | 0.9 kg |
Product Features
- Harmony GTU modular HMI base unit
- Used with a compatible GTU display module
- Separates the HMI base section from the operator display
- Suitable for industrial machine and equipment applications
- Supports integration into PLC-based automation architectures
- Provides the base platform for a modular operator interface
- Suitable for panel-mounted HMI installations
- Supports centralized operator access to machine information and control functions
Working Principle
The HMIG3U functions as the base section of a modular Harmony GTU HMI. The base unit handles the underlying HMI system functions, while the compatible display module provides the operator-facing visual interface.
The HMI communicates with the connected automation system and exchanges application data with the controller. Information such as machine status, process values, alarms, and configured parameters can then be presented through the attached display.
Operator interactions are handled through the complete HMI assembly. Commands, parameter changes, alarm acknowledgements, and screen navigation are processed by the HMI and exchanged with the control system as required by the application.
Role in a Harmony GTU Modular HMI Control Architecture
| System Element | Role |
|---|---|
| HMIG3U | Provides the base unit for the modular HMI |
| GTU Display Module | Provides the operator-facing display and touchscreen interface |
| PLC | Executes machine logic and control sequences |
| Remote I/O | Collects field signals and controls connected devices |
| Variable Speed Drive | Controls motor operation and supplies drive status |
| Sensors | Provides process and equipment information |
| Industrial Network | Exchanges application data between the HMI and automation devices |
Industrial Applications
| Application | HMIG3U Usage |
|---|---|
| Machine Automation | Forms the base of a modular operator interface |
| Packaging Equipment | Supports HMI-based machine monitoring and control |
| Material Handling | Provides the HMI processing platform for equipment operation |
| Process Equipment | Supports operator access to process information and controls |
| Pump Systems | Forms part of the operator interface for pump monitoring |
| Motor Control Panels | Supports HMI interaction with motor and drive systems |
| Production Lines | Provides the base unit for centralized machine operator interfaces |
Installation and Maintenance
- Confirm compatibility between the HMIG3U and the selected Harmony GTU display module before installation.
- Install the base unit according to the required modular HMI mounting arrangement.
- Secure the HMI assembly properly to prevent movement during machine operation.
- Verify connections between the base unit, display module, and control-system network.
- Route communication wiring away from high-power motor and switching cables where practical.
- Check power connections before applying power to the HMI system.
- Verify communication between the HMI and connected PLC during commissioning.
- Confirm that the configured HMI application loads correctly through the selected display module.
- Test operator commands to ensure they reach the intended control functions.
- Check alarm display and acknowledgement functions during commissioning.
- Keep the display and accessible HMI surfaces clean during routine maintenance.
- Place the connected machine and control system in a safe state before performing maintenance or replacing HMI components.
Compatible System Components
| Component | Function in the System |
|---|---|
| Harmony GTU Display Module | Provides the operator-facing display for the HMIG3U |
| Schneider PLC | Executes control logic and exchanges application data with the HMI |
| Schneider Remote I/O | Handles distributed field input and output signals |
| Schneider Variable Speed Drive | Provides motor control and operating feedback |
| Schneider Contactors and Protection Devices | Controls and protects electrical loads |
| Industrial Network Devices | Supports communication between automation equipment |
| Machine Sensors | Supplies process and equipment status information |
Recommended Related Models
| Model | Product Category | Typical Use |
|---|---|---|
| HMIG2U | Harmony GTU Base Unit | Modular HMI base unit applications |
| HMIG3U | Harmony GTU Base Unit | Modular HMI base unit applications |
| HMIDT551 | Harmony GTU Advanced Touchscreen Panel | Advanced GTU operator interface applications |
| HMIDT952 | Harmony GTU Flat Screen | Larger GTU operator interface applications |
Key Advantages
- Modular Harmony GTU architecture
- Separate base unit and display configuration
- Suitable for industrial HMI applications
- Supports configurable operator interface arrangements
- Integrates with PLC-based control architectures
- Suitable for machine and equipment monitoring and control
Technical FAQs
What is the Schneider HMIG3U?
The HMIG3U is a Harmony GTU base unit used as part of a modular HMI system. It works with a compatible GTU display module to form the operator interface.
Is the HMIG3U a complete standalone touchscreen HMI?
No. The HMIG3U is the base unit within the modular Harmony GTU architecture. A compatible display module is required for the operator-facing interface.
What is the role of the HMIG3U in a machine control system?
It provides the base platform for the modular HMI and works with the display module and connected automation equipment to support operator monitoring and control functions.
What applications can use the HMIG3U?
The HMIG3U can be used as part of modular HMI installations for machine automation, packaging equipment, material handling, process equipment, pump systems, motor control panels, and production lines.
