Product Overview

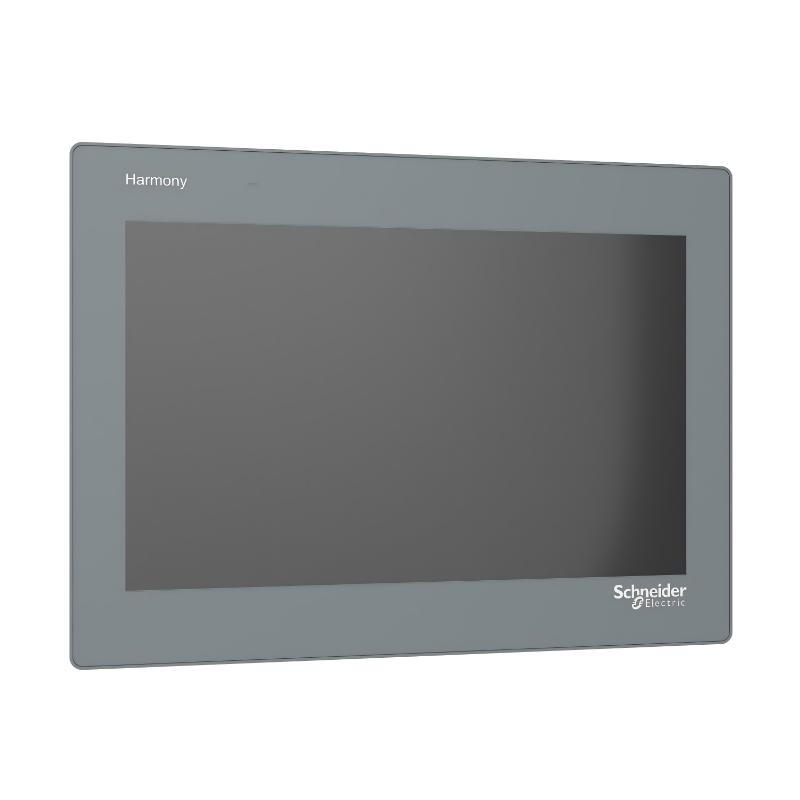

The Schneider HMIET6600 is a Harmony ET6 wide screen touch panel for machine and equipment operator interfaces. Its 12-inch display provides additional screen space for applications that need to show process values, machine status, alarms, and operator controls together.
The HMIET6600 can be installed as the operator interface for PLC-based automation systems, allowing personnel to monitor equipment and perform routine control tasks from a centralized touchscreen. It is suitable for applications where several operating functions need to remain accessible without relying on multiple physical control devices.
In a typical machine installation, the panel can be used for equipment status pages, parameter adjustment, alarm handling, production monitoring, and access to different machine functions.
Technical Specifications
| Parameter | Specification |
|---|---|
| Product Type | Wide screen touch panel |
| Product Family | Harmony ET6 |
| Model | HMIET6600 |
| Screen Size | 12″ |
| Display Type | Wide screen |
| User Interface | Touchscreen |
| Application | Machine and equipment operator interface |
| Mounting | Panel mounting |
| HMI Function | Operator control and monitoring |
| Display Application | Process values, alarms, status information, and control screens |
| System Integration | PLC and industrial automation control systems |
| Dimensions | 311 × 50 × 233 mm |
| Weight | 1.62 kg |
Product Features
- 12-inch wide screen format for industrial operator interfaces
- Touchscreen operation for direct interaction with machine functions
- Part of the Harmony ET6 HMI platform
- Suitable for displaying multiple operating parameters and status values
- Supports alarm monitoring and operator interaction
- Panel-mounted format for machine and control cabinet installation
- Suitable for PLC-based automation architectures
- Additional screen area for applications with multiple operator functions
Working Principle
The HMIET6600 operates as the visual and interactive layer between the operator and the automation control system. The configured HMI application displays information received from connected controllers, allowing operating conditions to be viewed through dedicated screens.
When an operator touches a command, enters a value, or selects a screen function, the HMI processes the interaction and exchanges the corresponding data with the control system. This can be used for equipment commands, parameter changes, alarm acknowledgement, and navigation between operating pages.
During production, the panel can continuously present machine conditions and process information while keeping commonly used control functions available from the touchscreen.
Role in a Harmony ET6 HMI Control Architecture
| System Element | Role |
|---|---|
| HMIET6600 | Provides the touchscreen operator interface |
| PLC | Executes machine logic and control sequences |
| Remote I/O | Collects field signals and controls connected devices |
| Variable Speed Drive | Controls motor operation and provides operating feedback |
| Sensors | Supplies process and equipment information |
| Actuators | Performs physical machine operations commanded by the control system |
| Industrial Network | Exchanges application data between the HMI and automation devices |
Industrial Applications
| Application | HMIET6600 Usage |
|---|---|
| Machine Automation | Operator control, machine status display, and alarm handling |
| Packaging Equipment | Monitoring production conditions and adjusting operating parameters |
| Material Handling | Displaying conveyor and handling equipment status |
| Process Equipment | Viewing process information and operating conditions |
| Pump Systems | Monitoring pump status and adjusting control parameters |
| Motor Control Panels | Centralized display of motor and drive information |
| Production Lines | Monitoring multiple machine functions from one operator interface |
Installation and Maintenance
- Install the HMI in a suitable control cabinet, machine enclosure, or dedicated operator station.
- Confirm the required panel opening before starting mechanical installation.
- Secure the panel firmly to prevent movement caused by machine vibration.
- Maintain appropriate clearance around the installed unit for wiring and service access.
- Route communication wiring away from high-power motor and switching cables where practical.
- Check power and communication connections before commissioning.
- Verify communication between the HMI and connected PLC during startup.
- Confirm that displayed process values correspond to the intended controller variables.
- Test touchscreen commands to ensure each control operates the intended machine function.
- Check alarm display and acknowledgement functions during commissioning.
- Keep the touchscreen surface clean and avoid using sharp objects on it.
- Place the machine and control system in a safe state before carrying out maintenance or electrical work.
Compatible System Components
| Component | Function in the System |
|---|---|
| Schneider PLC | Executes control logic and exchanges application data with the HMI |
| Schneider Remote I/O | Handles distributed field input and output signals |
| Schneider Variable Speed Drive | Provides motor control and operating feedback |
| Schneider Contactors and Protection Devices | Controls and protects electrical loads |
| Industrial Ethernet Devices | Supports communication within the automation architecture |
| Machine Sensors | Supplies process and equipment status information |
| Motor Starters | Provides motor switching and control functions |
Recommended Related Models
| Model | Product Category | Typical Use |
|---|---|---|
| HMIET6401 | Harmony ET6 Wide Screen Touch Panel | Compact operator interface applications |
| HMIET6500 | Harmony ET6 Wide Screen Touch Panel | 10-inch class operator interface applications |
| HMIET6501 | Harmony ET6 Wide Screen Touch Panel | 10-inch class operator interface applications |
| HMIET6600 | Harmony ET6 Wide Screen Touch Panel | 12-inch class operator interface applications |
| HMIDT952 | Harmony GTU Flat Screen | Larger industrial HMI applications |
Key Advantages
- 12-inch wide screen operator interface
- Direct touchscreen operation
- Suitable for PLC-based machine control
- More display space for multiple operating functions
- Centralized access to machine information and controls
- Suitable for panel-mounted industrial applications
Technical FAQs
What type of HMI is the Schneider HMIET6600?
The HMIET6600 is a Harmony ET6 wide screen touch panel for industrial machine and equipment operator interface applications.
What is the advantage of using a 12-inch screen for machine operation?
The larger display area allows more process information, status indicators, alarms, and operator controls to be arranged on the same application screen, which can be useful for machines with multiple operating functions.
Can the HMIET6600 be used in a PLC-based control architecture?
Yes. It can serve as the operator interface within a PLC-based automation system, allowing operators to view application information and interact with configured control functions.
What types of equipment can use the HMIET6600?
The panel is suitable for machine automation, packaging equipment, material handling systems, process equipment, pump systems, motor control panels, and production lines.
